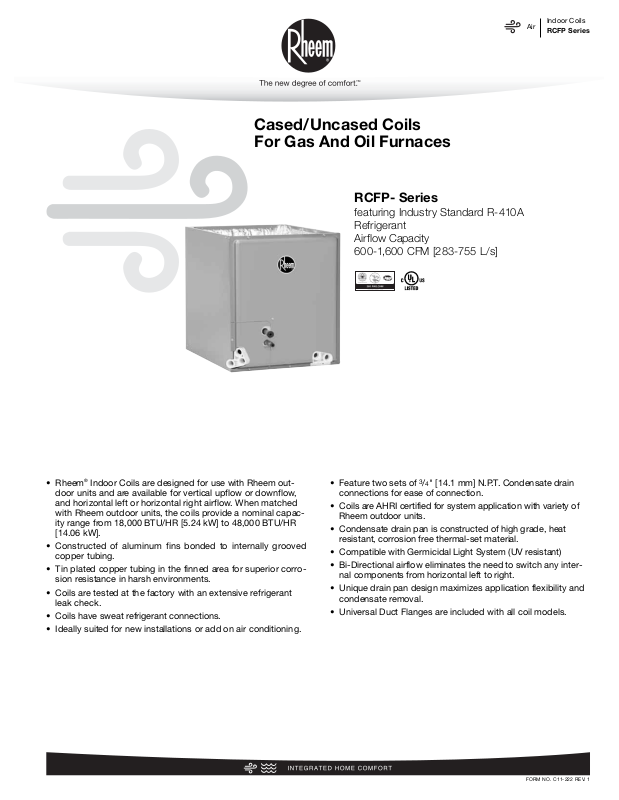

Rheem RCFP Specification
Cased/Uncased Coils
For Gas And Oil Furnaces
FORM NO. C11-222 REV. 1
RCFP- Series
featuring Industry Standard R-410A
Refrigerant
Airflow Capacity
600-1,600 CFM [283-755 L/s]
• Rheem
®
Indoor Coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow,
and horizontal left or horizontal right airflow. When matched
with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 48,000 BTU/HR
[14.06 kW].
• Constructed of aluminum fins bonded to internally grooved
copper tubing.
• Tin plated copper tubing in the finned area for superior corro-
sion resistance in harsh environments.
• Coils are tested at the factory with an extensive refrigerant
leak check.
• Coils have sweat refrigerant connections.
• Ideally suited for new installations or add on air conditioning.
• Feature two sets of
3
/4" [14.1 mm] N.P.T. Condensate drain
connections for ease of connection.
• Coils are AHRI certified for system application with variety of
Rheem outdoor units.
• Condensate drain pan is constructed of high grade, heat
resistant, corrosion free thermal-set material.
• Compatible with Germicidal Light System (UV resistant)
• Bi-Directional airflow eliminates the need to switch any inter-
nal components from horizontal left to right.
• Unique drain pan design maximizes application flexibility and
condensate removal.
• Universal Duct Flanges are included with all coil models.
Air
Indoor Coils
RCFP Series
2
Air
Table of Contents
RCFP Series
TABLE OF CONTENTS
Model Number Identification ............................................................................3
Coil Specifications ..........................................................................................3
Coil Dimensions and Weights ..........................................................................4
Accessories ................................................................................................5-6
3
Model Number Identification

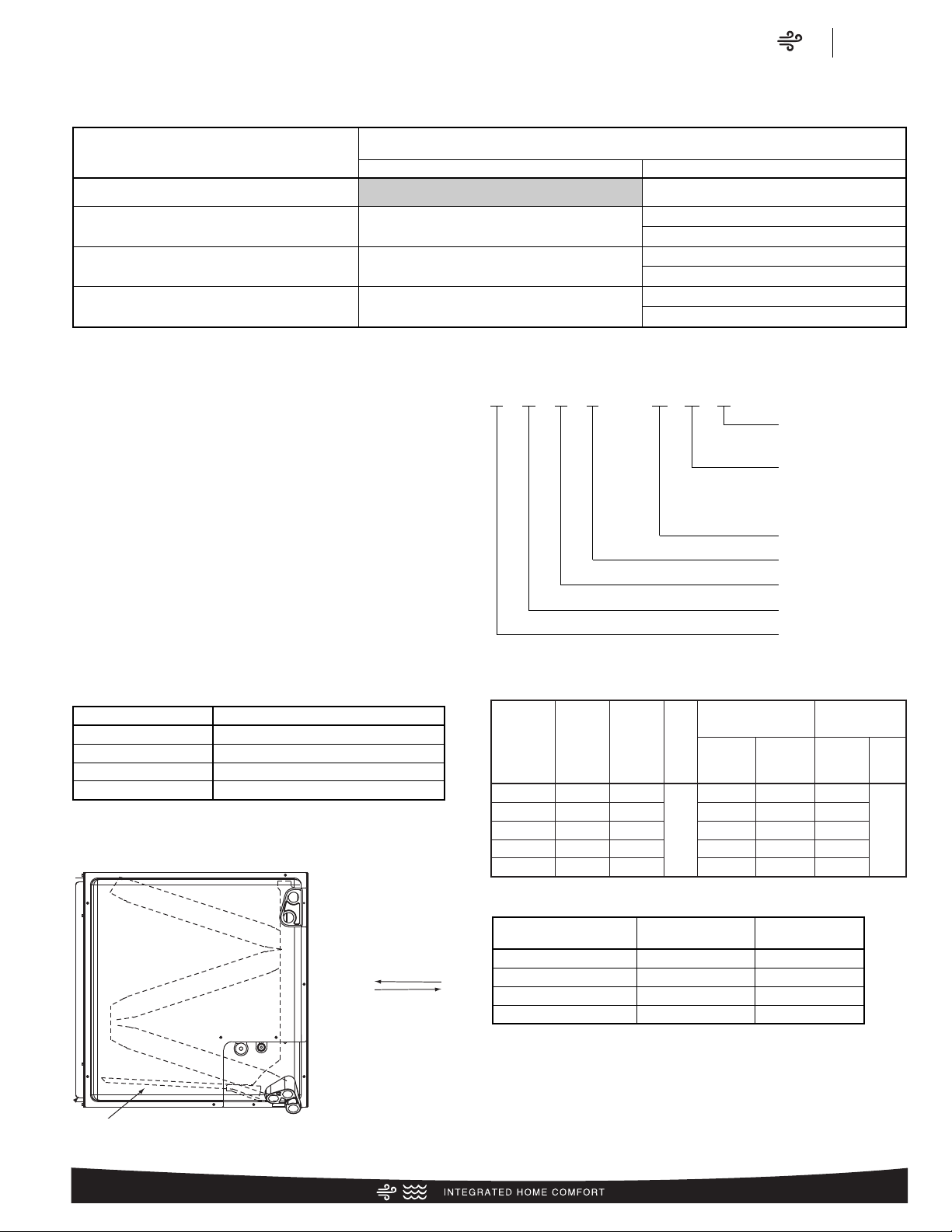

Table 1: Coil Specifications/Airflow Pressure Drop
NOTE: Represents Coil-Only Airflow Ratings
[ ] Designates Metric Conversions
Coil
Model
RCFP
Approx.
Design
Air Flow
CFM [L/s]
Range
Face
Area
Sq. Ft.
[m
2
]
Fins-in.
Rows
Deep
Static Pressure Drop Through Wet Cooling Coil [kPa] (Inches W.C.) CFM [L/s]
600
[285]
700
[330]
800
[380]
900
[425]
1000
[470]
1100
[519]
1200
[565]
1300
[614]
1400
[660]
1500
[708]
1600
[755]
1700
[802]
1800
[850]
1900
[897]
2417
600/1000
[283/472]
4.56
[0.42]
16/2
.15
[.039]
.19
[.049]
.23
[.059]
.30
[.076]
.38
[.096]
.45
[.113]
— — — — — — — —
4821
1200/1800
[566/850]
8.55
[0.79]
16/2 — — — — — —
.22
[.056]
.25
[.063]
.28
[.071]
.32
[.081]
.36
[.092]
.41
[.103]
— —
4824
1200/1800
[566/850]
8.55
[0.79]
16/2 — — — — — —
.22
[.056]
.25
[.063]
.28
[.071]
.32
[.081]
.32
[.081]
.41
[.103]
— —
HIGH EFFICIENCY COOLING COILS
3621
900/1400
[424/661]
5.70
[0.53]
16/2 — —
.15
[.038]
.18
[.047]
.23
[.058]
.27
[.069]
.31
[.080]
.37
[.094]
— — — — — —
3617
900/1400
[424/661]
5.70
[0.53]
16/2 — —
.17
[.043]
.21
[.053]
.26
[.064]
.31
[.080]
.36
[.092]
.41
[.103]
— — — — — —
Available Models of RCFP Coils
RCFP-HM2417CC RCFP-HU3621CU
RCFP-HM3617CC RCFP-HU4824CU
RCFP-HM4821CC RCFP-HU2417TU
RCFP-HM3621CC RCFP-HU3617TU
RCFP-HM4824CC RCFP-HU4821TU
RCFP-HU2417CU RCFP-HU3621TU
RCFP-HU3617CU RCFP-HU4824TU
RCFP-HU4821CU
Air
Model I.D./Coil Specifications
RCFP Series
RCFP—HM2414AC
Gas/Oil Furnace Coil
C = Cased
U = Uncased
Design Variation
A = 1st Design
B = 2nd Design
C = 3rd Design
T = Tin plated copper tubing in finned area
Coil Size
14 = 14" [356 mm]
17 = 17.5" [431.8 mm]
21 = 21" [533.4 mm]
Nominal Capacity
24 = 18,000 to 24,000 BTU/HR
[5.27 to 7.03 kW]
36 = 30,000 to 36,000 BTU/HR
[8.79 to 10.55 kW]
48 = 42,000 to 48,000 BTU/HR
[12.31 to 14.06 kW]
Cased Coil Airflow:
HM = A/C or Heat Pump, Multi-Position
Uncased Coil Airflow:
HU = A/C or Heat Pump, Upflow/Downflow
Refrigerant/Metering Device
P = R-410A/Fixed Orifice
F = Product Generation
Classification
C = Coil
