FORM NO. S11-933 REV. 2
Supersedes Form No. S11-933 Rev. 1
RSNA-B SUPER HIGH EFFICIENCY 13-SEER SERIES
NOMINAL SIZES 2-5 TONS [7.0-17.6 kW]
PACKAGE
AIR CONDITIONERS
2
TABLE OF CONTENTS
Unit Features & Benefits ..............................................................................3-4
Model Identification Options ..........................................................................5-6
General Data
RSNA-B Series ........................................................................................7-9
General Data Notes ......................................................................................10
Performance Data
RSNA-B Series ....................................................................................11-13
Airflow Performance
RSNA-B Series ....................................................................................14-15
Electrical Data
RSNA-B Series..........................................................................................16
Electric Heater Kits........................................................................................17
Dimensional Data ....................................................................................18-19
Typical Installations ......................................................................................20
Accessories ............................................................................................21-30

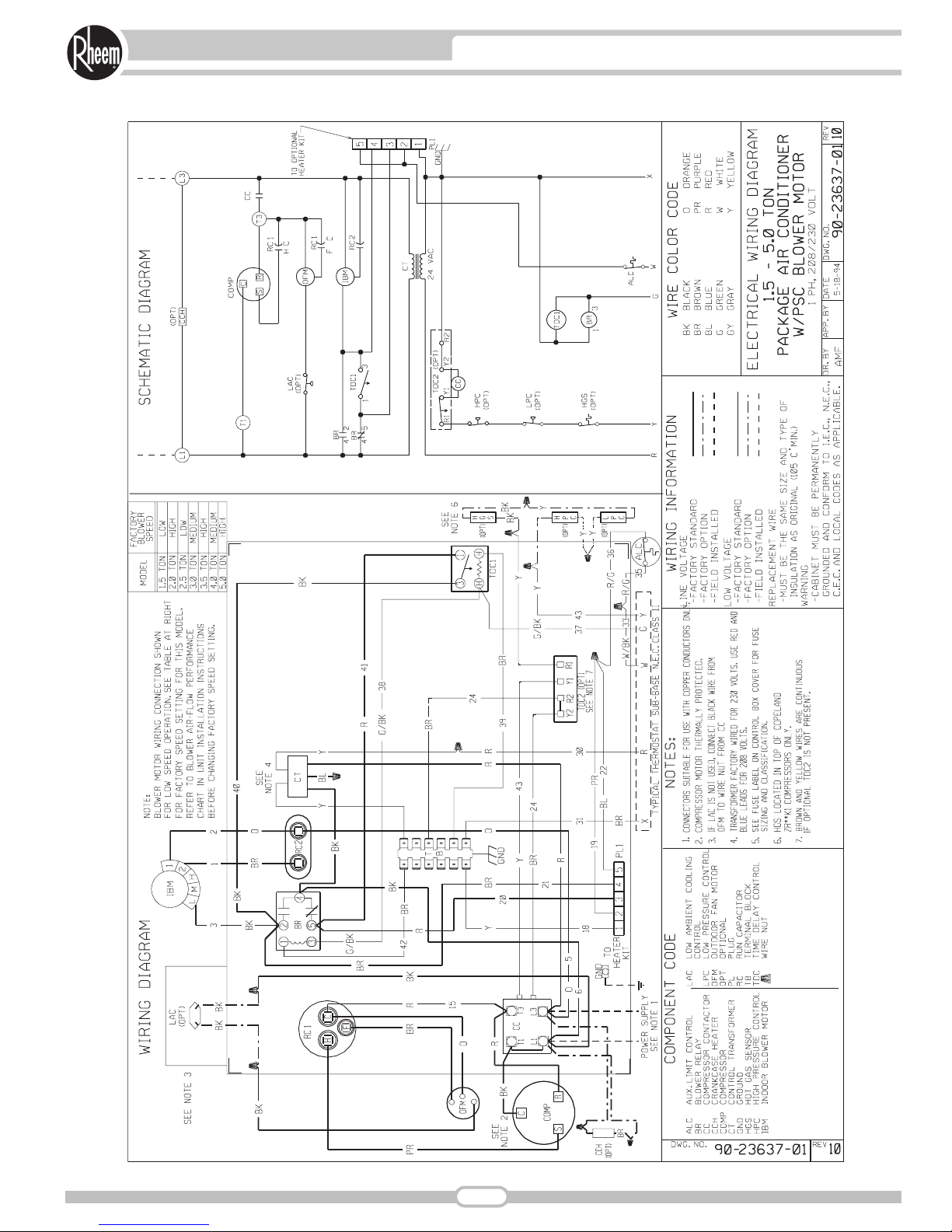

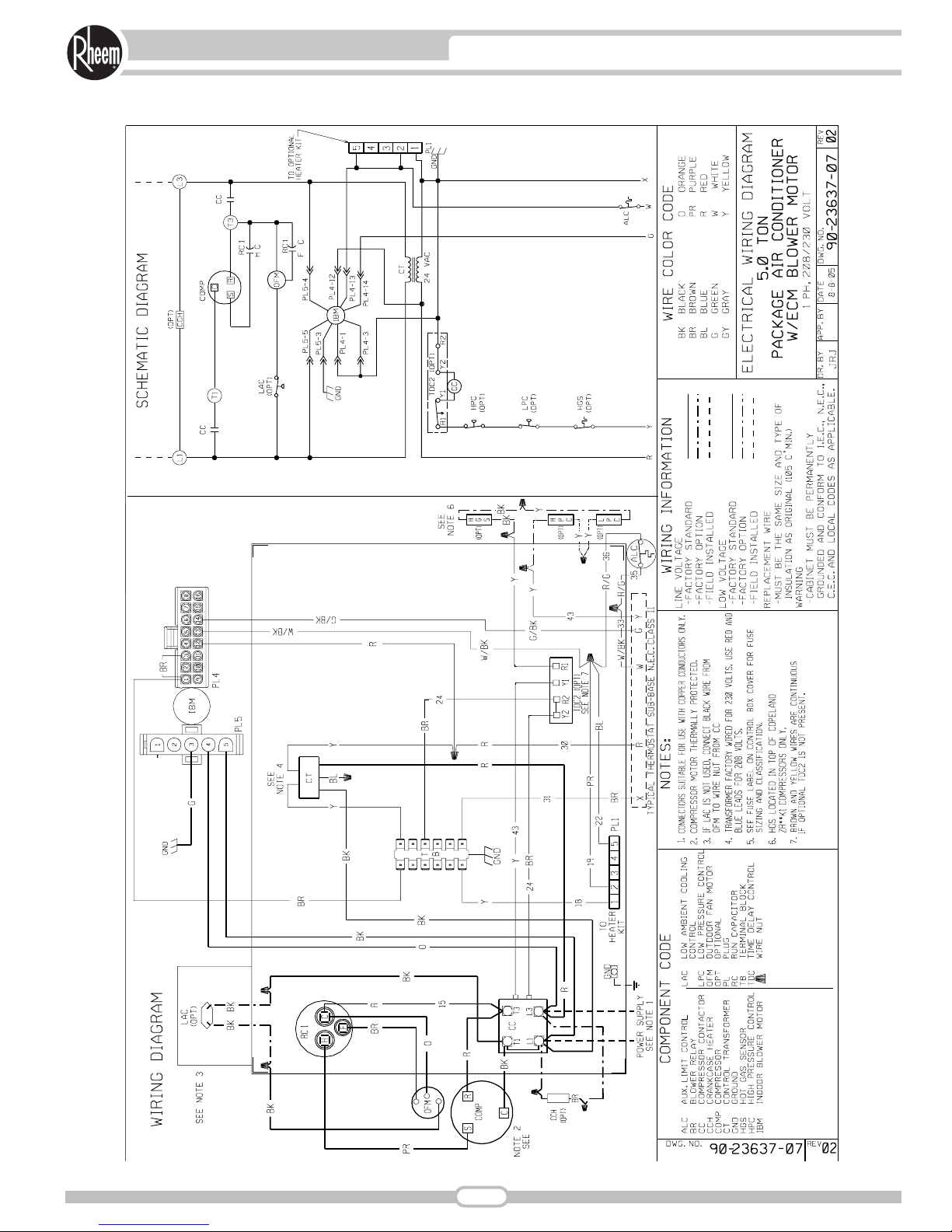

Typical Wiring ..........................................................................................31-36
Limited Warranty ..........................................................................................40
3
UNIT FEATURES & BENEFITS—RSNA-B
These quality features are included in the Rheem
Package Air Conditioner
5
4
UNIT FEATURES & BENEFITS—RSNA-B SERIES
1. All models feature Copeland®Scroll®compressors for maximum efficiency and quiet operation.
2. Louvered condenser compartment for protecting the coil
against yard hazards and/or weather extremes.
3. One-piece top with a drip lip to help keep water off of the unit
sides.
4. Supply and return air openings feature a one-inch tall flange
to prevent water migration into the ductwork.
5. Access panels have “weep holes” and channels to further
help manage water run-off.
6. Side and down discharge options available on all models.
7. Easily accessible blower section complete with slide-out
blower.
8. Refrigerant connections are conveniently located for easy
service diagnostics.
9. Condenser and evaporator coils feature enhanced fins
for better heat transfer and rifled copper tubing for
greater efficiency.
10. Supplemental electric heat strips up to 15 kW are available
(field or factory installed) for periods of extreme cold temperatures. Single point wiring makes installation even easier.
11. All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
12. Easily accessible control box.
[ ] Designates Metric Conversions
Features Below Correspond to Photos on Page 3
R S N A — B 036 J K 010 X X
Factory Installed Options
(See Next Page)
Heating Capacity (Factory Installed)
000 = No Resistance Heat
005 = 05 KW Resistance Heat (018-030)
010 = 10 KW Resistance Heat (024-048)
015 = 15 KW Resistance Heat (036-048)
Drive Package
K = Direct Drive
Electrical Designation
J = 208-230V—1PH—60 Hz
C = 208-230V—3PH—60 Hz
Cooling Capacity (BTUH) [kW]
024 = 24,000 [7.03]
030 = 30,000 [8.79]
036 = 36,000 [10.55]
042 = 42,000 [12.31]
048 = 48,000 [14.07]
060 = 60,000 [17.59]
Future Technical Variations
Design Series
B = 2nd Design
Efficiency Designation
N = 13 SEER Super High Efficiency
Product Classification
S = Package Air Conditioner
Tradebrand
R = Rheem
[ ] Designates Metric Conversions
5
MODEL IDENTIFICATION—RSNA-B SERIES
6
OPTIONS—RSNA-B SERIES
FACTORY INSTALLED OPTION CODES
Example: RSNA-B036JK000XX (where XX is factory installed option)
Example: No Options
RSNA-B036JK000
Example: Options with Sideflow
RSNA-B036JK000AK
Note: Factory installed economizer is not available on these models.
Instructions for Factory Installed Option(s) Selection
Note: Two characters following the model number will be utilized to designate a factory-installed option or com-
bination of options. If no factory option(s) is required, nothing follows the model number.
Step 1. After a basic rooftop model is selected, choose a two-character option code from the FACTORY
INSTALLED OPTION SELECTION TABLE.
Option
Code
AA No Option
AK x
Side Flow
7
GENERAL DATA—RSNA-B SERIES
NOMINAL SIZES 2-5 TONS [7.0-17.6 kW]
See Page 10 for Notes. [ ] Designates Metric Conversions
Model RSNA-B Series B024JK B030JK B036CK B036JK
Cooling Performance
Gross Cooling Capacity Btu [kW] 24,800 [7.27] 31,200 [9.14] 37,400 [10.96] 37,400 [10.96]
EER/SEER
Nominal CFM/ARI Rated CFM [L/s] 800/800 [378/378] 1000/1000 [472/472] 1200/1200 [566/566] 1200/1200 [566/566]
ARI Net Cooling Capacity Btu [kW] 24,000 [7.03] 30,000 [8.79] 36,000 [10.55] 36,000 [10.55]
Net Sensible Capacity Btu [kW] 17,171 [5.03] 20,984 [6.15] 25,736 [7.54] 25,736 [7.54]
Net Latent Capacity Btu [kW] 6,829 [2] 9,016 [2.64] 10,264 [3.01] 10,264 [3.01]
Net System Power kW 2.04 2.7 3.07 3.07
Compressor
No./Type 1/Copeland Scroll 1/Copeland Scroll 1/Copeland Scroll 1/Copeland Scroll
Outdoor Sound Rating (dB)
Outdoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 10.56 [0.98] 10.56 [0.98] 14.8 [1.37] 14.8 [1.37]
Rows / FPI [FPcm] 1 / 18 [7] 1 / 18 [7] 1 / 22 [9] 1 / 22 [9]
Indoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 5.54 [0.51] 5.54 [0.51] 5.54 [0.51] 5.54 [0.51]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/0.75 [19.05] 1/0.75 [19.05] 1/0.75 [19.05] 1/0.75 [19.05]
Outdoor Fan—Type Propeller Propeller Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1 Direct/1 Direct/1
CFM [L/s] 2500 [1180] 2500 [1180] 2700 [1274] 2700 [1274]
No. Motors/HP 1 at 1/5 HP 1 at 1/5 HP 1 at 1/5 HP 1 at 1/5 HP
Motor RPM 1075 1075 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/9x7 [228.6x177.8] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/2 Direct/3 Direct/3 Direct/3
No. Motors 1 1 1 1
Motor HP 1/4 1/2 1/2 1/2
Motor RPM 1075 1075 1075 1075
Motor Frame Size 48 48 48 48
Filter—Type Field Supplied Field Supplied Field Supplied Field Supplied
Furnished No No No No
(No.) Size Recommended in. [mm] (1)1x20x20 [25x508x508] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 69.6 [1973] 72 [2041] 83.2 [2359] 83.2 [2359]
Weights
Net Weight lbs. [kg] 370 [168] 379 [178] 392 [178] 392 [178]
Ship Weight lbs. [kg] 379 [172] 388 [176] 401 [182] 401 [182]
2
1
11.8/13 11.1/13 11.7/13 11.7/13
3
76 76 76 76
CONTINUED
8
GENERAL DATA—RSNA-B SERIES
NOMINAL SIZES 2-5 TONS [7.0-17.6 kW]
See Page 10 for Notes. [ ] Designates Metric Conversions
Model RSNA-B Series B042CK B042JK B048CK B048JK
Cooling Performance
Gross Cooling Capacity Btu [kW] 42,500 [12.45] 42,500 [12.45] 50,500 [14.8] 50,500 [14.8]
EER/SEER
Nominal CFM/ARI Rated CFM [L/s] 1400/1350 [661/637] 1400/1350 [661/637] 1600/1600 [755/755] 1600/1600 [755/755]
ARI Net Cooling Capacity Btu [kW] 41,000 [12.01] 41,000 [12.01] 48,500 [14.21] 48,500 [14.21]
Net Sensible Capacity Btu [kW] 28,511 [8.35] 28,511 [8.35] 34,516 [10.11] 34,516 [10.11]
Net Latent Capacity Btu [kW] 12,489 [3.66] 12,489 [3.66] 13,984 [4.1] 13,984 [4.1]
Net System Power kW 3.57 3.57 4.18 4.18
Compressor
No./Type 1/Copeland Scroll 1/Copeland Scroll 1/Copeland Scroll 1/Copeland Scroll
Outdoor Sound Rating (dB)
Outdoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 16.65 [1.55] 16.65 [1.55] 16.23 [1.51] 16.23 [1.51]
Rows / FPI [FPcm] 1 / 22 [9] 1 / 22 [9] 2 / 22 [9] 2 / 22 [9]
Indoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/0.75 [19.05] 1/0.75 [19.05] 1/0.75 [19.05] 1/0.75 [19.05]
Outdoor Fan—Type Propeller Propeller Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1 Direct/1 Direct/1
CFM [L/s] 3500 [1652] 3500 [1652] 3300 [1557] 3300 [1557]
No. Motors/HP 1 at 1/3 HP 1 at 1/3 HP 1 at 1/3 HP 1 at 1/3 HP
Motor RPM 1075 1075 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/3 Direct/3 Direct/3 Direct/3
No. Motors 1 1 1 1
Motor HP 1/2 1/2 3/4 3/4
Motor RPM 1075 1075 1075 1075
Motor Frame Size 48 48 48 48
Filter—Type Field Supplied Field Supplied Field Supplied Field Supplied
Furnished No No No No
(No.) Size Recommended in. [mm] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 104 [2948] 104 [2948] 153.6 [4355] 153.6 [4355]
Weights
Net Weight lbs. [kg] 447 [203] 447 [203] 499 [226] 499 [226]
Ship Weight lbs. [kg] 456 [207] 456 [207] 508 [230] 508 [230]
2
1
11.5/13 11.5/13 11.6/13 11.6/13
3
76 76 78 78
CONTINUED
9
GENERAL DATA—RSNA-B SERIES
NOMINAL SIZES 2-5 TONS [7.0-17.6 kW]
See Page 10 for Notes. [ ] Designates Metric Conversions
Model RSNA-B Series B060CK B060JK
Cooling Performance
Gross Cooling Capacity Btu [kW] 60,000 [17.58] 60,000 [17.58]
EER/SEER
Nominal CFM/ARI Rated CFM [L/s] 2000/1850 [897/873] 2000/1850 [897/873]
ARI Net Cooling Capacity Btu [kW] 58,000 [16.99] 58,000 [16.99]
Net Sensible Capacity Btu [kW] 40,561 [11.88] 40,561 [11.88]
Net Latent Capacity Btu [kW] 17,439 [5.11] 17,439 [5.11]
Net System Power kW 5.2 5.2
Compressor
No./Type 1/Copeland Scroll 1/Copeland Scroll
Outdoor Sound Rating (dB)
Outdoor Coil—Fin Type Louvered Louvered
Tube Type Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 16.23 [1.51] 16.23 [1.51]
Rows / FPI [FPcm] 2 / 22 [9] 2 / 22 [9]
Indoor Coil—Fin Type Louvered Louvered
Tube Type Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 7.39 [0.69] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/0.75 [19.05] 1/0.75 [19.05]
Outdoor Fan—Type Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1
CFM [L/s] 3300 [1557] 3300 [1557]
No. Motors/HP 1 at 1/3 HP 1 at 1/3 HP
Motor RPM 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/2 Direct/2
No. Motors 1 1
Motor HP 1 1
Motor RPM 1075 1075
Motor Frame Size 48 48
Filter—Type Field Supplied Field Supplied
Furnished No No
(No.) Size Recommended in. [mm] (1)1x24x30 [25x610x762] (1)1x24x30 [25x610x762]
Refrigerant Charge Oz. [g] 145.6 [4128] 145.6 [4128]
Weights
Net Weight lbs. [kg] 521 [236] 521 [236]
Ship Weight lbs. [kg] 530 [240] 530 [240]
2
1
11.1/13 11.1/13
3
78 78
10
GENERAL DATA—RSNA-B SERIES
NOTES:
1. Cooling Performance is rated at 95° F ambient, 80° F entering dry bulb, 67° F entering wet bulb. Gross capacity does
not include the effect of fan motor heat. ARI capacity is net and includes the effect of fan motor heat. Units are suitable
for operation to 20% of nominal cfm. Units are certified in accordance with the Unitary Air Conditioner Equipment
certification program, which is based on ARI Standard 210/240 or 360.
2. EER and/or SEER are rated at ARI conditions and in accordance with DOE test procedures.
3. Outdoor Sound Rating shown is tested in accordance with ARI Standard 270.
[ ] Designates Metric Conversions
11
SYSTEMS PERFORMANCE—RSNA-B SERIES
GROSS SYSTEMS PERFORMANCE DATA—RSNA-B024
GROSS SYSTEMS PERFORMANCE DATA—RSNA-B030
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power—KW input
NOTES: ➀ When the entering air dry bulb is other than 80°F [27°C], adjust the sensible
capacity from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
[ ] Designates Metric Conversions
➀
1.3
1.4
1.6
1.7
1.8
1.9
2.0
2.1
2.2
O
U
T
D
O
O
R
D
R
Y
B
U
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE
CFM [L/s] 880 [415] 800 [378] 680 [321] 880 [415] 800 [378] 680 [321] 880 [415] 800 [378] 680 [321]
DR ➀
Total BTUH [kW]
75
Sens BTUH [kW]
[23.9]
Power
Total BTUH [kW]
80
Sens BTUH [kW]
[26.7]
Power
Total BTUH [kW]
85
Sens BTUH [kW]
[29.4]
Power
Total BTUH [kW]
90
Sens BTUH [kW]
[32.2]
Power
95
[35]
100
[37.8]
105
[40.6]
110
[43.3]
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
L
.21 .20 .18 .21 .20 .18 .21 .20 .18
28.9 [8.47]
16.2 [4.75]
1.4
28.9 [8.47]
16.1 [4.72]
1.5
28.5 [8.35]
16.0 [4.69]
1.6
27.8 [8.15]
15.8 [4.63]
1.7
27.0 [7.91]
15.5 [4.54]
1.8
26.0 [7.62]
15.2 [4.45]
1.9
25.0 [7.33]
14.7 [4.31]
2.0
24.1 [7.06]
14.3 [4.19]
2.1
23.3 [6.83]
13.7 [4.02]
2.3
28.4 [8.32]
15.4 [4.51]
1.3
28.4 [8.32]
15.4 [4.51]
1.5
28.0 [8.21]
15.3 [4.48]
1.6
27.3 [8.00]
15.1 [4.43]
1.7
26.5 [7.77]
14.8 [4.34]
1.8
25.5 [7.47]
14.5 [4.25]
1.9
24.5 [7.18]
14.1 [4.13]
2.0
23.7 [6.95]
13.6 [3.99]
2.1
22.9 [6.71]
13.1 [3.84]
2.2
27.6 [8.09]
14.4 [4.22]
1.3
27.6 [8.09]
14.3 [4.19]
1.4
27.2 [7.97]
14.2 [4.16]
1.5
26.6 [7.80]
14.0 [4.10]
1.7
25.8 [7.56]
13.8 [4.04]
1.8
24.8 [7.27]
13.5 [3.96]
1.9
23.9 [7.00]
13.1 [3.84]
2.0
23.0 [6.74]
12.7 [3.72]
2.1
22.3 [6.54]
12.2 [3.58]
2.2
27.3 [8.00]
19.5 [5.71]
1.3
27.2 [7.97]
19.5 [5.71]
1.5
26.9 [7.88]
19.3 [5.66]
1.6
26.2 [7.68]
19.1 [5.60]
1.7
25.3 [7.41]
18.9 [5.54]
1.8
24.3 [7.12]
18.5 [5.42]
1.9
23.3 [6.83]
18.1 [5.30]
2.0
22.4 [6.56]
17.6 [5.16]
2.1
21.7 [6.36]
17.0 [4.98]
2.3
26.8 [7.85]
18.6 [5.45]
26.8 [7.85]
18.6 [5.45]
26.4 [7.74]
18.5 [5.42]
25.7 [7.53]
18.3 [5.36]
24.8 [7.27]
18.0 [5.28]
23.9 [7.00]
17.7 [5.19]
22.9 [6.71]
17.3 [5.07]
22.0 [6.45]
16.8 [4.92]
21.3 [6.24]
16.3 [4.78]
26.1 [7.65]
17.3 [5.07]
1.3
26.0 [7.62]
17.3 [5.07]
1.4
25.7 [7.53]
17.2 [5.04]
1.5
25.0 [7.33]
17.0 [4.98]
1.7
24.2 [7.09]
16.8 [4.92]
1.8
23.2 [6.80]
16.4 [4.81]
1.9
22.3 [6.54]
16.1 [4.72]
2.0
21.4 [6.27]
15.6 [4.57]
2.1
20.7 [6.07]
15.1 [4.43]
2.2
25.0 [7.33]
22.0 [6.45]
1.3
25.0 [7.33]
22.0 [6.45]
1.4
24.6 [7.21]
21.9 [6.42]
1.5
23.9 [7.00]
21.7 [6.36]
1.6
23.0 [6.74]
21.4 [6.27]
1.8
22.1 [6.48]
21.1 [6.18]
1.9
21.1 [6.18]
20.6 [6.04]
2.0
20.2 [5.92]
20.1 [5.89]
2.1
19.4 [5.69]
19.4 [5.69]
2.2
24.6 [7.21]
21.1 [6.18]
1.3
24.5 [7.18]
21.0 [6.15]
1.4
24.1 [7.06]
20.9 [6.13]
1.5
23.5 [6.89]
20.7 [6.07]
1.6
22.6 [6.62]
20.5 [6.01]
1.7
21.7 [6.36]
20.1 [5.89]
1.9
20.7 [6.07]
19.7 [5.77]
2.0
19.8 [5.80]
19.2 [5.63]
2.1
19.1 [5.60]
18.7 [5.48]
2.2
23.9 [7.00]
19.6 [5.74]
1.3
23.9 [7.00]
19.6 [5.74]
1.4
23.5 [6.89]
19.5 [5.71]
1.5
22.8 [6.68]
19.3 [5.66]
1.6
22.0 [6.45]
19.0 [5.57]
1.7
21.1 [6.18]
18.7 [5.48]
1.8
20.1 [5.89]
18.3 [5.36]
1.9
19.3 [5.66]
17.9 [5.25]
2.1
18.5 [5.42]
17.4 [5.10]
2.2
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1100 [519] 1000 [472] 850 [401] 1100 [519] 1000 [472] 850 [401] 1100 [519] 1000 [472] 850 [401]
DR ➀
Total BTUH [kW]
75
Sens BTUH [kW]
[23.9]
80
[26.7]
85
[29.4]
90
[32.2]
95
[35]
100
[37.8]
105
[40.6]
110
[43.3]
115
[46.1]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
O
U
T
D
O
O
R
D
R
Y
B
U
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
L
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE
.24 .23 .21 .24 .23 .21 .24 .23 .21
37.6 [11.02]
21.3 [6.24]
1.9
37.1 [10.87]
20.8 [6.10]
2.1
36.3 [10.64]
20.3 [5.95]
2.2
35.3 [10.35]
19.8 [5.80]
2.3
34.3 [10.05]
19.3 [5.66]
2.4
33.2 [9.73]
18.7 [5.48]
2.5
32.1 [9.41]
18.2 [5.33]
2.6
31.2 [9.14]
17.7 [5.19]
2.7
30.4 [8.91]
17.2 [5.04]
2.9
36.9 [10.81]
20.3 [5.95]
1.9
36.4 [10.67]
19.9 [5.83]
2.0
35.6 [10.43]
19.4 [5.69]
2.2
34.7 [10.17]
18.9 [5.54]
2.3
33.7 [9.88]
18.4 [5.39]
2.4
32.6 [9.55]
17.9 [5.25]
2.5
31.6 [9.26]
17.4 [5.10]
2.6
30.6 [8.97]
16.9 [4.95]
2.7
29.8 [8.73]
16.5 [4.84]
2.8
35.9 [10.52]
18.9 [5.54]
1.9
35.4 [10.37]
18.5 [5.42]
2.0
34.7 [10.17]
18.0 [5.28]
2.1
33.8 [9.91]
17.6 [5.16]
2.2
32.8 [9.61]
17.1 [5.01]
2.4
31.7 [9.29]
16.6 [4.86]
2.5
30.7 [9.00]
16.2 [4.75]
2.6
29.8 [8.73]
15.7 [4.60]
2.7
29.0 [8.50]
15.3 [4.48]
2.8
35.0 [10.26]
25.2 [7.39]
34.4 [10.08]
24.1 [7.06]
1.9
34.5 [10.11]
24.7 [7.24]
33.9 [9.94]
23.6 [6.92]
2.0
33.7 [9.88]
24.2 [7.09]
33.1 [9.70]
23.1 [6.77]
2.2
32.8 [9.61]
23.7 [6.95]
32.2 [9.44]
22.6 [6.62]
2.3
31.7 [9.29]
23.2 [6.80]
31.2 [9.14]
22.1 [6.48]
2.4
30.6 [8.97]
22.7 [6.65]
30.1 [8.82]
21.6 [6.33]
2.5
29.6 [8.67]
22.1 [6.48]
29.0 [8.50]
21.2 [6.21]
2.6
28.6 [8.38]
21.6 [6.33]
28.1 [8.24]
20.7 [6.07]
2.7
27.8 [8.15]
21.1 [6.18]
27.3 [8.00]
20.2 [5.92]
2.8
➀
1.9
2.0
2.1
2.2
2.4
2.5
2.6
2.7
2.8
33.4 [9.79]
22.4 [6.56]
1.9
32.9 [9.64]
22.0 [6.45]
2.0
32.2 [9.44]
21.5 [6.30]
2.1
31.3 [9.17]
21.1 [6.18]
2.2
30.3 [8.88]
20.6 [6.04]
2.3
29.3 [8.59]
20.1 [5.89]
2.4
28.3 [8.29]
19.7 [5.77]
2.6
27.3 [8.00]
19.2 [5.63]
2.7
26.6 [7.80]
18.8 [5.51]
2.8
33.6 [9.85]
27.2 [7.97]
1.9
33.1 [9.70]
26.7 [7.83]
2.0
32.3 [9.47]
26.2 [7.68]
2.1
31.4 [9.20]
25.7 [7.53]
2.3
30.3 [8.88]
25.2 [7.39]
2.4
29.2 [8.56]
24.7 [7.24]
2.5
28.2 [8.26]
24.2 [7.09]
2.6
27.2 [7.97]
23.7 [6.95]
2.7
26.4 [7.74]
23.2 [6.80]
2.8
33.0 [9.67]
26.0 [7.62]
1.9
32.5 [9.52]
25.5 [7.47]
2.0
31.7 [9.29]
25.1 [7.36]
2.1
30.8 [9.03]
24.6 [7.21]
2.2
29.8 [8.73]
24.1 [7.06]
2.4
28.7 [8.41]
23.6 [6.92]
2.5
27.7 [8.12]
23.1 [6.77]
2.6
26.7 [7.83]
22.6 [6.62]
2.7
25.9 [7.59]
22.1 [6.48]
2.8
32.1 [9.41]
24.2 [7.09]
1.9
31.6 [9.26]
23.8 [6.98]
2.0
30.9 [9.06]
23.3 [6.83]
2.1
30.0 [8.79]
22.9 [6.71]
2.2
29.0 [8.50]
22.4 [6.56]
2.3
27.9 [8.18]
21.9 [6.42]
2.4
26.9 [7.88]
21.5 [6.30]
2.5
26.0 [7.62]
21.0 [6.15]
2.7
25.2 [7.39]
20.6 [6.04]
2.8
12
SYSTEMS PERFORMANCE—RSNA-B SERIES
GROSS SYSTEMS PERFORMANCE DATA—RSNA-B036
GROSS SYSTEMS PERFORMANCE DATA—RSNA-B042
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power—KW input
NOTES: ➀ When the entering air dry bulb is other than 80°F [27°C], adjust the sensible
capacity from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
[ ] Designates Metric Conversions
➀
2.1
2.3
2.4
2.5
2.7
2.8
2.9
3.1
3.2
O
U
T
D
O
O
R
D
R
Y
B
U
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE
CFM [L/s] 1320 [623] 1200 [566] 1020 [481] 1320 [623] 1200 [566] 1020 [481] 1320 [623] 1200 [566] 1020 [481]
DR ➀
Total BTUH [kW]
75
Sens BTUH [kW]
[23.9]
Power
Total BTUH [kW]
80
Sens BTUH [kW]
[26.7]
Power
Total BTUH [kW]
85
Sens BTUH [kW]
[29.4]
Power
Total BTUH [kW]
90
Sens BTUH [kW]
[32.2]
Power
95
[35]
100
[37.8]
105
[40.6]
110
[43.3]
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
L
.21 .20 .17 .21 .20 .17 .21 .20 .17
44.4 [13.01]
25.5 [7.47]
2.2
43.6 [12.78]
25.0 [7.33]
2.3
42.8 [12.54]
24.5 [7.18]
2.4
42.0 [12.31]
24.0 [7.03]
2.6
41.1 [12.05]
23.5 [6.89]
2.7
40.0 [11.72]
22.8 [6.68]
2.8
38.6 [11.31]
22.1 [6.48]
3.0
36.9 [10.81]
21.1 [6.18]
3.1
34.6 [10.14]
19.9 [5.83]
3.3
43.6 [12.78]
24.4 [7.15]
2.1
42.8 [12.54]
23.9 [7.00]
2.3
42.1 [12.34]
23.4 [6.86]
2.4
41.3 [12.10]
22.9 [6.71]
2.5
40.4 [11.84]
22.4 [6.56]
2.7
39.3 [11.52]
21.8 [6.39]
2.8
37.9 [11.11]
21.1 [6.18]
3.0
36.2 [10.61]
20.1 [5.89]
3.1
34.0 [9.96]
19.0 [5.57]
3.2
42.4 [12.43]
22.7 [6.65]
2.1
41.7 [12.22]
22.2 [6.51]
2.2
40.9 [11.99]
21.8 [6.39]
2.4
40.2 [11.78]
21.3 [6.24]
2.5
39.3 [11.52]
20.9 [6.13]
2.6
38.2 [11.20]
20.3 [5.95]
2.8
36.9 [10.81]
19.6 [5.74]
2.9
35.2 [10.32]
18.7 [5.48]
3.1
33.1 [9.70]
17.7 [5.19]
3.2
41.3 [12.10]
30.4 [8.91]
2.1
40.5 [11.87]
29.9 [8.76]
2.3
39.7 [11.63]
29.4 [8.62]
2.4
38.9 [11.40]
28.9 [8.47]
2.6
38.0 [11.14]
28.4 [8.32]
2.7
36.9 [10.81]
27.7 [8.12]
2.8
35.5 [10.40]
26.9 [7.88]
3.0
33.8 [9.91]
26.0 [7.62]
3.1
31.5 [9.23]
24.8 [7.27]
3.2
40.6 [11.90]
29.1 [8.53]
39.8 [11.66]
28.6 [8.38]
39.0 [11.43]
28.1 [8.24]
38.3 [11.22]
27.6 [8.09]
37.4 [10.96]
27.1 [7.94]
36.3 [10.64]
26.5 [7.77]
34.9 [10.23]
25.7 [7.53]
33.1 [9.70]
24.8 [7.27]
30.9 [9.06]
23.7 [6.95]
39.5 [11.58]
27.0 [7.91]
2.1
38.7 [11.34]
26.6 [7.80]
2.2
38.0 [11.14]
26.1 [7.65]
2.4
37.2 [10.90]
25.7 [7.53]
2.5
36.3 [10.64]
25.2 [7.39]
2.6
35.3 [10.35]
24.6 [7.21]
2.8
33.9 [9.94]
23.9 [7.00]
2.9
32.2 [9.44]
23.1 [6.77]
3.0
30.1 [8.82]
22.0 [6.45]
3.2
39.6 [11.61]
31.4 [9.20]
2.1
38.7 [11.34]
30.8 [9.03]
2.3
38.0 [11.14]
30.3 [8.88]
2.4
37.2 [10.90]
29.9 [8.76]
2.5
36.3 [10.64]
29.3 [8.59]
2.7
35.2 [10.32]
28.7 [8.41]
2.8
33.8 [9.91]
27.9 [8.18]
3.0
32.0 [9.38]
26.9 [7.88]
3.1
29.7 [8.70]
25.7 [7.53]
3.2
38.9 [11.40]
30.0 [8.79]
2.1
38.0 [11.14]
29.5 [8.65]
2.3
37.3 [10.93]
29.0 [8.50]
2.4
36.5 [10.70]
28.5 [8.35]
2.5
35.6 [10.43]
28.0 [8.21]
2.7
34.5 [10.11]
27.4 [8.03]
2.8
33.2 [9.73]
26.6 [7.80]
2.9
31.4 [9.20]
25.7 [7.53]
3.1
29.2 [8.56]
24.6 [7.21]
3.2
37.8 [11.08]
27.9 [8.18]
2.1
37.0 [10.84]
27.4 [8.03]
2.2
36.3 [10.64]
27.0 [7.91]
2.4
35.5 [10.40]
26.5 [7.77]
2.5
34.7 [10.17]
26.0 [7.62]
2.6
33.6 [9.85]
25.5 [7.47]
2.8
32.3 [9.47]
24.8 [7.27]
2.9
30.6 [8.97]
23.9 [7.00]
3.0
28.4 [8.32]
22.9 [6.71]
3.2
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1490 [703] 1350 [637] 1150 [543] 1490 [703] 1350 [637] 1150 [543] 1490 [703] 1350 [637] 1150 [543]
DR ➀
Total BTUH [kW]
75
Sens BTUH [kW]
[23.9]
80
[26.7]
85
[29.4]
90
[32.2]
95
[35]
100
[37.8]
105
[40.6]
110
[43.3]
115
[46.1]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
O
U
T
D
O
O
R
D
R
Y
B
U
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
L
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE
.24 .23 .21 .24 .23 .21 .24 .23 .21
51.1 [14.98]
28.1 [8.24]
2.6
50.1 [14.68]
27.9 [8.18]
2.7
49.0 [14.36]
27.5 [8.06]
2.9
47.9 [14.04]
27.0 [7.91]
3.0
46.8 [13.72]
26.3 [7.71]
3.2
45.6 [13.36]
25.6 [7.50]
3.3
44.5 [13.04]
24.8 [7.27]
3.4
43.4 [12.72]
24.2 [7.09]
3.6
42.3 [12.40]
23.6 [6.92]
3.7
50.2 [14.71]
26.9 [7.88]
2.6
49.2 [14.42]
26.7 [7.83]
2.7
48.1 [14.10]
26.3 [7.71]
2.8
47.0 [13.77]
25.8 [7.56]
3.0
45.9 [13.45]
25.1 [7.36]
3.1
44.8 [13.13]
24.4 [7.15]
3.3
43.7 [12.81]
23.7 [6.95]
3.4
42.6 [12.48]
23.1 [6.77]
3.6
41.6 [12.19]
22.5 [6.59]
3.7
48.8 [14.30]
25.0 [7.33]
2.5
47.8 [14.01]
24.8 [7.27]
2.7
46.8 [13.72]
24.5 [7.18]
2.8
45.8 [13.42]
24.0 [7.03]
2.9
44.7 [13.10]
23.4 [6.86]
3.1
43.6 [12.78]
22.7 [6.65]
3.2
42.5 [12.46]
22.1 [6.48]
3.4
41.5 [12.16]
21.5 [6.30]
3.5
40.4 [11.84]
21.0 [6.15]
3.7
47.7 [13.98]
33.4 [9.79]
46.9 [13.75]
31.9 [9.35]
2.5
46.7 [13.69]
33.2 [9.73]
45.9 [13.45]
31.7 [9.29]
2.7
45.6 [13.36]
32.8 [9.61]
44.8 [13.13]
31.3 [9.17]
2.8
44.5 [13.04]
32.2 [9.44]
43.7 [12.81]
30.8 [9.03]
3.0
43.4 [12.72]
31.5 [9.23]
42.6 [12.48]
30.1 [8.82]
3.1
42.2 [12.37]
30.8 [9.03]
41.5 [12.16]
29.4 [8.62]
3.3
41.1 [12.05]
30.1 [8.82]
40.4 [11.84]
28.7 [8.41]
3.4
40.0 [11.72]
29.4 [8.62]
39.3 [11.52]
28.1 [8.24]
3.6
39.0 [11.43]
28.8 [8.44]
38.3 [11.22]
27.5 [8.06]
3.7
➀
2.5
2.7
2.8
3.0
3.1
3.2
3.4
3.5
3.7
45.6 [13.36]
29.7 [8.70]
2.5
44.6 [13.07]
29.5 [8.65]
2.6
43.6 [12.78]
29.1 [8.53]
2.8
42.5 [12.46]
28.6 [8.38]
2.9
41.4 [12.13]
28.0 [8.21]
3.1
40.4 [11.84]
27.4 [8.03]
3.2
39.3 [11.52]
26.7 [7.83]
3.3
38.2 [11.20]
26.1 [7.65]
3.5
37.2 [10.90]
25.6 [7.50]
3.6
45.2 [13.25]
37.9 [11.11]
2.5
44.1 [12.92]
37.6 [11.02]
2.7
43.1 [12.63]
37.2 [10.90]
2.8
42.0 [12.31]
36.7 [10.76]
3.0
40.8 [11.96]
36.0 [10.55]
3.1
39.7 [11.63]
35.3 [10.35]
3.3
38.6 [11.31]
34.5 [10.11]
3.4
37.5 [10.99]
33.9 [9.94]
3.5
36.4 [10.67]
33.3 [9.76]
3.7
44.3 [12.98]
36.2 [10.61]
2.5
43.3 [12.69]
36.0 [10.55]
2.7
42.3 [12.40]
35.6 [10.43]
2.8
41.2 [12.07]
35.0 [10.26]
2.9
40.1 [11.75]
34.4 [10.08]
3.1
39.0 [11.43]
33.7 [9.88]
3.2
37.9 [11.11]
33.0 [9.67]
3.4
36.8 [10.79]
32.4 [9.50]
3.5
35.7 [10.46]
31.8 [9.32]
3.7
43.1 [12.63]
33.6 [9.85]
2.5
42.2 [12.37]
33.5 [9.82]
2.6
41.1 [12.05]
33.1 [9.70]
2.8
40.1 [11.75]
32.6 [9.55]
2.9
39.0 [11.43]
32.0 [9.38]
3.0
37.9 [11.11]
31.3 [9.17]
3.2
36.8 [10.79]
30.7 [9.00]
3.3
35.8 [10.49]
30.1 [8.82]
3.5
34.8 [10.20]
29.6 [8.67]
3.6
GROSS SYSTEMS PERFORMANCE DATA—RSNA-B048
GROSS SYSTEMS PERFORMANCE DATA—RSNA-B060
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power—KW input
NOTES: ➀ When the entering air dry bulb is other than 80°F [27°C], adjust the sensible
capacity from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
[ ] Designates Metric Conversions
13
SYSTEMS PERFORMANCE—RSNA-B SERIES
➀
53.9 [15.80]
36.9 [10.81]
2.9
53.0 [15.53]
35.9 [10.52]
3.1
51.9 [15.21]
35.1 [10.29]
3.2
50.6 [14.83]
34.4 [10.08]
3.4
49.2 [14.42]
34.0 [9.96]
3.6
47.7 [13.98]
34.0 [9.96]
3.7
46.2 [13.54]
34.3 [10.05]
3.9
44.8 [13.13]
35.2 [10.32]
4.1
43.6 [12.78]
36.6 [10.73]
4.3
O
U
T
D
O
O
R
D
R
Y
B
U
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE
CFM [L/s] 1760 [831] 1600 [755] 1360 [642] 1760 [831] 1600 [755] 1360 [642] 1760 [831] 1600 [755] 1360 [642]
DR ➀
Total BTUH [kW]
75
Sens BTUH [kW]
[23.9]
Power
Total BTUH [kW]
80
Sens BTUH [kW]
[26.7]
Power
Total BTUH [kW]
85
Sens BTUH [kW]
[29.4]
Power
Total BTUH [kW]
90
Sens BTUH [kW]
[32.2]
Power
95
[35]
100
[37.8]
105
[40.6]
110
[43.3]
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
L
.20 .19 .17 .20 .19 .17 .20 .19 .17
60.8 [17.82]
36.3 [10.64]
2.9
59.9 [17.55]
35.2 [10.32]
3.1
58.8 [17.23]
34.3 [10.05]
3.3
57.4 [16.82]
33.5 [9.82]
3.4
55.9 [16.38]
33.1 [9.70]
3.6
54.3 [15.91]
33.0 [9.67]
3.8
52.8 [15.47]
33.4 [9.79]
3.9
51.3 [15.03]
34.4 [10.08]
4.1
50.0 [14.65]
36.0 [10.55]
4.3
59.7 [17.50]
34.7 [10.17]
2.9
58.8 [17.23]
33.7 [9.88]
3.1
57.7 [16.91]
32.8 [9.61]
3.2
56.4 [16.53]
32.0 [9.38]
3.4
54.9 [16.09]
31.6 [9.26]
3.6
53.3 [15.62]
31.5 [9.23]
3.7
51.8 [15.18]
31.9 [9.35]
3.9
50.4 [14.77]
32.9 [9.64]
4.1
49.1 [14.39]
34.4 [10.08]
4.2
58.1 [17.03]
32.3 [9.47]
2.9
57.2 [16.76]
31.3 [9.17]
3.0
56.1 [16.44]
30.5 [8.94]
3.2
54.8 [16.06]
29.8 [8.73]
3.4
53.4 [15.65]
29.4 [8.62]
3.5
51.9 [15.21]
29.3 [8.59]
3.7
50.4 [14.77]
29.7 [8.70]
3.9
49.0 [14.36]
30.6 [8.97]
4.0
47.8 [14.01]
32.0 [9.38]
4.2
56.4 [16.53]
41.5 [12.16]
2.9
55.5 [16.27]
40.4 [11.84]
3.1
54.4 [15.94]
39.5 [11.58]
3.3
53.0 [15.53]
38.7 [11.34]
3.4
51.5 [15.09]
38.3 [11.22]
3.6
49.9 [14.62]
38.2 [11.20]
3.8
48.4 [14.18]
38.6 [11.31]
3.9
46.9 [13.75]
39.6 [11.61]
4.1
45.6 [13.36]
41.2 [12.07]
4.3
55.4 [16.24]
39.7 [11.63]
54.5 [15.97]
38.6 [11.31]
53.4 [15.65]
37.7 [11.05]
52.0 [15.24]
37.0 [10.84]
50.6 [14.83]
36.6 [10.73]
49.0 [14.36]
36.5 [10.70]
47.5 [13.92]
36.9 [10.81]
46.1 [13.51]
37.8 [11.08]
44.8 [13.13]
39.4 [11.55]
2.9
3.0
3.2
3.4
3.5
3.7
3.9
4.0
4.2
53.1 [15.56]
48.2 [14.13]
2.9
52.3 [15.33]
47.1 [13.80]
3.0
51.1 [14.98]
46.1 [13.51]
3.2
49.7 [14.57]
45.3 [13.28]
3.4
48.2 [14.13]
45.0 [13.19]
3.5
46.7 [13.69]
45.0 [13.19]
3.7
45.1 [13.22]
45.1 [13.22]
3.9
43.6 [12.78]
43.6 [12.78]
4.1
42.3 [12.40]
42.3 [12.40]
4.2
52.2 [15.30]
46.0 [13.48]
2.8
51.3 [15.03]
45.0 [13.19]
3.0
50.2 [14.71]
44.1 [12.92]
3.2
48.8 [14.30]
43.4 [12.72]
3.3
47.4 [13.89]
42.9 [12.57]
3.5
45.8 [13.42]
42.9 [12.57]
3.7
44.3 [12.98]
43.2 [12.66]
3.9
42.9 [12.57]
42.9 [12.57]
4.0
41.6 [12.19]
41.6 [12.19]
4.2
50.8 [14.89]
42.8 [12.54]
2.8
49.9 [14.62]
41.8 [12.25]
3.0
48.8 [14.30]
41.0 [12.02]
3.1
47.5 [13.92]
40.3 [11.81]
3.3
46.1 [13.51]
39.9 [11.69]
3.5
44.6 [13.07]
39.9 [11.69]
3.6
43.1 [12.63]
40.2 [11.78]
3.8
41.7 [12.22]
41.1 [12.05]
4.0
40.4 [11.84]
40.4 [11.84]
4.1
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 2040 [963] 1850 [873] 1570 [741] 2040 [963] 1850 [873] 1570 [741] 2040 [963] 1850 [873] 1570 [741]
DR ➀
Total BTUH [kW]
75
Sens BTUH [kW]
[23.9]
80
[26.7]
85
[29.4]
90
[32.2]
95
[35]
100
[37.8]
105
[40.6]
110
[43.3]
115
[46.1]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
Total BTUH [kW]
Sens BTUH [kW]
Power
O
U
T
D
O
O
R
D
R
Y
B
U
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
L
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE
.21 .20 .18 .21 .20 .18 .21 .20 .18
69.9 [20.49]
41.5 [12.16]
3.9
69.6 [20.40]
40.4 [11.84]
4.1
68.5 [20.08]
39.4 [11.55]
4.3
66.8 [19.58]
38.3 [11.22]
4.5
64.8 [18.99]
37.3 [10.93]
4.7
62.7 [18.38]
36.3 [10.64]
4.9
60.6 [17.76]
35.3 [10.35]
5.1
58.8 [17.23]
34.4 [10.08]
5.3
57.5 [16.85]
33.5 [9.82]
5.6
68.7 [20.13]
39.7 [11.63]
3.8
68.4 [20.05]
38.6 [11.31]
4.0
67.3 [19.72]
37.6 [11.02]
4.3
65.6 [19.23]
36.6 [10.73]
4.5
63.7 [18.67]
35.6 [10.43]
4.7
61.6 [18.05]
34.7 [10.17]
4.9
59.6 [17.47]
33.8 [9.91]
5.1
57.8 [16.94]
32.9 [9.64]
5.3
56.5 [16.56]
32.0 [9.38]
5.5
66.8 [19.58]
36.9 [10.81]
3.8
66.5 [19.49]
35.9 [10.52]
4.0
65.4 [19.17]
35.0 [10.26]
4.2
63.9 [18.73]
34.0 [9.96]
4.4
61.9 [18.14]
33.1 [9.70]
4.6
59.9 [17.55]
32.3 [9.47]
4.8
57.9 [16.97]
31.4 [9.20]
5.0
56.2 [16.47]
30.6 [8.97]
5.2
55.0 [16.12]
29.8 [8.73]
5.4
66.3 [19.43]
48.8 [14.30]
65.1 [19.08]
46.7 [13.69]
3.8
65.9 [19.31]
47.8 [14.01]
64.8 [18.99]
45.6 [13.36]
4.0
64.8 [18.99]
46.7 [13.69]
63.7 [18.67]
44.6 [13.07]
4.2
63.2 [18.52]
45.7 [13.39]
62.0 [18.17]
43.6 [12.78]
4.4
61.2 [17.94]
44.6 [13.07]
60.1 [17.61]
42.6 [12.48]
4.6
59.0 [17.29]
43.6 [12.78]
58.0 [17.00]
41.7 [12.22]
4.8
57.0 [16.71]
42.7 [12.51]
55.9 [16.38]
40.8 [11.96]
5.1
55.2 [16.18]
41.8 [12.25]
54.2 [15.88]
39.9 [11.69]
5.3
53.9 [15.80]
40.9 [11.99]
52.9 [15.50]
39.1 [11.46]
5.5
➀
63.3 [18.55]
43.4 [12.72]
3.7
63.0 [18.46]
42.4 [12.43]
4.0
61.9 [18.14]
41.5 [12.16]
4.2
60.4 [17.70]
40.6 [11.90]
4.4
58.4 [17.12]
39.7 [11.63]
4.6
56.4 [16.53]
38.8 [11.37]
4.8
54.4 [15.94]
37.9 [11.11]
5.0
52.7 [15.44]
37.1 [10.87]
5.2
51.4 [15.06]
36.3 [10.64]
5.4
3.7
3.9
4.1
4.3
4.5
4.7
4.9
5.2
5.4
63.8 [18.70]
53.0 [15.53]
3.7
63.4 [18.58]
51.9 [15.21]
3.9
62.3 [18.26]
50.9 [14.92]
4.2
60.7 [17.79]
49.8 [14.59]
4.4
58.7 [17.20]
48.8 [14.30]
4.6
56.5 [16.56]
47.8 [14.01]
4.8
54.5 [15.97]
46.9 [13.75]
5.0
52.7 [15.44]
45.9 [13.45]
5.2
51.3 [15.03]
45.0 [13.19]
5.4
62.6 [18.35]
50.6 [14.83]
3.7
62.3 [18.26]
49.6 [14.54]
3.9
61.2 [17.94]
48.6 [14.24]
4.1
59.6 [17.47]
47.6 [13.95]
4.3
57.6 [16.88]
46.6 [13.66]
4.5
55.5 [16.27]
45.7 [13.39]
4.8
53.5 [15.68]
44.8 [13.13]
5.0
51.7 [15.15]
43.9 [12.87]
5.2
50.4 [14.77]
43.0 [12.60]
5.4
60.9 [17.85]
47.1 [13.80]
3.7
60.6 [17.76]
46.1 [13.51]
3.9
59.5 [17.44]
45.2 [13.25]
4.1
58.0 [17.00]
44.3 [12.98]
4.3
56.0 [16.41]
43.4 [12.72]
4.5
54.0 [15.83]
42.5 [12.46]
4.7
52.0 [15.24]
41.6 [12.19]
4.9
50.3 [14.74]
40.8 [11.96]
5.1
49.0 [14.36]
40.0 [11.72]
5.3
INDOOR AIRFLOW PERFORMANCE—208 VOLTS
External Static Pressure—Inches W.C. [kPa]
CFM [L/s] Air Delivery/RPM/Watts—208 Volts
Side Discharge—Wet Coil
Nominal
Cooling
Capacity
Tons [kW]
Motor Speed
from
Factory
Motor
Speed
RPM 730 775 820 865 905 940
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
975
RPM 695 785 870 905 940 980 1020
Watts 221 214 203 191 171 193 149
High
CFM 898 [424] 861 [406] 822 [388] 777 [367] 721 [340] 651 [307] 562 [265]
2.5
[8.79]
Low Low
CFM 1076 [508]
RPM 940 965 995 1020 1045 1070 1090
1059 [500] 1032 [487] 996 [470] 950 [448] 896 [423] 832 [393]
Med.
CFM 1222 [577] 1197 [565] 1179 [556] 1162 [548] 1137 [537] 1097 [518] 1033 [488]
RPM 765 810 855 890 920 960 995
Watts
423 415 407 397 386 370 351
RPM 896 956 1008 1062 1093 1145 1194
Watts 317 358 393 435 457 493 531
High
CFM 1850 [873] 1850 [873] 1850 [873] 1850 [873] 1850 [873] 1850 [873] 1850 [873]
RPM 1091 1141 1185 1233 1267 1308 1336
5.0
[17.59]
High
Low
CFM 1500 [707] 1500 [707] 1500 [707] 1500 [707] 1500 [707] 1500 [707] 1500 [707]
Watts 579 630 673 724 759 800 826
2.0
[7.03]
High Low
CFM 675 [319] 657 [310] 634 [299] 602 [284] 560 [264] 505 [238] 435 [205]
Watts 292 278 266 253 239 221 199
Blower Size/
Motor
HP [W] &
# of Speeds
10x9
1 HP ECM
(Constant CFM)
9x7
1/4 HP
2 Speed Motor
Watts
356 349 341 331 320 305 287
3.0
[10.55]
Med. Low
Low
Low
Low
Cool Heat
HighHigh
Low
RPM 895 930 965 985 1005 1025 1045
Watts 538 514 493 473 454 434 412
Low
CFM 1204 [568] 1202 [567] 1191 [562] 1171 [553] 1143 [539] 1107 [522] 1065 [503]
RPM 734 810 886 923 959 988 1016
3.5
[12.31]
High High
CFM 1514 [715] 1461 [670] 1415 [668] 1370 [647] 1322 [624] 1266 [597] 1197 [565]
Watts 476 468 450 427 403 380 363
10x9
3/4 HP
3 Speed Motor
Low
High
See
Note
Below
4.0
[14.07]
High
CFM
1843 [870] 1763 [832]
1693 [799] 1627 [768] 1560 [736] 1485 [701] 1398 [660]
RPM 1085 1094 1102 1110 1118 1126 1134
Watts 699 663 632 604 576 548 517
Med.
CFM 1674 [790] 1620 [765] 1566 [739] 1511 [713] 1451 [685] 1384 [653] 1305 [616]
RPM 997 1019 1040 1058 1076 1088 1100
Watts 625 596 567 539 512 484 455
10x9
1/2 HP
3 Speed Motor
NOTE: On 4 ton models, switch to medium speed for cooling if external static pressure is less than 0.4" W.C. at 230 volts or less than 0.3" W.C. at 208 volts.
WARNING: Do not operate unit in area of airflow table shown in bold (CFM greater than 1700 for 4 ton models) due to possibility of water blow-off.
WARNING: Observe airflow operating limits if operating in area of airflow table shown in bold.
14
AIRFLOW PERFORMANCE—RSNA-B SERIES
5.0 [17.59]
2.5 [8.79] – 4.0 [14.07]
.02 [.005] .05 [.012] .07 [.017] .1 [.025] .12 [.030] .15 [.037] .17 [.042]
.00
20 x 20 x 1 [508 x 508 x 25] 24 x 24 x 1 [610 x 610 x 25] 24 x 30 x 1 [610 x 762 x 1]
Pressure Drop—Includes W.C. [kPa]
DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE)
MINIMUM RECOMMENDED FILTER SIZES
CFM [L/s] 600 [283] 800 [378] 1000 [472] 1200 [556] 1440 [661] 1600 [755] 1800 [850] 2000 [944]
Nominal Cooling Capacity Tons [kW] 2.0 [7.03]
Minimum Filter Size—Inches [mm]
15
AIRFLOW PERFORMANCE—RSNA-B SERIES
INDOOR AIRFLOW PERFORMANCE—230 VOLTS
External Static Pressure—Inches W.C. [kPa]
CFM [L/s] Air Delivery/RPM/Watts—230 Volts
Side Discharge—Wet Coil
Blower Size/
Motor
HP [W] &
# of Speeds
Nominal
Cooling
Capacity
Tons [kW]
Motor Speed
from
Factory
Motor
Speed
10x9
1 HP ECM
(Constant CFM)
RPM 760 815 870 910 950 975
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
1000
RPM 825 870 910 950 985 1010 1030
Low
Low
3.0
[10.55]
Watts 253 242 230 217 204 189 181
9x7
1/4 HP
2 Speed Motor
Low
Low
Med.
High
CFM 946 [446] 922 [435] 882 [415] 830 [392] 769 [363] 701 [331] 630 [298]
2.5
[8.79]
Low Low
CFM 1206 [569]
RPM 990 1015 1035 1055 1070 1085 1100
1182 [558] 1157 [546] 1128 [532] 1091 [515] 1044 [493] 983 [464]
Cool Heat
High
Med.
CFM 1411 [666] 1368 [646] 1327 [626] 1285 [606] 1238 [584] 1183 [558] 1116 [527]
RPM 865 900 935 970 1000 1020 1035
High
Watts
498 481 464 447 430 411 391
RPM 895 952 1010 1064 1102 1144 1196
Watts 318 358 400 442 469 500 541
High
CFM 1850 [873] 1850 [873] 1850 [873] 1850 [873] 1850 [873] 1850 [873] 1850 [873]
RPM 1096 1145 1191 1237 1278 1317 1353
5.0
[17.59]
High
Low
CFM 1500 [707] 1500 [707] 1500 [707] 1500 [707] 1500 [707] 1500 [707] 1500 [707]
Watts 593 643 692 743 791 836 875
2.0
[7.03]
High Low
CFM 771 [364] 751 [354] 725 [342] 691 [326] 645 [304] 584 [276] 546 [258]
Watts 315 303 288 273 257 241 226
Low
RPM 980 1000 1020 1035 1050 1065 1080
Watts 589 565 543 523 503 481 456
Low
CFM 1412 [666] 1395 [658] 1371 [647] 1339 [632] 1296 [612] 1242 [586] 1176 [555]
RPM 859 905 951 981 1011 1034 1057
3.5
[12.31]
High High
CFM 1641 [774] 1577 [744] 1515 [715] 1455 [687] 1393 [657] 1329 [627] 1262 [596]
Watts 557 530 506 483 461 437 409
10x9
3/4 HP
3 Speed Motor
Low
High
(See
Note
Below)
4.0
[14.07]
High
CFM
1889 [892]
Watts
419
1826 [852] 1753 [827]
1672 [789] 1586 [749] 1499 [707] 1413 [667]
RPM 1110 1117 1124 1129 1133 1139 1144
Watts 736 715 683 646 608 574 551
Med.
CFM
1793 [846] 1731 [817]
1665 [786]
1594 [752} 1519 [717] 1440 [680] 1356 [640]
RPM 1053 1067 1080 1091 1101 1110 1119
Watts 667 637 606 574 543 512 483
406 394 381 368 353 334
10x9
1/2 HP
3 Speed Motor
NOTE: On 4 ton models, switch to medium speed for cooling if external static pressure is less than 0.4" W.C. at 230 volts or less than 0.3" W.C. at 208 volts.
WARNING: Do not operate unit in area of airflow table shown in bold (CFM greater than 1700 for 4 ton models) due to possibility of water blow-off.
WARNING: Observe airflow operating limits if operating in area of airflow table shown in bold.
ELECTRICAL DATA – RSNA-B SERIES
Minimum Circuit Ampacity
Minimum Overcurrent
Protection Device Size
16/16
20/20
Maximum Overcurrent
Protection Device Size
25/25
Compressor Motor
No. 1
Volts 208/230
Phase 1
HP 2 1/6
RPM 3450
Amps (RLA) 10.4/10.4
Amps (LRA)
Unit Information
Unit Operating
Voltage Range
54/54
187-253
Condenser Motor
No. 1
Volts 208/230
Phase 1
HP 1/5
Amps (FLA) 1.3
Amps (LRA) 2.3
Evaporator Fan
No. 1
Volts 208/230
Phase 1
HP 1/4
Amps (FLA) 1.3
Amps (LRA) 2.3 0
9.1
1
1
5.1
2.4
1/2
1
208/230
1
2.3
1.3
1/5
1
208/230
1
68/68
14.1/14.1
3450
2 2/3
1
208/230
1
35/35
25/25
22/22
187-253
208/230
5.1
2.4
1/2
1
208/230
1
2.3
1.3
1/5
1
208/230
1
88/88
9.6/9.6
3450
3 1/3
3
208/230
1
25/25
20/20
16/16
187-253
1
5.1
2.4
1/2
1
208/230
1
2.3
1.3
1/5
1
208/230
1
77/77
14.4/14.4
3450
3 1/3
1
208/230
1
35/35
30/30
22/22
187-253
3.9
5.1
2.4
1/2
1
208/230
1
3.9
2
1/3
1
208/230
1
77/77
10.3/10.3
3450
3 1/2
3
208/230
1
25/25
20/20
18/18
187-253
2
5.1
2.4
1/2
1
208/230
1
3.9
2
1/3
1
208/230
1
95/95
16.5/16.5
3450
3 1/2
1
208/230
1
40/40
30/30
26/26
187-253
1/3
9.5
4.4
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
80.8/80.8
12.2/12.2
3450
4
3
208/230
1
30/30
25/25
22/22
187-253
1
9.5
4.4
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
137/137
20.2/20.2
3450
4
1
208/230
1
50/50
40/40
32/32
187-253
208/230
0
9.1
1
1
208/230
1
3.9
2
1/3
1
208/230
1
123/123
17.3/17.3
3450
5
3
208/230
1
50/50
40/40
33/33
187-253
1
148/148
25/25
3450
5
1
208/230
1
60/60
50/50
43/43
187-253
-B024JK -B030JK -B036CK -B036JK -B042CK -B042JK -B048CK -B048JK -B060CK -B060JK
1. Horsepower Per Compressor.
2. Amp Draw Per Motor. Multiply Value By Number of Motors to Determine Total Amps.
Copper Wire Size—AWG (1% Voltage Drop)
Notes: 1. Wire size based on 60°C. type copper conductors below 100 ampacity. 2. Wire size based on 75°C. type copper conductors for 100 ampacity and above.
[ ] Designates Metric Conversions
SUPPLY WIRE
LENGTH-FEET
300 4 3 2 2 1 1/0 1/0 2/0 2/0 3/0 3/0 3/0 4/0 4/0 4/0 4/0 250 250 250 250 300 300 300
250 4 4 3 3 2 1 1 1/0 1/0 2/0 2/0 2/0 3/0 3/0 3/0 4/0 4/0 4/0 4/0 4/0 250 250 250
200 6 4 4 4 3 2 2 1 1 1/0 1/0 1/0 2/0 2/0 2/0 3/0 3/0 3/0 3/0 3/0 4/0 4/0 4/0
150 8 6 6 4 4 4 3 3 2 2 1 1 1/0 1/0 1/0 1/0 2/0 2/0 2/0 2/0 2/0 3/0 3/0
CIRCUIT AMPACITY
100 10 8 8 6 6 6 4 4 4 3 3 2 2 2 1 1 1 1 1 1/0 1/0 1/0 1/0
50 14 12 10 10 8 8 6 6 6 4 4 4 3 3 3 2 2 2 2 2 1 1 1
15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125
16
ELECTRICAL DATA—RSNA-B SERIES
17
ELECTRIC HEATER KITS—RSNA-B SERIES
@ 240 V
Min./Max.
Over Current
@ 208 V
Protective Device Size
Min./Max.
Air Conditioner
Ampacity
208/240 V
Min. Circuit
Size
208/240V
Max. Fuse
Heater Kit
Min. Ckt.
Ampacity
208/240V
@ 240 V
Min./Max.
Over Current
Unit
Protective Device Size
@ 208 V
Min./Max.
— — 16/16 20/25 20/25
22/25 25/25 — — —
@ 240 V
Min./Max.
Over Current
@ 208 V
Protective Device Size
Min./Max.
Air Conditioner
Ampacity
208/240 V
Min. Circuit
Size
208/240V
Max. Fuse
Heater Kit
— — 16/16 20/25 20/25
38/44 40/45 — — —
44/50 45/50 — — —
Separate Power Supply For Both Unit and Heater KitSingle Power Supply For Both Unit and Heater Kit
Min. Ckt.
Ampacity
Min./Max.
Over Current
Unit
Protective Device Size
Min./Max.
208/240V
@ 240 V
@ 208 V
25/29 25/30 — — —
50/50
—
38/44 40/45 — — —
45/45 50/50
Ampacity
@ 208/240 V
Unit Min. Ckt.
Amp.
Heater
@ 208/240 V
Heater
KBTU/Hr
@ 208/240 V
—
—
7.2/9.6
3.6/4.8
1
1
2—1
—
—
3.6/4.8
7.2/9.6
1
1
Rated
Heater kW
No. of
Sequence
No. of
Elements
@ 208/240 V
Steps
Heater Kit
Single Power Supply For Both Unit and Heater Kit Separate Power Supply For Both Unit and Heater Kit
—
—
7.2/9.6
10.8/14.4
1
1
—
—
7.2/9.6
1
208-240 VOLT, SINGLE PHASE, 60 HZ, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION
A10J 24.57/32.76 34.6/40.0 45/52 45/45 60/60
A05J 12.28/16.38 17.3/20.0 24/27 25/25 30/30
A05J 1 12.28/16.38 17.3/20.0 25/28 25/35 25/35 22/25 25/25 — — —
A10J 2 24.57/32.76 34.6/40.0 47/53 50/50 60/60 44/50 45/50 — — —
A10J 2 24.57/32.76 34.6/40.0 47/53 50/50 60/60 44/50 45/50 — — —
A15J 3 36.85/49.13 51.9/60.0 68/78 70/70 80/80 65/75 70/80 — — —
RXQJ-
Heater Kit
No Heat — — 16/16 20/25 20/25
Nominal kW
No Heat — — — 22/22 25/35 25/35 — — 22/22 25/35 25/35
No Heat — — — 22/22 30/35 30/35 — — 22/22 30/35 30/35
A10J 2 24.57/32.76 34.6/40.0 46/53 50/50 60/60 44/50 45/50 — — —
No Heat — — — 26/26 30/40 30/40 — — 26/26 30/40 30/40
—
7.2/9.6
10.8/14.4
1
1
—
A15J 3 36.85/49.13 51.9/60.0 68/78 70/70 80/80 65/75 70/80 — — —
B10J 2 24.57/32.76 34.6/40.0 49/56 50/50 60/60 44/50 45/50 — — —
No Heat — — — 32/32 40/50 40/50 — — 32/32 40/50 40/50
—
7.2/9.6
10.8/14.4
1
1
—
B15J 3 36.85/49.13 51.9/60.0 70/81 80/80 90/90 65/75 70/80 — — —
B10J 2 24.57/32.76 34.6/40.0 55/61 60/60 70/70 44/50 45/50 — — —
No Heat — — — 43/43 50/60 50/60 — — 43/43 50/60 50/60
10.8/14.4
1
B15J 3 36.85/49.13 51.9/60.0 76/86 80/80 90/90 65/75 70/80 — — —
208-240 VOLT, THREE PHASE, 60 HZ, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION
Unit Min. Ckt.
Heater
Heater
Rated
Heater Kit
No. of
No. of
RXQJ-
Ampacity
@ 208/240 V
Amp.
@ 208/240 V
KBTU/Hr
@ 208/240 V
Heater kW
@ 208/240 V
Steps
Sequence
Elements
Heater Kit
Nominal kW
— — 16/16 20/25 20/25
24.57/32.76 20.0/23.1 28/32 30/30 35/35
—
7.2/9.6—7.2/9.6
10.8/14.4
1A15C 36.85/49.13 30.1/34.7 41/47 45/45
1
—
3—2
2
—
A10C
No Heat — — — 18/18 20/25 20/25 — — 18/18 20/25 20/25
No Heat
36.85/49.13 30.1/34.7 41/46
10.8/14.4
1
3
A10C 1 24.57/32.76 20.0/23.1 28/32 30/30 35/35 25/29 25/30 — — —
A15C
—
7.2/9.6
2
—
A10C 1 24.57/32.76 20.0/23.1 31/35 35/35 35/35 25/29 25/30 — — —
No Heat — — — 22/22 25/30 25/30 — — 22/22 25/30 25/30
—
7.2/9.6
10.8/14.4
3—2
A15C 1 36.85/49.13 30.1/34.7 44/49 45/45 50/50 38/44 40/45 — —
A10C 1 24.57/32.76 20.0/23.1 37/40 40/50 40/50 25/29 25/30 — — —
No Heat — — — 33/33 40/50 40/50 — — 33/33 40/50 40/50
10.8/14.4
3
A15C 1 36.85/49.13 30.1/34.7 49/55 50/50 60/60 38/44 40/45 — — —
No.
Unit
Model
RSNA-B
B024JK
B030JK
B036JK
B042JK
B048JK
B060JK
Unit
No.
Model
RSNA-B
B036CK
B042CK
B048CK
B060CK
UNIT DIMENSIONS
PACKAGE
AIR CONDITIONERS
[ ] Designates Metric Conversions
TOP VIEW BOTTOM VIEW
18
UNIT DIMENSIONS—RSNA-B SERIES
OUTDOOR FAN GRILLE
AND COMPRESSOR ACCESS
FILTER ACCESS
PANEL (FOR
UNIT MOUNTED
FILTER ACCESSORY)
OUTDOOR COIL
PROTECTIVE GRILLE
THREADED PVC CONDENSATE
DRAIN CONNECTION N.P.T.
IMPORTANT: UNIT MUST BE LEVEL TO
PREVENT WATER MIGRATION
CONTROL
ACCESS PANEL
LIQUID PRESSURE
SERVICE PORT
SUCTION PRESSURE
SERVICE PORT
29% 2%
CORNER WEIGHTS
% OF TOTAL
UNIT WEIGHT
THERMOSTAT WIRING
ENTRANCE
BLOWER/
EVAPORATOR
ACCESS PANEL
ELECTRICAL POWER
20% 2%
30% 2%
ENTRANCE
TOP COVER
SIDE SUPPLY
DUCT OPENING
21% 2%
SIDE RETURN
DUCT OPENING
4719/32
"
[1209 mm]
OUTDOOR FAN
GRILLE &
COMPRESSOR ACCESS
13
/16
50
[1290 mm]
1
/16
"
45
[1145 mm]
INSIDE
BOTTOM
RETURN
DUCT
"
OPENING
141/4
[362 mm]
TYP.
313/16
[97 mm]
"
"
199/16
[497 mm]
"
[95 mm]
45/16
"
13/16
[30 mm]
TYP.
153/8
[391 mm]
[97 mm]
"
11/2
"
[38 mm]
TYP.
7
49
/16
"
[1256 mm]
INSIDE
BOTTOM
SUPPLY
DUCT
OPENING
"
33/16
"
THERMOSTAT
SIDE VIEW SIDE VIEW
FRONT VIEW REAR VIEW
IMPORTANT:
INSTALLATION MUST NOT
INTERFERE WITH DRAINAGE
OPENINGS IN BOTTOM OF UNIT
UNDER OUTDOOR COIL.
IMPORTANT:
Unit must be level to
prevent water migration.
Model #
Height “A”
B024, B030,
B036
3515/16
B042, B048,
B060
41
19
UNIT DIMENSIONS—RSNA-B SERIES
WIRE ENTRANCE
11/8
"
[28.6 mm]
255/16
"
[643 mm]
103/16
"
[259 mm]
51/16
"
[129 mm]
FILTER ACCESS PANEL (FOR UNIT
MOUNTED FILTER ACCESSORY
OUTDOOR
COIL PROTECTIVE
GRILLE
43/4
[121 mm]
THREADED PVC
CONDENSATED DRAIN
CONNECTION (3/4 N.P.T.)
ELECTRICAL
POWER ENTRANCE
"
471/2
"
[1207 mm]
SUCTION PRESSURE
SERVICE PORT
2211/16
[576 mm]
BLOWER/
EVAPORATOR
ACCESS PANEL
"
CONTROL
ACCESS PANEL
LIQUID
PRESSURE
SERVICE PORT
75/16
"
[186 mm]
SIDE SUPPLY
DUCT OPENING
13
[349 mm]
[113 mm]
527/16
"
[1332 mm]
7
4
/8
"
[124 mm]
3
/4
"
57/16" [138 mm]
3
14
[360 mm]
TYP.
191/8
[486 mm]
/16
"
"
SIDE RETURN
DUCT OPENING
47/16
81/2
"
[216 mm]
"
TYP.
15
"
[381 mm]
SHOWN WITH DUCT COVERS REMOVED.
20
TYPICAL INSTALLATIONS
COMMON SUPPLY/RETURN
CONCENTRIC AIR DIFFUSER
SUPPLY AIR/PERFORMANCE
NOTE: The location of the combination supply and return diffuser should
not exceed 10 feet [3.05 m] above the floor level for units @ 1000 CFM
[472 L/s] or less and 12 [3.66 m] to 14 feet [4.27 m] above the floor level
for units with CFM greater than 1000 [472 L/s]. If the diffuser is installed
with a greater distance than recommended above, the supply air may
become stratified above the required comfort area causing uncomfortable conditions.
ACCESSORY EQUIPMENT
Designed to convert a side by side or an over and under arrangement into a concentric distribution of air. The diffuser is flush
mounted, completely insulated, assembled, and internally baffled
to provide four way supply air distribution with a center return. To
make the assembly complete and ready to fit into a 2' [0.61 m] x
4' [1.22 m] suspended ceiling grid, the diffuser includes
adjustable supply louvers, hanging rings, anti-sweat gasket, and
round flanges for use with flexible ducts.
SUPPLY/RETURN DIFFUSER
AIRFLOW/PRESSURE DROP
INFORMATION (INCHES W.C. [kPa])
NOTE: The location of the combination supply and return diffuser should
not exceed 10 feet [3.05 m] above the floor level for units @ 1000 CFM
[472 L/s] or less and 12 [3.66 m] to 14 feet [4.27 m] above the floor level
for units with CFM greater than 1000 [472 L/s]. If the diffuser is installed
with a greater distance than recommended above, the supply air may
become stratified above the required comfort area causing uncomfortable conditions.
*If a particular unit is to be converted to operate on LP (propane) for elevations above 2000 ft. [609.6 m] in Canada, the existing Natural Gas to LP Conversion Kits for the
subject models already contain the necessary orifices and instructions to de-rate the input for 2000-4500 ft. [609.6-1371.6 m] Canadian applications.
[ ] Designates Metric Conversions
21
ACCESSORIES
Accessory
Description
Roofcurbs
Supply & Return Diffusers
Economizers (Downflow ONLY)
Fresh Air Damper
Rectangular to Round Transition (Downflow)
Filter Kit
Low Ambient Control
High Pressure Control
Low Pressure Control
Sideflow Rectangular to Round Transition
LP Conversion Kits
Canadian High Altitude Kit (for Natural Gas only*)
Model
Application
RXSG-AAA08 (8" [203 mm] Height)
RSNA-B
RSNA-B RXRN-BD15
RSNA-B
RSNA-B
RSNA-B
RSNA-B RXRY-B01
RSNA-B RXRZ-A18
RSNA-B RXAB-A02
RSNA-B RXAC-A02
RSNA-B RXMC-BA01
RSNA-B
RSNA-B RXRX-AH01
RXSG-AAA14 (14" [356 mm] Height)
RXSG-AAA24 (24" [610 mm] Height)
RXRD-CAM10 (Fully Modulating)
RXMC-CA02 (16" [406 mm] Ducts)
RXMC-CA03 (18" [457 mm] Ducts)
RXGJ-EP84W (White-Rodgers Gas Valve)
RXGJ-EP85H (Honeywell Gas Valve)
Accessory
Model No.
RXRE-CAA30 (3 Position)
RXRF-FAB1 (Motorized-35%)
RXRF-FAA1 (Fixed-35%)
Model No.
RXRN-
Diameter
Inches [mm]
16 [406] 90 [40.82]
Shipping Wt.
Lbs. [kg]
Dimension A
Inches [mm]
201/2 [521]BD15
Accessory
Approximate CFM [L/s]-Supply Air
1575 [743] 1800 [850]1300 [614]
.12 [.030].07 [.017] .10 [.024]Plenum & Supply/Return Duct
.16 [.040].09 [.022] .13 [.032]Diffuser
.11 [.027].06 [.015] .09 [.022]Economizer .17 [.042]
2200 [1038]
.17 [.042]
.24 [.060]
Diffuser Airflow CFM [L/s] Range of Throw Ft. [m]
14 [4.27]-16 [4.88]800 [378]-1200 [566]
18 [5.49]-28 [8.53]1600 [755]-2000 [944]
DUCT ADAPTERS
RECTANGULAR TO ROUND
TRANSITIONS (DOWNFLOW)
RXMC-CA03
RXMC-CA02
[ ] Designates Metric Conversions
22
ACCESSORIES
[ ] Designates Metric Conversions
RXRE-CAA30 (3 Position)
Provided with enthalpy control, and
mixed air sensor. Settings include
fully open, fully closed and adjustable
mid point.
RXRD-CAM10 (Fully Modulating)
Provided with enthalpy control, mixed
air sensor and minimum position potentiometer for proportioning (modulating)
the amount of fresh air.
Note: See economizer installation instructions for correct filter access door.
[ ] Designates Metric Conversions
ECONOMIZERS
RXRE-CAA30 (3 Position) and
RXRD-CAM10 (Fully Modulating) for
RSNA-B Series
FRESH AIR DAMPER FOR USE ON
RSNA-B SERIES
RXRF-FAA1 (Fixed - 0-35%)
The 0-35% manual outside Air Damper is designed to replace the
unit return air duct cover. No drilling or damper assembly is
required. The amount of outside air (0-35%) is controlled by simply adjusting the side damper.
RXRF-FAB1 (Motorized - 0-35%)
The 0-35% motorized outside Air Damper is designed to replace
the unit return air duct cover. No drilling or damper assembly is
required. The control motor opens the adjustable slide damper
when the unit blower motor is energized.
23
ACCESSORIES
FILTER KIT INSTALLATION
RXRY-B01
For use in either
vertical or horizontal
discharge.
[ ] Designates Metric Conversions
24
ACCESSORIES
CFM [L/s]
Model No.
RSNA-B 680 [321]
RSNA-B 850 [401]
RSNA-B 1020 [481]
RSNA-B 1190 [562]
RSNA-B 1275 [602] 1500 [708]
Minimum
Airflow
510 [241]RSNA-B 600 [283] 660 [311]
Nominal
Airflow
800 [378]
1000 [472]
1200 [566]
1400 [661]
Maximum
Airflow
880 [415]
1100 [519]
1320 [623]
1540 [727]
1650 [779]
Airflow Pressure Drop, Inches W.C. [kPa]
1" Filter 2" FilterCFM [L/s]
500 [236] .02 [.0050] .03 [.0075]
600 [283] .02 [.0050] .03 [.0075]
700 [330] .03 [.0075] .04 [.0010]
800 [378] .04 [.0010] .05 [.0124]
900 [425] .05 [.0124] .06 [.0149]
1000 [472] .07 [.0174] .08 [.0199]
1100 [519] .08 [.0199] .09 [.0224]
1200 [566] .10 [.0249] .12 [.0299]
1300 [614] .13 [.0324] .15 [.0373]
1400 [661] .16 [.0398] .19 [.0473]
1500 [708] .19 [.0473] .21 [.0523]
1600 [755] .20 [.0498] .23 [.0572]
1700 [802] .21 [.0523] .24 [.0598]
1800 [850] .22 [.0548] .25 [.0623]
1900 [897] .24 [.0598] .27 [.0672]
2000 [944] .26 [.0647] .29 [.0722]
DUCT ADAPTER SIDEFLOW
SQUARE TO ROUND TRANSITION
RXMC-BA01
Adapts the side rectangular supply and return openings to 14"
[356 mm] diameter round openings. Adapters provided with same
finish as unit and also provided with thermal insulation.
25
ACCESSORIES
RXSG-AAA14
(14" [356 mm] High)
RXSG-AAA08
(8" [203 mm] High)
ROOFCURB (Full Perimeter)
RXSG-AAA08, RXSG-AAA14
and RXSG-AAA24 for
RSNA-B Series
Hinged corners make for
fast, easy set-up.
NOT for use with
RQKA/RQLA/RQMA
Package Heat Pumps.
[ ] Designates Metric Conversions
26
ACCESSORIES
ROOFCURB (Full Perimeter) (Cont.)
[ ] Designates Metric Conversions
RXSG-AAA24
(24" [610 mm] High)
27
ACCESSORIES
[ ] Designates Metric Conversions
PACKAGE AIR CONDITIONERS &
GAS/ELECTRIC PACKAGE UNITS
ROOFCURB INSTALLATION (Full Perimeter)
OLD MODEL OLD CURB MODEL NEW MODEL TO OLD MODEL
ROOFCURB ADAPTER
NEW MODEL PACKAGE
ONLY 1 CABINET SIZE—
ALL MODELS
RSNA-B
SMALL CABINET
20 SERIES
RXPX-BACCA20
RXRX-BACDB20
RXPX-BACCA21
RXRX-BACDB21
RXPX-BCCCA22
RXRX-BCCDB22
RXPX-BCCCA23
RXRX-BCCDB23
(1
1
/2-2 TON) [5.28-7.03 kW]
RSNC-, RSND-, RSNERRGE-, RRGF-, RRGG-, RSNY
RXPA-CA21 (1)
RXRA-DB21 (2)
MEDIUM CABINET
21 SERIES
(2
1
/2-3 TON) [8.79-10.55 kW]
RSNC-, RSND-, RSNERRGE-, RRGF-, RRGG-, RSNY
RXPA-CA22 (1)
RXRA-DB22 (2)
LARGE CABINET
22 SERIES
(3-3
1
/2 TON) [10.55-12.31 kW]
RRGE-, RRGF-, RRGG-, RSNY
EXTRA LARGE CABINET
23 SERIES
RXPA-CA23 (1)
RXRA-DB23 (2)
(3
1
/2-5 TON) [12.31-17.58 kW]
RSNC-, RSND-, RSNERRGE-, RRGF-, RRGG-, RSNY
(4-5 TON) [14.07-17.58 kW]
RXPA-CA20 (1)
RXRA-DB20 (2)
(1) SLOPE TYPE
(2) FULL PERIMETER TYPE
ROOFCURB ADAPTERS
Fabricated from galvanized steel to adapt the New cabinet to the old style curb. All are furnished with a New gasket.
28
ACCESSORIES
LIFT KIT—MODEL NO. RXML-A01
The lift kit is intended for temporary installation while the unit is
being lifted into position. Kit includes 4 lift brackets.
29
ACCESSORIES
WARNING
ONLY ELECTRIC HEATER KITS SUPPLIED BY THIS MANUFACTURER AS DESCRIBED IN THIS PUBLICATION HAVE BEEN DESIGNED,
TESTED, AND EVALUATED BY A NATIONALLY RECOGNIZED SAFETY TESTING AGENCY FOR USE WITH THIS UNIT. USE OF ANY OTHER
MANUFACTURED ELECTRIC HEATERS INSTALLED WITHIN THIS UNIT MAY CAUSE HAZARDOUS CONDITIONS RESULTING IN PROPERTY DAMAGE, FIRE, BODILY INJURY OR DEATH.
ELECTRIC HEATER KITS—RSNA-B
Unit Model Application Electric Heater Kit Models
RXQJ-A10J (208-240 volt, 1-ph, 10kW)
RXQJ-A05J (208-240 volt, 1-ph, 5kW)
RXQJ-A05J (208-240 volt, 1-ph, 5kW)
RXQJ-A15J (208-240 volt, 1-ph, 15kW)
RXQJ-A10J (208-240 volt, 1-ph, 10kW)
RXQJ-A10J (208-240 volt, 1-ph, 10kW)
RXQJ-B10J (208-240 volt, 1-ph, 10kW)
RXQJ-B15J (208-240 volt, 1-ph, 15kW)
RSNA-B036CK
RXQJ-B10J (208-240 volt, 1-ph, 10kW)
RXQJ-B15J (208-240 volt, 1-ph, 15kW)
RXQJ-A10C (208-240 volt, 3-ph, 10kW)
RXQJ-A15C (208-240 volt, 3-ph, 15kW)
RXQJ-A16C (208-240 volt, 3-ph, 15kW-Canadian)
RXQJ-A10C (208-240 volt, 3-ph, 10kW)
RSNA-B048CK, RSNA-B060CK
RXQJ-A15C (208-240 volt, 3-ph, 15kW)
RXQJ-A10C (208-240 volt, 3-ph, 10kW)
RXQJ-A15C (208-240 volt, 3-ph, 15kW)
RSNA-B042CK
RSNA-B024JK
RSNA-B030JK
RSNA-B036JK
RSNA-B042JK
RSNA-B048JK
[ ] Designates Metric Conversions
30
ACCESSORIES
31
WIRING SCHEMATICS—RSNA-B SERIES
32
WIRING SCHEMATICS—RSNA-B SERIES
33
WIRING SCHEMATICS—RSNA-B SERIES
34
WIRING SCHEMATICS—RSNA-B SERIES
35
WIRING SCHEMATICS—RSNA-B SERIES
36
WIRING SCHEMATICS—RSNA-B SERIES
37
NOTES
38
NOTES
39
NOTES
Before proceeding with installation, refer
to installation instructions packaged
with each model, as well as complying
with all Federal, State, Provincial, and
Local codes, regulations, and practices.
RHEEM
AIR CONDITIONING
DIVISION
5600 Old Greenwood Road, Fort Smith, Arkansas 72908
“In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.”
PRINTED IN U.S.A. 11-05 DC FORM NO. S11-933 REV. 2
Supersedes Form No. S11-933 Rev. 1
BEFORE PURCHASING THIS APPLIANCE, READ IMPORTANT ENERGY COST AND EFFICIENCY INFORMATION AVAILABLE FROM
YOUR RETAILER.
GENERAL TERMS OF LIMITED WARRANTY
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
periods stated, in accordance with the terms of the limited
warranty.
For Complete Details of the Limited Warranty, Including Applicable Terms
and Conditions, See Your Local Installer or Contact the Manufacturer for
a Copy.
Condenser Coil and Evaporator Coil leaks
caused by factory defects ..........................Five (5) Years
Compressor..................................................Five (5) Years
Any Other Part
1-Phase Models ............................................Five (5) Years
3-Phase Models..............................................One (1) Year
Loading...
