RFX940
SOLO EQ
Instrument Equalizer
RFX
Salt Lake City, UT
9/00
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a
period of one (1) year from the date of purchase as shown on the purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited to repair
or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided
the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREP AID. Products returned to us or to an authorized Service Center must be accompanied by
a copy of the purchase receipt. In the absence of such purchase receipt, the warranty
period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of defacement, misuse, abuse, neglect, accident, destruction or alteration of the serial number,
improper electrical voltages or currents, repair, alteration or maintenance by any person or
party other than our own service facility or an authorized Service Center, or any use
violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN
LIMITED WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHA TSOEVER. Some states do not allow
the exclusion or limitation of special, incidental or consequential damages so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.

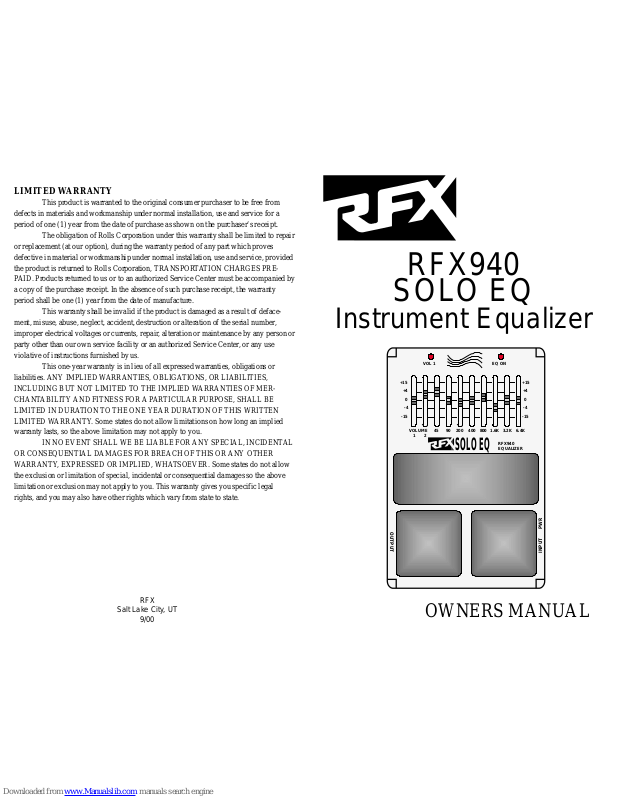

OWNERS MANUAL
1
2
4590200 400
800
1.6K
3.2K 6.4K
VOL 1
EQ ON
0
+15
-15
+4
-4
VOLUME
0
+15
-15
+4
-4
RFX940
EQUALIZER
SOLO EQ
PWR
INPUT
OUTPUT
Thank you for purchasing the RFX940 SOLO EQ instrument equalizer . The SOLO
EQ was designed with the working musician in mind. The EQ centers are custom
tailored for more musical control over y our sound, rather than just mathematical
EQ center points. The 940 also features two independent level settings. One for
your rhythm or normal volume, and the second f or a lead or solo volume. Each
band can be boosted or cut up to 15 dB. To achieve the best results from your
RFX940, please read this manual carefully . We sincerely hope you enjo y this
product.
INSPECTION
1. Unpack and Inspect the RFX940 pac kage .
Your RFX940 was carefully packed at the f actory in a protective carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage that may
have occurred during shipping. If ob vious ph ysical damage is noticed, contact the
carrier immediately to make a damage claim. W e suggest sa ving the shipping
carton and packing materials for safely transporting the unit in the future.
2. Complete the Warranty Registration Card and return it to the factory.
DESCRIPTION
1
2
4590200 400
800
1.6K
3.2K 6.4K
VOL 1
EQ ON
0
+15
-15
+4
-4
VOLUME
0
+15
-15
+4
-4
RFX940
EQUALIZER
B A T T E R Y C O M P A R T M E N T
F O O T P A D
1
F O O T P A D
2
I N S T R U M E N T
I N P U T
A C A D A P T E R
I N P U T
O U T P U T
S O L O E Q
CONTROL DESCRIPTIONS
VOL 1 LED: Indicates which v olume control is activ e .
ACTIVE LED: Indicates the 940's oper ation status. When the LED is lit, the EQ is
on, when the LED is off, the unit is bypassed.
VOL 1: Controls the level of the equalizer when the VOL 1 LED is lit.
VOL 2: Controls the level of the equalizer when the VOL 2 LED is lit.
EQ SLIDERS: Adjust the lev el of each frequency band.
FOOTPAD 1: Switches betw een VOL1 EQ control and V OL2 EQ control.
FOOTPAD 2: Switches the RFX940 betw een activ e and bypassed mode .
CONNECTION
AC ADAPTER INPUT : For use with the optional ROLLS PS27 Po w er Supply; 12
VDC, 150 mA, tip negative.
INSTRUMENT INPUT: 1/4" phone jack for an instrument level signal.
OUTPUT: 1/4" phone jack to be connected to another pedal, recording device, or
amplifier.
NOTE: Unique to the RFX series of eff ects pedals is the ability of the output jac k
to be used as a headphone output.
Although there are no set rules for effect placement, the RFX940 EQ would
normally be placed last in the signal chain, or directly before your amplifier.
BA TTER Y REPLA CEMENT
The battery will need to be replaced when the unit will not switch on and off, or
when the V OL 1 or EQ ON LEDs will not go completely out.
To change the battery, remov e the battery compartment cover and replaced with a
9-volt (alkaline preferred) battery. The battery cov er should be put bac k in place
with the extending flange toward the output side of the pedal. See battery cov er
diagram below .
Completely remove the battery if the unit is being operated with an external power
supply (ROLLS PS27), or if the unit is not going to be used for an extended period
of time.
SPECIFICATIONS
Power Source: 9V battery or ROLLS PS27
Current Draw: <10 mA
EQ Centers: 45, 90, 200, 400, 800, 1.6k, 3.2k, 6.4k Hertz
Level Control: +/- 15 dB
Input/Output Connectors: 1/4"
Size (W x H x D): 3" x 1.2" x 4.8"
Weight: 1 lb.
ALL RFX PEDALS FEATURE
• FET Clickless switching
• Heavy guage steel chassis
• Dual operation
• LED status indication
• Output jack doubling as Headphone output
• Easy-access battery compartment
• PC mount input and output jacks (provides stability)
