Eclipse Series

RF Technology

rfinfo@rftechnology.com.au

August, 2003

Revision 2

R 50 R eceiver

Operation and Maintenance Manual

This manual is produced by RF Technology Pty Ltd

10/8 Leighton Place, Hornsby NSW 2077 Australia

Page 2 RF Technology R50

CONTENTS CONTENTS

1 OPER ATING INSTRUCTI ONS 1

1.1 FRONT PANEL C

ONTROLS AND

INDICATORS 1

1.1.1 Monitor Volume 1

1.1.2 Monitor Squelch 1

1.1.3 N.SQ 1

1.1.4 C.SQ 2

1.1.5 LINE 2

1.2 FRONT PANEL INDICATORS 2

1.2.1 PWR LED 2

1.2.2 SQ LED 2

1.2.3 ALARM LED 2

2 RECEIVER OPT IONS 3

2.1 SERIAL I/O PARAMETERS 3

2.2 RECEIVER LOW BATTERY LEVEL 3

2.3 LOOP VOLTS SELECT 3

2.4 COS SOURCE/SINK SELECT 3

2.5 COS POLARITY 4

2.6 NOISE BLANKER 4

2.7 ADVANCED SLOT SELECTABLE PARAMETERS 4

2.8 STANDARD CHANNE L PARAMETERS 5

3 RECE IVER I/O CONNECTIONS 5

3.1 25 PIN CONNECTOR 5

3.2 9 PIN FRONT PANEL CONNECTOR 6

4 CHANNEL PROGRAMM ING AND OPTION SELECT I O NS 6 5 CIRCUIT DESCRIPTION 7

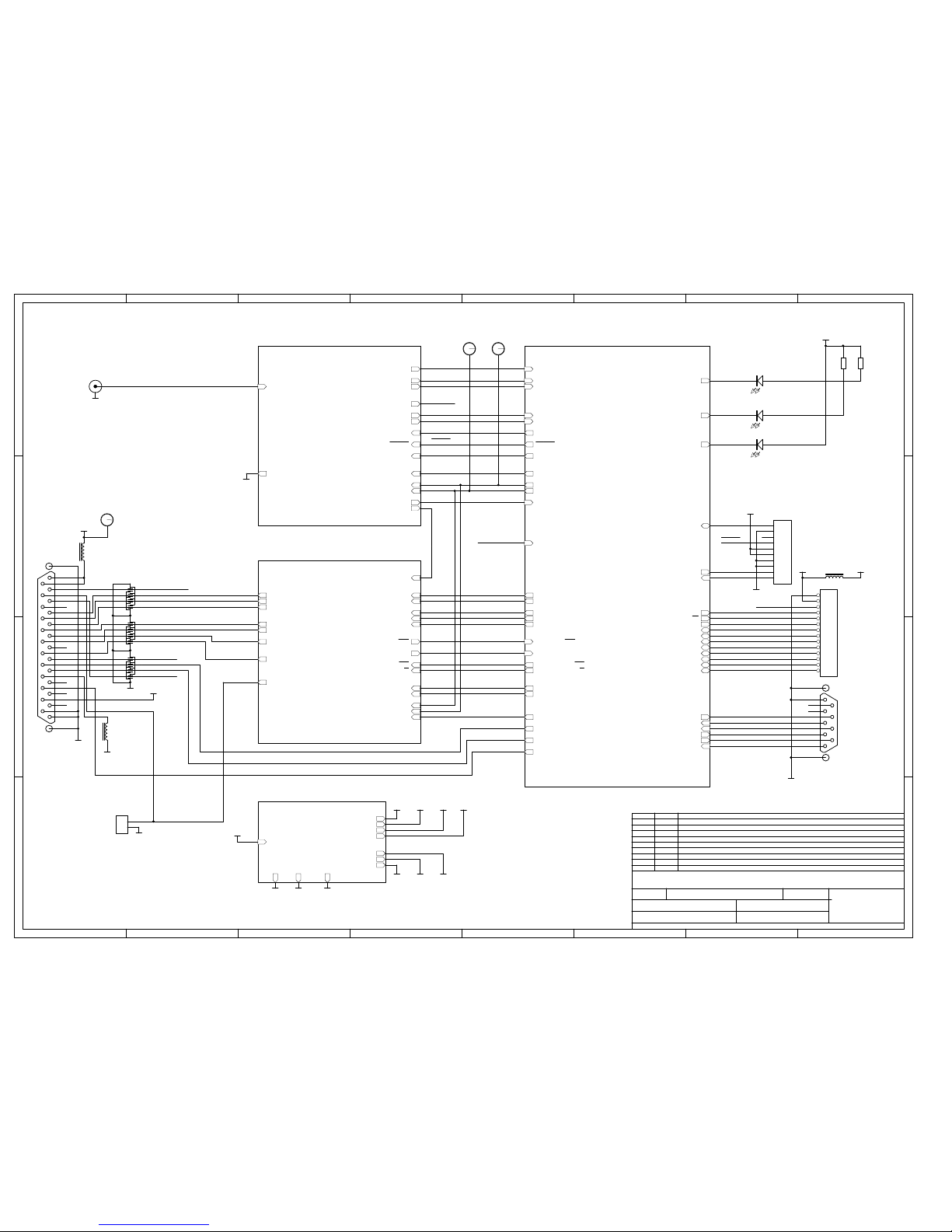

5.1 R50 MASTER SCHEMATIC (SHEET 1) 7

5.2 M

ICROPROCESSOR

(SHEET 2) 7

5.3 RF SECTION (SHEET 3) 9

5.4 5.4 RECEIVER SECTION (SHEET 4) 10

5.5 VOLTAGE CONTROLLED OSCILLATOR (SHEET 5) 11

5.6 AUDIO PROCESSING SECTION (SHEET 6) 12

5.7 POWER GENERATION SECTION (SHEET 7) 13

6 FIEL D ALIGNMENT (CALIBRATION) PROCEDURE 14

6.1 STANDARD TEST EQUIPMENT 14

6.2 INVOKING THE CALIBRATION PROCEDURE MANUALLY 14

6.3 THE "MISCELLANEOUS" C

ALIBRATION

PROCEDURE 14

6.4 LINE CALIBRATION PROCEDURE 15

6.5 THE "REFERENCE" CALIBRATION PROCEDURE 16

7 SPECIFICATIO NS 16

7.1 OVERALL DESCRIPTION 16

7.1.1 Channel Capacity 16

7.1.2 CTCSS 17

7.1.3 DCS 17

7.1.4 Channel Programming 17

7.1.5 Channel Selection 17

7.1.6 Microprocessor 17

RF Technology R50 Page 3

7.2 PHYSICAL C

ONFIGURATION

7.3 FRONT PANEL CONTROLS, INDICATORS, AND TEST POINTS 18

7.3.1 Controls 18

7.3.2 Indicators 18

7.3.3 Test Points 18

7.4 ELECTRICAL S

PECIFICATIONS

7.4.1 Power Requirements 18

7.4.2 Frequency Range and Channel Spacing 18

7.4.3 Frequency Synthesizer Step Size 18

7.4.4 Frequency Stability 19

7.4.5 Number of Channels 19

7.4.6 RF Input Impedance 19

7.4.7 IF Frequencies 19

7.4.8 Sensitivity 19

7.4.9 Selectivity 19

7.4.10 Spurious and Image Rejection 19

7.4.11 Intermodulation 19

7.4.12 Modulation Acceptance BW 19

7.4.13 Noise Squelch 19

7.4.14 Carrier Level Squelch 19

7.4.15 Receiver Frequency Spread 20

7.4.16 Receiver Conducted Spurious Emission 20

7.4.17 Audio Frequency Response 20

7.4.18 Audio Output Level 20

7.4.19 Audio Distortion 20

7.4.20 Channel Select Input/Output 20

7.4.21 Carrier Operated Switch (COS) Output 21

7.4.22 COS Output Current Source/Sink, Collector Voltage 21

7.4.23 CTCSS 21

7.4.24 DCS 21

7.4.25 External Squelch Input 21

7.5 CONNECTORS 22

7.5.1 Antenna Connector 22

7.5.2 Power & I/O Connector 22

7.5.3 Test Connector 22

Appendix A EIA CTCSS Tone Frequencies 28

Appendix B Parts List 29

Append ix C Engineering Diagra m s

C.1 Block Diagram C.2 Circuit Diagrams C.3 Component Overlay Diagrams

Page 1 RF Technology R50

1 OPERAT IN G INST R UCTIONS

1 Oper a ting Instr u ctions

1.1 Front Panel Controls and Ind icators

1.1.1 Monitor Volume

The Mon. Volume control is used to adjust the volume of the internal loudspeaker and

any external speaker connected to the test socket. It does not effect the level of the 600 Ohm line output level, nor the direct audio output level.

1.1.2 Monitor Squelch

The MON. SQ. switch allows the normal squelch functions controlling the monitor

output to be disabled. When the switch is in the MON. SQ. position the audio at the monitor speaker is controlled by the noise detector. The CTCSS, carrier, tone, DCS, and external squelch functions will not stop the audio from being broadcast by the speaker. This can be useful when you are trying to trace the source of on channel interference or when setting t he noise squelch t hreshold.

The audio from the

600 Ohm line output, and the direct audio output, is not

effected by the switch position.

1.1.3 N.SQ

The N.SQ trimpot is used to set the noise squelch sensitivity. Use the following

procedure to set the noise squelch to maximum sensitivity.

(a) Set the toggle switch to the MON.SQ. position and set the MON VOLUME

control to 9 o'clock.

(b) Turn the N.SQ.

adjustment counter clockwise until the squelch opens and noise is

heard from the speaker. Adjust the VOLUME to a comfortable listening level.

Turn the N.SQ.

screw clockwise until the

until the noise in the speaker is muted.

WARNING

Changes or modificat ions not expressly approved by RF

Technology could void your authority to operate this equipment. Specifications may vary from those given in this document in accordance with requirements of local authorities. RF Techno logy equipment is subject to continual improvement and RF Technology reserves the right to change performance and specification without further

notice.

Page 2 RF Technology R50

1.1.4 C.SQ

The C.SQ trimpot is used to set the carrier squelch sensitivity. Carrier squelch is

useful at higher signal levels than noise squelch and can be used from 1 - 200 uV input.

It is provided mainly for use in fixed link applications where

a high minimum signal

to noise ratio is required or where very fast squelch operation is required for data transmission. The carrier squelch will open and close in less than 2 mSec.

In most base station applications carrier squelch is disabled by turning t he adjustment

counter clockwise until the screw clicks.

The carrier squelch may be set to a predetermined level with the

WinTekHelp

software or by using the following procedure:

(a) First turn the adjustment fully counter-clockwise. Then set the noise squelch as

above.

(b) Connect a source of an on channel signal with the desired threshold level to the

receiver's RF input.

until the LED just comes ON.

1.1.5 LINE

The LINE trimpot is used to set t he line and direct audio output levels. It is normally

set to output 0dBm on the Line output when the carrier is modulated with a 1kHz audio signal at 60% of maximum deviation. NB that 0dBm is equivalent to 774 mV to an open circuit, or 387mV into a 600 ohm load.

1.2 F ront Panel Ind ica tor s

1.2.1 PWR LED

The PWR LED shows that the dc supply is connected to the receiver and that the

microprocessor is not being held in a RESET state.

1.2.2 SQ LED

The SQ LED comes on when the audio to the line and direct outputs is un-squelched. The LED and squelch function are controlled by t he external squelch input, and/or the

noise, carrier, tone, or DCS squelch circuits.

1.2.3 ALARM LED

The ALARM LED can indicate several fault conditions if they are detected by the self

test program. The alarm indicator shows the highest priority fault present. See Table 1.

LED Flash Cad ence Fault Condition

5 flashes, pause Synthesizer unlocked 4 flashes, pause Tuning volts out of range 3 flashes, pause Low RSSI 2 flashes, pause

The current channel is not programmed or the frequency

RF Technology R50 Page 3

is out of range. 1 flash, pause Low dc supply voltage LED ON continuously External squelch is active

Table 1: Interpretations of LED flash cadence

2 R eceiver O p t ions

There are many software selectable options. Some options are selected on a per

channel basis, and some are defined globally (i.e. the parameter is fixed irrespective of which channel is selected). Below is a descript ion of these global parameters

2.1 Serial I/O Par a meters

There are two serial ports. There is t he main serial port which is brought out to the

front panel connector. This is referred to as PORT0. There is another serial port which is for factory use only. It is referred to as PORT1.

The baud rate, can be defined for PORT0. PORT0 is set by default to 57.6Kbps, with

No parity.

2.2 R eceiver Low Bat t ery Level

This is factory set to 24.0V, and defines the level of the DC supply that will cause a

Receiver dc supply low alarm.

2.3 LO OP Volts Select

By default, when the squelch opens and the Line output audio is enabled, 12V is

applied to the

Line+/Line- pair through 680 ohms. The 12V power source is

removed when the squelch closes.

In Rev. 2 receiver s, the user can select to reverse the application of 12V,

ie 12V

applied when the squelch is closed, and removed when the squelch opens.

In Rev. 3 (or later) receivers, the user can select to apply a DC loop to the

Line+/Linepair instead of applying 12V. Similarly, they can select to reverse the application of the Loop, or the voltage, depending on the squelch state.

2.4 CO S Source/Sink Select

The COS output can have four possible states:

12V: 12V is applied to COS+/COS- through 680 ohms,

b) 0V: ie COS+ is shorted to COS- which is shorted to GND, c)

shorted: COS+ and COS- are shorted together, but both are electrically

isolated,

open: COS+ and

COS- are not shorted together, but both are electrically

isolated

In states (a) and (b), t he receiver applies either 12V to the COS+ pin, or GND. The

COS- pin is connected to GND in both states. The receiver acts as a “source” when in either of these two states.

Page 4 RF Technology R50

In states (c) and (d), the COS+/COS- pair can “sink” current, or not sink current, that

is sourced elsewhere.

The receivers will either toggle between states (a) and (b), or toggle between states (c)

and (d), depending on the state of the squelch. The user can select which of these two modes they wish to use. The default COS mode is to toggle between states (a) and (b)

2.5 C OS Pola rity

By default, +12V is applied to COS+ when the squelch opens, and COS- is connected

to ground,

ie the COS+/COS- pair are placed into state (a) when the squelch

opens, and are in state (b) when it is closed. (see 2.4 above).

The user can optionally select to reverse this.

Similarly,

if , the user has chosen to operate COS as a “sink” (see 2.4 above), the default is to short COS+ to COS- when the squelch o pens (state (c) above), or open them when the squelch closes. The user can reverse this as well.

2.6 Noise Blan ker

The R50 has a noise blanker. This circuit detects RF impulses and quenches the RF

before it is de-modulated. This prevents “clicks” and “pops” from being detected and passed through to the audio. The noise blanker can be enabled or disabled by the user.

2.7 Advan ced Slot Selectable Parameters

WinTekHelp receivers have several advanced features. These features can be

programmed for each channel.

One of these advanced features is to program up to 8 frequencies on a channel. When

this is done, we refer to the “channel” as a “slot” to avoid confusion, as many people equate the word “channel” with the word “frequency”.

When more than one frequency is assigned to a “slot”, and that slot has been selected

from the channel input, the receiver will automatically scan all the assigned frequencies, tuning to the first that has sufficient carrier strength and/or SINAD, and a correct CTCSS tone, or correct DCS code.

In this “scanning” mode, one of the frequencies can be given “priorit y”. If this is

done, the receiver will check, every few seconds, if there is a signal on the priority frequency, and if so, it will switch to the priority frequency. It will stay t uned to t he priority signal, whilst signal is present on it, but it will then resume its usual scanning function, if the signal is lost.

Another advanced feature is the ability to assign more than one CTCSS tone to a

frequency. When this is enabled, the receiver checks if the received CTCSS tone is one of up to 6 tones rather than just one.

Another advanced feature is t o inhibit the assertio n of COS, or loop, (or both) when

the squelch opens depending on either the frequency received or the tone detected.

For example, in a scanning situation, with two possible frequencies, LOOP can be

programmed to be asserted if one frequency is detected, or

COS to be asserted

RF Technology R50 Page 5

if the other frequency is detected. Similarly, one

can enable/disable the default

assertion of COS and/or loop depending on which CTCSS tone is detected.

Other advanced features are:

a) de-emphasis: enabled or disabled, depending on frequency b) start and end delays for COS and LOOP. c) scanning interval for the priority frequency, d) increments or decrements in the carrier level or noise level thresholds,

depending on the frequency. For example one frequency can be set to have a higher noise threshold than another. Units are in dB of carrier signal, or SINAD dB.

2.8 Standa r d Chann el Para meters

Each channel can set the following standard parameters:

a) frequency, b) one CTCSS tone, or DCS code.

3 Receiver I/O Connections

3.1 25 P in Connector

The female D-shell, 25 pin, connector is t he main interface to the transmitter. The pin

connections are described in Table 3.

Function Signal Pins Specification

DC Power +28Vdc(in)

0 Vdc +5Vdc(out) +12Vdc(out) Vref

13, 25 1, 14 17 15 4

+15 to 32 Vdc Common Voltage

Output for external

Logic(100mA)

Output for an external

relay(120mA)

Reference voltage

Serial

Communi cations

SCLK MOSI CH_EN SPARE_I/O1 SPARE_SEL

12 6 18 16 5

Serial Clock Bi-directional Data Pin

Enables Channel Select

Shift Register

Spare Input or Output

(for future use)

Spare Select (for future

use)

600Ω Line

Output

Line+ Line-

8 19

Transformer Isolated

Balanced 600

Ω

0dBm Output

Carrier Operated

Switch Output

COS+ COS-

10 22

Opto Coupled Transistor

Switch Output

(10mA)

External Squelch

Input

EXT_SQ 11

<1 VDC to force the

squelch to close.

>2 VDC or open ckt, to

enable the squelch

Page 6 RF Technology R50

to open

External Speaker

Output

EXT_SPK 24

AC Coupled External

Speaker Output,

5W @ 4Ω Load

Direct Audio

Output

DIR_AUD 21

>10kΩ

, AC Coupled

Audio Output

2Vp-p @ 3kHz

System Deviation

Discriminator

Audio Output

DISC_AUD 20

>10kΩ

, AC Coupled

Un-

Squelched 2Vp-p

@ 3kHz System

Deviation

Sub-Audible

Tone Output

SUBTONE

>10kΩ

, AC Coupled

Un-

Squelched, 2Vp-p

@ 3kHz System

Deviation

Table 3: Pin connections and explanations for the main 25-pin, D connector

3.2 9 Pin Fr ont Pan el Connect or

The female D-shell, 9 pin, front panel connector is an RS232 interface for serial

communications to a terminal, a t erminal emulator, or to a computer. The pin connections are described in table 4.

Function Pins Specification Pin nam e on IBM PC

TXD 2

Transmit Data (Output)

RxD RXD 3 Receive Data (Input) TxD RTS 8 Request To Send (Output) CTS CTS 7 Clear To Send (Input) RTS DTR 6 Data Terminal Ready(Output) DSR DSR 1 Data Set Ready (Input) DCD GND 5 GND GND

Table 4: Pin connections for the front panel 9 pin D connector

The pinout for t he connector has been chosen so that a straight-through BD9 male to

DB9 female cable can connect t he transmitter to any male DB9 serial port on an IBM PC compatible computer.

Note that for connection to a modem, a

cross-over cable will be required.

Ch a n nel Progr a m ming and Op t ion Selections

Channel and tone frequency programming are most easily acco mplished with RF

Technology WinTekHelp software. This software can be run on an IBM compatible PC and can be used to calibrate a T50, R50, and PA50 as well as

RF Technology R50 Page 7

program channel information. See the

WinTekHelp

users manual for further

information.

5 Circuit Descr ipt ion

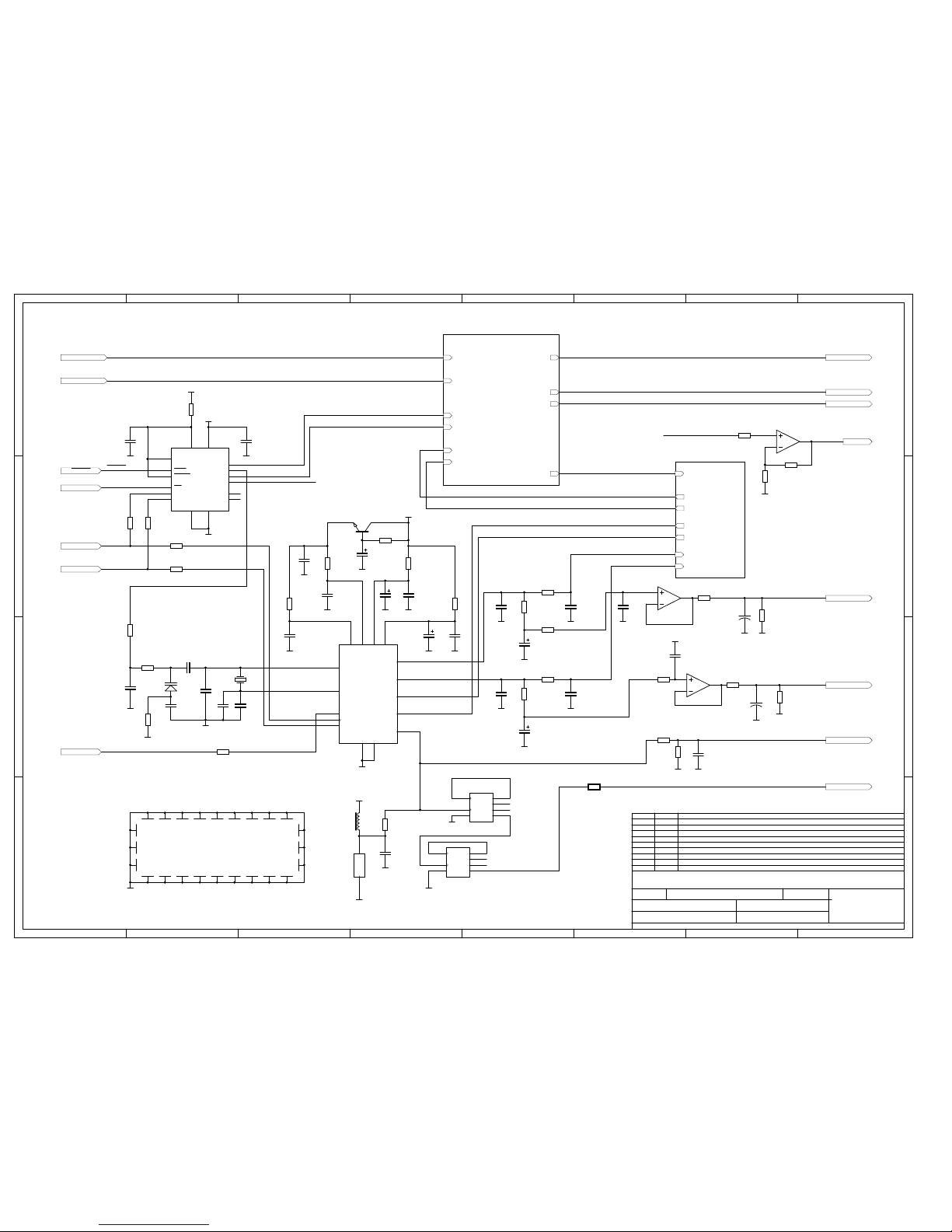

The following descriptions should be read as an aid to understanding the block and

schematic diagrams given in the appendix of this manual.

There are 7 sheets in the schematic in all.

5.1 R 50 Ma ster Sch emat ic (Sheet 1)

Sheet 1, referred to as the "R50 Master Schematic", is a top level sheet, showing four

circuit blocks, and their interconnection with each other, as well as the

interconnection with all connectors and external switches.

P1 is the front panel DB9 RS-232 connector for attachment to a terminal, a terminal

emulator, or to an IBM PC running the WinTekHelp software. P3 represents the rear female DB25 connector. J1 is the terminal on print circuit board, it is connected to the internal load speaker.

JP2 is for the attachment of

an LCD display module. This has been included for later

development. JP3 is a specialised connector for test and factory configuration use only. D102, D103, and D104 represent the three front panel LEDs.

5.2 M icrop rocessor (Sheet 2)

Sheet 2 describes the basic microprocessor circuitry. The core CPU is the Motorola XC68HC12A0. It is configured in

8 bit data width

mode.

The CPU is clocked by a 14.7456MHz crystal o scillator circuit (top left) comprising

the JFET Q202, and two switching transistors Q203 and Q204.

The CPU contains an 8 channel A/D converter whose inputs are identified as AN0,

AN1, …, AN7. AN7 is used as LOCK detect inputs from the Locked Loop (PLL) circuits (see 5.6) AN6 is used to sense the noise squelch level setting. AN5 is used to sense whether or not the dc supply is within spec or not.

AN4 is used to sense the audio from the discriminator, so the R50 receiver can be

used as a deviation meter. AN3 and AN1 are inputs from the PLL circuits that sense the bias voltage on the VCO

control varactor for each VCO. AN2 is used to sense the carrier squelch level setting. AN0 is used to sense the RF input signal strength which is detected by the IF chip.

FRDY is an output from the flash. It goes low when the Flash starts to write a byte of

data, or erase a block, or erase the whole chip, and it returns to its default high

state when the action requested has completed.

Page 8 RF Technology R50

FPSW1, FPSW2 and FPSW3 are t hree pins that have been reserved for future use as

switch inputs.

LOOP/VOLTS_SEL is a CPU output that when high applies 12V of dc feed to the

audio output.

LINE_LEVEL_U/D and LINE_LEVEL_INC are CPU outputs which are reserved for

controlling a digital potentiometer in future.

COS_VOLTS_ON/OFF is a CPU output that when high applies 12VDC feed to

COS+ terminal, so t hat t he COS can be selected as +12VDC source or a free

switch.

COS_POLARITY is CPU o utput that when low t urns

Opto-coupled

transistor switch

U601on. It is controlled by the noise squelch detect, carrier squelch, or external squelch signal

SQ is a CPU output that when low, enables the 600 ohm line output, and the direct

audio output. It is controlled by the noise squelch detect, carrier squelch, or

external squelch signal N_BLK_EN is a CPU output that when low turns noise blanker option off. CTCSS_SEL is a serial bus select pin. It is used to select the FX805 chip(U500),

which is used to decode CTCSS tones. (see 5.5)

PLL_SEL is a serial bus select pin. It is used to select the PLL chip in the PLL circuit

(U302). (See 5.6)

RCV_ADSEL is a serial bus select pin. It selects the quad Digital to Analogue

converter (DAC) that sets the levels for the 12MHz reference oscillator bias

voltage, 21.855MHz oscillator bias voltage, noise squelch

comparator bias

voltage and the LCD bias circuit. (see 5.4)

CH_EN is a serial bus select. It is brought out to the rear panel and is used to

interface to the channel encoder on the rear daughter-board. (See 5.1)

FLAT and DE_EMPHA are outputs which are the logical inverse of one another.

When the FLAT pin is low, the audio output is flat response, when

DE_EMPHA pin low, audio is 750uSec de-emphasized.

Fo_PLL is derived from the

the Fo output

of the PLL chip. It is Fo after being

divided by 100. They should be 312.5Hz square waves, except for brief

periods when frequencies are being changed. (See 5.6)

MON_SW is a digital

input which represents the state of the front panel MON.SQ

switch. LCD_DB7 is a signal that has been reserved for interfacing to an LCD display.

ECLK is a pin that at start-up only, should have the CPU system clock of 7.3728MHz

on it. SQ_LED, ALARM_LED, are CPU outputs that drive (when low) the SQ LED, and

the ALARM LED. T/R_RELAY_H is a spare pin which is not used in the R50 receiver.

SCLK, and MOSI are used as the core of a serial bus. SCLK is a clock pin, and

MOSI is a bi-directional data pin. DBGTX_TTL, DBGRX_TTL are RS232 transmit and receive (TTL) data pins which

are connected to the debug port after conversion to/from RS232 compatible

voltage levels by U202 and U201.

RF Technology R50 Page 9

TXD_TTL, RXD_TTL, RTS_TTL, CTS_TTL, DTR_TTL, DSR_TTL, are RS232

data pins which are connected to the main front panel serial port, after

conversion to/from RS232 compatible voltage levels by U202 and U201.

N_DET is used to sense the noise squelch output of the receiver section. (see) SUBTONE_IRQ is connected to the interrupt pin of the FX805 (U500). When

CTCSS tones change state, ie a new tone is detected, or an existing tone stops

being received, or 8 bits of NRZ data (when decoding DCS codes) are received, this signal is asserted to force the CPU to read data from U500.

INT is a dedicated CPU interrupt input pin. It is used to detect the state of the external

squelch signal.

BKGD is a bi-directional I/O pin used to communicate with the core of t he CPU. It is

connected to the debug port and is utilised by specialised hardware to control

the CPU externally, even without any firmware being present in the Flash.

The RESET pin is both a low active input and a low active output to the CPU. If

generated externally to the CPU, it forces the CPU into reset, and if the CPU executes a RESET instruction

this pin will be driven low by the CPU.

Whenever there is insufficie nt volts (< 4.65V) on pin 2 o f the MC33064D (U203), it

will keep its RES o utput low. After the voltage has met the right level it will assert its output low for another 200 milliseconds. Thus the CPU will be held in reset until VCC is at the correct level. Thus the PWR_OK LED will only light when VCC is within specification, and RESET has been released.

S200 is a momentary push-button switch that, when pressed, will cause the CPU to be

reset.

MON_SQ is a CPU output which is used to enable (when low), or disable (when high)

the audio at the monitor speaker.

LCD_RS, LCD_R/W, and LCD_E are reserved for interfacing to

an LCD display

module. Note that this feature has not been implemented.

U205 is used to select whether the Flash or RAM is to be read or written.

U207 is a single supply, 5V, TSOP40 Flash chip of size 8, 16, or 32 Megabits, and is

used to store the firmware.

U208 is a 1, or 4

, Megabit Static RAM in an SOP-32 package, and is used for both

code and data. The code in the RAM is copied from the Flash, at start-up.

5.3 RF Section (Sheet 3)

Sheet 3 is a schematic of the RF section, which itself refers to two other

subsheets.

U301 is a quad Digital to Analogue converter (DAC). OUTA (pin2) is used to adjust

the 3rd local oscillator frequency. OUTB (pin1) is used to adjust the frequency

of the 12MHz reference. OUTC(pin16) is used to set the noise squelch

comparator offset voltage. OUTD (pin15) is reserved for future use.

Communication between U301 and the

MicroController, U204, is via the serial

bus.

U302 is a dual channel PLL chip, X301 is the reference for both PLL channels. PLL

channel 1 is for t he 1st VCO, and channel 2 is for the 2nd VCO. C315, C317, C327, R316 and R317 are components of the loop filter for the 1st VCO, C316, C328, C329, R330 and R331 are for the loop filter of the 2nd VCO.

Page 10 RF Technology R50

U303A, U303D are buffers that isolat e t he bias voltage. The Microcontroller,

U204, has both of these buffered voltages connected to two of it’s A/D ports. U304A, U304B divide the FoLD

of the PLL chip by 100, and send it to a Timer input

pin of the MicroController, U204.

5.4 Receiver Section (Sheet 4)

The RF input signal (25MHz-50MHz) is first filtered w ith a band-pass filter. This is

implemented with two filters, firstly a high pass filter (C401, C402, C403,

C407, C415, C416, C417, C419, C420 and L401, L404, L405, L406) and then

a low pass filter (C404, C405, C406, C421, C422 and L402, L403, L407,

L408).

After band-pass filtering, the signal is amplified. Q401 is the front-end amplifier.

After amplification, unwanted products generated by the amplifier are filtered.

The capacitors and coils between Q401 and C457 provide this additional

filtering for the RF signal amplified by Q401.

This amplified RF input signal is referred to on t he schematic as RF_AMP. It is up-

converted by mixer MX401 to create the 1

IF.

It is also amplified by Q405,

and Q406, which are the front-end amplifiers for the Noise Blanker circuit.

The output of Q406 is “detected” by D401, and if the waveform “envelope” exceeds

approximately 3.3V, the output of U403 will go high. U404 is a retriggerable

monostable multivibrator, which produces a pulse at least 2usecs long after

each rising edge detected on the output of U403. If rising edges re-occur

during each pulse, the pulse period keeps extending until they stop.

The output of U404 is level shifted and inverted by Q408 to create the blanking signal

N_BLK. C470, R416, and R414, act to slew the negation of N_BLK, w ithout

affecting the slew rate of the assertion of N_BLK. U303C provides some AGC for the RF amplifier formed by Q405 and Q406. They

also reduce the intermodulation which is produced by Q405 and Q406.

MX401 is a double balanced mixer which converts the RF signal t o the 1st IF. The

frequency of the 1st IF is at least three times higher than the highest RF

frequency to obtain good image and spurious rejection. In the R50 receiver, the

1st IF frequency is approximately 246MHz. The actual frequency depends on

the frequency tuned to, and may vary by as much as +/- 120kHz. The 1st LO is

set to be approximately 264MHz above the frequency being tuned to. Q402 is used to amplify the 1st IF signal before it is filtered by FIL401.

FIL401 is a SAW filter, which provides an excellent spurious rejection for the 1st IF. The filtered IF signal is then fed to double balanced mixer MX402. The output of

MX402 produces the 2nd IF, which is then amplified by Q403. The 2nd IF

frequency is set at exactly 21.400MHz, to avoid interference from any in-band

RF signals. The 2nd LO is set to approximately 224.6MHz. Again the LO

frequency may vary from 224.6MHz by as much as +/-120kHz depending on

which frequency the receiver is tuned to. Q404 and Q409 gate the 2

IF signal. If the N_BLK signal is high, then the 2

IF is

quenched. N_BLK is generated by the impulse noise detector. FIL404 and FIL405 are two 21.4MHz crystal filters. Combined they form a four pole

crystal filter. The filter has a minimum o f 40dB attenuation at the adjacent

channel frequencies (25kHz channel spacing). C448, C477, L423 and

RF Technology R50 Page 11

components between FIL405 and U401 form the matching network for the filter.

U401 is an IF receiver IC which includes mixer, oscillator, amplifiers and

discriminator. It down-converts t he 2nd IF to the 3rd IF at 455kHz, which is

filtered by ceramic filters FIL402, and FIL403, before the signal is demodulated(discriminated). The discriminator uses ceramic resonator X401 as its 455kHz reference.

X402 is a crystal used to create a 21.855MHz oscillator t hat becomes the 3

LO. The

frequency can be varied slightly by

varactor

D406, and thus it can be adjusted

by the 3rd_LO_ADJ voltage. This is done as part of calibration.

Pin9 of U401 is the recovered audio output. C411, C412, C413, R441, R444 and

U402A form a 5

order

ellyptical high pass filter with 3dB cut-off at 7.5kHz.

Any “signal” at such frequencies is assumed to be noise, as exciters sharply attenuate all signals above 3kHz. U402B amplifies this FM “noise” signal, and D403 and C438 act as a peak detector. The voltage on C438 is proportional to the square root of the noise energy. U402C works as a comparator

which

asserts the low active digital signal, N_DET, if the noise voltage is higher than the D/A output, NSQ_SET.

Pin8 of U401 is the other recovered audio output which can be muted by pin5.

Capacitor C484, and D407, ensure that the audio remains muted until the +10V is at the right voltage. The discriminated audio signal is amplified by

U605A and then fed into the Audio Section (Sheet 6).

Pin7 of U401 is the Radio Signal Strength Indicator (RSSI) output. U402D is a buffer.

The RSSI voltage is converted to a digital value by one of the A/D inputs of the

MicroController.

5.5 Volta ge Controlled O scilla t or (Sheet 5)

There are two similar VCO circuit s in this sheet, the difference between these two

VCO is component values, so only one VCO circuit is illustrated in this

section.

Q501, C532, C533, C534 and L501 form a Colpitts oscillator, the frequency o f the

oscillator is decided by t he tuning voltage of varactor D501. The capacit ance

of D501 is in series with C531, and this total capacitance is in parallel with C501 and also with the series connection of the feedback capacitors C533 and C534. The net capacitance forms a tank resonance with the, high Q, air coil inductor, L501.

The bias for varactor D501 comes from the loop filt er of the 1st PLL. Q503 forms a

gyrator circuit which reduces no ise that might be injected from the power supply.

The parameter,

Vgs

(off)

, of Q501 can vary from 1 to 4V. D503, R517 and C519 provide some AGC, in order to reduce the dependence of the output level on this parameter.

MMIC amplifier MA501 provides about 20dB gain for the VCO signal and feeds it to

the PLL chip.

MA502 and MA503 provide about 30dB gain of the VCO signal to drive the LO port

of the double balanced mixer MX401 at a nominal level of +7dBm.

NB that Q506, R547, R531, L508, C510, C540, R537, and R536 are not fitted. Place

for these components has been provided on the printed circuit board to allow

Page 12 RF Technology R50

the possibility of rep lacing MX401 with a mixer that requires a higher level of LO drive (but an improved IP3 figure).

5.6 Au dio Processing Section (Sheet 6)

The discriminator output from t he RF section is connected, in this audio section, to a

peak detector formed by U604 and C623. This peak detector output is passed to an A/D input of the Microcontroller to be used as a simple deviation meter.

This raw detected audio is t hen attenuated by R642 and R655 before being filtered.

This attenuation is required to ensure that the audio signal will fit into the

dynamic range limitation of the CTCSS chip, U602.

The raw, unfiltered Discriminator Audio signal is attenuated by R658 and R657

before being connected to the rear panel connector P3.

U605B, R642, R643, R644, C626, C627 and C628 form a 5th order

ellyptical low pass

filter with 3dB cut-off at 4.2kHz.

U602 is a CTCSS tone encoder and decoder. U602 can receive and transmit NRZ

data, and as such can be used, with suitable firmware, to receive or detect DCS codes.

The CPU accesses U602 via the serial bus using MOSI, SCLK, and the low active

Select signal CTCSS_SEL. When U602 detects new CTCSS to nes, or detects the absence of a tone, or receives bytes of NRZ data, it signals the Microcontroller by asserting the low active signal SUBTONE_IRQ.

The 4MHz crystal, X401, is used as the reference for decoding CTCSS tones, or

setting the bit rate for NRZ data. U602 has a built-in high pass filter, between

pins 10 and 11, which can eliminate any subtone, or low frequency NRZ data.

Whilst the Microcontroller can enable or disable this filter, in the R50, it is

always enabled. The subtone output from Pin17 is a mplified by U605C. The

output from U605C is ac-coupled to the rear panel connector P3, through capacitor C604.

The audio paths in U602 are all dc-biased to Vcc/2. The audio paths before and after

U602 are zero-biased.

U609B is set up as an inverting amplifier with a nominal gain of unity at 1kHz. If the

signal FLAT, is asserted low, analogue switch U607A is enabled. This sets the gain at unity across the audio band. If, on the other hand, the digital signal DE_EMPHA is asserted low, analogue switch U607B is enabled, and the gain

becomes proportional to frequency. Thus de-emphasis is applied to compensate

for any pre-emphasis applied at the exciter.

The audio is connected to the Line outputs and the DIR_AUD output, when the digital

signal SQ is asserted low.

The audio is connected to the speaker amplifier when the digital signal MON_SQ is

asserted low.

U609C is the amplifier for t he 600 ohm line output. U609D is the amplifier for the

direct audio output (DIR_AUD). The output level o f the

600 ohm output is

adjustable via VR601 on the front panel.

U604 is the power amplifier for internal and external speaker. The volume can be

adjusted by VR602 on the front panel.

RL602 may apply, or remove, 12VDC to the 600 ohm line output. Whether this

occurs or not, and whether the voltage is applied when the squelch opens or

RF Technology R50 Page 13

closes depends on the way in which the channel is programmed by the user. The position of RL602 is controlled by the signal LOOP/VOLTS_SEL from the MicroController.

Opto-coupled transistor switch U601 provides a COS (Carrier Operated Switch)

output which is controlled by the digital COS_POLARITY

signal from the

MicroController. The output COS+ and COS- can be used as +12V DC source

or a free switch depending on the status of the relay RL601. RL601 is controlled by the digital COS_VOLTS_ON/OFF signal from the MicroController.

5.7 Power Generation Section (Sheet 7)

U909 converts the +12V rail to +5V for all the digital circuitry. The +12V rail is used to power the two on-board relays, as well as up to one extra off-

board relay. It is also dropped, via a linear regulator (U910) to produce the +10V rail, which in turn is dropped by another linear regulator U911 to produce +5Q, which, in turn, is dropped by a further linear regulator (U912) to produce +2.5V.

Similarly U913, U914, and U915 are linear regulators that produce –10V, -5V, and –

2.5V from the –12V output of U908.

+10, +5Q, and +2.5V, -10V, -5V, and –2.5V rails are used in the audio and RF

sections.

D911 is a 4.096V (3%) reference diode. Its output is buffered by U906 which then

produces a reference voltage rail Vref, which is used by the CPU’s A/D converter, and the

DACs, and also in the voltage to current converters of the

VCAs (see Sheet 4, and Sheet 7).

There are three switch-mode dc-dc converters in the board. These use monolithic

converters based on the National LM2595. Two of the converters are 12V converters and one is a 5V converter.

The power in to the whole exciter is the voltage rail 28V. U907 converts this down to 12V. U908 is set up as an inverter, and uses the 12V rail to create -12V. U909 converts the +12V rail to +5V for all the digital circuitry. The +12V rail is used to power the two on-board relays, as well as up to one extra off-

board relay. It is also dropped, via a linear regulator (U910) to produce the +10V rail, which in turn is dropped by another linear regulator U911 to produce +5Q.

Similarly U913 and U914 are linear regulators that produce -10V and -5V from t he -

12V output of U908.

NB -2.5V is not used in the R50 receiver. In case, it is ever required in a future

release of the R50, it has been included in the schematic.

U915, though is not

fitted to the printed circuit board.

D911 is a 4.096V (3%) reference diode. Its output is buffered by

U906 which then

produces a reference voltage rail Vref, which is used by the CPU's A/D

converter, and the DACs.

Page 14 RF Technology R50

6 Field Align ment (Calibra t ion) P rocedure

6.1 Standa rd Test Equipment

Some, or all of the following equipment will be required:

• Power supply set to 28Vdc, with current >0.25A.

•

RF Signal Generator with 50 Ohm Output impedance, and Frequency range

25-50MHz. The signal generator must be capable of generating a carrier aith output level adjustable from –60dBm to –128dBm. It must be able to FM modulate the carrier with a 1kHz audio signal with deviations of 3 and 5kHz.

•

Frequency Counter, or spectrum analyser, capable of measuring frequency

accurate to 0.5ppm.

• True RMS AC voltmeter with bandwidth > 20kHz, and,

• a DC voltmeter.

6.2 I n vokin g the Calibr a t ion Proced u re Man ua lly

From Version 4 of the firmware, and version 1.4 of WinTekHelp, the calibration

procedure can be performed through a Windows front end program. This is documented in the

WinT ekHelp manual. It is recommended that you use the

new Windows based procedure for calibrating each R50.

The firmware still supports the older command prompt method, which is described in

this section.

The firmware will requests the user for information as to meter readings, and/or to

attach or adjust an AF signal generator.

The firmware based calibration program can be accessed from a terminal, a terminal

emulator, or the WinTekHelp terminal emulator.

If the user selects the “Go to t he Prompt Window” o ption from the main menu, t hey

can manually type commands to invoke the calibration procedure. When the exciter is ready to accept commands it echoes the following prompt:

R50>

Via a terminal, or a terminal emulator, a user can type various commands in. The

basic command to start the calibration procedure is: R50> cal

calibration_type

Where "

calibration_type" is one of:

(a) misc:

Miscellaneous parameters are defined and calibrated

(b) line:

Line1, Line2,

Dir

Aud (Tone), and microphone inputs are

tested and calibrated.

The reference oscillators are adjusted and calibrated

6.3 T h e "Miscellaneous" Calibr a tion Procedure

R50> cal misc

This procedure should not normally be invoked as part of any field maintenance.

The program will print out the Model Name and Serial Number of the exciter. If these

parameters haven't already been defined (e.g. at an init ial calibration, at the factory, the service personnel will be prompted to enter these values).

RF Technology R50 Page 15

Then it will ask the operator to enter the value of Vref (as measured at TP913, see

5.7).

Measure the voltage, a t TP913 (Vref) and type it on the command line...

Unless the reference diode D911 has been replaced, this should not be done. The user

should simply hit the Enter key to bypass this operation. If, though, D911 has been replaced for some reason, then, the lid of the unit should be removed, and the voltage measured. TP913 can be found just above JP12 (near the centre of the exciter).

Then the receiver low battery alarm level will be asked for. If the current value is

acceptable, the User need only hit the Enter key on the keyboard. If another value is preferred, then that value can be typed in.

For example:

The Exciter's Low Battery Alarm is 24V If this is corr ect enter <RET>, else enter the new value: 26

In this example, the low Battery Alarm level is changed to 26V.

Then the user will be prompted for serial port baud rates, etc. Please leave these

parameters unchanged unless you are familiar with how to change such

parameters on your PC. The WinTekHelp software will expect 57600 BPS,

and No Parity. Note well, that if you do change any of these, the change will not take effect until you power down t he receiver and then power it up again. (As an alternative to power cycling the receiver, and if the cover is off the

receiver, you may simply press

switch momentary push-button S200 (see 5.2).

Then the following questions are:

Is Flat frequency response on by default (Y/N)? Is COS purely a sink of current (Y/N)? Is COS Asserted when the Squelch is closed (Y/N)? Is COS UnAsserted when the Squelch is open (Y/N)? Is LOOP Asserted when the Squelch is closed (Y/N)? Is LOOP UnAsserted when the Squelch is open (Y/N)?

Always hit "Enter key" unless the value other t han default is required. Note the user

should use the "Y" key if the default value needs to be changed.

6.4 L ine C alibr at ion Pr ocedur e

R50> cal line

This procedure is used for calibrating the RF RSSI level reading, FM modulation

(deviation) reading. Also t his procedure is used to set the 600 Ohm audio line output level, Noise squelch level and Carrier squelch level. Simply follow t he

instruction of the software as bellow:

Attach an RF signal generator to the input. Set the RF output to 37.5MHz, and an input level of -110dBm with a 1kHz tone and 3kHz deviation. Adjust the Volume Pot until the DIR AUD output

Page 16 RF Technology R50

is 388mV.(eqvt to 0dBm into 600 ohms) Enter <RET> when done. Set the RF signal gener ator's output to -60dBm Enter <RET> when done. rssi_scale is 0.417dBm/dac step, and rssi offset is -137.500dBm) Adjust the Modulation to only 1KHz max dev iation Enter <RET> when done. deviation_scale is 1.000dBm/dac step, and deviation offset is .000dBm Adjust the Carrier Squelch to the desired level Enter <RET> when set.

-99.5 --- for example

Enter the F ast Noise Threshold(in dBm): Enter the Carrier Alar m Threshold(in dBm): Set the RF generator output to the desired level ( < -105dBm ), and adjust the N.SQ adjustment counter clockwise until the squelch opens, thence turn it clockwise until the noise is muted. Enter <RET> when done

6.5 T he "Reference" Calibr at ion Proced ur e

R50> cal ref

To compensate for crystal ageing and other parameters that drift, the following

procedure should be performed approximately once per year.

Open the cover of the receiver, find out the test point TP209 on receiver PCB, using a

frequency counter to measure the frequency and follow the instruction as bellow:

Measure the ECLK frequency, accurate to 0.5Hz and enter the result(in MHz, eg 7.3727965)

Measure the E clock frequency again, and enter yes(y/Y) if less than 1Hz from prev. freq, or re-enter the frequency Connect an RF generator to the input and with output freq of 37.5MHz and output level of -100dBm Enter <RET> when done.

SPECI F IC AT IO NS

7.1 O vera ll Descr ip t ion

The receiver is a frequency synthesized, narrow band, HF/VHF, FM unit which can be

used in conjunction with transmitter and power supply modules as a base station, or it can operate as a stand alone receiver. All necessary control and

600 ohm line interface circuitry is included.

7.1.1 Cha n nel Capa city

Although most applications are single channel, the R50 can be programmed for up to

256 channels, numbered 0-255. This allows a network administrator to program every receiver, in every site, the same way. By setting each s ite up to select which of the 256 channels is appropriate, any receiver can be plugged

RF Technology R50 Page 17

into any position, in any site, without the need to perform on-site reprogramming. This can be convenient in maintenance situations.

The parameters that can be defined on a per channel basis are:

• The frequency, or if scanning is enabled, the list of frequencies to be scanned.

• If scanning is enabled, the selection of a priority frequency (if there is one),

and how often it is checked.

• The CTCSS tone, or tones, expected on each frequency, or, DCS code

expected on each frequency.

•

The delay from the opening of the squelch till the assertion of the

COS output,

or LOOP output.

• The delay from the closing of the squelch to the negation of the COS or LOOP

output.

• Whether or not LOOP and/or COS should be asserted when the squelch opens,

depending on which frequency, and/or CTCSS tone, is detected.

• Whether de-emphasis should be applied to the t uned signal o r not depending

on which frequency the receiver is tuned to.

• Offsets for carrier strength or SINAD: the user can allow individual

frequencies to have higher or lower thresholds for SINAD or carrier strength.

7.1.2 CTC SS

Full EIA subtone Capability is built into the modules. The CTCSS tone can be

programmed for each channel. This means that each channel number can represent a unique RF and tone frequency combination.

7.1.3 DCS

From Rev. 4 hardware and Rev. 4 firmware, support for DCS codes is supported.

DCS code generation can be enabled on a per channel basis. If enabled, the receiver will not open the squelch unless it is receiving the nominated DCS code, or one of its valid transformations. If it stops receiving these DCS codes,

the squelch will close.

7.1.4 Cha nnel Pr ogra mm ing

The channel information is stored in non-volatile memory and can be programmed via

the front panel connector using a PC, and/or RF Technology software.

7.1.5 Ch an nel Selection

Channel selection is by eight channel select lines connected to the rear panel that

mounts on the rear DB25 female connector.

A BCD active high code applied to the lines selects the required channel. T his ca n be

supplied by pre-wiring the rack connector so that each rack position is dedicated to a fixed channel. Alternat ively, thumb-wheel switch panels are available.

By redefining “illegal” BCD codes, users can also encode channels from 100 – 255.

7.1.6 Micr oprocessor

A microprocessor is used to control the synt hesizer, tone squelch, calibration, fault

monitoring and reporting, RSSI reading, deviation measuring, option setting

and facilitate channel frequency programming.

Page 18 RF Technology R50

7.2 P h ysical Configura t ion

The receiver is designed to fit in a 19 inch rack mounted sub-frame. The installed

height is 4 RU (178 mm) and the depth is 350 mm. The receiver is 63.5 mm or two Eclipse modules wide.

7.3 F ront Pa nel Controls, Indicator s, an d Test Points

7.3.1 Controls

Mute Defeat Switch - Toggle

(Overrides CTCSS and carrier squelch at the monitor output) Monitor Speaker volume - Knob Line output Level - screw driver adjust multi-turn pot Noise Squelch setting- screw driver adjust multi-turn pot Carrier Squelch Setting - screw driver adjust multi-turn pot

7.3.2 Indicator s

Power ON - Green LED Squelch Open - Yellow LED Fault Indicator - Flashing Red LED

7.3.3 Test Points

There are no front panel test points. All important test points are monitored by the

firmware.

7.4 Electrical Specificat ions

7.4.1 Power Requir ements

Operating Voltage - 16 to 32 Vdc Current Drain - 0.5A Maximum Polarity - Negative Ground

7.4.2 Frequency Ra nge and Cha n n el Spacing

The R50, as a single model, covers the frequency range 25MHz to 50MHz in one

model. All frequencies, that are an integer multiple of 1250Hz, are allowed

within this band.

The R50, by default, has a 3rd IF filter whose bandwidth is suitable for 20kHz or

25kHz channel spacings.

The R50 can, optionally, be supplied with a filter which is suitable for 10.0 or

12.5kHz, or 15kHz channel spacing. Similarly, a third filter is also available

which is suitable for 5.0, 6.25kHz, or 7.5kHz.

7.4.3 Frequency Synthesizer Step Size

The specified frequency can be any multiple of 1250Hz.

RF Technology R50 Page 19

7.4.4 Frequency Sta b ility

±5 ppm over 0 to +60 C, standard ±12 ppm over -30 to +60 C.

7.4.5 Number of C ha n nels

256, numbered 00 - 255

7.4.6 RF Input Impedance

50 ohms.

7.4.7 IF Frequencies

1st IF frequency 246MHz +/- 120kHz 2nd IF frequency 21.4MHZ 3rd IF frequency 455KHz

7.4.8 Sensitivity

-119 dBm for 12dB SINAD

-116 dBm for 20dB Quieting

7.4.9 Selectivity

80dB per RS204C

7.4.10 Spurious and Im a ge Rejection

90dB

7.4.11 Inter modulation

80dB

7.4.12 Modulat ion Acceptance BW

7.5KHz

7.4.13 Noise Squelch

(a) Adjustment range: 6-26dB SINAD (b) Attack time: 20mSec. Above 20dB Quieting (c) Release Time:

150mSec. At 20dB Quieting decreasing to 20mSec. Above 2uV

preset threshold

(d) HysteresisEqual to approximately 2-3dB noise quieting

7.4.14 Ca rrier Level Squelch

Carrier level squelch can be used w hen it is necessary t o set the opening point above

26 dB SINAD as may be required in link applications. The minimum adjustment range is 0.35uV(-116dBm) to 700 uV(-50dBm).

Page 20 RF Technology R50

7.4.15 Receiver Frequency Sp read

Less than 1dB change in sensitivity over the band

7.4.16 R eceiver Cond u cted Spurious Emission

Less than -67dBm from 1 to 3000MHz

7.4.17 Audio Frequency Response

(a) 600 Ohm Line and Direct Output:

+1/-3 dB 300 - 3000 Hz relative to either a flat response or 750 uSec. de-

emphasis (b) Sub-Audio Output:

+1/-3dB 67 - 250 Hz @ 3kHz deviation

7.4.18 Audio Out p u t L evel

(a) 600 Ohm Line:

Adjustable -10 to +10 dBm (b) Monitor Loudspeaker:

5 Watts with external speaker, 0.2 Watt with internal speaker

Nominally equal to

1 volt peak at rated system deviation

7.4.19 Aud io Dist ortion

With 750 uSec. De-Emphasis:

Less than 3% at 1 KHz and 60% of rated system deviation With Flat Response:

Less than 3% at 1 KHz and 60% of rated system deviation

7.4.20 C h annel Select Input/Output

Coding - 8 lines, BCD coded 00 – 99; illegal BCD codes used to encode

channels 100 – 255.

If the MSN (Most Significant Nibble) is greater than 9, then the channel number is

defined by the formula:

16*MSN + LSN;

where the LSN is the Least Significant Nibble. If t he MSN is less than 9, but the LSN is greater than 9, then t he channel number is

defined by the formula:

10*LSN+MSN; Logic Input Levels - High for <1.5V, Low for >3.5V Internal pull up resistors select channel 00 when all inputs are O/C.

RF Technology R50 Page 21

7.4.21 Ca rrier Opera ted Switch (CO S) Out put

The carrier operated switch output is via an Opto-coupler. Collector and

emitter connections are available to allow connection for source or sink.

The Opto-coupler can be linked inside the receiver to be on when a carrier is detected

or to be on in the absence of carrier.

Internal connections are provided by a relay so that 12VDC can be connected to t he

600 Ohm line for use over a single pair.

7.4.22 CO S Outp u t C urrent Sour ce/Sink, Collector Voltage

Ic = 10 mA Maximum Vc = 30 Volts Max

7.4.23 CT C SS

The CTCSS decoding is provided by U602. This provides programmable decoding o f

all 38

EIA and 12 other common tones. See Appendix C for the full list of tone

squelch frequencies.

U602 is accurate to within +/- 0.2Hz. The firmware will accept as valid any received

tone that is within ±1.5 % of the nominated tone.

7.4.24 DC S

From Rev. 4 hardware and Rev. 4 firmware, support for DCS codes is supported. If

DCS is enabled, the receiver will set the CTCSS chip (U602) into a mode whereby it expects NRZ data at 134.4 bps. On the reception of each bit of data,

that bit and the previous 22 bits of data, are parsed to check if they are a valid

Golay code with 3 or less bit errors. If these 23 bits are valid, then the code is extracted and compared with t he code defined for that channel, or one of the transformations of that code. If the squelch is closed, and a period of 120 milliseconds occurs during which all valid codes tested

match , then the

squelch will open. If the squelch is open, and no valid match is found for a period of 120 millseconds, then the squelch is closed. When the carrier level is below the fast noise threshold, t he firmware increases the delay used to close

the squelch to 300 milliseconds.

DCS codes are received inverted by U602, ie “0” to “1” transitions are received as

decreases in carrier frequency. To compensate, t he firmware inverts all NRZ data received by U602.

Most DCS codes have more than one transformation, for example code 023 can be

detected as 340 and 766. If any of these codes are defined to be the code for a channel, then the receiver will accept the others as being equivalent.

Some receivers will allow the inverted codes to also be equivalents. For example the

inverted codes for the previous example are 754, 437, and 011. The R50 does not treat them as equivalents. If the transmitter being tuned to inverts the code, then the user should program the receiver with one of the inverted codes

7.4.25 Exter na l Squelch Inp ut

An external input is provided to squelch or mute the receiver audio o utput. This may

be used in conjunction with an e xternal decoder or to mute t he receiver during transmissions.

Page 22 RF Technology R50

The External Squelch Input can be connected to the T/R Relay pin on Eclipse

transmitters mute the receiver during transmission.

7.5 C onnectors

7.5.1 Antenna Connector

Type N Female Mounted on the module rear panel

7.5.2 Power & I/O Connector

25 pin "D" Male Mounted on the rear panel

7.5.3 Test Connector

9 pin "D" Female mounted on the front panel

RF Technology R50 Page 23

APPENDIX A

EIA CTCSS TONE FREQUENCIES

Frequency

EIA Number

No Tone

67.0A171.9B174.4C177.0A279.7C282.5B285.4C388.5A391.5C494.8B3100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

A10

156.7

B10

162.2

A11

167.9

B11

173.8

A12

179.9

B12

186.2

A13

192.8

B13

203.5

A14

210.7

B14

218.1

A15

225.7

B15

233.6

A16

241.8

B16

250.3

A17

R50 PARTS LIST

RF Technology R50 Page 25

B R50 Parts List

Main PCB Assembly Parts

Ref. Descript ion Part Number

C101 EMI Filter ARRY 100PF SMD 34/NFA3/1100 C102 EMI Filter ARRY 100PF SMD 34/NFA3/1100 C103 EMI Filter ARRY 100PF SMD 34/NFA3/1100 C201 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C202 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C203 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C204 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C205 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C206 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C207 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C208 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C209 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C210 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C211 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C212 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C214 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C215 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C216 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C217 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C219 Capacitor Electrolytic 10U 16V 6032 42/3300/010U C220 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C221 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C222 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C224 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C225 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C226 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C301 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C302 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C303 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C304 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C305 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C306 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C307 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C308 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C309 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C310 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C311 Capacitor Electrolytic 10U 16V 6032 42/3300/010U C312 Capacitor Electrolytic 10U 16V 6032 42/3300/010U C313 Capacitor Electrolytic 10U 16V 6032 42/3300/010U C314 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C315 Capacitor 100N+/-10% X7R 50V 0603 46/63X1/100N C316 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C317 Capacitor 10N+/-5% NPO 50V 1206 46/26N1/010N C318 Capacitor Electrolytic 10U 16V 6032 42/3300/010U C319 Capacitor Electrolytic 10U 16V 6032 42/3300/010U C320 Capacitor 100P+/-5% NPO 50V 0603 46/63N1/100P C321 Capacitor 100P+/-5% NPO 50V 0603 46/63N1/100P

R50 PARTS LIST

Page 26 RF Technology R50

C322 Capacitor 18P+/-5% NPO 50V 0603 46/63N1/018P C323 Capacitor 8P2+/-5% NPO 50V 0603 46/63N1/08P2 C324 Capacitor 33P+/-5% NPO 50V 0603 46/63N1/033P C327 Capacitor 1U5+/-10% 10V TANT 1206 42/STA1/01U5 C328 Capacitor Electrolytic L ESR 16V 100U 7343 42//STA1/02U2 C329 Capacitor 10N+/-5% NPO 50V 1206 46/26N1/010N C330 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C401 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C402 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C403 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C404 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C405 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C406 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C407 Capacitor 1N+/-5% NPO 50V 1206 46/3300/01N0 C408 Capacitor 1N+/-10% X7R 25V 0603 46/63X1/001N C409 Capacitor 1N+/-10% X7R 25V 0603 46/63X1/001N C410 Capacitor 1N+/-10% X7R 50V 0603 46/63X1/001N C411 Capacitor 330P+/-5% NPO 50V 1206 46/63N1/330P C412 Capacitor 330P+/-5% NPO 50V 1206 46/63N1/330P C413 Capacitor 330P+/-5% NPO 50V 1206 46/63N1/330P C415 Capacitor 100P+/-5% NPO 50V 0603 46/63N1/100P C416 Capacitor 150P+/-5% NPO 50V 0603 46/63N1/150P C417 Capacitor 150P+/-5% NPO 50V 0603 46/63N1/150P C418 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C419 Capacitor 270P+/-5% NPO 50V 0603 46/63N1/270P C420 Capacitor 180P+/-5% NPO 50V 0603 46/63N1/180P C421 Capacitor 68P+/-5% NPO 50V 0603 46/63N1/068P C422 Capacitor 68P+/-5% NPO 50V 0603 46/63N1/068P C423 Capacitor 390P +/-5% NPO 50V 0603 46/63N1/390P C424 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C425 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C426 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C427 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C428 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C429 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C430 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C431 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C432 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C433 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C434 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C435 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C436 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C437 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C438 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C439 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C440 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C441 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C442 Capacitor 68P+/-5% NPO 50V 0603 46/63N1/068P C443 Capacitor 100P+/-5% NPO 50V 0603 46/63N1/100P C444 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C445 Capacitor 68P+/-5% NPO 50V 0603 46/63N1/068P C446 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C448 Capacitor 8P2+/-0.25 NPO 50V 0603 46/63N1/08P2

R50 PARTS LIST

RF Technology R50 Page 27

C449 Capacitor 8P2+/-0.25 NPO 50V 0603 46/63N1/08P2 C450 Capacitor 2P7+/-0.25 NPO 50V 0603 46/63N1/02P7 C451 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C452 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C453 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C454 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C455 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C456 Capacitor 68P+/-5% NPO 50V 0603 46/63N1/068P C457 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C458 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C459 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C460 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C461 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C462 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C463 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C464 Capacitor 56P+/-5% NPO 50V 0603 46/63N1/056P C466 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C467 Capacitor 5P6+/-0.25 NPO 50V 0603 46/63N1/05P6 C468 Capacitor 33P+/-5% NPO 50V 0603 46/63N1/033P C469 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C470 Capacitor 470P+/-10% NPO 50V 0603 46/63N1/470P C471 Capacitor 4P7+/-0.25 NPO 50V 0603 46/63N1/04P7 C473 Capacitor 2P7+/-0.25 NPO 50V 0603 46/63N1/02P7 C474 Capacitor 56P+/-5% NPO 50V 0603 46/63N1/056P C475 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C476 Capacitor 15U /6.3V A-CASE ELECTROLYTIC 45/STSA/10U6 C477 Capacitor 18P+/-5% NPO 50V 0603 46/63N1/018P C478 Capacitor 18P+/-5% NPO 50V 0603 46/63N1/018P C479 Capacitor 33P+/-5% NPO 50V 0603 46/63N1/033P C480 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C481 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C482 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C483 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C484 Capacitor Electrolytic L ESR 16V 33U 6032 41/SELC/033U C486 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C487 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C488 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C489 Capacitor 390P +/-5% NPO 50V 0603 46/63N1/390P C491 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C492 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C493 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C494 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C495 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C496 Capacitor 10P+/-5% NPO 50V 0603 46/63N1/010P C501 Capacitor 2P2+/-0.25 NPO 50V 0603 46/63N1/02P2 C503 Capacitor Electroly tic 10U 16V 6032 42/3330/010U C502 Capacitor 2P7+/-0.25 NPO 50V 0603 46/63N1/02P7 C504 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C505 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C506 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C507 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C508 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C509 Capacitor Electrolytic 10U 16V 6032 42/3330/010U

R50 PARTS LIST

Page 28 RF Technology R50

C511 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C512 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C513 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C514 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C515 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C516 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C518 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C519 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C520 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C521 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C522 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C523 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C524 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C525 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C526 Capacitor 150P+/-5% NPO 50V 0603 46/63N1/150P C527 Capacitor 1N+80/-20% Y5V 25V 0603 46/63X1/001N C528 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C529 Capacitor 150P+/-5% NPO 50V 0603 46/63N1/150P C530 Capacitor 22P+/-5% NPO 50V 0603 46/63N1/022P C531 Capacitor 22P+/-5% NPO 50V 0603 46/63N1/022P C532 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C533 Capacitor 4P7+/-0.25 NPO 50V 0603 46/63N1/04P7 C534 Capacitor 10P+/-5% NPO 50V 0603 46/63N1/010P C535 Capacitor 10P+/-5% NPO 50V 0603 46/63N1/010P C536 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C537 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C538 Capacitor 15P+/-5% NPO 50V 0603 46/63N1/015P C539 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C541 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C542 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C543 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C544 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C545 Capacitor 10N+/-10% X7R 50V 0603 46/63X1/010N C547 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C548 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C549 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C550 Capacitor 22P+/-5% NPO 50V 0603 46/63N1/022P C551 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C552 Capacitor 330P+/-5% NPO 50V 1206 46/63N1/330P C553 Capacitor 330P+/-5% NPO 50V 1206 46/63N1/330P C554 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C555 Capacitor 4P7+/-0.25 NPO 50V 0603 46/63N1/04P7 C556 Capacitor 22P+/-5% NPO 50V 0603 46/63N1/022P C557 Capacitor 22P+/-5% NPO 50V 0603 46/63N1/022P C558 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C559 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C560 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C561 Capacitor 4P7+/-0.25 NPO 50V 0603 46/63N1/04P7 C563 Capacitor 150P+/-5% NPO 50V 0603 46/63N1/150P C564 Capacitor 22P+/-5% NPO 50V 0603 46/63N1/022P C601 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C602 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16

R50 PARTS LIST

RF Technology R50 Page 29

C604 Capacitor Electrolytic BIPOL 50V 22U+/-20%

RB.2.4 41/BP01/022U C605 Capacitor 15U /6.3V A-CASE ELECTROLYTIC 45/STSA/10U6 C606 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C607 Capacitor 47N+/- 10% X7R 50V 1206 45/3310/047N C609 Capacitor 15U /6.3V A-CASE ELECTROLYTIC 45/STSA/10U6 C610 Capacitor 10N+/-5% NPO 50V 1206 46/26N1/010N C611 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C612 Capacitor 33P+/-5% NPO 50V 0603 46/63N1/033P C613 Capacitor 33P+/-5% NPO 50V 0603 46/63N1/033P C614 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C615 Capacitor 1U+80/-20% Y5V 25V 1206 45/Y5X7/1U16 C616 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C617 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C618 Capacitor ELC BIP 50V 22U+/-20% RB.2.4 41/BP01/022U C619 Capacitor ELC BIP 50V 22U+/-20% RB.2.4 41/BP01/022U C620 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C621 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C622 Capacitor 22N+/-10% X7R 50V 0603 45/X7R1/022N C623 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C624 Capacitor Electrolytic 470U 25V RB.2.4 41/2001/470U C625 Capacitor Electrolytic 470U 25V RB.2.4 41/2001/470U C626 Capacitor 2N2+/-5% NPO 50V 1812 46/26N1/02N2 C627 Capacitor 10N+/-5% NPO 50V 1206 46/26N1/010N C628 Capacitor 120P+/-5% NPO 50V 0603 46/63N1/120P C629 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C630 Capacitor 22N+/-10% X7R 50V 0603 45/X7R1/022N C632 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C633 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C634 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C635 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C636 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C901 Capacitor Electrolytic L ESR 16V 33U 6032 41/SELC/033U C902 Capacitor Electrolytic L ESR 470U 35V RB.2/.4 41/200L/470U C903 Capacitor Electrolytic L ESR 16V 33U 6032 41/SELC/033U C913 Capacitor Electrolytic 1000U 16V RB.2/.4 41/2001/1000 C915 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C920 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C923 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C924 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C925 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C926 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C927 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C928 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C929 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C930 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C931 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C933 Capacitor 100N+80/-20% Y5V 25V 0603 46/63Y1/100N C935 Capacitor Electrolytic L ESR 470U 35V RB.2/.4 41/200L/470U C936 Capacitor Electrolytic L ESR 16V 33U 6032 41/SELC/033U C937 Capacitor Electrolytic L ESR 16V 33U 6032 41/SELC/033U C938 Capacitor Electrolytic L ESR 16V 100U 7343 41/SELD/100U C939 Capacitor Electrolytic L ESR 16V 100U 7343 41/SELD/100U

R50 PARTS LIST

Page 30 RF Technology R50

C940 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C941 Capacitor Electrolytic 10U 16V 6032 42/3330/010U C943 Capacitor Electrolytic 10U 16V 6032 42/3330/010U D102 Diode LED Red RT ANG MTG 21/1010/LEDR D103 Diode LED Yellow RT ANG MTG 21/1010/LEDY D104 Diode LED Green RT ANG MTG 21/1010/LEDG D200 Diode Dual GP BAV99 SOT23 21/3010/AV99 D301 Diode V Capacitor MMBV109 SOT23 21/3060/V109 D401 Diode Schotky BAT17 SOT23 21/3010/0017 D403 Diode Dual GP BAV99 SOT23 21/3010/AV99 D404 Diode Dual GP BAV99 SOT23 21/3010/AV99 D405 Diode Schotky BAT17 SOT23 21/3010/0017 D406 Diode V FilterCapacitor MMBV109 SOT23 21/3060/V109 D407 Diode Zen 5V1 BZX84C5V1 SOT23 21/3040/C5V1 D501 Diode VCapacitor MMBV105G SOT23 21/3060/105G D502 Diode VCapacitor MMBV109 SOT23 21/3060/V109 D503 Diode Schotky BAT17 SOT23 21/3010/0017 D504 Diode Schotky BAT17 SOT23 21/3010/0017 D601 Diode GP 50V 1A SMD 24/SMA1/4004 D602 Diode GP 50V 1A SMD 24/SMA1/4004 D603 Diode Dual GP BAV99 SOT23 21/3010/AV99 D604 Diode Dual GP BAV99 SOT23 21/3010/AV99 D605 Diode Dual GP BAV99 SOT23 21/3010/AV99 D906 Diode Schotky 40V 1A SMD 24/BRM1/40T3 D907 Diode Schotky 40V 1A SMD 24/BRM1/40T3 D908 Diode Schotky 40V 1A SMD 24/BRM1/40T3 D909 Diode Schotky 40V 1A SMD 24/BRM1/40T3 D910 Diode GP 50V 1A SMD 24/SMA1/4004 D911 Diode Zen 4.096V +/-3% SOT-23 29/VREF/0001 Filter401

SAW Filter 246MHz+/-130KHz SMD

33/SAWF/0001 Filter 402 Ceramic Filter 455K SMD 34/2000/CFUC Filter403 Ceramic Filter 455K SMD 34/2000/CFUC Filter 404 Crystal Filter 2 Pole 21.4MHZ HC45U 33/2000/214W Filter 405 Crystal Filter 2 Pole 21.4MHZ HC45U 33/2000/214W JP3 Connector 2X5PIN 35/7026/0010 L100 Ferrite Bead 2A 1206 37/P034/0001 L101 Ferrite Bead .5A 1206 37/P033/0001 L102 Ferrite Bead .5A 1206 37/P033/0001 L200 Choke 220UH+/-20% 50mA 1812 37/3320/P103 L202 Ferrite Bead .5A 1206 37/P033/0001 L203 Ferrite Bead .5A 1206 37/P033/0001 L204 Ferrite Bead .5A 1206 37/P033/0001 L205 Ferrite Bead .5A 1206 37/P033/0001 L301 Ferrite Bead .5A 1206 37/P033/0001 L401 Inductor 246NH+/-5% 37/AC52/246N L402 Inductor 246NH+/-5% 37/AC52/246N L403 Inductor 246NH+/-5% 37/AC52/246N L404 Inductor 422NH+/-5% 37/AC52/422N L405 Inductor 558NH+/-5% 37/AC52558N L406 Inductor 380NH+/-5% 37/AC52/380N L407 Inductor 169NH+/-5% 37/AC52/169N L408 Inductor 169NH+/-5% 37/AC52/169N L409 Inductor 680NH+/-10% 1008 37/3320/680N

R50 PARTS LIST

RF Technology R50 Page 31

L410 Inductor 270NH+/-5% 0805 37/8551/270N L411 Inductor 270NH+/-5% 0805 37/8551/270N L412 Inductor 220NH+/-5% 0805 37/8551/220N L413 Inductor 220NH+/-5% 0805 37/8551/220N L414 Inductor 220NH+/-5% 0805 37/8551/220N L417 Inductor 100NH+/-5% 0805 37/8551/100N L419 Inductor 100NH+/-5% 0805 37/8551/100N L420 Inductor 150NH+/-5% 0805 37/8551/150N L421 Inductor 680NH+/-10% 1008 37/3320/680N L422 Inductor 100NH+/-5% 0805 37/8551/100N L423 Inductor 2U2H+/-5% 1008 37/3320/02U2 L424 Inductor 2U2H+/-5% 1008 37/3320/02U2 L425 Inductor 560NH+/-5% 0805 37/8551/560N L426 Inductor 3U3H+/-10% 1008 37/3320/03U3 L501 Inductor 18N5H+/-5% 37/AC5118N5 L502 Inductor 3U3H+/-10% 1008 37/3320/03U3 L503 Inductor 3U3H+/-10% 1008 37/3320/03U3 L504 Inductor 220NH+/-5% 0805 37/8551/220N L505 Inductor 220NH+/-5% 0805 37/8551/220N L506 Inductor 3U3H+/-10% 1008 37/3320/03U3 L507 Inductor 220NH+/-5% 0805 37/8551/220N L509 Inductor 220NH+/-5% 0805 37/8551/220N L510 Inductor 220NH+/-5% 0805 37/8551/220N L511 Inductor 3U3H+/-10% 1008 37/3320/03U3 L512 Inductor 220NH+/-5% 0805 37/8551/220N L514 Inductor 27NH+/-5% 0805 37/8551/027N L515 Inductor 39NH+/-5% 37/AC52/039N L517 Inductor 560NH+/-5% 0805 37/8551/560N L516 Inductor 33NH+/-5% 0805 37/8551/033N L901 BLM31 FERRITE BEAD 100mA 1206 37/P034/0001 L902 Inductor MSLD 500mA 330U+/-20% SMD 37/MSP1/330U L903 Inductor MSLD 500mA 330U+/-20% SMD 37/MSP1/330U L904 Inductor MSLD 500mA 330U+/-20% SMD 37/MSP1/330U L905 BLM31 FERRITE BEAD 100mA 1206 37/P034/0001 L906 Ferrite Bead 2A 1206 37/P034/0001 L907 Ferrite Bead 2A 1206 37/P034/0001 L908 Ferrite Bead 2A 1206 37/P034/0001 L909 Ferrite Bead 2A 1206 37/P034/0001 MA501

Amplifier MMIC VAM

-6 SOT143 24/3010/VAM6

MA502

Amplifier MMIC VAM-6 SOT143

24/3010/VAM6

MA503

Amplifier MMIC VAM-6 SOT143

24/3010/VAM6

MA504

Amplifier MMIC VAM-6 SOT143

24/3010/VAM6

MA505

Amplifier MMIC MWA0211L SOT143

24/3010/211L

MA506

Amplifier MMIC MWA0211L SOT143

24/3010/211L MX401 Mixer Double BAL Level 7 SMD 37/MIXR/P028 MX402 Mixer Double BAL Level 7 SMD 37/MIXR/P028 P1 Connector DB9 RT ANG FML PCB MT 35/5012/025M P3 Connector DB25 RT ANG FML PCB MT 35/5032/025F Q200 Transistor NPN GP SOT23 27/3020/3904 Q202 FET NJ MMBF5484 SOT23 27/3030/5484 Q203 Transistor NPN MMBT2369 SOT23 27/3020/2369 Q204 Transistor NPN MMBT2369 SOT23 27/3020/2369 Q205 Transistor PNP GP SOT23 27/3010/3906

R50 PARTS LIST

Page 32 RF Technology R50

Q206 Transistor NPN GP SOT23 27/3020/3904 Q301 Transistor NPN GP SOT23 27/3020/3904 Q401 Transistor NPN RF BFQ17 SOT89 27/300B/FQ17 Q402 Transistor NPN RF BFQ193 SOT89 27/30BF/Q193 Q403 Transistor NPN RF BFQ17 SOT89 27/300B/FQ17 Q404 FET NJ MMBFJ309 SOT23 27/3030/J309 Q405 Transistor PNP RF BFR92A SOT23 27/3020/R92A Q406 Transistor PNP RF BFR92A SOT23 27/3020/R92A Q407 Transistor NPN GP SOT23 27/3020/3904 Q408 Transistor PNP GP SOT23 27/3010/3906 Q501 FET NJ MMBFJ309 SOT23 27/3030/J309 Q502 FET NJ MMBFJ309 SOT23 27/3030/J309 Q503 Transistor NPN GP SOT23 27/3020/3904 Q504 Transistor NPN GP SOT23 27/3020/3904 Q601 Transistor PNP GP SOT23 27/3010/3906 Q602 FET NMOS BSS138 SOT23 27/30B5/5138 Q603 FET NMOS BSS138 SOT23 27/30B5/5138 R103 Resistor 1206 180R+/-5% 1/4W 51/3380/0180 R104 Resistor 1206 180R+/-5% 1/4W 51/3380/0180 R201 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R202 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R203 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R204 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R205 Resistor 0805 2K7+/-5% 1/8W 51/8511/02K7 R206 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R207 Resistor 0805 68K+/-5% 1/8W 51/8511/068K R209 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R210 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R211 Resistor 0805 220R+/-5% 1/8W 51/8511/220R R212 Resistor 0805 220R+/-5% 1/8W 51/8511/220R R213 Resistor 0805 1M+/-5% 1/8W 51/8511/01M0 R217 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R218 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R219 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R220 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R221 Resistor 0805 470R+/-5% 1/8W 51/8511/470R R222 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R223 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R224 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R225 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R226 Resistor 1206 180R+/-5% 1/4W 51/3380/0180 R228 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R229 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R230 Resistor 0805 120R+/-5% 1/8W 51/8511/120R R231 Resistor 0805 120R+/-5% 1/8W 51/8511/120R R232 Resistor 0805 560R+/-5% 1/8W 51/8511/560R R233 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R234 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R235 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R236 Resistor 0805 18K+/-5% 1/8W 51/8511/018K R237 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R238 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R239 Resistor 0805 1K+/-5% 1/8W 51/8511/001K

R50 PARTS LIST

RF Technology R50 Page 33

R240 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R241 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R242 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R243 Resistor 0805 220R+/-5% 1/8W 51/8511/220R R244 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R245 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R301 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R302 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R303 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R304 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R305 Resistor 0805 5K6+/-5% 1/8W 51/8511/05K6 R306 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R307 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R308 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R309 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R310 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R311 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R312 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R313 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R314 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R315 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R316 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R317 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R318 Resistor 0805 150K+/-5% 1/8W 51/8511/150K R319 Resistor 0805 150K+/-5% 1/8W 51/8511/150K R320 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R321 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R322 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R323 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R324 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R325 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R326 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R327 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R330 Resistor 0805 1K8+/-5% 1/8W 51/8511/01K8 R331 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R332 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R333 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R401 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R402 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R403 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R404 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R405 Resistor 0805 2R2+/-5% 1/8W 51/8511/02R2 R406 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R407 Resistor 0805 18K+/-5% 1/8W 51/8511/018K R408 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R409 Resistor 0805 15K+/-5% 1/8W 51/8511/015K R410 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R411 Resistor 0805 330R+/-5% 1/8W 51/8511/330R R412 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R413 Resistor 0805 47R+/-5% 1/8W 51/8511/047R R414 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R415 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R416 Resistor 0805 10K+/-5% 1/8W 51/8511/010K

R50 PARTS LIST

Page 34 RF Technology R50

R417 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R418 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R419 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R420 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R421 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R422 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R423 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R424 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R425 Resistor 0805 18K+/-5% 1/8W 51/8511/018K R426 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R427 Resistor 0805 3K3+/-5% 1/8W 51/8511/03K3 R428 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R429 Resistor 0805 470K+/-5% 1/8W 51/8511/470K R430 Resistor 0805 150K+/-5% 1/8W 51/8511/150K R431 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R432 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R433 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R434 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R435 Resistor 0805 390R+/-5% 1/8W 51/8511/390R R436 Resistor 0805 220K+/-5% 1/8W 51/8511/220K R437 Resistor 0805 220K+/-5% 1/8W 51/8511/220K R438 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R439 Resistor 0805 390R+/-5% 1/8W 51/8511/390R R441 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R442 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R443 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R444 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R445 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R446 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R448 Resistor 0805 220K+/-5% 1/8W 51/8511/220K R449 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R450 Resistor 0805 6K8+/-5% 1/8W 51/855/11/06K8 R452 Resistor 0805 82K+/-5% 1/8W 51/8511/082K R453 Resistor 0805 470R+/-5% 1/8W 51/8511/470R R454 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R455 Resistor 0805 120R+/-5% 1/8W 51/8511/120R R456 Resistor 0805 120R+/-5% 1/8W 51/8511/120R R457 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R458 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R459 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R460 Resistor 0805 330R+/-5% 1/8W 51/8511/330R R461 Resistor 0805 330R+/-5% 1/8W 51/8511/330R R462 Resistor 0805 150R+/-5% 1/8W 51/8511/150R R463 Resistor 0805 470R+/-5% 1/8W 51/8511/470R R464 Resistor 0805 22K+/-5% 1/8W 51/8511/022K R465 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R466 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R467 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R468 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R469 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R507 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R508 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R509 Resistor 0805 10K+/-5% 1/8W 51/8511/010K

R50 PARTS LIST

RF Technology R50 Page 35

R511 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R512 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R514 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R515 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R516 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R517 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R518 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R519 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R520 Resistor 0805 100R+/-5% 1/8W 51/8511/100R R521 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R522 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R523 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R524 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R526 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R529 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R530 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R532 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R533 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R535 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R538 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R541 Resistor 0805 150R+/-5% 1/8W 51/8511/150R R542 Resistor 0805 150R+/-5% 1/8W 51/8511/150R R543 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R544 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R549 Resistor 0805 47R+/-5% 1/8W 51/8511/047R R601 Resistor 0805 2K7+/-5% 1/8W 51/8511/02K7 R602 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R603 Resistor 0805 3K3+/-5% 1/8W 51/8511/03K3 R604 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R605 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R606 Resistor 0805 18K+/-5% 1/8W 51/8511/018K R607 Resistor 0805 18K+/-5% 1/8W 51/8511/018K R608 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R609 Resistor 0805 680R+/-5% 1/8W 51/8511/680R R610 Resistor 0805 0R Jumper 51/8511/000R R611 Resistor 0805 1K5+/-5% 1/8W 51/8511/01K5 R612 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R613 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R614 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R615 Resistor 0805 3K3+/-5% 1/8W 51/8511/03K3 R616 Resistor 0805 1K5+/-5% 1/8W 51/8511/01K5 R617 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R618 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R619 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R620 Resistor 0805 22R+/-5% 1/8W 51/8511/022R R621 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R622 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R623 Resistor 0805 330K+/-5% 1/8W 51/8511/330K R624 Resistor 0805 1M+/-5% 1/8W 51/8511/01M0 R625 Resistor 0805 100K+/-5% 1/8W 51/8511/100K

R626 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R627 Resistor 0805 22K+/-5% 1/8W 51/8511/022K

R50 PARTS LIST

Page 36 RF Technology R50

R628 Resistor 0805 15K+/-5% 1/8W 51/8511/015K R629 Resistor 0805 15K+/-5% 1/8W 51/8511/015K R630 Resistor 0805 75K+/-5% 1/8W 51/8511/075K R631 Resistor 0805 12K+/-5% 1/8W 51/8511/012K R632 Resistor 0805 470K+/-5% 1/8W 51/8511/470K R633 Resistor 0805 560R+/-5% 1/8W 51/8511/560R R634 Resistor 0805 10R+/-5% 1/8W 51/8511/010R R635 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R636 Resistor 0805 100K+/-5% 1/8W 51/8511/100K R637 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R638 Resistor 0805 3K3+/-5% 1/8W 51/8511/03K3 R639 Resistor 0805 39R+/-5% 1/8W 51/8511/039R R640 Resistor 0805 220R+/-5% 1/8W 51/3380/0220 R641 Resistor 0805 2R2+/-5% 1/8W 51/8511/02R2 R642 Resistor 0805 39K+/-5% 1/8W 51/8511/039K R643 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R644 Resistor 0805 680R+/-5% 1/8W 51/855/11/033K R645 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R646 Resistor 0805 3K3+/-5% 1/8W 51/8511/03K3 R647 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R648 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R649 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R650 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R651 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R652 Resistor 0805 680R+/-5% 1/8W 51/8511/680R R653 Resistor 0805 0R Jumper 51/8511/000R R654 Resistor 0805 2K2+/-5% 1/8W 51/8511/02K2 R655 Resistor 0805 220K+/-5% 1/8W 51/8511/220K R656 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R657 Resistor 0805 10K+/-5% 1/8W 51/8511/010K R658 Resistor 0805 4K7+/-5% 1/8W 51/8511/04K7 R659 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R910 Resistor 0805 0R Jumper 51/8511/000R R911 Resistor 0805 0R Jumper 51/8511/000R R918 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R919 Resistor 0805 47K+/-5% 1/8W 51/8511/047K R920 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R921 Resistor 0805 47R+/-5% 1/8W 51/8511/047R R922 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R923 Resistor 0805 1K5+/-5% 1/8W 51/8511/01K5 R924 Resistor 0805 390R+/-5% 1/8W 51/8511/390R R925 Resistor 0805 150R+/-5% 1/8W 51/8511/150R R926 Resistor 0805 1K8+/-5% 1/8W 51/8511/01K8 R927 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R928 Resistor 0805 270R+/-5% 1/8W 51/8511/270R R933 Resistor 0805 1K+/-5% 1/8W 51/8511/001K R934 Resistor 0805 680R+/-5% 1/8W 51/8511/680R R935 Resistor 0805 0R Jumper 51/8511/000R R936 Resistor 0805 120R+/-5% 1/8W 51/8511/120R RL601Relay DPDT 12V 500mW 96/2000/012V RL602Relay DPDT 12V 500mW 96/2000/012V T601 Transformer 600OHM Line 37/2040/5065 S200 Switch Tack SMD 4.8 X 5 31/SMPB/0001

R50 PARTS LIST

RF Technology R50 Page 37

U201 IC Quad CMOS RS232 RCV SO14 29/14C8/9A01 U202 IC Quad CMOS RS232 DRV SO14 29/14C8/8001 U203 IC Reset Generator S08 29/MC33/064D U204 IC MCU 68HC12, TQFP112 29/68HC/12A0 U205 IC 3-8 Line Decoder SO16 29/2030/C138 U207 IC Flash 5V TSOP40 29/P006/0001 U208 IC SRAM 4M SOP-32 29/SRAM/P013 U301 IC Quad 8BIT DAC MAX534 SSO16 29/00MA/X534 U302 IC Dual PLL 1.1G RFIN SSO16 29/LMX2/335L U303 IC Quad

OPAmplifier LM224 SO14

29/000L/M224 U304 IC Dual 4BIT Counter SO16 29/2030/C390 U401 IC FM IF Receiver NE615 29/000N/E615 U402 IC Quad

OPAmplifier LM224 SO14

29/000L/M224 U403 IC High Speed COMP SOT23-5 29/COMP/U001 U404 IC Dual Oneshot HCOMS SO16 29/2030/C123 U601 IC Opto-Isolator 4N35 25/1010/4N35 U602 IC CTCSS/DCS En/Decoder 29/00FX/805L U604 IC

Audio Amplifier 5W TDA2003

25/2070/2003 U605

IC Quad OP Amplifier LM224 SO14

29/000L/M224 U607 IC Quad SPST DG411 SO16 29/00DG/411C U609

IC Quad OP Amplifier LM224 SO14

29/000L/M224 U907 IC Switch Volt Regulator 12V 1A SMD 29/REG1/0N12 U908 IC Switch Volt Regulator 12V 1A SMD 29/REG1/0N12 U909 IC Switch Volt Regulator 5V 1A SMD 29/REG2/00N5 U910 IC Volt Regulator Positive ADJ 800mA LM1117 29/00LM/1117 U911 IC Volt Regulator Positive ADJ LM317 SO8 29/000L/M317 U913 IC Volt Regulator Negative ADJ LM337 SO8 29/000L/M337 U914 IC Volt Regulator Negative ADJ LM337 SO8 29/000L/M337 VR201 Trimpot 100K Multi Turn Horizontal 53/THH1/100K VR202 Trimpot 100K Multi Turn Horizontal 53/THH1/100K VR601 Trimpot 100K Multi Turn Horizontal 53/2060/010K X200 Crystal Resistor 14.7456MHZ SMD 33/14M7/0001 X301 Crystal Resistor 12MHZ SMD 33/12M0/0001 X401

Ceramic Discriminator SMD

34/2000/CDBC X402 Crystal Resonator 21.855M HC45U 32/2045/21M855 X601 Crystal Resonator 4MHZ HC49 32/2049/04MO

1 2 3 4 5 6 7 8

87654321

1 1

R50 BLOCK DIAGRAM

05/9155/0001 1

8-Apr-2003 10:08:37

D:\Protel Files\Work Files\9155_0002.ddb - Documents\Block_Diagram.Sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

25-50MHz

BANDPASS FILTER

RF. AMP

Q401

25-50MHz

BANDPASS FILTER

BOULLE BAL.

MIXER

MX401

1ST IF AMP

Q402

246MHz SAW FILTER

FIL401

BOULLE BAL.

MIXER

MX401

2ND IF AMP

Q403 FIL404 FIL405

21.4MHz XTAL FILTER

NOISE BLK GATE

Q404

FIL402

IMPULSE NOISE

1ST LO AMP

2ND LO AMP

MA502

MA505

MA504

MA506

Q405 Q406U403 D401

IMPULSE NOISE

DETECTOR AMPLIFIER

U404A Q408 U303B Q407

GAIN CONTROL

BLANKER GATE CONTROL

BLK PULSE GENERATOR

FIL403

X401

CERAMIC DISC

455KHz CERAMIC FILTER 455KHz CERAMIC FILTER

X402

21.855MHz

U401

FM IF RECEIVER CHIP

1ST VCO 2ND VCO

Q501 Q502

X402

REF

DUAL PLL CHIP

U302

IST VCO BUFFR AMP 2ND VCO BUFFR AMP

MA501 MA503

3RD LO

RSSI

RSSI BUFFER

U402D

NOISE DETECTOR

D403 U402C

HIGHPASS FILTER

U402A

NOISE AMP

U402B

AUDIO AMP

U605A

LOWPASS FILTER

1ST PLL LOOP FLT 2ND PLL LOOP FLT

SUB_TONE

SUBTONE AMP

U605C

U605B

DE-EMPHASIS / FLAT

U607A U607B

U609B

LINE SQUELCH

U607D

LINE OUT

DIR AUDIO

AUDIO AMP

MONITOR AMP

U609C

U609D

U604

MON SQUELCH

U607C

MON OUT

X601

4MHz

CTCSS CHIP

U602

RSSI

N DET

RF INPUT

DE-EMPHASIS / FLAT

LINE SQUELCH

MONITOR SQUELCH

SERIAL BUS

(CLOCK

MOSI

CHIP_SELECT)

COS+

COS-

T601

RL602

COS CONTROL

U601

RL601

COS CIRCUIT

LOOP CONTROL

C619

A/D

RSSI

NSQ

VIN

LINE LEVEL

1ST LO BIAS

2ND LO BIAS

CSQ

DAC

U301

SERIAL_BUS

NSQ SET

NSQ_SET

REF SET

3RD LO SET

REF SET

PWR

ALARM

MICRO PROCESSOR

U204

RS232 TRANCEIVER

U201

U202

RS 232

SUB AUDIO

AUDIO

1 2 3 4 5 6 7 8

87654321

1 1

Rear Panel Board for 9154 (T50) and 9155 (R50)

05/9160 R7 1

16-Aug-2002 09:56:54

F:\Obsoleted Files\Old Files Backup\916x.ddb - T50_R50_rear_panel.Sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

VCC

GND

I76I65I54I43I314I213I112I011SI

C2C15Q7PL1Q

74HC165

47K

100nF

BSS138

BAW56

MOSI

SCLK

+5V

100K

R10

100K

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

PTT_IN

T/R_RELAY

LINE2+

LINE2-

TONE+

TONE-

LINE-

LINE+

GPS+

GPS-

CH_EN

CS2

+5V

PA_CS

+28V

11421531641751861972082192210231124122513

DB25

GND

R11

47K

R12

47K

R13

47K

R14

47K

R15

47K

R16

47K

R17

47K

R18

47K

+12V

R19

22R

Vref

BAV99

R20

180R

R25

180R

R24

180R

R23

180R

R21

180R

R22

180R

D10

BAV99

GND

5V_PROT

D11

BAV99

GND

5V_PROT

D12

BAV99

GND

5V_PROT

D13

BZX84C5V6

GND

5V_PROT

R26

180R

D14

BAV99

GND

5V_PROT

FD1

FIDUCIAL

FD2

FIDUCIAL

LK1 JUMPER

LK2

JUMPER

LK3

JUMPER

LK4 JUMPER

5X2 Header

3456789 10

1 2 3 4 5 6 7 8

87654321

6 7

Audio Processing

9155 B

20-Feb-2002 23:49:42

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - AUDIO.Sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

DISC_AUD

U605C LM224

C621 10uF

V+

V-

U605E

LM224

CTCSS_SEL

MOSI

SCLK

X601 4MHz

R624 1M

C612 33pF

C613 33pF

GND

+5V

C601

1uF

C602 1uF

GND

+5V

C616 100nF

R627 22K

R618

12K

C610

10nF

R629 15K

R630

75K

C614

1uF

FLAT

C611

100nF

GND

C609

1uF

R628

15K

R619

12K

R633 560R

GND

C623 100nF

LINE_O/P1

LINE_O/P4

SUBTONE

C619

22uF

RL602

MR62-12

RL601 MR62-12

R610 0R

12V

COS-

R609 680R

COS+

D602 SM4004

12V

LOOP/VOLTS_SEL

D601

SM4004

R635 4K7

DIR_AUD

DE_EMPHA

R603 3K3

R601 2K7

COS_POLARITY

R608

22R

LINE_LEVEL

GND

12V

R640 220R

C622 22nF

C625 470uF

C624 470uF

R639

39R

R641 2R2

C615

1uF

GND

+10V+5V +10V

R632 470K

VCC

GND

XTAL

XTAL/CLK

ADDR

Din

IRQ

RX_IN+

TONE_OUT

AUDIO_OUT

COMP-

NO_TONE

Vbias

RX_IN-

RX_OUT

RX_SUB_OUT

COMP+

WAKE

COMP_OUT

U602

FX805

D603

BAV99

R614 10K

R636 100K

R625

100K

R623 330K

R626 100K

C606

1uF

+5V

R613

10K

R620

22R

R611

1K5

GND

R615 3K3

R642 39K

R643 33K

R644 33K

C626 2n2F

C627 10nF

C628 120pF

C620 100nF

D605 BAV99

VR602 1K

GND

SUBTONE_IRQ

MON_SQ

C605

1uF R621 33K

R612 10K

C604 22uF

R605

4K7

R607 18K

EXT_SPEAKER

R604

4K7

COS+

COS-

R606 18K

D604 BAV99

MON_SQ

DE_EMPHA

FLAT

SUBTONE_IRQ

LOOP/VOLTS_SEL

COS_VOLTS_ON/OFF

LOOP/VOLTS_SEL

COS_VOLTS_ON/OFF

GNDGND

GND

-10V

GND

-10V

GND

U605B

LM224

GND

Q603 BSS138

TRANS_AUDIO

SUBTONE_IRQ

LINE_LEVEL

Q602 BSS138

MON_SQ

GND

CTCSS_SEL

MOSI

SUBTONE

C634

C632

100nF

C633

GND GND

R645

C629 100nF

GND

U601

4N32

U607A

DG411

U607B

DG411

U607D DG411

U607C

DG411

GND

V+

V-

U607E

U604 TDA2003

LINE_O/P1

DIR_AUD

EXT_SPEAKER

C635

GND

GNDGND

GND

10K

GND

R650

GND

R652 680R

GND

12V

Q601 MMBT3906

+5V

10K

R616

1K5

12K

VR601 10K

12K

Log

C618

Bipolar

U609B

LM224

GND

12K

Line Level

U609A

LM224

U609C LM224

U609D

LM224

10K

GND

3K3

V+

V-

U609E LM224

C617 100nF

+10V

GND

-10V

C636 100nF

GND

C630 22nF

R634

10R

R637 1K

R648

4K7

R646 3K3

R654 2K2

R651 2K2

R647 4K7

-10V

DISC

GND

R655 220K

DISC

R657 10K

R658 4K7

GND

1 2 3 4 5 6 7 8

87654321

5 7

Voltage Controlled Oscialltors

9155 B

20-Feb-2002 23:56:10

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - VCO.Sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

2nd_PLL_IN

2nd_VCO_OUT

1st_VCO_OUT

V+

V-

U303E LM224

+10V

GND

U303B

LM224

1st_PLL_IN

R508 10K

L502 3u3H

L503 3u3H

C533 4p7F

Q501

MMBFJ309

C534 10pF

D503 BAT17

C539 10nF

GND

R529

4K7

C522 120pF

MA502 VAM-6

MA505 VAM-3

C550 22pF

GNDGND

L505 220nH

L507 220nH

C525

10nF C542 10nF

GND

R535 10R

R522 270R

GND

+10V

C520 1nF

GND

R543 22R

C509 10uF

GND

C532 10pF

L501 A05T

GND

D501

MMBV105G

C531 22pF

C518

10nF

R507 1K

R514 10K

L511 3u3H

L506 3u3H

C561

4p7F

Q502

MMBFJ309

C538 15pF

D504 BAT17

C545 10nF

GND

R533 4K7

C526

150pF

MA504 VAM-6

MA506

VAM-3

C530

22pF

GNDGND

L510 220nH

L512 220nH

C528 10nF

C544 10nF

GND

R538 10R

R519 100R

GND

+10V

C524 1nF

R544 22R

C513 100nF

R549 47R

C506 1uF

C535 10pF

L515

1812SMS-39NJ

GND

D502

MMBV109

C555 4p7F

GND

C521 10nF

R511 1K

GND

1st_LO

2nd_LO

C552 330pF

C543 10nF

1st_LO

2nd_VCO_OUT

GND

M501

GND

1st_PLL_IN

2nd_PLL_IN

R516 100R

C558 10uF

C511 100nF

GNDGND

C551

120pF

R541

150R

R523

270R C514 100nF

GND

R524 270R

C515 100nF

C559 10uF

GND GND

R542 150R

C529

150pF

C563 150pF

C564

22pF

GND

C512 100nF

C516 100nF

GND

C547 100nF

C560 10uF

GND

271-296MHz

224.6MHz+/-120KHz

Q503

MMBT3904

R509 10K

R525 1K

+10V

R526 2K2

R532 4K7

GND

R518 100R

R521 270R

R517 100R

R520 100R

C519

1nF

C527

1nF

R530 4K7

MA501 VAM-6

C549 120pF

GND

L504 220nH

C541 10nF

GND

R515 100R

C508 100nF

GND

+10V

C548

120pF

MA503 VAM-6

L509

220nH

GND

+10V

GND

Q506

*BFQ193

R547 *12K

R531 *4K7

R537 *10R

R536 *10R

L508 *3u3H

GND

C510 *100nF

+10V

C540 *10nF

GND

C536 15pF

C537 15pF

L514

27nH

GND GND

+10V

GND

Q504

MMBT3904

R512 10K

C553 330pF

Q507

*BFQ193

R548 *12K

R534 *4K7

R540 *10R

R539 *10R

L513

*3u3H

GND

C517 *100nF

+10V

C546 *10nF

GND

C556 22pF

C557 22pF

L516

33nH

GND GND

2nd_LO

1st_VCO_OUT

GND

C502 NF

GND

C501 2p2F

C523

120pF

PARTS VALUE WITH * ARE NOT USED IN THIS VERSION

C554

120pF

C505

10uF

C507

10uF

C504

10uF C503 10uF

GND

GND GND

GND

10KHz STEP

31.25KHz STEP

1 2 3 4 5 6 7 8

87654321

3 7

RF Section

9155 B

20-Feb-2002 23:55:20

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - RF.Sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

RF_In

1st_LO

2nd_LO

DISC

RSSI

N_DET

N_BLK

3rd_LO_ADJ

NSQ_SET

N_BLK_EN

Receiver section RCV.Sch

RF_IN

RESET

SCLK

MOSI

+5V

GND

RESET

SCLK

MOSI

3rd_LO_ADJ

GND

Vref

RCV_ADSEL

N_DET

RSSI

DISC

RCV_ADSEL

N_DET

PLL_SENSE

C321 100pF

X301 12MHz

R325 47K

2nd_LO

1st_LO

2nd_PLL_IN

1st_PLL_IN

N_BLK

1st_VCO_OUT

2nd_VCO_OUT

VCO Section vco.sch

GND

+5Q

GND

C324 33pF

C322

18pF

R326 47K

C320

100pF

GND

C314 100nF

R316 1K

R317 3K3

C315 10nF

C327 1u5F

C317 10nF

GND

GND GND

R330 1K8

R331 10K

C316 10nF

C328 2u2F

C329 10nF

GND

GND GND

R320 4K7

VCC1VCC

Vp1

GND4GND

DO1

DO2

FoLD

Fin1

Fin2

Xin

Xout

CLK

DATA

Vp2

U302 LMX2335L

PLL_SEL

U303D

LM224

U303A

LM224

R318 150K

R319

150K

R323 22K

R322 22K

C318 10uF

C319 10uF

GND

1st_LO_BIAS

2nd_LO_BIAS

C302 100nF

REF_ADJ

GND

GND GND

RSSI

DISC

LCD_BIAS

1st_VCO_OUT

2nd_VCO_OUT

2nd_LO_BIAS

1st_LO_BIAS

PLL_SENSE

PLL_SEL

1st_PLL_IN

2nd_PLL_IN

C305 100nF

GND

D301

MMBV109

SCLK

Din

AGND

DGND

VCC

Vref

CLR

LDAC

PDE

OUTA

OUTB

OUTC

OUTD

Dout

UPO

U301 MAX534

181920

232224

M301

GND

C310 100nF

GND

C301 100nF

GND

QC61A

QD7R

U304A

74HC390

Vcc

Gnd

U304C 74HC390

R321

4K7

R313 10K

GND

L301

BLM31A601

GND

+5V

C306 100nF

GND

Fo_PLL

NSQ_SET

U605D LM224

R305 5K6

R312 10K

R324 12K

+5V

LCD_CTRL

QC101A

QD9R

U304B

74HC390

GND

C323 NF

C304

100nF R327 47K

-5V

R303 22R

R304 22R

R314 22R

R315 22R

R306 100R

R307 100R

R308 100R

R309 100R

R301 22R

GND

C313 10uF

C312 10uF

C311 10uF

GND

C303 100nF

Q301 MMBT3904

R311 10K

C309 100nF

C308 100nF

GND

C307 100nF

GND

R310 100R

1st_LO

2nd_LO

R332 10K

GND

See :\\Dragon\Mydocuments\R50_BTEMP.XLS

R302 10K

N_BLK_EN

R333 1K

C330 100nF

GND

1 2 3 4 5 6 7 8

87654321

4 7

Receiver Section

9155 B

20-Feb-2002 23:54:31

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - RCV.Sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

R432 22K

C452

100nF

R403 10R

R408 10R

R411 270R

C429 100nF

C418 120pF

C453 100nF

R402 10R

C401 120pF

C415 100pF

C417 150pF

C406 120pF

C422 68pF

C404 120pF

C402 120pF

C405 120pF

L404 132-18SM

L405 132-20SM

RF_In

C428 100nF

1st_LO

L401 132-15SM

RFin -119dBm

FIL404 21M15A

R452 82K

C477 18pF

L423 2u2H

FIL405 21M15A

R426 47K

C478 18pF

C471 4p7F

C423 390pF

R435 390R

C475 15pF

+10V

L406 132-17SM

L407 132-13SM

L402 132-15SM

L403 132-15SM

L408

132-13SM

L425 560nH

123456789

10 11

121314151617181920

OSC

RSSI

U401 NE615

C479

22pF

L426

3u3H

C410

100pF

X402

21.855MHz

C439 10nF

C430 100nF

C432

100nF

C434 100nF

C431 100nF

C433

100nF

C474 56pF

C460 10nF

C454

120pF

C459 10nF

C461 10nF

C480 1nF

R413

47R

C435 120pF

C481

1uF

R445 8K2

RSSI

R415 4K7

R441 22K

R430 100K

R421 10K

R428 100K

R422 22K

C413 330pF

C412 330pF

C437 100nF

C488 1uF

R446 1K

R447 100K

+10V

DISC

C436 100nF

C407

1nF

C403 120pF

C416

150pF

C408 1nF

D403

BAV99

FIL402 CFUCG455D

FIL403

CFUCG455D

+10V

C483 10nF

DISC

C485

1nF

R439 390R

C440

120pF

C447 47pF

R407 18K

C442 68pF

C444 120pF

C441 1nF

C443 100pF

L410 270nH

L411 270nH

R434 10K

R438 47K

N_DET

1st_LO

RSSI

+10V

C487 100nF

R448 150K

L409

680nH

C420 180pF

C419 270pF

C421 68pF

25MHz HIPASS FILTER & 50MHz LOWPASS FILTER

frontend filter Simulation file: c:\eagle\work\9LP&9HP.SCH

123456

MX401

ADE-1H

2nd_LO

C411 330pF

C476 1uF

R444 100K

N_DET

U402A LM224

U402B LM224

U402C LM224

V+

V-

U402E LM224

U402D

LM224

U605A LM224

C409

1nF

R429 470K

+10V

RF_In

C438 100nF

R427 2K2

X401

CDBC455CX29

C482 33pF

C484 33uF

R451 NF

L424 2u2H

C448 5p6F

C465

C449 5p6F

C451

10pF

NSQ_SET

C455 120pF

N_BLK_EN

+5V

R417 33K

N_BLK

R436 220K

R431 100K

D404 BAV99

+5V

Q405 BFR92A

Q406 BFR92A

2 5

U403

LMV7219M5

R418

33K

D401 BAT17

R419 10K

D402

*BZX84C5V1

R449

5K6

R420 100K

R433 33K

Cext14Rext

CLR

VCC

GND

U404A 74HC123A

+5V

R450 6K8

C489

390pF

Cext6Rext

CLR

U404B

74HC123A

Q401 BFQ17

L412 220nH

L413 220nH

L414 220nH

C446 120pF

C456 68pF

C457 1nF

C462

1nF

L417

100nH

L418

C468 33pF

Q402

BFQ193

R405 2R2

R409 15K

R424 33K

L420

150nH

C425 100nF

R401

10R

C450

2p7F

2 3 4

FIL401

MKFC246

L419 100nH

C424 100nF

L422 100nH

C473 2p7F

123456

MX402 ADE-1H

C458 1nF

+10V

Q403 BFQ17

R406 10R

R410 10R

R425 18K

L421

680nH

C426 100nF

R404 10R

C427 100nF

R423 10K

R443 1K

D407

BZX84C5V1

C486

1uF

R437 220K

R442 1K

C445 68pF

Simulation file: c:\eagle\work\f2550amp.SCH

R412 22R

C467 5p6F

C466 120pF

C463 1nF

Q404

MMBFJ309

C469 15pF

C464 56pF

R416 10K

R414

4K7

N_BLK

C470 470pF

C472 NF

C490

R453 470R

RF_AMP

R455 120R

R462

150R

R460 330R

R461 330R

R456 120R

*Tantalum

Q408

MMBT3906

R459 33K

R454 10R

+5V

C496

10pF

D405

BAT17

C495 100nF

C491

100nF

D406

MMBV109

R458 10K

-5V

R463 470R

C492

100nF

3rd_LO_ADJ

N_BLK_EN

Low ESR

C494 100nF

AGC

U303C LM224

R466 1K

R465

4K7

R464 22K

Q407

MMBT3904

R457 10K

+10V

1st_LO

2nd_LO

R467 47K

C493

100nF

R468 1K

R440 NF

1 2 3 4 5 6 7 8

87654321

7 7

Power Generation Section

9155 B

20-Feb-2002 23:51:26

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - power.sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

28V

GND

+10V

+5V

-5V-10V

-2.5V

C941

10uF

C945

*10uF

C928 10uF

C925 10uF

R936 120R

R928 270R

C924 10uF

R933 1K

C943

10uF

C930 10uF

R927 270R

D909

MBRM140T3

L904

DS5022P-104

GND

C939

100uF

C936

33uF

C913

1000uF

12V

Tantalum, ESR <= 0.3 ohms

Output Current is 750mA (max)

R925 150R

R920 1K

GND

R921 47R

+10V

+5V

R923 1K5

R934 680R

R924 390R

R922 270R

C902

470uF

Tantalum, ESR <= 0.3 ohms

-2.5V

GND

D911

ZRC400F01

R926

1K8

GND

C929

100nF

Vref

+10V

Vref

C940

10uF

GND

TP911

-10V

TP914

-5V

TP912

+5V

TP913 Vref

TP910

+10V

TP915

GND

TP917

-2.5V

R935 0R

R932 *270R

12V

D907

MBRM140T3

L902

DS5022P-224

GND

C938

100uF

Tantalum, ESR <= 0.3 ohms

Max output current is 1A

12V

Output current <= 1mA

TP909

12V

GND3GND

Vout

Vin2FB

U909

LM2595S-5

GND3GND

Vout

Vin2FB

U907 LM2595S-12

C935

470uF

D908

MBRM140T3

L903

DS5022P-683

C937

33uF

Tantalum, ESR <= 0.3 ohms

-12V

GND3GND

Vout

Vin2FB

U908 LM2595S-12

D906

MBRM140T3

R919 47K

R918

47K

C915

100nF

12V

D910

SM4004

GND

-Vin2-Vout

ADJ

-Vin

NC5NC

U913 LM337LM

-Vin2-Vout

ADJ

-Vin

NC5NC

U915 *LM337LM

-Vin2-Vout

ADJ

-Vin

NC5NC

U914 LM337LM

Vout2Vin

ADJ

Vout

NC5NC

U911 LM317LM

GND

-5V

R931 *270R

GND

C923

100nF

C934

*100nF

GND

-10V

GND

C926

100nF

C931 100nF

C920

100nF

C927

100nF

C933

100nF

GND GND

GND

+5Q

Low Impedance Type

35V, 10mm dia

R910 0R

R911 0R

-10V

+10V

-12V

VIN3Vout

ADJ

Vout

U910 LM1117-ADJ

L909

BLM31P121SG

L901 33uH

C903 33uF

GND

L905 33uH

L906

BLM31P121SG L907 BLM31P121SG

L908 BLM31P121SG

+5D1

+5D2

+5D3

C901 33uF

GND

Tantalum, ESR <= 0.3 ohms

Tantalum, ESR <= 0.05 ohms

change to 330uH

1 2 3 4 5 6 7 8

87654321

2 7

Microprocessor

9155

20-Feb-2002 23:50:38

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - MCU.sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton PlaceHornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

RXDATA

TXDATA

LINE_LEVEL

EXT_SQ

RESET

LINE_LEVEL_U/D

DE_EMPHA

FLAT

COS_POLARITY

ALARM_LED

FPSW1

SCLK

CTCSS_SEL

MOSI

COS_VOLTS_ON/OFF

N_DET

RTS

DTR

CTS

RCV_ADSEL

LOOP/VOLTS_SEL

PLL_SEL

MON_SQ

LINE_LEVEL_INC

2nd_LO_BIAS

PE4

104

SCK

103

PF1

CSP0

PF6

CSD

CSO

R/W

A19

A18

A17

A16

A15

A14

A13

A12

A11

A10

VCC

VCC14VCC

Vddpll

VCC79VCC

Vref

GND

GND15GND41GNDpll45GND80GND

GNDref

AN7

AN6

AN5

AN4

AN3

AN2

AN1

AN0

PJ7

PJ6

PJ4

PJ3

PJ2

PJ5

PJ1

MODB

RESET

MODA

PE7

PE3

IRQ

XIRQ

PJ0

PH7

PH6

PH5

PH4

PH3

PH2

PH1

PH0

PF3

PF2

A21

A19

PD7

PD6

PD5

PD4

PD3

PD2

PD1

PD0

MOSI

102

MISO

101

TxD1

100

RxD1

TxD0

RxD0

PT7

112

PT6

111

PT5

110

PT4

109

PT3

108

PT2

107

PT1

106

PT0

105

EXTAL

XTAL

XFC

BKGD

U204

MC68HC812A0

RESET

RY/BY

A21

A20

A19

A18

A17

A16

A15

A14

A13

A12

A11

A10

GND

VCC

GND30NC

U207

29F032

EN1

EN2A

EN2B

VCC

GND

U205

74HC138

VCC

GND

A18

A17

A16

A15

A14

A13

A12

A11

A10

U208

K6T4008

GND GND

+5D1

A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 D6 D5 D4 D3 D2 D1 D0

A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 D6 D5 D4 D3 D2 D1 D0

C211

100nF

C210 100nF

GND GND

C206

100nF

C205

100nF

C204

100nF

C207

100nF

GND

RESET

R/W

CS0

CSD

CSP0

FWT FRD

RAMRD RAMWT

FRDY

VCC

GND

U209

74HC374

GND

+5D2

D7 D6 D5 D4 D3 D2 D1 D0

FPSW2 FPSW3

LCD_DB0

LCD_DB1

LCD_DB2

LCD_DB3

LCD_DB4

LCD_DB5

LCD_DB6

LCD_DB7

LCD_R/W

LCD_RS

LCD_E

GND

DSR

C216

100nF

RES

GND

VCC

U203

MC33064D

GND

+5D3

R204 10K

R203 10K

S200

SW-PB

R209

270R

R205 2K7

R210

10K

C219

10uF

GND

C202

100nF

C212

100nF

C208

100nF

C222 100nF

C220

100nF

R235

4K7

R207 68K

R202

10K

GND

28V

C203

100nF

GND

Vref

C214

100nF

R212

220R

C225

100nF

R213 1M

DBGTX

DBGRX

BKGD

CTS_TTL

DSR_TTL

RTS_TTL DTR_TTL

R218 10K

R220 10K

R217 10K

R219 10K

+5D3

+5D1

1st_LO_BIAS

R221

470R

RESET

C226

100nF

R222 2K2

PWR_OK

Q200 MMBT3904

+5D3

R226

180R

GND

TP209

ECLK

TP210 RESET

TP207 R/W

TP200 CS0

TP204

RAMRD

TP206

RAMWT

TP205

CSD

TP201

CSP0

TP202

FWT

TP203

FRD

R223 10K

R224 10K

R225 10K

+5LCD

RSSI

SUBTONE_IRQ

+5D3

R228

10K

MOSI

R211 220R

SCLK

CH_EN

R231

120R

R230

120R

A[0..21]

D[0..7]

VIN_SENSE

ECLK

LCD_DB7 LCD_DB6 LCD_DB5 LCD_DB4 LCD_DB3 LCD_DB2 LCD_DB1 LCD_DB0

LCD_DB7

LINE_LEVEL_U/D LINE_LEVEL_INC

SPARE_I/O3

COS_VOLTS_ON/OFF

1st_LO_BIAS

2nd_LO_BIAS

MON_SQ

PLL_SEL

COS_POLARITY

CTCSS_SEL

FLAT DE_EMPHA

RSSI

RCV_ADSEL

LINE_LEVEL

SPARE_SEL

SCK SD

DBGTX_TTL

TXD_TTL

DBGRX_TTL

RXD_TTL

SUBTONE_IRQ

N_DET

FPSW1 FPSW2 FPSW3

INT

BKGD_ISO

LOOP/VOLTS_SEL

ALARM_LED

RESET

LCD_E

LCD_RS LCD_R/W

R233 22K

GND

T/R_RELAY_H

13 U201D

14C89A

3 2

U202A

14C88

C2U201A

14C89A

U202B

14C88

U201C

14C89A

U202C

14C88

U201B

14C89A

U202D

14C88

V+

Gnd

U201E

14C89A

V+

Gnd

V-

U202E

14C88

+5D3

12V-12V

GND

C201

100nF

C215

100nF

GNDGND

GND

C217

100nF

R234 1K

Q202 MMBF5484

L200

220uH

+5D2

GND

R236 18K

R237

47K

Q203 MMBT2369A

R238 1K

C221

100nF

R239

R240

10K

Q204

MMBT2369A

R243 220R

R242

47K

GND

R241

22R

R244

10R

GND

Fo_PLL

R206 2K2

SPARE_SEL

CH_EN

Q205

MMBT3906

Q206

MMBT3904

R229

10K

+5D2 +5D1+5D3

L202

BLM31A601

+5D1

L205 BLM31A601

L203 BLM31A601

L204 BLM31A601

+5D1

+5D1 +5D1

X200 14M7456

+5D2

C224

100nF

D200

BAV99

SPARE_I/O1

N_BLK_EN

C209

10nF

R245

12K

R232

560R

SQ_LED

PLL_SENSE

DSR

CTS

DBGRX

RXDATA

VR201

100K

VR202

100K

GND

Vref

NSQ_IN

CSQ_IN

SPARE_IOT1

SPARE_IOT2

MON_SW

SPARE_MISO

SPARE_IOJ0

SPARE_IOJ1

SW201 MON_SW

GND

R201 10K

+5D3

N_BLK_EN

SPARE_I/O1

SPARE_I/O3

MODB

1 2 3 4 5 6 7 8

87654321

1 7

RX50 Master Schematic

9155 B

20-Feb-2002 23:48:48

C:\Program Files\Design Explorer 99 SE\rft\r50\r50.Ddb - RXmaster.sch

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

AustraliaRev. Release Date: Originator:

Rev No. ECO No. Description of Change

SCLK

MOSI

COS+ COS-

SUBTONE

DIR_AUD DISC_AUD

LINE_O/P1

LINE_O/P4

EXT_SQ

CH_EN

LCD_RS

LCD_R/W

LCD_E LCD_DB0 LCD_DB1 LCD_DB2 LCD_DB3 LCD_DB4 LCD_DB5 LCD_DB6 LCD_DB7

RTS

RXDATA

CTS

DSR

DTR

TXDATA

DBGTX DBGRX

BKGD

ALARM_LED

PWR_OK

SQ_LED

RSSI

PLL_SENSE

1st_LO_BIAS 2nd_LO_BIAS

RESET

N_BLK_EN

RCV_ADSEL

PLL_SEL

SCLK MOSI

CH_EN

CTCSS_SEL

DE_EMPHA

FLAT

LINE_LEVEL

SUBTONE_IRQ

MON_SQ

COS_VOLTS_ON/OFF LOOP/VOLTS_SEL

EXT_SQ

N_DET

COS_POLARITY

SPARE_SEL

Fo_PLL

LINE_LEVEL_INC LINE_LEVEL_U/D

SPARE_I/O1

MicroProcessor MCU.Sch

1st_LO_BIAS

2nd_LO_BIAS

MOSI

SCLK

RCV_ADSEL

RSSI

PLL_SEL

RF_IN

PLL_SENSE

RESET

N_BLK_EN

N_DET

DISC

LCD_BIAS

Fo_PLL

AGND

RF Section RF.Sch

COS+ COSSUBTONE

DISC_AUD

DIR_AUD

LINE_O/P1

LINE_O/P4

EXT_SPEAKER

LINE_LEVEL

MOSI SCLK

CTCSS_SEL

MON_SQ

FLAT

DE_EMPHA

SUBTONE_IRQ

LOOP/VOLTS_SEL

COS_VOLTS_ON/OFF

COS_POLARITY

LINE_LEVEL_U/D

LINE_LEVEL_INC

DISC

Audio Processing Section AUDIO.Sch

L100 BLM31P121SG

GND

28V

RXDATA

TXDATA

RTS

CTS

DTR

R104 180R

+5D3

1 2 3 4 5 6 7 8 9 10 11 12 13 14

JP2

HEADER 14

GND

+5LCD

LCD_BIAS

DSR

RXD

RTS

TXD

CTS

DTR

DCD

1 2 3 4 5 6 7 8 9 10

JP3

CON10

GND

+5D3

Debug/Monitor Port

NB: connector signals reversed

so that straight through cable can be used to PC.

RESET

LCD_BIAS

28V

12V

+10V

+5V

-12V

-10V

-5V

Vref

GND

+5Q

AGND

Power Supply POWER.Sch

GND

12V +10V

EXT_SPEAKER

+5V

-12V -5V-10V

Vref

D102

ALARM

D103

D104

POWER

EXT_SQ

R103 180R

28V

+5Q

GND

RF_IN

BKGD

ALARM_LED

PWR_OK

SQ_LED

TP100 MOSI

TP101 SCLK

LCD_DB0 LCD_DB1 LCD_DB2 LCD_DB3 LCD_DB4 LCD_DB5 LCD_DB6 LCD_DB7

LCD_E

LCD_R/W

LCD_RS

DBGTX DBGRX

1 2

SPEAKER GND

SCLK

MOSI

SPARE_SEL

L101 BLM31A601

+5V

TP102 28V

DB25

DB9

C103

NFA31CC222

C101

NFA31CC222

C102

NFA31CC222

GND

RESET

GND

+5D1

L102 BLM31A601

12V

RF Technology R50 Eclipse Series Operation And Maintenance Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
