Safe Place
Transmitters
User Guide
Compliance
© 2019 RF Technologies, Inc. All specifications subject to change without notice.
® and ™ indicate trademarks owned by RF Technologies, Inc.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by
the party responsible for compliance can void the user’s
authority to operate the equipment.
Cet appareil est conforme avec Industrie Canada
exempt de licence Rss standard(s). Son
fonctionnement est soumis aux deux conditions
suivantes :
• cet appareil ne peut causer d'interférences, et
• cet appareil doit accepter toute interférence, y
compris des interférences qui peuvent provoquer
un fonctionnement indésirable du périphérique
Les changements ou modififications à cet appareil sans
expressément approuvée par la partie responsable de
conformité pourraient annuler l'autorité de l'utilisateur
de faire fonctionner cet équipement.
All Rights Reserved. No Part of this work may be reproduced or copied in any form or by any
means without written permission from RF Technologies, Inc.
Contents
CONTENTS
CONTENTS ................................................................................. 1
WARNINGS AND CAUTIONS .................................................... 3
Warnings ............................................................................... 3
Cautions ................................................................................ 6
PREFACE .................................................................................... 7
Overview ............................................................................... 7
Intended Audience ................................................................ 8
Contact Information ............................................................... 8
Technical Support ........................................................... 8
Customer Care ............................................................... 8
Sales ............................................................................... 8
Product Warranty .................................................................. 8
GENERAL INFORMATION ......................................................... 9
Introduction............................................................................ 9
Transmitters .......................................................................... 9
Transmitter Types ............................................................... 10
Smart Sense ................................................................. 10
Standard Infant ............................................................. 10
Umbilical Cord .............................................................. 10
Patient (Locking) ........................................................... 11
Warranty Expiration Date .................................................... 11
Banding ............................................................................... 12
Smart Sense ................................................................. 12
Standard Infant ............................................................. 14
Patient (Locking) ........................................................... 15
Using an Umbilical Cord Transmitter .................................. 17
Activating ...................................................................... 17
Attaching ....................................................................... 17
Safe Place Transmitters User Guide Page 1 of 33
0510-1121-J
Contents
Discharging ......................................................................... 18
Banded Transmitters .................................................... 18
Umbilical Cord Transmitters ......................................... 19
TESTING AND CARE ............................................................... 21
Transmitter Testing ............................................................. 21
Visual Inspection........................................................... 21
Operation ...................................................................... 21
Signal Strength ............................................................. 22
Weekly Testing ............................................................. 23
Transmitter Cleaning and Care ........................................... 23
Replacing the Clamp ........................................................... 26
SPECIFICATIONS ..................................................................... 27
Smart Sense Transmitter .................................................... 27
Standard Infant Transmitter ................................................ 28
Patient (Locking) Transmitter .............................................. 29
Umbilical Cord Transmitter .................................................. 30

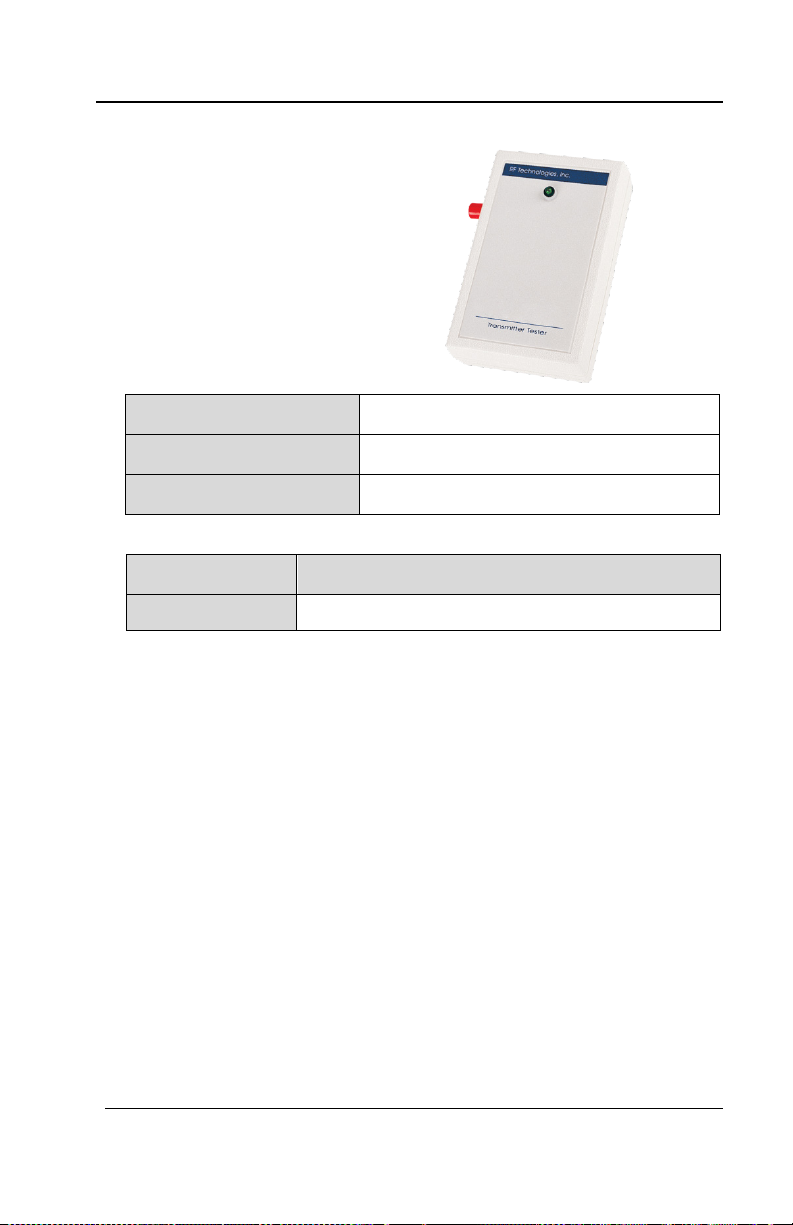

Transmitter Tester ............................................................... 31
REVISION HISTORY................................................................. 32
Page 2 of 33 Safe Place Transmitters User Guide
0510-1121-J
Warnings and Cautions
Warnings
WARNINGS AND
CAUTIONS
It is important for your facility to implement and enforce the
following WARNINGS and CAUTIONS in order to keep all
equipment functioning properly. Disregarding the information and
instructions in this document is considered abnormal use and may
result in injury or system failure.
ACCESSORIES (SUPPLIES)—To ensure
resident safety and proper operation of equipment,
use only parts and accessories manufactured or
recommended by RF Technologies, Inc. Parts and
accessories not manufactured or recommended
by RF Technologies, Inc. may not meet the
requirements of the applicable safety and
performance standards.
Failure to use the components and supplies
specified by RF Technologies, Inc. may result
in equipment and/or system failure.
Safe Place Transmitters User Guide Page 3 of 33
0510-1121-J
EXPLOSION HAZARD—These devices should
not be used in the presence of flammable gas
mixtures. It should also not be used in oxygen
enriched atmospheres.
STATIC DISCHARGE—Do not touch the
conductor portion of any conductor or port.
Damage to the device may result.
SYSTEM WIRING—All permanent supply
connections must be done in accordance with
National Electric Code, NFPA 70.
Warnings and Cautions
INSTALLATION AND CONFIGURATION—It is
the responsibility of the facility to follow the
installation instructions carefully, as outlined in the
applicable system guides, and to use the
components and supplies specified by RF
Technologies, Inc. for all installations.
Failure to use the components and supplies
specified by RF Technologies, Inc. may result
in equipment and/or system failure.
INSTRUCTIONS FOR SET UP AND USE—It is
the responsibility of the facility to follow the
instructions for set up and use carefully, as
outlined in this manual, and to use the
components and supplies specified by RF
Technologies, Inc. for set up and use. Do not
attempt to use extension cords or other equipment
not supplied by RF Technologies, Inc.
Failure to use the components and supplies
specified by RF Technologies, Inc. may result
in equipment and/or system failure.
SYSTEM INSPECTION—It is the responsibility of
the facility to establish and facilitate a regular
inspection schedule for your system. RF
Technologies, Inc. recommends quarterly
inspections of your system for safety and
performance by a qualified RF Technologies, Inc.
representative.
To arrange for a quarterly inspection by RF
Technologies, Inc., call our Technical Support
Department at (800)-669-9946 or (262) 790-1771.
Failure to provide regular inspection of these
products may result in equipment and/or
system failure.
Page 4 of 33 Safe Place Transmitters User Guide
0510-1121-J
Warnings and Cautions
SYSTEM MAINTENANCE AND TESTING—It is
the responsibility of the facility to establish and
facilitate a regular maintenance schedule for your
system, as outlined in the applicable system
guides. This includes regular inspection, testing,
and cleaning. RF Technologies, Inc. recommends
monthly maintenance and testing of your system.
It is also recommended that your facility keep
records of maintenance and test completions.
Failure to provide regular maintenance and
testing of these products may result in
equipment and/or system failure.
USER TRAINING—Only users who have received
adequate training on the use of the system, as
outlined in this manual, should use the system. It
is the responsibility of the facility to ensure all
users have been trained.
Failure to adequately train employees may
cause system failure due to user error. In
addition, incorrect use of the equipment may
also result in system failure.
All RF Technologies transmitters, pendants and
banding material “PRODUCT” have been
determined to be MR Unsafe as defined by ASTM
F 2503-05. Use of “PRODUCT” in a Magnetic
Resonance Imaging system will cause injury to
MR UNSAFE
Safe Place Transmitters User Guide Page 5 of 33
0510-1121-J
residents and staff, MR system malfunction or
“PRODUCT” malfunction. Do not bring
“PRODUCT” into the MR system area and follow
your facilities policies to classify and label
“PRODUCT” as MR Unsafe.
Warnings and Cautions
Cautions
DISPOSAL—At the end of their service life the
products described in this manual, as well as
accessories (i.e. lithium batteries, banding
material, disposable pads, etc.), must be disposed
of in compliance with all applicable federal, state
and local guidelines regulating the disposal of
products containing potential environmental
contaminants. Dispose of the packaging material
by observing the applicable waste control
regulations
RESIDENT GENERATED ALARMS—Do not rely
exclusively on resident generated alarms for
resident care and safety. The alarm function of
equipment in the possession of residents must be
verified periodically and regular resident
surveillance is recommended.
RESIDENT MONITORING—The most reliable
method of resident monitoring combines close
personal surveillance with correct operation of
monitoring equipment. It is the responsibility of the
facility to periodically check on residents in
possession of RF Technologies, Inc.'s equipment
(i.e. Pendants, Pull Cords, Control Units) to
mitigate risk of inappropriate use of equipment or
strangulation and stumbling hazards from cables
and cords.
Page 6 of 33 Safe Place Transmitters User Guide
PRODUCT WARRANTIES—Failure to follow the
Warnings and Cautions in this guide voids any
and all Product Warranties.
WORN OR DAMAGED PARTS—If the devices or
cables are worn or damaged, you must have the
product serviced. For more information, see the
section entitled “Service and Return.”
0510-1121-J
Overview
Preface
PREFACE
The SAFE PLACE transmitters are
components of the 9450 System which
monitors doors, elevators, hallways, and
stairwells to assist staff in monitoring patients
in a facility.
The various transmitters and devices of the
system alerts staff if a transmitter’s banding
material is tampered with, cut, or opened
without authorization (referred to as Cut Band
for Infant and Emergency Department
systems only), or if monitored devices in the
system are not functioning properly. An alarm
also sounds if a transmitter is detected in an
Exit Alarm Zone. If the system fails to detect
a transmitter within its monitored area, a No
Signal/Check Transmitter alarm is issued.
Depending upon which equipment you have
installed, the 9450 System can automatically
lock doors and deactivate elevators.
In addition, if the system in your facility
includes computers, an alarm also sounds at
a Central Server and its network of Client
computers. The computer software will
identify which patient sounded the alarm and
the exit where the alarm occurred.
WARNING: The 9450 System is designed
and intended to work in conjunction with a
facility’s overall patient security program,
including reasonable operating policies and
procedures. The 9450 System, by itself,
cannot prevent abductions or the elopement
of patients.
Safe Place Transmitters User Guide Page 7 of 33
0510-1121-J
Preface
Intended
Contact
Technical
Customer
Sales
Product
Audience
Information
Support
The SAFE PLACE Transmitters User Guide
is intended for caregivers who use the Safe
Place transmitters. It includes detailed
information about banding, care and
cleaning, testing the transmitters, alarms and
transmitter specifications.
This guide should only be used by persons
who have read the Software User Guide and
received training on the use of the System. It
is not intended as a substitute for reading the
Software User Guide. Always refer to the
Software User Guide for complete
instructions and warnings.
For more information about RF Technologies,
Inc. products, go to www.rft.com
For technical support, contact the Technical
Support Team at:
(800) 669-9946, option 5 or (262) 790-1771
.
Page 8 of 33 Safe Place Transmitters User Guide
Care
Warranty
tech@rft.com
For questions on part replacement or for
ordering new parts, contact the Customer
Care Team at:
(800) 669-9946, option 2
customercare@rft.com
For questions regarding system add-ons,
contact your Sales Manager.
Product Warranty information can be found
on the system’s CD-ROM or with your
original system proposal and invoice.
0510-1121-J
General Information
Introduction
Transmitters
GENERAL INFORMATION
This chapter provides general information
about the transmitters. It includes:
Transmitters types
Warranty dates
Banding the transmitters
Testing and care
The transmitters are lightweight and
compact. They can be left on the patient
during bathing but prolonged exposure to
wet conditions and complete submersion
should be avoided.
SUBMERSION—Prolonged submersion may
result in equipment and/or system failure and
voids any and all Product Warranties.
Safe Place Transmitters User Guide Page 9 of 33
0510-1121-J
How do the transmitters work?
When activated, a transmitter sends a signal
that is received by Exit Alarm and Alarming
Band Receivers. If a patient wearing a
transmitter is detected in an Exit Alarm Zone
and the door is open, an alarm sounds at
the exit as well as at a Central Server and
its network of Client computers.
RADIO FREQUENCY: The radio frequency
(RF) characteristics of certain metal crib carts
may interfere or block the Infant transmitter’s
signal during transport, preventing detection
by the system’s Exit Receiver.
General Information
Transmitter Types
Standard
Umbilical
Smart Sense
There are four types of Safe Place
transmitters:
The Smart Sense transmitter is worn on an
infant’s ankle and senses when the
transmitter is loose or no longer in contact
with the infant.
The Smart Sense technology combines the
Smart Sense transmitter and Smart Sense
banding material to give you the capability
to recognize if a transmitter has been
removed from an infant or if it has been
tampered with or is loose.
The following are the measurements for
tamper detection:
Resistance—banding material no
longer stretching with infant's movement
Capacitance—change in contact
between transmitter and infant
Infant
Cord
Page 10 of 33 Safe Place Transmitters User Guide
Like Smart Sense, the Standard Infant
transmitter is worn on the infant’s ankle and
provides cut-band protection.
The Umbilical Cord transmitter is secured in
the infant’s umbilical cord clamp and is worn
on the umbilical stump.
0510-1121-J
Patient
(Locking)
Warranty
Expiration
Date
General Information
The Patient (locking) transmitter is worn on
the wrist or ankle and provides cut-band
protection, but requires a key to open and
lock. It is ideal for older pediatric to adult
patients who may be prone to opening
clasps.
Each transmitter is stamped with a warranty
expiration date. This date indicates the date
that RF Technologies’ warranty on that
transmitter expires. If the warranty period
has expired, discard the transmitter
immediately.
WARNING: Using a transmitter beyond the
printed expiration date can result in system
failure, elopement, and/or abduction.
Smart Sense Standard Infant Patient Transmitter
Safe Place Transmitters User Guide Page 11 of 33
0510-1121-J
Transmitters have a 1 year life expectancy.
Umbilical Cord
Transmitter has a 3 month life expectancy.
General Information
Banding
Smart Sense
NOTE: All banding material types must not
remain on a patient for longer than 72 hrs (3
days). If the material is kept on longer than
this specified period of time, you may
receive false alarms from that transmitter.
CAUTION: You must test all transmitters
prior to use to verify proper operation. This
includes every time that the band is
replaced. Failure to test the transmitters
before use can result in system failure,
abduction, and/or an elopement. In addition,
failure to test transmitters voids the RF
Technologies Product Warranty.
To band the Smart Sense transmitter:
Page 12 of 33 Safe Place Transmitters User Guide
1. Remove the Smart Sense banding
material (with the plastic guide tabs still
attached) from the plastic backing.
WARNING: Only Smart Sense banding
material can be used to fasten Smart Sense
transmitters. Use of any other banding
material with the Smart Sense transmitters
voids the RF Technologies' Product
Warranty and could result in system failure.
0510-1121-J
General Information
2. With the yellow-side of the banding
3. Pull the tab until it clears the clamp and
5. Close the second clamp. The transmitter
7. Use safety scissors to cut off the excess
the banding material through
transmitter to the infant
-
Ensure transmitter is banded
properly. It should fit snugly
Do not thread both sides of
the clamps until you are
ready to secure the
. Pre
threading may allow the
transmitter to alarm.
against the skin without an
air gap between the
transmitter and skin, yet
allow the band and
transmitter to be turned on
the ankle. Over-tightening
the band will not reduce the
number of alarms and could
cause patient injury.
material facing outwards, use the plastic
guide tab to thread the banding material
from the bottom slot out through the top
slot on the first clamp.
push the clamp lever down until it snaps
shut.
4. Place the transmitter with banding
material around the infant’s ankle and
thread the banding material through the
second transmitter clamp slot.
becomes active one minute after the
clamps are snapped into place. The 60
second grace period allows the
transmitter to be re-opened once the
transmitter’s second clamp has been
secured.
6. Remove the plastic guide tabs and
discard.
banding material. Try not to cut bands
too short to allow room to adjust in the
future.
Safe Place Transmitters User Guide Page 13 of 33
0510-1121-J
General Information
Standard
4. Advance the banding material from the
8. Use safety scissors to cut off the excess
Infant
To band a Standard Infant transmitter:
1. Cut off 6-8” of the banding material from
the roll.
2. Open the clamps of the transmitter by
gently pulling them outward, one clamp
at a time, from the top of the transmitter.
3. Thread with duck-side of banding
material up.
bottom slot out through the top slot on
the clamp.
5. Secure only one-side of the transmitter.
6. Place the transmitter with banding
material around infant’s ankle then
thread and secure second clamp. The
band must be tight enough to help stop
the transmitter from slipping off, and
loose enough to avoid discomfort.
7. The transmitter becomes active one
minute after the clamps are snapped
into place. The 60 second grace period
allows the transmitter to be re-opened
once the transmitter’s second clamp has
been secured.
banding material. Try not to cut bands
too short to allow room to adjust in
future.
Page 14 of 33 Safe Place Transmitters User Guide
0510-1121-J
Patient
(Locking)
5. Guide the banding material through until
General Information
To band a Patient transmitter:
1. Cut off 6-8” of the banding material from
the roll.
2. Verify that the transmitter is unlocked.
See the “Unlock a Transmitter” section
for further details.
3. Open the clamps of the transmitter by
gently pulling them outward, one clamp
at a time, from the top of the transmitter.
4. Insert the banding material through the
slot on the non-locking clamp side of the
patient transmitter, from bottom to top,
with the white side facing out.
Safe Place Transmitters User Guide Page 15 of 33
0510-1121-J
it bumps against the stop.
6. Push in the clamp until it snaps into
place.
7. Insert the banding material through the
slot on the locking clamp side of the
transmitter, from bottom to top.
8. Guide the banding material through the
slot at the top of the clamp. DO NOT
snap the clamp into place.
General Information
9. Slide the transmitter and banding
10. Adjust the band so that the transmitter
11. The band must be tight enough to help
12. Push the unsnapped side of the clamp
13. Use safety scissors to cut off the excess
material onto the ankle or wrist of a
patient according to your facility’s
policies and procedures.
is in a comfortable position on the
patient.
stop the transmitter from slipping off,
and loose enough to avoid discomfort.
until it snaps into place. The transmitter
becomes active one minute after the
clamps are snapped into place. The 60
second grace period allows the
transmitter to be re-opened once the
transmitter’s second clamp has been
secure.
banding material.
Page 16 of 33 Safe Place Transmitters User Guide
0510-1121-J
General Information
Using an Umbilical Cord Transmitter
Activating
Attaching
To unlock a transmitter:
1. Insert the Locking Clamp Key into the
hole on the top-side of the transmitter.
2. Turn the key ¼ turn in any direction.
3. Stop and pull with the key until the
locking side of the clamp opens.
4. Remove the Locking Clamp Key.
5. Pull back the non-locking side of the
clamp.
6. Follow the instructions to band or
loosen the approved banding material
and slip the Transmitter off of the
patient.
Safe Place Transmitters User Guide Page 17 of 33
0510-1121-J
To activate an Umbilical Cord
transmitter:
1. With the green dot (labeled “Enroll”) on
the Activation Wand facing upwards,
place the tip of the wand on the image
of the yellow duck on the top of the
transmitter.
2. Hold the wand on the image for two
seconds and then pull away. Two
green LED blinks indicate the
transmitter has been activated.
To attach an Umbilical Cord transmitter:
1. Place the transmitter post into the clamp
on the umbilical stump with the flat side
of the transmitter towards the infant’s
abdomen. Make sure that you can see
the green LED light.
General Information
2. Leave enough length of the umbilical
Discharging
Banded
2. Tend to and clear any alarms displayed
Transmitters
stump beyond the clamp to prevent the
transmitter from falling off as the
umbilical stump reduces in size.
When it is time for an infant to leave your
facility, he/she must be discharged from the
software (refer to the applicable Series
Software User Guide).
To discharge a banded transmitter:
1. Assure that clamps are firmly closed on
both sides with banding material in
place.
1. Check census screen to confirm that the
transmitter to be discharged is
communicating with the system
(indicated by Monitored displayed in
transmitter Status column).
Page 18 of 33 Safe Place Transmitters User Guide
on the screen for the transmitter being
discharged.
3. Request a discharge function for the
transmitter and complete the action
within the allotted time specified in the
software by your facility.
4. Open the transmitter clamps to remove
the banding material.
0510-1121-J
5. Discard the used banding material.
Umbilical
Cord
Transmitters
General Information
CAUTION: Do not slip the banding material
off the infant’s extremity; doing so may
result in a Band Off alarm.
CAUTION: Do not leave the banding
material in the transmitter clamps after
discharge; doing so may result in the
transmitter re-enrolling.
6. Finally, the transmitter must be
disinfected in order to be ready to be
used again.
To discharge an Umbilical Cord
transmitter:
1. Check census screen to confirm that the
transmitter to be discharged is
communicating with the system
(indicated by Monitored displayed in
transmitter Status column).
2. Tend to and clear any alarms displayed
on the screen for the transmitter being
discharged.
3. Request a discharge function for the
transmitter and complete the action
within the allotted time specified in the
software by your facility.
4. Using a clamp snipping tool, open the
clamp by cutting through the clamp
snap.
5. Remove the clamp from the umbilical
stump.
6. Remove the transmitter from the clamp
and discard the clamp.
Safe Place Transmitters User Guide Page 19 of 33
0510-1121-J
General Information
7. With the red dot (labeled “Discharge”)
on the Activation Wand facing upwards,
place the tip of the wand on the image
of the yellow duck on the top of the
transmitter.
8. Hold the wand on the image for two
seconds and then pull away. Three red
LED blinks indicate the transmitter has
been discharged.
9. Finally, the transmitter must be
disinfected in order to be ready to be
used again.
Page 20 of 33 Safe Place Transmitters User Guide
0510-1121-J
Transmitter
Visual
1. Verify that the warranty expiration date
Operation
Testing
Testing and Care
TESTING AND CARE
Do not use the transmitter tester on a
transmitter with an expiration date that has
expired. Results may not be accurate.
All steps are mandatory.
CAUTION: You must test all transmitters
prior to use to verify proper operation. This
includes every time that the band is
replaced. Failure to test the transmitters
before use can result in system failure
and/or an abduction or elopement. In
addition, failure to test transmitters voids the
RF Technologies Product Warranty
Inspection
Safe Place Transmitters User Guide Page 21 of 33
0510-1121-J
that is stamped on the transmitter is not
expired.
2. Visually inspect the transmitter for
damage or loose parts.
3. Attach a band to the transmitter (See
Banding).
4. If inspecting an Umbilical Cord
transmitter, use the activation wand to
activate the transmitter before testing.
Test the operation of the transmitter using
the Transmitter Tester. The transmitter
tester will detect whether or not a transmitter
is emitting a signal, but cannot indicate the
strength of the signal.
Testing and Care
1. Place the transmitter tester directly on
Signal
1. Physically enter an Exit Zone with the
the transmitter.
2. Press and hold the button on the left
side of the transmitter tester.
3. The device beeps once when you
initially press the button.
4. While holding the button in, the indicator
light flashes and a tone sounds once
per second.
5. Wait for at least 3 flashes of the
indicator light and 3 tones from the
transmitter tester to verify that the
transmitter is functioning correctly.
6. If the transmitter fails this test, check the
battery in the tester (the transmitter
tester requires a 9V battery).
7. Retest the transmitter. If it fails a second
time, DO NOT USE THE
TRANSMITTER and contact RF
Technologies Technical Support.
Strength
Page 22 of 33 Safe Place Transmitters User Guide
transmitter and walk through the door.
2. An alarm must occur when the
transmitter is within 4-feet of the
monitored door. If applicable, the door
also locks.
3. If an alarm does not occur, DO NOT
USE THE TRANSMITTER and contact
RF Technologies Technical Support.
4. If testing an Umbilical Cord transmitter,
once the testing is complete, use the
activation wand to deactivate the
transmitter.
0510-1121-J
Weekly
Testing
Transmitter
Testing and Care
The following testing is required weekly for
transmitters in use on patients. All steps are
mandatory.
1. Test the operation of transmitters using
the transmitter tester.
NOTE: Never take a patient to a door to
test their transmitter.
2. Visually inspect transmitters for damage
or loose parts.
3. Verify that the warranty expiration date
stamped on the transmitter has not
expired. If the warranty period has
expired, discard and replace the
transmitter immediately.
4. If testing an Umbilical Cord transmitter,
once the testing is complete, use the
activation wand to deactivate the
transmitter.
5. Your facility must keep records of test
and transmitter inspection.
Cleaning
and Care
Safe Place Transmitters User Guide Page 23 of 33
0510-1121-J
This section provides detailed information
about cleaning and caring for a transmitter.
For an up-to-date list of approved cleaning
solutions, visit:
www.rft.com/Resources/Manuals & Specs/
Transmitters/Transmitter Approved Cleaning
Solutions
CAUTION: Use of non-approved cleaners
on transmitters can cause permanent
damage to the transmitter and the piercing
contacts and will void any and all
warranties.
Testing and Care
2. Use the provided brush to clean the
4. Allow the cleaner to remain on the
To clean a banded transmitter after use:
1. Remove the banding material from the
transmitter and dispose of it.
hard-to-reach areas. After each use,
brushes can be disposed of or
disinfected with alcohol according to
your facility’s infection control
procedures.
3. Disinfect the transmitter with an
approved cleaner.
NOTE: In order to avoid nuisance alarms,
cleaning procedures must be performed at
least 100 feet from any Alarming Band
Zone.
CAUTION: Using an approved cleaner does
not confirm the suitability of the cleaner to
meet your infection control standard; it only
indicates that the transmitter will not be
harmed by the cleaner.
The transmitters may be wiped, sprayed or
rinsed with water or the approved cleaners
during cleaning, but must not be soaked.
Soaking transmitters may result in
equipment and/or system failure.
transmitter for the amount of time
specified by the manufacturer. When
using surface disinfectants and
decontaminant cleaners, always follow
the manufacturer’s instructions.
Page 24 of 33 Safe Place Transmitters User Guide
0510-1121-J
Testing and Care
5. Wipe the transmitter with a clean cloth
or towel, and then allow the transmitter
to air-dry. The transmitter can also be
rinsed with water, if required to in the
manufacturer’s instructions.
6. Inspect the piercing contacts on the
transmitter. The contacts must be gold
in color and not bent or out of alignment.
If the piercing contacts are NOT gold in
color or are bent out of alignment,
discard the transmitter.
7. Close the clamps on the transmitter
8. Place the clean transmitter in a storage
container for future use.
To clean an Umbilical Cord transmitter
after use:
1. After each use, clean according to your
facility’s infection control procedures.
2. In addition, scrub each transmitter
independently until there are no signs of
blood, body fluids, or material on the
transmitter.
3. Pay special attention to all surfaces of
the transmitter clamp post.
4. Allow transmitters to air dry.
Safe Place Transmitters User Guide Page 25 of 33
0510-1121-J
Testing and Care
Replacing
the Clamp
In some cases, you need to replace
damaged transmitter clamps. This is done
by opening the existing clamps, snapping
them off of the transmitter, and inserting
new clamps.
To replace a transmitter clamp:
1. Open the clamps all the way and gently
remove them from the transmitter.
2. Insert the first clamp into the transmitter
by inserting the right oval-shaped pin
into the hole on the right of the
transmitter.
3. Next, line the
left ovalshaped pin up
with the hole
on the left side
of the
transmitter.
4. Gently snap
the left ovalshaped pin into
the hole.
5. Close and secure the clamp.
6. Repeat the previous steps for the
second clamp.
Page 26 of 33 Safe Place Transmitters User Guide
CAUTION: Use care around the piercing
contacts on the transmitter as they are
extremely sharp. Placing your fingers
directly on the piercing contact can result in
injury.
0510-1121-J
Smart Sense
Transmitter
Specifications
SPECIFICATIONS
Size
Weight
Color
Operating Temperature
Composition
Battery Life
Frequency - VLF
Frequency - UHF
Banding
Regulations
1.63 x 1.18 x 0.625 inches
0.71 ounces (20 grams)
Yellow
32–122° Farenheit (0–50° Celsius)
Latex Free Co-polyester Plastic
1 year, Lithium Metal, Non-rechargeable
66 kHz or 262 kHz, depending on model
318 MHz for all models
Soft nylon; yellow
Store in clean, dry conditions between 50-80°
F, less than 75% humidity
FCC, Part 15b
Industry Canada RSS Standard(s)
Conforms to UL Standard 294
RFT Part Number Description
9450-6066-1
9450-6262-1
3000-0237
3000-0239K
Smart Sense Infant Transmitter (66kHz / 318MHz)
Smart Sense Infant Transmitter (262kHz / 318MHz)
Smart Sense Banding (6”), Pre-cut, Box of 100
Smart Sense Banding (10”), Pre-cut, 10-pack, used for
staff training
Safe Place Transmitters User Guide Page 27 of 33
0510-1121-J
Specifications
Standard Infant
Composition
Transmitter
Size
Weight
Color
Operating Temperature
Battery Life
Frequency - VLF
Frequency - UHF
Banding
Regulations
Part Number Description
9450-0066
9450-0262
3000-0223
Safe Place Infant Transmitter (66kHz / 318MHz)
Safe Place Infant Transmitter (262kHz / 318MHz)
Safe Place Infant Bands, Duck Print, Box of 100’
1.63 x 1.18 x 0.625 inches
0.71 ounces (20 grams)
White
32–122° Farenheit (0–50° Celsius)
Latex Free Co-polyester Plastic
1 year, Lithium Metal, Non-rechargeable
66 kHz or 262 kHz, depending on model
318 MHz for all models
Polyethylene (plastic) with soft nylon backing;
duck print
Store in clean, dry conditions between 90°F,
less than 20-50% humidity
FCC, Part 15b
Industry Canada RSS Standard(s)
Conforms to UL Standard 294
Page 28 of 33 Safe Place Transmitters User Guide
0510-1121-J
Patient
(Locking)
Composition
Transmitter
Specifications
Size
Weight
Color
Operating Temperature
Battery Life
Frequency - VLF
Frequency - UHF
Banding
Regulations
Part Number Description
0500-0084
0500-0084K
9450-4066
9450-4262
9450-4000
3000-0225
3000-0229
Key, Durable Locking Band Clamp
Locking Clamp Key Kit, 10-pack
Patient Care Transmitter (66kHz / 318MHz) w/Lock Clamps
Patient Care Transmitter (262kHz / 318 MHz) w/Lock Clamps
Locking Clamps Replacement
Patient Care Banding, Naugahyde, White, 80’
Patient Care Banding, Heavy Duty, Purple, 80’
1.63 x 1.18 x 0.625 inches
0.71 ounces (20 grams)
White with Red Key
32–122° Farenheit (0–50° Celsius)
Latex Free Co-polyester Plastic
1 year, Lithium Metal, Non-rechargeable
66 kHz or 262 kHz, depending on model
318 MHz for all models
Naugahyde with acetate fabric facing skin;
white or purple
Store in clean, dry conditions between 90°F,
less 20-50% humidity
FCC, Part 15b
Industry Canada RSS Standard(s)
Conforms to UL Standard 294
Safe Place Transmitters User Guide Page 29 of 33
0510-1121-J
Specifications
Umbilical Cord
Transmitter
Size
Weight
Color
Operating Temperature
Composition
Battery Life
Frequency - VLF
Frequency - UHF
Regulations
RFT Part Number Description
9450-8282
0500-0228
0770-0029
Umbilical Cord Transmitter (262kHz / 318MHz)
Umbilical Cord Transmitter Activation Wand
Umbilical Cord Transmitter Removal Tool
1.10 x 1.05 x 0.77 inches
0.25 ounces (7 grams)
Yellow
32–122° Farenheit (0–50° Celsius)
Latex Free ABS/Polycarbonate Blend Plastic
3 month, Lithium Metal, Non-rechargeable
262 kHz
318 MHz
FCC, Part 15b
Industry Canada RSS Standard(s)
Page 30 of 33 Safe Place Transmitters User Guide
0510-1121-J
Transmitter
Tester
Size
Weight
Battery
Part Number
Description
Specifications
3.8 x 2.4 x 1.5 inches
3 ounces
9V battery
9450-0050
Safe Place Transmitters User Guide Page 31 of 33
0510-1121-J
Transmitter Tester
Revision History
Revision
Change
REVISION HISTORY
A Release
B Added list of approved cleaning products
C Updated format, updated warranty expiration date
section, and updated specifications section
Fixed minor document bugs
D Updated approved cleaners section
E Updated format and logos
Removed Alerts section (information contained in the
software reference guides)
F Added Oxivir TB to Approved Cleaner List
G Added the ICC French translations to the Compliance
section
H Updated graphics to print in color
Updated specifications section to include the
transmitter tester
I Removed Approved Cleaners section and added
reference to website link for most up-to-date list
J Added Umbilical Cord Transmitter instructions and
specifications
Updated battery specifications to Lithium Metal, Non-
rechargeable
Page 32 of 33 Safe Place Transmitters User Guide
0510-1121-J
This page intentionally left blank.
Revision History
Safe Place Transmitters User Guide Page 33 of 33
0510-1121-J
www.rft.com
3125 North 126th Street, Brookfield, WI 53005
Phone 800.669.9946 fax 262.790.1784
0510-1121-J
Release Date: 04/2019
