1. PRODUCT OVERVIEW

AWS-5832-VSR is the first 5.8GHz wireless video server developed by RF-Link. By installing a 5.8GHz transmitter in each of your analog camera, and a built-in 8-channel receiver in AWS-5832-VSR, it can connect up to 8 cameras wirelessly without in terference from all devices operating from 2.4GHz, such as Bluetooth and Wi-Fi. AWS-5832-VSR also has a built-in video server that connects to the internet, enables you to view and r ecord video from 8 cameras (one at a time), and set auto-scan time freely (from 1-120 seconds) on each channel either locally or over the internet.

Wirelessly remote control PTZ speed dome over the internet and remote control locally features are also available with additional

purchase.

2. PRODUCT CD

Product CD in the package contains the

IPSurveillance Application Softwa

16CH Live View / Recording / Playback

User Manuals

llowing:

NVR management softwa

3. BEFORE YOU INSTALL SOFTWARE

PC running Microsoft Windows XP Server Pack 2 or above is only capable of running IPSurveillance Application Software.

PLEASE go through IPSurveillance Application Software user’s manual before installation to check further PC requirements

in order to en

sure

smooth softwa

4. LANGUAGE SUPPORT

re oper

atio

ENGLISH

NOTE

IPSurveillance Application Software™ setup will auto-run when inserting product CD. Pay attention to dialog box questions before you press OK button.

5. HOUSING and CONNECTORS

Front side

look

1: mini USB Port for configuration 2: Channel or mode number display. This indicates mode number (Mode 1 ~ 9), if

it is flashing. Or, this indicates channel number (CH 1 ~ 8 for wireless receiver, CH 9 for wire input), it is bright.

3: Fixed channel mode or auto-scan mode display. This indicates auto-scan mode,

1 2 4 5 6 3

if the dot display is bright. Or, this fixed channel mode, if the dot display is off.

4: Push button for changing fixed channel mode or auto-scan mode 5: Push button is for changing channel number, if it is at fixed channel mode. And,

it is for changing mode number, if it is auto-scan mode.

6: LED for System Status

7 8

7: IR Receiver 8: Power switch

Back side

look

9: SMA connector for wireless PTZ antenna. It disappears, if wireless PTZ is not

built in this device.

10: Power Jack for 8 ~ 32 VDC input 11: RCA connector for audio left input (CH 9) 12: BNC connector for video input (CH 9) 13: RCA connector for audio left input (CH 9) 14: A/V jack for audio and video output

9 10 11 12 13 14

15 16 17 18 19 20

15: 5V DC output 16: Terminal block for digit input, if wireless PTZ is not built in this device. There

is no function, if wireless PTZ is built in this device.

17: Terminal block for digit output, if wireless PTZ is not built in this device.

There is no function, if wireless PTZ is built in this device.

18: Terminal block for RS-485, if wireless PTZ is not built in this device. There is

no function, if wireless PTZ is built in this device.

19: RJ-45 connector for Ethernet 20: SMA connector for 5.8 GHz antenna

6. FIRST TIME USE INSTRUCTIONS (read carefully)

INSTALL IPSURVEILLANCE APPLICATION SOFTWARE

Install IPSurveillance Application Software. IPScan is a software utility to find you of IPSurveillance Application Softwa

r wireless

video server on the network

re.

. It is a part

WHICH BROWSER TO USE?

We strongly recommend Microsoft IE brow Mozilla Firefox and simila with Wireless Video Server.

others

are

ser

version 6

highe

not guaranteed to work

POWER ON Wireless Video Server

Power on video

server by

using power adapter provided in the product

package.

Connect power adapter to AC socket.

CONNECTING TO NETWORK

Connect a standard CAT5 Ethernet cable to R45 socket on Wireless Video Server the PC you want to a

and connect other end to your network hub/swit

ccess

Wireless Video Server is on the same network

domain which has DHCP server.

ch.

Make

sure

FACTORY SETTING - INITIAL IP ADDRESS

IP Address: DHCP

USING IPSCAN

IPScan software is the quickest way to make sure we can find Wireless Video Server on yo

Application

see as shown below

Select from start menu.

IPScan. The following window appe

Software setup will install two applications. You can

network. IPSurveillance

ars after

you select “IPScan

”

Pre

Scan button to list the IP and MAC addre

press You will find the list o

Clear Table and pre

f IP

and MAC add

Scan agai

ress

Wireless Video Server you can check the label for MAC addre

To quit IPScan anytime, click Ex

it.

table. To

refresh,

listed. To identify yo

ss.

Double right click

If you want to quickly open the IP you see on IPScan on your browser, select an IP and do a “double right click” on your mouse/touchpad. You can see the browser

window open that IP.

CHANGE NETWORK SETTINGS BY IPSCAN

The IP address is 169.254.100.100, if there is no DHCP server on your network. Double click to change network setting.

You can double click a specific IP add paramete

rs. A

dialog box will appear as follow

ress

and change some basic netw

ork

Change any settings you want to make and make sure you have correct

values

Within 10 seconds, the dialog box should disapp

all fields. Click Apply

ear to

indicate new

settings before trying to

You should be able to find MAC addre addre

are

accepted and being applied. Wait

refresh IP

list. Click Clear Table and click scan agai

ss of

ss.

Wireless Video Server is online on your network. Use ping

for

video

around 30 second

server

und

command from Windows command prompt to double check if IP is reachable.

To quit IPScan anytime, click Ex

it.

new IP

7. ACCESS Wireless Video Server

BROWSER

Double right click

Or,

Open IE browser

Type IP address of video

server

For example, http://192.168.10.151/

Initial username and password are…

root

ID: Password: pass

Click Login button to go to web view

that you

und on IPScan softwa

re.

INSTALL AND RUN ACTIVEX CONTROL

After succe Click

Click

ssful

Install button to install ActiveX Control

Run button to

run this

ActiveX Control

INITIAL USERNAME & PASSWORD

Administrator

¾ Default ID/Password = root/pass. ¾ Only password is changeable. ¾ Full access right to view, control system settings.

Guest accounts

¾ ID/Password not necessary. ¾ Basic view and some action buttons can work.

VIEWING AND OPERATTING PAGE

After successful log in as Guest, the viewing page will appear as follows. The “camera info” button when clicked shows FPS, camera name and resolution values.

Guest Mode Viewer

When you log in successfully with ROOT/PASS as administrator, the viewer screen will display as shown below.

Viewing Area Operating Area

Notice top right

take you between web configuration page & viewing page. Always

that if you want to move

cli Several controls options are available on the right side.

2. OSD is displayed on top left

3. date, camera name)

corner of

has a toggle button to

from

corner of

viewing page

one page to the othe

the

screen

Live recording :

record

live stream to local HDD

Snapshot

(time,

CONTROL PANEL SETTINGS

¾ Video/Resolution

Following table describes resolution values for each video format

The recommended bandwidth of network is larger than1 Mbps, if D1 resolution is selected. And, the recommended bandwidth of network is larger than 512 Kbps, if CIF resolution is selected.

¾ Video \ Bit rates

 Choose a particular value and it is applied within

Resolution CIF QCIF D1 NTSC PAL

352X240 704X480 720X480

352X288 704X576 720X576

few seconds. Video on the screen will pause briefly. 32K/64K/128K/256K/384K/500K/750K/1M/1.5M /2M/3M (bps)

¾ Audio \ Enable check box

 Enable or disable function for audio will result in

video flicker for a second and then return back to normal. This is not an error.

¾ P/T/Z controls (will need PTZ controller)

 Z (Zoom): zoom in (+) / zoom out (-).  Pan/Tilt.  F (Focus): focus in (+) / focus out (-).

¾ Select channel number in fixed chan nel mode.

The mode is fixed channel mo de, if Dwell is unchecked. Channel number 1 ~ 9 could be selected.

¾ Select mode number in auto-scan mode.

The mode is auto-scan mode, if Dwell is checked. Mode number 1 ~ 9 could be selected.

¾ Camera Information.

Shows video information of the tra nsferred data on the upper left corner of the video screen such as frame rate (fps), channel name, resolution.

FPS Name Resolution

¾ Digital Output

 When enabled, DO provid e contact close

and acts purely as a switch.

8. WEB INTERFACE SETTINGS

Wireless Video Server built-in web interface offers more advanced settings. On the main viewing page, click icon located on top-right side to enter server settings page. It is a toggle button to switch between Config

and viewer pages.

STATUS

¾ Initial view of web Config. interface is status page. ¾ Hardware & Firmware information along with network status such as

current IP and related details are clearly shown.

¾ on CCD IP CAMERAW and CMOS IP CAMERAW model

NOTE

Remember to press “OK” a fter you have changed settings i n a parti cular settin gs page

which has “OK” button. After few seconds, you can see a confirmation dialog box

informing that settings have been updated. Pressing OK will return to the same page.

NETWORK

Three configuration types are available for wired network connection STATIC, DYNAMIC & PPPoE.

STATIC IP

¾ IP Address

 Confirm with network administrator.

¾ Subnet Mask/Gat eway/Default DNS

 Confirm with network administrator. ¾ Always click “OK ¾ Reboot is requ ired and will be automatically triggered afte r you press

“OK

”. Wait for count down timer to finish and page will refresh

automatically and you should see initia l login page.

Note:

Always use IPScan to find the MAC address after reboot and double check the IP

” to save changes in a particular page.

address is correc t. If IP was changed in web configuration, you cannot return to

initial login page after reboot.

DYNAMIC IP

¾ If DHCP server is on LAN and you want to allocate Dynamic IP

address, use DHCP.

¾ Click “OK” button. ¾ Reboot is requ ired and will be automatically triggered afte r you press

“OK

”. Wait for count down timer to finish and page will refresh

automatically and you should see initia l login page.

Note:

Always use IPScan to find the MAC address after reboot and double check the IP

address is correc t. If IP was changed in web configuration, you cannot return to

initial login page after reboot.

PPPoE SETTINGS

¾ PPPoE is used in case network supports PPPoE like xDSL ¾ Request Internet Service Provider for PPPoE ID/Password ¾ User ID / Password

 PPPoE user ID / Password ¾ Service Name

 Service name of ISP ¾ MTU

 Maximum transmission unit of data ¾ IP address of DNS sev er can be set to be created automatically. ¾ If xDSL does not use static IP, you should use DHCP.

VIDEO

VIDEO SETTINGS

¾ Video Compression Type

 MJEPG / MPEG4 ¾ Resolution

 QCIF / CIF / D1 ¾ Frame Types

This setting deals with the Group of Pictures (GOP) structure - which could be a combination of I and P frames.

I - I fram es - also referred to as Key frames contain infor mation for a complete picture, a nd can be decoded independent of any other frame. I frames are the largest (and least compressed) frames. Therefore for same quality, they consume high bit rate.

P - P frames are encoded using information from the previous I or P

frame, and can only be decoded corre ctly if the previous I / P frame is available. P frames are smaller than I frames.

 I Only / IP Only

 IP - Simple Profile - Medium bit rates for same quality.

I - Highest bit rates for same quality.

**When choosing MJEPG streaming, ONLY support “I On ly”

mode

¾ Bit rate Type

 Constant and Variable bit rates control allows flexibility in

choosing how much bandwidth is available on network and quality of video required.

¾ Constant Bit rates

 3M / 2M / 1.5M / 1M / 750K / 500K / 384K / 256K / 128K / 64K

/ 32K

¾ Variable Bit rates

 2 ~ 31 (quality is best in case value is “3”) ¾ Frame per Second.

 1 ~ 30 ¾ Group Size

 Adjusts the ration between “I” frames and “P” frames. Lower

the group size, better the quality.

 5 / 10/ 15 / 30 / 60 ¾ Video Type

 NTSC / PAL

**System can automatically detect input video signal when clicking “detect” icon

COLOR SETTINGS

Fine adjustments to video quality can be made using more detailed settings as shown below.

BRIGHTNESS

Adjusts the image on a scale from darkness to brig htness.

CONTRAST

Adjusts the extent to which adjacent areas on a video differ in brightness

SATURATION

Adjusts the chromatic purity of video thereby effecting vividness.

HUE

Adjusts the video by effecting color depth

VIDEO PREVIEW

Preview makes choices easier when tuning video settings for specific locations. By clicking the View Video button, you can see the followin g

Click Stop to exit preview. You could change other video parameters and press TEST to see how the changes look like. Y ou can press Reset anytime to return back to the default settings. Click Enable Preview checkbox to save the current settings – and its takes effect right after settings have been changed.

MAX CLIENT LIMIT

Maximum users (client) limit allows users accessing the video stream. For higher bit rates and resolution, the client limit is much lower and vice versa.

¾ Maximum number of clients can be restricted depending on how

much video quality is require d and network band with is available.

 0 ~ 10 (value 0 means maximum allowable)

DO NOT FORGET TO PRESS “OK

SETTINGS.

EVENT RULE

1. Digit Input

2. Motion Detection

3. Peri odic Timer

4. Network Loss

5. Video Loss

6. Power Loss

” BUTTON TO SAVE YOUR

X X

Digital Output

Digital Input X Motion Detection X X X X Periodic Timer X X X Network Loss X X Video Loss X Power Loss X

PTZ Preset

Email Notification

Record to FTP Server

EVENTS HANDLED

Digital Input Can choose sensor type either “Normal Open” or “No rma l Close” Motion Detection If motion is detected on the areas defined on the video stream, an event will be triggered based on the rule lists. Periodic Timer

In a pre-defined time interv al, an event will be triggered base d on the rule lists. Network Loss When system detect network loss, an event will be triggered Video Loss When system detect video loss, an event will be triggered Power Loss When system detect power loss, an event will be triggered

ACTIONS TRIGGERED

Digital Output Can active digital output. PTZ Preset PTZ set to a particular preset value can be triggered based on occurrence of an event listed out in “Rule Lists E-mail Notification E-mail can be sent base d on occurrence of an event listed o u t in “Rule Lists”. Record to FTP server When event triggered, system will record streaming to FTP server.

”.

RULE LISTS - ADDING/DELETING

Select an event and select corresponding action. Click add button and notice that is added in the Rule lists

Information box.

MODIFYING RULE LISTS

Rule list items can be dele ted individually or who lly by clicking Delete All button.

CAPTURE

Choose Enable checkbox to record snapshot by schedule or event triggered way.

Schedule capture

- Select schedule day check boxes (can multi-select)

- Define star t and end time

- Choose output type as “FTP upload”

- Define related output parameter, such as interval time, save path …

DATE & TIME

¾ Date and time settings can be synchronized with PC directly by

clicking “Client PC time” check box. Click “OK selection.

¾ Time zone can be chosen by choosing either of the two time servers

listed

¾ Either of the two time servers can be chosen to synchronize video

server time. They are listed as follows should you choose Time Server. Click “OK

” after you have changed settings.

” after you hav e made

¾ If you want to manually input time server, choose “Other” then you

can find a manual input edit box appear. Key in your preferred time

server and click “OK”.

OSD

Click on your desired choice of color. Values will change accordingly for R, G, and B. If you de sir e so me other color, you can manu a lly de fine t hose corresponding R, G, B value s in the boxes as appropriate. Po sition of OSD can be changed by defining the X, Y values. Date & Time can be individually enabled/disable by “Date” & “ Time” checkboxes.

Channel name can be shown/hidden by the channel name “Enable” checkbox. It can be manually t yped in the “Channel name” text box and changes can be not i ced.

DWELL MODE SETUP (ATUO-SCAN MODE)

The setting va lues of mode of auto- scan mo de can be changed by “ Set” button.

Mode 1 to 9 could be support in auto-scan. And, dwell time 1 to 120 seconds of each channel could be set. The channel number is removed from auto-scan model, if dwell time is set to 0 sec.

PTZ CONTROL

¾ Channel Mode (PTZ model)

 Default is none.  PelcoP/ PelcoD/ Transparent can be chosen.

¾ Channel ID

 Give address value for channel 1 to 9.

¾ Baud rate / Data bits / Parity / Stop bits

 Depending on the protocol used, the v alues of baud and related

settings are to be assigned accordingly.

PORT

The values of WEB and AV port can be changed as necessary.

Web

¾ Web Port default is 80

Video + Audio

¾ Default is 1852 for video/audio data transmission.

DDNS

DDNS is the function that maps an IP address to a host name. If Wireless Vid eo Serv er are se t to dyna mic IP ad dress, t he host na me by DDNS (Dynamic Domain Name Se rvice) must be used instead of the IP address for credibility of network connect ion.

IPv4 DDNS

¾ Check “Enable” and select a service out of available two. ¾ Both services are required to register some items on each DDNS

service site.

¾ For use of “ddns.nu” register at www.ddns.nu and for dyndns find

the information at dyndns.org

SMTP/FTP

An e-mail notification & FTP upload service offered by Wireless Video Server notifies events or uploads snapshots to a remote FTP server.

E-MAIL – SMTP SETTINGS

Fill in the details of SMTP server such as port number, user name, password, se rver name informa tion. If you would wish to send attached snapshots, please check the appropriate check box. Sometimes Authentication is not always required by SMTP servers. Wherein only the SMTP server name and e-mail address details are enough to be input.

FTP SETTINGS

Fill in the details of remote FTP server, port number and user name, password.

TRIGGER SETUP

Three different types of EVENTS can be configured.

Digital INPUT

Can be Normal OPEN (N.O) or Normal Close (N.C) Choose based on the type of input and press OK to save the settings.

PERIODIC TIMER

Timer interval can be set in terms of seconds. This will trigger an event when the time out is achieved.

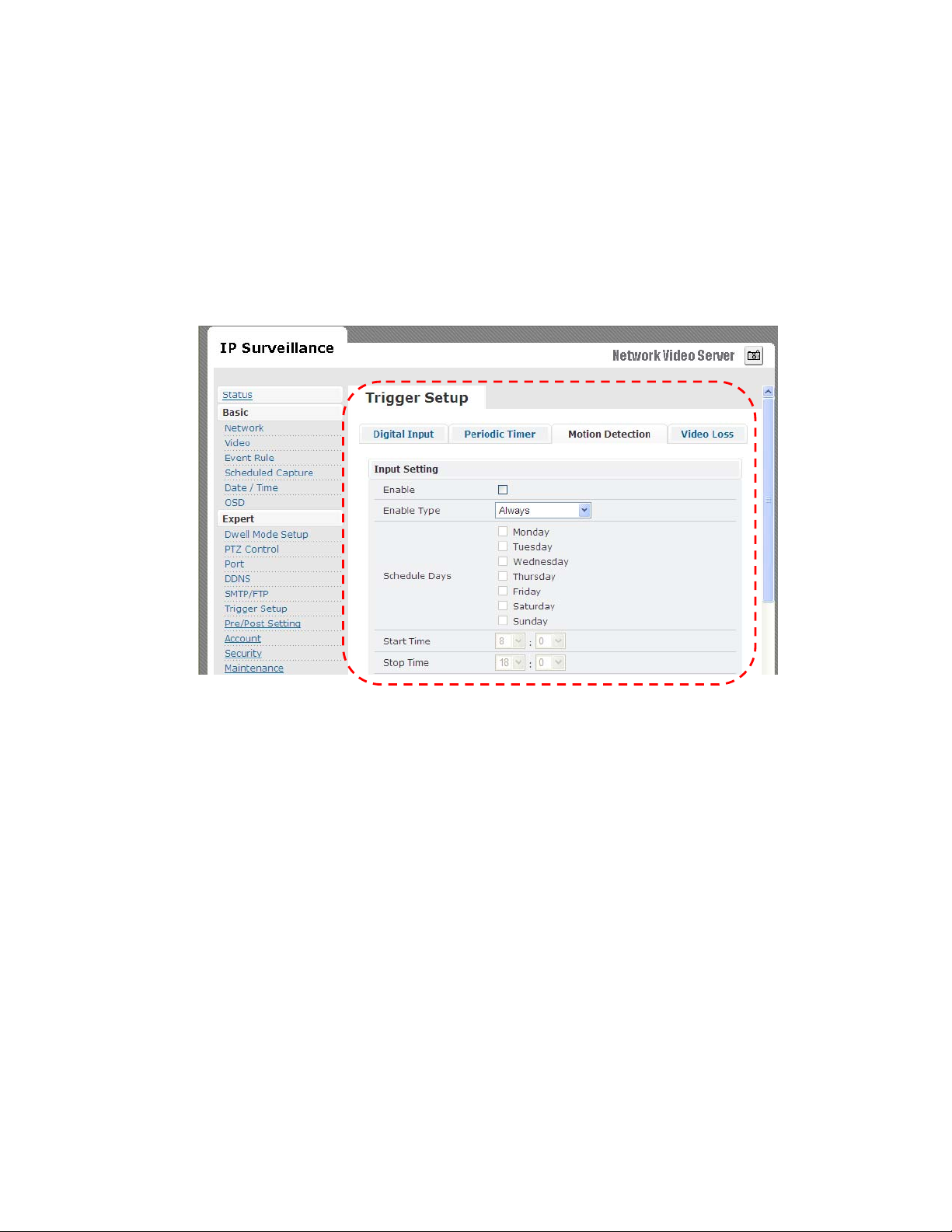

MOTION DET E CTION

¾ Enable type

 Can enable motion detection by “always” or “schedule” mode  When choosing schedule mode, define schedule day and

start/end time

¾ Detection Area

 Total viewing screen area is divided into 9 square blocks and

each of them is called area 1, area 2 etc., Click specific areas you want motion detection to be ena bled. If a detection area is selected color changes to dark gray.

¾ Sensitivity value

 Defines sensitivity of the motion detection. The range of the

value is 1 to 100.

¾ Motion Vector value

 T o detect even slighte st movement for objects in selected area,

please select a lower motion vector value. The range of the value is 3750 to 4650.

¾ SAD value.

 T o only detect fla shing light or any such significant activitie s on

immovable objects, low SAD value should be chosen. In most cases, high SAD level is recommended. The range of the value is 20 to 150.

Motion detection enabled areas look a s shown below . A simple click can select any of the boxes on detect area.

Video Loss

Can config how much time system should trigger an event for video loss

PRE/POST SETTING

These parameters decide Pre/Post buffer stream format type and duration.

Administrator can choose format as “AVI Video” or “JPEG Picture” with Pre/Post time duration

ACCOUNT

Administrator can create user accounts. Login as an administrator and create user accounts by pressing “Add”. Each account has PTZ, Video settings and Digital Out privile ges. They can be turne d on or off anytime by the administrator.

There are limits on user name and password length and will be notified by dialog boxes if the user name/password exceeds or under-runs that limit.

For each account, guest permissions can be turned ON/OFF. Any time, an account’s settings can be modified by pressing the “Modify” button.

Administrator account password can also be modified by “Password” button. Changing password needs confirmation.

Account Limitations

¾ Administrator can add up to a maximum of 5 users and assign

properties for each of them.

Guest Permissions

¾ Guest account can be turned ON/OFF anytime.

SECURITY

The basic settings are LOW by default.

¾ Security Level

 HIGH

 ONLY LAN connections are allowed.

 MEDIUM

 Video and audio connections from any location and

settings from LAN are permitted.

 LOW

 All connections from any location are permitted.

¾ Power LED

 Turn On

 Default value, power LED will always be on during

operation.

 Turn Off

 Config. power LED as off during operation.

MAINTENANC E

Language

• Default settings are in English. A choice of Traditional Chinese is available.

Firmware update

• Firmware update binary file can be obtained your reseller. Choose that and click upload. When uploading is done, reboot is required and will be automatically triggere d.

CAUTION

DO NOT power off during upgrade process, follow system dialog t o finish upgr ade

procedure

System Configuration (Backup/Restore)

• You can backup current configuration profile as a file and restore any stored configuration profile.

9. FACTORY DEFAULT

After a confirmation dialog box, clicking OK button, will load default settings and do a reboot. You will see the reboot countdown timer running. Once done, you will see the login page. Please login with root/pass.

10. REBOOT

If you click OK on the dialog box, you will see the reboot countdown timer running. Once done, you will see the login page. Ple ase login with root/pass or other appropriate login information.

11. LOGOUT

T o retur n to the login screen, simp ly click logout. Y ou should see yourself in the login page within seconds.

12. USB Config. Port - FIRST TIME EXPERIENCE

If Wireless Video Server has to be quickly configured or has to be set to factory default settings, USB config. port is used to achieve that. USB config. port is a special USB port.

Insert mini USB cable onto USB config. port and connect other end to PC. When video server is powered on, such port will not be operational. Once you are done working with USB config. port, remember to unplug USB cable from USB config. port.

NOTE

REMOVE USB CABLE WHEN YOU ARE FINISHED WITH QUICK CONFIGURATION.

SUPPORTED OS

PC running the following operating systems can support auto run of Quick Config. application.

1. Windows Vista - auto run.

2. Windows XP - auto run.

NO SOFTWARE INSTALLATION REQUIRED

There is no installation or setup of any software for Windows Vista/XP platforms.

STEPS FOR USING USB config port (Windows XP PC)

1. Disconnect power cable connected to Wireless Video Server.

2. Use mini-USB cable and connect appropriate end to USB config port and connect other end to PC USB port.

3. After 5 ~ 10 seconds depending on how fast your PC is, you can notice “Disk drive

4. A POP-UP dialog shows “Config Wizard

” being detected.

” is ready to run. Press OK.

Double click Config Wizard. You will see a screen as follows.

You will be asked for pass word. Earlier, if you have never changed the password for user root, please type pass login button. If you input wrong password, you will get this dialog box.

as the password. Then click

Y ou will see the network status of Wireless Video Server .To navigate through Quick Wizard, click it and y ou will find a window appear as below .

If you would wish to chan ge network settings of either

STATIC / DHCP / PPPoE

If you would want to setup DDNS, please click on the same for detailed configuration.

Return to Network page to setup network further. Please choose and click next for detailed configuration page. For instance, shown below is a screen which has STATIC configuration page. Click next to proceed.

network

Please input web port and stream port if default value does not match

your requirement

Clicking next will show that set tings are save d. Y ou ca n click finish if y ou are done or go back or change other settings. Similarly you can change other settings at ease.

Note:

 Connect CCD IP CAMERA/CMOS IP CAMERA to your network by using a st andard

Cat-5 cable.
