RF Elements UltraDish TP 400, ULD-TP-400-4PACK, UltraDish TP 550, ULD-TP-550-4PACK User Manual
Page 1
DIRECTIONAL PARABOLIC DISH ANTENNA
WITH TWISTPORT™ CONNECTOR
ULD-TP-400-4PACK
ULD-TP-550-4PACK
UltraDish
™
TP
User Guide Part Number: UG-ULD-TP-4PACK_v3
Page 2
Overview
www.rfelements.com
UltraDish™ TP
*Estimation based on pre-production units. Subject to change.
2
Product ID Dimensions Weight* Gain
Compatible
Wireless
Platforms
UltraDish™ TP
400
ULD-TP-400
458 x 407 x 315 mm2.7 kg
6 lbs
24.5 dBi
any TwistPort™
Adaptor
any SIMPER™
Radio
UltraDish™ TP
550
ULD-TP-550
566 x 566 x 315 mm3.7 kg
8 lbs
27.5 dBi
any TwistPort™
Adaptor
any SIMPER™
Radio
Page 3

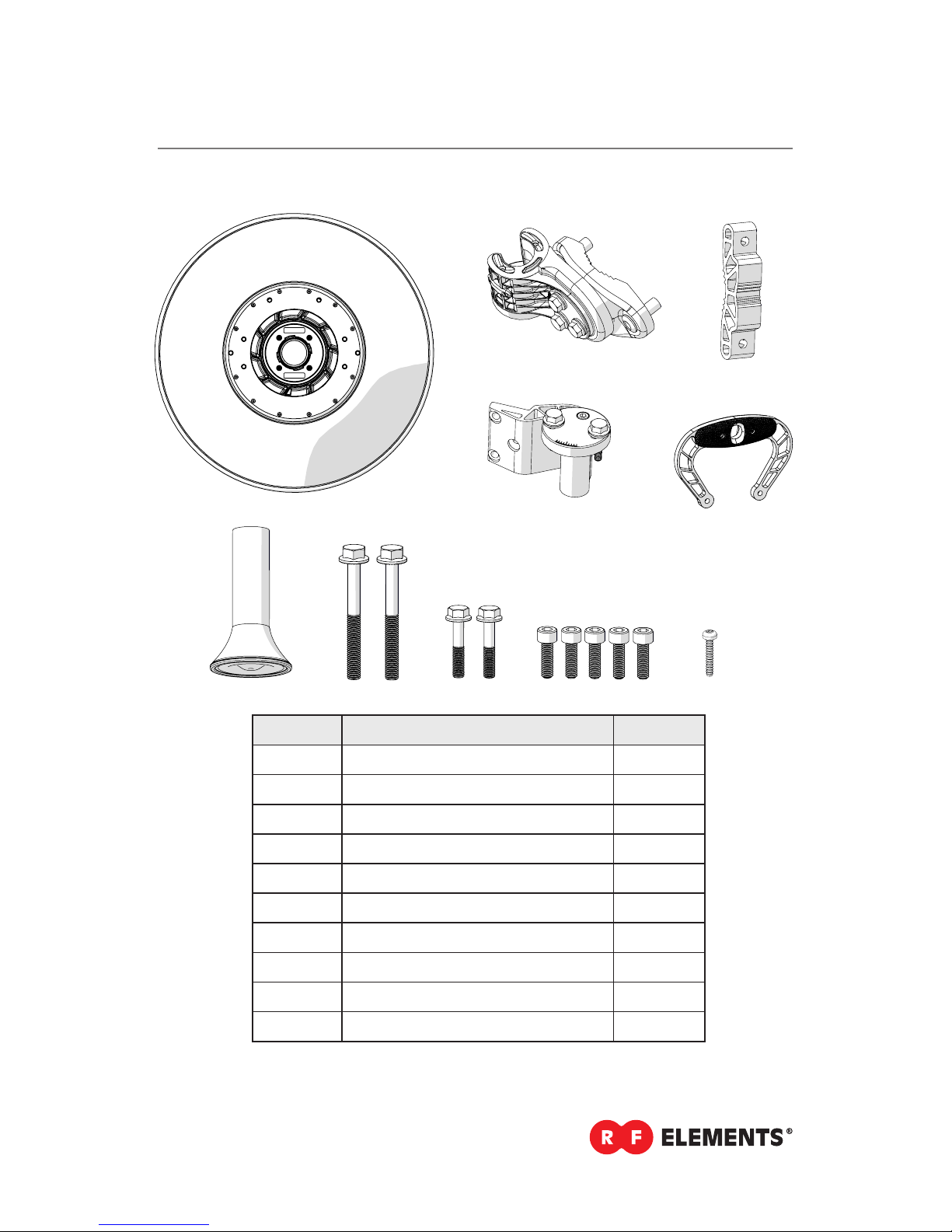

Package Contents
www.rfelements.com
UltraDish™ TP
3
1
2
8
6
Number Description Quantity
1 UltraDish
TM
TP Body 1x
2 UltraDish
TM
TP Bracket Base 1x
3 UltraDish
TM
TP Bracket 1x
4 UltraDish
TM
TP Bracket Arm 1x
5 UltraDish
TM
TP Handle 1x
6 UltraDish
TM
TP Subreector 1x
7 M8 x 75mm Screw 2x
8 M8 x 45mm Screw 2x
9 M6 x 20mm Screw 5x
10 2,9 x 16mm Lock Screw 1x
7
4
3
10
5
9
Page 4
www.rfelements.com
UltraDish™ TP

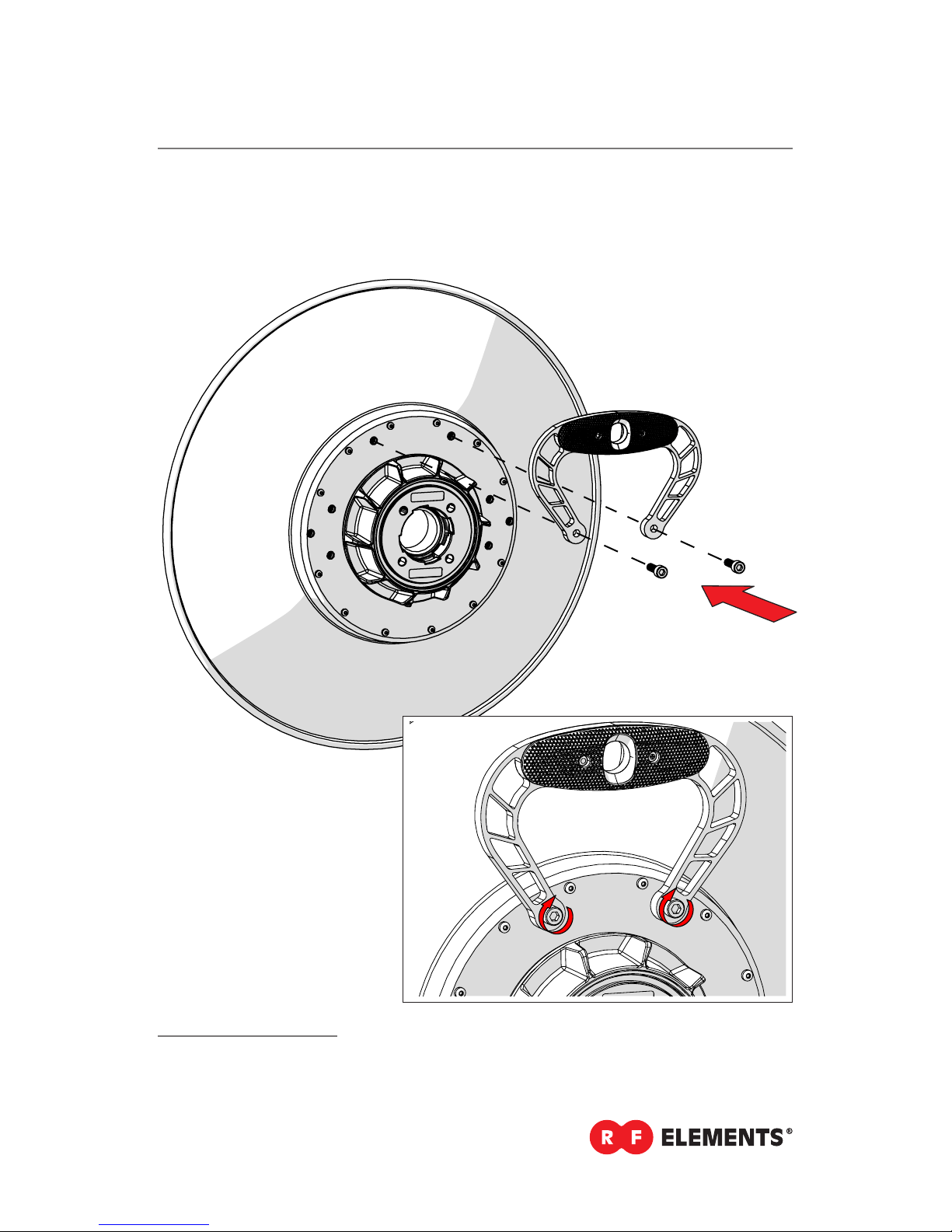

Pre - Installation
4
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 5
www.rfelements.com
UltraDish™ TP
Pre - Installation
The bracket is pre-assambled for installation on the left side of the pole.
If you need to swap to use the right side of the pole, see page 13.
5
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 6
www.rfelements.com
UltraDish™ TP
6

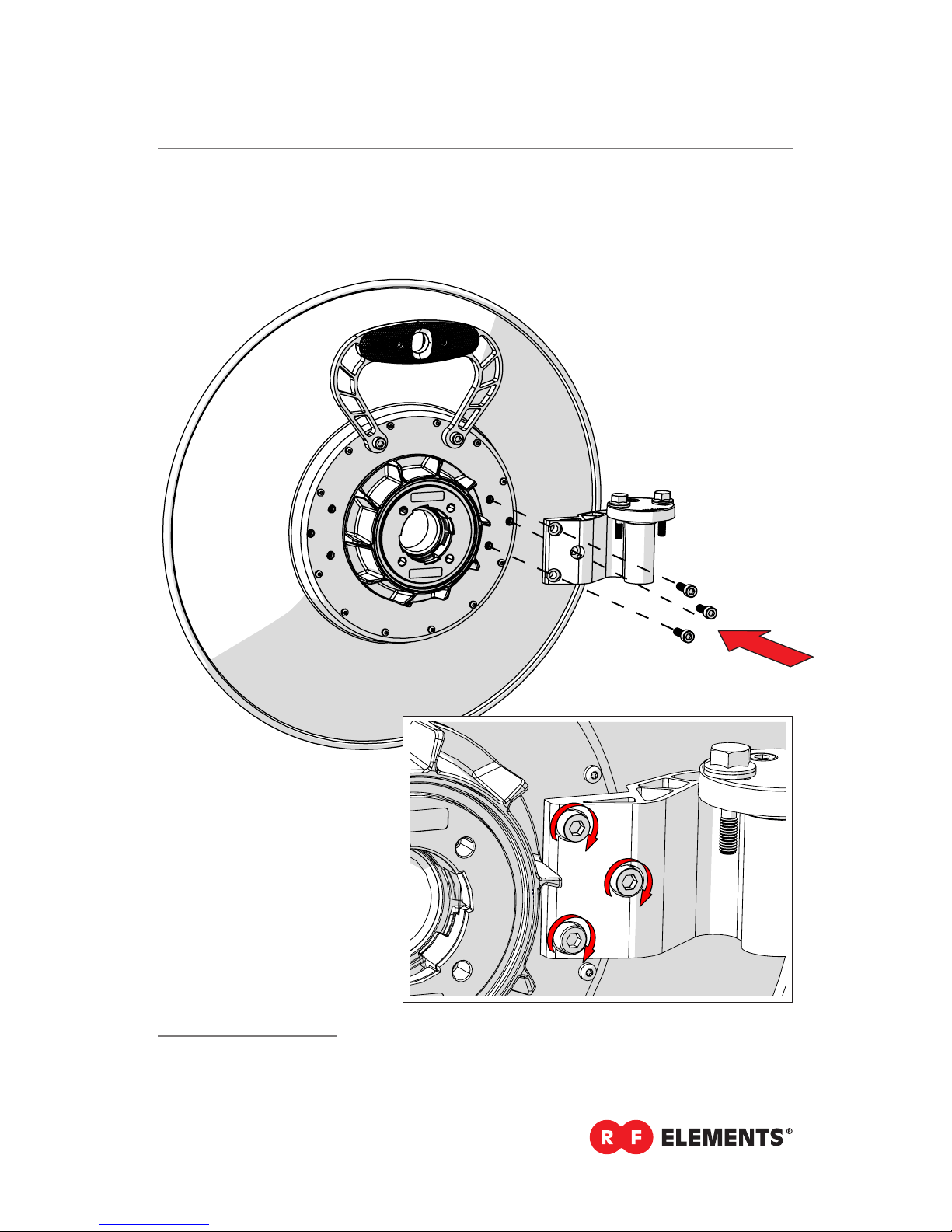

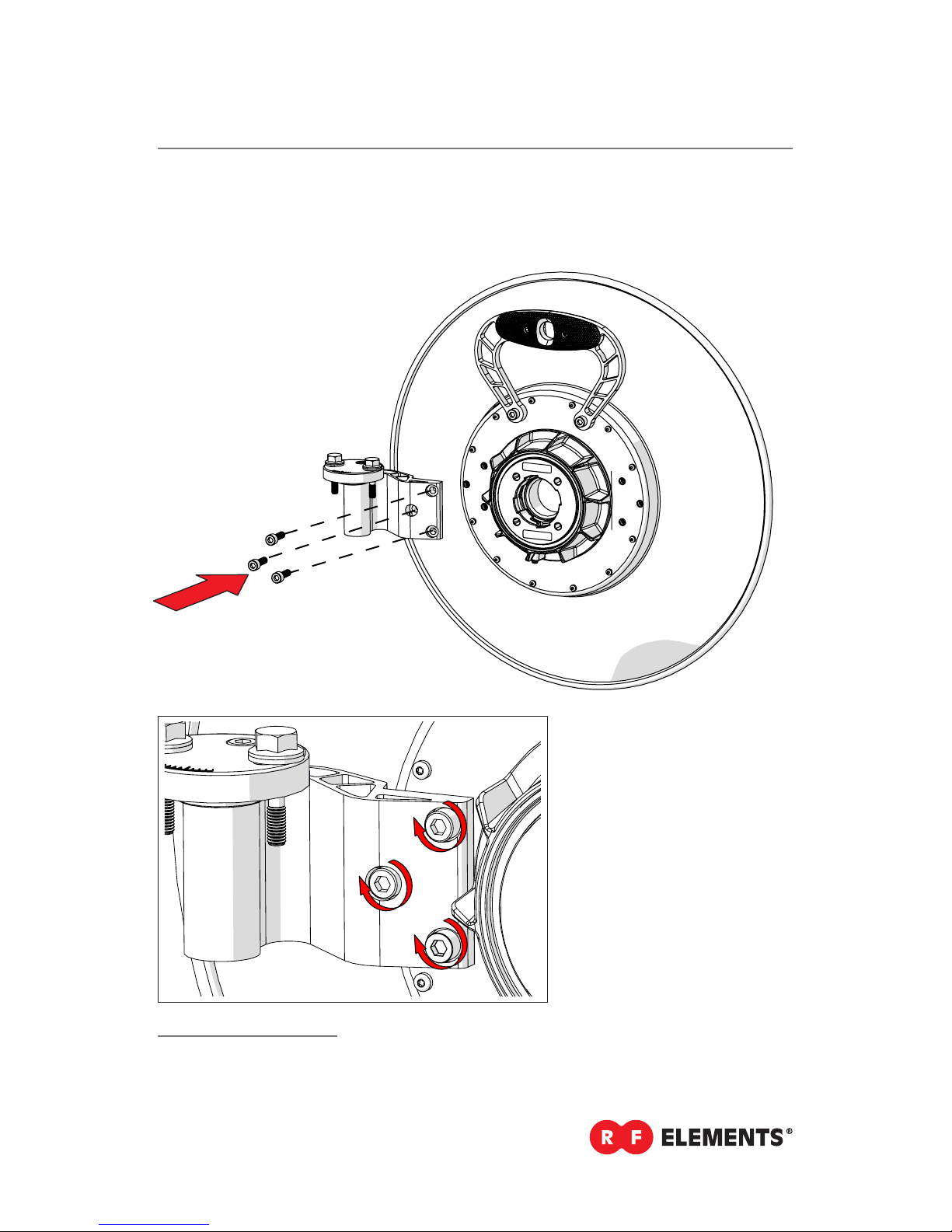

Installation Guide
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 7
www.rfelements.com
UltraDish™ TP
7

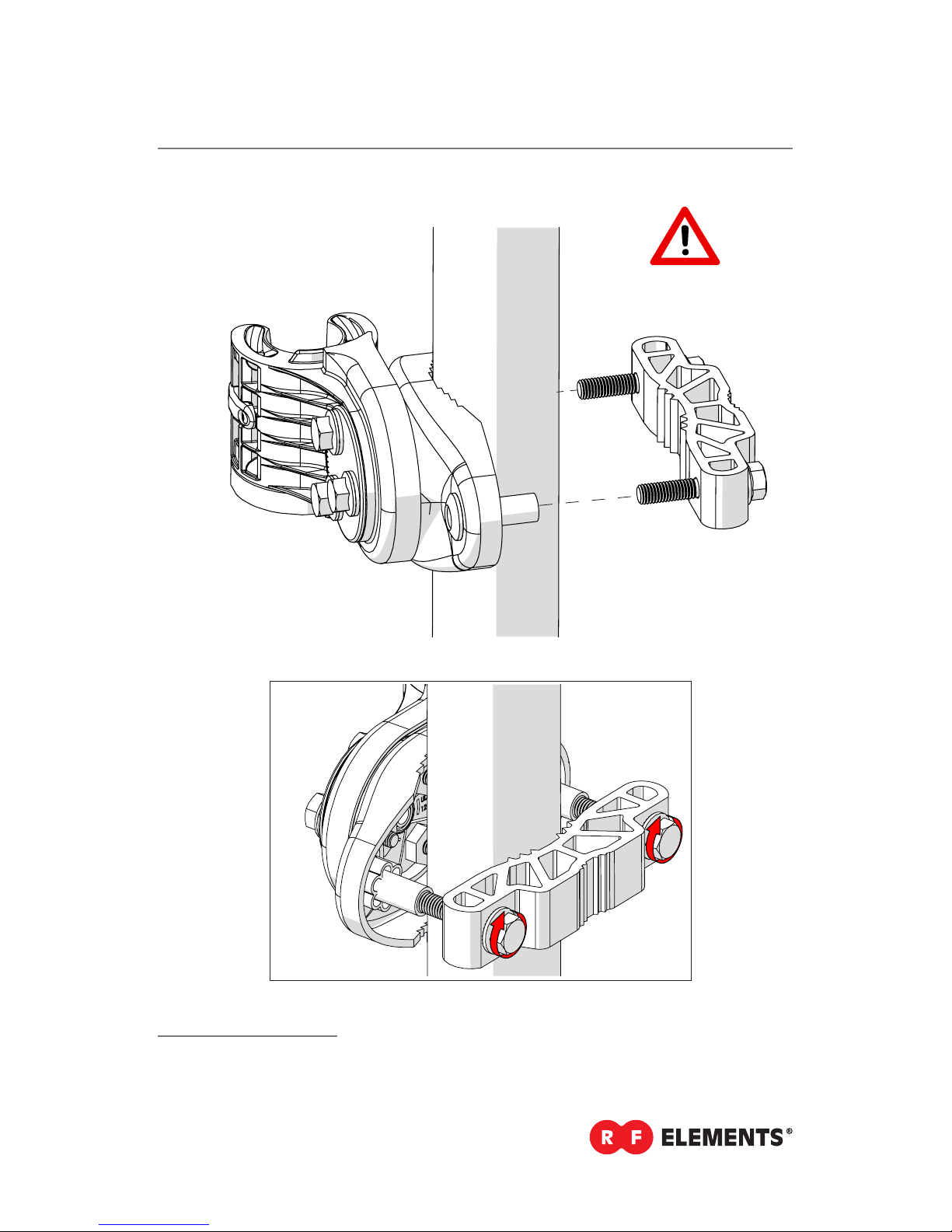

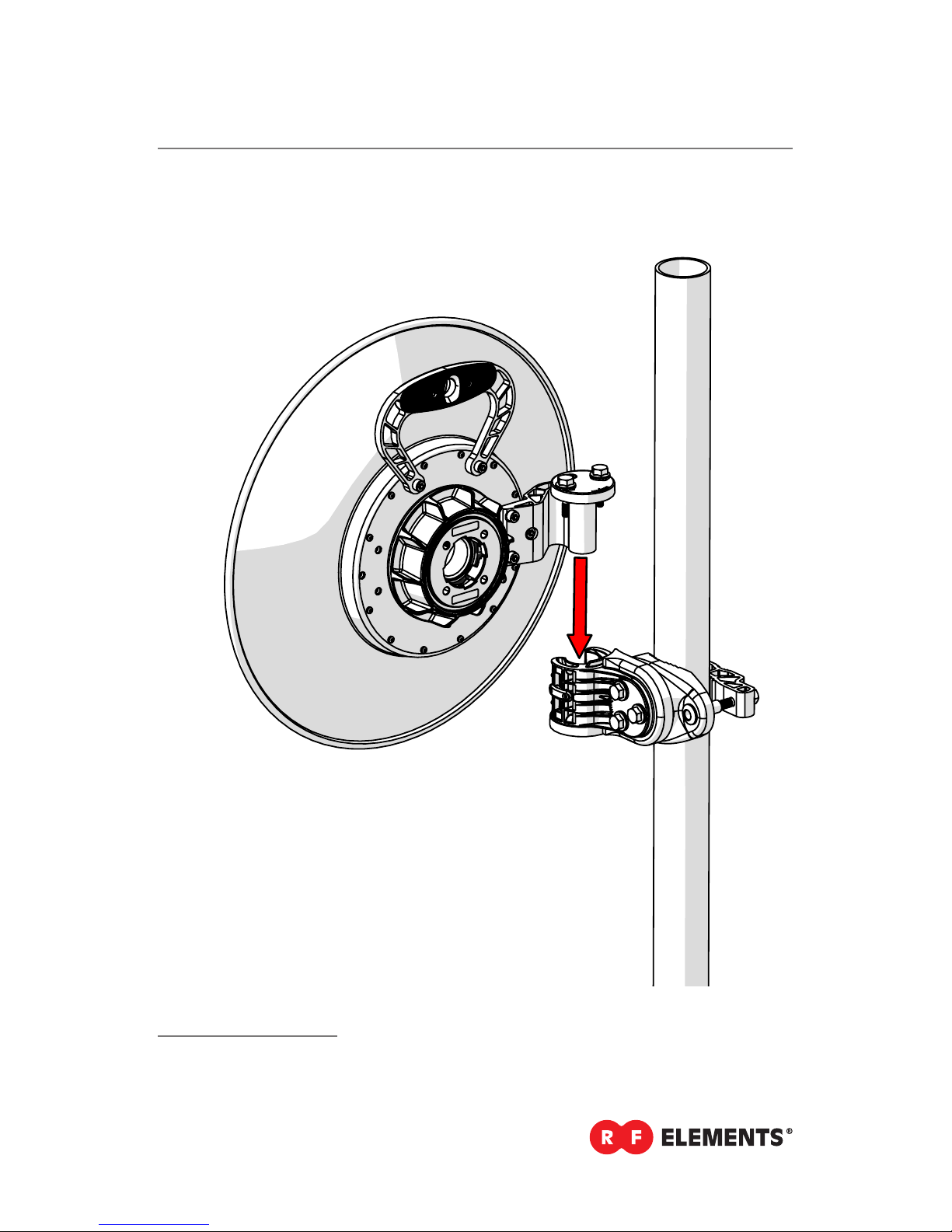

Pole Installation
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
USE ANTI-SEIZE
THREAD LUBRICANT
Page 8
www.rfelements.com
UltraDish™ TP

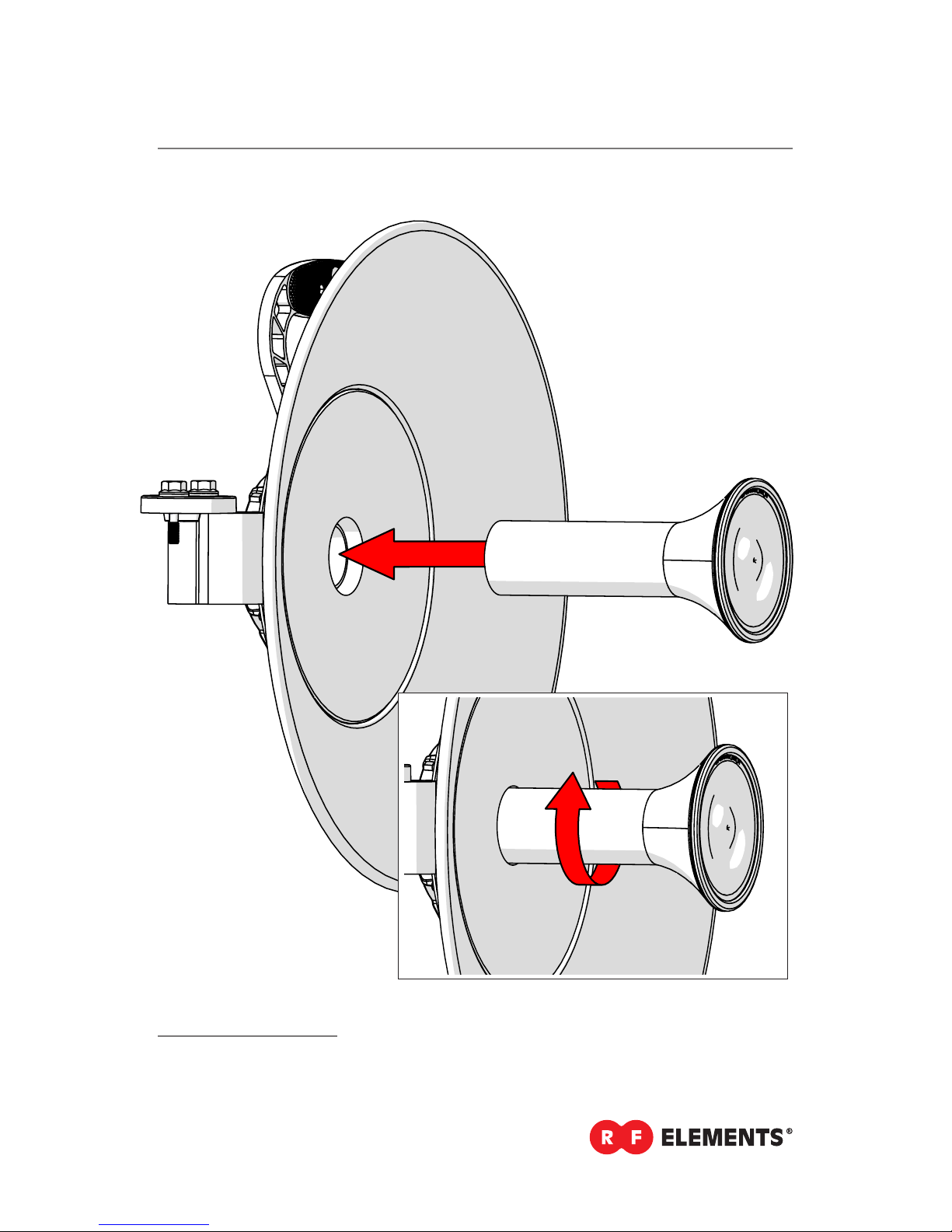

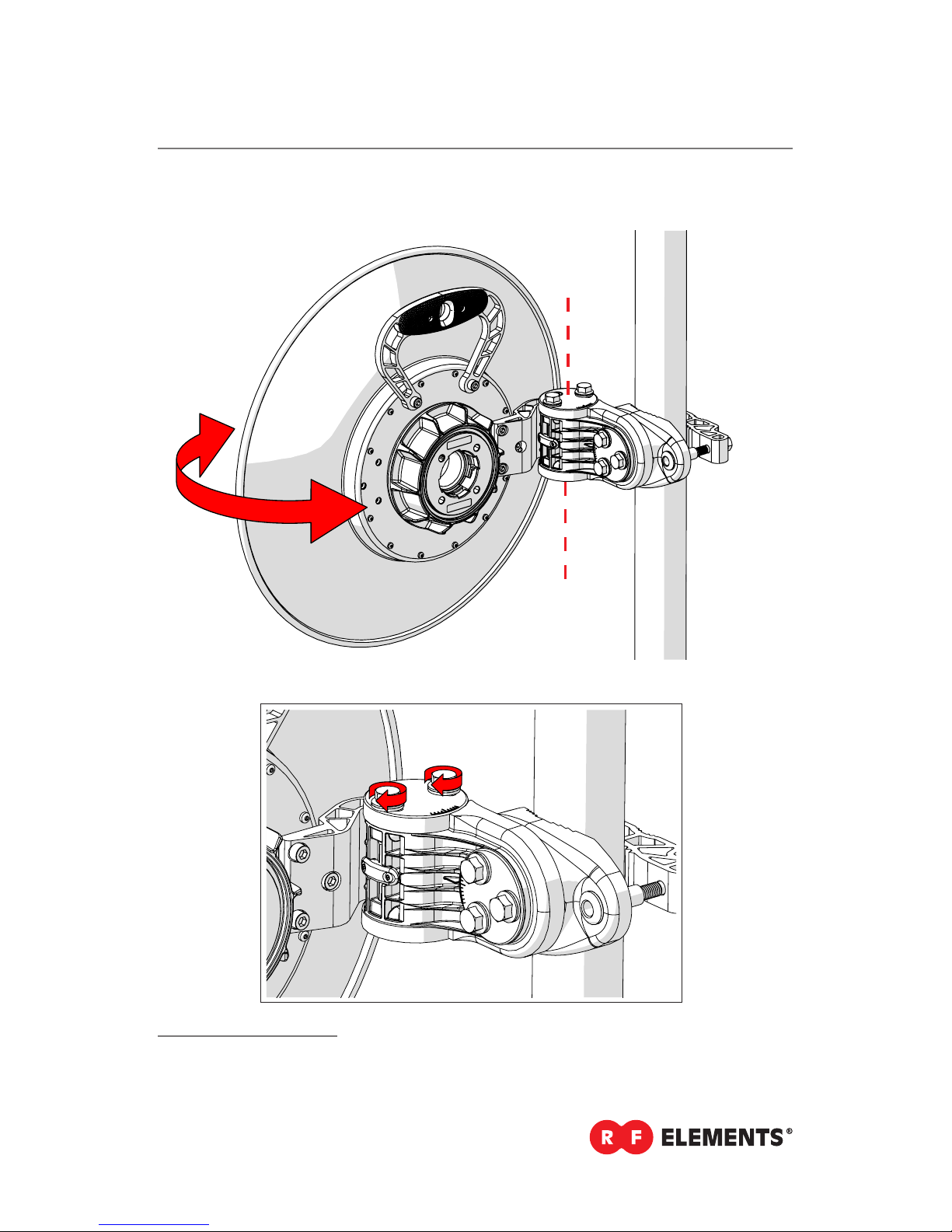

Installation Guide
8
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 9
Installation Guide
www.rfelements.com
UltraDish™ TP
9
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 10

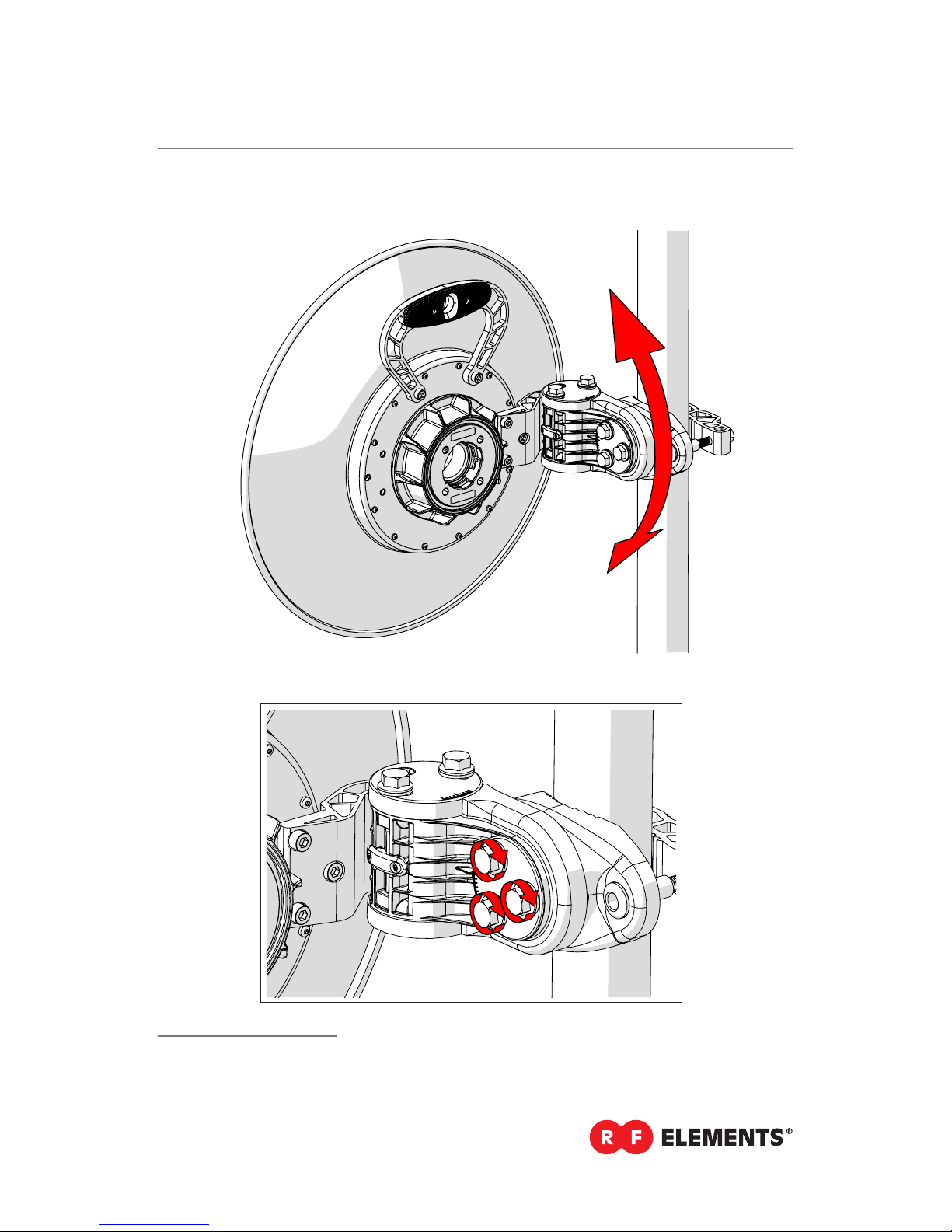

Installation Guide
www.rfelements.com
UltraDish™ TP
10
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 11
Installation Guide
www.rfelements.com
UltraDish™ TP
1

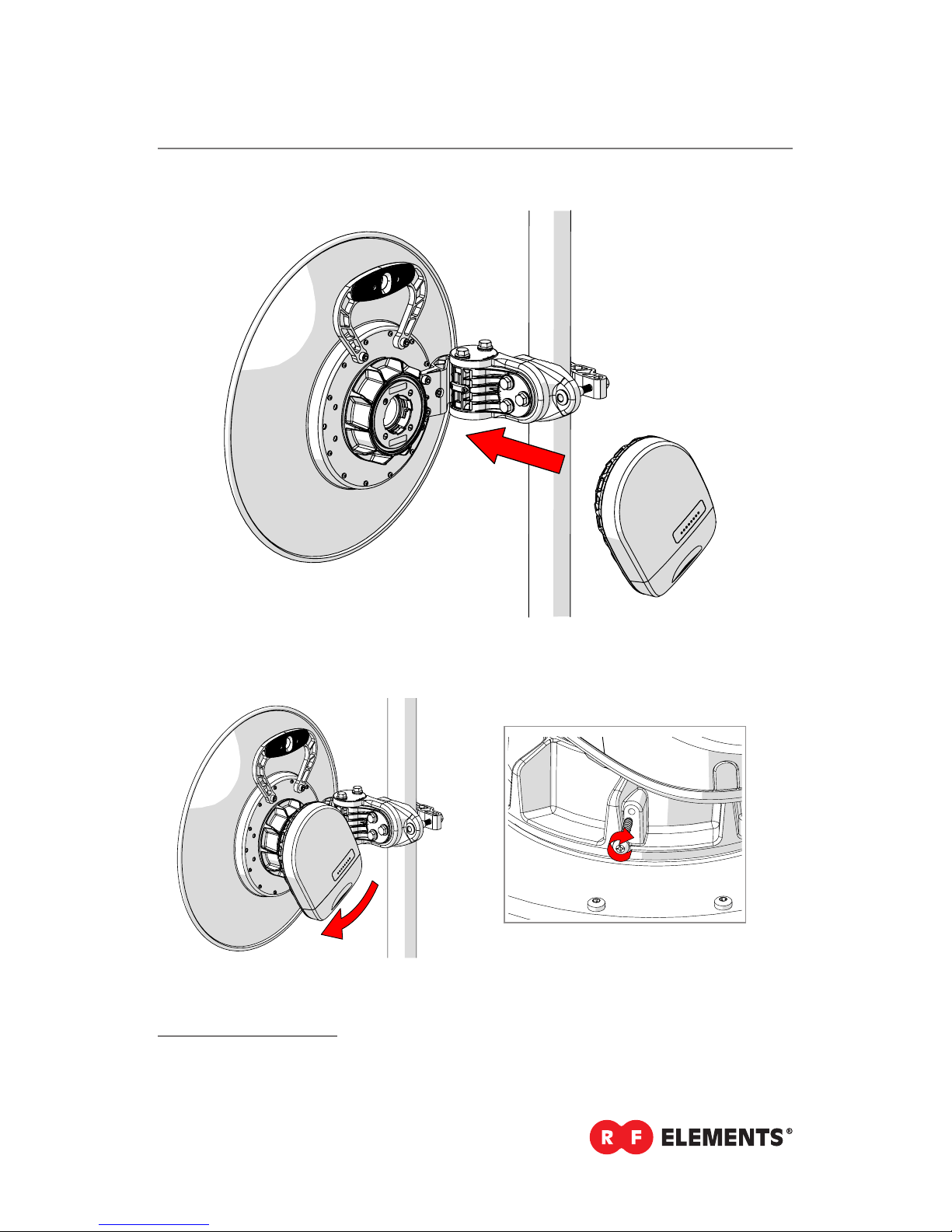

Optional: Install the 2.9 x 16mm locking screw.
Tighten the locking screw to secure the TwisPort™
lock mechanism.
TwistPort™ Adaptor or SIMPER™ Radio sold separately.
*
11
*
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 12
Installation Guide
www.rfelements.com
UltraDish™ TP

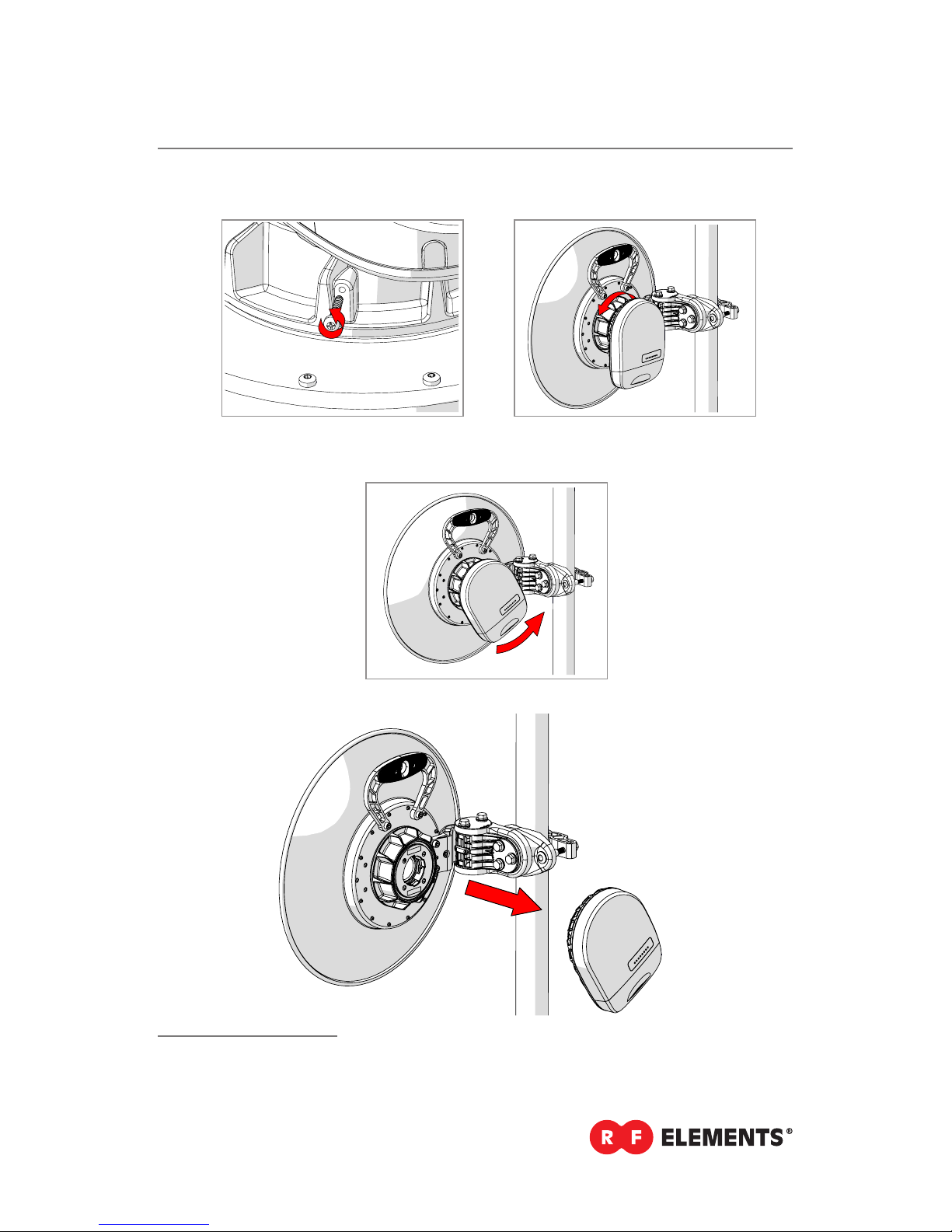

1 2
3
unscrew it by about 10 mm
before unlocking the TwisPort™ mechanism.
Optional: If the locking screw was used,
TwistPort™ Adaptor or SIMPER™ Radio sold separately.
*
12
*
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 13
www.rfelements.com
UltraDish™ TP
13
Pre - Installation

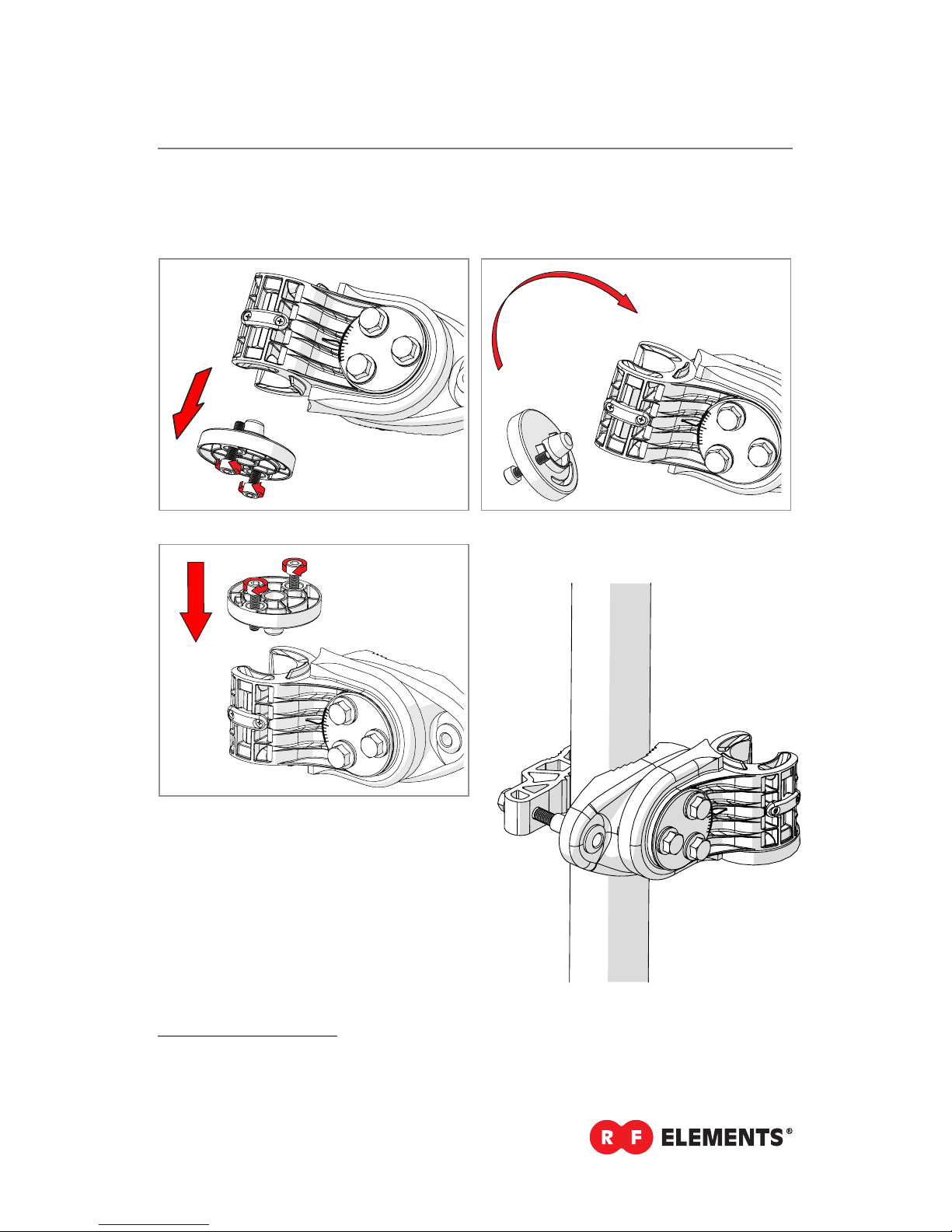

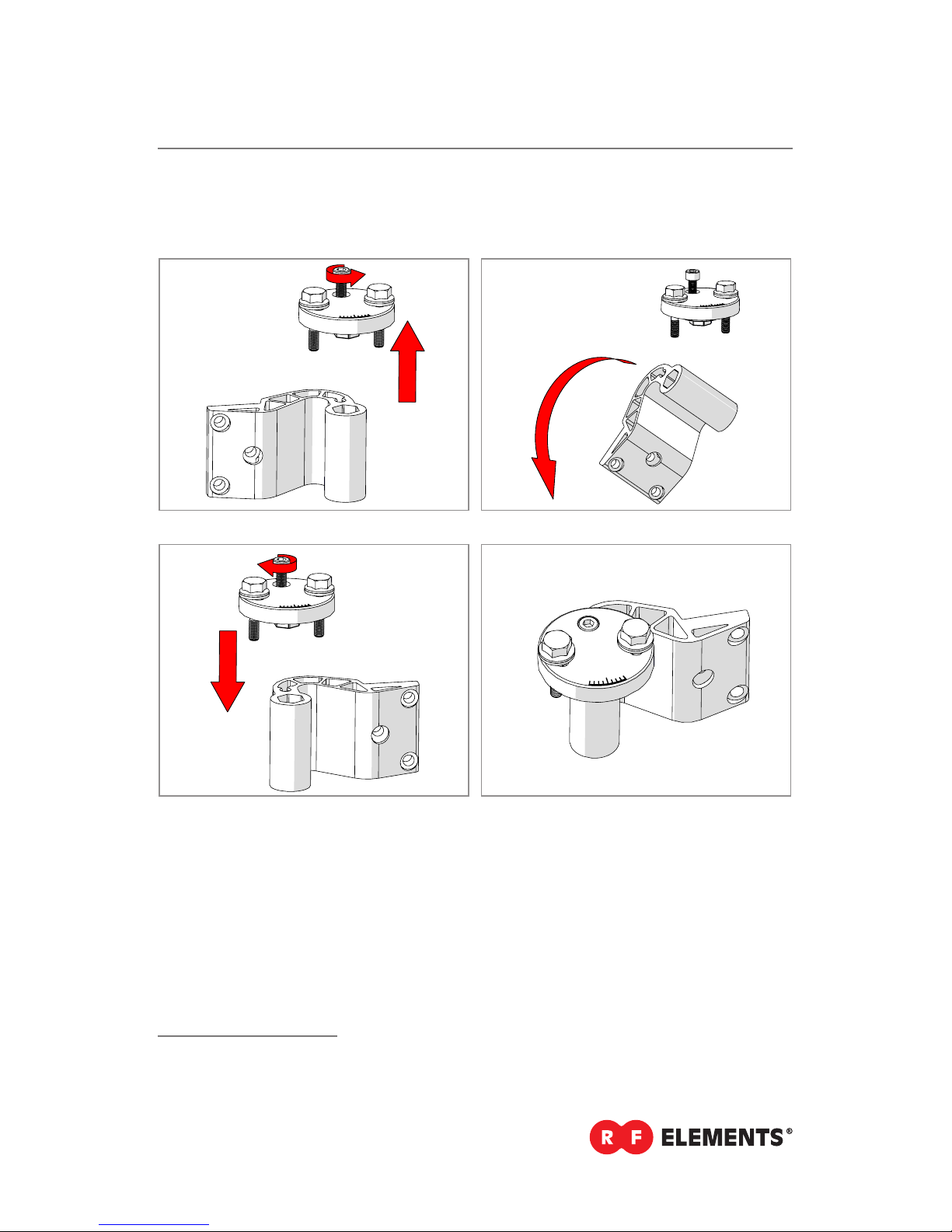

Optional: Right side of the pole mounting.
1 2
3 4
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 14
www.rfelements.com
UltraDish™ TP
Optional: Right side of the pole mounting.
14
Pre - Installation
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 15
www.rfelements.com
UltraDish™ TP
15
Pre - Installation
Optional: Right side of the pole mounting.
1 2
3
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
Page 16
RF elements s.r.o.
Phone: +421 2 3260 3711
www.rfelements.com
RF elements®, TwistPort™, SIMPER™ and UltraDish™
are trademarks of RF elements s.r.o., Humenne, Slovakia.
All rights of trademark owners reserved.
Compatible Devices:
RF elements®
any TwistPort™ Adaptor
any SIMPER™ Radio with TwistPort™ connector
