Asymmetrical Horn
Antenna CC
CONNECTORIZED ASYMMETRICAL HORN ANTENNA
HG3-CC-A20, HG3-CC-A30, HG3-CC-A60, HG3-CC-A90
Page 2
Asymmetrical Horn CC
Overview
Product ID Dimensions Weight Gain (dBi)
20° Horn
HG3-CC-A20
30° Horn
HG3-CC-A30
60° Horn
HG3-CC-A60
90° Horn
HG3-CC-A90
HG3-CC-A20
HG3-CC-A30
HG3-CC-A60
HG3-CC-A90
414 x 417 x 254 mm
16.3 x 16.4 x 10.0 inch
414 x 347 x 325 mm
16.3 x 13.7 x 12.8 inch
472 x 342 x 275 mm
18.6 x 13.6 x 10.8 inch
437 x 391 x 302 mm
17.2 x 15.4 x 11.9 inch
6.6 kg
14.6 lbs
6.6 kg
14.6 lbs
6.7 kg
14.8 lbs
7.5 kg
16.5 lbs
20.5
20.5
17.0
16.0
ALL HARDWARE STAINLESS STEEL
USE ANTISEIZE THREAD LUBRICANT
Estimation based on pre-production units. Subject to change.
www.rfelements.com
Page 3
Asymmetrical Horn CC

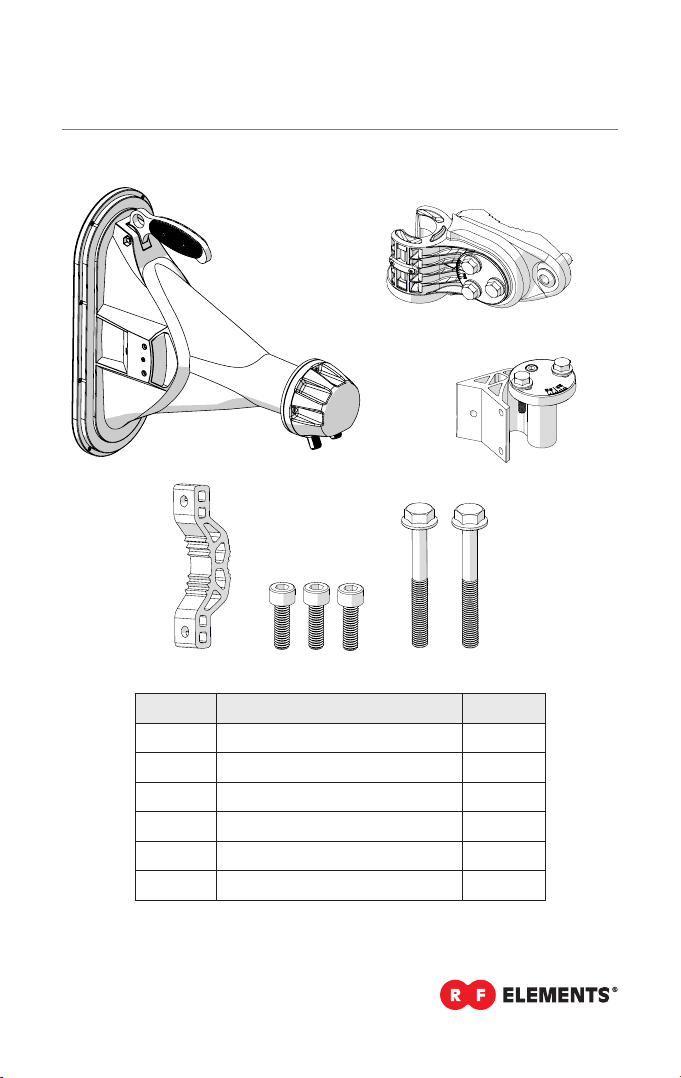

Package Contents for: HG3-CC-A20 Antenna
To continue installation see Step 1
1
HG3-CC-A20
2
3
4
Number Description Quantity
AH-CC Body
1
AH-CC Bracket Base
2
AH-CC Bracket Arm
3
AH-CC Bracket
4
M6 x 20mm Screw
5
M8 x 75mm Screw
6
AH-CC Handle
7
www.rfelements.com
7
5
6
1x
1x
1x
1x
6x
2x
1x
Page 4
Asymmetrical Horn CC
Package Contents for: HG3-CC-A30 Antenna
To continue installation see Step 2
1
HG3-CC-A30
2
3
4
Number Description Quantity
AH-CC Body
1
AH-CC Bracket Base
2
AH-CC Bracket Arm
3
AH-CC Bracket
4
M6 x 20mm Screw
5
M8 x 75mm Screw
6
AH-CC Handle
7
www.rfelements.com
7
5
6
1x
1x
1x
1x
6x
2x
1x
Page 5
Asymmetrical Horn CC
Package Contents for: HG3-CC-A60 Antenna
To continue installation see Step 3
HG3-CC-A60
1
4
6
5
2
3
Number Description Quantity
AH-CC Body
1
AH-CC Bracket Base
2
AH-CC Bracket Arm
3
AH-CC Bracket
4
M6 x 20mm Screw
5
M8 x 75mm Screw
6
1x
1x
1x
1x
3x
2x
www.rfelements.com
Page 6
Asymmetrical Horn CC
Package Contents for: HG3-CC-A90 Antenna
To continue installation see Step 3
HG3-CC-A90
1
4
6
5
2
3
Number Description Quantity
AH-CC Body
1
AH-CC Bracket Base
2
AH-CC Bracket Arm
3
AH-CC Bracket
4
M6 x 20mm Screw
5
M8 x 75mm Screw
6
1x
1x
1x
1x
3x
2x
www.rfelements.com
Page 7
Asymmetrical Horn CC

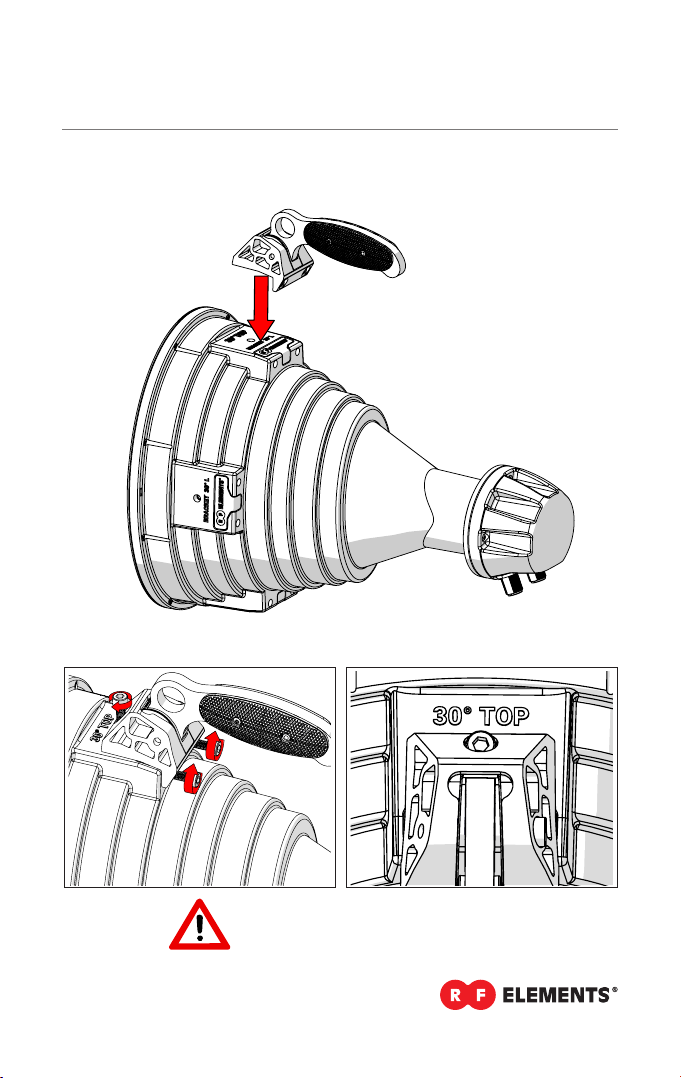

Pre - Installation - This step applies only to the HG3-CC-A20 Antenna.
To continue installation see Step 3
1 2
Step 1
USE ANTISEIZE
THREAD LUBRICANT
www.rfelements.com
Page 8
Asymmetrical Horn CC
Pre - Installation - This step applies only to the HG3-CC-A30 Antenna.
To continue installation see Step 3
1 2
Step 2
USE ANTISEIZE
THREAD LUBRICANT
www.rfelements.com
Page 9

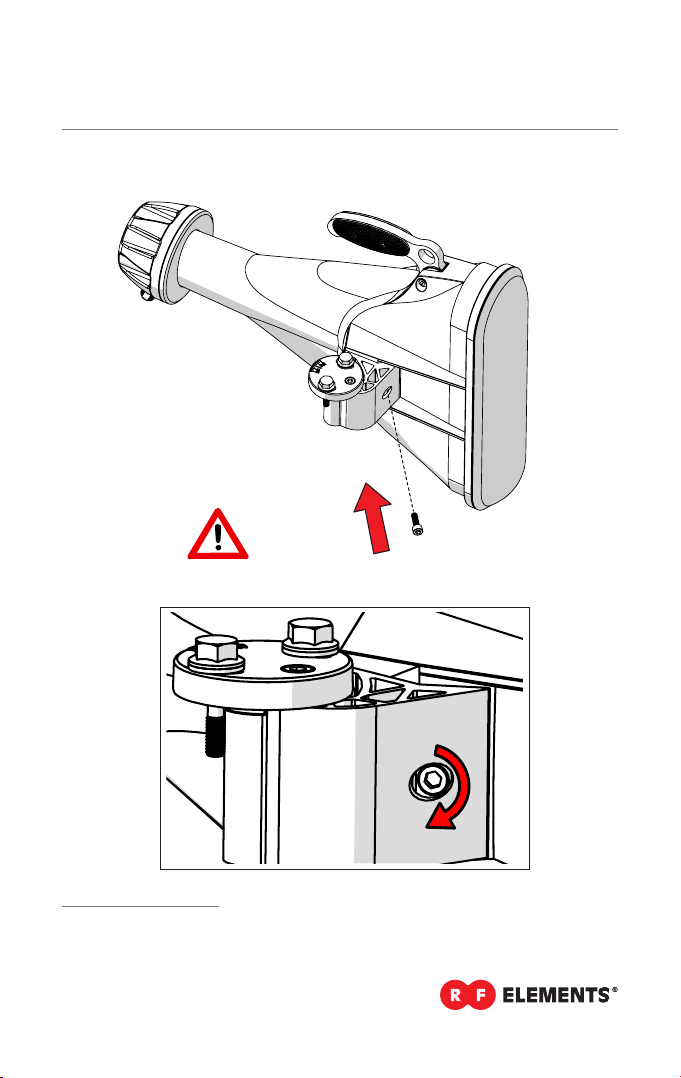

Asymmetrical Horn CC
Pre - Installation
Assembly shown here is for the installation on the left side of the pole.
If you want to mount the antenna to the right side of the pole, see step 10 for further instructions.
USE ANTISEIZE
THREAD LUBRICANT
Step 3
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 10

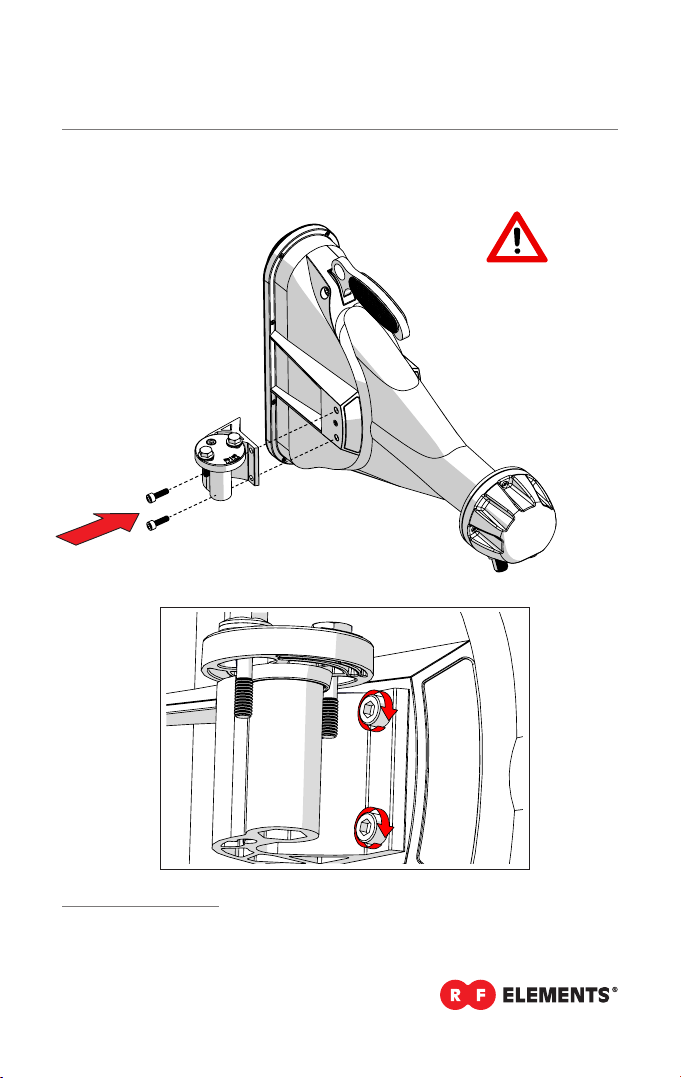

Asymmetrical Horn CC
Pre - Installation
USE ANTISEIZE
THREAD LUBRICANT
Step 4
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 11
Asymmetrical Horn CC
Installation Guide
USE ANTISEIZE
THREAD LUBRICANT
Step 5
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 12
Asymmetrical Horn CC
Installation Guide
Place the AH-CC bracket as shown below for the span of pole diameters 36 - 49 mm.
Place the AH-CC bracket as shown below for the span of pole diameters 50 - 80mm.
Step 6
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 13
Asymmetrical Horn CC
Installation Guide
Step 7
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 14
Asymmetrical Horn CC
Installation Guide
USE ANTISEIZE
THREAD LUBRICANT
Step 8
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 15
Asymmetrical Horn CC
Installation Guide
USE ANTISEIZE
THREAD LUBRICANT
Step 9
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 16
Asymmetrical Horn CC
Pre - Installation
Optional: If you want to mount the antenna on the right side of the pole, ip the bracket parts
as shown below.
1 2
3 4
Step 10
USE ANTISEIZE
THREAD LUBRICANT
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 17
Asymmetrical Horn CC
Pre - Installation
Optional: If you want to mount the antenna on the right side of the pole, install the bracket arm
as shown below.
USE ANTISEIZE
THREAD LUBRICANT
Step 11
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 18
Asymmetrical Horn CC
Pre - Installation
Optional: If you want to mount the antenna on the right side of the pole, install the bracket arm
as shown below.
USE ANTISEIZE
THREAD LUBRICANT
Step 12
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 19
Asymmetrical Horn CC
Pre - Installation
Optional: If you want to mount the antenna on the right side of the pole, ip the bracket parts
as shown below.
1 2
3 4
Step 13
USE ANTISEIZE
THREAD LUBRICANT
Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may dier.
www.rfelements.com
Page 20
RF elements s.r.o.
Phone: +421 2 3260 3711
www.rfelements.com
User Guide Part Number: AH_CC_UG_v2
