RF Concepts
Alpha 8406 Linear Amplifier
User Manual
rfconcepts.com
Document Issue 1.0
February 2014
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
Alpha 8406 Linear Amplifier User Manual
RF Concepts LLC 634 S Sunset St Longmont CO 80501 303-473-9232
Prepared for RF Concepts by MH/GP/LW.
To reach technical support or obtain copies of this document, go to rfconcepts.com.
Copyright © 2014 RF Concepts LLC. All rights reserved. Specifications subject to change without notice.
Page ii February 2014
Document Issue 1.0
Contents
Contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.1 Product Description 1-1
1.2 Product Capabilities 1-2
1.3 Safety Considerations 1-3
1.4 Related Products 1-4
1.5 Assistance 1-4
2. Amplifier Components and Specifications . . . . . . . . . . . . . . . . . . . 2-1
2.1 Boards 2-3
2.2 Controls and Display 2-6
2.3 Output-Tank Circuit 2-6
2.4 Tube and Tube Deck 2-7
2.5 Specifications 2-9
3. Preparing Your Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.1 Prepare Your Station 3-1
3.2 Understand the Limitations of Operation at Nonstandard Line Voltages 3-4
4. Setting Up the Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1 Unpack the Amplifier and Transformer 4-1
4.2 Connect the Transformer 4-2
4.3 Adjust the Tube and Exhaust Chimney 4-3
4.4 Connect the Cables 4-3
4.5 Set the Input-Drive Power 4-6
5. Operating the Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.1 Start Up the Amplifier 5-1
5.2 Tune the Amplifier 5-2
5.3 Operate the Amplifier 5-5
5.4 (Optional) Operate the Amplifier Remotely 5-6
6. Maintaining the Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6.1 Clean the Amplifier Chassis 6-1
6.2 Replace the Tube and/or Fuses 6-2
7. Diagnosing Faults and Troubleshooting . . . . . . . . . . . . . . . . . . . . 7-1
7.1 Diagnose Faults 7-1
7.2 Troubleshoot Problems 7-4
Terminology Term-1
Schematics Schem-1
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC Contents
Page iv February 2014
Document Issue 1.0
List of Procedures
List of Procedures
Procedure 3-1, “Prepare your station,” page 3–1
Procedure 4-1, “Unpack the amplifier and transformer,” page 4–1
Procedure 4-2, “Connect the transformer,” page 4–2
Procedure 4-3, “Adjust the tube and exhaust chimney,” page 4–3
Procedure 4-4, “Connect the cables,” page 4–3
Procedure 4-5, “Set the input-drive power,” page 4–6
Procedure 5-1, “Start up the amplifier,” page 5–1
Procedure 5-2, “Tune the amplifier,” page 5–4
Procedure 5-3, “Operate the amplifier,” page 5–5
Procedure 6-1, “Clean the amplifier chassis,” page 6–1
Procedure 6-2, “Replace the tube and/or fuses,” page 6–2
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC List of Procedures
Page vi February 2014
Document Issue 1.0
Introduction
1
1
1.1 Product Description 1–1
1.2 Product Capabilities 1–2
1.3 Safety Considerations 1–3
1.4 Related Products 1–4
1.5 Assistance 1–4
Congratulations on your purchase of a professional-quality Alpha 8406 linear amplifier.
This manual contains information that you must follow, and cautions and warnings that you must heed, to ensure safe installation and operation. Before operating your amplifier for the first time, it is important that you study this manual carefully — in particular, the preparation, setup, and operation instructions.
IMPORTANT Failure to perform procedures properly may result in electric shock,
!
1.1 Product Description
fire hazard, or serious damage that is not covered under warranty.
The Alpha 8406 (see Figure 1-1) is a self-contained manual-tune very- high-frequency (VHF) linear power amplifier.
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
11
Introduction
1
1.2 Product Capabilities
Figure 1-1 Alpha 8406
Product capabilities are as follows:
Continuous radio-frequency (RF) output. The Alpha 8406 is capable
•
of 1.5-kW continuous RF output with no time limit on any authorized amateur frequency in the range 50–54 MHz and on all commonly used modes, including the following:
— All digital modes
— Frequency modulation (FM)
— Keyed continuous wave (CW)
— Radioteletype (RTTY)
— Single sideband (SSB)
— Slow-scan television (SSTV)
Compatibility with popular amateur transceivers and exciters. The
•
Alpha 8406 requires ~50–65-W peak RF drive for 1.5-kW output.
Capability of full CW break-in (QSK) when used with any
•
appropriate transceiver.
Built-in protective functions. The control system incorporates
•
protective functions that minimize the probability of accidental damage to the amplifier or its tube. In most cases, when a protective function is tripped, the amplifier goes to standby mode.
Page 1–2 February 2014
Document Issue 1.0
11
RF Concepts LLC Alpha 8406 Linear Amplifier User Manual
Introduction
1.3 Safety Considerations
General Considerations
IMPORTANT
!
For safe operation, take the following precautions:
Locate the amplifier where there is good air circulation all around and
•
on top of the cabinet. The unit may become hot during operation.
Move the amplifier only with great caution, being sure to do the
•
following:
— Remove the transformer and move it separately from the
amplifier by means of its lifting handle. Never transport the amplifier with the transformer in place, as together they weigh ~70 pounds.
— Use proper lifting techniques and two people.
Remember that, although the Alpha 8406 meets international safety
•
standards and US Federal Communications Commission (FCC) regulations, it works with high voltages that can be LETHAL.
NEVER open the amplifier case without first unplugging the
•
unit from the wall outlet.
NEVER touch an antenna during transmission.
•
NEVER turn on the amplifier without the cover securely in
•
place and all attachment screws inserted.
1
NEVER turn the amplifier back on after a hard fault (that is, a
•
fault to power off) without waiting at least 20 seconds.
NEVER cover or obscure the exhaust holes in the amplifier
•
cover. Never stick objects into the holes or allow liquids to enter through the holes.
RF Exposure
The FCC requires users to check their installations for compliance with published values for allowable exposure to RF fields. This information is available in American Radio Relay League (ARRL) publications, FCC printed rules, and on the web. We strongly recommend that you do this for any installation, either fixed and at an expedition or contest site.
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
11
Introduction
1
SEE . . .
1.4 Related Products
1.5 Assistance
For information on RF exposure, see FCC OET Bulletin 65
•
Supplement B at http://www.fcc.gov/encyclopedia/oet- bulletins-line.
For questions regarding engineering your amplifier into your
•
amateur radio station, go to rfconcepts.com and click Support.
Other products available to enhance your use of the Alpha 8406 include:
Alpha 2000 dummy load
•
Alpha 4510A standing-wave-ratio (SWR) meters and wattmeters
•
For more information, go to rfconcepts.com or call 303-473-9232.
Technical assistance from RF Concepts is available from several sources.
Go to our website at rfconcepts.com and click Support. On this site
•
you can get the following assistance:
— Alpha Forum
— FAQs
— Legacy equipment information
— Manuals
— Repair information
— Software downloads
— Tech tips
— Technical support
E-mail us by completing a support request at rfconcepts.com.
•
Fax us at 303-473-9660.
•
Phone us at 303-473-9232.
•
Page 1–4 February 2014
Document Issue 1.0
Amplifier Components and Specifications
2
2.1 Boards 2–3
2.2 Controls and Display 2–6
2.3 Output-Tank Circuit 2–6
2.4 Tube and Tube Deck 2–7
2.5 Specifications 2–9
The Alpha 8406 uses a ceramic-and-metal forced-air-cooled tetrode vacuum tube for amplification. The main power supply is an unregulated transformer/rectifier/capacitor power supply for the high-voltage (HV) and heater circuits. All other power supplies are regulated.
The control circuit uses a microprocessor “in the loop” to monitor and control amplifier operation. There are eight circuit boards in the amplifier:
2
Center-partition board
•
Control board
•
Display board
•
HV board
•
Low-pass filter board
•
Mains board
•
Transmit/receive (T/R) board
•
Tube-deck board
•
In addition to these, the tube, tank circuit assembly, and transformer complete the main sections of the amplifier. These major blocks are described below.
The amplifier includes a 5-V power supply mounted behind the front panel. Whenever the amplifier is plugged into the mains power, this supply is active and there is power to the microcontroller on the main control board. This feature enables the amplifier to be turned on or off remotely. It also enables remote monitoring and debugging via a USB cable connected to a computer.
The amplifier front, back, and interior are shown below (see Figure 2-1,
Figure 2-2, and Figure 2-3). Amplifier components are listed
alphabetically and described below.
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
22
Amplifier Components and Specifications
2
Figure 2-1 Amplifier front
Figure 2-2 Amplifier back
Page 2–2 February 2014
Document Issue 1.0
22
RF Concepts LLC Alpha 8406 Linear Amplifier User Manual
Amplifier Components and Specifications
Figure 2-3 Amplifier interior
2
2.1 Boards
The following amplifier boards are described below in alphabetical order:
Center-partition board
•
Control board
•
Display board
•
HV board
•
Low-pass filter board
•
Mains board
•
Transmit/receive (T/R) board
•
Tube-deck board
•
Center-Partition Board
The center-partition board contains the RF decoupling circuit on the B+ line as well as the crowbar safety circuit. When you remove the top cover of the amplifier, the spring metal of this safety device shorts out the B+ line.
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
22
Amplifier Components and Specifications
IMPORTANT Do not defeat this safety circuit. It is placed there for your
protection.
!
2
Control Board
The control board is the heart of the amplifier. It is based on a PIC microcontroller. This microcontroller has a built-in multichannel analog­to-digital converter that monitors all critical voltages and currents in the amplifier as well as the input power and output forward and reflected power. It uses these converted values to control the amplifier’s operation and to drive the display board on the front panel.
A USB port on the back of the amplifier is provided for remote monitoring. The USB driver for the amplifier is provided on the CD that ships with the amplifier or is available from the company website.
Display Board
The display board uses a MAX7219 multiboard LED-display-driver chip. The chip receives data from the control board via a serial peripheral interface (SPI); this data determines which LEDs to light. The board contains a regulator to drop voltage from +12 V to +5 V for the display.
HV Board
The main high voltage for the amplifier is created on the HV board using a full-wave bridge rectifier and a bank of capacitors. This power supply has two 10-ohm resistors, one in the positive (B+) lead and one in the negative return that goes to ground. This combination of resistors limits the surge current in the case of a B+ arc.
The voltage across the resistor in the negative return is used to monitor tube plate current in the control board. It is also used to generate a hard­fault condition. When the power-supply current exceeds ~2.5
A, a relay opens the coil circuit of the mains tap relays on the mains board, causing the amplifier to go to the power-off state. This hard-fault circuit operates independently of microprocessor control.
The regulated screen supply is also located on this board.
Document Issue 1.0
Page 2–4 February 2014
22
RF Concepts LLC Alpha 8406 Linear Amplifier User Manual
Amplifier Components and Specifications
All power-supply filter capacitors on this board have bleeder resistors that discharge the capacitors in less than 60 seconds. If you must work on this board, confirm the discharged condition with a voltmeter, due to the remote possibility of bleeder resistor failure.
Low-Pass Filter Board
The output low-pass filter is a single-stage unit optimized for low loss at 6 m. The measured insertion loss is 0.14 dB. The inductor is made from wide silver-plated strap material. The capacitors are low-loss porcelain types. All joints are silver-soldered. Adequate cooling is ensured in two ways: the board has slots to enable cooling from both sides and it is mounted in front of the inlet to the blower to enable exposure to copious air flow.
2
Mains Board
Power-supply functions are split between the mains board and the HV board. The mains board deals mostly with the primary side of the transformer. The various taps for the transformer primary are routed through this board and so is the AC line input. Relays on the mains board connect the AC line to the appropriate taps on the transformer primary.
Also on the mains board is a step-start circuit. This circuit consists of a relay and a resistor, which are time-sequenced to limit the inrush current into the amplifier when it is first turned on. The regulated –12 and –124­V supplies are also located on this board. Many of the important voltages for the amplifier are brought to test points on this board.

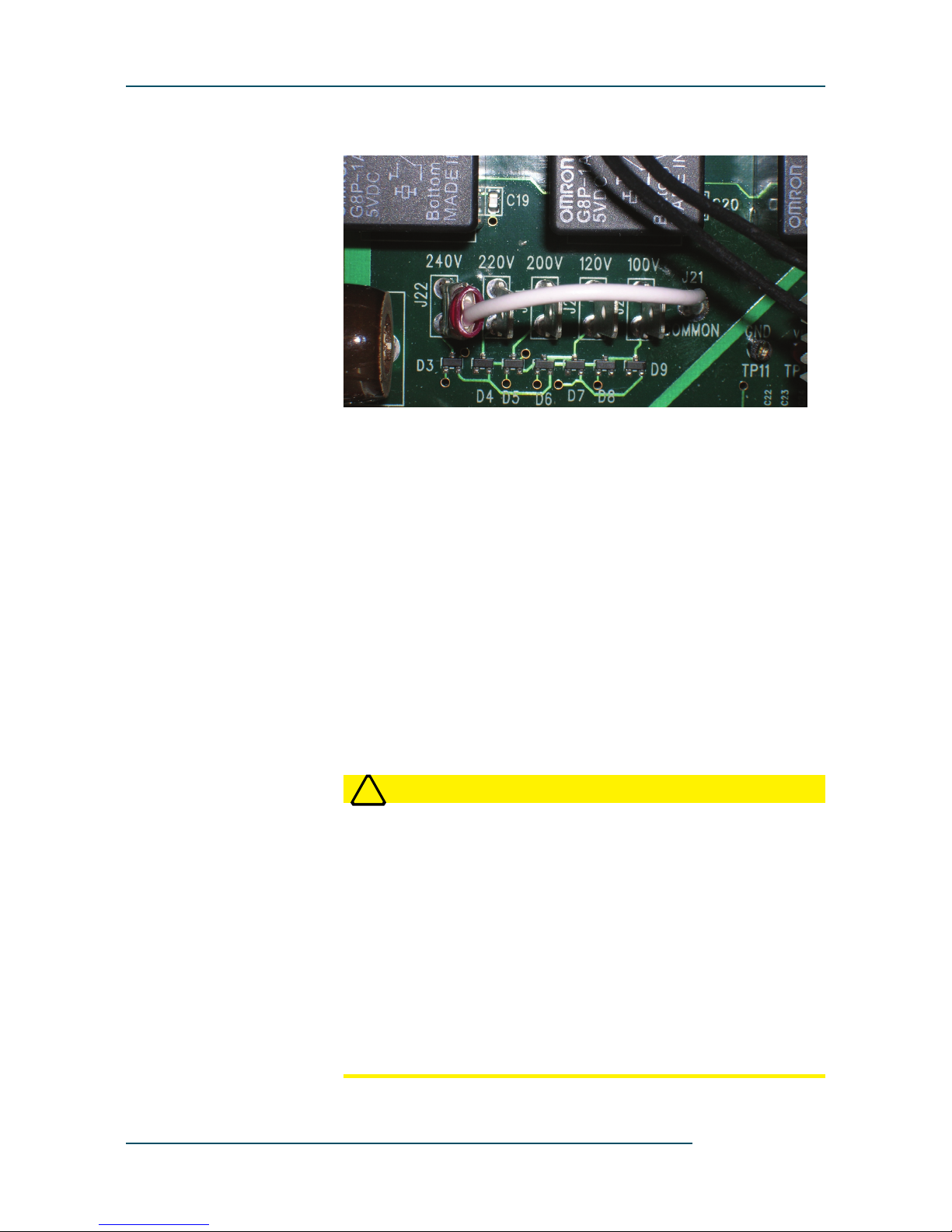

The primary voltage taps are located on the top of the mains board, between the transformer and the front panel. There is a row of five “fast­on” connectors (J22 through J26) and a flying jumper connector that mates with them. The amplifier is always shipped with the jumper sent to J22 (the 240-V position).
T/R Board
The transmit/receive (T/R) board contains the input and output relays as well as the input-power detection and output directional wattmeter. Voltages from the detector are connected to the control board.
A trimmer capacitor on this board is adjusted at the factory. You should not touch it.
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
22
Amplifier Components and Specifications
2
2.2 Controls and Display
The board also has a safety inductor on the RF output for 50–54-MHz operation, located between the PCB and the rear chassis.
Tube-Deck Board
The tube-deck board is located in the tube deck, below the tube socket. It contains critical circuit elements that need to be in close proximity to the tube. The tube heater, bias, and screen connections are all located on this board. The tube-deck temperature sensor and the input match for the tube complete this board.
For more information on the tube deck, see Section 2.4, “Tube and Tube
Deck,” page 2–7.
2.3 Output-Tank Circuit
The Alpha 8406 controls enable you to adjust and monitor the amplifier as needed (see Table 2-1).
Table 2-1
Control Purpose
LOAD Controls the load capacitor. Sets the amplifier plate loading
TUNE Controls the tune capacitor. Sets the output tank circuit to
The output-tank circuit provides reliable high-efficiency, low-distortion performance in a very compact volume.
Amplifier controls
and determines the power level for best efficiency and linearity.
Heavier loading is toward the 100 end and lighter loading is toward the 0 end of the dial scale.
resonance at each frequency.
Lower frequencies tend to tune toward the 0 end and higher frequencies toward the 100 end of the dial scale.
Page 2–6 February 2014
In any VHF amplifier, the most critical design decision is the output-tank network topology. it as being difficult and expensive to build. Likewise, we considered and
We considered a transmission-line design but rejected
Document Issue 1.0
22
RF Concepts LLC Alpha 8406 Linear Amplifier User Manual
Amplifier Components and Specifications
rejected the standard pi-L configuration that is used so widely at HF because of tough FCC harmonic requirements and the difficulty of achieving full output over the entire band.
The topology that we chose (see Figure 2-4) is the pi-C configuration, which provides harmonic attenuation adequate to meet the requirements of all countries globally that permit power outputs of 1500 W. In this configuration, the anode capacitance of the tube forms the input capacitance of the pi network. This network allows full coverage of the band with two rugged air-variable capacitors. inductor completes the tank arrangement; it is made from half-inch copper tubing that is formed to shape, then silver-plated. The single-tube design reduces tube capacitance and facilitates control of stray inductances in the circuit.
A single large silver-plated
2
Figure 2-4
TUBE ANODE
2.4 Tube and Tube Deck
The Alpha 8406 uses a 4CX1500B tetrode vacuum tube. The tube is operated in Class AB1, with the following voltages:
Electronic bias switching (EBS) increases the negative grid 1 voltage during pauses in speech or between Morse-code elements. This reduces the standing bias on the tube, resulting in less waste heat, longer tube life, and higher overall amplifier efficiency. The artifacts of EBS are not noticeable under normal communications conditions.
Output-tank circuit
BLOCKIN G CAP
RF CHOKE
B+
Plate voltage: 3500 V nominal
•
Grid 1 voltage: –50 to –60 V
•
Grid 2 voltage: +230 V
•
TANK INDUCTOR
LOAD CAP
TUNE CAP
TO OU TPUT F ILTE R
The tube is operated as a “swamped grid” tetrode design. The tube grid is tied at RF to a 50-ohm swamping resistor that absorbs most of the input­drive power. The RF voltage across this resistor is added to the grid 1 DC bias to provide the net low-impedance tube grid 1 bias. The RF
Alpha 8406 Linear Amplifier User Manual RF Concepts LLC
22
Amplifier Components and Specifications
2
impedance represented by grid 1 and its capacitance are compensated for by a series inductance to provide SWR <2:1 across the full 6-m band at the amplifier’s input.
The tube deck is a mechanical assembly enclosing the tube socket and the tube-deck board. The tube socket contains the integral screen grid (grid RF bypass capacitors as well as contacts for the screen, heater, and filament of the tube.
The temperature sensor on the tube-deck board sends data to the amplifier’s control board. This information is used to control the speed of the DC squirrel-cage blower that exhausts into the tube deck. Cool air is drawn into the amplifier by the muffin fan at the rear of the amplifier and over the transformer and the high-voltage section. The air then flows through the amplifier’s center partition and is pulled in by the blower and forced through the tube fins to keep the tube within the correct operating­temperature range.
The blower has three speeds (low, medium, and high). The amplifier’s control board determines which speed to set based on the temperature that is measured in the tube deck. Any time the amplifier is keyed and producing RF for more than 30 seconds continuously, the blower speed is set to medium speed. After 60 seconds, it is set to high speed.
2)
NOTE
The amplifier’s grid-current-limiting circuits provide substantial
•
protection against possible tube damage. Therefore, the amplifier does not generate or use Automatic Level Control (ALC) voltages to control an exciter. You need only set the input-drive power as explained in Section 4.5, “Set the Input-Drive Power,” page 4–6.
To prolong tube life, refrain from cycling AC power on-off-on-off
•
repeatedly. It is less stressful to leave equipment on and in standby mode for several hours than to cycle it on and off repeatedly.
Page 2–8 February 2014
Document Issue 1.0
Loading...
+ 40 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
