Page 1

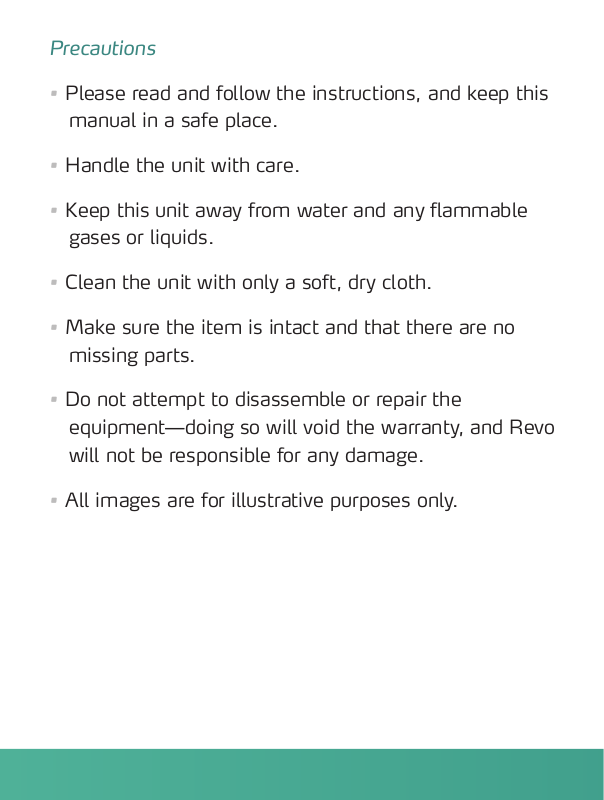

Precautions
• Please read and follow the instructions, and keep this
manual in a safe place.
• Handle the unit with care.
• Keep this unit away from water and any flammable
gases or liquids.
• Clean the unit with only a soft, dry cloth.
• Make sure the item is intact and that there are no
missing parts.
• Do not attempt to disassemble or repair the
equipment—doing so will void the warranty, and Revo
will not be responsible for any damage.
• All images are for illustrative purposes only.
Page 2
One-Year Limited Warranty
This Revo product is warrantied to the original purchaser to be free
from defects in materials and workmanship under normal consumer
use for a period of one (1) year from the original purchase date or thirty
(30) days after replacement, whichever occurs later. The warranty
provider’s responsibility with respect to this limited warranty shall be
limited solely to repair or replacement, at the provider’s discretion, of
any product that fails during normal use of this product in its intended
manner and in its intended environment. Inoperability of the product
or part(s) shall be determined by the warranty provider. If the product
has been discontinued, the warranty provider reserves the right to
replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse,
neglect, accident, alteration, abuse, improper installation or
maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR
ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty provides you with
specific legal rights, and you may also have additional rights that vary
from state to state.
To obtain warranty coverage, contact the Revo Customer Service
Department to obtain a return merchandise authorization (“RMA”)
number, and return the defective product to Revo along with the RMA
number and proof of purchase. Shipment of the defective product is at
the purchaser’s own risk and expense. Revo is a registered trademark
of the Gradus Group. Product warranty provided by the Gradus Group.
For more information or to arrange service, visit revocinegear.com or
call Customer Service at 212-594-2353.
© Copyright 2016 Gradus Group
www.RevoCinegear.com
TM
REVO
A Gradus Group Brand
GG1
Page 3
Wired
Video Remote
for Sony Cameras and Camcorders
VRS-MULTI
Page 4
Locking shutter release: Press halfway to focus, and
press fully to release the shutter. Slide the lock in place to
keep the shutter button pressed for bulb or continuous
shooting. When the camera is set to bulb, the shutter will
remain open with the lock engaged. When your camera's
drive is set to continuous, the shutter will release
continuously (speed varies depending on camera).
Sleep: Put your camera to sleep to conserve battery
power, or wake your camera from sleep mode. The
activity indicator will be green when in use, and turn off
when in sleep mode.
Grid line: Cycles through available grid-line options.
Zoom rocker: Electronic zoom control between wide
and telephoto for select Sony cameras with compatible
power zoom lenses attached. The rocker switch is
pressure sensitive, and the zoom speed will vary
depending on how hard the button is pressed.
Start/Stop: Starts and stops video recording.
Page 5
Overview
1
USB Mini-B port
2
Activity indicator
3
Locking shutter release
4
Sleep
5
Grid line
6
Zoom rocker
7
Start/Stop
8
1/4”-20 mount
9
Remote clip
10
S1 remote cable
(3-pin connector)
11
S2 remote cable
(Multi Terminal)
9
10
11
1
2
3
4
5
6
7
8
Page 6
Thank you for choosing Revo.
The Revo VRS-Multi is a wired remote for Sony
camcorders, mirrorless and point-and-shoot cameras that
utilize lenses with power-zoom capability. Enjoy smooth
video operation with the variable-speed zoom rocker,
which allows electronic control between wide and
telephoto. Whether capturing photo or video, you can
trigger the shutter for single shooting, or lock it open
when in continuous or bulb modes. Composing your
frame is also a breeze with the ability to cycle through
your available grid-lines at the touch of a button. The
convenient remote clip allows you to mount the remote on
your tripod or rig so your controls are always within reach.
Specifications
• Dimensions
(H × W × D): 3.9″ × 1.4″ × 0.6″
(10 × 3.5 × 1.6 cm)
• Weight: 0.9 oz. (26 g)
• Cable length: 3.3’ (1 m)
