REVITIVE PAIN RELIEVER User Manual [fr]

User’s Manual

®

®

PLEASE READ THE USER’S
MANUAL CAREFULLY BEFORE
USING THIS PRODUCT

Model number 2469MD

USE ONLY AS DIRECTED

If symptoms persist, consult
your healthcare professional

Table of contents

What is inside the box? 4

Parts and Controls 5

Introduction to REVITIVE 6

Indications for use 6

How REVITIVE works 6

Important Safeguards 7-12

Contraindications 7

Warnings 8-9

Cautions 10

Safety Precautions 11

Adverse Reactions 12

Instructions for use 13-25

How long should I use REVITIVE? 13

Step 1: Setting up REVITIVE for the first time 13

Step 2: Setting up the IsoRocker 14

Step 3: Powering REVITIVE 15-16

Step 4: Using the foot-pads 17-19

Step 5: Using the electrode Body Pads 20-25

Step 6: Recharging the battery 26

Step 7: Cleaning and storing 27

Replacing the batteries & Body Pads 27

Troubleshooting 28-29

Technical Specifications 30-31

Symbols 32-33

Warranty 34

2

3

What is inside the box?

On opening the carton, please check that the following components
are provided. If you think anything is missing, please contact us using the
helpline numbers on the back of this booklet.

Parts and Controls of REVITIVE Medic

Carry handle

Parts of
REVITIVE Medic

G

A

AC/DC power adapter

REVITIVE Medic

B

Electrode Body Pads

C

Body Pad cord

D

Remote control

E

H

Power ON/OFF

AC/DC power

adaptor socket

K

L

Body Pad socket

I

Control panel/display

J

Foot-pads

Advanced

M

IsoRocker

IsoRocker Disabler

N

Controls of REVITIVE Medic

Remote control

AAA batteries x 2

F

Power
ON/OFF

4

Time Control
– /+

Intensity Control
– /+

Control panel

Battery

indicator

5

Introduction to REVITIVE

IMPORTANT SAFEGUARDS

INTENDED USE

REVITIVE is intended to be used for electrical stimulation of the muscles of
the lower leg for the purposes of supporting muscle function, and supporting
and improving blood circulation. In addition REVITIVE is intended to be used
for electrical stimulation of sore and aching muscles to relieve pain. REVITIVE
is intended for home use for 30 minutes per treatment with a maximum of 3
hours treatment time per day as required.

INDICATIONS FOR USE

• To temporarily increase local blood circulation in healthy leg muscles

• To stimulate healthy muscles in order to improve and facilitate

muscle performance

• For temporary relief of pain associated with sore and aching muscles in the

shoulder, waist, back, upper extremities (arms) and lower extremities (legs)
due to strain from exercise or normal household duties

HOW REVITIVE WORKS

REVITIVE delivers electrical stimulation to your feet via a pair of cushioned
foot-pads, while you are seated. The electrical stimulation causes muscles in
your calf and foot to contract, which helps to increase circulation in your lower
legs.

READ ALL INSTRUCTIONS BEFORE USE

WHO SHOULD NOT USE REVITIVE

REVITIVE should not be used by some people.

Do not use if: (contraindications)

• You have a cardiac pacemaker, implanted defibrillator, or other

implanted electronic device because this may cause electric shock,
burns, electrical interference, or death

• You are pregnant

• You are being Being treated for, or have the symptoms of, an existing

Deep Vein Thrombosis (“DVT”)

Long periods of inactivity can put you at greater risk of developing Deep

Vein Thrombosis (DVT). DVT is a blood clot and usually occurs in a deep
leg vein. If part of the DVT breaks off it may lead to potentially life-
threatening complications such as pulmonary embolism.

If you have been inactive for prolonged periods and suspect you may

have a DVT, consult your doctor immediately. To prevent dislodging the
clot do not use REVITIVE.

REVITIVE has been developed so that it is comfortable for you to use. It
features an IsoRocker (patent pending) that allows for natural ankle movement
when applying the electrical stimulation to your feet. Ankle movement is a key
factor in increasing circulation in the lower legs. You can choose to enable or
disable the IsoRocker anytime.

REVITIVE is designed to be easy to use and also comes with a remote control,
which means you do not have to reach down to adjust settings during use.

REVITIVE can also deliver electrical stimulation to the knees, shoulders, back
or arms.

Visit www.revitive.com for more information

6

In some cases of DVT there may be no symptoms. However it is important

to be aware of the symptoms that may include:

• pain, swelling and tenderness in one of your legs (usually your calf)

• a heavy ache in the affected area

• warm skin in the area of the clot

• redness of your skin, particularly at the back of your leg, below
the knee

Consult your doctor as soon as possible if you show any signs of the

above symptoms.

7

IMPORTANT SAFEGUARDS

WHO SHOULD CHECK WITH THEIR DOCTOR BEFORE
USING REVITIVE

• Consult with your doctor before using this device if:

• You are in the care of a doctor

• You have a history of heart problems because the device may cause
lethal rhythm disturbances to the heart in susceptible individuals

• You are experiencing cramping leg pain that occurs during walking

• You have slow healing wounds

• You have loss of feeling in the hands or feet

• You have had medical or physical treatment for your pain

• You have suspected or diagnosed heart disease

• You have suspected or diagnosed epilepsy

• You are unsure about the suitability of the REVITIVE for you

• You are unsure about the cause of your symptoms

• If you have a metallic implant, you may experience pain or discomfort near

the implant when applying electrical stimulation, if this should occur
discontinue use and seek advice from your doctor

Warnings

• Do not apply foot-pads or Body Pads directly:

• on open wounds or rashes, swollen, red, infected, or inflamed
areas or skin eruptions (such as phlebitis, thrombophlebitis,
varicose veins, cellulitis)

• on or close to, cancerous lesions/tumors

• on areas treated with radiotherapy (within the past 6 months)

• on reproductive organs

• Apply stimulation only to normal, intact, healthy skin

• Electrode Body Pads are for single person use only. Do not share body

pads with others

• Do not use Body Pads after their use by date. There is a chance you

may experience skin irritation or burns under the Body Pads

• Some people may experience skin irritation or hypersensitivity due to

electrical stimulation or electrical conductive medium. The irritation can
usually be reduced by using an alternative conductive medium or alternate
electrode placement

• Symptoms may worsen during the initial treatment phase before getting

better. This may occur if the body has not yet adjusted to increased
muscular activity and blood circulation. If this occurs, reduce the
intensity and the duration of treatment which will reduce the initial
symptoms, if symptoms persist consult with your doctor.

• The electrical stimulation may feel more intense close to a metallic implant.

It is safe to continue use provided no pain is experienced. You may need to
adjust the intensity to a comfortable level

• Do not use the Body Pads on your head, face, neck or chest.

There is a chance that serious health problems, and in rare cases death,
may be caused by using the Body Pads on your head, face, neck or chest

• There is a chance that using the Body Pads on your head, face or
neck may cause closure of the airway, difficulty in breathing, or
adverse effects on heart rhythm or blood pressure

• The introduction of electrical current into the chest may cause
rhythm disturbances to your heart, which could be lethal

• Use Body Pads only on parts of your body as directed in this guide

8

When Not to Use REVITIVE

There are times you should not use REVITIVE. Do not use REVITIVE:

• with electronic monitoring equipment (such as cardiac monitors, ECG

alarms), which may not operate properly when the electrical stimulation
device is in use

• when you are in the bath or shower

• while you are sleeping

• while you are driving, operating machinery, or during any activity in which

electrical stimulation can put you at risk of injury

9

IMPORTANT SAFEGUARDS

Cautions

• Be careful when applying stimulation:

• over areas of skin that lack normal sensation - be careful not to
overstimulate the area. Check for signs of skin irritation (redness),
bruising or pain. If in doubt consult your doctor

• over the abdomen during menstruation

• after recent surgical procedures as stimulation may disrupt your
healing process

• if you are likely to bleed internally, such as following an injury or
fracture – use a low intensity and/or shorter time to avoid over-
stimulation

• after a long period of immobility or inactivity – use a low intensity
and shorter time to avoid over-stimulation or muscle fatigue

• It is possible REVITIVE may reduce the sensation of pain that

would normally act as a warning of an underlying problem

• If your pain does not improve, gets worse or continues for more than 5 days,

stop using the device and seek advice from your doctor

• The long-term effects of electrical stimulation are unknown

• This product is not intended for use by persons with reduced physical,

sensory or mental capabilities, unless they are supervised by a person
responsible for their safety

Safety Precautions

• Do not stand on the machine. Use only when sitting down

• Use the device only for its intended purpose

• Do not expose the device to extreme heat

• Do not spill liquid on the device or its accessories

• Do not overload the electrical outlet

• Keep this device out of the reach of children

• The REVITIVE may be used by multiple persons, ensure the device is cleaned

after each use

• Use the REVITIVE only with the Body Pads, cords and accessories supplied by,

or purchased from, the manufacturer

• Check Body Pads, cords and cables periodically for damage

• Do not open the REVITIVE or repair it yourself. This will invalidate your

warranty and may cause serious harm

• In the unlikely event your REVITIVE malfunctions, disconnect it from the

power source and contact your nearest authorized agent

• The REVITIVE has passed the required tests for EMI, it may still be affected

by excessive emissions and/or may interfere with more sensitive equipment

10

• It has been reported that some universal remote control devices (eg for

TV etc) can change the settings on REVITIVE if used during a treatment. If
this should occur, simply adjust the time or intensity settings on REVITIVE
back to where you want them to be using the REVITIVE Remote Control, or
using the device Control Panel

• After any exposure to hot or cold temperatures outside the specified

operating range of 50 - 104°F allow the product to re-adjust to the
recommended operating temperatures to ensure continued product
performance

11

IMPORTANT SAFEGUARDS

Instructions for use

Adverse reactions

• Skin irritation and burns beneath the electrodes have been reported with

the use of powered muscle stimulators

• If you experience adverse reactions, stop using REVITIVE and talk with

your doctor

SAVE THESE INSTRUCTIONS

How long should I use REVITIVE?

It is recommended to use REVITIVE for 20-30
minutes per day.

Do not use REVITIVE more than 6 sessions of 30
minutes (or the equivalent) per day. This may result
in muscle fatigue.

STEP 1:
SETTING UP REVITIVE FOR THE FIRST TIME

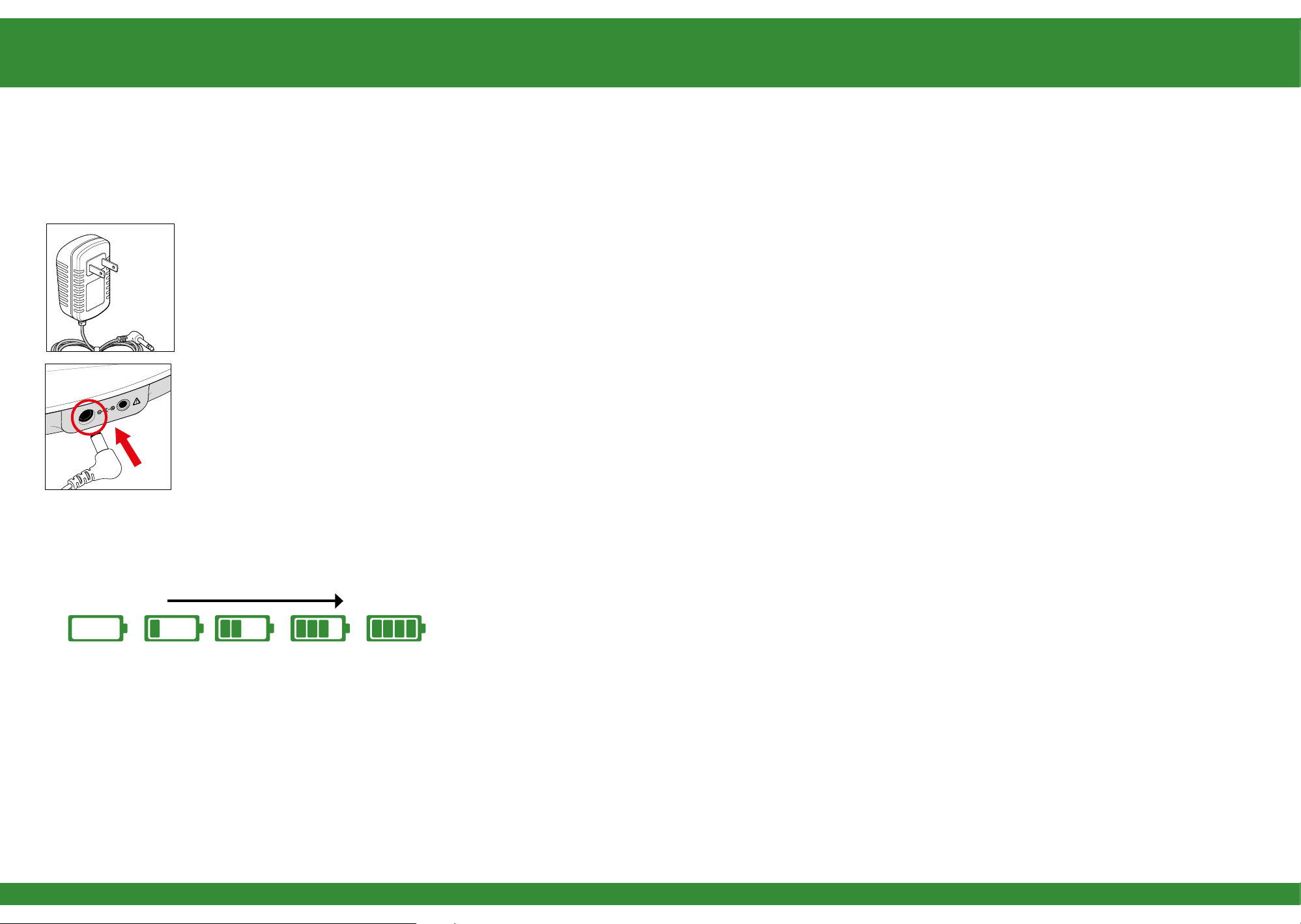

a Remove all parts from the box:

AC/DC power adapter

•

• REVITIVE Medic device

• Body Pads

• Body Pad cord

• Remote control

• AAA batteries x 2

12

See What is inside the Box? on pages 4-5 to help identify the parts.

b Locate the remote control and insert the batteries.

Before you use REVITIVE for the first time, read the Warnings and Cautions
on pages 7-12. If in doubt, consult your doctor before using the product.

13

Instructions for use

STEP 2:
SETTING UP THE ISOROCKER

a Turn the device over so that you can see the

IsoRocker and IsoRocker Disabler.

• The IsoRocker allows REVITIVE to rock while
stimulating your legs and feet.

• REVITIVE will begin rocking on the IsoRocker once
muscle contractions are strong enough.

• When the IsoRocker feature is disabled, by
opening the IsoRocker Disabler, REVITIVE
will be inclined and not rock during use.

b If you want to use the IsoRocker, leave the IsoRocker

Disabler in place (ie flat) on the bottom of the device,
as shown.

c If you do not want to use the IsoRocker

• Pull the IsoRocker Disabler on the bottom of
REVITIVE. You may have to pull hard.

STEP 3:
POWERING REVITIVE

REVITIVE can be powered from either the rechargeable battery or by connecting
it to an electrical socket.

BATTERY POWER OPTION

If you want to use the device without connecting it to an electrical
socket, it can run from the battery.

When the device is running from the battery, an indicator will show the
remaining battery level.

Full Battery

Follow Step 4 Using The Foot-pads or Step 5 Using the Electrode Body
Pads to continue setting up REVITIVE.

Low Battery

14

• Pull the IsoRocker Disabler back until it clicks open,
as shown.

• To re-enable, pull the IsoRocker Disabler and press
into place (ie flat) on the bottom of REVITIVE.

When the battery drops to the low level, it will require recharging.
See Step 6, Recharging Battery on page 26.

If you turn the device off and the low battery level indictor blinks for
10 seconds, the battery requires recharging.

Please note that if the battery runs out, the device can still be used,
by connecting to an electrical socket.

15

Instructions for use

STEP 4:
USING THE FOOT-PADS

MAINS POWER OPTION

If you want to use the REVITIVE when the battery is low or to preserve
the battery level the REVITIVE can be used by connecting it to an
electrical socket.

a Locate the AC/DC power adapter.

b Plug the small end of the power cord into the

opening on the side of the REVITIVE.

c Plug the power adapter into the nearest electrical

socket. This will start charging the (integrated)

rechargeable battery.

Once you have connected REVITIVE to the electrical socket follow Step 4
Using The Foot-pads or Step 5 Using the Electrode Body Pads to continue
setting up REVITIVE.

Sit with
both bare feet
on the foot-pads

a Get into a comfortable seated position.

For best results sit with your knees at a 90 degree angle
(right angle).

b Place REVITIVE on the floor in front of you.

REVITIVE is designed to be used while seated.
Never stand on the REVITIVE unit.

c Place both bare feet on the foot-pads.

Make sure you remove all footwear, including socks/
stockings.

d If desired, apply a moisturizing lotion to the soles of

your feet.

Hint: Applying a moisturizing lotion to the soles of the
feet before using REVITIVE can help improve the
delivery of electrical stimulation.

e Press the power button on the device or on the remote

control to turn REVITIVE on.

You will hear a beep and the display lights will light up.
The time will read 30 minutes and Intensity will
read 00.

16

To turn off REVITIVE at any time during operation,
press the power button on the device or on the
remote control.

17

Instructions for use

f Set the time for REVITIVE. The default time is 30

minutes. You can set the timer for up to 60 minutes.
If you do not want to use the default time of 30 minutes,
set the time for the number of minutes you want.

You can use the controls on the control panel or on the
remote control.

Press the (+) Time Control to increase the time.
Press the (–) Time Control to decrease the time.

NB It is recommended to use REVITIVE for
20-30 minutes per day.

Do not use REVITIVE more than 6 sessions of
30 minutes (or the equivalent) per day. This may
result in muscle fatigue.

g Press the (+) Intensity Control, one time, to

start stimulation.

h Use an intensity that provides you with strong but

comfortable muscle contractions and note that the
intensity required may vary from day to day - eg using it
on 25 one day, does not necessarily mean you will need
to use if at 25 the next day. The required intensity could
be higher or lower than previous usage.

It is normal to feel tingling or varying sensations in your
calf muscles.

If you feel pain or discomfort:

• Remove one or both feet from the foot-pads to
stop the stimulation.

• Lower the intensity of the foot-pads using
the (–) Intensity Control on the control panel,
or remote control, before replacing your feet on
REVITIVE.

18

Continue to increase the intensity until you can feel or
see the muscles in your calves contract and relax. You
can set the intensity between 1-99.

You can use the buttons on the device or remote
control.

Press the (+) button to increase the level.
Press the (–) button to decrease the level.

REVITIVE does not vibrate.

i The Time Display will start to count down in

minutes as REVITIVE cycles through its program.

j When REVITIVE times out, the Time Display reads 00

and you will hear three beeps.

k The REVITIVE switches itself off automatically.

19

Instructions for use

STEP 5: USING THE ELECTRODE BODY PADS

REVITIVE comes with one pair of reusable (up to 20-30 applications) Body
Pads that can be used to deliver electrical stimulation to the back, shoulders,
thighs, knees or arms.

Body Pads are for single person use only. Do NOT share Body Pads
with others.

✖

DO NOT PLACE BODY PADS ON YOUR:

✖

✖

✖

Head/Face

Neck

a Select the area you wish to apply electrical stimulation to.

✔

Example placements for the Body Pads are shown below

✔

✔

Back of

Shoulder

✔

✔

✔

Thigh Knee

Upper Back

Lower Back

Chest

There is a chance that serious health problems, and in rare cases death,
may be caused by using the Body Pads on your head, face, neck or chest.

• There is a chance that using the Body Pads on your head,
face or neck may cause closure of the airway, difficulty in
breathing, or adverse effects on heart rhythm or blood pressure.

• The introduction of electrical current into the chest may cause
rhythm disturbances to your heart, which could be lethal.

• Use Body Pads only on parts of your body as directed in this guide.

Refer to the Warnings on pages 8-9 before using the Body Pads.

20

b Clean and dry the area where you will place the Body Pads.

c Make sure REVITIVE is switched off. If the control panel is still

illuminated, press the power button and turn REVITIVE off.

21

R

R

R

R

R

Instructions for use

d Attach the ends of the Body Pads to the Body Pad

Cord.

Press connectors until no gap is between them.
Leaving a gap may cause discomfort.

e Plug the other end of the Body Pad cord into the

opening on the side of REVITIVE.
Plugging in the Body Pad cord will automatically

turn the foot-pads off.

f Remove the plastic liner from the Body Pads, by

peeling it off carefully. Replace the Body Pads onto
the plastic liner after use.

h Press the power button on the device or on the

remote control to turn REVITIVE on.

You will hear a beep and the display lights will light up.
The time will read 30 minutes and Intensity will
read 00.

To switch off the REVITIVE unit at any time during
operation, simply press the power ON/OFF button.

i Set the time for the number of minutes you want to

use REVITIVE. The default time is 30 minutes.
You can set the timer for up to 60 minutes.

You can use the buttons on the control panel or
remote control.

Press the (+) Time Contol to increase the time.
Press the (-) Time Contol to decrease the time.

NB It is recommended to use REVITIVE for
20-30 minutes per day.

Do not use REVITIVE more than 6 sessions of
30 minutes (or the equivalent) per day. This may
result in muscle fatigue.

22

j Press the (+) Intensity Control, one time, to

start stimulation.

g Press the Body Pads on the area you wish to apply

electrical stimulation to, as shown on page 19, gently
pressing the adhesive side against the skin.

Continue to increase the intensity until you can feel or
see the muscles in contract and relax. You can set the
intensity between 1-99.

You can use the buttons on the device or remote
control.

Press the (+) button to increase the level.
Press the (–) button to decrease the level.

23

R

R

R

Instructions for use

k Press the (+) Intensity Control until it is at the

desired level.

Use an intensity that provides you with strong but
comfortable muscle contractions and note that the
intensity required may vary from day to day - eg using
it on 25 one day, does not necessarily mean you will
need to use if at 25 the next day. The required
intensity could be higher or lower than previous usage.

It is normal to feel tingling or varying sensations in
your calf muscles.

If you feel pain or discomfort - lower the intensity of
the Body Pads using either the (-) Intensity Control on
the control panel of the device or on the remote control.

o Ensuring that the device has switched itself off, then

gently peel the Body Pads from the skin.

Do not pull the Body Pads off the skin using the

Body Pad cords as this may damage the cords.

p Replace the Body Pads onto its plastic liner after use.

q Unplug the Body Pad cord from the opening

on REVITIVE.

24

You do not need to detach the Body Pads from the
Body Pad cords.

l The time control/display will start to count down in

minutes as REVITIVE cycles through its program.

m When REVITIVE times out, the time display

reads 00 and you will hear three beeps.

n REVITIVE switches itself off automatically.

Important: the foot-pads will not produce a stimulation if the Body Pads
are plugged in.

25

Instructions for use

STEP 6:
RECHARGING THE BATTERY

REVITIVE can be powered from either the rechargeable battery or by connecting it
to an electrical socket.

a Locate the AC/DC power adapter.

b Plug the small end of the power cord into the

opening on the side of the REVITIVE.

c Plug the power adapter into the nearest electrical socket. This will start charging

the (integrated) rechargeable battery.

STEP 7:
CLEANING AND STORING REVITIVE

a Ensure REVITIVE is switched off.

b Wipe down the foot-pads with a soft damp cloth.

Do not clean with chemicals.
Do not immerse REVITIVE in water.

c Store REVITIVE in a cool, dry and dust-free location.

Store out of direct sunlight.

d Place Body Pads onto the plastic liner.

e Store the Body Pads in a dry and ventilated location.

Store out of direct sunlight.
You do not have to detach the Body Pads from the Body Pad cords to
store them.

Note: In the case of multiple users, ensure to clean the device after each use.

The battery indicator will illuminate constantly to indicate the device is charging

and to show the battery level, as below.

Low Battery

A full charge will take approximately 3 hours.

d Once fully charged, the full battery indicator will stay illuminated until the power

adapter is unplugged from the device or the electrical socket.

A full charge enables approximately 3½ hours of use (the equivalent of one 30

minute session each day for one week).

Please note you can still use the device while it is charging but the battery

indicator will not show.

26

Full Battery

Replacing the Batteries

The remote control requires two AAA 1.5V batteries to operate.

Replacing the Body Pads

The Body Pads are reusable up to 20-30 applications. If the Body Pads
start to lose their adhesiveness, rub a few drops of water into the surface.
Replacement Body Pads can be obtained via www.revitive.com

27

Troubleshooting

Problem Possible Cause Solution

REVITIVE is on (lights
illuminated on the LED
display) but I cannot
feel the electrical
stimulation through the
foot-pads.

Not placing both bare feet on the
foot-pads at the same time.

Your feet may be dry. Moisturize the soles of your feet

You may be dehydrated. Drink plenty of water before

The intensity level may be on
too low a setting.

Body Pad cord is connected to
device.

If, having tried the solutions
above, you still cannot feel the
stimulation:

Ensure that your feet are bare
and each foot is placed on each
of the foot-pads at the same
time. Keep increasing the
intensity up to a maximum of 99
until you feel the stimulation.

to improve conductivity and
stimulation and try the procedure
again. You may also have to
increase the intensity level.

and after using the device. The
device uses your body to create
the electrical circuit. Water is an
excellent conductor of electricity
and if your body is less hydrated
(below 60%) then the stimulation
may be less, therefore it is
important to always remain well
hydrated.

This is a very safe device. Keep
increasing the intensity level
towards 99 until you feel the
stimulation. You may find that
you have to increase the
intensity level as you get used to
the therapy. The aim is not to get
to 99 but to find a setting that is
comfortable for you.

Disconnect the Body Pad cord ­the foot-pads will not work while
the Body Pad cord is plugged in.

Test the device by placing one
hand across both footpads at the
same time (The heel end of the
footpads is easiest). With your
other hand, and starting from
zero, increase the intensity
level until you can feel the
stimulation. If you can feel the
stimulation through your hand
then the device is working. If
on 99 you still cannot feel the
stimulation then please contact
your authorized dealer.

Problem Possible Cause Solution

No power or lights to
REVITIVE when it is
switched on.

REVITIVE is not
vibrating.

The IsoRocker is not
"rocking".

My legs are aching
after treatment.

When using the
IsoRocker on a hard
floor it makes a
tapping noise.

AC adapter not switched on
at the electrical socket or AC
adapter not plugged into device
properly.

Flat battery Plug device in an electrical socket

REVITIVE IS NOT DESIGNED TO
VIBRATE.

It is the muscles in your legs
that cause the "rocking",
the ISOROCKER IS NOT
MECHANICAL.

The device is too far in front
of you.

The IsoRocker system is not
enabled.

You may have the
on too high a setting and your
muscles are being overworked.

Incorrect positioning of the
device or too high an intensity
level.

intensity

Check electrical socket power
is switched on and the AC
adapter is plugged into
the device correctly. If still
not working – contact your
authorized dealer.

and charge battery or run using
mains power option.

The ISOROCKER will only rock
when increased to an intensity
which causes sufficient calf
muscle contraction. It may be
that you cannot comfortably
increase the intensity high
enough until you get used to the
sensation. It is important that
intensity is adjusted to a level
that is comfortable.

Sit with your knees at a
90 degree angle.

Ensure IsoRocker Disabler is
“flat”, in centre position (see
page 14).

Leave adequate time after
each treatment to allow the
muscles to recover (just like after
vigorous exercise!). On your
next session start on a lower
setting (where you can feel the
mild electrical stimulation and it
is comfortable) and reduce the
duration until your muscles have
acclimatized to the stimulation.

Adjust the positioning of the
device or lower the intensity
level to reduce the device
tapping. Alternatively use a
floor mat under the device
to cushion the sound.

For more information including Frequently Asked Questions,

28

please visit www.revitive.com

29

Technical Specifications

Name of product REVITIVE Medic

Model 2469MD

Weight 1.5kg

Dimensions

Power Consumption 5W

Power Source:

AC adapter – UL (Underwriters
Laboratories) Safety Mark

Input
Output

Battery Lithium Ion, 1200mAh, 3.7V

Battery Life 500 charge cycles

Ø360mm x 75mm (isorocker enabled)
Ø360mm x 100.5mm (isorocker disabled)

100-240V, 50/60Hz, 0.18A.

5.0Vdc, 1.0A

Frequency:

Net Charge @ 500Ω [0.004]mC

Maximum Phase Charge @ 500 Ω Foot: 53µC Body: 17µC

Maximum Current Density Foot: 0.032 mA/cm² Body: 0.100 mA/cm²

Maximum Power Density @ 500Ω

Burst Mode: a. Pulses per burst Foot: 195 - 1092 Body: 291 - 921

b. Bursts per second

c. Burst duration

d. Duty Cycle Foot: 0.56 - 0.89 Body: 0.65 - 0.86

ON Time Foot: 1.90 - 8.40s Body: 1.90 - 6.50s

OFF Time

Foot: 20 to 43Hz, Body: 38 to 51Hz

Foot: 0.81 mW/cm² Body: 1.82 mW/cm²

Foot: 0.11 - 0.29 Body: 0.10 - 0.30

Foot: 1.91 - 8.35s Body: 1.90 - 6.50s

Foot: 1.00 - 1.50s Body: 1.00s

Output Specifications:

Waveform Monophasic

Shape Square symmetrical with polarity reversal

Maximum Output Voltage: @500Ω Foot: 35V Body: 19V

@2kΩ

@10kΩ

Maximum Output Current: @ 500Ω Foot: 71mA Body: 39mA

@2kΩ

@10kΩ

Pulse Duration:

Foot: 101V Body: 54V

Foot: 133V Body: 68V

Foot: 51mA Body: 27mA

Foot: 13mA Body: 7mA

Foot: 450 +/- 45µs
or 970 +/- 97µs

Body: 450 +/- 45µs

Disposal: At the end of product life do not throw this product into normal household garbage, but
take it to a collection point for the recycling of electronic equipment.

The Remote Control replicates the controls found on the device

Operating Frequencies 38 KH

Operating Range Distance

z

0 to 25m at horizontal
0 to 18m at +/- 30 degree angle
from the horizontal.

30

31

Symbols

Contraindications, Warnings and Cautions
Make sure you understand these before using the REVITIVE

Power

Time Remaining

Intensity Level

Battery Indicator

IsoRocker Disabler

Center Positive Polarity

Class II medical electrical equipment double insulated

Type BF medical electrical equipment

Humidity and temperature limit for storage

Energy Efficiency Grade 5

Indoor Use Only

Lead wires comply with the Performance Standard for electrode
lead wires (21 CFR part 898)

Do not disassemble

30%

90%

104°F

50°F

Legal manufacturer of the device

Keep dry

Consult instructions for use

Device serial number including year (YYYY) and month (MM) of
manufacture can be found on the box and back of unit

Item number

Use-by date

32

S/N

#YYYYMMXXXXX

REF

33

Your international two year warranty

It is important to retain the retailer’s receipt as
proof of purchase. Staple your receipt to this
back cover for future reference.

Please quote the following information if the
product develops a fault. These numbers can
be found on the base of the product:

Model no:

Lot no: ..........................................................................

All REVITIVE devices are individually tested
before leaving the factory. In the unlikely event
of any device proving to be faulty within 28
days of purchase, it should be returned to the
place of purchase for it to be replaced.

If the fault develops after 28 days and within
24 months of original purchase, you should
contact your local distributor quoting model
number and LOT number on the product, or
write to your local distributor at the address
shown.

You will be asked to return the product (in
secure, adequate packaging) to the address
shown with a copy of proof of purchase.

Subject to the exclusions set out below (see
Exclusions), the faulty device will then be
repaired or replaced and dispatched usually
within 7 working days of receipt.

If, for any reason, this item is replaced during
the 2 year guarantee period, the guarantee
on the new item will be calculated from the
original purchase date. Therefore, it is vital
to retain your original till receipt or invoice to
indicate the date of initial purchase.

To qualify for the 2 year guarantee, the
device must have been used according to the
manufacturer’s instructions supplied.

...................................................................

EXCLUSIONS:

1 Actegy Ltd, manufacturer of REVITIVE

devices, shall not be liable to replace or
repair the goods under the terms of the
guarantee where:

• The fault has been caused or is

attributable to accidental use, misuse,
negligent use or used contrary to the
manufacturer’s recommendations or
where the fault has been caused by
power surges or damage caused in
transit.

• The device has been used on a voltage

supply other than that stated on the
product or used with a power adapter
other than the one supplied with the
product.

• Repairs have been attempted by persons

other than our service staff (or authorized
dealer).

• The device has been used for hire

purposes or non-domestic use.

• The device is second hand.

2 Actegy Ltd are not liable to carry out any

type of servicing work, under the guarantee.

3 Accessories such as Electrode pads are not

covered by the guarantee.

4 Batteries and damage from leakage are not

covered by the guarantee.

• This guarantee does not confer any
rights other than those expressly set out
above and does not cover any claims
for consequential loss or damage. This
guarantee is offered as an additional benefit
and does not affect your statutory rights as
a consumer.

34

35

Legal Manufacturer

Actegy Ltd
REFLEX, Cain Road
Bracknell, RG12 1HL
United Kingdom

[phone]

Country Contacts & Distributor:

United States

Actegy Health Inc
6400 Shafer Court, Suite 225
Rosemont, IL 60018

Toll free: 1-877-260-3114

Copyright © 2018 Actegy Ltd. All rights reserved. ACTEGY® and REVITIVE® and
Circulation Booster® are registered trademarks of Actegy Ltd. The REVITIVE product is a
proprietary design and is protected by applicable design laws.

2616_IFU03_15344797 P.D 06.2018

36
