In the late1930's Frank Kurtis found-

ed the Kurtis Kraft company that
designed and built midget race cars
and in just a little over a twenty year
period produced over 1,100 midget
racers, 500 ready to race and 600 in
kit form. The Kurtis midget racer won
countless racing events all over the
U.S for decades and they are still run­ning strong at vintage events today.
Your Revell Midget Racer model
features a detailed two wheel trailer
with optional up or down loading
ramps, silver Photo-Etched metal
detail parts, a removable hood with
a highly detailed Edelbrock V-8
engine and vintage style decals
with optional trim and numbers.

KIT 4249 85424900200

KURTIS MIDGET RACER

EDELBROCK

V-8 WITH TRAILER

* REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome
plated plastic.

* For better paint and decal adhesion, wash

the plastic parts in a mild detergent solution.
Rinse and let air dry.

* Check the fit of each piece before

cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas

to be cemented.
* Allow paint to dry thoroughly before

handling parts.
* Any unused parts may be discarded.

DECAL APPLICATION INSTRUCTIONS

1. Cut desired decal from sheet.

2. Dip decal in water for a few seconds.

3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing.

5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth.

7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any

excess adhesive.

8. Do not touch decal until fully dry.

9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with

setting solutions or solvents.

* REPEAT PROCEDURE

* R E P E T E Z L E P R O C E D E

* OPTIONAL PARTS

`` ` ` `

* PIECES EN OPTION

* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants,

laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.

* Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICATION DES AUTOCOLLANTS

1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes.

3. Placer l'autocollant mouillé sur une serviette en papier.

4. Attendez que l'autocollant puisse être déplacé sur son

support en papier.

5. Mettre l'autocollant en position sur le modèle face sur

le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.

7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au

séchage. Essuyer pour enlever tout excédent d'adhésif.

8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.

9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec

* DECAL

* DECAL COMANIE

les solutions de fixage ou les solvants.

* ASSEMBLY CAUTION

*ATTENTION D ASSEMBLEE

* CEMENT TOGETHER

* A COLLER

This paint guide is provided to complete this kit

Ce guide de peintures est fourni pour reproduire le modèle

Semi Gloss Black

Gloss Black

Gloss Red

Flat Red

Aluminum

Gloss Cream

Brass

* REMOVE AND THROW AWAY

* A RETIRER ET JETER

as shown on the box.

réduit qui apparaît sur la boîte.

Noir satiné

Noir brillant

Rouge brillant

Rouge mat

Aluminum

Créme

Laiton

* DO NOT CEMENT

* NE PAS COLLER

If you have any questions or comments, call our hotline at: [phone]

or, please write to:

Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007

Be sure to include the plan number (85424900200), part number, description, your return address and phone number.

Visit our website: www.revell.com

Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.

1

ENGINE ASSEMBLY

SEMI GLOSS BLACK

ALUMINUM

★50

CARBURETORS

CHROME

(BRASS)

★85

OIL FILLER TUBE

CHROME

★86

FUEL PUMP

CHROME

6

RIGHT

ENGINE BLOCK

GLOSS RED

FRONT COVER / ENGINE MOUNT

8

MAGNETO

SEMI GLOSS BLACK

7

ALUMINUM

ENGINE BLOCK

INTAKE MANIFOLD

★49

RIGHT

CYLINDER HEAD

CHROME

5

LEFT

GLOSS RED

★83

CHROME

★48

LEFT

CYLINDER HEAD

CHROME

Kit 4249 - Page 2

11

LOWER

RADIATOR HOSE

SEMI GLOSS BLACK

ALUMINUM

2

FRAME / RADIATOR ASSEMBLY

GLOSS RED

3

RADIATOR FRONT

SEMI GLOSS BLACK

21

FRAME

2

LOWER

BODY PAN

BODY COLOR

3

RIGHT REAR

REAR AXLE SHAFT

★37

AXLE

CHROME

CHROME

★98

4

RADIATOR REAR

SEMI GLOSS BLACK

REAR AXLE ASSEMBLY

★40

RIGHT REAR

★38

LEFT REAR

AXLE

CHROME

RADIUS ROD

CHROME

★39

LEFT REAR

RADIUS ROD

CHROME

★96

REAR COVER

CHROME

Kit 4249 - Page 3

3

TAB ON REAR SPRING FITS INTO SLOT IN FRAME

REAR AXLE ASSEMBLY CONTINUED

NOTE:

SLOT

*

29

REAR

SHOCK MOUNT

GLOSS RED

4

TAB

*

*

28

REAR SPRING

GLOSS RED

COMPLETED

AXLE

ENGINE TO FRAME ASSEMBLY

*

*

*

Kit 4249 - Page 4

5

FRONT AXLE ASSEMBLY

★36

RIGHT FRONT

RADIUS ROD

CHROME

★118

TIE ROD

CHROME

★10

RIGHT

UPPER RADIATOR

HOSE

CHROME

SEMI
GLOSS
BLACK

★34

FRONT AXLE

CHROME

★9

LEFT

UPPER RADIATOR

HOSE

CHROME

★35

LEFT FRONT

RADIUS ROD

CHROME

6

ENGINE

BULKHEAD

BODY COLOR

★120

PEDALS

CHOME

STEERING ASSEMBLY

24

(APPLY FIRST)

GAUGES

PHOTO ETCHED METAL

7

DECAL

★25

STEERING WHEEL

CHROME

SEMI GLOSS

BLACK

(RIM)

88

INSTRUMENT

PANEL

SEMI GLOSS

BLACK

89

STEERING GEAR

SEMI GLOSS BLACK

FOR ADVANCE BUILDER

STEERING WHEEL RIM

SEMI GLOSS BLACK

★93

STEERING COLUMN

CHROME

STEERING WHEEL

PHOTO ETCHED METAL

94

SPOKES

PHOTO ETCHED PARTS NOTE:

This kit contains photo etched parts for added realism. use a sharp knife to remove the parts from their tree and cut against a hard surface like a piece of glass. Stick
a piece of tape to the back of the photo etch tree so the parts don't fly off and get lost. Carefully sand the photo etch pieces to remove any remnants of their mounting
points. To attach the photo etched pieces to your model, use a toothpick or piece of wire to apply a small amount of CA superglue, two-part epoxy, or clear enamel
paint to your model. Then the photo etched pieces can be put into place using tweezers or a toothpick dipped in candle wax.

Kit 4249 - Page 5

7

BODY / SEAT ASSEMBLY

★53

UPPER FRONT

NERF BAR

CHROME

★43

FRONT NERF BAR

WITH SHOCKS

CHROME

1

BODY REAR

BODY COLOR

COMPLETED

BULKHEAD

ASSEMBLY

26

SEAT

FLAT RED

FIRST

Kit 4249 - Page 6

8

NERF BAR ASSEMBLY

27

LOWER

ACCESS COVER

BODY COLOR

★44

REAR NERF BAR

UPPER

CHROME

FIRST

★45

REAR NERF BAR

LOWER

CHROME

SECOND

CENTER GUARD

★121

CHROME

9

CAP / BRAKE / PUMP ASSEMBLY

★90

RADIATOR CAP

CHROME

87

FUEL LINE

ALUMINUM

BRASS

110

HEAD REST

FLAT RED

★46

FUEL PUMP

CHROME

SEMI GLOSS BLACK

★47

HAND BRAKE

CHROME

Kit 4249 - Page 7

10

ARM / EXHAUST ASSEMBLY

★51

RIGHT

EXHAUST HEADER

CHROME

11

★42

GRILLE

CHROME

22

NOSE

BODY COLOR

★41

STEERING ARM

CHROME

EXHAUST HEADER

PANEL / GRILLE ASSEMBLY

91

LEFT

SIDE PANEL

BODY COLOR

92

RIGHT

SIDE PANEL

BODY COLOR

★52

LEFT

CHROME

TAPE

HOOD IN PLACE TEMPORARILY

ONLY TO LOCATE NOSE

Kit 4249 - Page 8

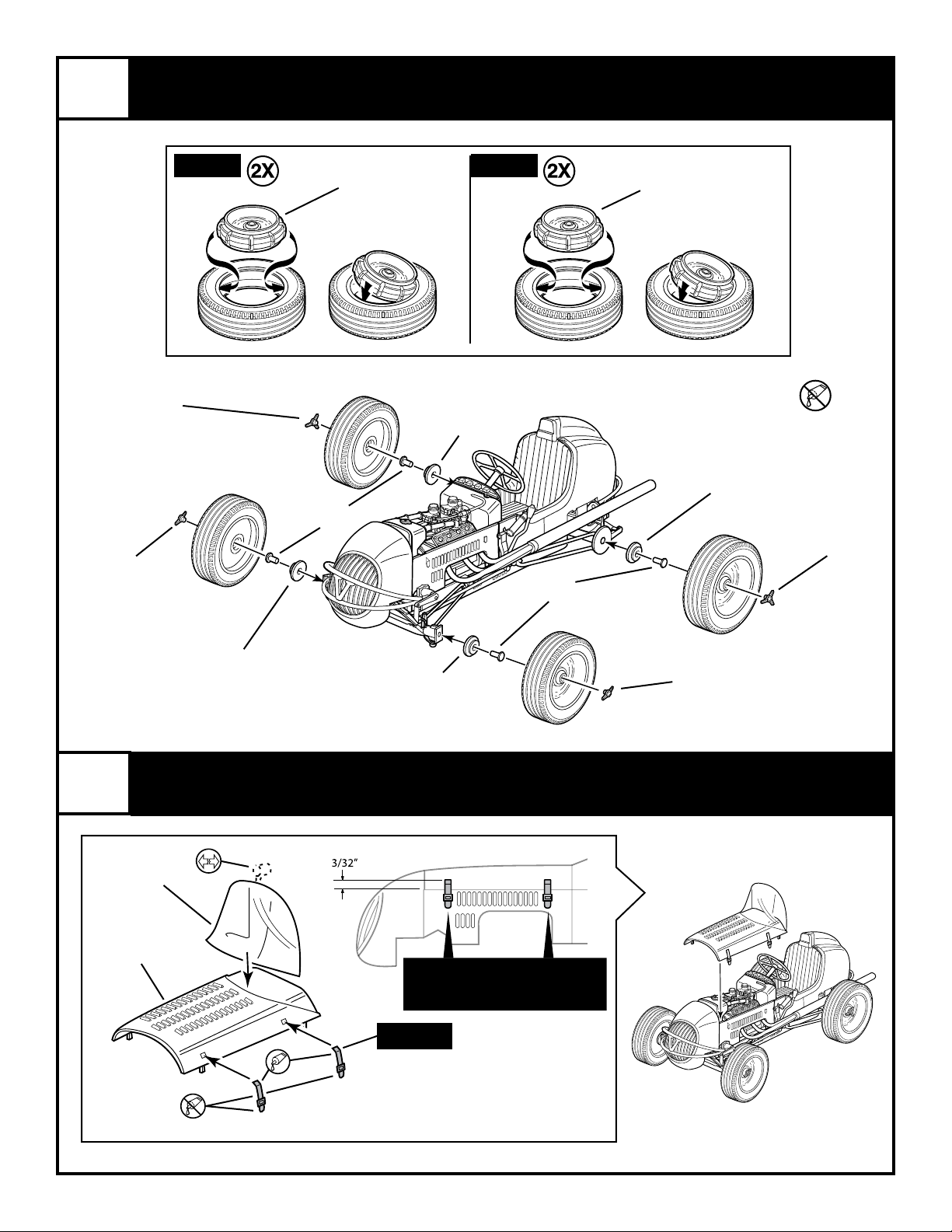

12
