REVELL F-14D Tomcat User Manual [en, fr, nl, it, gr, da, no, fi, sv, es, pt, de, en, hr, et, fi, hu, lv, lt, nl, pl, ro, ru, sr, sk, sl, cs, tr, gr, bg, uk, ch, he, ar, ja, ch, ch, ko, hi, id, kk, ms, fa, pt, es, th, vi, sq, mk]

The F-14D was introduced in

1990 as new production aircraft or
F-14A remanufactured. The F-14D
Tomcat was the most advanced
F-14 deployed. It remained in
service until 2008 when all the
Tomcat aircraft should have been
replaced by the F/A-18E/F Super
Hornet. The US Navy officially
retired the F-14 Tomcat during a
ceremony held at Naval Air Station
Oceana on September 22, 2006.
Your Revell model includes option­al armament, a seated pilot or stand­ing figures of pilot and radar officer
plus two long range fuel tanks and
authentic decals for two versions.

KIT 5527 85552700200

F-14D TOMCAT

* REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome
plated plastic.

* For better paint and decal adhesion, wash

the plastic parts in a mild detergent solution.
Rinse and let air dry.

* Check the fit of each piece before

cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas

to be cemented.
* Allow paint to dry thoroughly before

handling parts.
* Any unused parts may be discarded.

DECAL APPLICATION INSTRUCTIONS

1. Cut desired decal from sheet.

2. Dip decal in water for a few seconds.

3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing.

5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth.

7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any

excess adhesive.

8. Do not touch decal until fully dry.

9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with

setting solutions or solvents.

* OPTIONAL PARTS

* PIECES EN OPTION

* DECAL

* DECAL COMANIE

* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants,

laver les pièces en plastique avec une solution détergente
peu concentrée. Les rincer et les laisser sécher à l'air.

* Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICATION DES AUTOCOLLANTS

1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes.

3. Placer l'autocollant mouillé sur une serviette en papier.

4. Attendez que l'autocollant puisse être déplacé sur son support

en papier.

5. Mettre l'autocollant en position sur le modèle face sur

le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.

7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au

séchage. Essuyer pour enlever tout excédent d'adhésif.

8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.

9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec

* ALTERNATIVE ASSEMBLY

* ENSEMBLAGE ALTERNATIVE

les solutions de fixage ou les solvants.

* CEMENT TOGETHER

* A COLLER

* REMOVE AND THROW AWAY

* A RETIRER ET JETER

This paint guide is provided to complete this kit

Ce guide de peintures est fourni pour reproduire le modèle

Semi Gloss Black

Gunship Gray

Gray

Insignia Red

Medium Gray

Dark Gray

Semi Gloss White

Aluminum

Silver

Steel

Flat Yellow

Gloss Red

Gloss Green

as shown on the box.

réduit qui apparaît sur la boîte.

* DO NOT CEMENT

* NE PAS COLLER

Noir satiné

Gris hélicoptére

Gris

Rouge Embléme

Gris moyen

Gris foncé

Blanc satine

Aluminum

Argent

Acier

Jaune mat

Rouge brillant

Vert brillant

If you have any questions or comments, call our hotline at: [phone]

or, please write to:

Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007

Be sure to include the plan number (85552700200), part number, description, your return address and phone number.

Visit our website: www.revell.com

Revell Inc Elk Grove Village, IL. Copyright © 2009. All rights reserved.

1

COCKPIT ASSEMBLY

122

FRONT

INSTRUMENT

PANEL

SEMI GLOSS

BLACK

11

COCKPIT

SEMI GLOSS

BLACK

110

RIGHT

SEAT SIDE

GRAY

GREEN

DARK GRAY

123

REAR

INSTRUMENT PANEL

SEMI GLOSS BLACK

DARK GRAY

GREEN

DARK GRAY

107

SEAT

DARK GRAY

19

REAR

CONTROL STICK

SEMI GLOSS BLACK

1

FUSELAGE

TOP

YELLOW
STRIPES

EJECTION SEAT HANDLE

108

SEMI GLOSS BLACK

PILOT ARM

66

65

PILOT

109

LEFT

SEAT SIDE

GRAY

18

FRONT

CONTROL STICK

SEMI GLOSS BLACK

COLOR NOTE:

WHITE: HELMETS
OLIVE GREEN: SUIT, LIFE VEST,
AND PARACHUTE STRAPS
SILVER: BUCKLES ON STRAPS
DARK GRAY: MASK AND HOSE
BLACK: BOOTS

Kit 5527 - Page 2

2

FUSELAGE SIDE / WING ASSEMBLY

ALUMINUM

HOLES FOR

FUEL TANKS HOLES FOR

31 L

DECAL

COMPRESSOR BLADES

23

STEEL

7

RIGHT

WING TOP

FUSELAGE BOTTOM

2

8

LEFT

WING TOP

21

LEFT

FUSELAGE SIDE

31 R

DECAL

FUEL TANKS

RIGHT

FUSELAGE SIDE

20

9

RIGHT

WING BOTTOM

FUSELAGES
TOGETHER

10

LEFT

WING BOTTOM

ALUMINUM

2

FUSELAGE

BOTTOM

VIEW WITH WINGS IN PLACE

*

*

IF YOU DECIDE TO USE THE LADDER
IN THE LAST STEP (#18), CUT OUT
THE SHADED AREA IN THIS STEP.

Kit 5527 - Page 3

3

GEAR DOOR / POD ASSEMBLY

127

LEFT

NOSE GEAR

DOOR BOX

STEEL

LEFT

NOSE GEAR

WELL

SEMI GLOSS

WHITE

126

LEFT

NOSE GEAR

DOOR BLISTER

4

34

NOSE GEAR

ACTUATOR

SEMI GLOSS WHITE

ALUMINUM

28

27

RIGHT

NOSE GEAR WELL

SEMI GLOSS WHITE

TCS with IR SENSOR

VF-2 VERSION

105
BOTTOM
SENSOR

POD

VF-213 VERSION

125
BOTTOM
SENSOR

POD

GUN PANEL / EXHAUST ASSEMBLY

104

TOP

SENSOR

POD

124

TOP

SENSOR

POD

22

RADOME

71

ANGLE OF

ATTACK PROBE

STEEL

25

GUN PANEL

AFTERBURNER

102

EXHAUST NOZZLE

WITH SLOT

STEEL

ARRESTING HOOK

3

SEMI GLOSS

WHITE

ALUMINUM

103

STEEL

101

EXHAUST NOZZLE

STEEL

Kit 5527 - Page 4

5

6

VERTICAL TAIL

FAIRING

5

LEFT

VERTICAL TAIL

VERTICAL TAIL

FAIRING

TAIL ASSEMBLY

4

RIGHT

VERTICAL TAIL

6

REAR VIEW OF FINS

6

MAIN WHEEL

DARK GRAY

120

FRONT

FLAT BLACK

SEMI GLOSS WHITE

DARK GRAY

LEFT MAIN WHEEL ASSEMBLY

63

LEFT

121

MAIN WHEEL

BACK

FLAT BLACK

52

LEFT

MAIN GEAR STRUT

INNER HALF

SEMI GLOSS WHITE

MAIN GEAR STRUT

OUTER HALF

SEMI GLOSS WHITE

SILVER

Kit 5527 - Page 5

6

61

LEFT

MAIN GEAR

DOOR

LEFT WHEEL ASSEMBLY CONTINUED

53

MAIN GEAR

RETRACTION

STRUT

SEMI GLOSS

WHITE

57

LEFT

MAIN GEAR

INNER DOOR

59

LEFT

MAIN GEAR

OUTER DOOR

7

SEMI GLOSS WHITE

128

LARGE ECM

BLISTER

129

SMALL ECM

BLISTER

RIGHT MAIN WHEEL ASSEMBLY

SILVER

120

MAIN WHEEL

FRONT

FLAT BLACK

51

RIGHT

MAIN GEAR STRUT

INNER HALF

SEMI GLOSS WHITE

Kit 5527 - Page 6

62

RIGHT

MAIN GEAR STRUT

OUTER HALF

SEMI GLOSS WHITE

121

MAIN WHEEL

BACK

FLAT BLACK

SEMI GLOSS

WHITE

7

RIGhT whEEl ASSEMBlY CONTINUED

53

MAIN GEAR

RETRACTION

STRUT

SEMI GLOSS

WHITE

60

RIGHT

MAIN GEAR

DOOR

SEMI GLOSS WHITE

128

LARGE ECM

BLISTER

56

RIGHT

MAIN GEAR

INNER DOOR

8

SEMI GLOSS

WHITE

32

LEFT

NOSE GEAR

LINK

SEMI GLOSS

WHITE

SMALL ECM

NOSE whEEl ASSEMBlY

36

NOSE WHEELS

FLAT BLACK

33

NOSE GEAR STRUT

SEMI GLOSS WHITE

(SHADED PART ALUMINUM)

129

BLISTER

31

RIGHT

NOSE GEAR

LINK

SEMI GLOSS-

WHITE

69

NOSE GEAR

LIGHT

CLEAR

30

BRAKE

CYLINDER

SEMI GLOSS

WHITE

58

RIGHT

MAIN GEAR

OUTER DOOR

Kit 5527 - Page 7

9

BOMB ASSEMBLY

AN/ALQ-167

LANTRIN POD

MK-82

500-POUND

BOMB

10

147

LEFT

144

TOP

148

RIGHT

AN/ALQ-167

LANTRIN POD

152

TOP

GBU-31 (V2/B) JDAM

2000 LB. BOMB

145

BOTTOM

MK-82

500-POUND

BOMB

151

BOMB FIN

149

GBU-12 LASER GUIDED

TOP

500LB. BOMB

150

BOTTOM

GBU-12 LASER GUIDED

500LB. BOMB

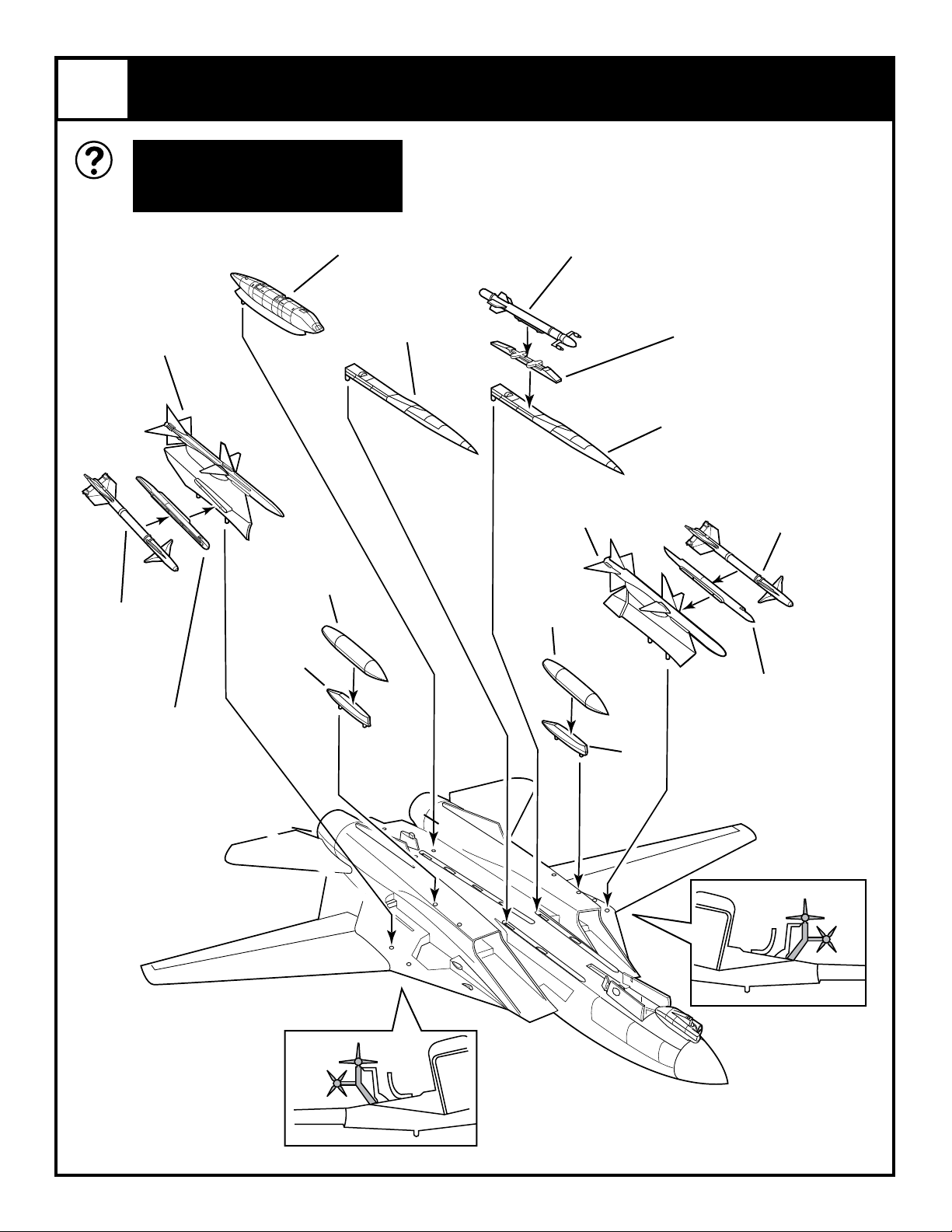

MISSILE ASSEMBLY

RIGHT WEAPON PYLON

OUTER WITH AIM 7M

41

SPARROW

153

BOTTOM

GBU-31 (V2/B) JDAM

2000 LB. BOMB

151

BOMB FIN

LEFT WEAPON PYLON

47

INNER WITH AIM 7M

MISSILE

RIGHT WEAPON PYLON

PHOENIX MISSILE

46

INNER WITH AIM 7M

SPARROW

43

AIM-54C

BROWN

YELLOW

141

MISSILE FIN

73

AIM-54C

PHOENIX MISSILE

SATIN

WHITE

STEEL

STEEL

140

AIM 9M

SIDEWINDER

LIGHT GRAY

LEFT WEAPON PYLON

OUTER WITH AIM 7M

MISSILE FIN

42

SPARROW

STEEL

STEEL

49

BROWN

YELLOW

48

AIM 9M

SIDEWINDER

LIGHT GRAY

141

MISSILE FIN

STEEL

49

MISSILE FIN

STEEL

Kit 5527 - Page 8

11

POD / PYLON / FUEL TANK AssEmbLY

155

BOTTOM

AN/ALQ-167

ECM POD

159

RIGHT

PHOENIX

PYLON

135

LEFT

WEAPONS

PYLON

AN/ALQ-167

ECM POD

158

LEFT

PHOENIX

PYLON

137

LEFT

WEAPONS

PYLON

154

TOP

157

RIGHT

TARPS POD

131

BOTTOM

FUEL TANK

136

RIGHT

WEAPONS

PYLON

156

LEFT

TARPS POD

130

TOP

FUEL TANK

138

RIGHT

WEAPONS

PYLON

12

vErsiON 1 ArmAmENT

AIM - 7M

SPARROW MISSILES

146

Kit 5527 - Page 9

13

LASER

GUIDED

BOMB

version 2 armament

GBU-31 (V2/B) JDAM

2000 LB. BOMB

LASER GUIDED

BOMB

GBU-31 (V2/B) JDAM

2000 LB. BOMB

AIM-54C

PHOENIX MISSILE

FUEL TANK

PHOENIX

PYLON

LEFT

WEAPONS

PYLON

142

BRU-32 WITH

ADU-703 BOMB

PYLONS

WEAPONS RAIL

132

LEFT

FUEL TANK

RACK

45

LEFT

FUEL TANK

133

RIGHT

FUEL TANK

RACK

44

RIGHT

WEAPONS RAIL

LANTIRN POD

WITH ADAPTER

RIGHT

WEAPONS

PYLON

142

BRU-32 WITH

ADU-703 BOMB

PYLONS

Kit 5527 - Page 10

14

*

version 3 armament

CUT WEAPONS RAIL, PARTS 44 AND 45
IN HALF AT THE MIDDLE JOINT. USE THE
FRONT SECTION ONLY.

142

BRU-32 WITH

ADU-703 BOMB

TARPS POD

PYLON

MK-82

500-POUND

BOMBS

BRU-32 WITH

ADU-703 BOMB

44

RIGHT

*

WEAPONS RAIL

142

PYLON

SIDEWINDER LAUNCH

134

RAIL WITH CHAFF

DISPENSER

140

AIM 9M

SIDEWINDER

MISSILE

LEFT

WEAPONS

PYLON

132
LEFT
FUEL

TANK
RACK

FUEL TANK

45

LEFT

*

WEAPONS

RAIL

RIGHT

WEAPONS

PYLON

FUEL TANK

133

RIGHT

FUEL
TANK

RACK

140

AIM 9M

SIDEWINDER

MISSILE

SIDEWINDER LAUNCH

134

RAIL WITH CHAFF

DISPENSER

Kit 5527 - Page 11

15

version 4 armament

CUT WEAPONS RAIL, PARTS 44 AND 45

*

IN HALF AT THE MIDDLE JOINT. USE THE
FRONT SECTION ONLY.

WEAPONS PYLON WITH

AIM 9M

SIDEWINDER

MISSILE

LEFT

AIM 7M SPARROW

48

50

SIDEWINDER

LAUNCH RAIL

LIGHT GRAY

132
LEFT
FUEL
TANK

RACK

TARPS POD

FUEL TANK

45

*

LEFT

WEAPONS RAIL

AN/ALQ-167

ECM POD

WEAPONS PYLON WITH

RIGHT

AIM 7M MISSILE

FUEL TANK

133

RIGHT

FUEL
TANK
RACK

142

BRU-32 WITH

ADU-703 BOMB

PYLONS

44

*

RIGHT

WEAPONS RAIL

SIDEWINDER

LAUNCH RAIL

LIGHT GRAY

48

AIM 9M

SIDEWINDER

MISSILE

50

Kit 5527 - Page 12

16

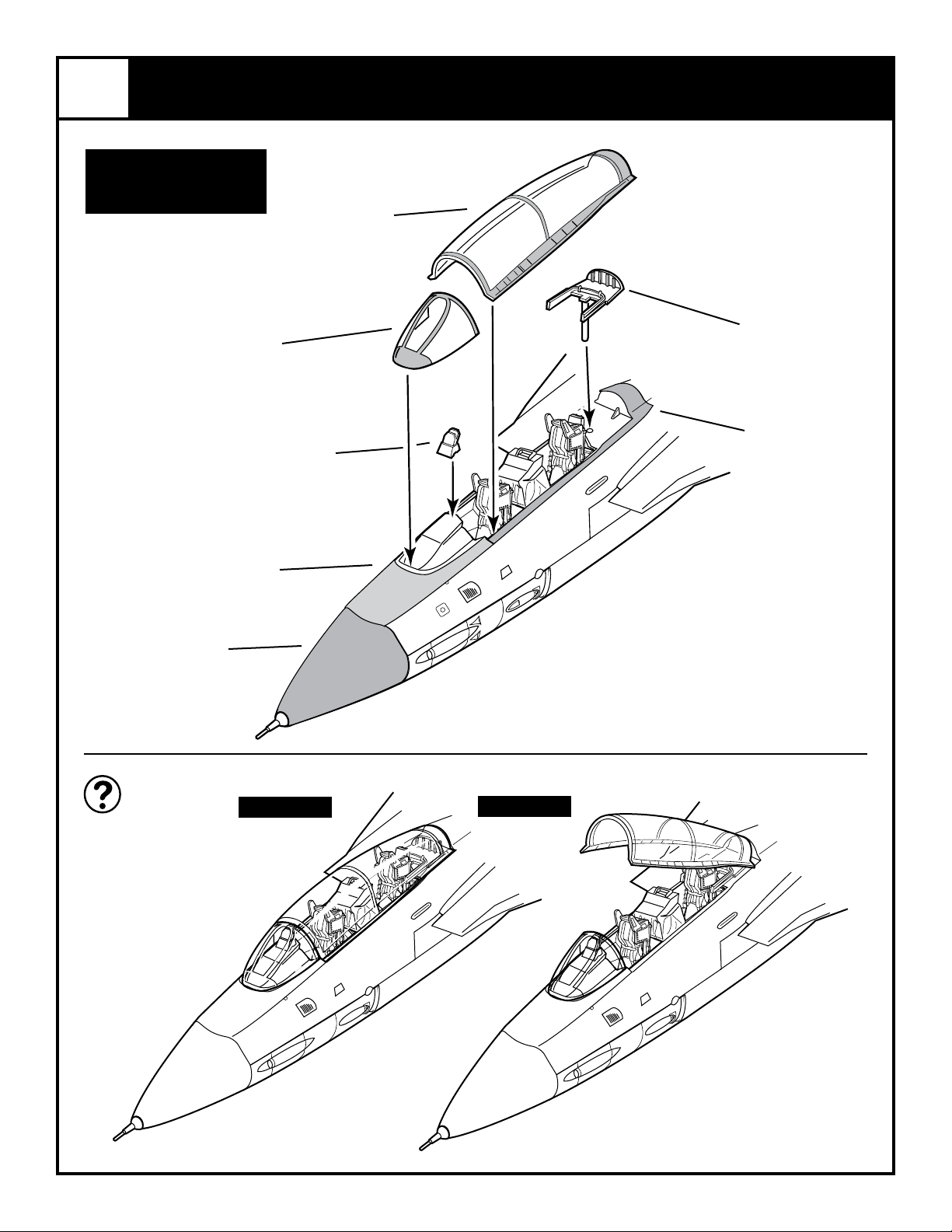

PAINT NOTE:
FRAME ON CANOPY AND
WINDSHIELD DARK GRAY

67

WINDSCREEN

CANOPY ASSEMBLY

68

CANOPY

24

CANOPY DECK

DARK GRAY

GUNSHIP GRAY

DARK GRAY

165

HEADS UP DISPLAY

CLEAR

CLOSED

DARK GRAY

0PEN

Kit 5527 - Page 13

17

FRONT assembly

40

TOTAL

TEMPERATURE

PROBE

37

ANGLE OF

ATTACK PROBE

(AIC)

18

38

PITOT STATIC

PRESSURE PROBE

laDDeR assembly

STARBOARD SIDE

PORT SIDE

39

ANGLE OF ATTACK

SIDE PROBE

37

ANGLE OF

ATTACK PROBE

(AIC)

38

PITOT STATIC

PRESSURE PROBE

19

161

ARM

162

FIGURE

163

BACK

LADDER

DARK GRAY

FIGURes assembly

COMPLETED

FIGURE

FIGURE A

COLOR NOTE:

WHITE: HELMETS
OLIVE GREEN: SUIT, LIFE VEST,
AND PARACHUTE STRAPS
SILVER: BUCKLES ON STRAPS
DARK GRAY: MASK AND HOSE
BLACK: BOOTS

FIGURE B

160

FIGURE

164

BACK

26

COMPLETED

FIGURE

Kit 5527 - Page 14

(INSIDE
FIN)

20

decal placement

Kit 5527 - Page 15

21

decal placement

Kit 5527 - Page 16
