The A-4 Skyhawk was designed as a small

light weight jet attack aircraft capable of oper­ating from aircraft carriers. The Skyhawk was
used extensively during the war in Vietnam
where it gained a reputation for being rugged
and reliable. A-4's were also used by the Blue
Angels flight demonstration team. The Blue
Angels are well known the world over for their
impressive performances of precision aero­batics. Flying in tight formation, these four
outstanding U.S. Navy flyers captivate their
audiences with breath-taking maneuvers.
Your Monogram model features an open or
closed canopy with detailed cockpit and pilot,
two optional external fuel tanks, center bomb
pylon with six bombs and two wing mounted
missiles and decals to build any one of the four
aircraft from the Blue Angels team of 1978 or
A-4E Skyhawk of LVDR John S. McCain,
VA-45 Klansmen, USS Forestal, June 1967.

KIT 5310 85531000200

BLUE ANGELS' A-4 SKYHAWK

* REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome
plated plastic.

* For better paint and decal adhesion, wash

the plastic parts in a mild detergent solution.
Rinse and let air dry.

* Check the fit of each piece before

cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas

to be cemented.
* Allow paint to dry thoroughly before

handling parts.
* Any unused parts may be discarded.

DECAL APPLICATION INSTRUCTIONS

1. Cut desired decal from sheet.

2. Dip decal in water for a few seconds.

3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing.

5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth.

7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any

excess adhesive.

8. Do not touch decal until fully dry.

9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with

setting solutions or solvents.

* REPEAT PROCEDURE

* R E P E T E Z L E P R O C E D E

* OPTIONAL PARTS

`` ` ` `

* PIECES EN OPTION

* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants,

laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.

* Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICATION DES AUTOCOLLANTS

1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes.

3. Placer l'autocollant mouillé sur une serviette en papier.

4. Attendez que l'autocollant puisse être déplacé sur son

support en papier.

5. Mettre l'autocollant en position sur le modèle face sur

le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulle was

d'air.

7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au

séchage. Essuyer pour enlever tout excédent d'adhésif.

8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.

9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec

* DECAL

* DECAL COMANIE

les solutions de fixage ou les solvants.

* ASSEMBLY CAUTION

*ATTENTION D ASSEMBLEE

* CEMENT TOGETHER

* A COLLER

This paint guide is provided to complete this kit

Ce guide de peintures est fourni pour reproduire le modèle

Flat Black

Light Gull Gray

Dark Gray

Aluminum

Green

Insignia Red

Steel

Yellow

Blue Angel Blue

Orange

Red

Gloss White

Olive Drab

* REMOVE AND THROW AWAY

* A RETIRER ET JETER

as shown on the box.

réduit qui apparaît sur la boîte.

Noir mat

Gris clair

Gris foncé

Aluminium

Vert

Rouge emblemé

Acier

Jaune

Blue angélique

Orange

Rouge

Blanc brillant

Gris vert

* DO NOT CEMENT

* NE PAS COLLER

If you have any questions or comments, call our hotline at: [phone]

or, please write to:

Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007

Be sure to include the plan number (85531000200), part number, description, your return address and phone number.

Visit our website: www.revell.com

Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.

1

COCKPIT / FUSELAGE ASSEMBLY

40

PILOT

39

PILOT ARM

2

DECAL

FLAT BLACK

22

CONTROL

STICK

DARK GRAY

DECAL

PAINT NOTE:

PILOT - WHITE OR DARK GREEN HELMET WITH

BLACK TRIM, OLIVE DRAB SUIT, DARK GRAY MASK

AND HOSE, BLACK BOOTS, LIGHT GRAY CHUTE

STRAPS WITH SILVER BUCKLES, BLACK GLOVES.

44

RIGHT

53

RIGHT

INTAKE

FUSELAGE

4

DECAL

FLAT BLACK

LIGHT GRAY

(STRAPS)

3

DECAL

21

COCKPIT

1

DARK GRAY WITH

BLACK INSTRUMENTS

INSTRUMENT PANEL

DARK GRAY WITH BLACK INSTRUMENTS

23

NOSE GEAR

20

WELL

WHITE

DARK GRAY

(BOTH SIDES)

BLUE ANGELS VERSION

11

SMALL FAIRING

31

AVIONIC PACK

RIGHT HALF

27

LEFT

INTAKE

AVIONIC PACK

LEFT HALF

55

1

LEFT

FUSELAGE

Kit 5310 - Page 2

2

WING ASSEMBLY

RIGHT

WING SLAT

UNDERSIDE RED

WING BOTTOM

3

47

45

RIGHT

WING TOP

2

5

LEFT

WING SLAT

UNDERSIDE RED

WING TOP

3

LEFT

MAIN WHEEL ASSEMBLY

ALUMINIUM

50

LEFT

MAIN GEAR STRUT

WHITE

14

MAIN WHEEL

FLAT BLACK

WHITE

9

LEFT

RETRACTION STRUT

WHITE

59

WING ANTENNA

WHITE

14

MAIN WHEEL

FLAT BLACK

WHITE

RETRACTION STRUT

51

RIGHT

WHITE

8

RIGHT

MAIN GEAR STRUT

WHITE

ALUMINIUM

Kit 5310 - Page 3Kit 5310 - Page 6

4

DOOR / FLAP ASSEMBLY

MAIN STRUT DOOR

52

LEFT

MAIN WHEEL DOOR

34

ECM

19

LEFT

16

RIGHT

MAIN WHEEL DOOR

34

ECM

4

LEFT

WING FLAP

RED

(INSIDE SURFACE)

WING FLAP

(INSIDE SURFACE)

MAIN STRUT DOOR

7

LEFT

CANNON

STEEL

46

RIGHT

RED

RIGHT

61

MAIN WHEEL DOOR

LANDING LIGHT

CLEAR

ANGLE OF FLAPS

16

RIGHT

62

34

ECM'S

5

ALUMINUM

12

NOSE GEAR

RETRACTION STRUT

WHITE

NOSE WHEEL ASSEMBLY

15

NOSE WHEEL

FLAT BLACK

WHITE

ALUMINUM

NOSE GEAR STRUT

13

YOKE

WHITE

10

WHITE

17

NOSE GEAR DOOR

RED

(INSIDE SURFACE)

NOSE STRUT DOOR

49

RIGHT

CANNON

STEEL

18

RED

(INSIDE SURFACE)

Kit 5310 - Page 4 Kit 5310 - Page 5

6

TAIL ASSEMBLY

61

TAIL STAND

CLEAR

30

ARRESTOR

HOOK

ANGLE OF AIR BRAKES

AIR BRAKE ACTUATOR

54

RIGHT

AIR BRAKE

RED

(INSIDE SURFACE)

29

ALUMINUM

7

RIGHT HORIZONTAL

48

STABILIZER

ALUMINUM

6

LEFT

HORIZONTAL

STABILIZER

ALUMINUM

AIR BRAKE ACTUATOR

29

ALUMINUM

LEFT

AIR BRAKE

(INSIDE SURFACE)

28

RED

CANOPY ASSEMBLY

FLAT BLACK

25

EXHAUST

NOZZEL

ALUMINUM

FLAT BLACK

(INSIDE)

63

WINDSHIELD

SHADED AREA

FUSELAGE COLOR

REFUELING PROBE

24

DARK GRAY

64

CANOPY

SHADED AREA

BLUE

FUSELAGE

COLOR

FLAT BLACK

CLOSED

OPEN

8

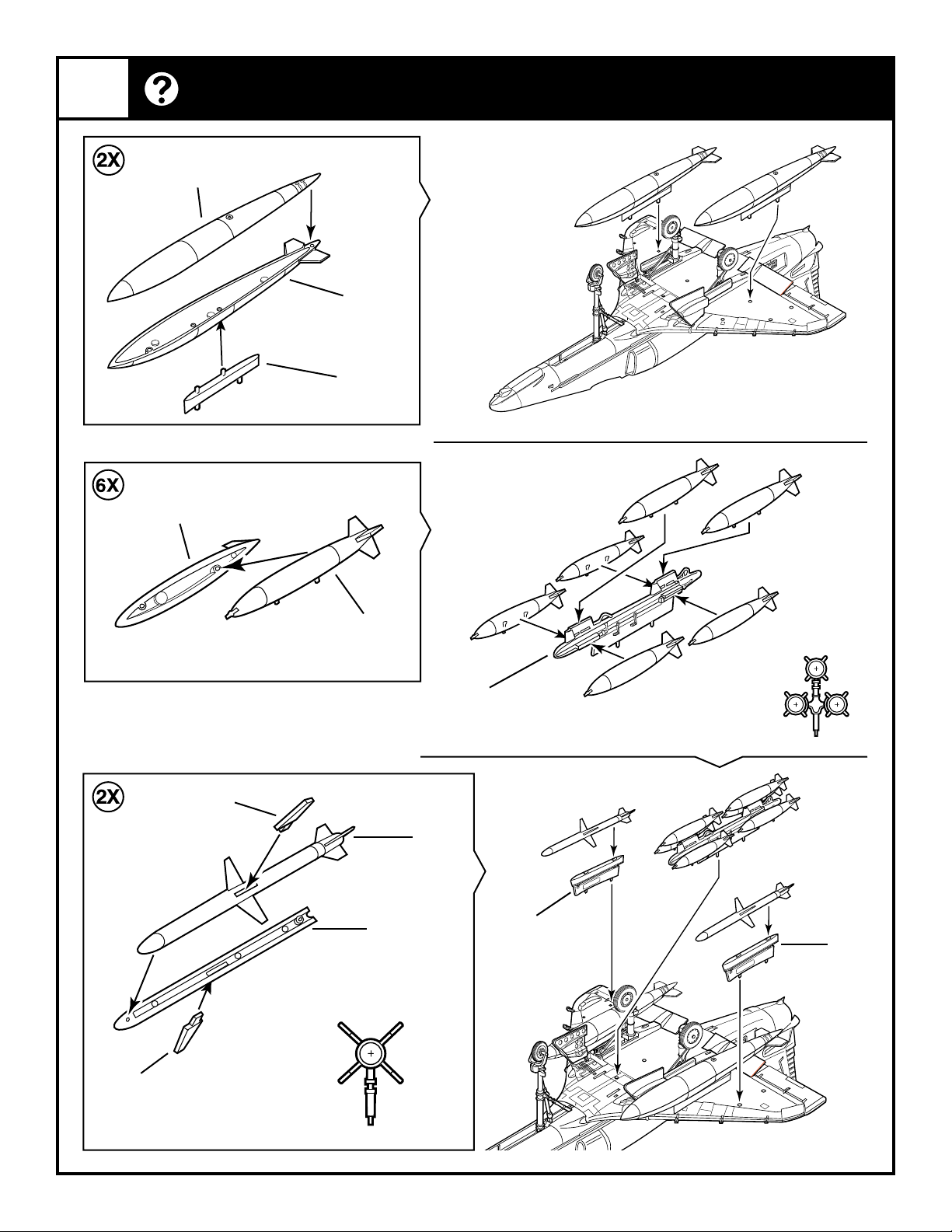

ARMAMENT ASSEMBLY

FUEL TANK BOTTOM

58

WHITE

57

BOMB HALF

OLIVE DRAB

38

FUEL TANK TOP

WHITE

26

FUEL TANK PYLON

WHITE

37

MISSILE FIN

WHITE

36

BOMB HALF

WITH FINS

OLIVE DRAB

MISSILE HALF

56

MISSILE HALF

WHITE

35

WITH FINS

WHITE

33

BOMB RACK

WHITE

32

MISSILE

PYLON

WHITE

32

MISSILE

PYLON

WHITE

37

MISSILE FIN

WHITE

9

DECAL PLACEMENT

Kit 5310 - Page 7

10

DECAL PLACEMENT

Kit 5310 - Page 8
