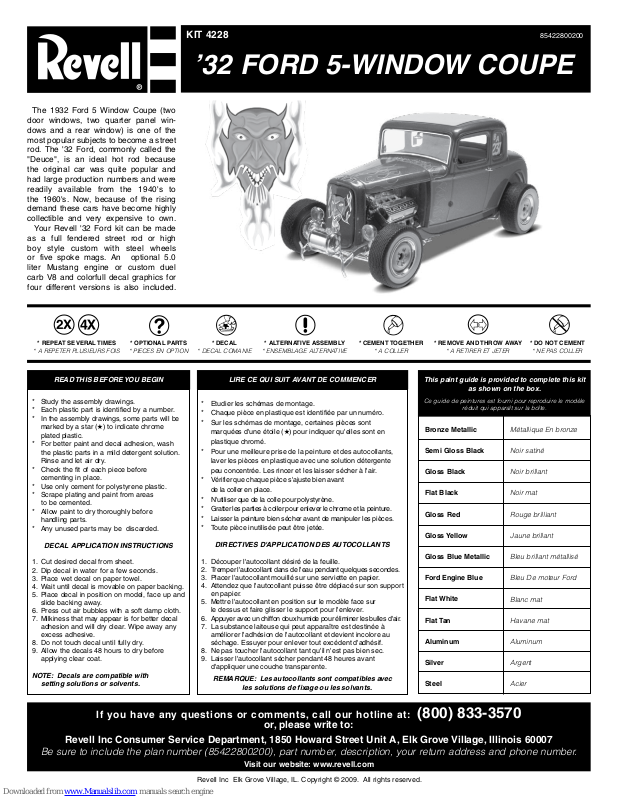

Page 1
The 1932 Ford 5 Window Coupe (two
door windows, two quarter panel windows and a rear window) is one of the
most popular subjects to become a street
rod. The '32 Ford, commonly called the
"Deuce", is an ideal hot rod because
the original car was quite popular and
had large production numbers and were
readily available from the 1940's to
the 1960's. Now, because of the rising
demand these cars have become highly
collectible and very expensive to own.
Your Revell '32 Ford kit can be made
as a full fendered street rod or high
boy style custom with steel wheels
or five spoke mags. An optional 5.0
liter Mustang engine or custom duel
carb V8 and colorfull decal graphics for
four different versions is also included.
KIT 4228 85422800200
’32 FORD 5-WINDOW COUPE
* REPEAT SEVERAL TIMES
* A REPETER PLUSIEURS FOIS
READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
NOTE: Decals are compatible with
setting solutions or solvents.
* OPTIONAL PARTS
* PIECES EN OPTION
* DECAL
* DECAL COMANIE
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente
peu concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son support
en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
REMARQUE: Les autocollants sont compatibles avec
* ALTERNATIVE ASSEMBLY
* ENSEMBLAGE ALTERNATIVE
les solutions de fixage ou les solvants.
* CEMENT TOGETHER
* A COLLER
* REMOVE AND THROW AWAY
* A RETIRER ET JETER
This paint guide is provided to complete this kit
Ce guide de peintures est fourni pour reproduire le modèle
Bronze Metallic
Semi Gloss Black
Gloss Black
Flat Black
Gloss Red
Gloss Yellow
Gloss Blue Metallic
Ford Engine Blue
Flat White
Flat Tan
Aluminum
Silver
Steel
as shown on the box.
réduit qui apparaît sur la boîte.
* DO NOT CEMENT
* NE PAS COLLER
Métallique En bronze
Noir satiné
Noir brillant
Noir mat
Rouge brilliant
Jaune brillant
Bleu brillant métallisé
Bleu De moteur Ford
Blanc mat
Havane mat
Aluminum
Argent
Acier
If you have any questions or comments, call our hotline at: (800) 833-3570
Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007
Be sure to include the plan number (85422800200), part number, description, your return address and phone number.
Revell Inc Elk Grove Village, IL. Copyright © 2009. All rights reserved.
or, please write to:
Visit our website: www.revell.com
Page 2
1
H531
ROCKER COVER
CHROME
536
LEFT
ENGINE HALF
BRONZE
highboy ENgiNE ASSEMbLy
H540
DUAL CARB
INTAKE
538
CYLINDER HEAD
BRONZE
H69
ALTERNATOR
CHROME
535
RIGHT
ENGINE HALF
BRONZE
EXHAUST HEADER FLANGE
H565
RIGHT
CHROME
H549
OIL FILLER
TUBE
CHROME
CHROME
VALLEY COVER
CYLINDER HEAD
OIL PAN
BRONZE
H537
CHROME
538
BRONZE
548
H531
ROCKER COVER
CHROME
H543
AIR CLEANERS
CHROME
DISTRIBUTOR
SEMI GLOSS
BLACK
H542
CARBURETORS
CHROME
71
534
PULLEY ASSEMBLY
FLAT BLACK BELT WITH
ALUMINUM PULLEYS
RIGHT SIDE OF ENGINE
533
OIL FILTER
WHITE
Kit 4228 - Page 2
541
WATER
PUMP
BRONZE
H544
RIGHT
EXHAUST HEADER
CHROME
561
WATER PUMP TOP
BRONZE
FIRST
67
STARTER
SEMI GLOSS BLACK
H566
EXHAUST HEADER FLANGE
LEFT
CHROME
H545
LEFT
EXHAUST
HEADER
CHROME
Page 3
50
LITER
HO
2
coupe engine assembly
72
OIL FILLER CAP
SEMI GLOSS BLACK
53
RIGHT
ENGINE BLOCK
FORD ENGINE BLUE
55
OIL PAN
ALUMINUM
H59
RIGHT
ROCKER COVER
CHROME
56
CYLINDER HEAD
FORD ENGINE BLUE
52
LEFT
ENGINE BLOCK
FORD ENGINE BLUE
H81
TRANSMISSION
OIL PAN
CHROME
H58
LEFT
ROCKER COVER
CHROME
56
CYLINDER HEAD
FORD ENGINE BLUE
H560
RIGHT CUSTOM
ROCKER COVER
CHROME
H73
AIR CLEANER
CHROME
H528
LEFT CUSTOM
ROCKER COVER
CHROME
H526
INTAKE PLENUM
CHROME
RIGHT SIDE OF ENGINE
527
INTAKE MANIFOLD
ALUMIINUM
67
STARTER
SEMI GLOSS
BLACK
DISTRIBUTOR
SEMI GLOSS BLACK
H70
COMPRESSOR
CHROME
H76
CARBURETOR TOP
CHROME
71
61
ENGINE WATER
PUMP COVER
FORD ENGINE BLUE
68
FAN BELT
FLAT BLACK BELT WITH
ALUMINUM PULLEYS
H69
ALTERNATOR
CHROME
CARBURETOR BOTTOM
H43
CHROME
60
INTAKE MANIFOLD
FORD ENGINE BLUE
66
OIL FILTER
GLOSS WHITE
Kit 4228 - Page 3
Page 4
3
cOupE WHEEL ASSEMBLY
FRONT
317
FRONT
INNER WHEEL
ALUMINUM
4
FRONT
REAR
SMALL TIRE
H304
OUTER
FRONT WHEEL
CHROME
REAR
318
REAR
INNER WHEEL
ALUMINUM
LARGE TIRE
HIGHBOY WHEEL ASSEMBLY
SMALL TIRE
H38
DISK BRAKE
CHROME
(CALIPER)
STEEL
FRONT AXLE
H28
CHROME
512
FRONT INNER
STEEL WHEEL
BODY COLOR
H38
DISK BRAKE
CHROME
FRONT OUTER
STEEL WHEEL
BODY COLOR
(CALIPER)
STEEL
511
H316
OUTER
REAR WHEEL
CHROME
H519
WHEEL
TRIM RING
CHROME
H516
HUB CAP
CHROME
H40
DISK BRAKE
CHROME
LARGE TIRE
514
REAR INNER
STEEL WHEEL
BODY COLOR
513
REAR OUTER
STEEL WHEEL
BODY COLOR
Kit 4228 - Page 4
(CALIPER)
STEEL
34
REAR COVER
SEMI GLOSS BLACK
REAR AXLE
SEMI GLOSS BLACK
H519
WHEEL
TRIM RING
CHROME
HUB CAP
CHROME
33
H516
H40
DISK BRAKE
CHROME
(CALIPER)
STEEL
Page 5
5
chassis assEMBLY
48
MASTER
CYLINDER
BOTTOM
STEEL
27
MASTER
CYLINDER
TOP
STEEL
88
CROSS MEMBER
BODY COLOR
SECOND
82
CHASSIS
BODY COLOR
FIRST
46
LEFT
EXHAUST
ALUMINUM
FIRST
47
RIGHT
EXHAUST
ALUMINUM
6
FRONT SHOCK
SECOND
H87
LEFT
CHROME
WhEELs TO chassis assEMBLY
89
REAR SHOCKS
STEEL
FIRST
562
STEERING BOX
STEEL
H31
RIGHT
FRONT SHOCK
CHROME
SECOND
Kit 4228 - Page 5
Page 6

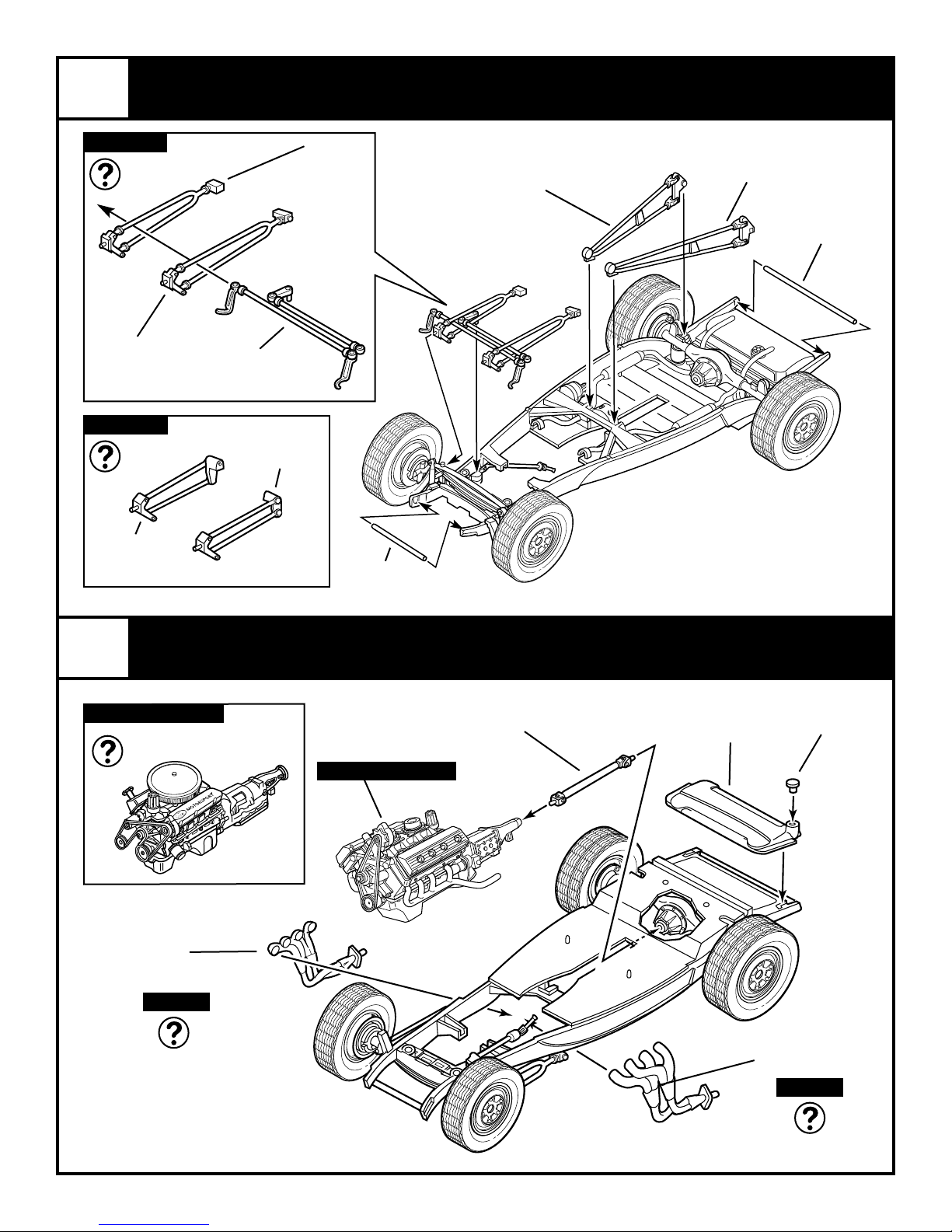

7
tie rod ASSeMBLY
HIGHBOY
H564
RIGHT
HAIRPIN
RADIUS ROD
CHROME
COUPE
H29
LEFT
RADIUS ROD
CHROME
H32
STEERING
LINKAGE
CHROME
RADIUS ROD
RADIUS ROD
H30
RIGHT
CHROME
H563
LEFT
HAIRPIN
CHROME
H11
FRONT
FRAME BAR
CHROME
H35
LEFT
STABLIZER BAR
CHROME
H36
RIGHT
STABLIZER BAR
CHROME
H12
REAR
FRAME BAR
CHROME
8
COUPE ENGINE
H62
RIGHT
EXHAUST HEADER
CHROME
COUPE
engine to frAMe ASSeMBLY
HIGHBOY ENGINE
37
DRIVESHAFT
ALUMINUM
86
GAS TANK
BODY COLOR
GAS CAP
CHROME
H63
LEFT
EXHAUST HEADER
CHROME
COUPE
H15
Kit 4228 - Page 6
Page 7
9
505
RIGHT
INTERIOR
SIDE
TAN
503
INTERIOR
FLOOR
TAN

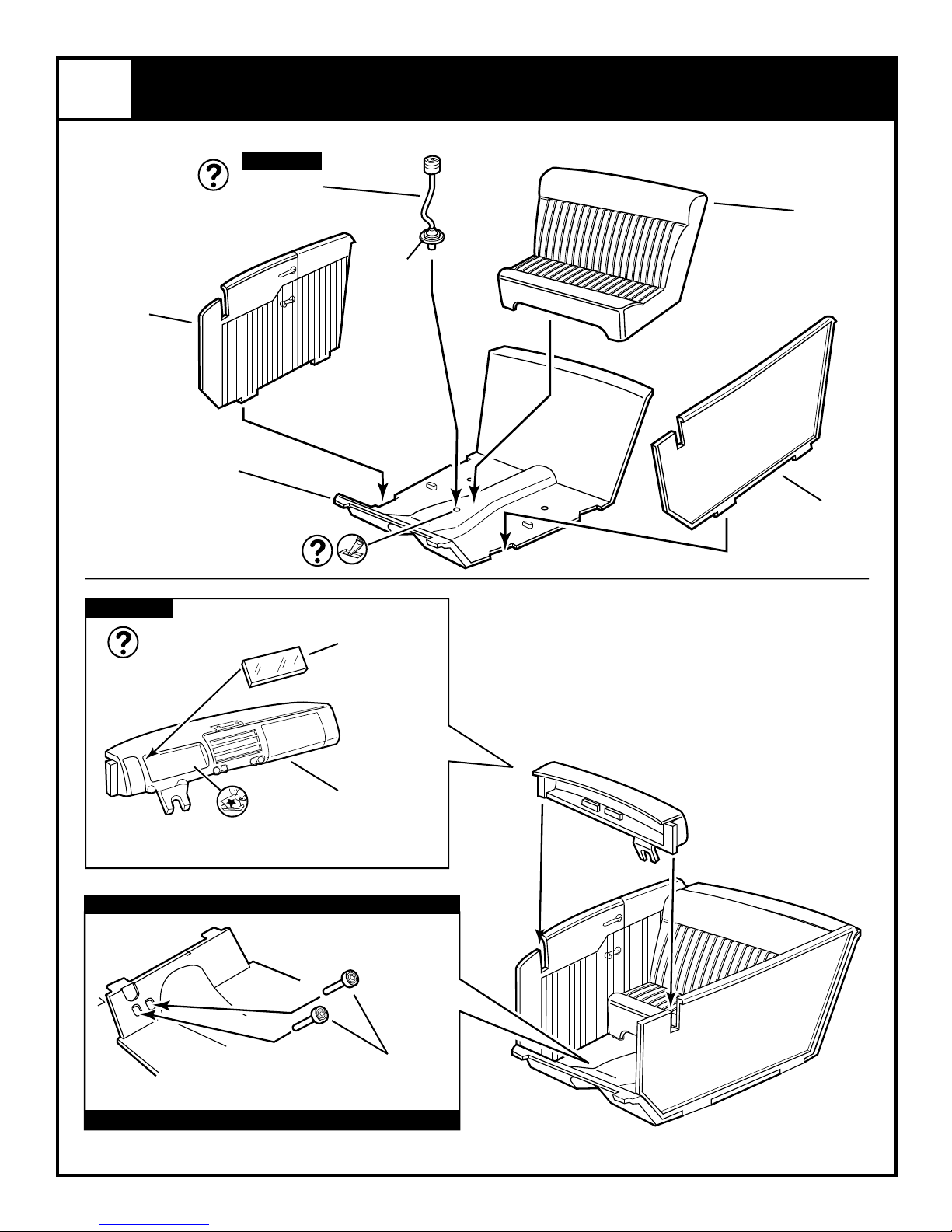

interior assembly
HIGHBOY
H567
GEAR SHIFTER
CHROME
FLAT
BLACK
508
FRONT SEAT
TAN
504
LEFT
INTERIOR
SIDE
TAN
HIGHBOY
556
GAUGE PANEL
CLEAR
506
DASHBOARD
17, 18, or 19
DECAL
BODY COLOR
HIGHBOY USES BOTH PEDALS
COUPE USES ONLY THE RIGHT PEDAL
26
PEDALS
SEMI GLOSS BLACK
Kit 4228 - Page 7
Page 8
10

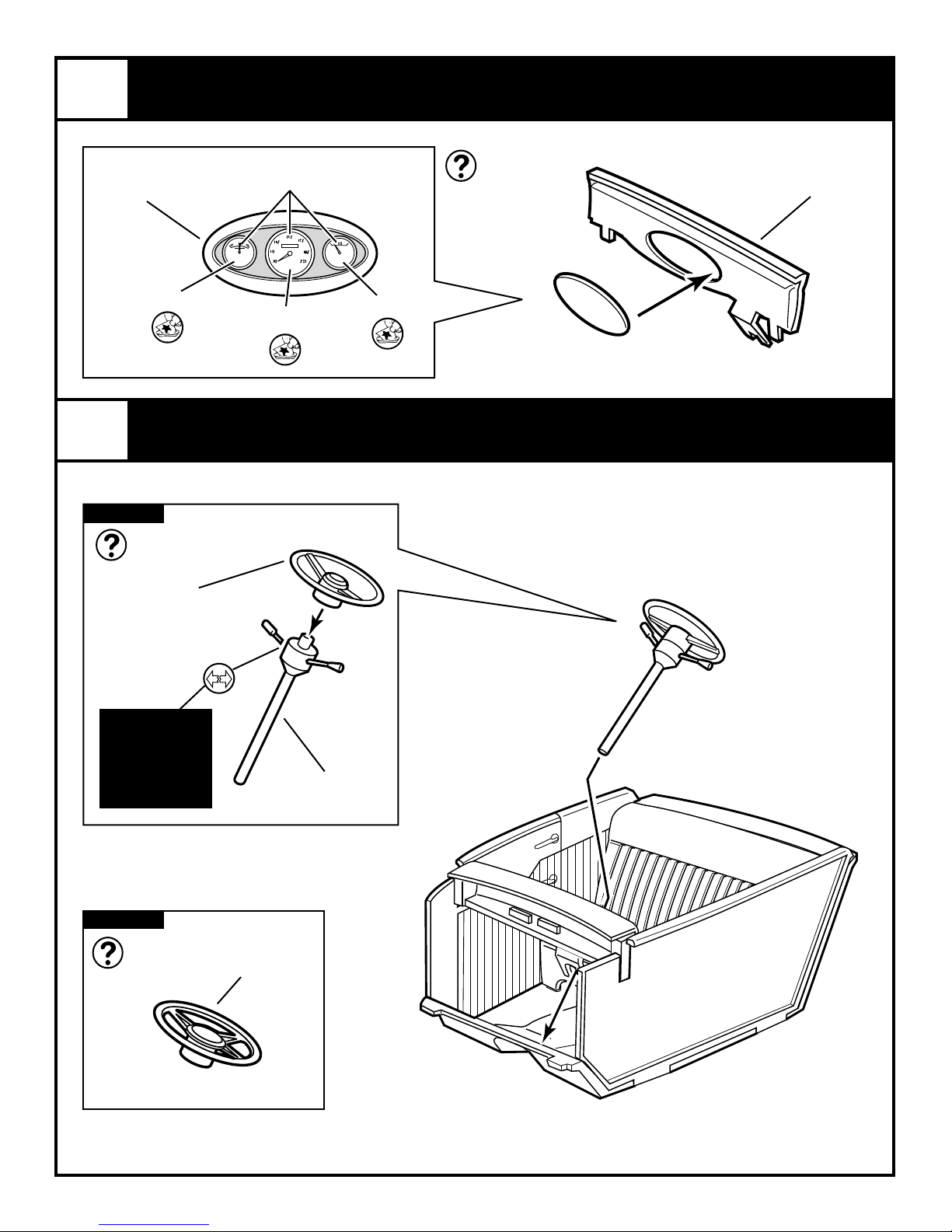

coupe dAshBoArd AsseMBlY
11
HIGHBOY
H221
GAUGES
CHROME
24
DECAL
507
STEERING WHEEL
BODY COLOR
WHITE WITH BLACK
DETAIL
25
DECAL
26
DECAL
DASHBOARD
BODY COLOR
steering wheel AsseMBlY
219
REMOVE
COLUMN
SHIFTER FOR
HIGHBOY
VERSION
COUPE
STEERING COLUMN
25
STEERING WHEEL
SEMI GLOSS BLACK
(RIM)
24
BODY COLOR
Kit 4228 - Page 8
Page 9

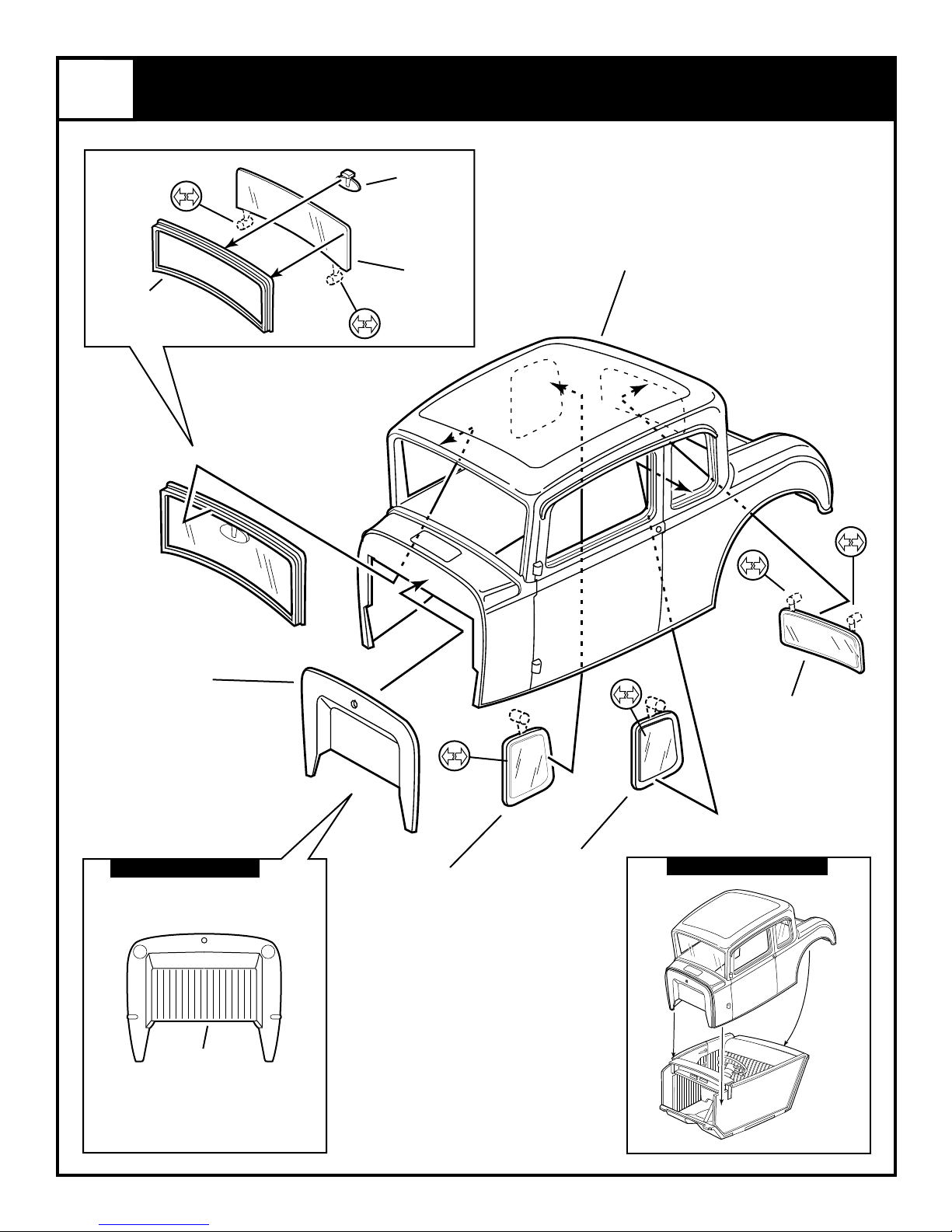

12
H518
WINDSHIELD
FRAME
CHROME
window ASSEMBLY
H17
REARVIEW
MIRROR
CHROME
500
BODY
550
WINDSHIELD
CLEAR
BODY COLOR
568
FIREWALL
BODY COLOR
FIREWALL REAR
568
FIREWALL
PAINT THIS SIDE TAN
TO MATCH INTERIOR
552
RIGHT
SIDE WINDOW
CLEAR
553
LEFT
SIDE WINDOW
CLEAR
551
REAR WINDOW
CLEAR
BODY TO INTERIOR
Kit 4228 - Page 9
Page 10
13
510
RIGHT REAR
INNER FENDER
BODY COLOR
HIGHBOY

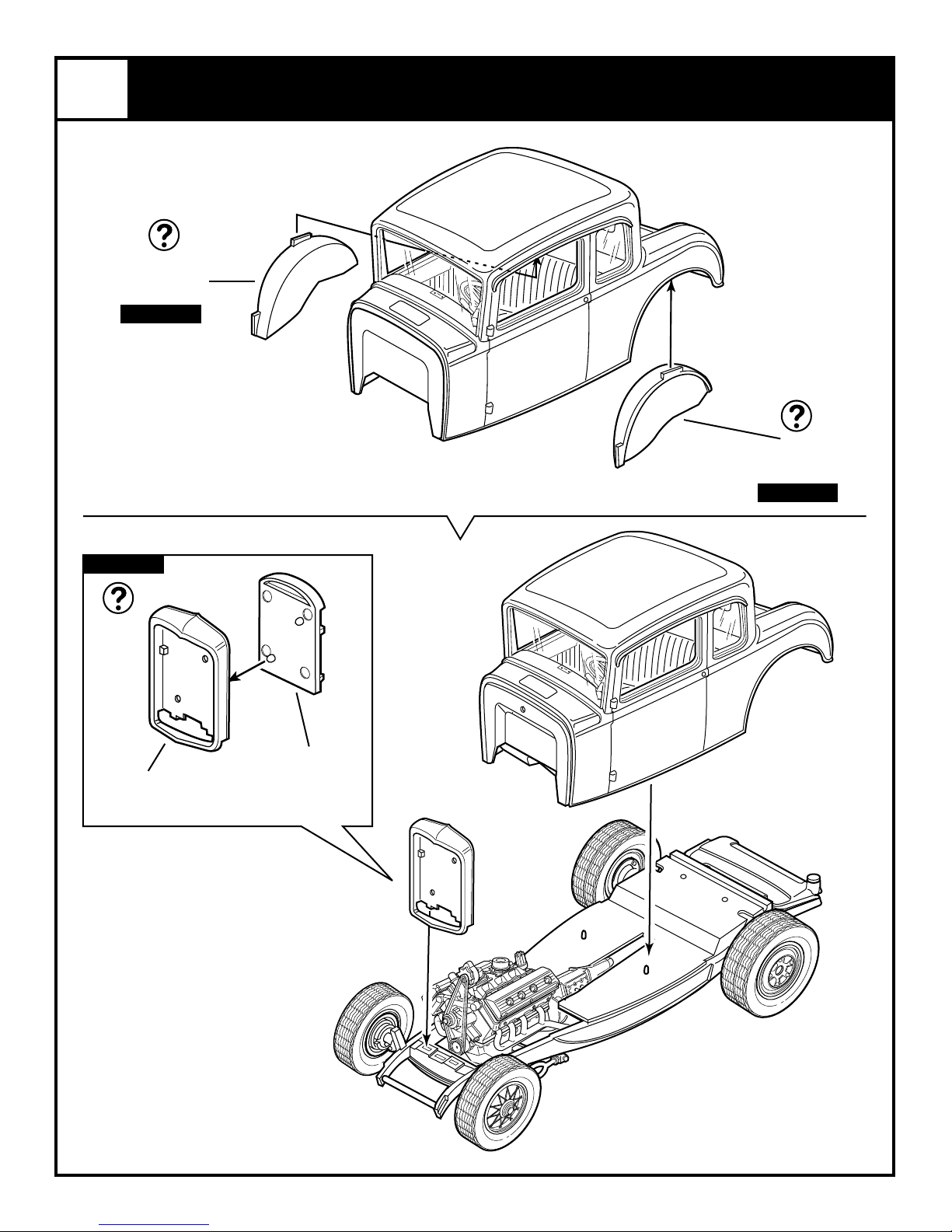

body / RAdIAToR Assembly
INNER FENDER
509
LEFT REAR
BODY COLOR
HIGHBOY
HIGHBOY
5
GRILLE SHELL
BODY COLOR
49
RADIATOR
SEMI GLOSS BLACK
Kit 4228 - Page 10
Page 11

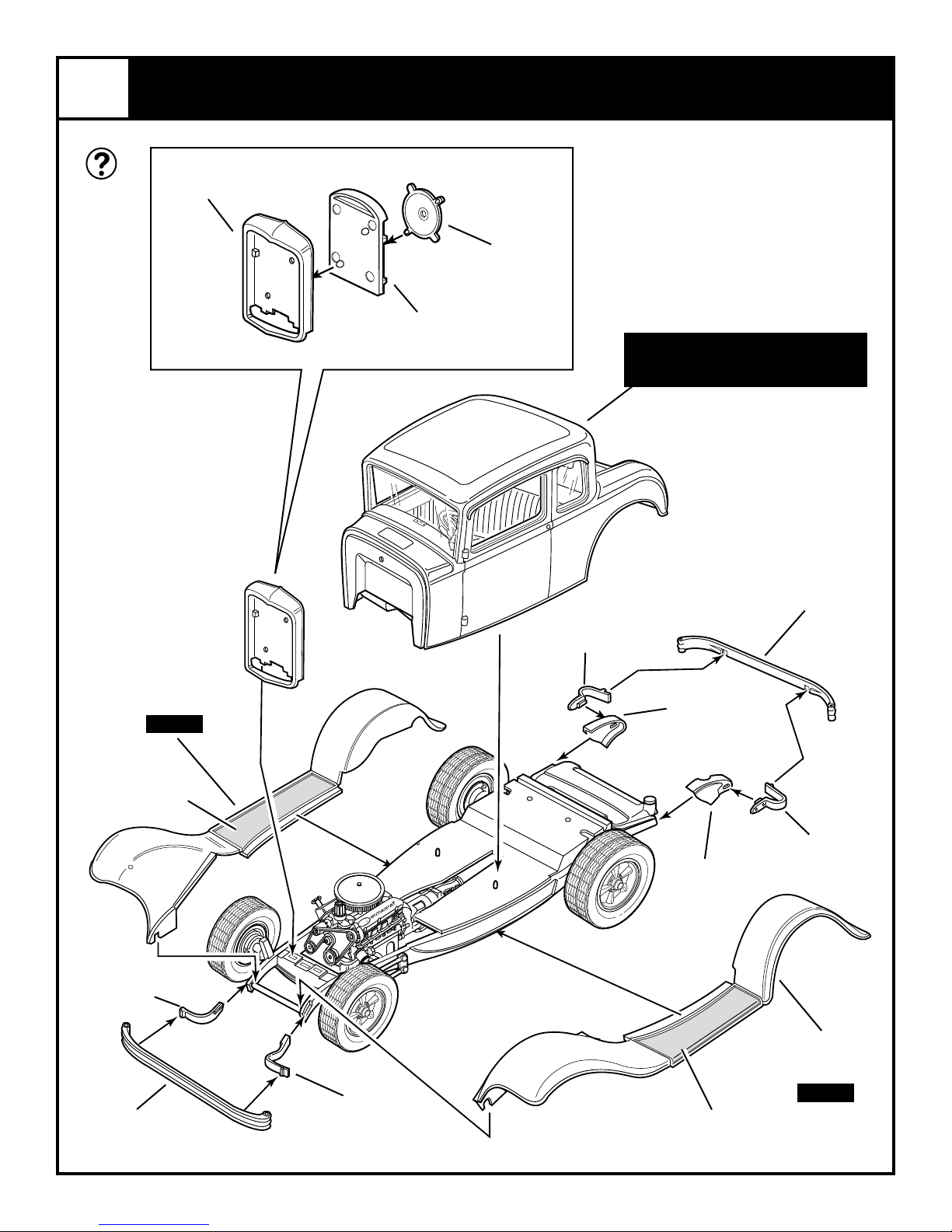

14
coupe fender / bumper ASSembLY
5
GRILLE SHELL
BODY COLOR
54
ELECTRIC FAN
SEMI GLOSS BLACK
49
RADIATOR
SEMI GLOSS BLACK
COMPLETED INTERIOR AND
BODY GOES ON SECOND
FENDER
BODY COLOR
FIRST
SEMI GLOSS BLACK
222
RIGHT
FRONT
BUMPER
BRACKET
BODY COLOR
202
RIGHT
220
REAR
BUMPER BRACKET
BODY COLOR
212
RIGHT REAR
FRAME COVER
BODY COLOR
211
LEFT REAR
FRAME COVER
BODY COLOR
H210
BUMPER
CHROME
220
REAR
BUMPER BRACKET
BODY COLOR
H210
BUMPER
CHROME
FRONT BUMPER
223
LEFT
BRACKET
BODY COLOR
SEMI GLOSS BLACK
203
LEFT
FENDER
BODY COLOR
FIRST
Kit 4228 - Page 11
Page 12
15

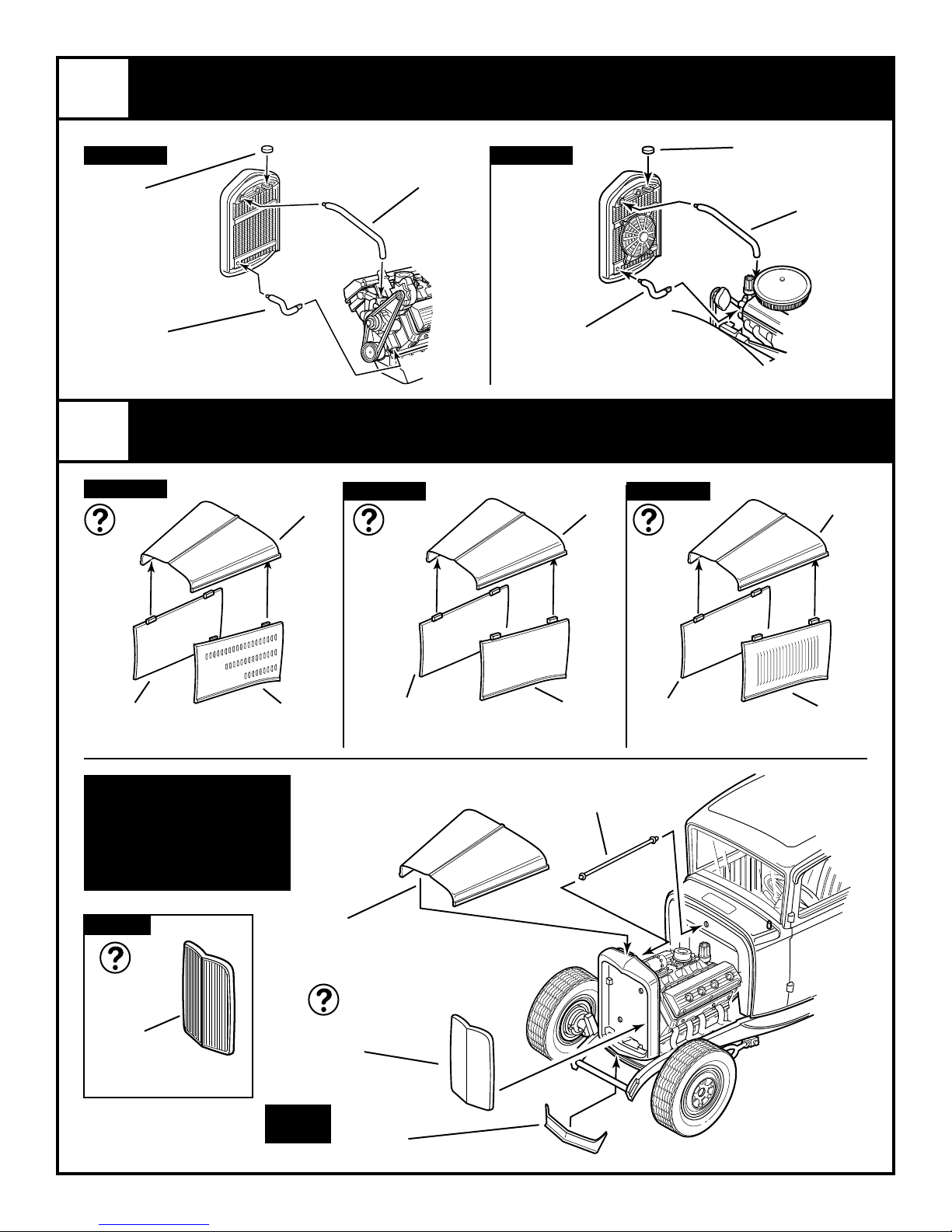

radiator assembly
HIGHBOY
RADIATOR CAP
CHROME
RADIATOR HOSE
16
COUPE
H16
547
LOWER
FLAT BLACK
546
UPPER
RADIATOR HOSE
FLAT BLACK
COUPE
RADIATOR HOSE
FLAT BLACK
51
LOWER
H16
RADIATOR CAP
CHROME
hood / grille assembly
2
HOOD TOP
BODY COLOR
COUPE COUPE
2
HOOD TOP
BODY COLOR
50
UPPER
RADIATOR HOSE
FLAT BLACK
2
HOOD TOP
BODY COLOR
530
RIGHT LOUVERED
HOOD SIDE
BODY COLOR
LEFT LOUVERED
HOOD SIDE
BODY COLOR
NOTE:
AS IN FULL SIZE HOTROD
BUILDING, HOOD SIDES
MAY HAVE TO BE FITTED
TO GRILLE SHELL,
HOOD TOP AND BODY
COUPE
H6
GRILLE
CHROME
COUPE
529
GRILLE
BODY COLOR
ONLY
RIGHT SMOOTH
2
HOOD TOP
BODY COLOR
515
FRONT
SPLASH PAN
BODY COLOR
206
HOOD SIDE
BODY COLOR
83
205
LEFT SMOOTH
HOOD SIDE
BODY COLOR
H74
RADIATOR SUPPORT
CHROME
224
RIGHT
HOOD SIDE
BODY COLOR
208
LEFT
HOOD SIDE
BODY COLOR
Kit 4228 - Page 12
Page 13
17

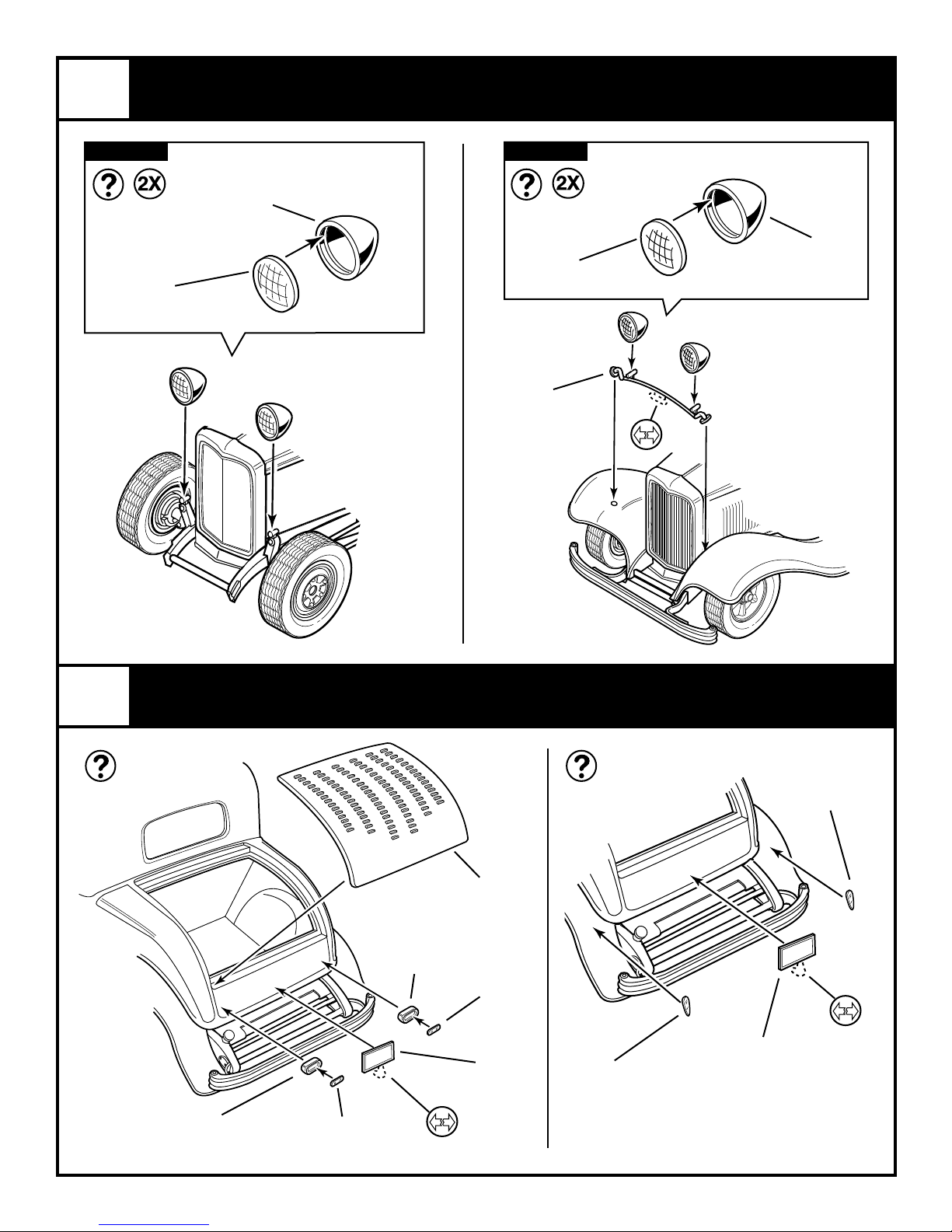

headLight aSSeMBLY
HIGHBOY COUPE
555
HEADLIGHT LENS
CLEAR
H314
SMALL
HEADLIGHT
BUCKET
CHROME
554
HEADLIGHT LENS
CLEAR
H204
CROSSBAR
CHROME
H7
LARGE
HEADLIGHT
BUCKET
CHROME
18
H10
TAILLIGHT
HOUSING
CHROME
coupe rear aSSeMBLY
502
LOUVERED
TRUNK LID
BODY COLOR
199
TAILLIGHT
TRANSPARENT RED
H18
LICENSE PLATE
FRAME
CHROME
254
TAILLIGHT
TRANSPARENT RED
H18
LICENSE PLATE
FRAME
CHROME
199
TAILLIGHT
TRANSPARENT RED
H10
TAILLIGHT
HOUSING
CHROME
254
TAILLIGHT
TRANSPARENT RED
Kit 4228 - Page 13
Page 14
19

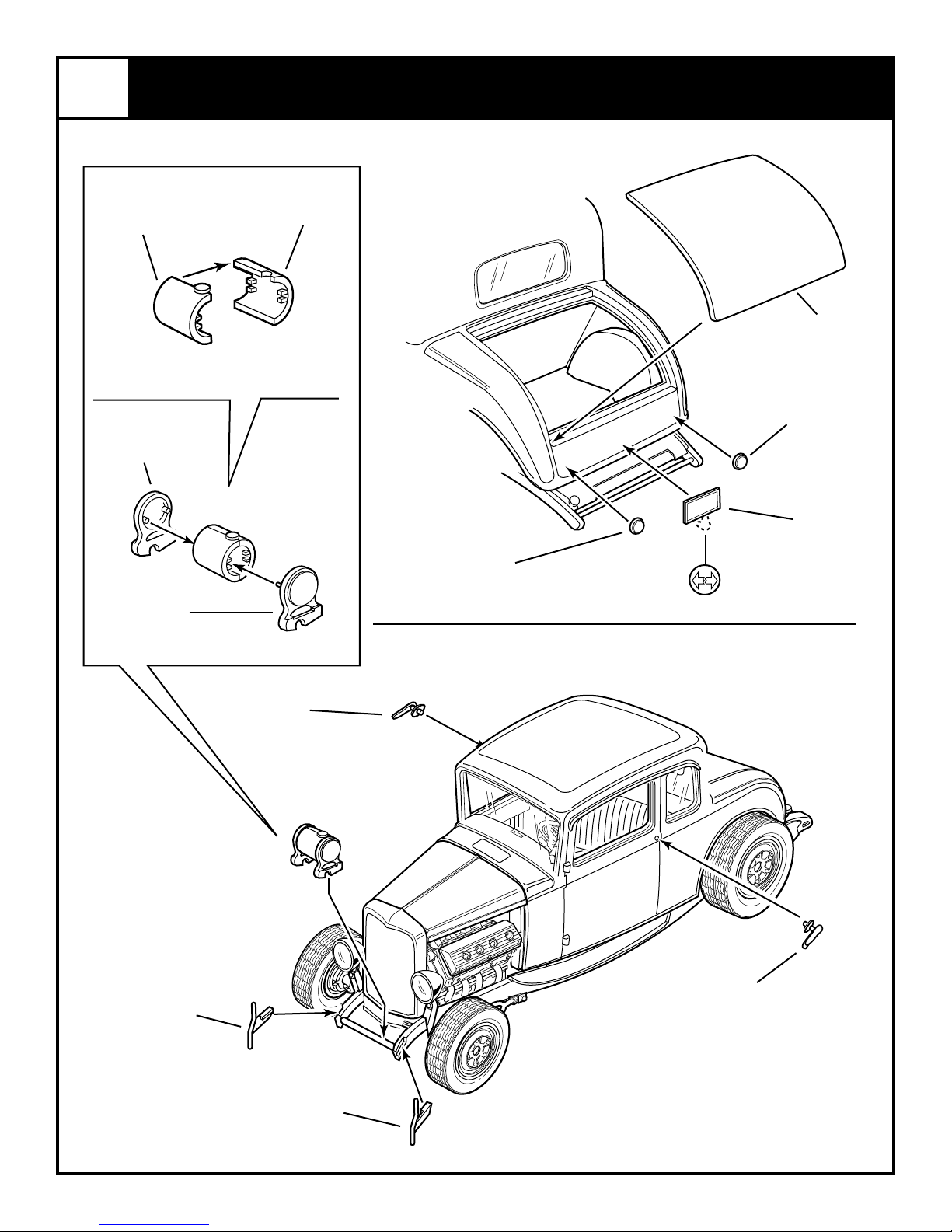

HIGHBOY trunk / fInal assemBlY
H522
MOON TANK
FRONT
CHROME
H524
MOON TANK
RIGHT SIDE
CHROME
H525
MOON TANK
LEFT SIDE
CHROME
H523
MOON TANK
BACK
CHROME
H517
TAILLIGHT
CHROME
(TRANSPARENT RED CENTER)
501
SMOOTH
TRUNK LID
BODY COLOR
H517
TAILLIGHT
CHROME
(TRANSPARENT RED CENTER)
H18
LICENSE PLATE
FRAME
CHROME
H520
RIGHT
NERF BAR
CHROME
H209
RIGHT
DOOR HANDLE
CHROME
H521
LEFT
NERF BAR
CHROME
H216
LEFT
DOOR HANDLE
CHROME
Kit 4228 - Page 14
Page 15
GLOSS YELLOW BODY COLOR
GLOSS RED BODY COLOR
20

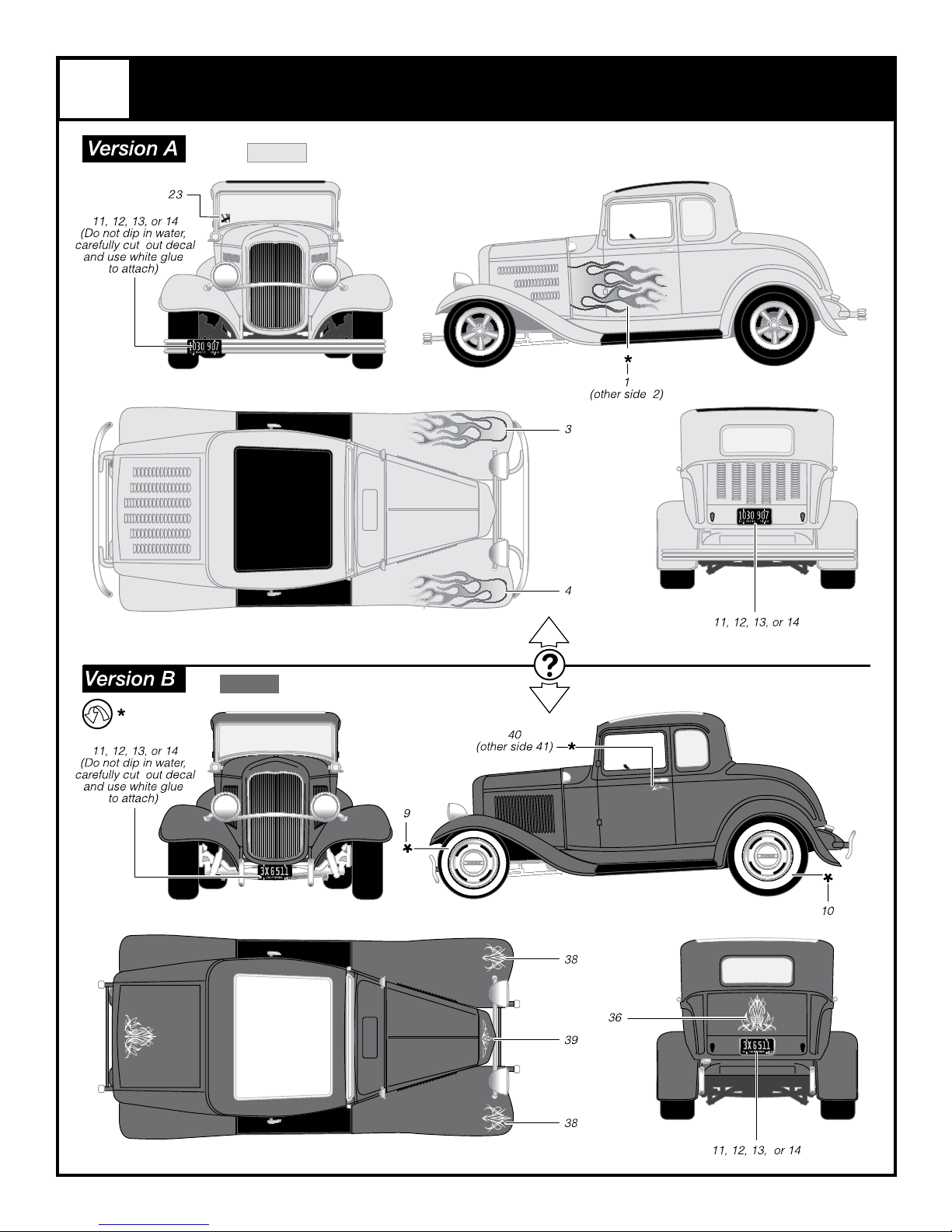

decal placement
Kit 4228 - Page 15
Page 16
GLOSS BLACK BODY COLOR
GLOSS DARK BLUE BODY COLOR
21

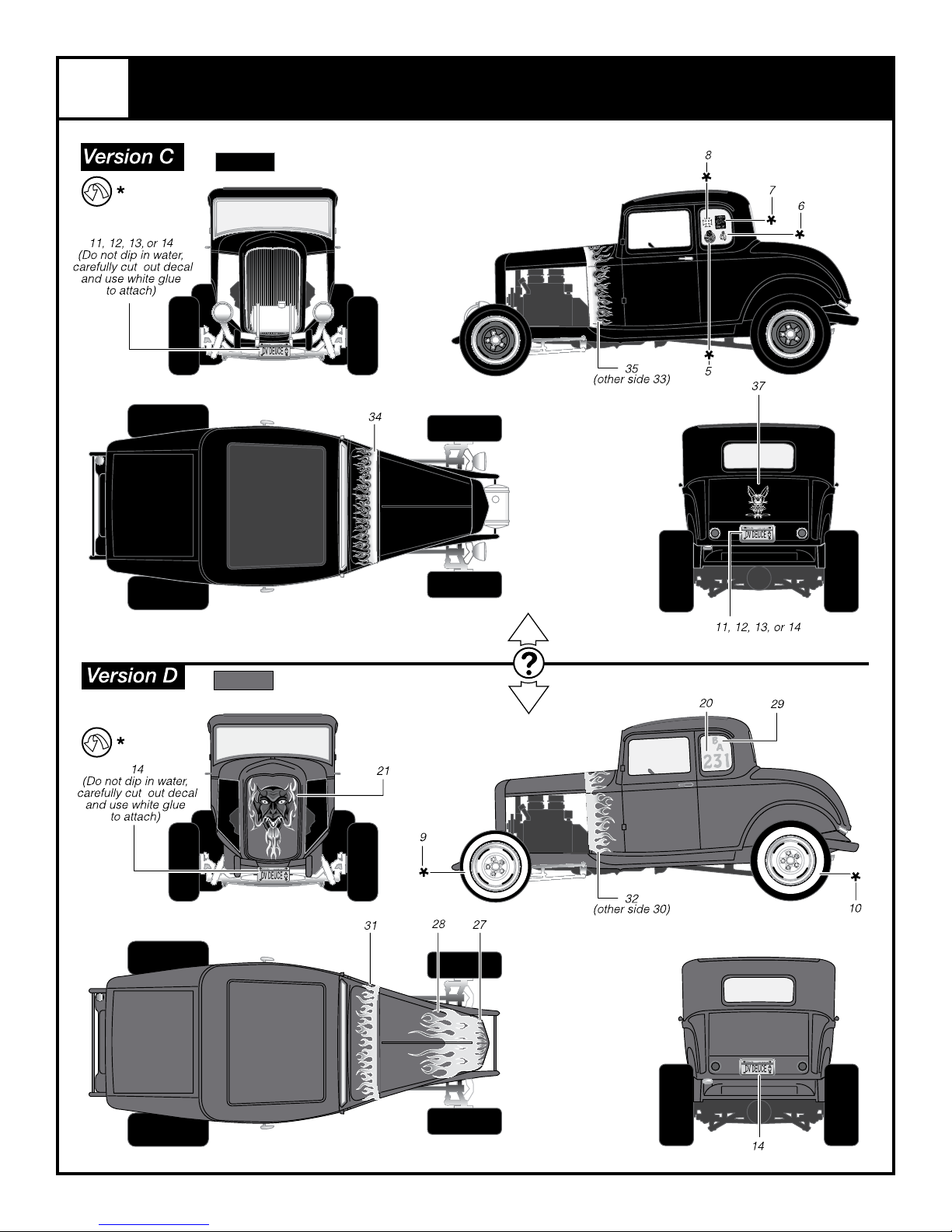

decal placement
Kit 4228 - Page 16
Loading...
