Retigo vision Operating Manual

operating

manual

perfection in cooking and more...

FOREWORD

Dear customer,

thank you for purchasing a RETIGO. RETIGO is a successful and long­established manufacturer and supplier of specialized professional
culinary appliances and other gastronomical equipment. We believe
this product will help you to achieve great results every time. So
whenever you use it, you can rest assured that you will be preparing
high-quality meals that will bring your customers back again and
again.

We wish you happiness and success in your work with Retigo
Vision Smoker.

ABOUT THIS MANUAL

This manual will help you understand how to operate Retigo Vision Smoker and inform
you about its options and capabilities.

X Symbols used in this manual

In this manual, you will nd symbols with the following meanings:

SYMBOL MEANING

These symbols mean “CAUTION” and “WARNING“ and indicate that
the appliance may be damaged and/or may cause injury to the user.

This symbol indicates an important instruction, feature, method or issue
that must be followed or considered when operating or maintaining the
appliance.

This symbol indicates useful information related to the appliance or its
accessories.

This symbol points to a di󰀨erent chapter of the manual.

X Who is the manual for?

This manual is intended for anyone handling the appliance during operation or
maintenance. Any such person must be fully acquainted with its contents before
beginning work with the appliance.

Complete documentation on the appliance can be found on the manufacturer‘s
website.

X Mandatory notices

Read the manual carefully. It should be viewed as a part of the appliance that must not
be separated from it on resale. For this reason, please store it for future use.

Follow the instructions precisely, in order to make using the appliance easier and also to
ensure its optimal use and long life.

Do not start up the appliance unless you are fully with all of the instructions,
prohibitions and recommendations mentioned in this manual, especially those in
the “Safety during use“ chapter.

The illustrations in this manual may not always correspond to the actual appliance. Their
purpose is to describe the appliance‘s main principles.

X If in doubt

In practice, unforeseen situations may often occur that could not be included or described
in this manual. Therefore, if you are unsure what to do, always contact the manufacturer:

Retigo s.r.o.

Láň 2310, PB 43
756 64 Rožnov pod Radhoštěm, Czech Republic

[phone]

[e-mail]

www.retigo.com

When contacting the manufacturer or trained professionals, please have your appliance‘s
basic information ready to hand.

The information can be read from the model plate located on the side.

This shows the appliance manufacturer, technical data, such as type and model, serial
number, production year, and important information on the type of power supply, electrical
input, weight and protection against water.

1.2 | Getting to know your appliance: Appliance description

Retigo Vision Smoker is a simple and robust appliance/accessory which is inserted

directly into the cooking area of a combi oven, where it produces smoke. The smoke is
made by burning smoking sawdust with heating element contained within the appliance.

Item Name

1 Cover

2 Smoking sawdust container

3 Handle

4 Power supply connection cable

5 Mains cable

1| BASIC INFORMATION

1.1 | Use: Information about using the appliance

Retigo Vision Smoker is a universal appliance intended for smoking foods in combi

ovens.

Any use of the appliance beyond this scope, including modications of

safety or operational components, is considered unintended use. The
company can accepts no liability for damage resulting from such use; the user
shall bear full all of the risk.

The user shall also be responsible for meeting the conditions prescribed
by the manufacturer for installation, operation and maintenance of the
appliance, which should be maintained and repaired only by persons
familiar with it and instructed on the hazards.

1

5

4

4

3

2

2 | SAFETY DURING USE

An appliance like Retigo Vision Smoker must be operated with caution, alertness and
common sense. Even though the appliance has been designed and manufactured to
meet all international safety standards, the operator bears primary responsibility for
safety during operation. The manufacturer can bear no responsibility for personal injury,
equipment damage or environmental damage caused by failure to operate the appliance
in accordance with the manual or by failure to follow the applicable safety regulations.

This chapter provides the most important information on work safety and protecting the
health of the operator and all other persons who come into contact with the appliance or
its accessories.

2.1 | Safety operation: Mandatory notices

2.1.1 | General safety

! Only trained, qualied personnel may this appliance. Persons not authorized to use

the appliance and not trained in its operation must never be allowed to handle or
maintain it, or to perform any activity contrary to its purpose. Unprofessional activity
may cause injury or may damage the appliance.

! Obtain regular training on how to operate the appliance. This will prevent occupational

injuries and damage to the appliance.

! This appliance is to be used only for food preparation and in compliance with the

manual. Any other use would be contrary to its purpose and considered dangerous.

! For safety reasons, do not cut the hard covers or try to get into the appliance. The

device contains no components that the user can manipulate. Repair of any defects

or maintenance beyond that described in this manual must be done by a qualied

service technician.

! Do not work with the appliance if you su󰀨er from dizziness, fainting or other weakness

or lack of concentration or if under the inuence of drugs or alcohol!

! It is strictly forbidden to remove or damage the labels fastened to the appliance.

! It is forbidden to produce smoke by using material that contains ammable substances

(e.g. alcohol). Material characterized by a low are point can spontaneously ignite –
this may lead to the risk of re.

! Do not touch the Retigo Vision Smoker or any accessories within cooking area of

the combi oven during heating operations. Warning! Risk of burns! Always use heat
resistant protective clothes!

! The temperature around the Retigo Vision Smoker can exceed 60 °C. Risk of

burns!

! Do not store ammable substances or easily ignitable material near the Retigo

Vision Smoker. Fire hazard!

! The power supply of the Retigo Vision Smoker must always be placed outside the

cooking area of the combi oven.

! The mains plug of the Retigo Vision Smoker must not become warm! Do not overll

the Retigo Vision Smoker with smoking sawdust to increase e󰀩ciency. If the cover

is not closed, smoking sawdust can ignite and cause a re!

! Always open the cover of the Retigo Vision Smoker slowly! Risk of burns!

2.1.2 | Before using the appliance

! If you have any doubts about the installation, operation or safety of the appliance,

contact your equipment supplier.

! If the electrical equipment is damaged in any way, arrange a repair immediately –

never use damaged equipment.

! Do not block the appliance’s vents with objects, and especially do not place cooking

utensils, fabrics or other items on the appliance. Make sure that the smoke escapes
freely from the vents.

! Check the appliance before using. Remove all leftover sawdust particles, cleaning

agent residues or other objects, and thoroughly rinse the appliance with water.

! Be sure not to sprinkle or spray water onto the appliance, and do not place objects

lled with water on it.

! Do not place naked ame sources on or near the appliance.

! The power supply must not be placed on the top of the appliance.

2.1.3 | While using the appliance

! Do not continue using the appliance if you have the slightest doubt as to its safe

operation or whether it is damaged. Turn it o󰀨 immediately, unplug the electrical
cable, shut o󰀨 the water supply and contact your equipment supplier.

! Do not leave the appliance unattended while it is turned on, unless explicitly instructed

to by the manual.

! Operate the control panel buttons only by hand. Using sharp, pointed or other objects

to operate the appliance voids the warranty.

! When working with the appliance, be aware that it can be hot. There is a burning

hazard at all times.

! When the appliance is working, heat and smoke are produced. There is a burning

hazard when handling or removing the appliance.

! Take great care when removing the appliance from the combi oven!

! Open the door of the combi oven always slowly to protect against hot steam and

smoke. Risk of burns!

! Use the appliance only with the ventilation turned on.

Do not open the door of Retigo Vision Smoker during the smoking

process. Do not open the fresh air supply into the appliance. There is a
hazard of sawdust ignition if the fresh air supply is opened.

2.1.4 | After nishing work with the appliance

! Carefully remove all remaining burned or partly burned sawdust, and any other

residues from the surface of the appliance.

! Burning sawdust residues must not be discarded as ordinary waste. Fire hazard!

! Place the ash only into a reproof container!

! Cleaning agents are to be used only in accordancewith the instructions in this manual

and in compliance with the instructions for the individual cleaning agent.

! After work, take the Retigo Vision Smoker out of the combi oven and place on

reproof material.

! During long downtimes, shut o󰀨 the electricity.

! Unplug the power supply before disconnection of smoker.

2.2 | Safe operation: Protective equipment

When operating the appliance, it is also necessary to wear the right clothes

and use personal protection gear. Clothing, shoes and protective gear must

comply with national safety requirements for your type of work.

Do not forget to use these important items in particular:

● safety gloves

● safety glasses

● work shoes

● work clothing

When working with the appliance, do not wear:

● Scarves, ties, chains, watches, bracelets, keys, rings or other metal objects, or with

an inappropriate bandage in place.

● Electrical components such as those in heart pacemakers, watches, credit cards,

etc., or other items with magnetic recording media.

● Long, loose hair. Secure long hair with an appropriate head covering.

2.3 | Warranty

The warranty does not cover installation and repairs made by an unauthorized

specialist using non-original components or making technical modications without the

manufacturer’s permission.

3 | GENERAL OPERATION INSTRUCTIONS

The Retigo Vision Smoker can be used in all types and sizes of combi ovens.
Follow these general operation instructions for problem-free operation and the long
life of the appliance.

3.1 | Description of the Retigo Vision Smoker control panel

Fig. Retigo Vision Smoker control panel

Start/Stop button

Press the button (2s) to switch on/switch o󰀨 the control panel
In start mode – press the button to turn o󰀨
In stop mode – Retigo Vision Smoker turns o󰀨 after 5 min inactivity

Smoke intensity options

Smoke 1 – Slow smoking, low intensity of smoke production – Time of
smoking 90 minutes; after that the smoker automatically turns o󰀨.
Recommended temperature: 30°C–70°C (cheese, sh, sausages).

Smoke 2 – Medium smoking, medium intensity of smoke production – Time of
smoking 70 minutes; after that the smoker automatically turns o󰀨.
Recommended temperature: 60°C–130°C (braised and roasted meat,
whole sh).

Smoke 3 – Fast smoking, high intensity of smoke production – Time of
smoking 50 minutes; after that the smoker automatically turns o󰀨.
Recommended temperature: 130°C–190°C (grilled meat, sh, steak).

Start – start smoking – icon lights up (the rst 3 minutes of intense burning)
Pause – stop smoking – icon blinks

Use only wood sawdust made for smoking. It is possible to use coarse and ne
sawdust or wooden pellets, fraction 1 – 4 cm. Do not use raw or dusty materials.

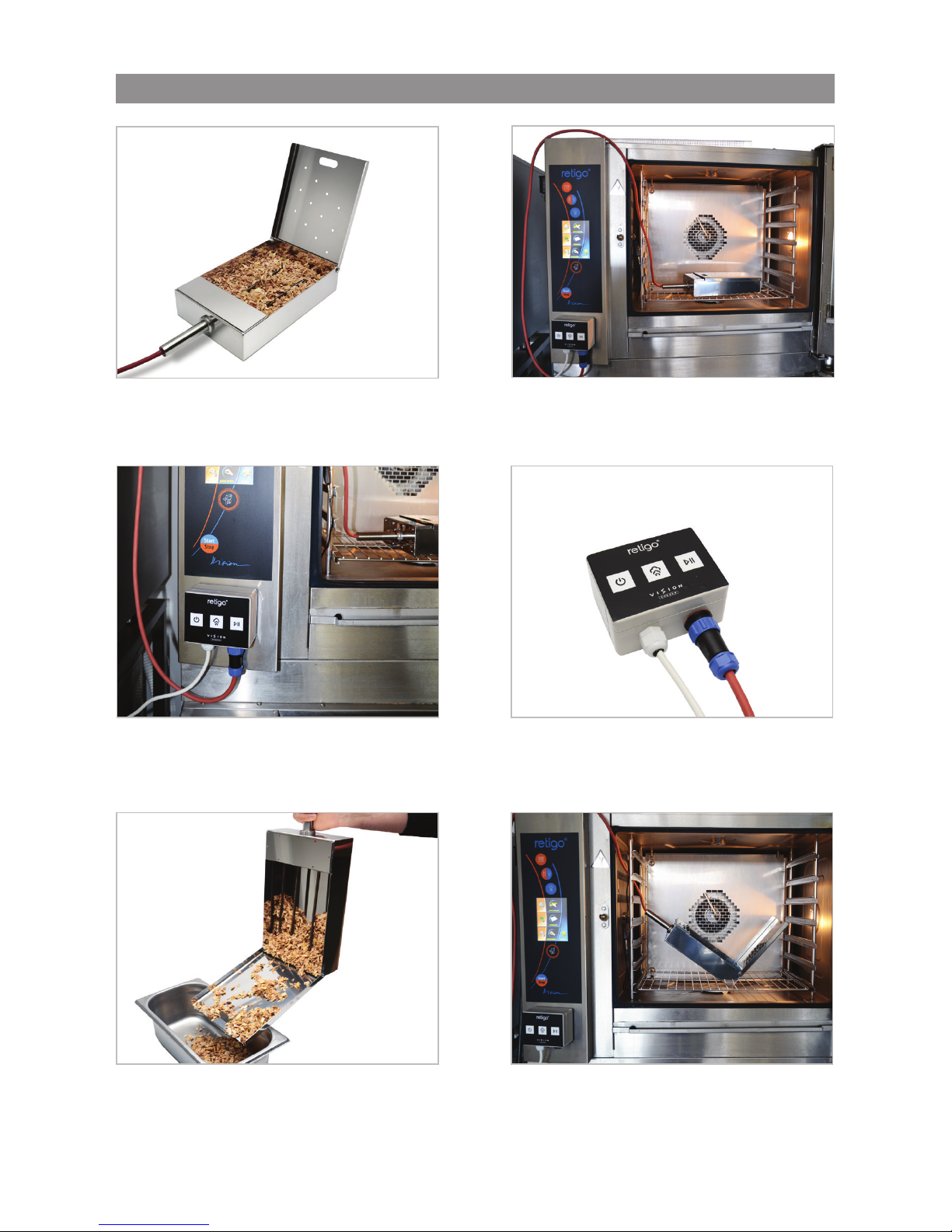

3.2 | Operating instructions for Retigo Vision Smoker

1. Fill smoker with sawdust to cover the heating

body.

2. Placed smoker on the lowest position of combi

oven and pass the connection cable through the
door seal.

3. Before rst using, attach control panel to position

shown in picture, below combi oven control panel.
Remove all grease from stainless-steel surface
before attaching..

4. Connect the mains cable to the control panel.
Plug the control panel in. Choose the programme
according to chapter 3.3 Smoking programmes.

5. After work, place burned sawdust residues into

a reproof container. Take care when opening

the door. Open the door in such a way that you
cannot be burned by the hot gases. Work in
protective clothing.

6. After removing burned sawdust residues,
place Smoker into the combi oven and pass the
connection cable through the upper door seal.
Switch on the short washing programme.

3.3 | Smoking programmes

Hot smoking – Steaks Smoke III Temperature 180°C 5 -15 min.

Hot smoking – Fish 150g Smoke III Temperature 160°C 5 - 10 min.

Hot smoking – Fish 500g Smoke III Temperature 150°C 10 - 20 min.

Warm smoking – Sausages Drying Temperature 60°C 40 min.

Smoke II Temperature 70°C 70 min.

Steam Temperature 80°C 40 min.

Warm smoking – Meat 0.5kg – 1kg Smoke II Temperature 110°C 70 min.

Combi 50% Temperature 150°C 20 - 40 min.

Warm smoking – Meat 1kg – 2kg Smoke II Temperature 110°C 70 min.

Combi 50% Temperature 140°C 30 - 60 min.

Warm smoking – Meat 2kg+ Smoke II Temperature 90°C 70 min.

Combi 50% Temperature 130°C 40 – 80 min.

Cold smoking – Salmon let Smoke I Temperature 30°C 40 - 60 min.

Cold smoking – Cheese Smoke I Temperature 30°C 50 - 80 min.

Cold smoking – Steak salt Smoke I Temperature 30°C 90 min.

1.Gentle (i.e. cold) smoke producing a delicate aromatic avour – created at lower
temperatures and with a slower smoking process. Burning the material releases valuable

essential aromatic substances which go through the smoked meat. This creates a unique

delicate smoked avour. The recommended temperatures in the combi oven are 20°C – 50 °C.
Smoking time 2 hours.

2.Medium (i.e. warm) smoke producing a more noticeable smoked avour – used
for smoking and roasting meat, sh or vegetables. This is used mostly for roasting meat of 0.5
kg – 2 kg and sausages. The recommended temperatures in the combi oven are 50°C – 150 °C.
Smoking time 1 hour.

3.. Intensive (i.e. hot) smoke producing a highly distinctive smoked avour – createsa

full smoked spectrum and dark smoked colour without bitter taste. This is used for fast

smoking of steak, meat and sh characterized by short cooking treatment. The recommended
temperatures in the combi oven are 150°C – 190 °C.

If your combi oven can operate at lower fan speeds, always use ½ revolutions

during smoking. If possible, open the door of the combi oven 5 minutes after

completing the smoking.
The unburned sawdust can be used again.
Do not immerse the sawdust inwater as this will lead to moisture formation
and discoloration.

Use only dry sawdust. The smoker was tested on sizes of 1 – 4 cm.

After smoking and the removalof sawdust residues, the smoker can be washed
directly in the combi oven using an automatic washing programme.

3.1 |

3.4 | Cleaning

The appliance does not require any special maintenance. However, it must be kept
clean, and sawdust residues and other leftovers must be removed.
Failure to follow the cleaning instructions will void the warranty.
Only regular maintenance and adherence to all instructions will ensure the appliance‘s
long life and high cooking quality and guarantee trouble-free operation.
For safe, trouble-free operation, the appliance and accessories must be inspected by an
authorized service technician.

! Before starting any maintenance or service work, familiarize yourself again

with all instructions, prohibitions and recommendations set out in chapter

2.

! The warranty does not cover damage caused by unprofessional cleaning

and maintenance.

! During the entire time of operation, the appliance must be subjected to

regular checks, inspections and tests according to the applicable national
regulations on the operationof this type of equipment.

! The user must not rearrange any feature set by the manufacturer or

authorized service technician..

For manual cleaning of the Retigo Vision Smoker, use only the non - abrasive cleaning
agents for removing grease together with a soft washing sponge.

Before cleaning, unplug the electrical cable and cool down the appliance.

Thoroughly remove grease and remaining food. Spray the cleaning agent on heavily
soiled spots and leave it to work for a moment.

After cleaning, dry the appliance thoroughly.

Never spray cleaning agents ontoa hot Retigo Vision Smoker!

After nishing the cleaning, thoroughly remove all cleaning agent residues.

When cleaning, do not use wire wool, wire brushers, scrapers, metal spatula or
other sharp objects that could damage the surface of the appliance.

Never expose the appliance to acid or acid vapour.

3.1 |

3.5 | CE Certicate

RETIGO

Láň 2310, PS 43

756 64 Rožnov pod Radhoštěm

tel.: [phone]
fax: [phone]

e-mail: [e-mail]

www.retigo.com

hot line:

sales: [phone] , [phone], technical support: [phone], [phone], executive chef: [phone]

EN-01/15
