EN~Instructions for use
This set includes 2 walkie-talkie units: these are communication devices
which operate on mobile radio frequencies. They come with 22 channels as
well as a back-lit LCD screen, enabling you to communicate over several
kilometers free-of-charge.
NOTE: Please read these user instructions carefully before using the
equipment and retain for future consultation!
SPECIFIC RECOMMENDATIONS
• If you carry any kind of personal medical disease, consult a doctor before
use.
• To avoid the risk of burns, do not use the device if the antenna is
damagedin any way.
• Do not use the device in a potentially explosive environment (e.g. around
petrol pumps, on the lower deck of a boat or around a fuel storage
installation or chemical products)
• Switch off the device if on an airplane or in a hospital.
• Never use the device in close proximity to a radio to avoid interference.
• Remove the batteries if the device is not in use for an extended period of
time. Never mix used and new batteries
• Leave the transmitter and antenna at least 5 cm from your face.
• Direct the antenna upwards and speak normally.
• Clean the device with a damp cloth. Do not use cleaning agents and
solvents.
• Do not modify the device in any way. If the device damaged, please
checked by a qualified professional.
• The device cannot be used to contact the emergency services.
ITEM DESCRIPTION (Pic01,02)
1. Antenna
2. RX icon -Displayed when receiving
TX icon -Displayed when transmitting
3. TX power high or low
4. Up adjustor button (▲)
5. Continued reception (MON)
6. On / off button ( )
7. Down adjustor button (▼)
8. Earphone socket
9. Loud speaker
10. Microphone
11. Enter the menu settings (Menu)
3
12. Call button ( )
13. Keypad lock indicator
14. Battery level indicator
15. Push to talk (TALK) button
16. VOX indication
17. Scanning indication:
Displayed during scan mode
18. Channel/Menu item indication
19. CTCSS/Menu option-value
20. Lamp Button
21. Scan Button
22. Lamp
23. Belt attachment clip
24. Belt attachment
25. Batteries (not supplied)
26. Battery compartment
To install the batteries
Remove the belt clip:there are a secret button to press, then take the belt
off.Open the battery compartment (26) and insert 4AAA batteries (25)(not
supplied),ensuring that the poles are correctly alighed.The closed the lid
USING THE WALKIE TALKIE
1. Turning the divice on/off:
To turn the divice on or off, hold down the on/off button(6) for
3 seconds, a beep sound will be played to cofirm.
2.Adjusting the volume:
To increase the volume, press the Up adjustor button ▲(4) and press the
▼(7) button to decrease volume.
Note: The volume level number is displayed on the screen.
3.Battery Charge Level/Low Battery Indication
The battery charge level is indicated by the number of squares
present inside the battery icon on the LCD screen.
Battery Full
Battery 2/3 charged
Battery 1/3 charged
Battery empty
When the battery charge level is low, the battery icon will flash and a beep
will be heard to indicate that the batteries need to be replaced or
recharged.
4
4. Receiving/Transmitting communications:
The devices are in ‘Reception’ mode when lit up, i.e. they are ready to
receive a call or sound transmitting on the activated frequency.
• When you press the Call tone button (12), the device switches
to ‘Transmission’ mode. You are then transmitting a sound signal
to the other device.
• To send a voice message, press the TALK button (15) and speak into the
microphone (10). Continue to press the button until you have finished
transmitting your message.
Hold the Mic with a minimum distance of 5 cm from your face.
Note:
- The other device must be set to the same channel and same
CTCSS code.
- When you finish the communication, please lose the hand, the
other device will email the beep to indicate that the this device is
ready to transmit.
5. Changing Channels
• Press the MENU button (11) once, the current channel number flashes on
the display.
• Press the ▲ button (4) or ▼ button (7) to change the channel .
• Press the TALK button to (15) confirm and return to stand-by.
Note: If no button is pressed within 15 seconds during setting, the unit will
return to standby .
6.CTCSS (Continuous Tone Coded Squelch System)

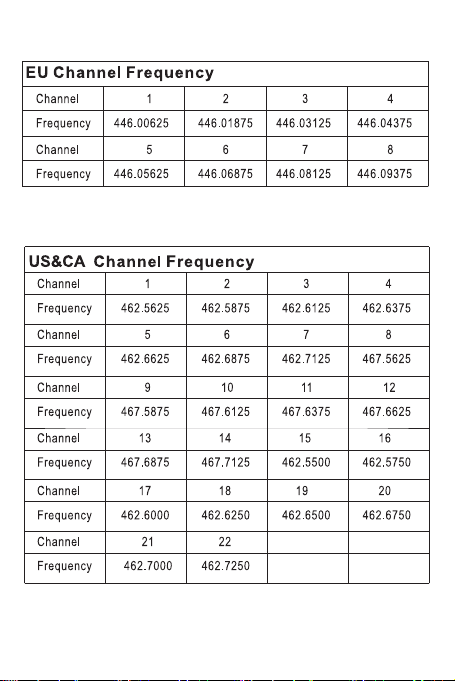

Licence free radio’s operating on the 400~470 MHZ frequency band, like
the Twintalker, have 8/20/22 available radio channels. If there are many
radio’s users in your neighborhood, there is a chance that some of these
users are operating on the same radio channel. To prevent that you receive
signals from other users, sub-channels have been integrated.
Two radios only be able to communicate with each other not only on the
same channel but also set to the same sub-channels.
The sub-channels:continuous tone squelch system(CTCSS)
When using CTCSS, a low frequency tone(67-250Hz)will be transmitted
along with the voice signal. There are 99 available tons to choose.
Note: To disable CTCSS, select code "0F” for CTCSS in the menu.
When pressing TALK button to confirm.
7.CTCSS
• Press the MENU-button (11) twice: The current CTCSS code flashes
5
