RespirAide 200T Operation Manual

E

lectronic Air Purifier

Model No. RespirAide200T

Operation Manual

English

Before operating the system,please read this
manual thoroughly,and retain it for future

reference.
This product can be used only where the
power supply is 120V/60Hz.You can not use
the unit if the power voltage is different.

Manual Auto Remote control Button melody

Timer Safety switchFilter & UV lamp

replacement alarm

Check alarm

Sensor

To reduce the risk of electric shock,
this equipment has a grounding
type plug that has a third
(grounding) pin.This plug will only fit
into a grounding type power outlet.If
the plug does not fit into the outlet,
contact a qualified personnel to
install the proper outlet.Do not alter
the plug in any way.

WARNING

C

US

R

228256

**RespirAide is a trademark of RespirAide Tech Inc.

RespirAide Tech Inc.

Add:13-100 Hanlan Road
Woodbridge, Ontario Canada
L4L 4V8
Tel: [phone]
Fax: [phone]

www.respiraide.com

R

Phase

6

E-3

BEFORE OPERATING AIR PURIFIER,
READ ALL INSTRUCTIONS IN THIS MANUAL
CAREFULLY.

CONTENTS

FOR CUSTOMER ASSISTANCE
CONSUMER LIMITED WARRANTY
HOW IT WORKS
FEATURES AND SPECIFICATIONS

FEATURES
SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

WARNING
CAUTIONS CONCERNING OPERATION

PARTS NAMES AND DESCRIPTION
UNIT DISPLAY
BEFORE OPERATION

Remote Control Setup

OPERATION

Main Unit Operation
Indicator Lights
Remote Control Operation

CARE AND MAINTENANCE

Main Unit
Cleaning the Pre-filter
Cleaning the Electronic Cell
Replacing the Activated Carbon Filter
Photo catalytic Filter and UV Germicidal Lamp

TROUBLESHOOTING
WIRING DIAGRAM

E-4
E-5

E-6

E-14

E-12~13

E-7
E-7
E-7

E-8

E-8~11
E-8

E-15
E-15

E-22
E-23

E-16~18
E-16
E-17

E-18
E-19~21
E-19
E-19
E-20
E-21
E-21

....................................

.................................................................

...............................................

....................................................

..........................................

.............................................

.............................

...............

..........................................................................

...................................................

.....................................................

...................................................................

.........................................................

...............................................................

.....................................................

.........................................................

............................

.......................................................................

......................................................................

......................

.........................

..............................

.............................................................

..........................................................

................................

E-4

FOR CUSTOMER ASSISTANCE

If you have questions about your air purifier, call customer service number.Before calling, please note the model
and serial number located on the back of the unit and fill in the following information below.This information will help
us answer your questions much more quickly.

Model number

Serial number

Date of purchase

Dealer name

Address

City

Province

Postal code

Telephone

To phone:[phone]
To write:For service problems, warranty information,missing
items and other assitance:

RepirAide Tech Inc.

13-100 Hanlan Road Woodbridge, Ontario Canada
L4L 4V8

Please provide the following information when you write or
call:model number, serial number, date of purchase, your
complete mailing address(including Postal Code), your daytime
telephone number(including area code) and description of the
problem.

E-5

CONSUMER LIMITED WARRANTY

RespirAide AIR PURIFIER

LIMITED WARRANTY

Congratulations on your investment

ＲｅｓｐｉｒＡｉｄｅ　Ｔｅｃｈ　Ｉｎｃ．

To obtain the name and address of the nearest
Authorized RespirAide Dealer, please contact:
13-100 Hanlan Road, Woodbridge, Ontario
Canada L4L 4V8

For more information on this Warranty,Dealer or
Service Locations, please call1-866-874-2532
Visit our website: www.respiraide.com

RespirAideR Tech Inc.(hereinafter called RTI) gives you the following limited warranty for this product
only if it was originally purchased from RTI or from an Authorized RTI Dealer.
RTI warrants that this product is free, under normal use and maintenance, from any defects in material
and workmanship.If any such defects should be found in this product within the applicable warranty
period.RTI shall, at this option, repair or replace the product as specified herein.
RTI will repair or replace, free of charge, to the original purchaser, any part that is found to be defective
in material or workmanship within one (1) year of the date of purchase.This limited warranty does not
cover the replacement of expendable or consumable parts such as filters,and other parts subject to
normal wear unless they are defective in material or workmanship.

This warranty shall not apply to:

(A) Any defects caused or repairs required as a result of abusive
operation,negligence,accident,improper installation or inappropriate use as outlined in the operation
manual.
(B) Any product tampered with modified, adjusted or repaired by any party other than RTI,RTI
Authorized Service Centers or RTI Authorized Service Dealers.
(C) Damaged caused or repairs required as a result of the use with items not specified or approved by
RTI.
(D) Any damage caused by external or enviromental conditions, including but not limited to the use of
voltage other than indicated on the product.

RTI's limited warranty is valid only if you retain proof of purchase from RTI or an RTI Authorized Retail
Dealer for this product.

R

E-6

HOW IT WORKS

The air purifier functions as an air cleaner by helping to disinfect airborne microorganisms and removing
particulates from the air .
The centrifugal fans of the unit draw air through the front panel (Intake) on the front of the unit.Then it passes
through the Microbiologic filter, the Electrostatic precipitator, the Activated Carbon Filter and the UV-Photo
catalytic sterilization chamber.The purified air is then realeased through the outlet on the top of the unit.

The Microbiologic Pre-filter traps large dust particles.
The two stage electrostatic precipitator (Electronic
cell) captures airborne particles,as small as 0.01
microns.In the ionizing section of the electronic cell,
billions of microscopic particles become electrically
charged as they pass through the powerful electric
field. The collector plates immediately attract and
collect these charged dust and dirt particles.
The Activated Carbon Filter absorbs and reduces
odors, chemicals and gases, removes tobacco smoke,
the smell of food and other odors.
The UV sterilization chamber kills bacteria and viral
micro-organisms such as influenza, TB and
Legionnaire's Disease as well as other harmful
contaminants.
When UV light hits the photo catalytic filter, it creates
e- and h+, which have an excellent effect in the
decomposition of odors.
The unit also generates negative ions that freshens
the room air.

The air is cleaned in six stages:

1.

2.

3.

4.

5.

6.

E-7

FEATURES AND SPECIFICATIONS

Multi-Stage Filters

The unit utilizes a two stage electrostatic precipitator combined with a Microbiologic Pre-filter (for large
particles), an Activated Carbon Filter (for odors and gases), UV germicidal light (killing airborne pathogen),
a Photo catalytic filter (removes VOC's) and a Negative ion generator.

Automatic Function

The gas sensor(odor sensor) can let the unit automatically select the appropriate fan speed depending on
the air quality detected.

Filter and UV Lamp Replacement Indicator

The "FILTER" and "UV LAMP" replacement indicators tell you when to replace filter and UV lamp.

Safety Micro-Switch (Interlock Switch)

This air purifier is equipped with safety interlock switches(Micro-safety switch) that turn the unit off if the
front panel is removed while the unit is running.

Easy Maintenance and Low Cost

When the electrostatic precipitator(Electronic cell) needs to be washed or the filters to be replaced, simply
open the front panel and lift out the electronic cell or old filters and drop the new or clean one in.
No screws, hooks or tools are required. The electronic cell captures small particles on aluminum plates
that are simply lifted out and rinsed off in the sink.There are no expensive filters to replace.

Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this product
cosumes about 2W of standby power.For energy conservation, unplug the power cord when the unit is
not in use.

Model No.

Power Requirement

Rated Power

Fan Motor

Fan Speed CFM

Applicable Floor Surface

(Ceiling height 8')

Noise Level

Negative Ion

UV Lamp

Cord Length

Dimensions

Weight

RespirAide200T

120V,60Hz,1.1A

55W

120V,60Hz,0.8A

H-300,M-135,L-88

1 air exchange per hour: 2257 sq.ft.

2 air exchanges per hour: 1129 sq.ft.

5 air exchanges per hour: 451 sq.ft.

19 air exchanges per hour: 10 x 12 sq.ft.

<45dB

>1.2x106pcs/cc

6W

2.5m (8.3 ft)

82cm(H)x48cm(W)x22cm(D) (32.2 in.x18.9 in.x8.7 in.)

29kg+5kg%(63 lbs+5%)

- -

FEATURES

SPECIFICATIONS

*The applicable floor surface area is appropriate for operating the unit at maximum fan speed.

E-8

IMPORTANT SAFETY PRECAUTIONS

Use only as described in this manual.
Use only a 120-volt outlet with a polarized receptacle.
The air purifier has a polarized plug (one blade is wider than the other is),this plug will fit in a polarized outlet
only one way.Initially, if the plug does not fit into the outlet, reverse it.If it still does not fit, contact a qualified
electrician or service person.
Do not use the air purifier if the power cord or plug is damaged or the connection to the wall outlet is loose.
When removing the power plug, always hold the plug and never pull by the cord.Do not handle plug or
appliance with wet hands.Electrical shock and/or fire from short circuit may occur.
Remove the power plug from the wall outlet before cleaning the unit and when not using the unit.Turn off all
controls before unplugging.
If the power cord is damaged,it must be replaced by the manufacturer, its service agent, RespirAide authorized
service or similarly qualified person.
Do not insert fingers or foreign objects into the intake or air outlet.
The batteries must be removed from the remote control before disposal, and the batteries must be disposed of
safely.
Keep hair,loose clothing, fingers and all parts of body always from openings and moving parts.

Do not use appliance in an enclosed space where oxygen, flammable, explosive or toxic vapors are
given off by oil base paint, paint thinner, some mothproofing substances, or in an area where
flammable dust is present.



When using electrical appliances,basic safety precaustions should always be followed, including the following:

WARNING

-To reduce the risk of electrical shock, fire or injury to persons:

Do not block the intake and air outlet.
Do not use the unit near or on hot objects, such as range or where it may come into contact with steam.
Do not use the unit on its side.

Always hold the handles on the side of the unit when moving it.

Holding the front panel when carrying may cause it to detach, thus result bodily injury.

Be careful not to tip over the unit when opening the front panel.If not,it may cause personal injury.

Do not operate the unit without filters.
Do not wash and reuse Activated Carbon Filter.
Do not clean outside with paint thinner or any chemicals.The unit surface may become damaged or may

cause fire.

CAUTIONS CONCERNING OPERATION

E-9

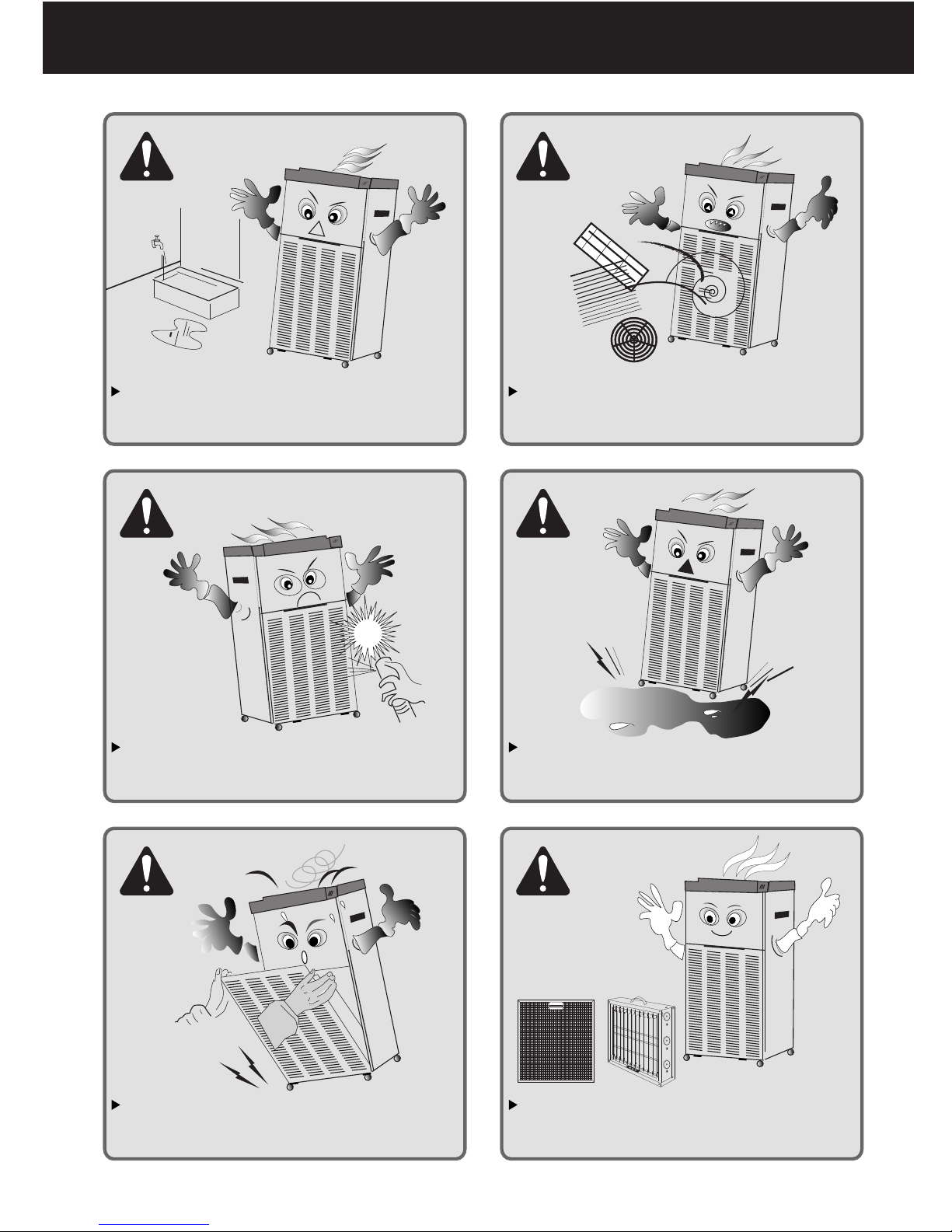

IMPORTANT SAFETY PRECAUTIONS

This manual classifies precautions into WARNINGS and CAUTIONS.Be sure to
to follow all precautions below:They are important for ensuring your safety.

If you do not follow these instructions
exactly,the unit may cause minor
property damage or personal injury.

WARNING

If you do not follow these instructions
exactly,the unit may cause property
damage,personal injury or loss of life.

CAUTION

Do not use the power cord if it is damaged or
loose in the socket.Using the power cord in
anything but proper working condition can lead
to short-circuits and subsequently electric shock
and/or fire.

Do not do anything that could damage the
electrical power cord.Do not set heavy items on
the cord or place the cord between items.If the
electrical power cord is damaged,fire or electric
shock may occur.

Use the plug provided exclusively for the product.
Connecting the system in an improper power
source may cause electric shock or a breakdown
of the system.

If the power plug is unplugged,be sure to hold and
pull out the end of the power plug without holding
the power cord.Do not pull on the power cord to
remove the plug from the wall outlet.There is a
chance that an electrical short or short- circuit
may occur causing a fire.

120V

E-10

IMPORTANT SAFETY PRECAUTIONS

Do not place the product in direct contact with
sunlight.It may cause malfunction and
deformation of the product.

Do not block the intake or outlet.Blocked
openings can reduce capacity or damage the
unit.

If any parts of the power source get wet remove
the plug and dry it completely before reusing.

Use the product in the ambient temperature of
0-40C .

5 C

40C

Relative humidity<80%

Do not operate the unit or touch the plug with
wet hands.It may cause electric shock.

Use a fuse with proper capacity.Never use a
wire in place of a fuse.Doing this may lead to
malfunction or fire.

Copper Wire

125V 2A

E-11

IMPORTANT SAFETY PRECAUTIONS

English

Make sure to prevent water from coming into the
product.It can lead to malfunction or electric
shock.

Prevent combustibles from being drawn into
the unit.Combustible substances can cause fire.

Do not disassemble or modify this equipment.
Unwarranted tampering can lead to fire ,electric
shock and/or unit malfunction.

Do not use the unit in humid places which
might be wet.Contact with water can lead to
electric shock or damage the equipment.

After cleaning the filters,make sure to dry the cell

thoroughly before reinstalling.If not, it can cause
breakdown of the unit or personal injury.

Be careful not to tip over the unit when opening
the front panel.If not,It may cause personal

injury.

24

E-12

PART NAMES AND DESCRIPTION

R

SPEED

POWER

TIMER

NEG.ION

AUTO

2

1

3

4

5

6

7

8

9

10

11

18

19

20

21

22

23.1

23.2

23.3

23.4

23.5

23.7

23.6

23

POWER

SPEED

TIMER

FILTER

UV LAMP

CHECK

Model No.200T

1h

H

M

L

2h

4h

AUTO

ION

1.5

12

25

13 14

R

Bottom of the Unit

17

1.1

1.2

1.3

1.4

www.respiraide.com

15

16

E-13

PART NAMES AND DESCRIPTION

1.Top Plastic Cover (Outlet)

1.1 Remote Control Receiver

1.2 Control Panel

1.3 Gas Sensor

1.4 Display Circuit Board

1.5 Outlet Metal Mesh

2.Fan Blades and Fan Blower

3.Fan Motor

4.Unit Handle

5.UV Light Stainless Steel Reflactor

6.Photo catalyst

7.Electrostatic Discharge Switch

8.Front Panel (Intake) Hook

9.Caster

10.Unit Contact Board

11.Fuse and Fuse Holder

12.High Voltage Generator (Power Supply)

13.Unit Terminals

14.Main Circuit Board

15.Interlock Switch (Microsafety Switch)

16.UV Light Protection Plate

17.UV Lamp and Lamp Holder

18.Power Cord and Strain Relief

19.Unit Upper Cover

20.Pre-filter

21.Front Panel (Intaker)

22.Interlock Switch (Microsafety Switch) Actuator

23.Electronic Cell

23.1 Cell Contact Board and Terminals

23.2 Square Type Cell Insulator

23.3 Round Type Cell Insulator

23.4 Ionizing Wire

23.5 Collecting Plate

23.6 Air Flow Mark

23.7 Cell Handle

24.Activated Carbon Filter (Post filter)

25.Remote Control

NAMES OF PARTS

E-14

UNIT DISPLAY

4h

2h

1h

H

M

L

AUTO

ION

TIMER

SPEED

POWER

CHECK

FILTER

UV LAMP

Model No.200T

www.respiraide.com

Check Indicator Light

Activated Carbon Filter
Replacement Indicator Light

UV Lamp Replacement
Indicator Light

Timer Button and
OFF Timer Display
Indicator Lights

Fan Speed Button
and Indicator Lights

Auto Operation
Indicator Light

ON/OFF Button

Negative Ion Indicator Light

Remote Control Receiver

Gas Sensor(Odor Sensor)

R

E-15

BEFORE OPERATION

Remote Control Setup

Preparing the remote control

The battery is already set in the remote control,pull out the clear sheet from the battery cover
before using.

How to use the remote control

a)Point the transmitter of the remote control towards the receiver of the main unit.If an
obstruction to the signal exists,the remote control will not operate.
b)The distance from which the remote control can transmit is approximately 19 feet(6m).

www.respiraide.com

+

Battery Information

1.Open the cover on the rear of the remote control towards the arrow.

2.Replace the battery with CR2025 battery.Be sure to set the battery with the+ side of the cover.

3.Close the cover to its original position.

4.The battery for this remote control is for initial use only.Change the battery when necessary.

5.When not using the unit or remote control for an extended period, remove the battery.

6.Store the battery where babies and children can not reach them.If the battery is
swallowed contact a doctor immediately.

7.When discarding battery,cover the terminals of the battery with tape.If mixed with other metal or
batteries,heat,explosion or combustion may occur.

8.Bring the battery to a nearby electronics store,watch store or camera store to recycle them.

CR2025 Battery

Remote Control

1.Do not drop or place the remote control in water.(Damage may occur.)

2.Do not press the remote control buttons with sharp objects.(Damage may occur.)

3.The signals may not be received well if electronic lighting style fluorescent lamps (such as
inverter fluorescent lamps) are in the same room.

4h

2h

1h

H

M

L

AUTO

ION

TIMER

SPEED

POWER

CHECK

FILTER

UV LAMP

Model No.200T

www.respiraide.com

E-16

OPERATION

Connect the Power

When the power plug is inserted
into the wall outlet all the
indicators on the display panel
will light up for 2 seconds.

Main Unit Operation

1

2

3

4

Operating the Unit

Press the POWER(ON/OFF)
button to start operating the
unit.Pressing the Button again
will stop operation.
NOTE: When the power is
connected, the "CHECK"
indicator light will turn green
and when the unit starts to
run,it will go out.

Manually Switch the Airflow Rate

Each time the SPEED Button is pressed the
airflow rate changes as shown below:
L(Low)------M(Medium)------H(High)-----­AUTO( Automatically operate)

AUTO Operation

Setting the Operation Time

Press the "TIMER" Button to select
the time for operation.Each time it is
pressed the timer setting switches
as shown below:
"1h"---"2h"---"4h"---(Cancel)

NOTE: When the set time is
reached,the operation will
automatically stop.The set time can
be changed if the button is pressed
while the time is operating.

Press the
SPEED
Button
until the
desired
control is
activated.

The fan speed is automatically
switched(HIGH,MEDIUM,LOW)
depending on the amount of pollution in
the air.The sensor detects the pollution
and automatically sets the fan speed for
efficient air purification.

NOTE: At automatic mode, the indicator
turns yellow.

R

4h

2h

1h

H

M

L

AUTO

ION

TIMER

SPEED

POWER

FILTER

UV LAMP

Model No.200T

www.respiraide.com

E-17

OPERATION

Indicator Lights

Negative Ion Discharge Indicator Light

When the indicator light is green, negative ions are
discharged.The negative ion generation is
controlled by remote control. One press of the
"ION" Button on the remote control will stop the
generation of ions and the light will go out.

CHECK Indicator Light

Once the "CHECK" indicator
light flashes red,a checkup is
required.

Sensor Sensitivity

The unit's sensitivity to
odors can be adjusted.This
setting is factory set to
"Normal", and it is
recommended that you use
the unit in this setting.Gas
sensor detects odors such
as tobacco smoke,pets,
cosmetics,etc.

FILTER Indicator Light

When the"FILTER " light
flashes red,the carbon filter
needs to be replaced.

UV LAMP Indicator Light

When the"UV LAMP" light
flashes red, it tells the time for
UV lamp to be replaced.

CHECK

R

E-18

OPERATION

1hour

Cancel

Remote Control Operation

Remote Control Use

1.Operate with the remote control facing the main unit receiver.

2.The signal range is about 19 feet (6 m).

3.Make sure there are no objects blocking the path of the signal.

4.Avoid dropping or damaging the remote control.

5.Do not use it in high humidity conditions or in direct sunlight or near a heat source.

www.respirade.com

POWER(ON/OFF) Button

The unit will start operating when
the POWER Button is
pressed.Pressing the button again
will stop operation.

SPEED Button

The fan speed can be
switched among Low,
Medium and High settings.

AUTO Button

At AUTO mode,the fan
speed is automatically
switched (H,M,L)
depending on the
amount of pollution in
the air.

TIMER Button

The set time switches every
time the button is pressed as
shown below.

2hour

4hour

**The indicator light shows
the set time.

Transmitter

ION Button

When pressed, the
generation of ions will
cease and the Negative
ion generator light on
the control panel will go
out.

RESET2 Button(UV Lamp Reset Button)

After UV lamp replacement ,ensure to
press the button 12 times for initialization.
Before pressing the Filter Reset Button, be
sure that the unit is plugged in.

RESET1 Button(Filter Reset Button)

After replacement of Activated Carbon
Filter,make sure to press the button 12
times for initialization.
Before pressing the Filter Reset Button,
be sure that the unit is plugged in.

Operation available with
the Remote Control:
.AIR FLOW
.OFF TIMER
.AUTO

.NEGATIVE ION ON/OFF
.RESET1
.RESET2

E-19

CARE AND MAINTENANCE

To maintain optimum performance of this air purifier, please clean the unit including the filters periodically.

When cleaning the unit, be sure to unplug the power cord, and never handle the plug with wet
hands. Electrical shock and/or bodily injury may occur as a result.

Pre-filter

Different kinds of Pre-filters

Main Unit

To prevent dirt or stains on the main unit, clean as often as necessary.if stains are allowed to remain, they may
become difficult to remove.Wipe with a dry, soft cloth for stubborn stains or dirt, use a soft cloth dampened with
warm water.Do not use volatile fluids,Benzene, paint thinner, polishing powder,this may damage the surface.
Do not use detergents ,detergent ingredients may damage the unit.Keep the unit away from water.

Cleaning the Pre-filter

To assure optimum performance the Microbiologic and
electronic precipitator must be cleaned regularly-every one
to six months.Washing frequency will vary depending on the
number of family members,pets,activities( such as cooking
or woodworking) and smoking habits.Use the wash
reminder schedule provided with the air purifier.

1.Open Front Panel

Hold the front panel upper portion( left and right side) and
pull the front panel toward you.

2.Remove the Microbiological Pre-filter
Remove by pulling out in front while holding the front

panel.

3.Clean the Microbiological Pre-filter

After using a vacuum cleaner to remove any dust,clean
with water.If it is very dirty, use a soft brush or a neutral
cleaner to clean then dry well in the shade.

WARNING

WARNING

To reduce risk of electric shock always unplug before maintenance.

Magnetic
Catcher

Pull out in front to remove

When opening the front
panel, be careful not to
tip over the unit.It may
cause personal injury.

After cleaning,make
sure to dry the Pre­filter thoroughly before
reinstalling.If the pre-

filter is wet, it can
cause breakdown of
the unit or personal
injury.

E-20

CARE AND MAINTENANCE

Cleaning the Electronic Cell

Remove the electronic cell

a)Stop the operation and unplug the power plug from the electrical outlet.
b)Open the front panel.
c)Remove the electronic cell.

How to clean the electronic cell

a)Use a large enough container,such as a laundry tub or
trash container.

NOTE: Sharp corners on the cells can scratch the surface of a
bathtub.

b)Dissolve about 3/4 cup of automatic dishwasher detergent
per cell in enough hot water to cover the cells.If the
detergent does not dissolve readily,or form a scum on the
water,try another brand,or use softened water.
c)After the detergent has completely dissolved,place the cells
in the container and let soak for 15 to 20 minutes.Agitate up
and down a few times,and remove.

Do not splash the detergent solution in
eyes.Wear rubber gloves to avoid prolonged
detergent contact with skin.
Keep detergent and solution out of reach of
children.
When cleaning be careful not to cut your hands
on the ionizing line.(Wearing rubber gloves is
safer.)
Be careful not to snag or cut the ionizing line.If
the ionizing line is cut,request the dealer to
replace it.If the unit is operated with the ionizing
line cut,there will be no dust collection.
Slide in the cell so the airflow arrow points
downstream.
After cleaning,make sure to dry the cell
thoroughly before reinstalling.If the cell or Pre-

filter is wet,it can cause breakdown of the
unit or personal injury.

Washing cell at car wash

Washing cell
in the container

CAUTION

Electronic Cell

1.

2.

3.

4.

5.

6.

E-21

CARE AND MAINTENANCE

1)Stop the operation and unplug the cord from the electrical
outlet.

2)Open the front panel.

3)Remove the Activated Carbon Filter.

Activated Carbon Filter

Replacing the Activated Carbon Filter

Replace the Activated Carbon Filter when the"FILTER"
indicator light flashes in red.

Photo catalytic Filter and UV Germicidal Lamp

Photo catalytic Filter

UV Germicidal Lamp

Replacing UV lamp

Germicidal Light Radiation
Hazard

Never look directly at UV lamp or
place face directly on outlet grille.
Direct exposure to germicidal light
can cause temporary or chronic
damage to your eyesight,or even
blindness.
Always unplug the unit before
cleaning, servicing or replacing the
UV lamp.

WARNING

Photo catalytic filter is permanent, never needs
replacing.
When there is dust on it, clean the dust off using a
vacuum cleaner dusting brush. Do not wash it in
water.
When the "UV LAMP" indicator light flashes ,it is time
to replace the Ultraviolet germicidal lamp. Gently
rotate the lamp a quarter turn in either direction until it
unlocks from the socket.Pull the pins out the sides of
the socket,one end at a time.

NOTE:

1)Do not wash the photo catalyst filter in water.

2)Do not look at the UV lamp when it is lit,it can cause
personal injury.

1.

2.

After replacement of Activated Carbon filter or UV lamp, be sure to press
Filter Reset Button(RESET1 Button) or UV Lamp Reset Button(RESET2)
on the remote control for 12 times.Once the Reset Buttons have been
activated, you will hear a beep sound that means that the unit has been
reset and the FILTER or UV LAMP indicator lights will stop to flash.

CAUTION

E-22

TROUBLESHOOTING

Front panel open?

The unit does not operate when the front panel is
detached.Install properly.

Is the CHECK light flashing?

If so, call the Customer Service.

Clean the filter or replace it.

Remove dust on the sensor.

Check the problems first and then unplug the power cord.Call the Customer Service to
ask for after-sale service or make inquiries.

There is too much dust on the
sensor?

There is too much dust on the
electronic cell?

Automatic function
does not work properly

When other problems
in terms of functions
are found

When functions do not
work

The system does not
operate at all

Power failure?

Power plug disconnected?

The FUSE out of order?

There is too much dust on the
Pre-filter,electronic cell, carbon filter?

The air inlet or outlet blocked?

There is no dust on the sensor.

Wash it and dry completely before installing it.

Get rid of foreign materials around the product.

Call the Customer Service.

Check other electrical appliances.

Make sure to insert the plug.

Replace the FUSE with new one.

E-23

WIRING DIAGRAM

RespirAide Tech Inc.

Interlock switch

Interlock switch

Transformer

JZ4

JZ17

JZ11

JZ15

JZ16

JZ10

JZ18

JZ6

JZ8

JZ1

Blue

Black

WhiteWhite

Green

Y. Green

Yellow Green

Yellow green

Fuse

Black

White

Pink white

Electrostatic

discharge switch

High voltage

generator

Ver.2.0

ABCDE

F

Electronic cell

Black

(-)

Red

(+)

Fan motor

UV lamp and ballast

Collector

White

White

H M L

C

Gas sensor

Remote control receiver

Negative ion

generator

Ionizer

Black

Black

Red

Red

Red

Speaker

Green

Green

Yellow

Red

Green

Power supply board

Control board

Wiring Diagram

Ｍｏｄｅｌ　Ｎｏ．ＲｅｓｐｉｒＡｉｄｅ２００Ｔ

120V/60Hz

0612-1-500 Rev.0

RespirAide Tech Inc.

Add:13-100 Hanlan Road
Woodbridge, Ontario Canada
L4L 4V8
Tel: [phone]
Fax: [phone]
www.respiraide.com

RespirAide reserves the right to revise or modify products and/or specifications
without notice.The contents of this manual are subject to change without notice.

R
