ReSound Unite Phone Clip Getting Started

PAIR WITH YOUR HEARING INSTRUMENT

1. Plug one end of the

charging cable into the
Phone Clip.

2. Plug the other end of the
charging cable into an elec­tric wall outlet.

3. Generally, charging is
complete when the red LED
indicator turns green. How­ever, when charging for the
first time allow it to charge
for at least 3 hours, even if
the LED turns green be­fore 3 hours have elapsed.

3. Remove the cover from
the Phone Clip.

4. Press the pairing button
to put the Phone Clip in pair­ing mode for 20 seconds.

5. While in pairing mode
close the battery doors on
both hearing instruments.

6. Successful pairing will
be indicated by an audible
melody played in both hear­ing instruments. Replace
the cover on the Phone Clip
once pairing is complete.

CHARGE YOUR PHONE CLIP

1. Turn on your Phone Clip

by pressing and holding the
multifunctional button for 3
seconds. A solid blue light
will display for 3 seconds
and then go dark once the
phone clip is turned on.

2. Open the battery doors
on both hearing instruments.

A

B

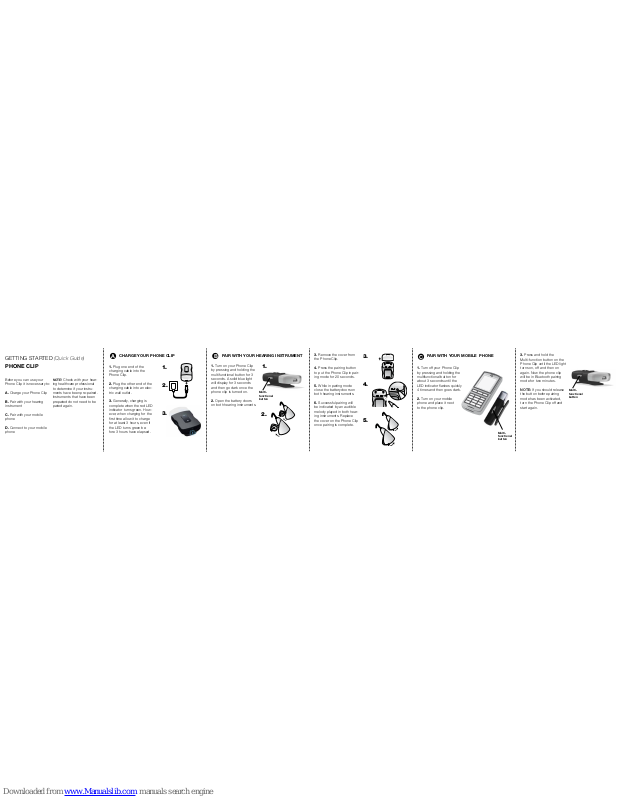

GETTING STARTED (Quick Guide)

PHONE CLIP

Before you can use your
Phone Clip it is necessary to:

A. Charge your Phone Clip

B. Pair with your hearing

instrument

C. Pair with your mobile
phone

D. Connect to your mobile
phone

NOTE! Check with your hear-

ing healthcare professional
to determine if your instru­ments have been pre-paired.
Instruments that have been
prepaired do not need to be
paired again.

1. Turn off your Phone Clip
by pressing and holding the
multifunctional button for
about 3 seconds until the
LED indicator flashes quickly
4 times and then goes dark.

2. Turn on your mobile
phone and place it next
to the phone clip.

3. Press and hold the
Multi-function button on the
Phone Clip until the LED light
turns on, off and then on
again. Now the phone clip
will be in Bluetooth pairing
mode for two minutes.

NOTE: If you should release
the button before pairing
mode has been activated,
turn the Phone Clip off and
start again.

PAIR WITH YOUR MOBILE PHONE

C

1.

2.

2.

5.

1.

3.

4.

Multi­functional
button

Multi­functional
button

Multi­functional
button

3.

17427200-GB-10.12 Rev. C

Worldwide head quarters

GN ReSound A/S
Lautrupbjerg 7
DK-2750 Ballerup, Denmark
Tel.: [phone]
Fax: [phone]
www.resound.com

United Kingdo m

GN ReSound Ltd.
Kirtlington Busine ss Centre
Portway
Kirtlington
Oxon OX5 3JA
Tel.: [phone]
Fax: [phone]
www.gnresound.co.uk

Australia

GN ReSound Pty. Ltd.
Unit R1 Regents Park Estate
391 Park Road
Regents Park NSW 2143
Tel.: (free) 1800 658 955
Fax: [phone]
www.gnresound.com.au

New Zealand

GN ReSound (NZ) Ltd.
12 Parkway Drive
Mairangi Bay
Auckland
Tel.: (free) 0800 900 126
Fax: (free) 0800 007 695
www.gnresound.co.nz

Canada

GN ReSound Canada
303 Supertest Road
Toronto, Ontario
CANADA M3J 2M4
Tel.: [phone]
Fax: [phone]
[e-mail]
www.gnresound.ca

4. Locate the “Bluetooth”
option in the mobil phone
menu, and search for Blue­tooth™ devices.

TIP: Ensure that the Blue­tooth feature is activated on
your mobile phone.

5. From a list of discovered
Bluetooth devices,
select “Hearing Aid Phone.”

6. Enter a passcode of
“0000” (four zeros) if
prompted.

NOTE: Select “Headset” if
asked which Bluetooth
service you wish to enable.

1. In most instances,
the phone will ask you to
confirm your intention to
connect with the Phone Clip
after successfully pairing.

2. If you have to manually
connect: Locate a list of
“Paired Devices” in your
phone’s Bluetooth” menu.
From that list, highlight
“Hearing Aid Phone”
and select “Connect.”

3. You are now ready to use
your Phone Clip.

TIP: In most instances,a
headset symbol on the main
screen of your mobile phone
will confirm that you have
successfully connected.

HELPFUL TIPS:

•Typically, pairing is a procedure that only needs to be
conducted as part of the initial setup procedure and does
not need to be repeated.

•You may need to repeat the connection procedure if the
devices are turned off or moved out of range.

•On some phones you can configure “Automatic Recon­nection.” Refer to the user guide of your mobile phone for
instructions on how to do this.

C. PAIR WITH YOUR MOBILE PHONE .....continued

CONNECT WITH YOUR MOBILE PHONE

D

GETTING STARTED (Quick Guide)

BT device XXXXXXX

BT device XXXXXXX

Hearing Aid Phone

BT device XXXXXXX

4.

5.

6.

Pairing complete
Connect to Bluetooth
Device?

Yes

No

?

1.

Add Device

Search for a device or Listen

for a device to nd me?

Search

Enter numeric passkey
for Bluetooth Device:

NOTE: Step-by-step instructions for pairing your
Phone Clip with various mobile phones can be ac­cessed at: http://jabra.pairx.co.uk/?l=28&pp=1067

Tips and Support

For more details on the ReSound Unite Phone
Clip, refer to the user guide. For further support,
tips and videos, go to the ReSound Unite website
on www.resound.com/products/unite
