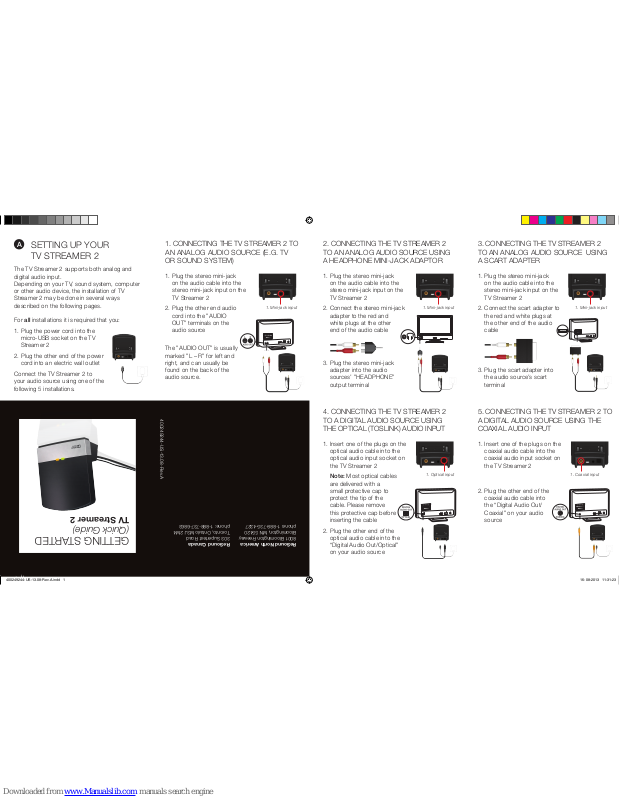

ReSound TV Steamer 2 Getting Started

SETTING UP YOUR
TV STREAMER 2

The TV Streamer 2 supports both analog and
digital audio input.
Depending on your TV, sound system, computer
or other audio device, the installation of TV
Streamer 2 may be done in several ways
described on the following pages.

For all installations it is required that you:

1. Plug the power cord into the
micro-USB socket on the TV
Streamer 2

2. Plug the other end of the power
cord into an electric wall outlet

Connect the TV Streamer 2 to
your audio source using one of the
following 5 installations.

1. CONNECTING THE TV STREAMER 2 TO
AN ANALOG AUDIO SOURCE (E.G. TV
OR SOUND SYSTEM)

1. Plug the stereo mini-jack
on the audio cable into the
stereo mini-jack input on the
TV Streamer 2

2. Plug the other end audio
cord into the ”AUDIO
OUT” terminals on the
audio source

The ”AUDIO OUT” is usually
marked ”L – R” for left and
right, and can usually be
found on the back of the
audio source.

2. CONNECTING THE TV STREAMER 2
TO AN ANALOG AUDIO SOURCE USING
A HEADPHONE MINI-JACK ADAPTOR

1. Plug the stereo mini-jack
on the audio cable into the
stereo mini-jack input on the
TV Streamer 2

2. Connect the stereo mini-jack
adapter to the red and
white plugs at the other
end of the audio cable

3. Plug the stereo mini-jack
adapter into the audio
sources’ ”HEADPHONE”
output terminal

4. CONNECTING THE TV STREAMER 2

TO A DIGITAL AUDIO SOURCE USING
THE OPTICAL (TOSLINK) AUDIO INPUT

1. Insert one of the plugs on the
optical audio cable into the
optical audio input socket on
the TV Streamer 2

Note: Most optical cables
are delivered with a
small protective cap to
protect the tip of the
cable. Please remove
this protective cap before
inserting the cable

2. Plug the other end of the
optical audio cable into the
“Digital Audio Out/Optical”
on your audio source

5. CONNECTING THE TV STREAMER 2 TO
A DIGITAL AUDIO SOURCE USING THE
COAXIAL AUDIO INPUT

1. Insert one of the plugs on the
coaxial audio cable into the
coaxial audio input socket on
the TV Streamer 2

2. Plug the other end of the
coaxial audio cable into
the “Digital Audio Out/
Coaxial” on your audio
source

3. CONNECTING THE TV STREAMER 2

TO AN ANALOG AUDIO SOURCE USING
A SCART ADAPTER

1. Plug the stereo mini-jack
on the audio cable into the
stereo mini-jack input on the
TV Streamer 2

2. Connect the scart adapter to
the red and white plugs at
the other end of the audio
cable

3. Plug the scart adapter into
the audio source’s scart
terminal

A

1. Mini-jack input 1. Mini-jack input

1. Optical input 1. Coaxial input

1. Mini-jack input

GETTING STARTED

(Quick Guide)

TV Streamer 2

400249244-US-13.08-Rev.A

ReSound North America

8001 Bloomington Freeway

Bloomington, MN 55420

phone: [phone]

ReSound Canada

303 Supertest Road

Toronto, Ontario M3J 2M4

phone: [phone]

400249244-US-13.08-Rev.A.indd 1 16-08-2013 11:31:23

TIPS AND SUPPORT

For more details on the TV Streamer 2, refer
to the user guide.

PAIRING TO YOUR HEARING INSTRUMENTS

B

B

Note: Check with your hearing healthcare

professional to determine if your hearing
instruments have been pre-paired. Instruments
that have been pre-paired do not need to be
paired again.

1. Make sure the TV Streamer 2 is
plugged into a wall socket and
that the green power light is on

2. Open the battery doors on
both hearing instruments

3. Press the pairing button on the TV
Streamer 2 once to activate the
pairing mode

4. You can tell that the pairing mode
has been activate when channel
indicator is flashing. Pairing mode
will be active for 20 seconds

5. While the channel indicator light is
flashing, close the battery doors on
both hearing instruments.

Note: Successful pairing will be
indicated by an audible melody
played in both hearing instruments.
You are now ready to use the TV
Streamer 2!

LISTENING TO YOUR TV STREAMER 2

C

After setting up and pairing, you can listen to
streamed audio from the TV Streamer 2 as
follows.

With your TV, sound system or computer turned
on …

EITHER: Press and hold the push button on your
hearing instruments for 3 seconds.

This must be done separately on both hearing
instruments, in order to hear streamed audio
in both ears, unless your hearing instruments
have been set up with device-to-device
synchronisation;

OR: If you have a Remote Control
(optional), simply press the streaming
button on this Remote Control.

Once TV Streamer 2 has been connected,
an audible melody will play in your hearing
instruments and will be followed by the streamed
audio.

When using the optional Remote Control, the
display will show that it is searching, and then
indicate that it is connected to the TV Streamer 2.

TO STOP LISTENING TO STREAMED
AUDIO

EITHER: Shortly press and release the push
button on your hearing instrument;

OR: Press the “P” button on the remote control

1. Cable and charger

4.

PAIRING TO A SECOND OR THIRD TV
STREAMER 2

It is possible to pair up to three TV Streamer 2 units
with a given pair of hearing instruments.

To pair a second or third TV Streamer 2:

Follow steps 1 and 2 under

• Then press the pairing button of the second
ReSound Unite TV 2 TWO or THREE times

• The yellow light indicator on the front of the TV
Streamer 2 will now blink twice or three times
every 2 seconds to indicate that it is ready to be
paired in channel 2 or 3

• Complete the pairing process by closing the
battery doors on the hearing instruments

Pairing button

pushes

Light indicator pattern

Channel

Streaming button
