ReSound Phone Clip+ Getting Started

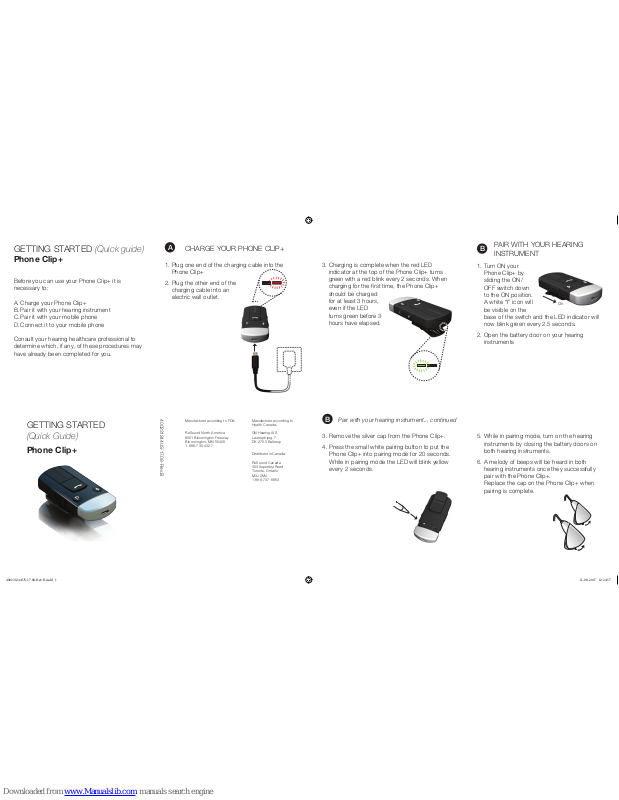

GETTING STARTED (Quick guide)

Phone Clip+

CHARGE YOUR PHONE CLIP+

PAIR WITH YOUR HEARING
INSTRUMENT

Pair with your hearing instrument... continued

Before you can use your Phone Clip+ it is
necessary to:

A. Charge your Phone Clip+
B. Pair it with your hearing instrument
C. Pair it with your mobile phone
D. Connect it to your mobile phone

Consult your hearing healthcare professional to
determine which, if any, of these procedures may
have already been completed for you.

1. Plug one end of the charging cable into the
Phone Clip+

2. Plug the other end of the
charging cable into an
electric wall outlet.

1. Turn ON your
Phone Clip+ by
sliding the ON/
OFF switch down
to the ON position.
A white “I” icon will
be visible on the
base of the switch and the LED indicator will
now blink green every 2.5 seconds.

2. Open the battery door on your hearing
instruments

3. Remove the silver cap from the Phone Clip+.

4. Press the small white pairing button to put the
Phone Clip+ into pairing mode for 20 seconds.
While in pairing mode the LED will blink yellow
every 2 seconds.

5. While in pairing mode, turn on the hearing
instruments by closing the battery doors on
both hearing instruments.

6. A melody of beeps will be heard in both
hearing instruments once they successfully
pair with the Phone Clip+.
Replace the cap on the Phone Clip+ when
pairing is complete.

A

B

B

3. Charging is complete when the red LED
indicator at the top of the Phone Clip+ turns
green with a red blink every 2 seconds. When
charging for the first time, the Phone Clip+
should be charged
for at least 3 hours,
even if the LED
turns green before 3
hours have elapsed.

On

GETTING STARTED

(Quick Guide)

Phone Clip+

400231244US-17.08-Rev.B

Manufacturer according to FDA:

R

eSound North America
8001 Bloomington Freeway
Bloomington, MN 55420
1-888-735-4327

Manufacturer according to
H

ealth Canada:

GN Hearing A/S
Lautrupbjerg 7
DK-2750 Ballerup

Distributor in Canada:

ReSound Canada
303 Supertest Road
Toronto, Ontario
M3J 2M4
1-888-737-6863

400231244US-17.08-Rev.B.indd 1 11-08-2017 12:24:57

CONNECT WITH YOUR MOBILE PHONE

PHONE OPERATION REMOTE CONTROL OPERATION

D

F G

1. In most instances, the phone will ask you to
confirm your intention to connect with the
Phone Clip+ after successfully pairing.

2. If you have to manually connect:
Locate a list of “Paired Devices” in your phone’s
Bluetooth” menu. From that list, highlight
“Hearing Aid Phone” and select “Connect.”

3. You are now ready to use your Phone Clip+.

4. On some phones you can configure “Automatic
Reconnection.” Refer to the user guide of your
mobile phone for instructions on how to do
this.

Tip: In most instances, a headset symbol
on the main screen of your mobile phone will
confirm that you have successful connected.

Note: This Quick Guide is only valid together
with the full user guide delivered with your
Phone Clip+.

In the below table you will find an overview of
how you operate the Phone Clip+ when using it
in connection with phone calls.

When not on the phone, the Phone Clip+ can be
used as a simple remote control for your hearing
instruments*.

Answering a nd ending a call Push the call pick-up/hang-up button once

Rejecting a call Double click the call pick-up/hang-up button

Transferring a call initiated on the mobile phone to Phone Clip+ Push the call pick-up/hang-up button once

Put an active c all on hold Press and hold t he call pick-up/hang-up bu tton for 2

seconds

Last numb er redial Double clic k the call pick-up/hang-up bu tton while no call

is active nor pending

Voice dialing Press and hold t he call pick-up/hang-up bu tton for 2 seconds

Turn hearing ins trument(s)
volume up

Push + on the volum e
button

Turn hearing ins trument(s)
volume down

Push - on the volum e
button

Mute heari ng instrument
microphones

Push once

Unmute hearing instrument
microphones

Push once

Toggle through hearing
instrument programs

Push one or more times

*Unless up graded to the latest soft ware, some wireless h earing instru­ments must be initially paired with a compatible Remote Control to enable
the Phone Clip’s remote control feature. This may be done with either
your or your hea ring healthcare pro fessional’s Remote Contro l. Mute and
stereo stream ing is unavailable on c ertain hearing i nstrument models.
Consult your hearing healthcare professional for more information.

Note: Except for the answer and end call
operations, one or more of the below described
operations may be phone dependent, i.e. they
may either differ slightly or be absent altogether.

PAIR WITH YOUR MOBILE PHONE

C

1. Turn your Phone Clip+ ON and remove the
silver cap.

2. Find the connectivity settings on your phone.
Look for the “Bluetooth” feature in the main
menu or one of the submenus, such as
“Connectivity”. (Refer to your mobile phone
user guide or www.resound.com/PairPhone for
more detailed instructions.)

3. On your mobile phone, ensure that Bluetooth is
turned ON.

4. Press the small blue Bluetooth
pairing button one time to
activate Bluetooth pairing
mode for two minutes. The
LED indicator will turn blue
during Bluetooth pairing.

5. On the mobile phone search for Bluetooth
devices.

6. Your mobile phone should present a list of
Bluetooth devices discovered. Select “Hearing
Aid Phone” from this list.

7. Your mobile phone may then ask you to enter a
passcode. If so, enter “0000” (four zeros).

Your Phone Clip+ should now be paired to your
mobile phone. Some mobile phones may ask
which Bluetooth service you wish to enable.
Select “Headset”.

LIGHT INDICATORS (LED)

E

Blinks Meaning

Normal operation

Batter y low

Charging

Fully charged -still con­nected to charger

Ready for pair ing with
hearing instrument(s)

Ready for pair ing with
Bluetooth device

Bluetooth call active

The Light indicator at the top of your Phone Clip+
serves as a multipurpose user interface, providing
information on the status of your device.
