Page 1
Quick guide
ReSound LiNX 3D
™
61
Page 2
Product: ReSound LiNX 3D
Model: 61
Serial number (R):
_______________________________
Serial number (L):
_______________________________
Battery size: 312
My hearing aid information
PROGRAM WHEN TO USE BEEPS
1
1
2
2
3
3
4
4
Programs:
(if set up by your hearing care professional)
Page 3
A. Program button
B. Microphones
C. Receiver
D. Wax guard
View ReSound’s hearing aid tutorial videos at youtube.com/resoundus.
Get to know your hearing aid
A
D
C
B
G
F
E. Dome
F. Battery door
G. Right/Left indicator
E
Page 4
1
2
1
2

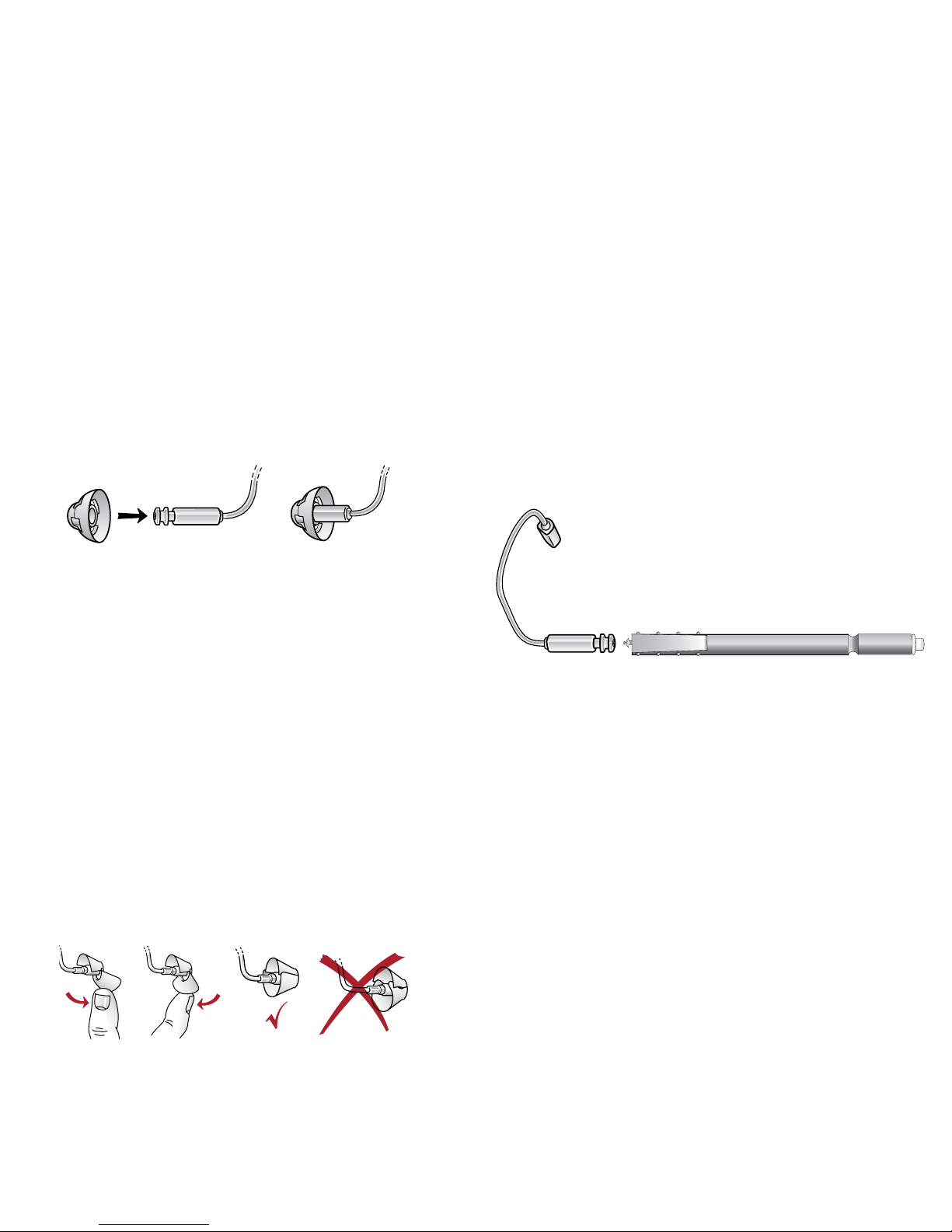

Regular care & maintenance
As needed: Change dome (E)
ReSound standard domes
1. Push the new dome over the
receiver.
2. Make sure that the new dome is
properly and securely maintained.
ReSound tulip domes
Tulip domes consist of two “petals”. It
is important that the largest petal is
the outermost petal. To ensure this:
1. Push the largest petal away from
the receiver tube using a finger.
This bends the petal forward.
2. Then push the largest “petal”
back, and it will be placed on top
of the smaller petal.
Monthly: Change the wax guard or
see your hearing care professional.
For changing CeruSTOP
™
(white)
wax guards, complete the following
steps:
Removal: Insert the removal side
of the wax guard tool into the used
wax guard so that the shaft of the
tool is touching the rim of the
wax guard. Slowly pull the wax
guard straight out.
Insertion: To insert the new wax
guard, gently press the replacement
side of the wax guard tool straight
into the hole of the sound outlet
until the outer ring lies flush with the
outside of the receiver. Pull the tool
straight out. The new wax guard will
remain in place.
removal side replacement side
Wax guard tool
Page 5

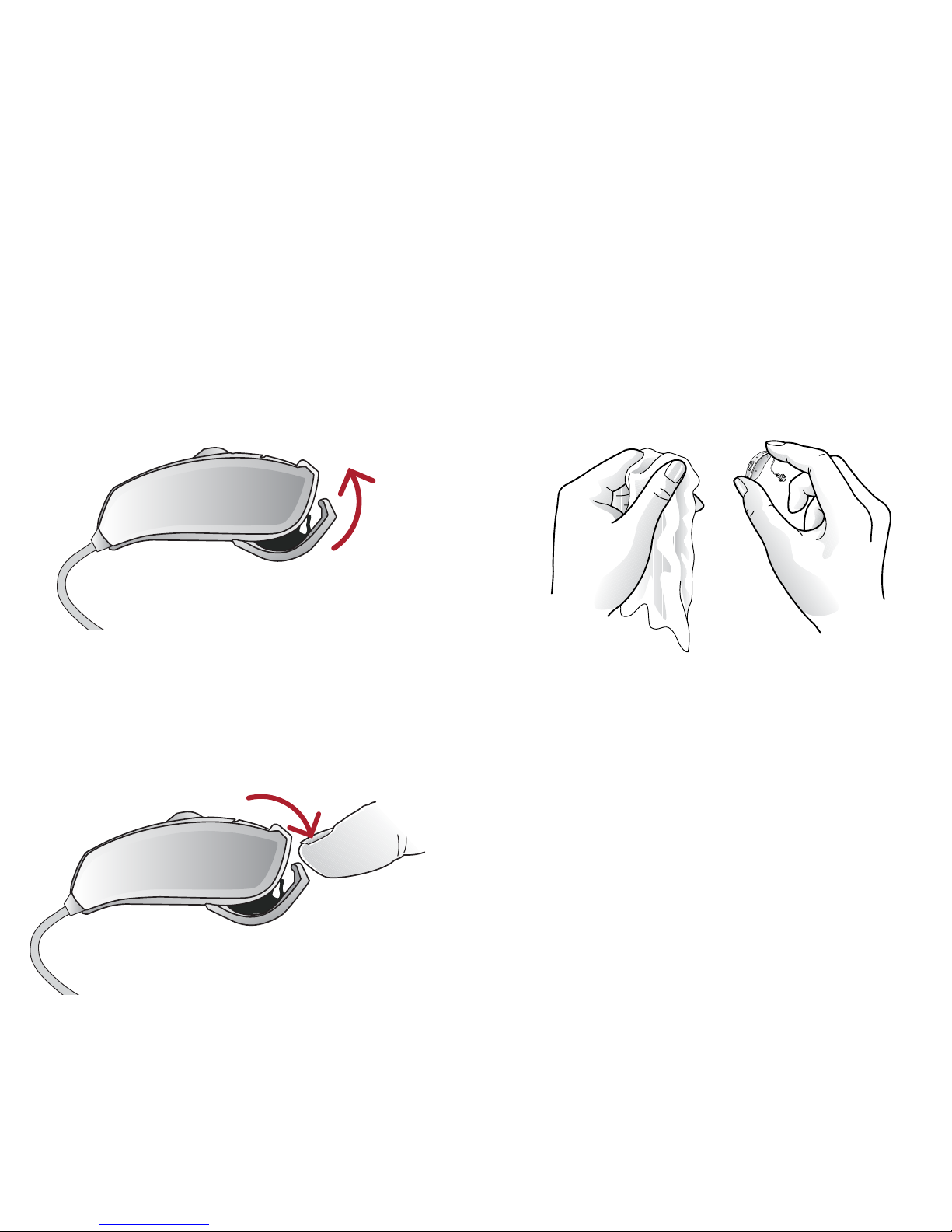

Getting started: On/O function
ON: Insert battery & completely close
battery door (F). Program 1 will
be active.
OFF: Open the battery door (F). Use
fingertip to pull it all the way.
ON
OFF
What you need to know
Daily: Clean your hearing aid.
Keep your hearing aids dry. Clean
the hearing aids using a soft cloth
or tissue.
Weekly: Clean the receiver
tubes and domes (E).
Use a soft cloth to clean the
receiver tube and dome on the
outside. Do not use water when
you are cleaning the receiver tubes.
Regular care & maintenance
Page 6
Flight mode:
Some airlines prohibit the use
of wireless hearing aids (RF
transmitters) onboard. If required
by your airline, enable flight mode:
Disable wireless operation by
opening and closing the battery
compartment three times within
ten seconds (open-close, open-close,
open-close). Your instruments will
now be in flight mode.
The hearing aids must function in
flight mode for 10 seconds before
wireless operation can be re-enabled.
To re-enable wireless operation,
open and close the battery door one
time and wait thirty seconds before
opening the battery door again to
avoid accidentally entering flight
mode again.

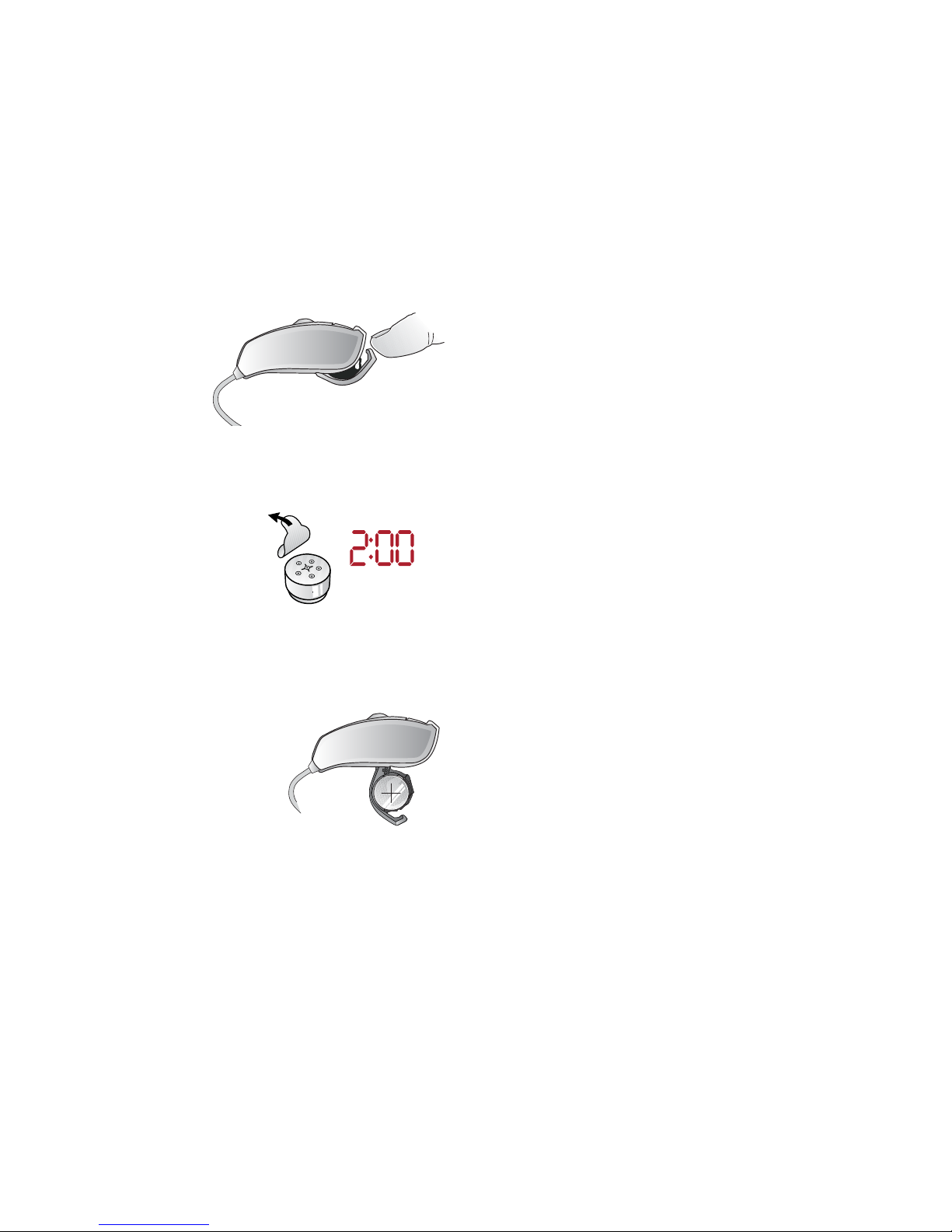

Inserting/Replacing the battery:
1. Open the battery door (F)
completely by
using your
fingertip.
2. Remove protective sticker from
battery and wait 2 minutes before
inserting the
battery into the
hearing aid to
allow full activation of the battery.
3. Insert the new battery
with the positive side
(flat side) in the
correct position,
as shown.
4. Gently close the battery door. If it
doesn’t close easily, check to see
if the battery is upside down.
Page 7
Beep/tone indicators
View ReSound hearing aid tutorial videos at youtube.com/resoundus.
BEEP/TONE INDICATION ACTION REQUIRED
Ding, ding, ding, dong Low battery Change battery
Ding (5 or 10) Hearing aid is starting up After dings cease, hearing aid
is turned on
Ding-ding,
ding-ding, etc.
Hearing aid is in flight mode Use in flight mode if desired,
or open-close battery door
(F) to exit flight mode
Ripple tone Hearing aid is in streaming
mode
Use with wireless
accessory or press multifunction button to exit
streaming mode
Page 8
Troubleshooting
SYMPTOM CAUSE POSSIBLE REMEDY
No sound Battery door (F) not closed
Dead battery
Battery door (F) will not close
Blocked earmold or tube
Blocked wax guard
Turn on by closing the battery door (F)
Replace battery
Insert battery properly
Clean earmold or tube
Replace wax guard (D) or consult your hearing care professional
Not loud enough Blocked earmold or dome (E)
Change in hearing, volume too low
Excessive ear wax
Clean earmold, replace dome (E), replace guard (D)
Consult your hearing care professional
Consult your hearing care professional
Excessive
whistling/feedback
Incorrect earmold placement
Incorrect dome (E) placement
Excessive ear wax
If none of the above
Re-insert earmold carefully
Re-insert dome (E)
Clean guard/consult your hearing care professional
Consult your hearing care professional
Wireless does not work Device may be in flight mode Open and close the battery compartment (F) once.
Wireless operation will reactivate ten seconds later.
If there are any other problems not mentioned in this guide, please contact ReSound or your hearing care professional.
Page 9
ReSound Government Services
8001 E. Bloomington Freeway
Bloomington, MN 55420
1.800.392.9932
www.resound.com/veterans
Manufacturer according
to FDA:
ReSound North America
8001 E. Bloomington Freeway
Bloomington, MN 55420
1.888.735.4327
resound.com
Manufacturer according
to Health Canada:
ReSound Canada
303 Supertest Road
Toronto, Ontario M3J 2M4
1.888.737.6863
resound.com
For more information
Refer to the user guide included in
your hearing aid box.
Your hearing care professional can
be reached at:
View ReSound hearing aid tutorial
videos at youtube.com/resoundus.
400701011 Rev A 2017.02
