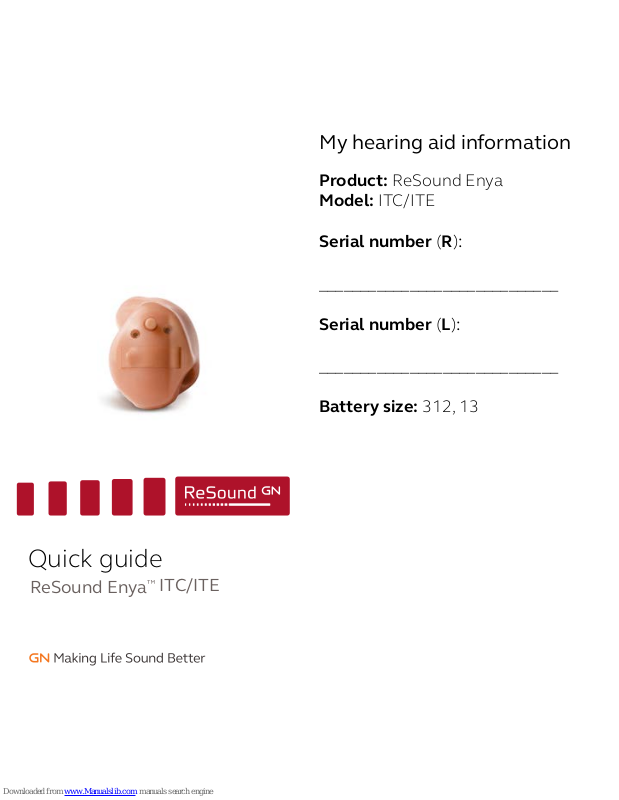

Page 1
Product: ReSound Enya
Model: ITC/ITE
Serial number (R):
_____________________________
Serial number (L):
_____________________________
Battery size: 312, 13
Quick guide
ReSound Enya
™
ITC/ITE
My hearing aid information
Page 2
Program button (A):
ACTION RESULT
SHORT push
Program change
LONG push
Activate streaming
(if enabled by
professional)
Volume control (C):
(if set up by your hearing care professional)
ACTION RESULT
Rotate forward
(toward your
face)
Volume increases
Rotate backward
(away from your
face)
Volume decreases
PROGRAM WHEN TO USE BEEPS
1
1
2
2
3
3
4
4
Programs:
(if set up by your hearing care professional)
Page 3
C/D
B
A. Program button*
B. Microphones
C. Wax guard
D. Sound outlet
E. Battery door
A
E
F
Get to know your hearing aid
GN
ReS
o
und
X
X
X
X
X
X
X
X
X
X
I
H
View ReSound’s hearing aid tutorial videos at youtube.com/resoundus.
F. Volume control*
G. Manufacturer
H. Model
I. Serial number
G
*If selected by your hearing care professional
EYxITE
Page 4
Getting started: On/O function
ON: When the battery door (E) is
closed, the hearing instrument turns
on, and the default program will be
activated.
OFF: To turn o the hearing
instrument, open the battery door (E).
Many individuals can use their fingernail to pull it open.
OFF
What you need to know
ON
Inserting/Replacing the battery:
1. Open the battery
door (E) completely by
using your fingertip.
2. Remove protective sticker from
battery and wait 2 minutes before
inserting the
battery into the
hearing aid to
allow full activation of the battery.
3. Insert the new battery
with the positive side
(flat side) in the correct
position, as shown.
4. Gently close the battery door. If it
doesn’t close easily, check to see
if the battery is upside down.
Page 5
Flight mode:
Some airlines prohibit the use of
wireless hearing aids (RF
transmitters) onboard. If required by
your airline, enable flight mode:
Disable wireless operation by
opening and closing the battery door
(D) three times within ten seconds
(open-close, open-close, open-close).
Your instruments will now be in
flight mode.
The hearing aids must function in
flight mode for 10 seconds before
wireless operation can be re-enabled.
To re-enable wireless operation,
open and close the battery door one
time and wait thirty seconds before
opening the battery door again to
avoid accidentally entering flight
mode again.
removal side replacement side
Wax guard tool
Daily: Clean your hearing aid.
Keep your hearing aids dry. Clean
the hearing aids using a soft cloth
or tissue.
Monthly: Change the wax guard (C)
or see your hearing care professional.
For changing CeruSTOP™ wax guard,
complete the following steps:
Removal: Insert the removal side
of the wax guard tool into the used
wax guard (C) so that the shaft of
the tool is touching the rim of the
wax guard. Slowly pull the wax
guard straight out.
400554011 Rev E 2016.11
Regular care & maintenance
Page 6
For changing HF3 wax guard (C),
complete the following steps:
1. Brush the sound
outlet area with
the sound outlet
pointed down.
2. Insert the threaded end of the wax
guard tool into the used wax guard
(C), and rotate clockwise.
3. Gently pull until
the used guard
is removed.
Insertion: To insert the new wax guard
(C), gently press the replacement side
of the wax guard tool straight into the
hole of the sound outlet until the outer
ring lies flush with the outside of the
receiver. Pull the tool straight out. The
new wax guard will remain in place.
4. Discard
the used
guard in
the slot
located
in the wax guard kit by pressing it
into the center, sliding it to one end
of the slot, and pull until the filter
is discarded.
5. Flip the wax guard
tool around, locate a
new guard in the dial,
and press the tip of
the tool into the
center of the dial.
6. Gently pull the new
guard out of the dial.
7. Press the new guard to the canal tip
of the hearing aid. Move the tool
gently side to side and pull it away
from the hearing aid.
Page 7
BEEP/TONE INDICATION ACTION REQUIRED
Ding, ding, ding,
dong
Low battery Change battery
Ding (5 or 10) Hearing aid is starting up After dings cease,
hearing aid is turned on
Ding-ding,
ding-ding, etc.
Hearing aid is in
flight mode
Use in flight mode if
desired, or open-close
battery door (E) to exit
flight mode
Ripple tone Hearing aid is in
streaming mode
Use with wireless
accessory or press
multi-function button to
exit streaming mode
Beep/tone indicators
View ReSound’s hearing aid tutorial videos at youtube.com/resoundus.
Page 8
SYMPTOM CAUSE POSSIBLE REMEDY
No Sound Battery door (E) not closed
Dead battery
Battery door (E) will not
close
Blocked wax guard (C)
Turn on by closing the battery door (E)
Replace battery
Insert battery properly
Replace wax guard (C) or consult your
hearing care professional
Not loud
enough
Blocked sound outlet (D)
Change in hearing, volume
too low
Excessive ear wax
Change wax guard (C) or consult your
hearing professional
Consult your hearing care professional
Consult your hearing care professional
Excessive
whistling/
feedback
Incorrect placement in ear
Excessive ear wax
If none of the above
Re-insert hearing aid carefully
Clean guard (C)/consult your hearing
care professional
Consult your hearing care professional
Troubleshooting
If there are any other problems not mentioned in this guide, please contact
ReSound or your hearing care professional.
Page 9
400554011
ReSound Government Services
8001 E. Bloomington Freeway
Bloomington, MN 55420
1.800.392.9932
www.resound.com/veterans
Manufacturer according
to FDA
ReSound North America
8001 E. Bloomington Freeway
Bloomington, MN 55420
1.888.735.4327
resound.com
Manufacturer according
to Health Canada
ReSound Canada
303 Supertest Road
Toronto, Ontario M3J 2M4
1.888.737.6863
resound.com
For more information
Refer to the user guide included in
your hearing aid box.
Your hearing care professional can
be reached at:
View ReSound hearing aid tutorial
videos at youtube.com/resoundus.
400554011 Rev E 2016.11
