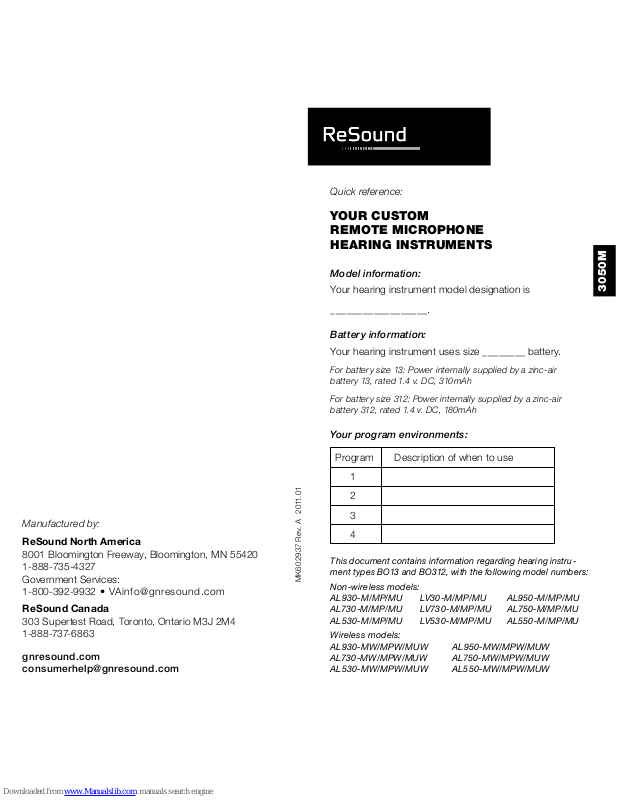

Page 1
Quick reference:
Your Custom
remote miCrophone
hearing instruments
Model information:
Your hearing instrument model designation is
__________________.
Battery information:
Your hearing instrument uses size ________ battery.
For battery size 13: Power internally supplied by a zinc-air
battery 13, rated 1.4 v. DC, 310mAh
For battery size 312: Power internally supplied by a zinc-air
battery 312, rated 1.4 v. DC, 180mAh
Your program environments:
Program Description of when to use
1
2
3
4
MK602937 Rev. A 2011.01
This document contains information regarding hearing instrument types BO13 and BO312, with the following model numbers:
Non-wireless models:
AL930-M/MP/MU LV30-M/MP/MU AL950-M/MP/MU
AL730-M/MP/MU LV730 -M/MP/MU AL750-M/MP/MU
AL530-M/MP/MU LV530-M/MP/MU AL550-M/MP/MU
Wireless models:
AL930-MW/MPW/MUW AL950-MW/MPW/MUW
AL730-MW/MPW/MUW AL750-MW/MPW/MUW
AL530-MW/MPW/MUW AL550-MW/MPW/MUW
3050m
Manufactured by:
ReSound North America
8001 Bloomington Freeway, Bloomington, MN 55420
1-888-735-4327
Government Services:
1-800-392-9932 • VAinfo@gnresound.com
ReSound Canada
303 Supertest Road, Toronto, Ontario M3J 2M4
1-888-737-6863
gnresound.com
consumerhelp@gnresound.com
Page 2
32
ReSound Custom Remote Microphone
These two pages provide information for wireless models:
FCC ID: X26BO13 & X26BO312
statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from the one in which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Changes or modifications can void the user’s authority to
operate the equipment.
intended use
Generic air-conduction hearing instruments are wearable sound-amplifying devices intended to compensate
for impaired hearing. The fundamental operating principle
of hearing instruments is to receive, amplify, and transfer
sound to the ear drum of a hearing impaired person.
List of Countries
Products without wireless functionality are intended for
worldwide sales.
Products with wireless functionality are intended for sale
in countries within European Economic Area as well as
Switzerland.
Specification of restrictions: You are not allowed to operate
the equipment within 20 km of the centre of Ny Ålesund,
Nor way.
The products are in compliance with the following regulatory
requirements:
• In EU: the device conforms to the Essential Requirements
according to Annex I of Council Directive 93/42/EEC
for medical devices (MDD) and essential requirements
and other relevant provisions of Directive 1999/5/EC
(R&TTE). The declaration of conformity may be consulted
at www.resound.com
• In US: FCC CFR 47 Part 15, subpart C, section 15.249
• Other identied applicable international regulatory
requirements in countries outside EU and US. Please refer
to local country requirements for these areas.
• Products are categorized as Class 2 receiver according to
EN 300 440
IC: 6941C-BO13
IC: 6941C-BO312
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
Page 3
54
ReSound Custom Remote Microphone
Custom remote miCrophone
hearing instruments
1. Program selector (optional on select models)
2. Volume control (optional on select models)
3. Battery compartment and on/off switch
4. Sound outlet
5. Wax lter
6. Body
7. Microphone tubing
8. Microphone
9. Microphone sound inlets
10. Air vent
11. Manufacturer, model and serial
number (imprinted on side of body)
3
9
7
11
2
1
4
8
10
5
6
Note: Since this insert covers multiple models
of hearing instruments, the illustrations may vary
slightly from your particular model.
Low batterY indiCator (wireless
models paired with accessories only)
Active usage of the ReSound Unite accessories (remote
control, phone clip and TV streamer) requires more bat-
tery power from the hearing instruments than when
these are working on their own. When the battery in
the hearing instrument has depleted to a level at which
use of the ReSound Unite TV and Phone Clip cannot be
supported, the hearing instrument will play two sets of
descending tones. After this, your hearing instrument and
ReSound Unite Remote Control will continue to work as
usual, but you will not be able to use your ReSound Unite
TV and Phone Clip. At some point the battery level will not
support the remote control either and you will once again
hear the descending tones. The hearing instruments will
continue to work as usual. Once a new battery is inserted,
full operation of the accessories will resume.
fLight mode (wireless models paired with
accessories only)
When boarding a flight, wireless functionality must be
deactivated, as it is not allowed to radiate radio signals
during flights.
It is possible to disable wireless operation by opening and
closing the battery compartment of the hearing instrument
while at the same time pressing the push button.
When disabled manually, wireless operation may be
re-enabled by opening and closing the battery compartment normally, (i.e., without at the same time pressing the
push button).
Listening to the radio or tV
When listening to the TV or the radio, start out by listening to
news commentators since they usually speak clearly, then
try other programs.
If you nd it difcult to listen to TV or radio, your hearing
healthcare professional will be able to give you advice on
available accessories to enhance your listening capabilities
for TV and radio.
Page 4
76
ReSound Custom Remote Microphone
phonenow™
The PhoneNow™ function is available on some hearing
instrument models and allows your hearing instrument to
automatically switch to the telecoil or acoustic phone program when a telephone receiver is raised to the ear. When
the telephone receiver is moved away from the ear, the
hearing instrument automatically returns to the previous listening program. PhoneNow allows you to use the telephone
in a normal manner. You will hear a beep whenever the
PhoneNow feature automatically switches the hearing
instrument into or out of your telephone program. Experiment with various telephone placements to find the best
position for reliable PhoneNow activation and optimal hearing on the telephone.
PhoneNow magnets
While some telephone receivers produce a magnetic field
strong enough to activate the PhoneNow feature, other
tele phone receivers require an additional magnet to be
placed on the telephone receiver. The ideal placement of
the magnet may vary with different phones. As a result,
some experimentation may be required in order to identify
the optimal magnet placement. Once you have identified the
desired location for the magnet:

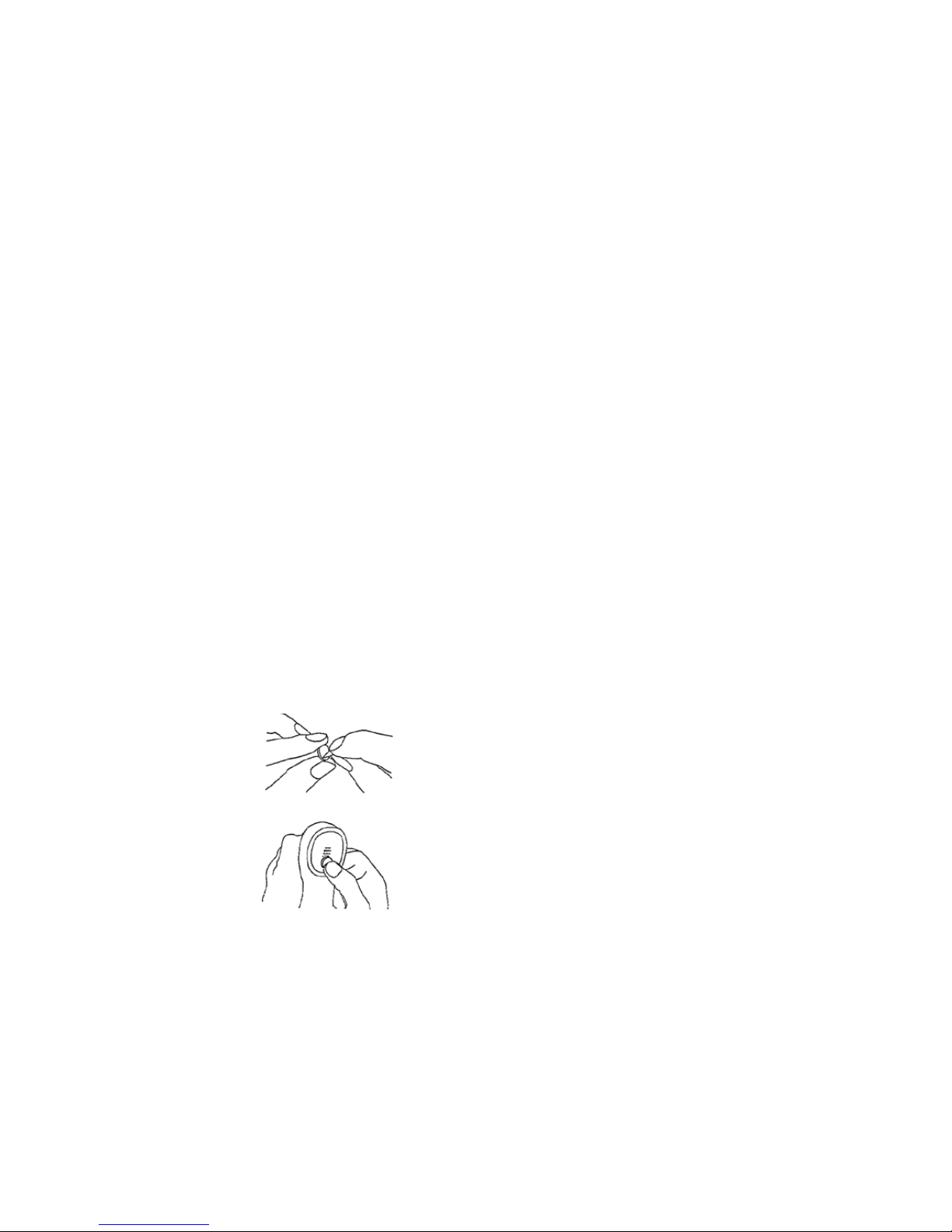

1. Clean the telephone receiver thoroughly.
2. Remove the paper
backing from the
adhesive pad on
the magnet.
3. Place the adhesive side
of the magnet against
the phone and firmly
press the magnet into
place.
PhoneNow precautions
Keep magnets out of reach of pets, children and mentally
challenged persons. Seek medical attention if a magnet is
swallowed.
The magnet used to supplement the magnetic field of a
telephone receiver may affect some medical devices or
electronic systems. The manufacturer of any magnetically
sensitive devices (e.g., pacemakers) should advise you
regarding appropriate safety precautions when using your
hearing instrument and magnet in close proximity to the
medical device or electronic system in question.
High distortion during dialing or telephone use may indicate
that the telephone receiver is being adversely affected by
the magnet. For better performance, relocate the magnet to
another place on the telephone receiver.
CeLLuLar phones
Your hearing instrument is designed to comply with the
most stringent Standards of International Electromagnetic
Compatibility. However, not all cellular phones are hearing
instrument compatible. The varying degree of disturbance
can be due to the nature of your particular cellular phone or
your wireless telephone service provider.
If you are not satisfied with the results while using your cellular phone, your hearing care professional will be able to give
you advice on available accessories to enhance listening
capabilities.
