Resolution RE920 User Manual

RE920 PA IP Module

Features

• Connects in daughterboard slot of SimonXT panel

• Allows reporting of alarm and status conditions over IP connection

• Allows control of system functions (arming, disarming, etc) over IP

connection

• Allows control of lights and other Zwave devices over IP connection

Key Instructions

• Install RE920 unit in slot at back of panel

• Power up the panel

• Connect ethernet cable

• Connect to configuration software and enter MAC address

• Configure RE920 to correct IP address for reporting

• Configure RE920 to correct IP address for system control

LED Operation

• "L and S" LEDs are normal ethernet LEDs and indicate healthy ethernet

network connection

• "Power" LED lights green when powered and shows heartbeat for

processor functioning correctly

• "Local" LED lights when proper connection to local router established

• "CS" LED lights when connected to Central Station

• "Platform" LED lights when connected to interactive platform website

RE920_IP_Module_Manual.doc

Page 1 of 4 07-Jan-11

www.ResolutionProducts.com

Specifications

Panel Compatibility: GE/Interlogix SimonXT
External supply: 9-18V DC, at least 100mA.
Current draw: 60mA, normal operation.
PCB dimensions: 1.9 x 4.1 inches

Specifications subject to change without notice.

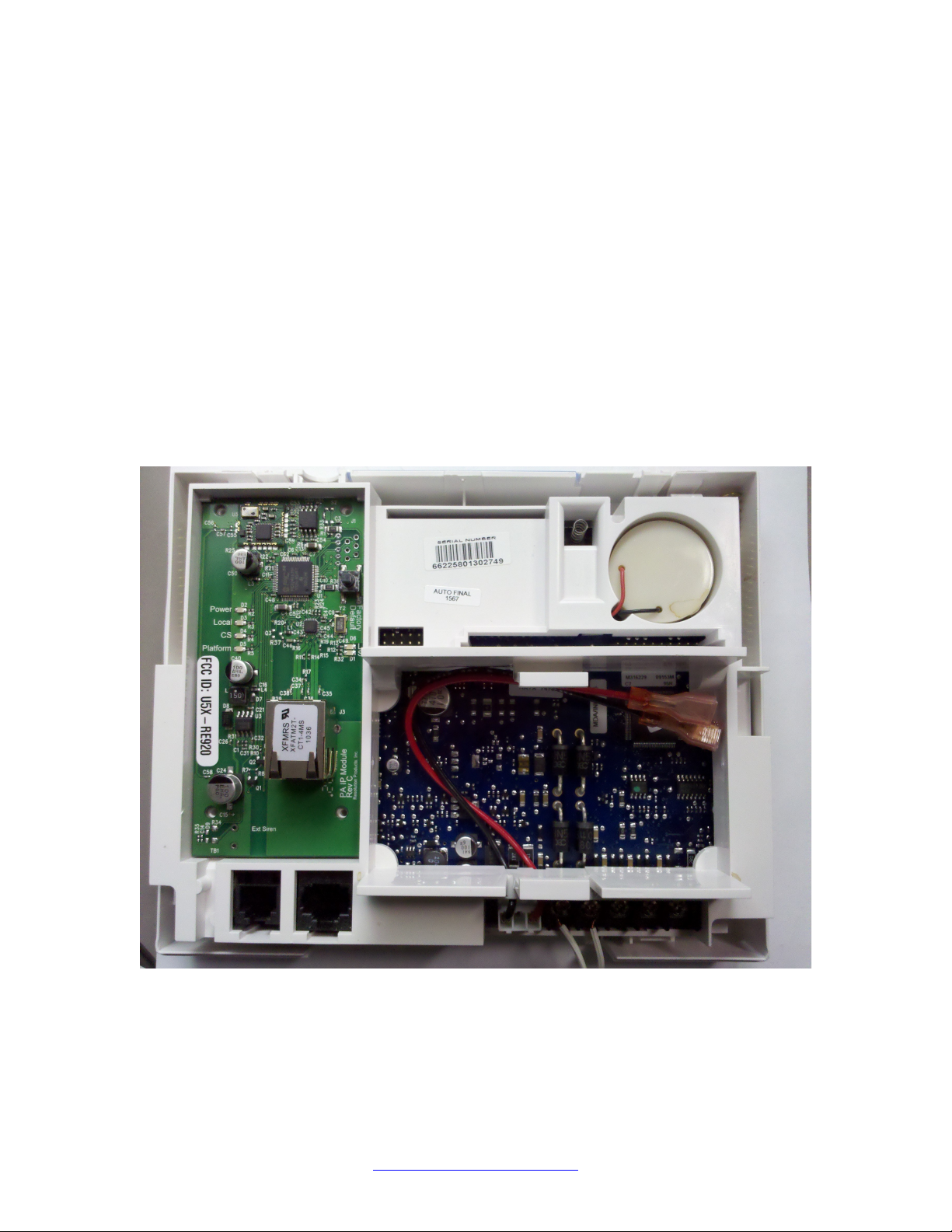

Internal Picture

Printed Zwave Antenna

Factory Default Switch

Ethernet LEDs

Mounting Holes

Status LEDs

Ethernet Connector
