Resolution RE6100 User Manual

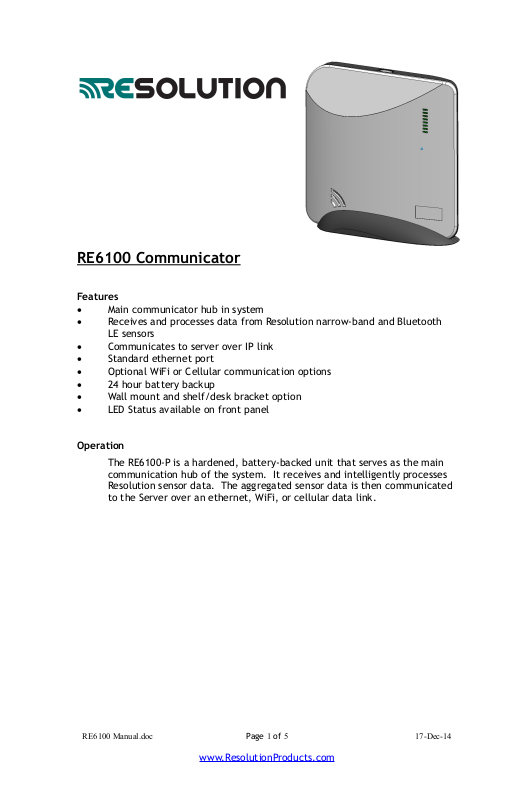

RE6100 Communicator
Features
Main communicator hub in system Receives and processes data from Resolution narrow-band and Bluetooth
LE sensors
Communicates to server over IP link Standard ethernet port Optional WiFi or Cellular communication options 24 hour battery backup Wall mount and shelf/desk bracket option LED Status available on front panel
Operation
The RE6100-P is a hardened, battery-backed unit that serves as the main communication hub of the system. It receives and intelligently processes Resolution sensor data. The aggregated sensor data is then communicated to the Server over an ethernet, WiFi, or cellular data link.
RE6100 Manual.doc Page 1 of 5 17-Dec-14
www.ResolutionProducts.com
Back Panel
Screw Closure
Factory
Default Button
Ethernet
Connector
Power
Connector
Factory Default Button
Press and hold for 5 seconds: Resets the board and keeps all settings Press and hold for 10 seconds: Reverts board back to the factory default settings
RE6100 Manual.doc Page 2 of 5 17-Dec-14
www.ResolutionProducts.com

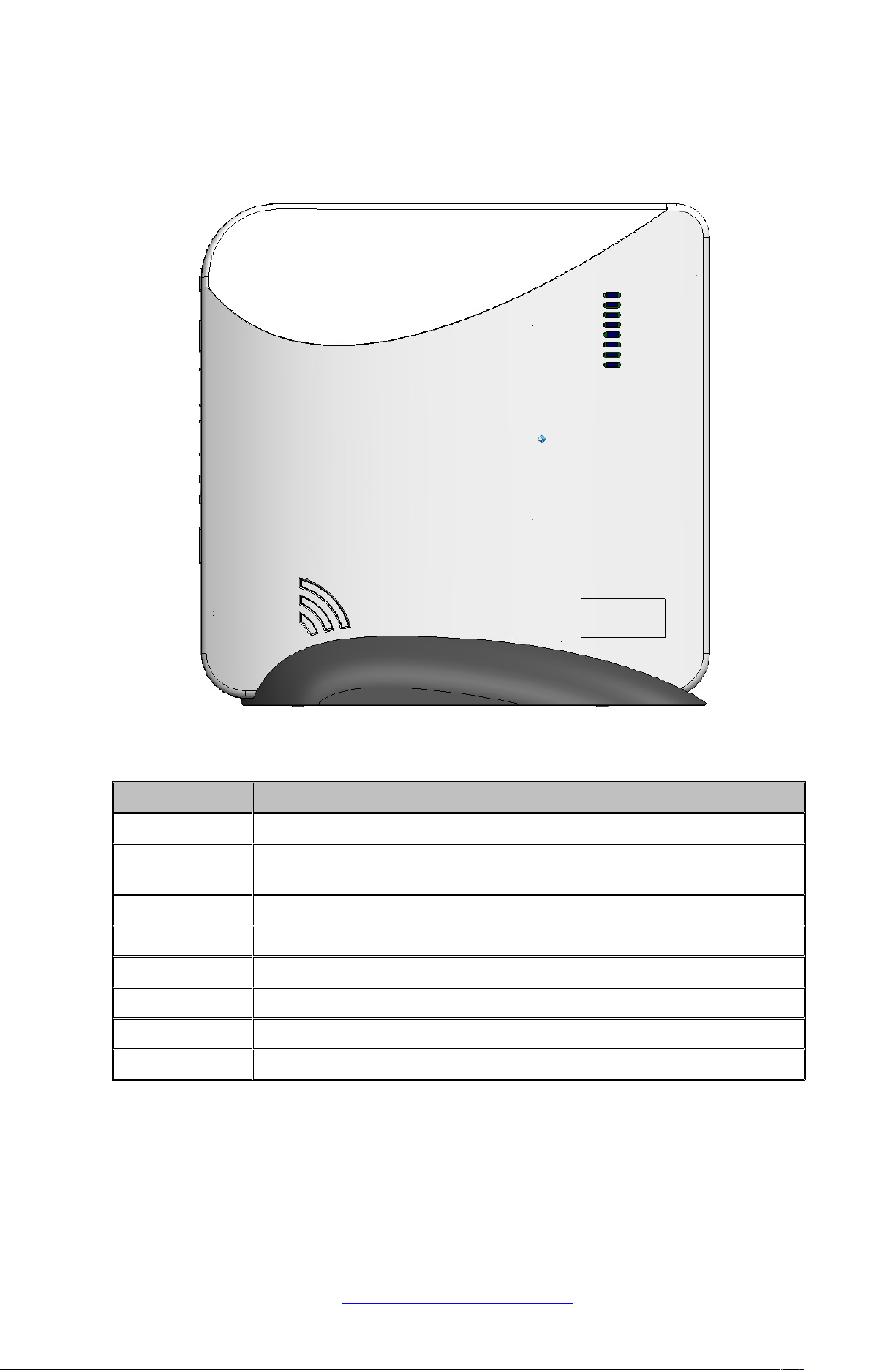

Front Panel
Power Comm CS Platform Status Trouble RF Open
LEDs Indication
Power ON when the unit is powered and running
Comm ON when communications interface is connected (IP address
assigned for WiFi/Ethernet, or connected to GSM network for GSM)
CS Unused (off)
Platform ON when connected to Server
Status Unused (off)
Trouble Unused (off)
RF Flashes for every wireless packet received
Open Unused (off)
RE6100 Manual.doc Page 3 of 5 17-Dec-14
www.ResolutionProducts.com
Specifications
Current Draw: 120 mA Nominal Temperature Range: 0F to 120F Power Supply 12VDC, 1A Battery 6.0V NiMH Rechargeable Battery Life 24 hours Ethernet 10/100Base-T WiFi 802.11b/g with WPS Support Cellular 3G CDMA 1xRTT Narrow-Band Receiver 433.92MHz,150kHz BW, Spatial Diversity Nominal NB Sensor Range 600m Bluetooth Mode Bluetooth Smart/LE, Spatial Diversity Nominal Bluetooth Range 100m
Specifications subject to change without notice.
Notices
Warranty
Resolution Products, Inc. will replace products that are defective in their first five (5) years.
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference. (2)This device must accept any interference that may be received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the Resolution Engineering, Inc. could void the user's authority to operate this equipment.
FCC ID: U5X-RE6100
Device may contain one or more of the following:
FCC ID: W7OMRF24WG0MAMB FCC ID: RI7CE910-DUAL FCC ID: QISMU509C FCC ID: U5X-RE934Z When using one or more of these options, a distance of 20cm to the user should always be maintained.
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1)This device may not cause interference, and (2)This device must accept any interference, including interference that may
cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
RE6100 Manual.doc Page 4 of 5 17-Dec-14
www.ResolutionProducts.com
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Model: RE6100 IC: 8310A-RE6100
Device may contain one or more of the following: IC: 7693A-24WG0MAMB IC: 5131A-CE910DUAL IC: 6369A-MU509C IC: 8310A-RE934Z When using one or more of these options, a distance of 20cm to the user should always be maintained.
RE6100 Manual.doc Page 5 of 5 17-Dec-14
