Thanks for buying a RESOL product. Read this manual carefully to get the best perfomance from this unit.

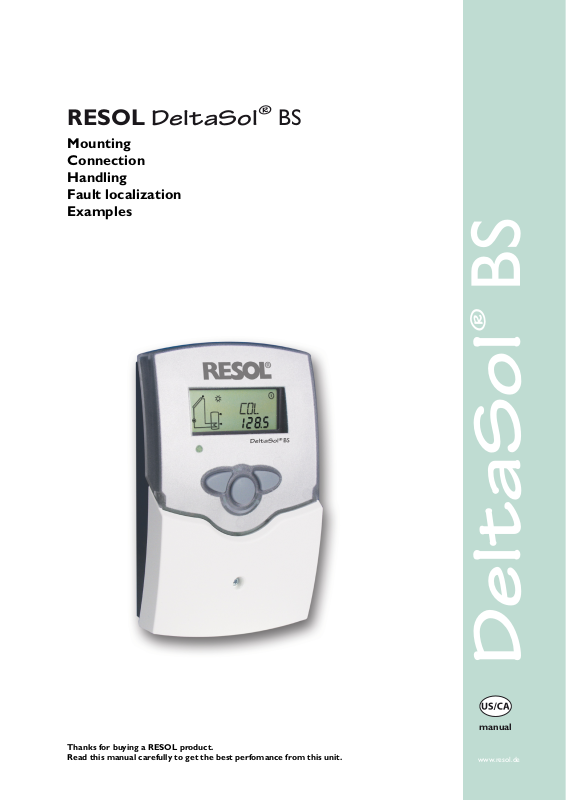

RESOL DeltaSol® BS

Mounting Connection Handling Fault localization Examples

manual

DeltaSol® BS

| 2

Reprinting / copying

This mounting- and operation manual including all parts is copyrighted. Another use outside the copyright requires the approval of RESOL - Elektronische Regelungen GmbH. This especially applies for copies, translations, micro ﬁlms and the storage into electronic systems. Editor: RESOL - Elektronische Regelungen GmbH

Important notice:

We took a lot of care over the texts and drawings of this manual and to the best of our knowledge and consent. As faults can never be excluded, please note: Your own calculations and plans under consideration of the current norms and DIN-directions should only be basis for your projects. We don´t offer a guarantee for the completeness of the drawings and texts of this manual

- they only represent some examples. They can only be used on own risk. No liability is assumed for incorrect, incomplete or false information and the resulting damages.

Errors an technical changes excepted.

Safety regulations:

Please read the following information carefully before installing and operating the controller. In this way damage to the solar system by wrong installation will be avoided. Please observe that the mounting is adapted to the characteristics of the building, that the local regulations are respected and is conform with the technical rules.

CU 72060171 01 UL 60730-1A:2002 CSA E60730.1:2002

Contents

Imprint .................................................................................2

Security devices ...................................................................2

Technichal data and function survey .................................3

1. Installation .............................................................4

1.1 Mounting .................................................................................. 4

1.2 Electrical wiring ...................................................................... 4

1.2.1 Standard solar system ...........................................................5

2. Operation and function ........................................6

2.1 Adjustment buttons .............................................................. 6

2.2 System monitoring display ................................................... 6

2.2.1 Channel indication ................................................................. 6

2.2.2 Tool bar .................................................................................... 6

2.2.3 System screen ......................................................................... 7

2.3 Blinkcodes ............................................................................... 7

2.3.1 System-Screen Blinkcodes ................................................... 7

2.3.2 Blinking codes ......................................................................... 7

3. Control parameter and indication channels ......8

3.1 Channel overview .................................................................. 8

3.1.1-6 Indication channels ................................................................ 9

3.1.7-19 Adjustment channels ...........................................................10

4. Tips for fault localization ................................... 13

4.1 Miscellaneous ........................................................................14

DeltaSol® BS

3 |

Scope of delivery:

1 x DeltaSol® BS

1 x accessory bag

1 x spare fuse T4A 2 x screws and dowels 4 x strain relief and screws

Additionally enclosed in the full kit:

1 x sensor FKP6 2 x sensor FRP6





• system-monitoring-display

• up to 4 temperature sensors Pt1000

• heat balancing

• function control

• user-friendly operation by simple handling

• solar operating hours counter

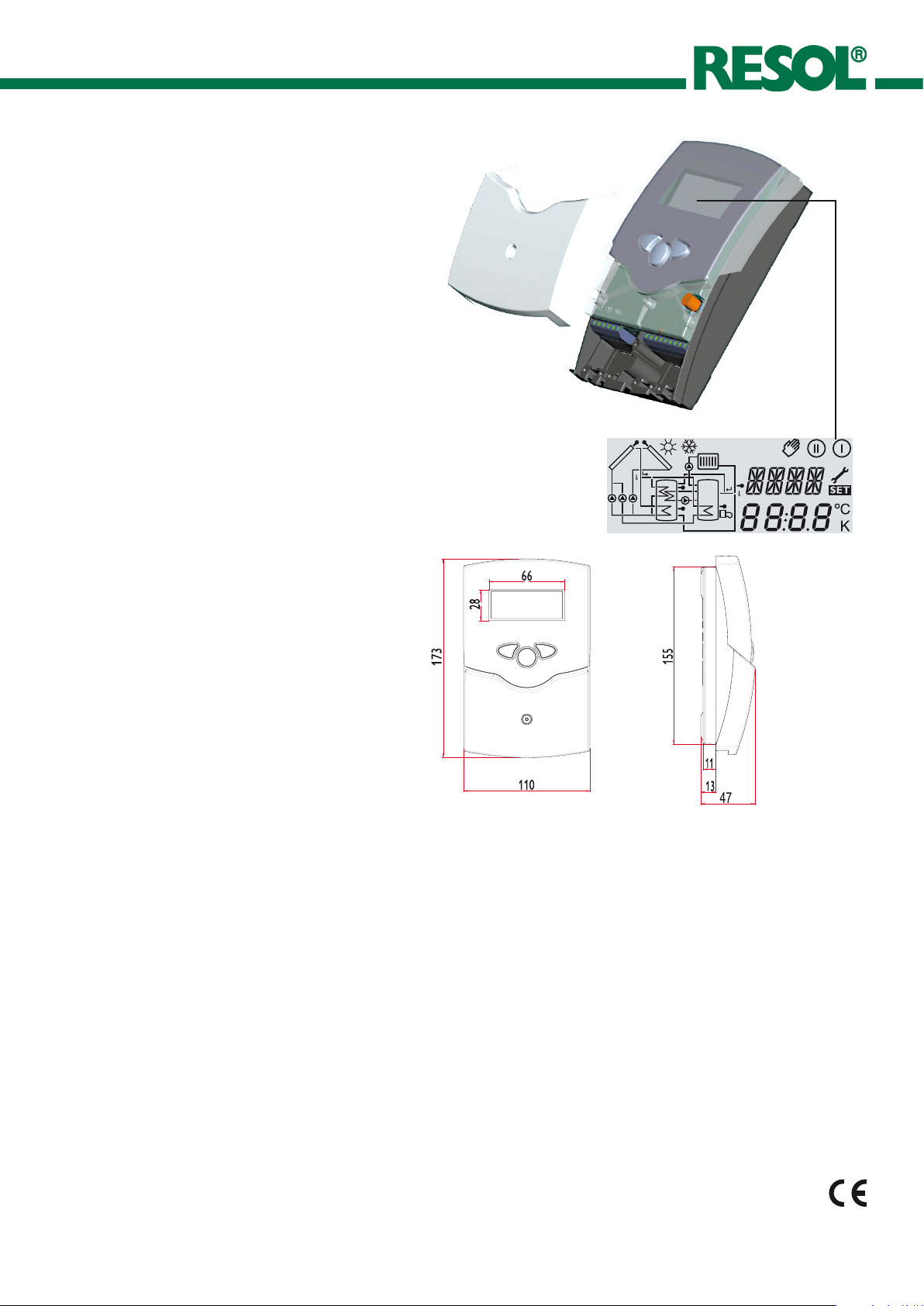

Technical data

Housing:

plastic, PC-ABS and PMMA

Protection type: IP 20 / DIN 40050

Environmental temp.: 32 ... 104 °F Size: 172 x 110 x 46 mm

Mounting: wall mounting, mounting

into patch-panels is possible

Di splay : Sys t em scre en for s y stems visualisation, 16-segment display, 7-segment display, 8 symbols for system status and operating control lamp

Operation: by 3 pushbuttons in the front of the housing

Functions: Temperature differential controller with optional add-on system funtcions. Function control according to BAW-guidelines, operating hours counter for solar pump, tube collector special function, as well as heat quantity balancing.

Inputs: for 4 temperature sensors Pt1000

Outputs: 1 electromechanical relay

Power supply:

115 V~

Total power supply: 2 (1) A 115 V~

Mode of operation:

Typ 1.b

Breaking capacity per relay:

electromechanical relay: 2 (1) A 115 V~

DeltaSol® BS

| 4

1 2

S1 S2 S3

3 4 5 6

Temp. Sensor Pt1000

LNR1N

20191817

7 8

141312

2 (1) A (115)V

T4A

US-West Hatfield,MA 01088

SOKI 6 SI

Inc

display

pushbutton

can fuse 4A

cable conduits with strain relief

cover

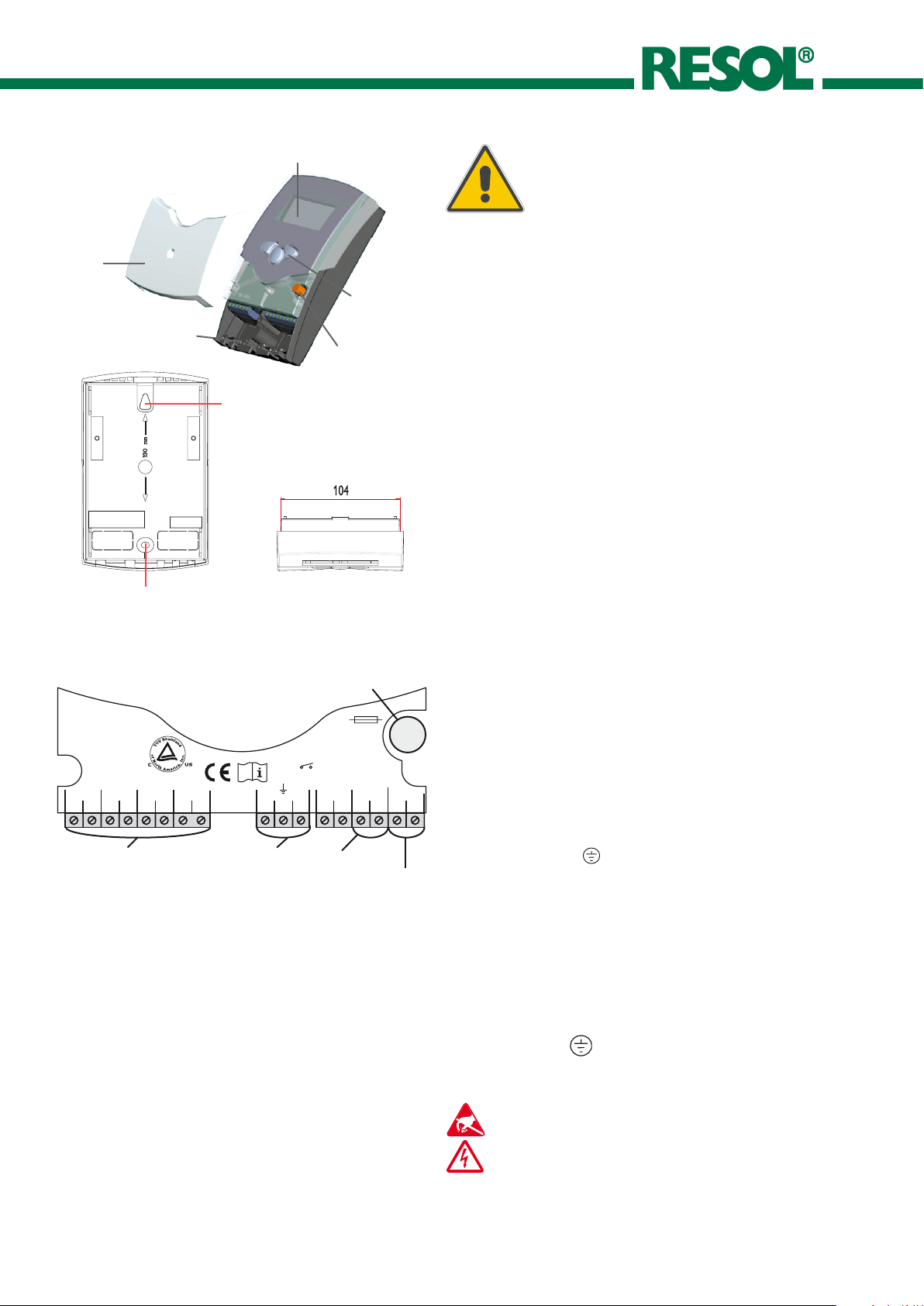

1.1 Mounting

The unit must only be located indoors. It is not suitable for installation in hazardous locations and should not be sited near to any electromagnetic ﬁeld. The controller must additionally be equipped with an all-polar gap of at least 3 mm or with a gap according to the valid installaton regulations, e.g. LS-switches or fuses. Please pay attention to a separate laying of the cable lines and installation of ac power supply.

1. Unscrew the cross-recessed screw of the cover and remove it from the housing.

2. Mark the upper fastening point on the wall and premount the enclosed dowel and screw.

3. Hang up the housing at the upper fastening point and mark the lower fastening point on the underground (hole pitch 130 mm), afterwards put the lower dowel.

4. Fasten the housing at the underground.

1. Installation

Warning! Switch-off power supply before opening the housing.

1.2 Electrical wiring

The power supply to the controller must only be made by an external power supply switch (last step of installation!) and the line voltage must be 115 Volt (50...60 Hz). Flexible lines are to be ﬁxed at the housing by enclosed strain relief supports and screws.

Depending on the version the controller is equipped with 1 relay to which the consumers e.g. pumps, valves etc. can be connected:

• Relay 1

18 = conductor R1 17 = neutral conductor N 13 = ground clamp

The temperature sensors (S1 up to S4) will be connected to the following terminals independently of the polarity:

1 / 2 = Sensor 1 (e.g. Sensor collector 1) 3 / 4 = Sensor 2 (e.g. Sensor tank 1)

5 / 6 = Sensor 3 (e.g. Sensor TSPU) 7 / 8 = Sensor 4 (e.g. Sensor TRF) The power supply is effected to the clamps:

19 = neutral conductor N 20 = conductor L 12 = ground clamp

net clamps

fuse

consumer clamps

Sensor clamps

hanging

ﬁxation

earthing clamps

Electrostatic discharge can lead to damages of electronic components!

Dangerous voltage on contact!

DeltaSol® BS

5 |

S4 / TRF

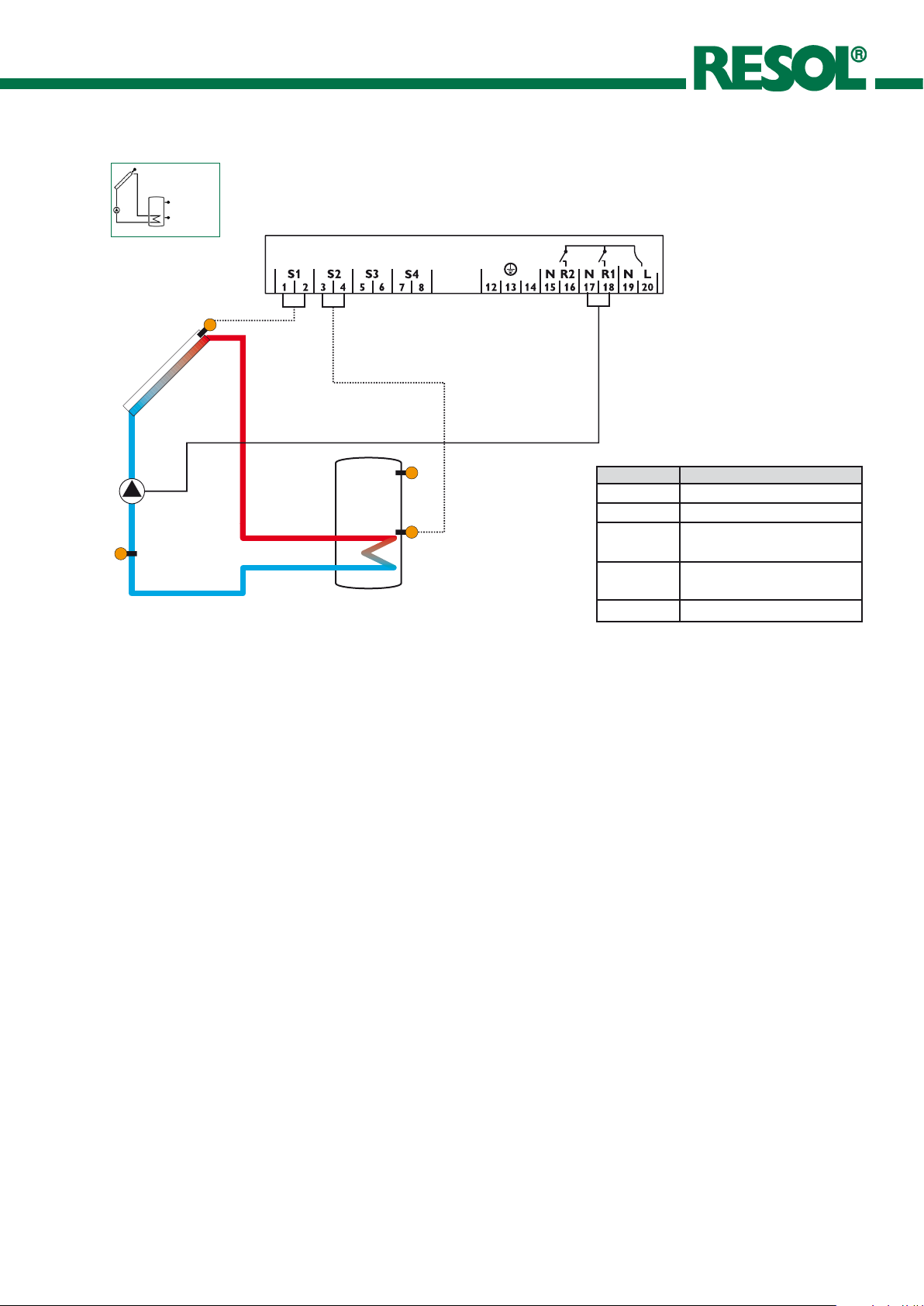

1.2.1 Allocation of clamps for system 1 Standard solar system with 1 tank, 1 pump and 3 sensors. The sensor S4 / TRF can optionally be used for heat quantity balancing.

Symbol Speciﬁcation

S1 Collector sensor S2 Tank sensor below S3 Tank sensor at the top

(optionally)

S4 / TRF Sensor for heat quantity

measurement (optionally)

R1 Solar pump

DeltaSol® BS

| 6

backwards

forward

SET

(selection / adjustment mode)

The system monitoring display consists of 3 blocks: indica- tion of the channel, tool bar and system screen (active system scheme).

The indication channel consists of two lines. The upper line is an alphanumeric 16-segment indication in which mainly the channel names / menu items are shown. In the lower 7-segment indication, the channel values and the adjustment parameters are indicated. Temperatures and temperature differences are indicated in

°F / °C or Ra / K.

2.2.1 Channel indication

only channel indication

2.2.2 Tool bar

The additional symbols of the tool bar indicate the current system status.

only tool bar

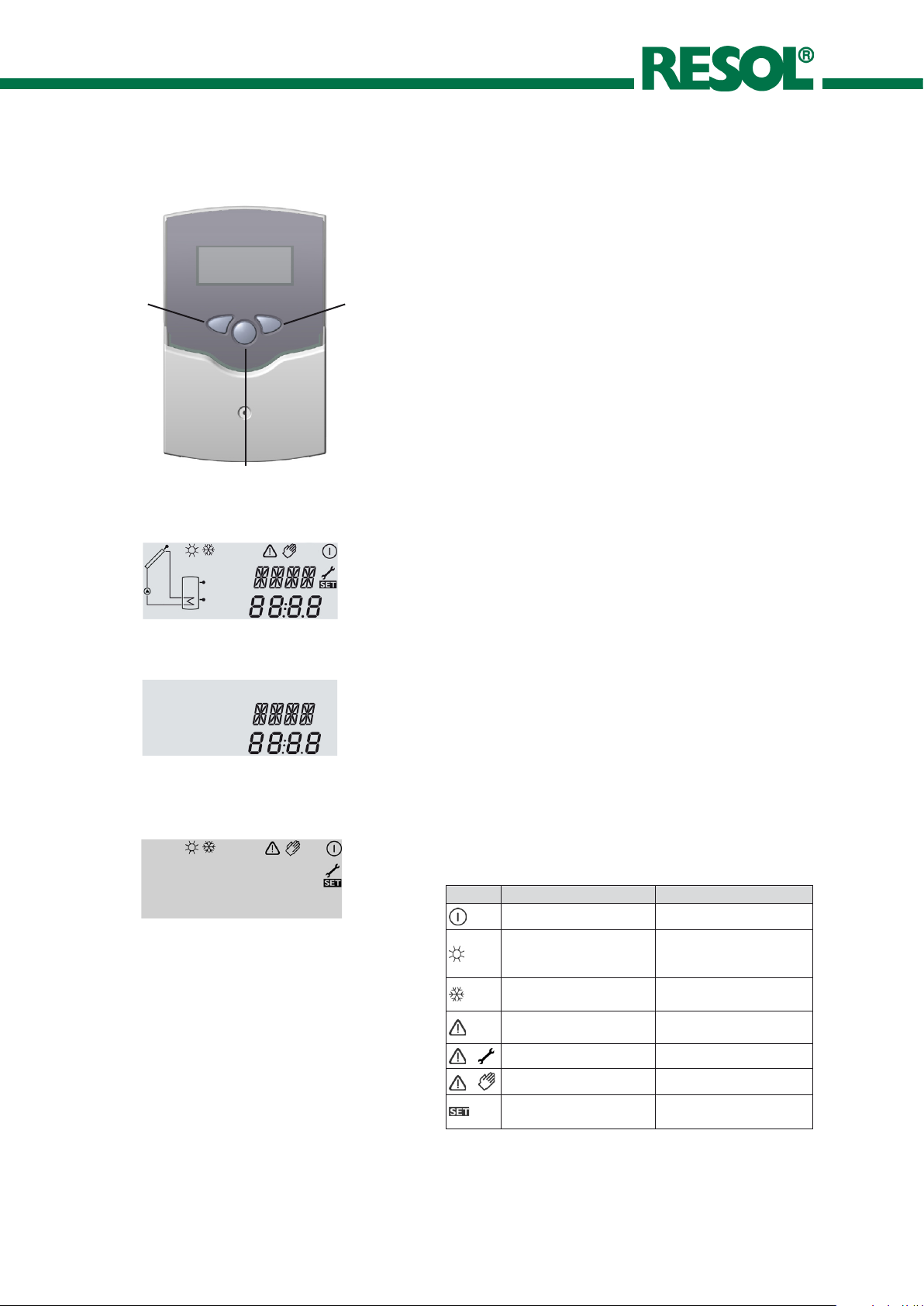

2. Operation and function

2.1 Pushbuttons for adjustment

The controller is operated by 3 pushbuttons below the display. The forward-key (1) is used for scrolling forward

through the indication menu or to increase the adjustment values. The backwards-key (2) is accordingly used for the reverse function.

For adjustment of last indication channel, keep button 1 pressed for 2 seconds. If an adjustment value is shown on the display, SEt is indicated. In this case you can press the key „Set“ (3) in order to change into input mode.

Select a channel by keys 1 and 2 Shortly press key 3, so that „SEt“ ﬂashes Adjust the value by keys 1 and 2 Shortly press key 3, so that „SEt“ permanently appears, the adjusted value is now saved.

2.2 System monitoring display

Complete Monitoring-Display

Symbol standard ﬂashing

relay 1 active

maximum tank limitation active / maximum tank temperature exceeded

collector cooling function or reccoling function active

antifreeze- function activated

collector minimum limitation or antifreeze function active

collector security shutdown or tank securtiy shutdown active

sensor defect

manual operation active

an adjustment channel is changed SET-mode

DeltaSol® BS

7 |

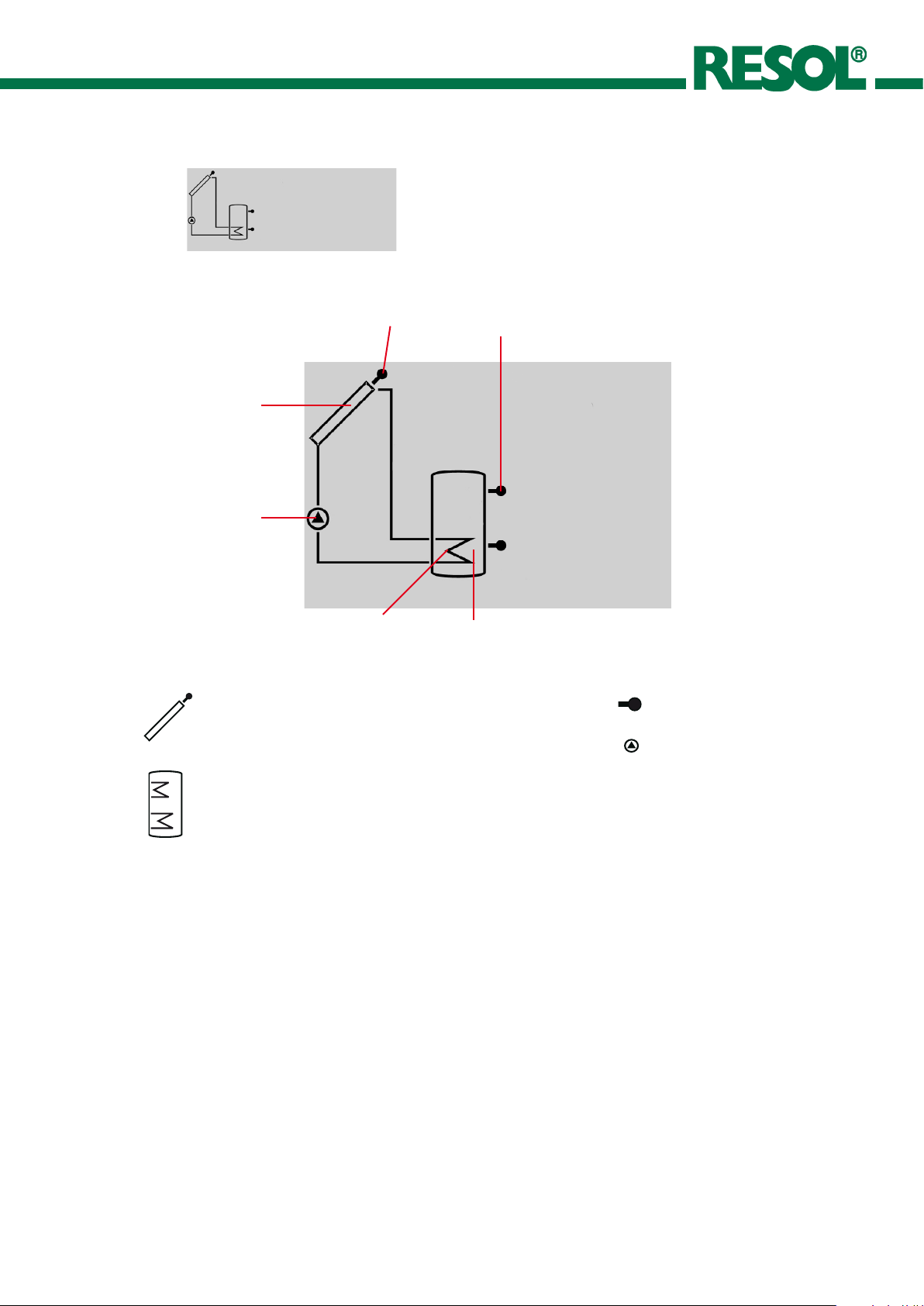

The system screen (active system scheme) shows the schemes selected on the controller. It consists of several system component symbols, which are - depending on the current status of the system - either ﬂashing, permanently shown or hidden.

Sensor

Collector 1

Pumps

Tank

Tank heat exchanger

Sensor

Collector with collector sensor

Pump

Tank 1

with heat exchanger

Temperature sensor

2.2.3 System screen

only system screen

Constantly green: everything all right Red/green blinking: initialisation phase manual operation Red blinking: sensor defect

(sensor symbol is quickly blinking)

2.3 Blinking codes

2.3.2 LED blinking codes

2.3.1 System screen blinking codes

• Pumps are blinking during starting phase

• Sensors are blinking if the respective sensor-indication

channel is selected.

• Sensors are quickly blinking in case of sensor defect.

• Burner symbol is blinking if after-heating is activated.

DeltaSol® BS

| 8

3. Controller parameter and indication channels

3.1 Channel-overview

Legend:

Corresponding channel is available if the appropriate option is activated.



Corresponding channel is only available if the option heat quantity measurement is activated (OWMZ).

MEDT

The channel antifreeze content (MED%) is only shown if a medium other than water or Tyfocor LS / G-LS (MEDT 0 or 3) is used. The adjustment is only appropriate when using other types of antifreeze.



Corresponding channel is only available if the option heat quantity measurement is deactivated (OWMZ).

Please note: S3 and S4 are only indicated if sensors are connected.

channel speciﬁcation page

COL x Temperature collector 1 9

TST x Temperature tank 1 9

S3 x Temperature sensor 3 9

TRF



Temperature return sensor 9



Temperature sensor 4 9

h P x Operating hours relay 1 9

kWh



Heat quantity kWh 10

MWh



Heat quantity MWh 10

DT O x Switch-on temperature difference 10

DT F x Switch-off temperature difference 10

S MX x Maximum temperature tank 1 11

EM x emergency temperature collector 1 11

channel speciﬁcation page

OCN x Option minimum limitation

collector 1

CMN x* Minimun temperature collector 1 11

OCF x Option antifreeze collector 1 11

CFR x* Antifreeze temperature collector 1 11

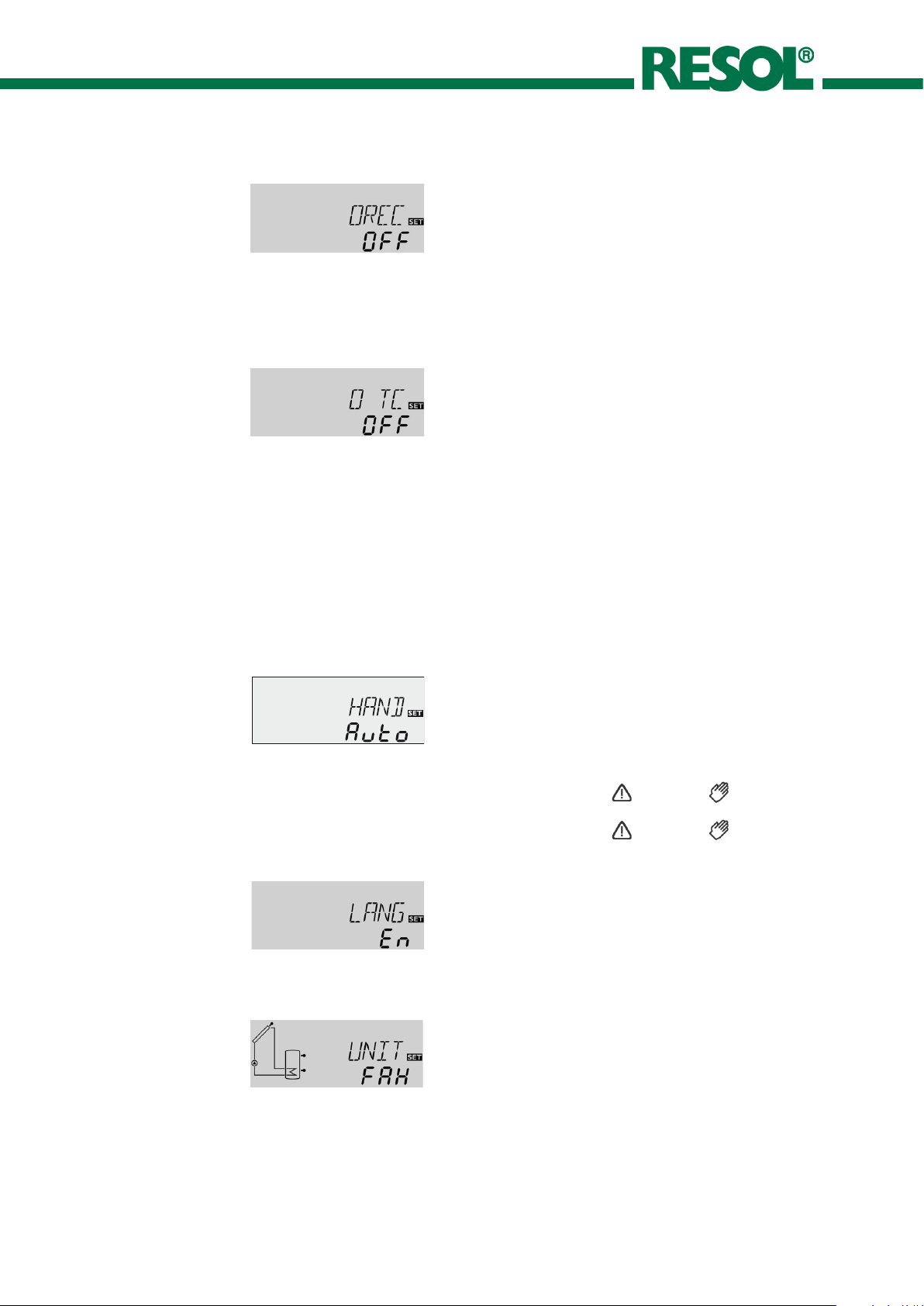

OREC x Option reccoling 12

O TC x Option tube collector 12

OHQM x Option WMZ 12

FMAX



Maximum ﬂow 10

MEDT



Antifreeze type 10

MED% MEDT Antifreeze content 10

HND x Manual operation relay 1 12

LANG x Language 12

UNIT x Change over °FAH / °CEL 12

PROG XX.XX Program number

VERS X.XX Version number

DeltaSol® BS

9 |

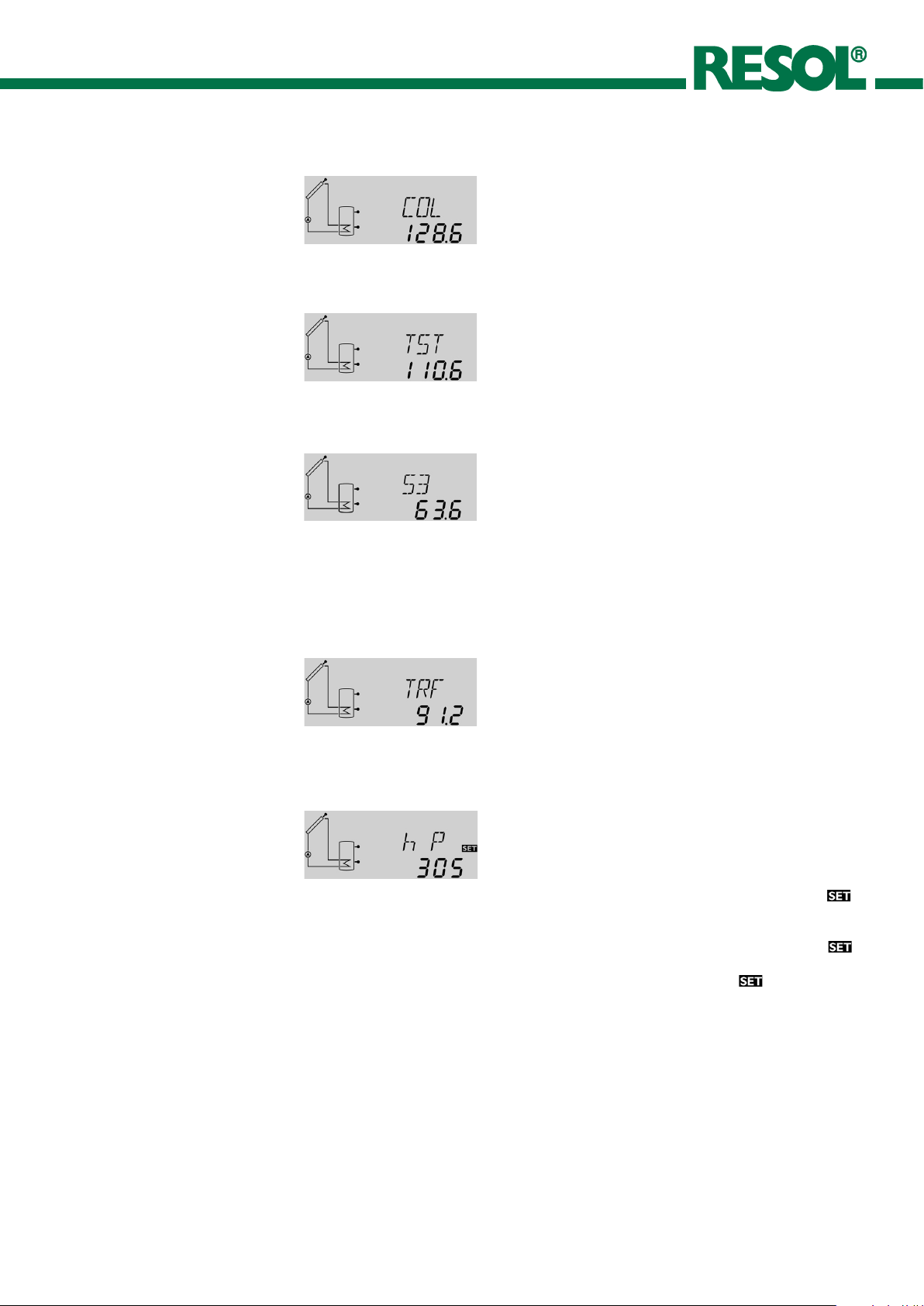

3.1.1 Indicataion of collector temperatures

Shows the current collector temperature.

• COL : collector temperature (1-collector-system)

COL:

Collector temperature display range: -40 ... +482 °F

3.1.2 Indication of tank temperatures

Shows the current tank temperature.

• TST : tank temperature (1-tank-system)

TST:

Tank temperatures Display range: -40 ... +482 °F

3.1.3 Indication of sensor 3 and sensor 4

Shows the current temperature of the corresponding additional sensor (without control function).

• S3 : temperature sensor 3

• S4 : temperature sensor 4 Please note:

S3 and S4 are only indicated if the temperature sensors are connected (shown).

S3, S4:

Sensor temperatures Display range: -40 ... +482 °F

3.1.4 Indication of other temperatures

Shows the current temperature of the sensor.

• TRF : temperature return ﬂow

TRF:

other measured temperatures Display range: -40 ... +482 °F

3.1.5 Operating hours counter

h P:

Operating hours counter Display channel

The operating hours counter adds up the solar operating hours of the respective relay (h P). Full hours are shown on the display.

The operating hours added up can be reset. As soon as one operating hours channel is selected, the symbol in

permanently shown on the display. The button SET (3) must pressed for approx. 2 seconds in order to get back into the RESET-mode of the counter. The display-symbol is ﬂashing and the operating hours will be set to 0. In order to ﬁnish the RESET-procedure, the button must be pressed in order to conﬁrm.

In order to interrupt the RESET-procedure, no button should be pressed for about 5 seconds. The controller returns automatically into the indicaton mode.

DeltaSol® BS

| 10

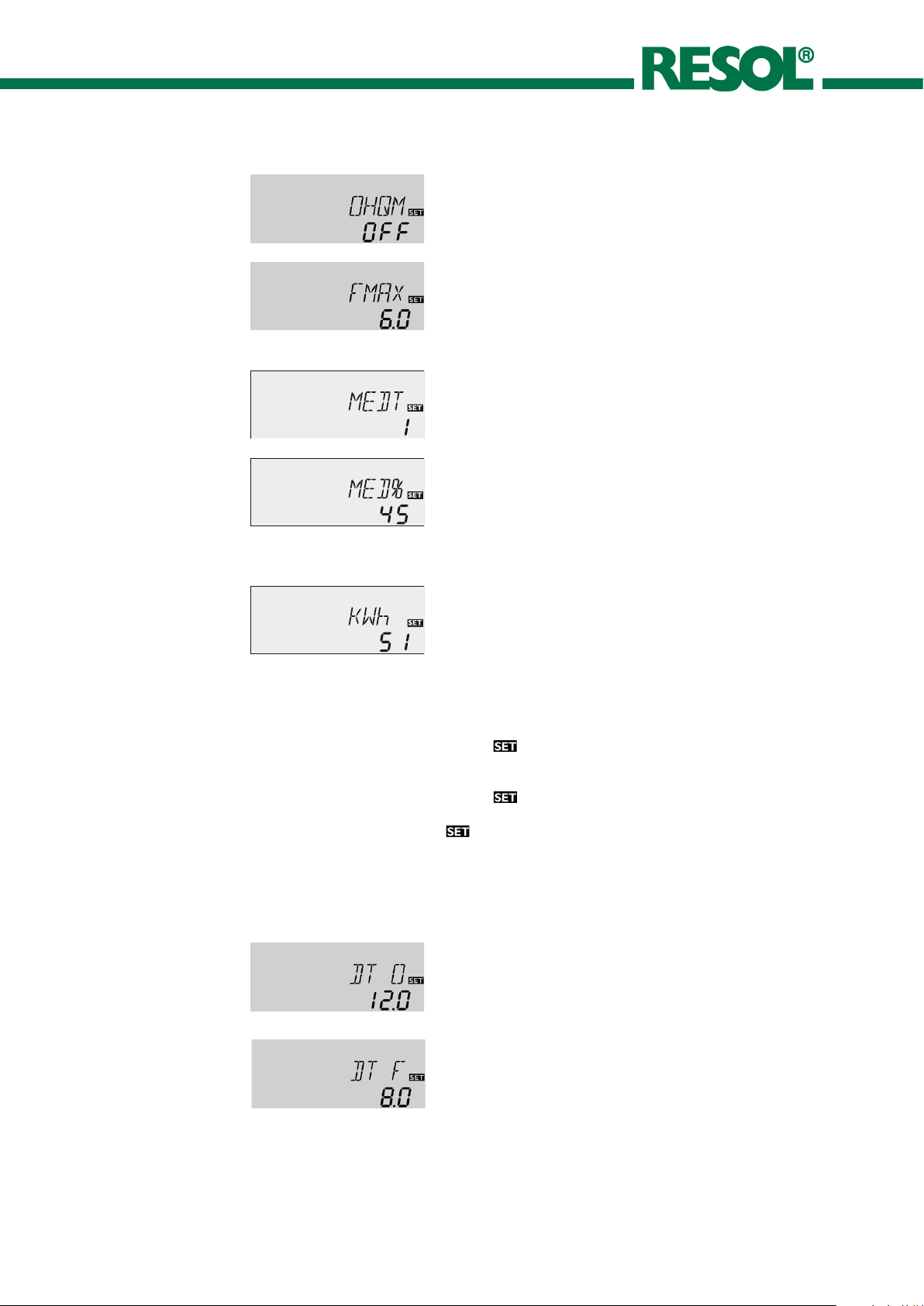

3.1.6 Heat quantity balancing

OHQM:Heat quantity balan-

cing Adjustment range: OFF ... ON Factory setting: OFF

A heat quantity balancing is possible for all systems in conjunction with a ﬂowmeter. You just have to activate the option heat quantity balancing in the channel OHQM.

The volume ﬂow readable at the ﬂowmeter (l/min) must be adjusted in the channel FMAX. Antifreeze type and concentration of the heat transfer medium are indicated on the channels MEDT and MED%.

Type of antifreeze:

0 : water 1 : propylene glycol 2 : ethylene glycol 3 : Tyfocor® LS / G-LS

FMAX: Volume ﬂow in l/min Adjustment range 0 ... 20 in steps of 0,1 Factory setting 6,0

kWh/MWh:Heat quantity in kWh / MWh Display channel

MEDT: Type of antifreeze Adjustment range 0 ... 3 Factory setting 1

MED%: Concentration of antifreeze in (Vol-) % MED% is blinded out by MEDT 0 and 3. Adjustment range 20 ... 70 Factory setting 45

The heat quantity transported is measured by the indication of the volume ﬂow and the reference sensor of feed ﬂow S1 and return ﬂow S4. It is shown in kWh-parts in the indication channel kWh and in MWh-parts in the indication channel MWh. The sum of both channels form the total heat output.

The heat quantity added up can be reset. As soon as one of the display channels of the heat quantity is selected, the

symbol is permanently shown on the display. The button SET (3) must be pressed for approx. 2 seconds in order to get back into the RESET-mode of the counter. The displaysymbol is ﬂashing and the value for heat quantity will be set to 0. In order to ﬁnish the RESET-procedure, the button

must be pressed for conﬁrmation.

In order to interrupt the RESET-procedure, no button should be pressed for about 5 seconds. The controller returns automatically into indication mode.

3.1.7 ∆T-regulation

Please note: Switch-on temperature difference DO must

be at least 2 °Ra higher than the switch-off temperaturedifference DF.

DT O: Switch-on temperature Adjustment range 2,0 ... 40,0 °Ra Factory setting 12.0

DT F: Switch-off temperature diff. Adjustment range 1,0 ... 38 °Ra Factory setting 8.0 °Ra

Primarily the controller works in the same way as a standard differential controller. If the switch-on difference (DT O) is reached, the pump is activated. If the adjusted switch-off temperature is underrun (DT F), the controller switchesoff.

DeltaSol® BS

11 |

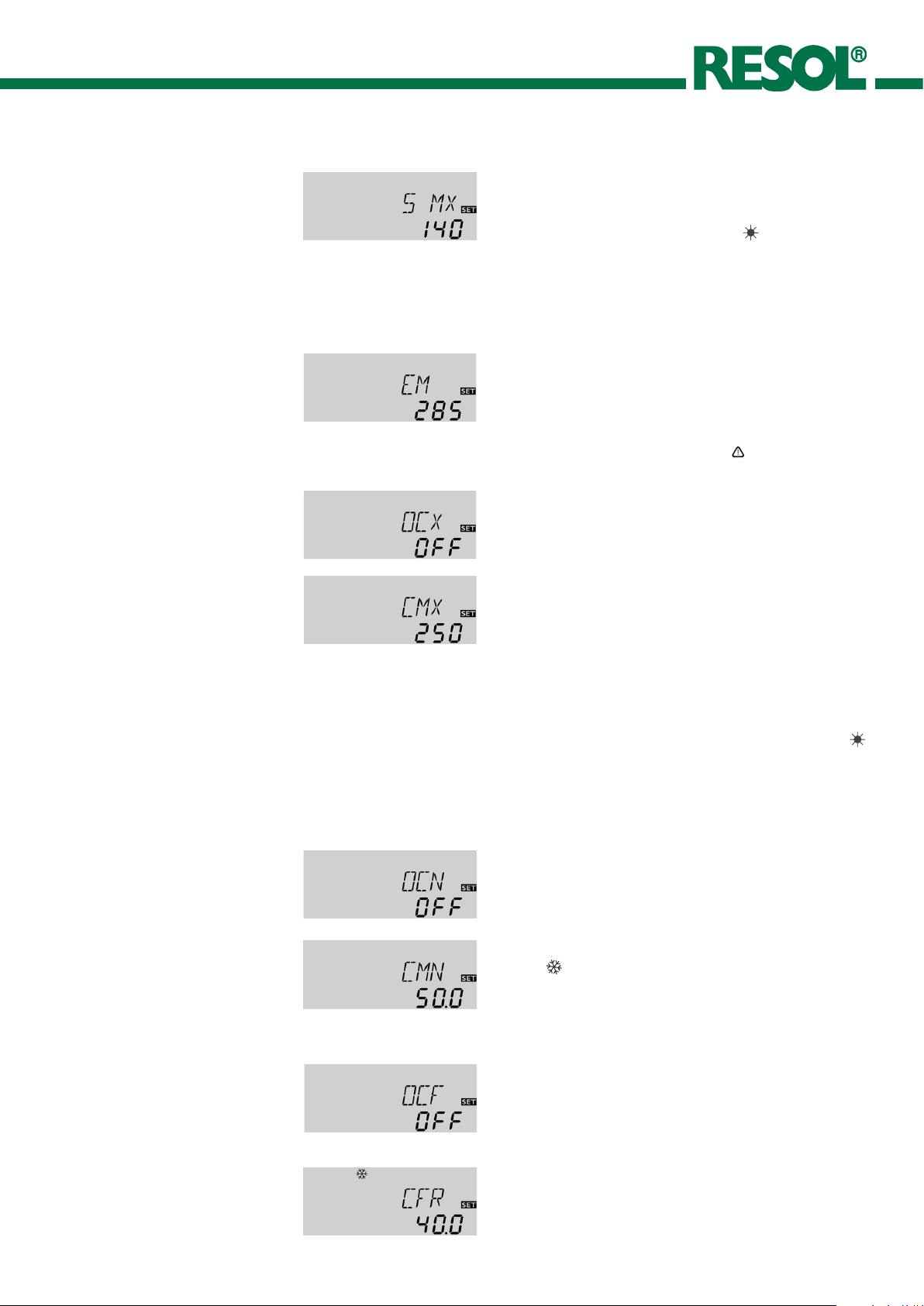

3.1.8 Maximum tank temperature

If the adjusted maximum temperature is exceeded, a further loading of the tank is stopped so that a damaging overheating can be avoided. If the maximum tank temperature is exceeded, on the display is shown and .

Please note: The controller is equipped with a securityswitch-off of the tank, which avoids a further loading of the tank if 203 °F are reached at the tank.

S MX: Maximum tank temp. Adjustment range 40 ... 205 °F Factory setting 140 °F

CMX: Maximum collector temp. Adjustment range 210 ... 380 °F Factory setting 250 °F

3.1.10 System cooling

If the adjusted maximum tank temperature is reached, the solar system switches-off. If now the collector temperature raises to the adjusted maximum collector temperature (CMX), the solar pump remains activated until this limit temperature value is again underrun. The tank temperature might continue to raise (subordinated active maximum tank temperature), but only until 203 °F (emergency shutdown of the tank). If the tank temperature is higher than the maximum tank temperature (S MX) and the collector temperature is lower by at least 5 K than the tank temperature, the solar system remains activated until the tank is again cooled down by the collector and the tubes under the adjusted maximum temperature (S MX). In case of active system cooling on the display is shown (ﬂashing). Due to the cooling function the solar system can be kept operable for a longer period on hot summer days and a thermal release of the collector and the heat transfer medium is ensured as well.

OCX: Option system cooling Adjustment OFF ... ON Factory setting OFF

3.1.9 Limit collector temperature Collector emergency shutdown

If the adjusted collector limit temperature (EM) is exceeded, the solar pump (R1/R2) is deactivated in order to avoid a damaging overheating of the solar components (collector emergency shutdown). The limit temperature is set to 285 °F but it can be changed within the adjustment range of 230 ... 400 °F. In the display is shown (ﬂashing).

EM: Limit collector temperature Adjustment range 230 ... 400 °F, Factory setting 285 °F

3.1.11 Option minimum collector limitation

OCN:

Mimimum collector limitation Adjustment range OFF / ON Factory setting OFF

The minimum collector temperature is a minimum switching temperature, which must be exceeded so that the solar pump (R1/R2) is switched-on. The minimum temperature shall avoid a steady starting-up of the solar pump (or solid fuel boiler charging pumps) for low collector temperatures. If the minimum temperature is underrun, in the display is shown (ﬂashing).

3.1.12 Option antifreeze function

OCF:

Antifreeze function Adjustment range OFF / ON Factory setting OFF

The antifreeze function activates the loading circuit between collector and tank if the adjusted antifreeze function is underrun in order to protect the medium that it will not freeze or „get thick“. If the adjusted antifreeze temperature is exceeded by 2 °F, the loading circuit will be deactivated.

Please note: As there is only a limited heat quantity of the tank available for this function, the antifreeze function should only be used in regions with few days of temperatures around freezing point.

CMN: Minimum collector temperature Adjustment range 14 ... 32 °F Factory setting 50 °F

CFR: Antifreeze temperature Adjustment range 14 ... 50 °F Factory setting 40 °F

DeltaSol® BS

| 12

3.1.14 Tube collector special function

If the controller measures an increase of 4 °Ra compared to the collector temperature tankd at last, the solar pump is switched-on to 100 % for about 30 seconds. After expiration of the solar pump runtime the current collector temperature is tankd as new reference value. If the measured temperature (new reference value) is again exceeded by 4 °Ra, the solar pump again switches-on for 30 seconds. If the switch-on difference between collector and tank is again exceeded during runtime of the solar pump or the standstil of the system, the controller automatically switches over to solar charging. If the collector temperature drops by 4 °Ra during standstill, the switch-on value for the special tube collector function will be recalculated.

O TC: Tube collector special function Adjustment range: OFF ... ON Factory setting: OFF

3.1.13 Recooling function

If the adjustem maximum tank temperature (S MX) is reached, the solar pump remains activated in order to avoid an overheating of the colle c t o r. The tank temperature might continue to increase but only up to 203 °F (emergency shutdown of the tank). In the evening the solar system continues running until the tank is cooled down to the adjusted maximum tank temperature via collector and pipes.

OREC: option recooling adjustment range OFF ... ON Factory setting: OFF

For control and service work the operating mode of the controller can be manually adjusted by selecting the adjustment value HAND, in which the following adjustments can be made:

3.1.15 Operating mode

• HAND

Operating mode OFF : relay off (ﬂashing) + AUTO : relay in automatic operation ON : relay on (ﬂashing) +

HAND:

Operating mode Adjustment range: OFF, AUTO, ON Factory setting: AUTO

3.1.16 Language

The menu language can be adjusted in this channel.

• dE : German

• En : English

• It : Italiano

• Fr : French

LANG:

Adjustment of language Adjustment range: dE, En, It Factory setting: En

3.1.17 Unit

The menu unit can be adjusted:

• °FAH

• °CEL

UNIT:

Adjustment of unit Adjustment range: FAH, °C Factory setting: FAH

DeltaSol® BS

13 |

1 2

S1 S2 S3

3 4 5 6

Temp. Sensor Pt1000

LNR1N

20191817

7 8

141312

2 (1) A (115)V

T4A

US-West Hatfield,MA 01088

SOKI 6 SI

Inc

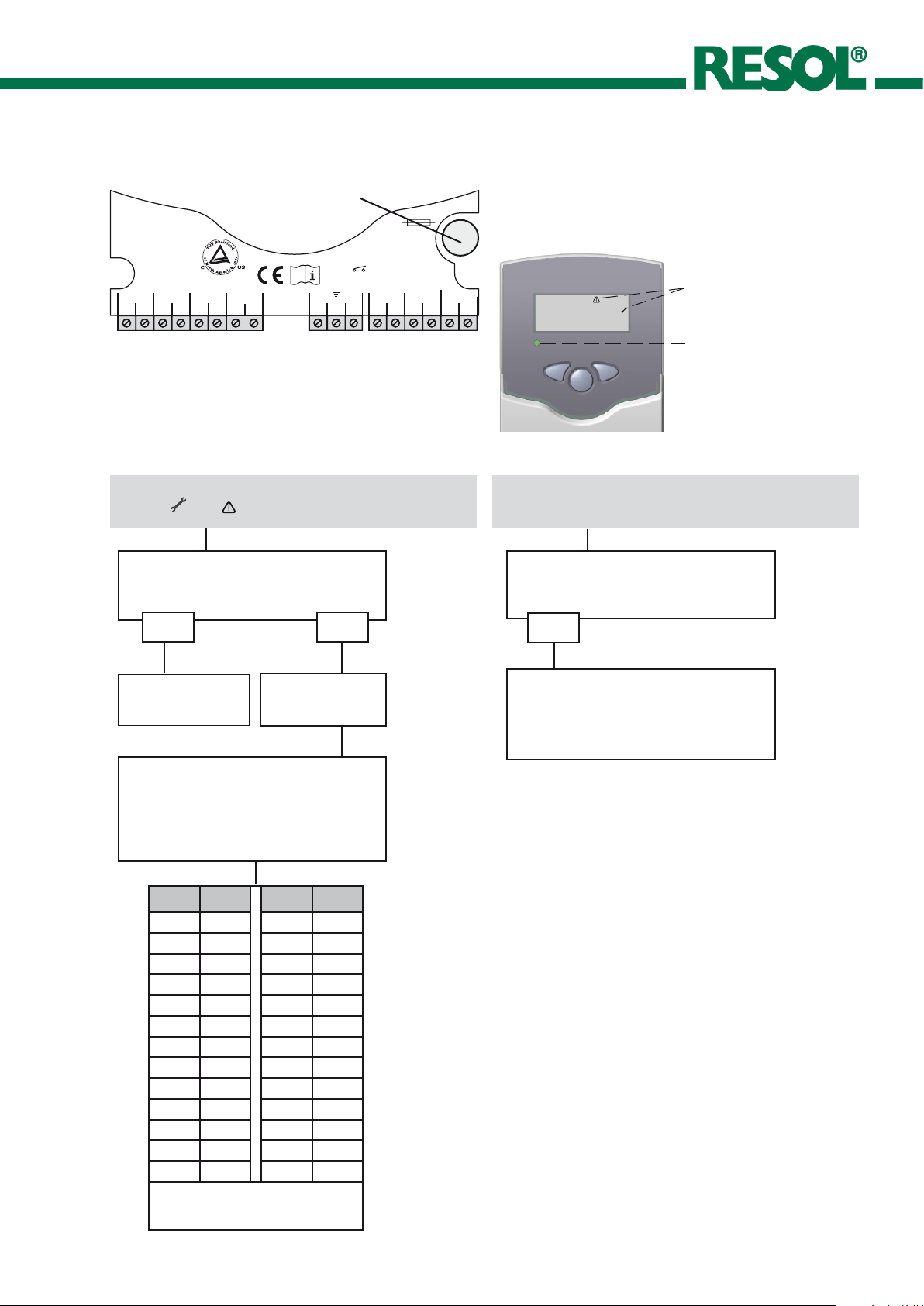

4. Tips for fault localization

can fuse T4A

If a malfunction occurs, a notiﬁcation is given on the display of the controller:

Operating control lamp

Warning symbol

Operating control lamp offOperating control lamp ﬂashes red. On the display the

symbols and appear.

°F Ω °F Ω

14 961 131 1213 23 980 140 1232 32 1000 149 1252 41 1019 158 1271 50 1039 167 1290 59 1058 176 1309 68 1078 185 1328 77 1097 194 1347 86 1117 203 1366

95 1136 212 1385 104 1155 221 1404 113 1175 230 1423 122 1194 239 1442

Resistance values of the

Pt1000-sensors

Check the power supply

o.k.

The can fuse of the controller is defective. It can be replaced after removal of the front cover (spare fuse is enclosed in the accessory bag).

Sensor defect. An error code is shown on the relevant sensor indication channel instead of a temperature.

- 88.8888.8

Line break. Check the line.

Short-circuit. Check the line.

Pt1000-temperature sensors pinched off can be checked with an ohmmeter. In the following the resistance values corresponding to different temperatures are listed.

DeltaSol® BS

| 14

4.1Various:

Pu m p star ts for a sh o r t m oment, switches-on/off reapeatedly

Is the temperature difference at the controller too small?

no yes

Wrong placing of the collector sensor?

yes

Change ∆ Ton and ∆ Toff accordingly.

Mount the collector sensor at so l a r f e e d f l ow (warmest collector output); use the immersion sleeve of the respective collector.

Pump starts up very late and stops working soon.

The temperature difference between tank and collector increases enormously during operation; the collector circuit cannot dissipate the heat.

Collector circuit pump defect ?

no yes

Heat exchanger calciﬁed?

yes

Repair / Replace

Decaliﬁcation

Heat exchanger plugged?

yesno

Cleaning

Heat exchanger too small?

yes

New calculation of the dimension.

Plausibility control of the option tube collector special function

Change ∆Ton and ∆Toff accordingly.

Switch-on-temperature difference ∆Ton too large?

no yes

Collector sensor unfavourable placed (e.g. contact sensor instead of immersion sleeve sensor?

o.k.no

Pump is overheated, but no heat transfer from collector to the tank, feed ﬂow and return ﬂow are equally warm, possibly also bubble in the tubes

Exhaust the system; increase system pressure to at least static primary pressure plus 0,5 bar; if necessary continue to increase, switch the pump on and off for a short time

Air in the system?

no yes

Is the collector circuit blocked at the dirt trap?

yes

Clean the dirt trap

If necessary activate tube collector function.

yes

o.k.

DeltaSol® BS

15 |

Tanks are cooled during the night.

Does collector circuit pump run during the night?

no yes

Check the controller functions

Collector temperature is at night higher than ambient temperature.

no yes

Check the return flow preventer in feed ﬂow and return ﬂow with regard to the functional efﬁciency.

Is the tank insulation sufﬁcient?

yes no

Intensify the insulation.

Is the tank insulation close enough to the store?

yes no

Replace or intensify the insulation.

Are the tank connections insulated?

yes no

Insulate connections.

Warm water outﬂow upwards?

no yes

Change connection and let the water flow sidewards or through a siphon (bow downwards); less tank losses now?

Does warm water circulation run for a very long time?

no yes

Use the circulation pump with timer and switch-off thermostat (energy efficient circulation)

The solar circuit pump does not work although the collector is obviously warmer than the tank.

Does the control LED ﬂash?

yes no

Does the pump start up in manual operation?

yes

There is no current; check fuses / replace them and check power supply.

The adjusted temperature difference for starting the pump is too high; choose a matching setting

Is the current of the pump released by the controller?

yes

Is the pump stuck?

Put the pump into operation by means of a screwdriver; is it passable now ?

Is the pump out of order?

- replace if necessary

Are the fuses o.k.?

Controller seems to be defective - replace it.

yes

no yes

Replace the fuses.

Switch-off the circulation pump and the blocking valve for 1 night; less tank losses?

yes no

Check the pumps of the after-heating circuit according to nightly run and defect return ﬂow preventer; problem solved?

no yes

o.k.

Control the return ﬂow preventer in warm water circulation- o.k.

yes no

Please also check further pumps which are connected to the solar tank.

The gravitation circulation in the circulation line is too strong; insert a stronger return ﬂow preventer or an electrical 2-way valve behind the circulation pump; the 2-way valve is open in pump operation, otherwise it is closed, conect pump and 2-way valve in parallel; activate the circulation again!

Cleaning or replacement.

a b

DeltaSol® BS

| 16

Distributed by:

Please note:

The design and the speciﬁcations are to be changed without notice. The illustrations may differ from original product.

RESOL - Elektronische Regelungen GmbH

Heiskampstraße 10 D - 45527 Hattingen

Tel.: +49 (0) 23 24 / 96 48 - 0 Fax: +49 (0) 23 24 / 96 48 - 55

www.resol.de info@resol.de

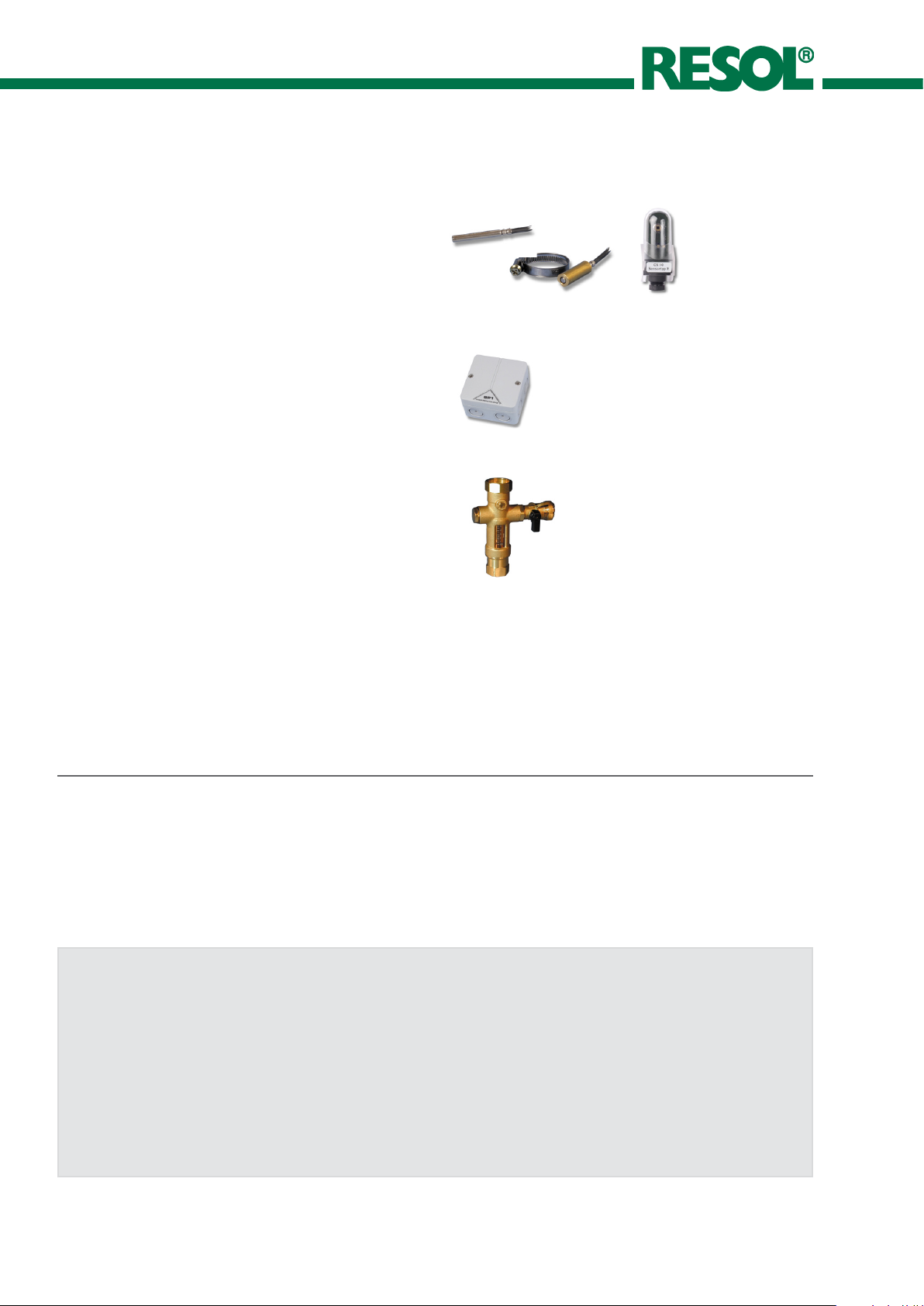

5. Accessory

Overvoltage protection

We highly recommend to install the RESOL overvoltage protection in order to avoid overvoltage damages at the collector (e.g. by lightening).

Sensors

Our product range includes high-precision platin temperature sensors, ﬂatscrew sensors, ambient temperature sensors, indoor temperature sensors, cylindrical clip-on sensors and irradiation sensors, also to be used as full sensors with sensor pocket.

Flowmeter

If you are interested in realising a heat quantity balancing, you need a ﬂowmeter for measuring the volume ﬂow in your system.

Resol DeltaSol BS Delta

Specifications and Main Features

Frequently Asked Questions

User Manual
