Reo link Digital Technology RLC 410W User Manual
Wireless IP Camera
EN/DE
Technical Support
For Windows Client & Mac Client, please download the PC software:
https://reolink.com/software-and-manual/
For advanced setup, please download the user manual:
https://reolink.com/software-and-manual/
For more troubleshooting, please go to FAQs on our website:
https://reolink.com/faqs/
For other technical support, please contact us at
support@reolink.com
Quick Start Guide
QG4_B
General Introduction
English 3
Deutsch 17
Camera Connection Diagram
Wireless IP Camera
Your Smart
Device
2 English
Router
For initial setup, please connect the camera to your router LAN port with an Ethernet
cable, and then follow the steps below to set up your camera. Make sure that your camera
and your smart devices are in the same network.
Power CableNetwork Cable
Power Adapter
3English
01.
Access the
Install Reolink App
There are two ways to get the Reolink App:
1. Search “Reolink” in App Store (for iOS), or Google Play (for Android), download and
install the app.
2. Scan the QR code below to download and install the app.
Available on the
Camera by
Smartphones
4 English
Add the Device
When in LAN
1
(Local Area Network)
The camera will be automatically added. You need to add the camera either by
When in WAN
2
(Wide Area Network)
scanning the QR code on the camera or
by entering the UID number manually.
5English
1
In LAN
Front Door
Reolink-5G
1. Connect your smartphone to
the WiFi network of your router.
6 English
Front Door
3. Tap screen to sync the time
and create your password.
4. Start live view or go to “Device
Settings” for more configurations.
2. Launch Reolink App. The camera
will automatically display in the
camera list in LAN.
7English
In WAN
2
Add New Device
1. Click “Add New Device” on the app. 2. Scan the QR code on the camera, and
8 English
then tap “Login”. (There is no password at
the factory default status.)
Front Door
3. Name your camera, create a password, and then start live view.
This icon only displays if the camera supports 2-way audio.
This icon only displays if the camera supports pan & tilt (zoom).
This icon only displays if the camera (4MP or above) supports Clip
function, which means you will see more detailed image in the selected
area and get clearer image quality under fluent mode/ substream video.
9English
Wi-Fi Settings
‘
Tap the gear icon ’ ‘ to enter
the Device Setting page, tap 'WiFi'.
1. Choose the Wi-Fi network you
want to join in, enter the password
of the Wi-Fi network, and then click
“OK”.
2. Wi-Fi Test:
a) If the Wi-Fi test succeeds, press
the “Save” button to save the
settings.
b) If the Wi-Fi test fails, please
check your Wi-Fi password and the
network connection, and then try
again.
3. Remove the Ethernet cable and
then you can access the camera via
the wireless connection.
Front Door
Reolink-5G
Reolink-5G

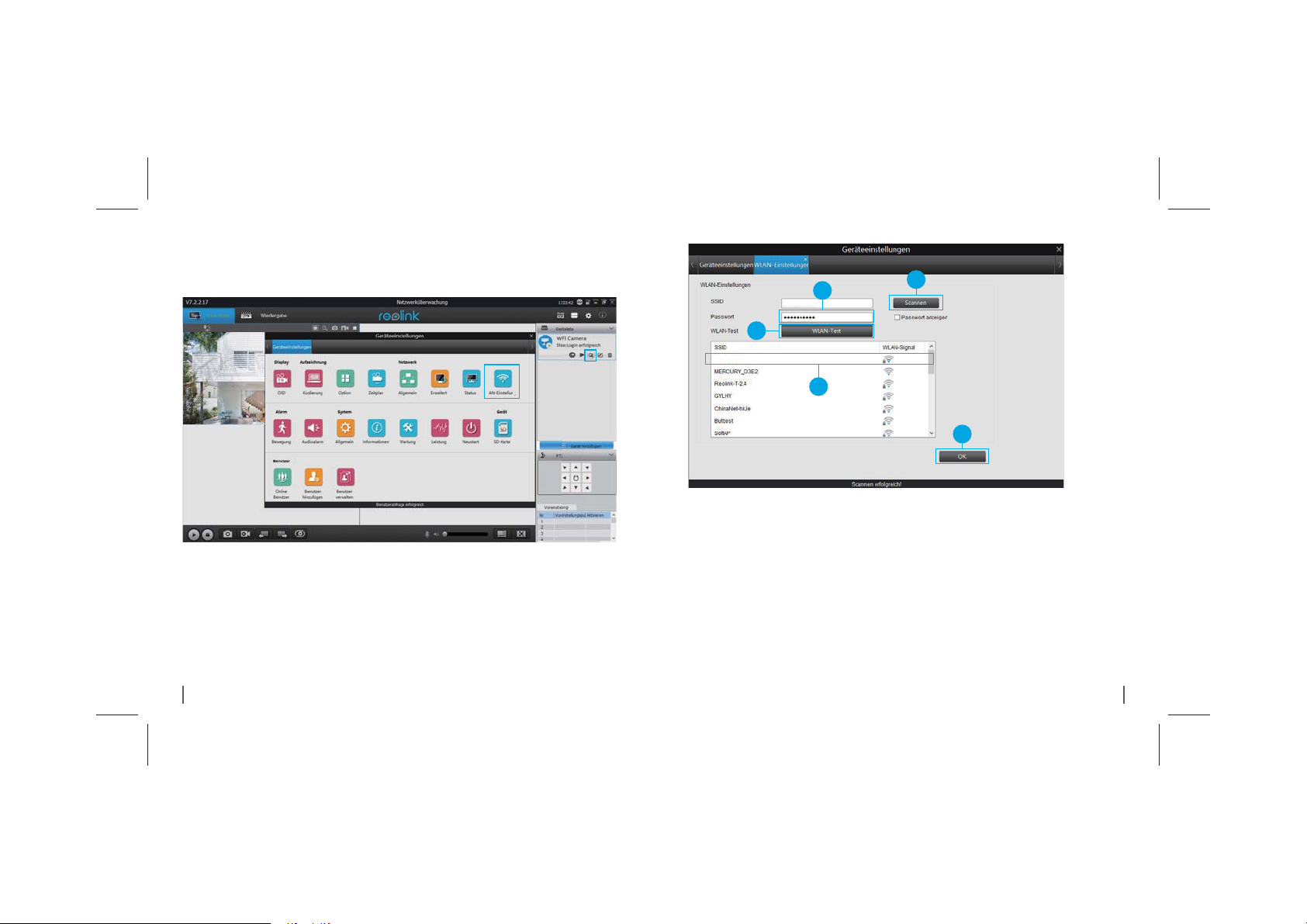

02.
Access the
Camera by
Computer
10 English
11English
