What’s in the Box
English
Deutsch
French
Italian
Spanish
1
15
27
39
Reolink Argus Eco
x1
Antenna
x1
Outdoor Security
Mount
x1
Micro USB
Cable
x1
51
Surveillance Sign
x1
Quick Start Guide
x1
Mounting
Hole Template
x1
Reset Needle
Pack of Screws
x2
1English
General Introduction
Built-in Mic
Status LED
Lens
Daylight Sensor
Built-in PIR Sensor
Reset hole
On/o switch
Micro SD Card Slot
Speaker
Install the Antenna
Please install the Antenna to the
camera. Turn the antenna base in a
clockwize motion to connect. Leave
the antenna in a vertical position for
best reception.
Turn on the Camera
1. Reolink Argus Eco is turned o by default, please turn it on before setting up the camera.
Antenna
Micro USB Port
Battery Status LED
The LED in Red (Wi-Fi connection failed)
Blinking: Standby status
On: Working status
2 English
Note:
If the camera will not be
in use for a very long time,
it’s suggested to turn it o.
The LED in Blue (Wi-Fi connection succeeded)
Blinking: Standby status
On: Working status
3English

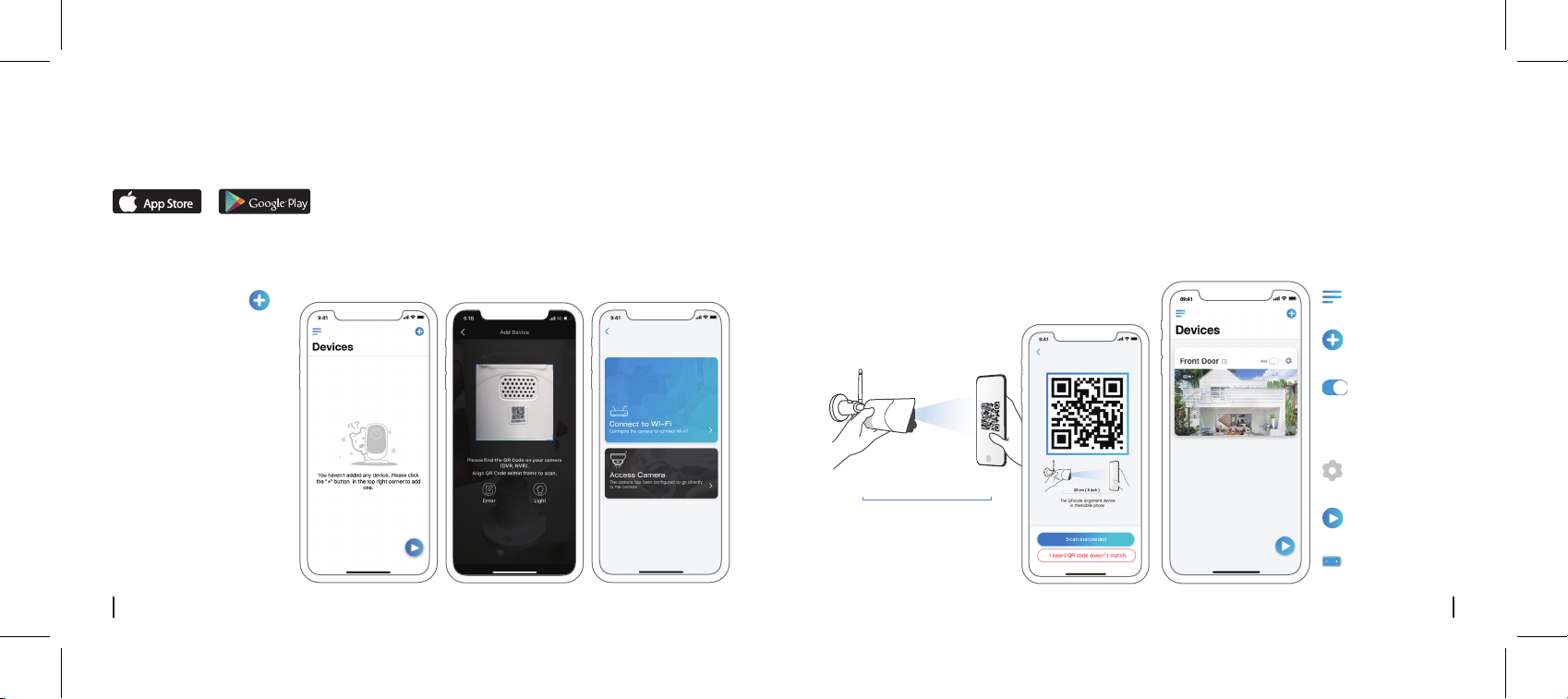

Setup Camera on Reolink App (For Smartphone)
Download and install the Reolink App in App Store (for iOS) and Google Play (for Android).
Available on the
Please follow the prompt tone to configure the camera.
Get it on
4. A QR code will be generated on the phone. Please place the QR code on your phone towards Reolink
Argus Eco camera’s lens at a distance of about 20cm (8 inches) to let the camera scan the QR code.
Please make sure that you’ve ripped the protection film of the camera’s lens.
Note:To help scanning, please click the QR code to display in full screen.
5. Follow the steps to finish the Wi-Fi settings.
6. After you created a password for your camera, please follow the steps to sync the time, and then
start live view or go to “Device Settings”.
1. Please click the “ ”
Menu
button in the top right corner
to add the camera.
2. Scan the QR code on the
Add New Device
back of the camera.
3. Click “Connect to Wi-Fi” to
configure the Wi-Fi settings.
Note：
• Reolink Argus Eco Camera
only supports 2.4GHz Wi-Fi,
5GHz is not supported.
• Your family can click "Access
Camera" for live view after
20 cm ( 8 inches )
r
Enable/Disable PIR
Motion Sensor
(In default, the PIR
sensor is enabled.)
Device Settings
Access the Live View
the initial setup.
4 English 5English
Battery Status
Setup Camera on Reolink Client (For PC)
• In WAN
Please download the client software from our ocial website:
https://reolink.com/software-and-manual and install it.
Note: The camera must be first set up on Reolink App before being connected to Reolink Client.
Launch the Reolink Client software and manually add the camera to the Client. Please follow the steps
below.
1. Click “Add Device” on the right-side menu.
2. Choose “UID” as the Register Mode.
3. Type in the UID of your camera.
4. Create a name for the camera displayed on Reolink
Client.
5. Input the password created on Reolink App to log in.
6. Click “OK” to log in.
• In LAN
1. Click “Add Device” on the right-side
menu.
2. Click "Scan Device in LAN".
3. Double click on the camera you
want to add. The information will be
filled in automatically.
4. Input the password created on
Reolink App to log in.
5. Click “OK” to log in.
6 English 7English
Note: To save power, the
camera will log out if no
operation is conducted for
about five minute. You
must login again by
clicking the “ ” btton.
Attention for Camera Installation
• PIR Sensor Detecting Distance
The PIR senor has 3 sensitivity levels for your adjustment: Low/Mid/High.
Higher sensitivity oers longer detecting distance. The default sensitivity of the PIR sensor is at “Mid”.
To reduce false alarms, please note that:
Sensitivity
Low
Mid
High
Value
0 - 50
51 - 80
81 - 100
Detecting Distance
(For moving and living things)
Up to 4 meters (13ft)
Up to 6 meters (20ft)
Up to 10 meters (30ft)
Detecting Distance
(For moving vehicles)
Up to 10 meters (33ft)
Up to 12 meters (40ft)
Up to 16 meters (52ft)
Note:
Path for adjusting distance in App: Device settings-PIR settings
8 English 9English
• Do not install the camera facing any objects with bright lights, including sunshine,
bright lamp lights, etc.
• Do not place the camera too close to a place where there are frequently moving
vehicles. Based on our numerous tests, the recommended distance between the
camera and the vehicle is 16 meters (52ft).
• Stay away from the outlets, including the air conditioner vents, humidifier outlets, the
heat transfer vents of projectors, etc.
• Do not install the camera where there are strong winds.
• Do not install the camera facing the mirror.
• Keep the camera at least 1 meter away from any wireless devices, including Wi-Fi
routers and phones in order to avoid wireless interference.
Important Notes for Reducing
!
False Alarms
• PIR Sensor Installation Angle
When installing the camera, please install the camera
angularly (the angle between the sensor and the detected
object is larger than 10°) for eective motion detection. If
the moving object approaches the PIR sensor vertically,
the sensor may not detect the motion events.
FYI:
• The PIR sensor’s detecting distance: 23ft (in default)
• The PIR sensor’s detecting angle: 100° (H)
The path of the
θ
moving object
Entrance
10°
θ
• Camera Ideal Viewing
Distance
The ideal viewing distance is 2-10 meters (7-33ft), which
enables you to recognize a human.
10 English 11English
2-3 meters
Ideal Viewing Distance:
2-10 meters (7-33ft)
Charge the Battery
1. Charge the battery with a
power adapter.
Charging indicator:
Note:
• The battery is built-in,please do not remove it from the camera.
• Please note that the solar panel is NOT included in the package. You can buy the solar panel on Reolink ocial online store.
Orange LED: Charging
Important Safeguards on Rechargeable
!
Reolink Argus Eco is not designed for 24/7 full capacity running or around-the-clock live streaming. It’s
designed to record motion events and remotely view live streaming only when you need it.
Please learn some useful ways to maximize the battery life in this post:
https://reolink.com/faq/extend-battery-life/
Battery Use
2. Charge the battery with the
Reolink solar panel.
Green LED: Fully charged
1. Please charge the rechargeable battery with a standard and high-quality DC 5V or 9V battery charger.
How to Install
2. If you want to power the battery via the solar panel, please note that the battery is ONLY compatible
with Reolink solar panel. You cannot charge the battery with other solar panel brands.
Security Mount
3. Please charge the battery in temperatures between 0°C and 45°C.
4. Always use the battery in temperatures between -20°C and 60°C.
5. Please make sure the battery compartment is clean.
6. Please keep the USB charging port dry, clean and free of any debris and make sure the battery
contacts are aligned.
7. Always make sure the USB charging port is clean. Please cover the USB charging port with the rubber
plug after the battery has been fully charged.
8. Never charge, use or store the battery near any ignition sources, such as fire or heaters.
Step 1
Screw the security mount into
the wall.
Step 2
Screw the antenna to the
camera.
9. Always store the battery in a cool, dry and ventilated environment.
10. Never store the battery with any hazardous or combustible objects.
11. Do keep the battery away from children.
12. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and
negative (-) terminals. Do NOT transport or store the battery with necklaces, hairpins or other metal
objects.
13. Do NOT disassemble, cut, puncture, short-circuit the battery, or make it dispose of in water, fire,
microwave ovens and pressure vessels.
14. Do NOT use the battery if it gives o an odor, generates heat, becomes discolored or deformed, or
appears abnormal in any ways. If the battery is being used or charged, remove the battery from the
device or the charger immediately, and stop using it.
Step 3
Screw the camera to the security
mount.
Step 4
Losing the screw and adjust the
camera to the proper direction.
Step 5
Tighten the screw .
15. Always follow the local waste and recycle laws when throwing the used battery away.
12 English 13English
DE
DE
How to Install
Tree Mount
Step 3
Fasten the warp strap to the tree.
14 English
Step 1
Thread the hook & loop strap
through the slots.
Step 4
Screw the antenna to the camera.
Step 2
Screw the plate to the security mount.
Step 5
Screw the camera to the security
mount, adjust its direction and tighten
the knob to fix it.
