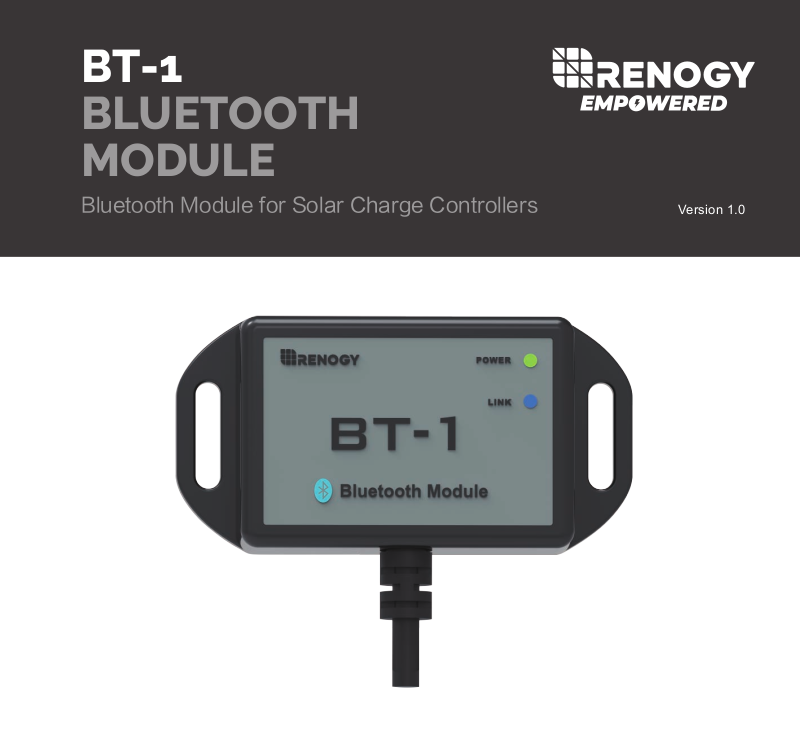

Page 1
BT-1
BLUETOOTH
MODULE
Bluetooth Module for Solar Charge Controllers
Version 1.0
Page 2
General Information
The Renogy BT-1 is a great addition to any compatible Renogy solar charge
controllers. Powered by its RJ12 communication port, the BT-1 provides
wireless monitoring of system data and allows users to change parameters
through the Renogy BT/Renogy DCHome smart phone App.
Key Features
Wirelessly monitor and control compatible solar charge controllers via Bluetooth
Connects to our user-friendly smart phone App, Renogy BT/Renogy
DCHome, to keep track of your system
Embedded exclusive Bluetooth chip with high efficiency and low energy
consumption
Bluetooth 4.2 and BLE technology provides fast and uninterrupted
communication
Powered directly through RJ12 communication port
Signal range up to 82ft
Two LED lights indicate the power and Bluetooth connection condition
01
Page 3
Identification of Parts
Mounting Hole
Product Model Communication Cord
Power Indicator
Communication
Status Indicator
02
Page 4
Operation
Solar Panel
Monitoring
Battery
Load
Voltage
Voltage:
Capacity Temp.
MPPT charge mode
Setting Device InfoRecordMonitoring
Current:
14.20V
0.00V 0.00A 0W
13.40V 0.84A
0.77A 11W
Current Power
Voltage Current Power
status: Normal
status: Normal
status: Close
100% 25℃
Connection
Connect the BT-1 Bluetooth module to any Renogy solar charge controller with
an RJ12 port and RS232 communication protocol.
03
Page 5
Communication status indicator
Green Power Indictor:
Status Note
Power Indicator Solid (Green) Power On
Off Power Off
Blue Communication Indicator:
Status Note
Link Indicator
Flashing (Blue) Communicating
Off Stand by
Compatible Models
All Renogy Controllers with RJ12 port Compatible Models
Communication Protocol RS232
Port Type RJ12
04
Page 6
Technical Specifications
Description Parameter
Model
Input Voltage 12V
Standby Power Consumption 0.04W
Operating Power Consumption 0.05W
Communication Range
Serial Baud Rate
Communication Protocol RS232
Port Type RJ12
Cable Length 5.00m (16.4ft)
Dimensions
Installation Dimensions
Operation Temperature
Protection Grade IP54
Weight 130g(4.58oz)
05
BT-1
≤82ft
Fixed Baud Rate 9600bps
67.3 X 35 X 14mm
2.65 X 1.38 X 0.55in
67.3 φ3.5mm（2.66 φ 0.14in）
-20℃~85℃（-4°F to 185°F）
Page 7
To Download App
1.
The Android version of the Renogy BT APP is available to download on
Renogy.com and the Google Play Store.
In the Google Play Store, simply search “Renogy BT”or “Renogy DCHome”
in App store to download.
2.
For IOS version, simply search “Renogy BT” or “Renogy DCHome”in App
store to download.
The admin password in App is
3.
How to Connect via Bluetooth
Please ensure your device’s Bluetooth setting is turned on.
Select:
Configuration > Search Devices > Device
The green indicator on the BT-1 will turn on once it has successfully
connected to the power.
The blue indicator on the BT-1 will blink once it has successfully connected
and during communication.
135790123
06
