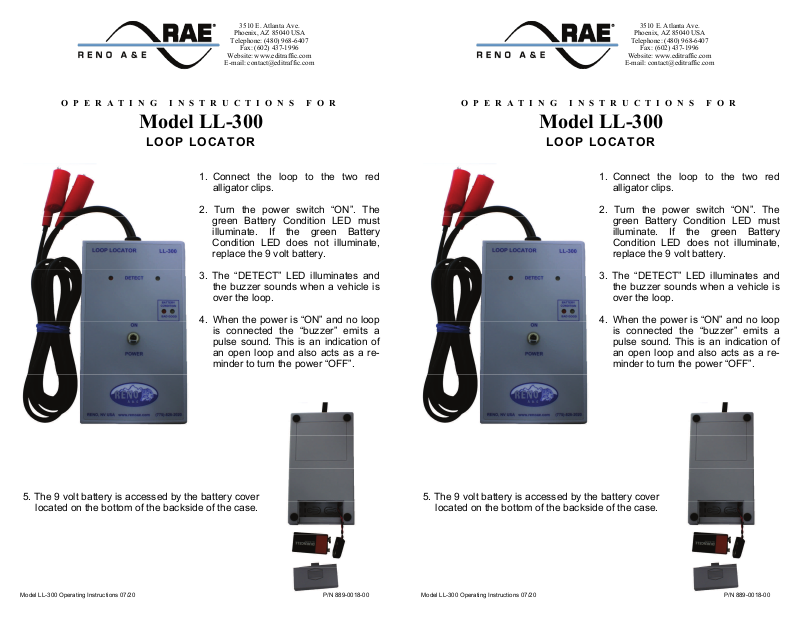

OPERATING INSTRUCTIONS FOR

Model LL-300

LOOP LOCATOR

1. Connect the loop to the two red
alligator clips.

2. Turn the power switch “ON”. The
green Battery Condition LED must
illuminate. If the green Battery
Condition LED does not illuminate,
replace the 9 volt battery.

3. The “DETECT” LED illuminates and
the buzzer sounds when a vehicle is
over the loop.

4. When the power is “ON” and no loop
is connected the “buzzer” emits a
pulse sound. This is an indication of
an open loop and also acts as a re­minder to turn the power “OFF”.

OPERATING INSTRUCTIONS FOR

Model LL-300

LOOP LOCATOR

1. Connect the loop to the two red
alligator clips.

2. Turn the power switch “ON”. The
green Battery Condition LED must
illuminate. If the green Battery
Condition LED does not illuminate,
replace the 9 volt battery.

3. The “DETECT” LED illuminates and
the buzzer sounds when a vehicle is
over the loop.

4. When the power is “ON” and no loop
is connected the “buzzer” emits a
pulse sound. This is an indication of
an open loop and also acts as a re­minder to turn the power “OFF”.

5. The 9 volt battery is accessed by the battery cover
located on the bottom of the backside of the case.

5. The 9 volt battery is accessed by the battery cover
located on the bottom of the backside of the case.

Model LL-300 Operating Instructions 07/20 P/N 889-0018-00 Model LL-300 Operating Instructions 07/20 P/N 889-0018-00
