Digitally Steerable Line Array Loudspeaker Systems
IC-R-II
USERS MANUAL
Assembly & Installation Instructions
IC8-R-II • IC16/8-R-II • IC16-R-II,
IC24-R-II • IC32/16-R-II • IC32-R-II
Version 1.10.4
schriften beschriebenen Wartungsarbeiten ausführen, es sei denn
Users Manual IC-R-II
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions
5. Do not use this apparatus near water. The apparatus shall
not be exposed to dripping or splashing and no objects lled with
liquids, such as vases, shall be placed on it.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety.
If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Make sure the power cord remains readily accessible at all
times.
12. The AC Power Cord is the AC Mains disconnect.
13. Only use attachments/accessories specied by the manufacturer.
14. Disconnect this apparatus during lightning storms or when
unused for long periods of time.
15. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
“WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE”
“CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE
BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE
RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO”.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the use to the presence of uninsulated
"Dangerous Voltage" within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to humans.
The exclamanation point, within an equilateral
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
CAUTION
RISK OF ELECTRONIC SHOCK:
OPEN ONLY IF QUALIFIED AS
SERVICE PERSONNEL
To reiterate the above warnings: servicing instructions are for
use by qualified personnel only. To avoid electric shock, do
not perform any servicing other than that contained in the Operation Instructions unless you are qualified to do so. Refer all
servicing to qualified personnel.
Erklärung der graphischen SymboleExplanation of Graphical Symbols
Der Blitz mit nach untenzielendem Pfeil in
einem gleichseitigen Dreieck weist den
Benutzer auf das Vorhandensein einer
unisolierten, "gefährlichen Spannung" im
Gehäuse hin, die stark genug sein kann, einer
Person einen gefährlichen elektrischen Schlag
zu versetzen.
Das Ausrufezeichen in einem gleichseitigen
Dreieck weist den Benutzer auf wichtige
Betriebs- und Wartungsvorschriften in den
beiliegenden Unterlagen des Gerätes hin.
VORSICHT
GEFAHR EINES ELEKTRISCHEN SCHLAGES:
NUR VON QUALIFIZIEREM WARTUNGSPERSONAL
ZU ÖFFNEN
Eindrigliche Warnung: Wartungsvorschriften dienen nur der
Benutzung durch qualifizieres Personal. Zur Vermeidung eines
elektrischen Schlages keine anderen als die in den Betriebsvor-
Sie sind dafür qualifiziert. Wartungsarbeiten auszuführen.
IMPORTANT
Your Iconyx Steerable Column Loudspeaker contains no user-serviceable
parts and all service should be referred to qualied service personnel.
2
Users Manual IC-R-II
TABLE OF CONTENTS Page
Introduction 4
Technical Support 4
Assembly Instructions 5
Address Number Verication 8
Introduction To RHAON 8
RHAON Organization 8
Preparation
Computer Requirements 10
Software Installation 10
Customizing Your RHAON Workspace 11
Virtual System Design 12
Assigning a Static IP Address 13
Saving Your Work 14
Network Manager 15
Connect Mode
Linking Software With Networked Loudspeakers 16
Properties Windows 18
Assigning Digital & Analog Inputs 20
CobraNet Signal Routing 21
Beam Steering 23
Presets 31
IC-R-IIC1 Remote Preset Control 33
Control Mode 34
User Congurable DSP Functions 35
Saving Changes 36
Saving To Presets 36
All Loudspeakers & Group Control 37
Copy Settings / Copy Presets / Reset 39
Supervise Mode 40
Event Logging & Notication 42
General Preferences 43
Password Protection 44
Installation & Servicing
Wall Mounting 46
Suspended (Flying) 49
Tripod Mounting 49
Servicing 49
Appendix I
Audio Evacuation & Life Safety Functions 50
Appendix II:
RHAON System Block Diagrams 51
IC-ICR Remote Control 54
Appendix III:
IC-R-II Hardware Inputs, Outputs & Indicators 55
Appendix IV:
Keeping Your RHAON Program Up-To-Date 56
Software Updates 57
Updating Microcontroller Firmware 58
Updating DSP Firmware 60
Appendix V:
Using Third Party Controllers 62
Servicing and Troubleshooting 64
RHAON Network Trouble Shooting Tips 65
Network Manager 67
IC-R-II Dimensions & Technical Specications 75
Index 77
3
Users Manual IC-R-II
INTRODUCTION
Congratulations on your purchase of a Renkus-Heinz RHAON Empowered digitally steered ICONYX-R-II column loudspeaker. We hope
you enjoy it.
Your ICONYX IC-R-II steerable column loudspeaker was carefully tested and inspected before leaving our factory and should have arrived
in perfect condition. Please carefully inspect the shipping carton(s) and loudspeaker(s) for any noticeable damage, and if any damage is
found, immediately notify the shipping company. Only you, the consignee, may institute a claim with the carrier for any damage incurred
during shipping. Be sure to save the carton(s) and all packing material for the carrier’s inspection. It is also a good idea to save the carton
and packing material even though the loudspeaker arrived in good condition. If you should ever need to ship the loudspeaker, it should be
shipped in its original factory packaging.
TECHNICAL SUPPORT
If you have any questions about RHAON-Empowered Loudspeakers or encounter a problem designing, installing, setting up or operating a
RHAON system, please call our technical support staff at 949-588-9997 and ask the operator for technical support on RHAON. Call Monday
through Friday from 8:00 AM to 5:00 PM Pacic Time.
The latest information on RHAON Technical Support is always available online at http://www.renkus-heinz.com/support/software-support/
rhaon/e-mail.html. You will also nd a support request form at http://www.renkus-heinz.com/support/request-info/tech-info/index.html.
About RHAON
Your Iconyx digitally controlled, steerable IC-R-II series column loudspeaker is RHAON Empowered.
RHAON (“rayon”), the Renkus-Heinz Audio Operations Network, is the rst practical system to combine digital audio distribution with precise
control and supervision of self-powered loudspeakers. RHAON uses standard Ethernet hardware, advanced CobraNet technology and
on-board DSP (digital signal processing) to turn self-powered Renkus-Heinz loudspeakers from “black boxes” into “smart boxes” that can
respond to user input in real time.
Access Control Note
RHAON systems feature several levels of password-protected access control to prevent inadvertent or unauthorized changes of the control
settings. Even when you connect a computer running RHAON software, you may be denied access to some or all of the Connect and Con-
trol mode functions, depending on how the access control system is congured. For further information on password protection refer to page
44 of this manual or contact the person responsible for the setup and tuning or commissioning of your system.
IMPORTANT
If you will be controlling/supervising your RHAON empowered system with a laptop, do not close the laptop’s lid or allow your laptop to go to sleep (hibernate) during operation. Some CobraNet components may not wake up from hibernation when your computer awakens. Your system will continue to operate normally until you attempt to change any of the settings. For example, until
you attempt to change your Presets (they won’t load) or change your EQ settings and you can’t save them to the loudspeaker(s).
Communications between your computer and the loudspeakers on the network have been disrupted by the malfunctioning CobraNet components. To prevent this set your laptop’s Hibernation / Sleep settings to “Never”.
Note that this does not affect normal operation. Your system will continue to operate normally until you try to change some of the
settings. If this occurs or some other WindowsTM event causes the CobraNet components to malfunction, you will need to either
Restart your computer or use the Windows Task Manager to return to normal operation. To use the Task Manager, close RHAON
(and, if running, CobraNet Discovery) and use “Ctrl-Alt-Delete” to open the Task Manager. Select the “Processes” tab and look for
‘PACNDISCO.EXE’ and ‘PASSBRIDGE.EXE’ (Windows may shorten the names and add ‘~1’). Select them and click “End Process”.
4
Then re-open RHAON.
General Information
Your RHAON-Empowered Loudspeaker’s amplier/DSP stores all conguration settings, including the input
source selection, in non-volatile memory. Analog Input 1 has been pre-selected at the factory so you can use
the loudspeaker as an ordinary self-powered loudspeaker. Just connect a line level audio signal to Analog Input
1 and connect the AC power. This input is always available for testing the loudspeaker and amplier, unless the
AES/EBU input has inadvertently been turned on. Then you must turn off the AES/EBU input to allow the Analog
1 input to function. Use the AES/EBU push button on the array’s control panel to turn the AES/EBU input off. If
the array was previously put into its Standby power mode, turn it On by holding down both the Volume Up and
Volume Down push buttons for approximately 3 seconds.
You will need a computer with a NIC (Network Interface Card) and Windows-based RHAON software to change
the input selection or any of the other DSP settings. Once your DSP settings are stored in non-volatile memory,
the computer can be disconnected from the network. You will need to connect a computer only when you want
to change the settings or when you want to use the supervise feature.
Renkus-Heinz engineering has programmed the on board DSP to optimize the loudspeaker’s performance and
to ensure its safe operation. Replace the RHAON hardware module only with another unit that has been factory
programmed for the same loudspeaker. Contact our Technical Support Department for details and assistance.
Users Manual IC-R-II
ICONYX-R-II ASSEMBLY INSTRUCTIONS
IMulti module IC-R-II arrays can be operated as either Master & Slave systems or as an All Master System In
Master & Slave systems, one module is designated as the Master and all the other modules are Slaves controlled by the Master module. All signal cables terminate in the Master module. In an All Master System, each
module acts as a Master and there are no slaves and signal cables must be brought into each module
To simplify shipping and handling, ICONYX arrays are constructed from 8-channel modules and need to be
assembled in the eld. The assembly hardware is packed with the modules in cardboard boxes that double as
carton “llers”. The ones containing the hardware are marked “Hardware” to prevent the hardware from being
accidentally discarded.
If you purchased an IC8-R-II all you need to do is remove the column loudspeaker and its hardware box from
the carton and install it. Skip to page 6 for Address Number Verication instructions.
If you purchased an IC16-R-II or an IC16/8-R-II, you should have received two cartons and will need to assemble them into a 16 channel unit. Each carton will include a hardware box.
If you purchased an IC24-R-II, you should have received 3 cartons (three 8-channel modules).
If you purchased an IC32-R-II or an IC32/16-R-II, you should have received 4 cartons (four 8 channel modules)
and will need to assemble them.
The cartons will be marked to show the module’s position in the nished column array; for example, top, bottom,
center, etc.
If you ordered a mounting hinge kit with the loudspeaker, the hinge hardware will be packed with the other hardware. Note that the hinges can be installed on either the right or the left side of the cabinet to allow the column
to swing to either the right or to the left away from the wall.
IC16-R-II
5
Users Manual IC-R-II
Prepare an assembly area. Each module is 4 feet long, so
you need a at surface at least 8 feet long to assemble an
IC16-R-II and 16 feet for an IC32-R-II. We suggest covering the assembly area with a heavy cloth or some other soft
material to prevent damaging the nish on the cabinets while
assembling them. Avoid resting the modules on their grille.
The modules are heavy and may deform the grille. Instead,
rest the modules on their sides or back.
Place the modules in their respective positions on the assembly area.
Note: Be aware that If you purchased two or more IC8-R-II
arrays at different times and now want to turn them into an
IC16-R-II or larger array, the IC8-R-II array modules must be
of the same Firmware version. Firmware version 1.x must
not be mixed with Firmware version 2.x. Refer to page 58 for
details on updating rmware.
Before proceeding any further carefully check to make
sure none of the array modules are connected to the
Mains (main AC power line). If they are, disconnect them!
Removing the array module’s top plate exposes terminals
that carry AC power between the modules and pose a
shock hazard if the unit is connected to the AC power line
(mains).
You will rst need to remove the top of the lower module and
the bottom of the top module, and the tops and bottoms of
any intermediate modules and their mounting brackets.
To remove an end cap, remove the eight machine screws
from each side of the cabinet and lift the end cap and its
mounting brackets out of the cabinet. Note that for clarity the
end cap was removed in the graphic.
Now, use the mounting bracket machine screws you removed
to install the two heavy joining plates. They will be packed
with the hardware. Tighten the screws lightly. The joining
plates need to be a little loose to slide easily into the other
cabinet. Align the two modules to be joined on a tabletop or
on the oor so that the top of the lower one and the bottom of
the upper one are close to one another, say 4” (10 cm) apart.
If you are assembling a “master & slave array, insert the free
end of the short ribbon cable into the socket on the second
module. Using a #1 Phillips screw driver, secure the connec-
tor with two 4-40 Phillips head screws (supplied). Make sure
the connectors are fully seated. If necessary, use a ashlight
to check because if the connectors are not seated properly,
you may have to disassemble the column again in order to
seat them correctly.
If you are assembling an All Master system, do not connect
the cables.
6
Plug one end of the 3 conductor AC cable into its mating socket. Make
sure it is properly seated.
Align the two modules and slide them together, making sure the holes
in the heavy joining plates align with the holes in the modules. Install the
remaining screws into the joining plates and tighten all the screws. The
assembly is now complete.
Important: The IC16/8-R-II and IC32/16-R require slightly different cabling
between the modules.
IC16/8-R-II
The IC16/8 has only a single 8-channel amplier (1 channel for each two
transducers), instead of the two 8-channel ampliers (1 channel for each
transducer) used in the IC16-R-II.
This requires different connections between the two modules. In the
IC16/8-R-II, the single 8-channel amplier will be located in the bottom or
Master module.
Users Manual IC-R-II
1. Locate the 8 pin connector in the lower module. See Figure 1.
2. Locate and pull out the 8 conductor loudspeaker connecting cable in the
bottom of the upper module (the one without an 8-channel amplier). See
Figure 2.
3. Pug the 8 conductor loudspeaker connecting cable into the 8 pin con-
nector in the lower module. See Figure 3.
4. Finish the mechanical assembly.
Note that you do not have to connect the upper module’s power and ribbon
cables to the lower module.
IC32/16-R-II
The IC32/16-R-II has only two 8-channel ampliers (1 channel for each two
transducers), instead of the four 8-channel ampliers (1 channel for each
transducer) used in the IC32-R-II.
The 8-channel ampliers will be located in the bottom (Master) module and
in the third module.
The procedure is the same as for the IC16/8-R-II except that:
Figure 1
Figure 2
1. The 8 conductor loudspeaker cable needs to be connected between the
Master module and the second module and between the third and fourth
modules.
2. The power and the ribbon cables need to be used to connect all four
modules together.
Figure 3
7
MASTER
Master
Slave #1
Slave #2
Slave #3
Users Manual IC-R-II
Address Number Verication
All that remains is to verify that the Master and Slave modules are properly identied.. The settings were set at the factory, but it’s always
a good idea to check the settings. This is accomplished with the Master/Slave dip switches located on the input panel. See page 55 for a
detailed view of the input panel.
Normally the bottom module will be the Master and the other modules will be the Slaves numbered 1, 2 & 3 in ascending order. However,
as long as the switches are set properly any module can be designated as the Master. You may, for example, designate the top module as
the Master to allow you to bring the signal cables into the top of the array. Set the switches in accordance with the drawing shown below.
On single IC8-R-II arrays the dip switches should always be set to the Master setting (“00”).
Be aware that certain functions will be disabled on the Slave modules as their control has been turned over to the Master module. Preset
Up, Preset Down, Preset Enter , Input Pad, Volume Up & Volume Down, AES/EBU Input and Mute functions are all controlled only by the
controls on the Master module. Signal cables must be brought into the Master module. AC power can be brought into any module.
Note that if you connected power to the Array before setting the dip switches, you will need to disconnect it and reconnect it before the dip
switch settings will take effect.
SLAVE
MASTER
SLAVE
MASTER
SLAVE
SLAVE
MASTER
If you are assembling an “all Master” array set all the dip switches to the “Master” position.
RHAON ORGANIZATION: Three Fundamental Audio Operations
Before we go on, let’s take a look at the structure of RHAON. Audio operations comprise three fundamental areas that are necessary for
the success of any sound system:
CONNECT
In a RHAON system there are both physical connections and network (software) connections. The physical connections are made using
UTP cable meeting at least CAT5 standards and/or analog cables as well as AC power cords. Network connections are established in
the software. You don’t have to make the two types of connections in a particular order. RHAON software allows you to set up a “virtual
system” using beam steering, pre-congure DSP settings for individual loudspeakers and establish and store preset congurations before
the physical connections are made. If you are using RHAON’s CobraNet digital audio functions, you will also need to connect a CobraNet
source (an analog to CobraNet converter) to the network.
CONTROL
You can control many DSP parameters in real time, and/or pre-congure them in software prior to installation and make nal adjustments
during commissioning or setup. Preset congurations are available for instant recall.
SUPERVISE
RHAON allows both real time supervision while the system is in use, and remote supervision with fault logging and operator alerts via
e-mail, text messaging, etc. In steerable arrays, every single driver is supervised and its status displayed; any failures detected trigger an
alarm.
At any time you can switch into any one of the three RHAON operating modes using the Connect | Control | Supervise tool bar directly
above the work space. You can also switch between the three modes and the Beams / Presets folder using tabs inside the Loudspeaker
Properties window.
8
PREPARATION
Users Manual IC-R-II
TYPICAL PROJECT WORKFLOW
INSTALL RHAON
software under
Windows 7, 8, XP
or Vista
CONNECT
SCAN THE NETWORK
RHAON assigns
IP Addresses as needed
CONTROL
SET COMPUTERS
Static IP
Address
ASSOCIATE VIRTUAL &
ACTUAL LOUDSPEAKERS
Drag from left panel,
drop on icon in right panel
CHOOSE BACKGROUND IMAGE
This can make it easier to see
where Groups and Loudspeakers
are in the venue
SELECT DIGITAL and/or
ANALOG INPUTS
ADD VIRTUAL SPEAKERS
or scan network for actual
loudspeakers
ROUTE COBRANET
CobraNet Source
Drag-and-Drop Tx/Rx links
GROUP VIRTUAL SPEAKERS
or actual loudspeakers
found on your network
BEAM STEERING
Configure and Aim
Array’s Sonic Beams
OPEN NETWORK MANAGER
To verify integrity of the Ethernet
network
PRESETS
Control & Store Presets
CONTROL PANEL
Configure Loudspeaker
Array
SUPERVISE
OPERATOR ALERTS
RHAON indicates problems
such as over temperature,
clipping or driver failure at Sys-
tem, Group and Loudspeaker
levels
EQUALIZATION
8-band parametric EQ,
hi-and lo-shelving
hi-pass and lo-pass
DETAILED INFORMATION
Just click through to the
loudspeaker’s Supervise screen
to identify the nature of the
problem and take corrective
action
COMPRESSION
Threshold / Ratio
Attack / Release
Soft Knee / Trigger Point
FAULT LOGGING
RHAON logs the fault
conditions you specify to a
file on your hard drive
0 to 340 milliseconds @ 48 kHz
DELAY
0 to 170 milliseconds @ 96 kHz
OPERATOR NOTIFICATION
via e-mail or text message
(if your computer has a second
NIC with an Internet
connection)
PRIORITY OVERRIDE
Attack / Release
Threshold / Hold
Engage / Disengage
MULTI-LEVEL PASSWORD
PROTECTION
restrict access to Connect and
Control functions
9
Users Manual IC-R-II
Software Installation
PREPARATION
You need a Windows PC running RHAON software in order to maximize the performance of RHAON-Empowered loudspeakers and your
RHAON system. You can use RHAON software during the design stage, for system setup, tuning and commissioning, and for remote
control and supervision. You can disconnect the computer from the network after commissioning the system, if you or your client will not be
using RHAON’s system supervision capabilities.
RHAON software will run on any PC computer that meets or exceeds the following requirements.
Processor / Speed: Pentium / 800 MHz minimum (faster recommended, especially for large systems)
RAM: 256 MB minimum (more recommended, especially for large systems)
Interface: At least one Network Interface Card (NIC) with a 100 BaseT (100 MB/second) or faster
Ethernet Port; two NICs are needed if the computer will also be used to e-mail alerts
Operating System: Windows XP, Vista, Windows 7 or Windows 8 with either 32-bit or 64-bit processors
Associated Software: .NET Framework 3.5 or higher (supplied with RHAON installation CD)
Screen Resolution: 1024 x 768 or higher
To install the software insert the RHAON installation disk into the computer’s CD drive. The installation program should start automatically.
During the installation you will need to select either the 32-bit or the 64-bit install RHAON 1.10.2 is downwards compatible with earlier
versions of RHAON Microcontroller and DSP rmware so you do not need to uninstall a previous version of RHAON before
installing program version 1.10.2. However, new program features may not function in loudspeakers running earlier versions of
rmware.
If the installation program doesn’t, start automatically, go to your Start menu. Then select Settings/Control Panel & Add/Remove Programs.
Click on Install to start the installation manually.
The RHAON Setup window shown below will open.
Click on Next to proceed to the next step. Then follow the screen prompts until the installation is complete.
The installation program will install RHAON into a Renkus-Heinz/Rhaon folder on your hard drive. It will not uninstall earlier versions of
RHAON. If you want to delete an earlier version, use Settings/Control Panel and Add/Remove to remove the earlier version..
The RHAON Installer will put a RHAON Icon on your desktop. Double click on it to open RHAON. You should see the opening screen
shown at the top of the next page.
10
Users Manual IC-R-II
Notice that the program warns you if your display settings may cause viewing problems. If you are using “Large Fonts,” we recommend
you change to the default 96 DPI setting to avoid possible viewing problems.
PREPARATION
The program also includes a number of pop-up messages that alert you to new RHAON features and help guide you though the creation
of a successful project. Typically, most of these pop-up notes can be turned off once you become familiar with the program and no longer
need their assistance..
Customizing Your RHAON Workspac
The grey background with the RHAON watermark can easily be changed to something more useful, such as a block diagram of your
system or a photo of the venue. To change the background, go to the Options pull-down menu and select Background Image/Load Image.
Then browse to the drawing or photo you want to use. Be aware that the photo size needs to have roughly a 4 by 3 aspect ratio to work
well in the RHAON work space.
11
Users Manual IC-R-II
Virtual System Design
PREPARATION
RHAON software can save you time at the job site by enabling you to set up a complete virtual loudspeaker system before you go to the
site. When you get to the site, you connect your computer to the RHAON network, link the virtual loudspeakers with their real counterparts,
and upload the virtual system settings to each individual loudspeaker.
Your loudspeaker system can include individual loudspeakers, groups of multiple loudspeakers, or a combination of both. Groups as well
as individual loudspeakers can be controlled
(turned On or Off, Muted, have their levels
adjusted, and more) using your mouse.
We recommend you consider using “Groups”
in your designs. You can always control each
individual loudspeaker, but quite often it’s
more efcient to have them grouped together.
You begin designing a virtual system in the
main RHAON window, which is divided into
two sections. The narrow vertical panel on the
left lists all the available devices in the network
in a directory tree format.
The larger section on the right displays
loudspeaker icons and other specialized work
areas. The All Loudspeakers icon represents
your loudspeaker system. It functions as a
“group” control for all the loudspeakers.
If you need more space in the work area on
the right, minimize the left hand section of the
display by clicking on the Close icon on its
right edge.
Let’s say we want to add two IC16-R-II
loudspeakers to our system. Clicking on Add
Virtual Device(s) in the top left tool bar opens
an Add New Speakers window. Browse to
nd the loudspeaker model you want to add
(IC16-R-II in the example) and select it. Type a
quantity (2 in our screen shot) into the Amount
To Add eld and click the Add button.
In the screen shot to the right, icons representing the two IC16-R-II arrays have been added
to the workspace and then moved to their
approximate location by grabbing them with
the Mouse Cursor and moving them.
Now you can dene initial DSP settings for
your virtual loudspeakers. The DSP settings
can then be uploaded to the actual loudspeakers once your computer has been connected
to the loudspeaker network at the site.
12
Users Manual IC-R-II
Assigning a Static IP Address to the RHAON Host Computer
You can begin your preparation ofine in a virtual environment,
but to make a RHAON system operational you have to connect
your computer and the RHAON Empowered loudspeakers in the
system to an Ethernet network.
You need to associate the virtual loudspeakers you have created
in RHAON with the actual loudspeakers installed in the system.
The rst step is to make sure the computer’s Network Interface
Card (NIC) is properly setup .
Your NIC must have a static IP address assigned to it to
enable the RHAON software to communicate with all the
loudspeakers on the network.
Each device on the RHAON/CobraNet network must have a
unique IP address in order to communicate. RHAON software
can assign the IP addresses to your networked loudspeakers
automatically.
If you are running Windows XP, go to the Start Menu and select
Control Panel/Control Panel and Network Connections. If you are
using Vista, Windows 7 or Windows 8, go to Start/Control Panel/
All Control Panel Items/Network and Sharing Center.
PREPARATION
Find the connection you wish to use. It will likely be called “Local
Area Connection” unless you have renamed it. Also, make note
of the model number of the NIC you will be using. The RHAON
software will require you to use it later. Right click on the connection line/icon and then select “Properties” to open its Properties
window.
Then, double click on Internet Protocol (TCP/IP) to open its
Properties window. See example to the right. You will probably
see that your computer is congured to Obtain an IP Address
Automatically. Change this to Use the Following IP Address and
enter an IP address of, for example 192.168.1.1. Next, insert
255.255.255.0 into the Subnet Mask eld. Click OK and you are
ready to connect to the RHAON/CobraNet network.
Note: IP addresses are in the format xxx.xxx.xxx.xxx where
“xxx” is any digit from 0 - 255. Local IP addresses that appear only to other devices on a LAN (Local Area Network) are
dened as ranges 192.168.xxx.xxx, 172.16.xxx.xxx to 172.31.
xxx.xxx and 10.xxx.xxx .xxx.
192-168.xxx.xxx is the range most commonly used and we
suggest you use it unless you have a good reason to use
another range.
13
Users Manual IC-R-II
Before plugging the network connector into your
PREPARATION
computer’s Ethernet port, you need to make sure
that RHAON has the correct network settings. In
the RHAON software, go to the Options menu
and select “Preferences”. On the General tab,
make sure the correct NIC is selected in the
Adapter eld. The available selections are based
on the listing of your network connection you
noted earlier. Refer back to page 13.
Each device on the RHAON / CobraNet network must have a unique IP address in order to
communicate over the Ethernet network. The
RHAON software can assign IP addresses to all
the RHAON Empowered loudspeakers connected
to your network.
But, before RHAON can scan your network and
assign IP addresses to the devices it nds, you
need to specify a range of IP addresses for it to
use. The static address assigned to the computer
in Windows establishes the “subnet” you will be
using. A subnet is the rst three parts (“octets”)
of the IP address. In the example, the subnet is
192.168.1. Therefore, all the IP addresses on the
network will be in the form 192.168.1.xxx.
Type two valid IP addresses into the two elds: one for the lower limit of the range and the other for the upper limit. Since 192.168.1.1
is already in use by the RHAON host computer, the lower limit must be at least 192.168.1.2. The upper limit can be set as high as
192.168.1.255, but needs to be only high enough to accommodate all the devices on the network. Remember each device must have its
own IP number.
Click OK and connect the computer to the RHAON/CobraNet Ethernet network, i.e., plug in the CAT5 cable.
Note that you do not have to create virtual loudspeakers before connecting your computer to the network. RHAON software can
scan the local Ethernet network, identify all connected loudspeakers, assign IP addresses to them, and list them in the workspace directory tree. Creating a virtual system before connecting to the network is an option that can in many cases save you
time at the job site.
Saving Your Project
It’s always a good idea to save your work regularly when using any computer software. If you have not done so, RHAON will remind you
with a prompt if you attempt to close the program without saving.
When you are ready to save your work, selecting Save from the File pull down menu will open the familiar Windows File Save screen.
Name your project, browse to the desired le location and Save the le.
Note that you are saving the project le to your computer and not saving (loading) it into the loudspeakers.
14
Saving Changes
Users Manual IC-R-II
PREPARATION
Each loudspeaker’s Connect, Control and Supervise Properties window also has a Save button. Pressing the Save button will save the
change(s) to the project le and to the associated loudspeaker’s ash memory.. Note that although the changes are being sent to the
project le, the project le itself is not being saved.
The Network Manager
Most Iconyx IC-R-II and ICL-FR setup and installation problems are “network problems” and not Iconyx or RHAON problems. Your Iconyx
array was factory tested before it left our factory and barring shipping damage should be in perfect operating condition. The RHAON Network Manager allows you to check the integrity of the Ethernet network before you actually link to the loudspeakers. It is accessed from the
File pull down menu and identies network problems for you before you waste a lot of time checking out the loudspeaker.
In the example shown here the ICL-FR Left obviously has a network communications problem while the CF61 DBL and the VoiceBox are
suspect.
For more details on the Network Manager refer to page 67.
15
Users Manual IC-R-II
Linking Software Icons with Networked Loudspeakers
CONNECT
To connect a RHAON network, you rst make all the hardware connections, and then (if you are using CobraNet for digital audio distribution) assign signal routing using RHAON software. A typical amplier input panel is shown on page 55 in Appendix 1.
Let’s say you’ve connected all your Ethernet inputs and outputs. Every venue is different, so is every network. For examples of RHAON /
CobraNet networks, see Appendix 1.
Remember: before connecting your computer running RHAON software to the network, you should have assigned it a static IP address. If
you’ve done that, connect the computer to your RHAON network. Rhaon will immediately scan the network and list any CobraNet devices
it nds under Network in the the directory tree.
If nothing appears under Network in the directory tree, RHAON was unable to nd any devices.To conrm this, you can right click on the
Network folder in the directory tree to gain access to the Scsn Network command.and manually initiate Scan Network.
If RHAON can’t nd any CobraNet devices on the
network, the prompt shown to the right will appear
to let you know that something is wrong and to offer
trouble shooting hints. For more detailed trouble
shooting instructions please refer to page 66.
Note that you did not have to rst create virtual loudspeakers. RHAON found the actual loudspeakers.
The next step is to drag each loudspeaker’s directory
listing into the work space. This will create an icon for
it. If you created virtual loudspeakers before scanning the network, drag each individual listing from the
Network folder into the main work space and drop it
on the appropriate icon.
When you link a networked loudspeaker with a software icon, RHAON interrogates the loudspeaker to
make sure the DSP settings stored on your computer are synchronized with those in the loudspeaker’s
onboard memory. If they are not, RHAON displays a
prompt that allows you to choose which settings to
use.
To upload settings from your computer to the
loudspeaker, click on Overwrite Settings on DSP. To
download settings from the loudspeaker and copy
them into computer memory, click on Read Settings
from the DSP.
If you were linking an existing project on your computer into an existing network, the dialog box shown
to the right will appear and you will need to decide
which settings you want to use, the ones stored in
your project le or the ones present in the loudspeakers.
16
Users Manual IC-R-II
Continue until all of the networked loudspeakers are linked to icons in the main workspace.
When an icon is linked to a networked
loudspeaker, the status indicator under its
name changes from Unassigned (Red) to OK
(Green). Notice that the directory listing for
that loudspeaker also moves from the Network
folder to the Speaker folder in the directory
tree.
To conrm that the setup is complete, return
to System Layout and place the cursor over
the loudspeaker listings in
the directory tree. As you
can see from the pop up
screens, RHAON has assigned IP numbers to each
of the loudspeakers.
Note that you could also open the Network
Manager and view this same information in list form. To open the Network Manager, go to the File pull down menu and select Network
Manager.
Let’s take a closer look at the Connect Mode loudspeaker icon.
CobraNet Receivers
Loudspeaker Name CobraNet Transmitters
IC16-R
OK
Turns “Wink” Light ON & OFF Status Indicator
Turns Mute ON & OFF
CONNECT
Clockwise from the top, the rst item is the icon’s name. The loudspeaker symbol on the right of the Status Bar is a Mute control: click on it
to mute or un-mute the loudspeaker. The green triangles on the far right represent CobraNet Transmitters (Tx). Each CobraNet Transmitter
can transmit one channel of information from the DSP out to the CobraNet network. The green Status bar reading OK at the bottom of the
icon indicates this icon has been linked to a networked loudspeaker and is operating satisfactorily. A red bar would indicate a problem and
the text would identify the problem, such as unassigned.
To its left of the status bar is a “W” button. Click on it to Wink the light on the front of the networked loudspeaker that is linked to the icon.
This makes it easy to identify the loudspeaker and conrm its location. On the outside left edge of the icon are two red triangles representing CobraNet Receivers (Rx): each can receive one signal out of a bundle of up to 8 audio channels from the network.
Double clicking on any loudspeaker’s Connect icon opens the Connect Properties screen associated with the linked loudspeaker. More
details on Properties screens are on the next page.
17
Users Manual IC-R-II
Properties Windows
CONNECT
The three operational modes of RHAON, Connect, Control and
Supervise all have their own unique Properties window (see
below). Notice that the vertical pane on the left side of each
window is identical.
The Connect, Control and Supervise tabs at the top of the
window allow you to switch between the three operating
modes without returning to the main window. You can also
open Properties les
for more than one loudspeaker at the same time qnd move
them around the work space.
The Connect Properties window gives you the ability to:
1. Select and connect the multiple inputs of Rhaon empowered
loudspeakers to the amplier(s)
2. Select and send input signals to the CobraNet network
3. Select one of the CobraNet digital audio channels, if Co-
braNet’s multi channel digital audio capability is being used.
The Control Properties window provides setup and control fa-
cilities for the loudspeaker’s on board DSP. It includes controls
for the:
1. Compressor
2. 8-band parametric equalizer, hi & lo band roll off and shelv-
ing lters
3. Signal delay
4. Priority override controls.
The Supervise Properties window allows you to:
1. Monitor and test the status of each transducer’s driver
2. Check the status of the voltage detect circuit, the fault relay
and the Ethernet network.
Notice that each one of the array’s transducers is being
supervised.
18
Users Manual IC-R-II
The vertical pane in each Properties window provides for loudspeaker identication and selected control features. See below for details.
Loudspeakers model number or name
Text elds for entering a name for the
loudspeaker and listing its location.
Loudspeakers DSP sample rate (48 kHz or
96 kHz). See Appendix lll for more details.
Power On/Standby button. Turns ampli-
er On or places it in Standby. Turning
AC power to the Array On and Off is a
Press Wink with Light button to turn the
loudspeaker’s wink light on and off to aid in
identifying the loudspeaker and its location.
separate operation.
Press Wink with Audio to send a Tone
signal or Pink Noise to the loudspeaker.
Output status indicators for each amplier.
See Status Indicators below for details.
Input signal level bar graph; “0” indicates
the onset of input clipping. Analog inputs
clip at +12 dBu without the 10 dB input
pad, +24 dBu with the pad.
Output bar graph. “0” represents the
maximum uncompressed output level;
positive values indicate how far the signal
Volume control slider; adjust by grabbing
slider with mouse or by using up/down
arrows. Settings adjustable from “0” to -50
is overshooting into limiting; negative
values indicate the amount of headroom
left before the onset of limiting.
in 1 dB steps, then to -100 dB in one step;
settings below -8 dB prevent the loud-
speaker from reaching full output.
CONNECT
Inv. button inverts the input signal polarity;
glows green when signal is inverted. Use
with caution.
Mute button mutes the entire loudspeaker.
Amplier temperature indicator and
bar graph.
Save button
Reads Save whenever a change is
Press to restart the loudspeakers DSP in
the event of a malfunction.
made as a reminder of the need to save
changes.
Status Indicators: The Thermal, Peak and Fail indicators above the output meter provide critical information on the array’s status. The
Peak indicator will ash yellow or red whenever the device’s peak limiter is triggered. It’s normal for the indicator to ash occasionally if
the loudspeaker is being used close to its rated output. Flashing frequently is a sign that the system volume needs to be turned down. The
Thermal indicator will start to ash yellow as the amplier temperature approaches a preset level and will turn red if the temperature continues to increase as a warning the amplier is about to be shut down. The Fail indicator glows red when the amplier has been shut down by
the protective circuitry. Heat related shutdowns will reset automatically after the amplier cools down to a safe temperature.
As a further protective measure, the amplier’s gain will gradually be reduced in response to overheating and/or to high an input level.
However, it’s best to manually reduce the input signal level (overall system volume) in response to distress signals.
Power On/Standby Button: Note that the Power On/Standby button will not show while operating in the virtual mode. It appears only
when associated with an actual array.
19
Users Manual IC-R-II
Assigning Digital and Analog Inputs
CONNECT
The larger right portion of the Properties windows vary with the operating mode. The Connect window is divided into an upper light grey
Internal DSP Connections section and and a darker grey lower CobraNet Routing Assignments section.
The Assign Amplier Inputs portion of the upper section is where you select which one of the Array’s multiple inputs will be routed to the
Main input and which one will be used for the Priority override circuit. RHAON Empowered loudspeakers have provisions for two CobraNet
digital audio inputs, two analog audio inputs and a serial audio (AES3 format) digital input. Selecting the input is as simple as clicking on
one of the radio buttons.
Notice that the Analog 1 input includes a 10 dB pad. In the Pad’s On position it inserts a 10 dB pad into the Analog 1 input, allowing input
signals as high as +24 dBu. Without the pad, the analog inputs clip at +12 dBu.
The square Signal Present indicators turn green whenever a signal is present.. You can activate any of the analog and CobraNet digital
inputs in the upper group. If you select either of the AES/EBU inputs in the lower group, all Analog and CobraNet inputs are disabled.
The right hand Assign Cobranet Outputs portion of the upper section lets you use any of the audio inputs or amplier outputs as an output
to the CobraNet network, except for the AES/EBU inputs. AES/EBU signals are clocked separately from CobraNet and cannot be output to
CobraNet from RHAON.
The lower CobraNet Routing Assignments section is where you select which CobraNet input channel you want to use and set up the output
transmitter.
You can use RHAON without digital audio distribution via CobraNet to Control and Supervise your system, or you can combine digital and
analog signal distribution for redundant signal path and/or life safety applications. However, if you use AES/EBU serial digital inputs,
all other audio inputs are automatically disabled.
If you are not using CobraNet for digital audio distribution in your RHAON system, you can skip the next few pages and move on to Beam
Steering (page 23).
20
Users Manual IC-R-II
CobraNet Signal Routing
CobraNet devices transmit and receive digital audio (48 or 96 kHz, 16, 20 or 24 bit) in bundles of up to 8 channels. The number of channels per bundle can vary, depending on settings for latency and resolution. The number of bundles available depends on network bandwidth.
Each CobraNet bundle has a number from the following ranges:
0: Disables the receiver or transmitter.
1 thru 255: Multicast mode (many receivers can access the same bundle).
256 thru 65,279: Unicast mode (allows only one receiver to receive the bundle).
In order for CobraNet devices to communicate,
their Tx (Transmit) and Rx (Receive) bundle
numbers must match. RHAON devices are
equipped with two receivers and two transmitters, their bundle numbers must be assigned
correctly so they can send and receive audio via
the network. RHAON software makes this easy.
In most cases the settings of a CobraNet source
will have already been established with the
source’s own proprietary software and can be
changed only with the manufacturer’s software..
However, it the manufacturer’s software allows
you can set or reset both receiver and transmitter bundle settings of any device found on the
CobraNet network using RHAON software.
CONNECT
The rst step in setting up CobraNet routing is
to drag the CobraNet Source that was detected
by Scan Network into the system.
The CobraNet Source and the devices connected to it must have the same Sample Rate and
Latency settings. Right clicking on the CobraNet
Source Icon will open a pop up screen showing
the Sample Rate and Latency settings. We suggest you accept the Source’s default settings
unless you have a specic reason to change
them.
You will then want to check the device settings
to make sure they are the same as the Source’s
settings. The settings must be the same for the
source and for all devices connected to it.
While latency may be changed here via pointand-click, the sample rate is pre-programmed
in the DSP rmware running in the loudspeaker.
You can switch sample rate by uploading the
appropriate rmware to your device. Please
refer to “APPENDIX III: Updating DSP Firmware” for information on how to upload new rmware to your device.
Next, check the bundle settings of the CobraNet Source device. The Source in our example has 4 Receivers and 4 Transmitters. The red
triangles on the left of its icon represent Rx bundles and the green triangles represent Tx bundles. Right clicking on one of the triangles will
open a pop up window that shows the bundle number and allows you to change it.
21
Users Manual IC-R-II
The next step is to connect the
CONNECT
CobraNet Source Transmitters to the
CobraNet Receivers in the RHAON
loudspeakers. Double click on one
of the Source’s green Tx triangles
and then double click on one of the
loudspeaker’s red Rx triangles to
connect the two. A connection line
will let you know the connection
was completed. The loudspeaker’s
Receiver automatically inherits
the bundle settings of the Source
Transmitter. Keep repeating these
steps until all the loudspeakers are
connected.
To correct a mistake or change an
assignment, click on the Receiver
whose assignment you want to
change to select it or right-click on
the Receiver Icon and select Disable
Receiver from the menu that pops
up. Either method will break the connection and allow you to make a new one.
Since each CobraNet bundle can
carry 8 channels of digital audio,
you must make channel selections
individually.
Once your Tx and Rx bundle assignments have been made, open each
loudspeaker’s Properties window by
double-clicking its icon. If the window
does not open in Connect mode,
click on the Connect tab at the top
to display the window shown at the
right.
In the lower-right section of this window, you make channel assignments
by clicking and dragging to connect
audio channels from the CobraNet
source to the RHAON loudspeaker’s
CobraNet Receivers.
You can also assign Outputs 1 and 2 (selected in the upper section under Assign CobraNet Outputs) to the RHAON loudspeaker’s CobraNet Transmitters.
22
Users Manual IC-R-II
Beam Steering
Iconyx IC-R-II digitally steered arrays produce tightly focused, precisely aimed beams of acoustic energy that maintain their intensity well
over long distances. The FIR les that shape and aim these beams of energy are created within RHAON under Beam Steering and then
either stored as a Preset or loaded into the array’s DSP. Presets are an Iconyx feature that allows you to store up to 10 preset beam steering and DSP control setup congurations in the array’s DSP memory and then select between them. We’ll cover Presets in detail later on
in this manual.
To enter Beam Steering, open the Beams / Presets Tab. This will open the window shown below. Since we are operating in the virtual
world, the white presets listing eld will be empty. To open the Beam Steering module, click on the Beam Steering button in the beam
display graphic (outlined in red below).
CONNECT
If we were connected to an actual array, the white eld would list the presets stored in the loudspeaker’s memory and highlight which one
was loaded into the array’s working DSP.
Multi module IC-R arrays such as the IC24-R-II can be congured as either “Master & Slave” or “All Master” Arrays. In the Master & Slave
conguration one Array module is set up as the Master and ll the other modules are Slaves to the Master and give up control of many of
their functions to the Master. In the All Master approach all modules are called Masters, but they give up control of many of their functions
to the Array Icon which serves as the Master.
The only controls that remain active in the individual array modules are the Mute and Wink functions. All other functions are turned over to
the Array Icon’s properties folder.
The Master & Slave conguration is the most popular and the following Beam Steering instructions assume you are working with a Master
& Slave system. The only major operational difference is that when you are putting the system together in the virtual world you need to
insert a beam into the array before it will initiate Mapping. More details follow on the next several pages.
Cabling is a little different. In a Master and Slave system all incoming signal wires terminate in the designated Master and are passed
through to the Slaves. In the All Master approach, every unit is a Master and each one requires its own separate signal and control cables
23
Users Manual IC-R-II

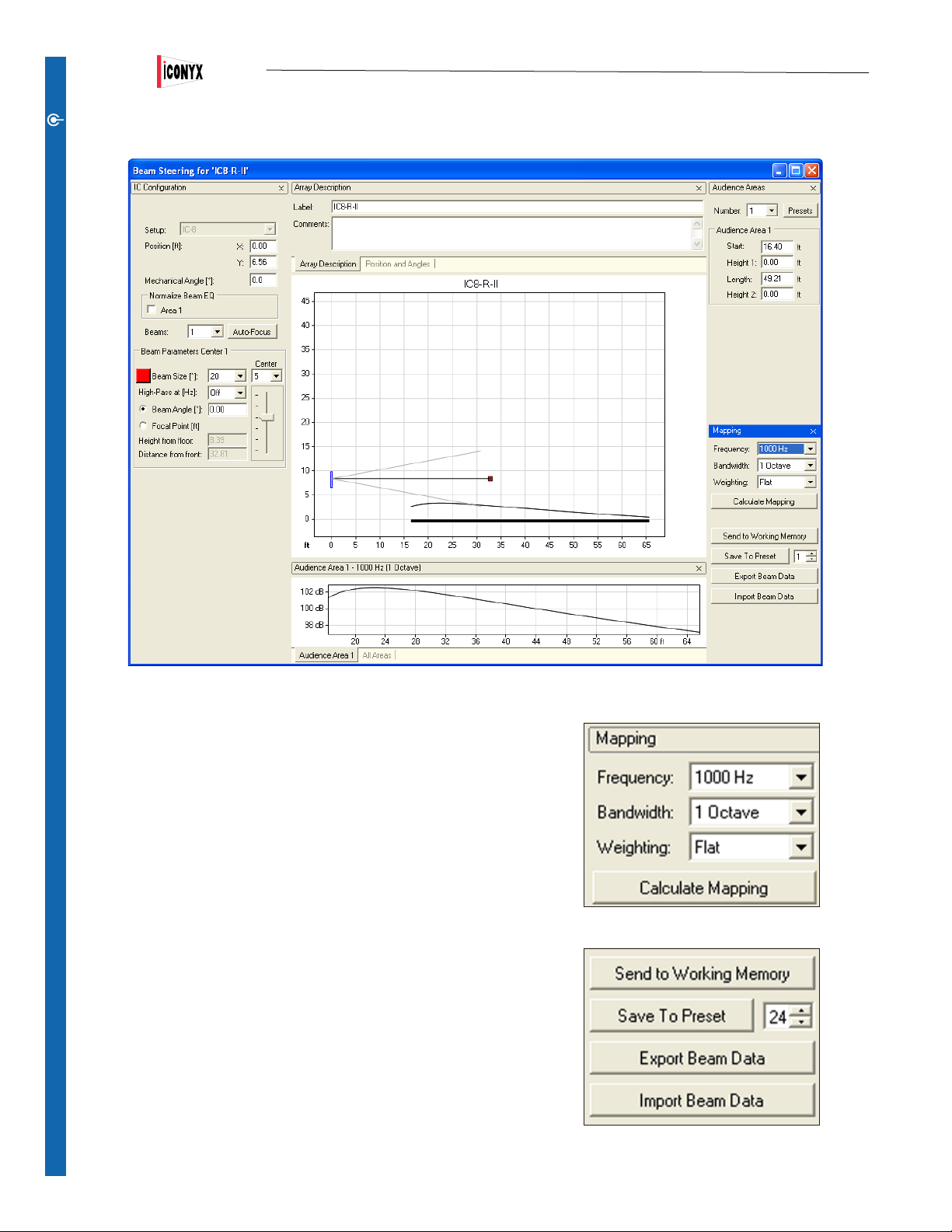

The opening Beam Steering window displays the setup criteria and the beam’s aiming angle and focal point.
CONNECT
It does not map (calculate and display) the Array’s beam until the Calculate Mapping button is pressed. You’ll nd it in the Mapping setup
section on the right side of the screen. The Mapping section controls the calculation’s frequency, bandwidth and weighting.
Note the four control buttons in the lower right corner of the Beam Steering window.
Pressing Send to Working Memory will send any beam steering conguration setting
changes you have made directly to the array’s DSP and write over any previous
settings.
Pressing Save to Preset will store the conguration settings as a conguration Preset in the selected preset le. We’ll go into Presets in more detail later.
Note that in both cases, only the beam steering information is being sent to the Ar-
ray’s DSP.
Export Setup will generate a .rhs setup le that can easily be imported into EASE
and EASE JR models for a more detailed acoustic evaluation. Beam Steering shows
you the array’s vertical coverage, but not the horizontal coverage or the effect of
reections on intelligibility and clarity. EASE and EASE JR do.
Import Setup allows you to import into Beam Steering any changes you may have
made in the conguration settings in EASE or EASE JR.
24
Loading...
