Renesas TQFP-100G User Manual

H8S/2237 Series
TQFP-100G
User System Interface Cable
(HS2237ECN61H)
for E6000 Emulator
User’s Manual
HS2237ECN61HE(C)
1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s patent, copyright, trademark, or other intellectual property rights for information contained in this document. Renesas bears no responsibility for problems that may arise with third party’s rights, including intellectual property rights, in connect ion with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have received the latest product standards or specifications before final design, purchase or use.
3. Renesas makes every attempt to ensure that its products are of high quality and reliability. However, contact Renesas’s sales office before using the product in an application t hat demands especially high quality and reliability or where its failure or malfunction may directly threaten human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation, traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Renesas particularly for maximum rating, operating supply voltage range, heat radiation characteristics, installation conditions and other characteristics. Renesas bears no responsibility for failure or damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-safes, so that the equipment incorporating Renesas product does not cause bodily injury, fire or other consequential damage due to operation of the Renesas product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without written approval from Renesas.
7. Contact Renesas’s sales office for any questions regarding this document or Renesas semiconductor products.

Preface

Thank you for purchasing this user system interface cable (HS2237ECN61H) for the Renesas’s original microcomputer H8S/2237 series.
The HS2237ECN61H is a user system interface cable that connects an H8S/2633 series E6000 emulator (HS2633EPI61H; hereinafter referred to as the emulator) to the IC socket for a TQFP-100G package (package code: TFP-100G) for the H8S/2237 series MCU on the user system.
i
Preface .........................................................................................................i
Section 1 Configuration...................................................................................1
Section 2 Connection Procedures....................................................................4
2.1 Connecting User System Interface Cable to Emulator Station.........................................4
2.2 Connecting User System Interface Cable to User System................................................5
2.2.1 Installing IC Socket .............................................................................................6
2.2.2 Inserting Cable Head ...........................................................................................7
2.2.3 Fastening Cable Head..........................................................................................7
2.2.4 Connecting Cable Body to Cable Head ...............................................................9
2.3 Recommended Dimensions for User System Mount Pad.................................................10
2.4 Dimensions for User System Interface Cable Head..........................................................11
2.5 Resulting Dimensions after Connecting User System Interface Cable .............................12
Section 3 Installing the MCU to the User System...........................................13
Section 4 Verifying Operation.........................................................................15
Section 5 Notice ..............................................................................................16
ii

Section 1 Configuration

UTIONCA
Use an NQPACK100SE socket (manufactured by Tokyo Eletech Corporation) for the TFP-100G package IC socket on the user system.
Figure 1 shows the configuration of the HS2237ECN61H user system interface cable for the TFP-100G package.
1
To emulator station
Screws (M2 x 6 mm)
Cable body
Screws (M2 x 10 mm) (for fastening cable head)
Socket cover
IC socket
User system
Cable head
Figure 1 HS2237ECN61H User System Interface Cable
2
Table 1 lists the HS2237ECN61H components. Please make sure y ou have all of these component s when unpacking.
Table 1 HS2237ECN61H Components
No. Component Quantity Remarks
1 Cable body 1 Includes flat cable 2 Cable head 1 3 IC socket 1 For the TFP-100G package 4 Socket cover 1 For installing a TFP-100G packaged MCU 5 Screws (M2 x 10 mm) 4 For fastening cable head 6 Screws (M2 x 6 mm) 4 For installing a TFP-100G packaged MCU 7 Guide pins (φ 1 mm) 3 For determining the IC socket location 8 Screwdriver 1 For tightening screws 9 Documentation 1 User’s manual for HS2237ECN61H (this manual)
3

Section 2 Connection Procedures

2.1 Connecting User System Interface Cable to Emulator Station

WARNING
Always switch OFF the user system and the emulator product before the USER SYSTEM INTERFACE CABLE is connected to or removed from any part. Before connecting, make sure that pin 1 on both sides are correctly aligned. Failure to do so will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.
To connect the cable body to the emulator station, make sure the user system and emulator station are turned off.
Emulator station
0
0
0
6
E
Cable body
User system interface cable
Figure 2 Connecting User System Interface Cable to Emulator Station
4

2.2 Connecting User System Interface Cable to User System

WARNING
Always switch OFF the user system and the emulator product before the USER SYSTEM INTERFACE CABLE is connected to or removed from any part. Before connecting, make sure that pin 1 on both sides are correctly aligned. Failure to do so will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.
To connect the cable head to the user system, follow the instructions below.
5

2.2.1 Installing IC Socket

1. Confirming the location of IC socket
UTIONCA
After confirming the location of pin 1 on the IC socket, apply epoxy resin adhesive to the end of the four projections at the bottom of the IC socket, and fasten it to the user system.
Use the guide pins provided to determine where to install the IC socket, as shown in figure 3.
Pin 1
Guide pins
4 projections to apply epoxy resin adhesive to
Bottom view of IC socket
User system
IC socket
(NQPACK100SE manufactured by Tokyo Eletech Corporation)
Figure 3 Location Setting of IC Socket
2. Solder the IC socket for a TFP-100G package to the user system.
CAUTION
Be sure to completely solder the leads so that the solder slops gently over the leads and forms solder fillets. (Use slightly more solder than the MCU.)
6

2.2.2 Inserting Cable Head

UTIONCA
Check the location of pin 1 before inserting.
Align pin 1 on the IC socket for a TFP-100G package on the user system with pin 1 on the user system interface cable head, and insert the user system interface cable head into the IC socket on the user system, as shown in figure 4.

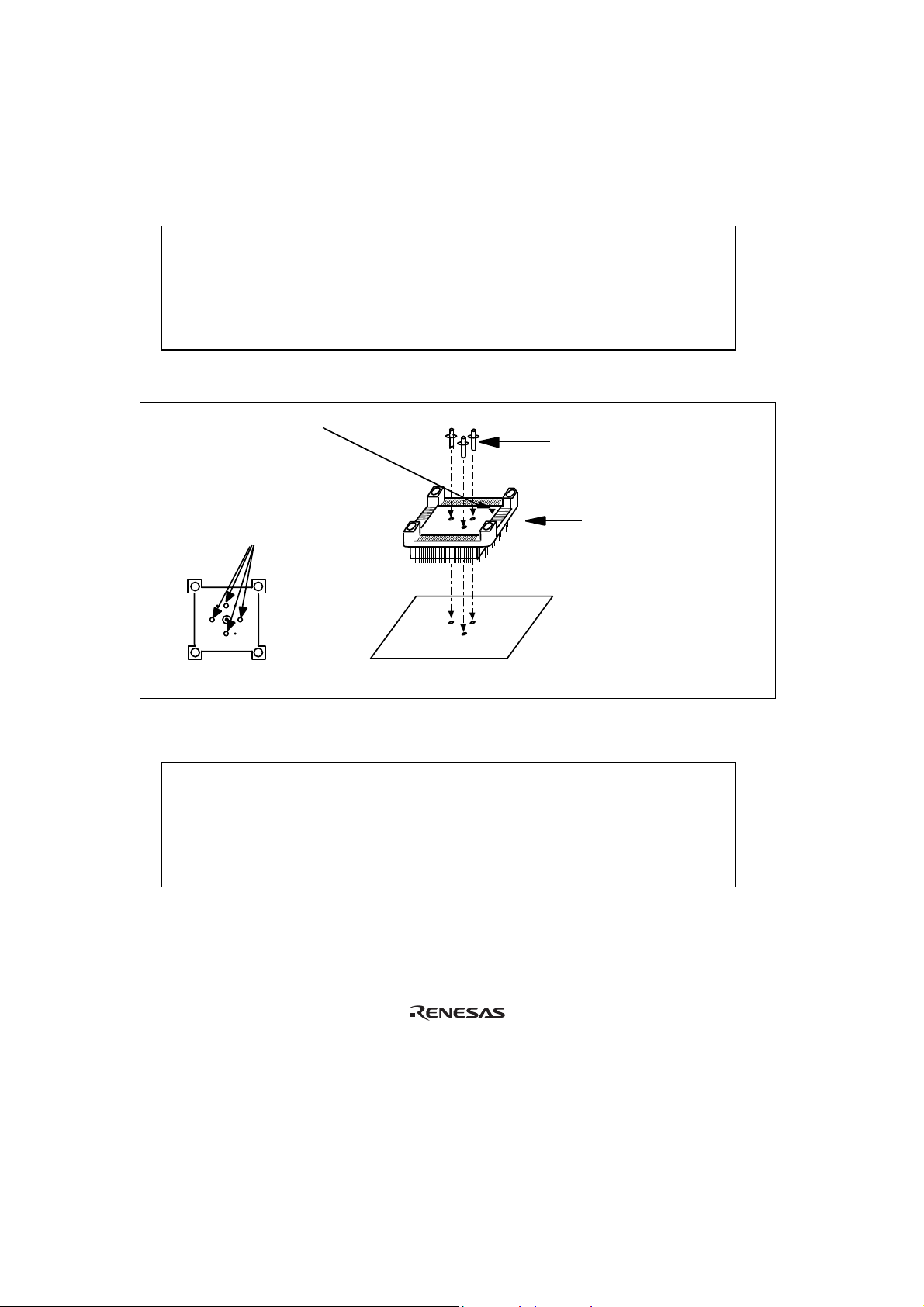

2.2.3 Fastening Cable Head

CAUTION
1. Check the location of pin 1 before inserting.
2. Use the screwdriver provided for tightening screws.
3. The tightening torque must be 0.054 N•m or less. If the applied torque cannot be accurately measured, stop tightening when the force required to turn the screw becomes significantly greater than that needed when first tightening. If a screw is tightened too much, the screw head may break or an IC socket contact error may be caused by a crack in the IC socket solder.
4. If the MCU does not operate correctly, cracks might have occurred in the solder. Check conduction with a tester and re-solder the IC socket if necessary.
7
Fasten the user system interface cable head to the IC socket for a TFP-100G package on the user system with the four screws (M2
x 10 mm) provided. Each screw should be tightened a little at a
time, alternating between screws on opposing corners. Take special care, such as manually securing the IC socket soldered area, to prevent the soldered IC socket from being damaged by overtightening the screws or twisting the components.
Screws (M2 x 10 mm)
Cable head
Pin 1
User system
IC socket (NQPACK100SE manufactured by Tokyo Eletech Coporation)
Figure 4 Connecting User System Interface Cable to User System
8

2.2.4 Connecting Cable Body to Cable Head

Connect the cable body to the cable head.
Cable body
Remove jig
Cable head
Removing
Push the remove jig
User system
Figure 5 Fastening Cable Body
9

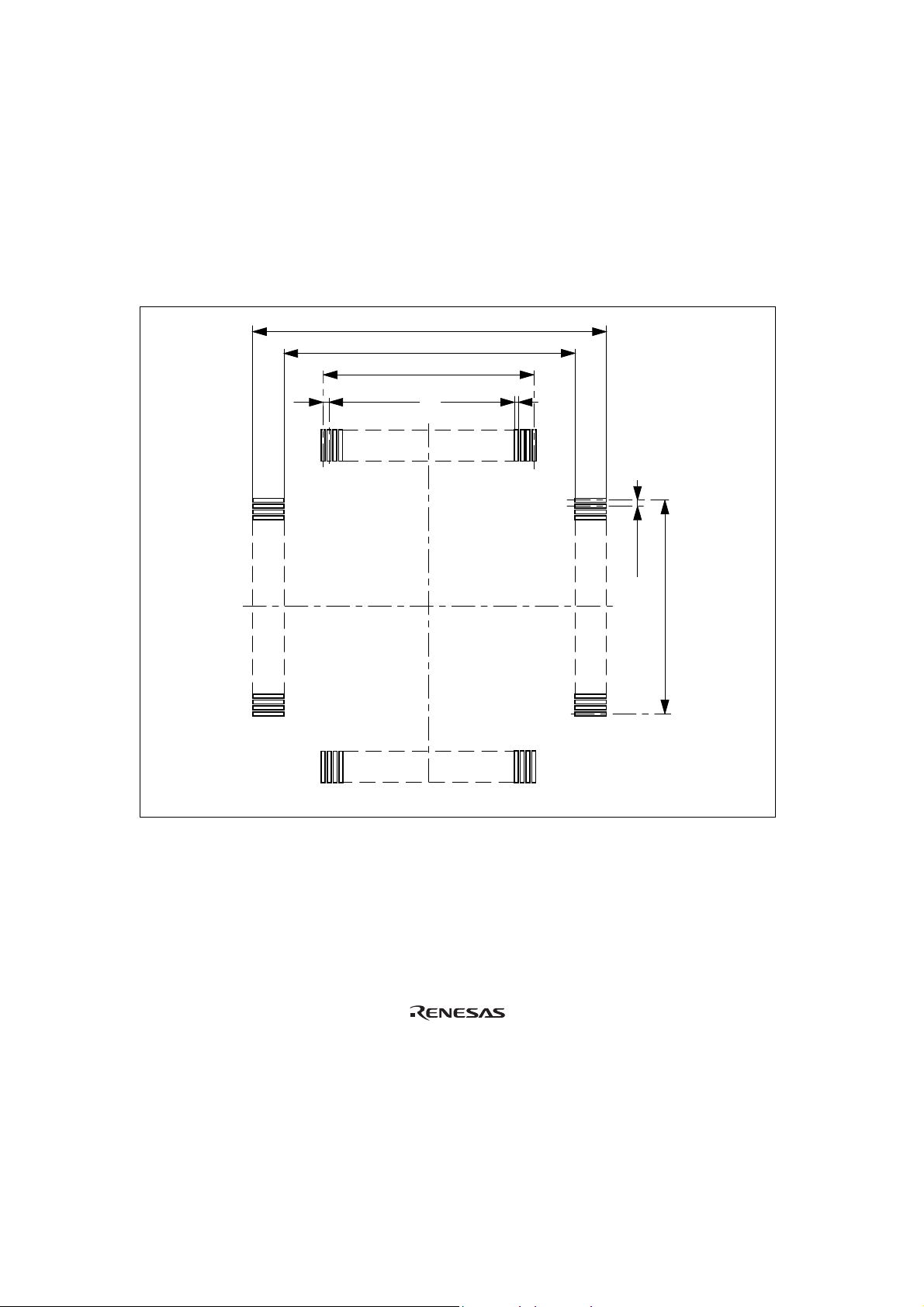

2.3 Recommended Dimensions for User System Mount Pad

Figure 6 shows the recommended di mensions for t he mount pad (footprint ) for the user system wit h an IC socket for an TFP-100G package (NQPACK100SE: manufactured by Tokyo Eletech Corporation). Note that the dimensions in figure 6 are somewhat different from those of the actual chip's mount pad.
15.10 (min.)
11.10 (max.)
0.40 x 24 = 9.60 – 0.05
0.40 – 0.05 0.20 – 0.05
0.40 – 0.05
10
Unit: mm
Figure 6 Recommended Dimensions for Mount Pad
0.40 x 24 = 9.60 – 0.05

2.4 Dimensions for User System Interface Cable Head

The dimensions for the user system interface cable head are shown in figure 7.
Unit: mm Tolerance: –0.5 mm
Figure 7 Dimensions for User System Interface Cable Head
11

2.5 Resulting Dimensions after Connecting User System Interface Cable

The resulting dimensions, after connecting the user system interface cable head to the user system, are shown in figure 8.
Cable head
IC socket
User system
(NQPACK100SE manufactured by Tokyo Eletech Corporation)
Figure 8 Resulting Dimensions after Connecting User System Interface Cable
Unit: mm Tolerance: –0.5 mm
12

Section 3 Installing the MCU to the User System

UTIONCA
1. Check the location of pin 1 before inserting.
2. Use the screwdriver provided for tightening screws.
3. The tightening torque must be 0.054 N•m or less. If the applied torque cannot be accurately measured, stop tightening when the force required to turn the screw becomes significantly greater than that needed when first tightening. If a screw is tightened too much, the screw head may break or an IC socket contact error may be caused by a crack in the IC socket solder.
4. If the MCU does not operate correctly, cracks might have occurred in the solder. Check conduction with a tester and re-solder the IC socket if necessary.
Check the location of pin 1 before inserting the MCU into the IC socket on the user system, as shown in figure 9. After inserting the MCU, fasten the socket cover with the provided four screws (M2
x 6 mm). Take special care, such as manually securing the IC socket soldered area, to prevent
the IC socket from being damaged by overtightening the screws or twisting the components.
13
Screws (M2 x 6 mm)
User system
Socket cover
MCU
Pin 1
IC socket (NQPACK100SE manufactured by Tokyo Eleteck Corporation)
14
Figure 9 Installing MCU to User System

Section 4 Verifying Operation

1. When using the E6000 emulator for the H8S/2633 series, turn on the emulator according to the procedures described in the E6000 Series Emulator User's Manual (HS2000EPI61HE).
2. Verify the user system interface cable connections by accessing the external memory and ports to check the bus states of the pins with the MEMORY_FILL command (emulator command). If an error is detected, recheck the soldered IC socket and the location of pin 1.
3. The emulator connected to this user system interface cable supports two kinds of clock sources as the MCU clock: an emulator internal clock and an external clock on the user system. For details, refer to the Emulator Supplementary Information (HS2633EPI61HE).
To use the emulator internal clock
Select the clock in the emulator station as the system clock (φ), by using the CLOCK command (emulator command).
To use the external clock on the user system
Supply the external clock from the user system to the emulator. Connect a crystal oscillator to the EXTAL and XTAL terminals for the system clock (φ), and to the OSC1 and OSC2 terminals for the subclock. The user system interface cable has the oscillator circuits shown in figure 10. For details, refer to section 19, Clock Pulse Generator, in the H8S/2237 Series Hardware Manual.
R1 1 M
HCU04
EXTAL XTAL
System clock oscillator
HCU04
R2 270
R5 3.3 M
To E6000 emulator
OSC1 OSC2
Subclock oscillator
HCU04
R12 2.2 k
R6 470 k
Figure 10 Clock Oscillator Circuits
R13 10 k
To E6000 emulator
HCU04 HCU04
15

Section 5 Notice

1. Make sure that pin 1 on the user system IC socket is correctly aligned with pin 1 on the cable head before inserting the cable head into the user system IC socket.
2. The dimensions of the recommended mount pad for the user system IC socket are different from those of the MCU.
3. This user system interface cable is specifically designed for the HS2633EPI61H emulator. Do not use this cable with any other emulator station.
4. To prevent breaking of wires in the cable body, do not place heavy or sharp metal objects on the user system interface cable.
5. While the emulator station is connected to the user system with the user system interface cable, force must not be applied to the cable head. Place the emulator station, user system interface cable, and user system as shown in the example in figure 11.
Place components so that the cable body and cable head are parallel to the user system.
Emulator station
Figure 11 User System Interface Cable Location Example
Cable
User system
Cable head is parallel to emulator station
Cable head is parallel to user system
6. The P1 short connector is used for testing. Do not remove the short pins that are inserted in the sides of pin 1 and pin 2.
13
P1
Figure 12 P1 Short Connector
