Renesas H8S-2214, TBP-112 User Manual

H8S/2214 Series
TBP-112
User System Interface Cable
(HS2214ECB61H)
for E6000 Emulator
User’s Manual
HS2214ECB61HE(C)
1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s patent, copyright, trademark, or other intellectual property rights for information contained in this document. Renesas bears no responsibility for problems that may arise with third party’s rights, including intellectual property rights, in connect ion with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have received the latest product standards or specifications before final design, purchase or use.
3. Renesas makes every attempt to ensure that its products are of high quality and reliability. However, contact Renesas’s sales office before using the product in an application t hat demands especially high quality and reliability or where its failure or malfunction may directly threaten human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation, traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Renesas particularly for maximum rating, operating supply voltage range, heat radiation characteristics, installation conditions and other characteristics. Renesas bears no responsibility for failure or damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-safes, so that the equipment incorporating Renesas product does not cause bodily injury, fire or other consequential damage due to operation of the Renesas product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without written approval from Renesas.
7. Contact Renesas’s sales office for any questions regarding this document or Renesas semiconductor products.

Preface

Thank you for purchasing this user system interface cable (HS2214ECB61H) for the Renesas’s original microcomputer H8S/2214series.
The HS2214ECB61H is a user system interface cable that connects an H8S/2214 series E6000 emulator (HS2214EPI61H; hereinafter referred to as the emulator) to the IC socket for a TBP-112 package for the H8S/2214 series MCU on the user system.
i
Section 1 Configuration....................................................................................1
Section 2 Connection Procedures......................................................................3
2.1 Connecting User System Interface Cable to Emulator Station.........................................3
2.2 Connecting User System Interface Cable to User System................................................5
2.2.1 Soldering the IC Socket.......................................................................................5
2.2.2 Inserting Cable Head ...........................................................................................8
2.2.3 Fastening Cable Head..........................................................................................9
2.2.4 Fastening Cable Body..........................................................................................11

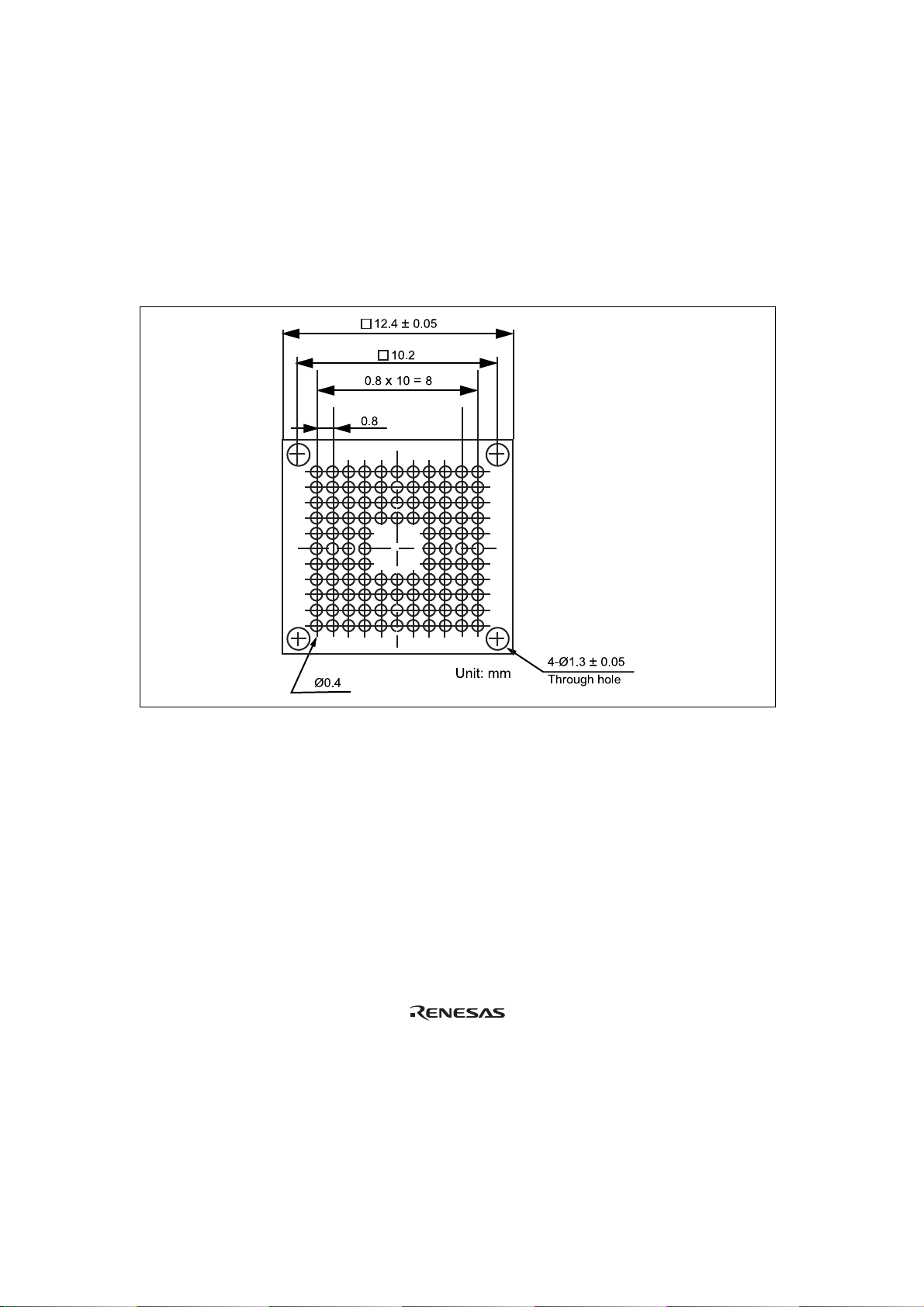

2.3 Recommended Dimensions for User System Mount Pad.................................................12

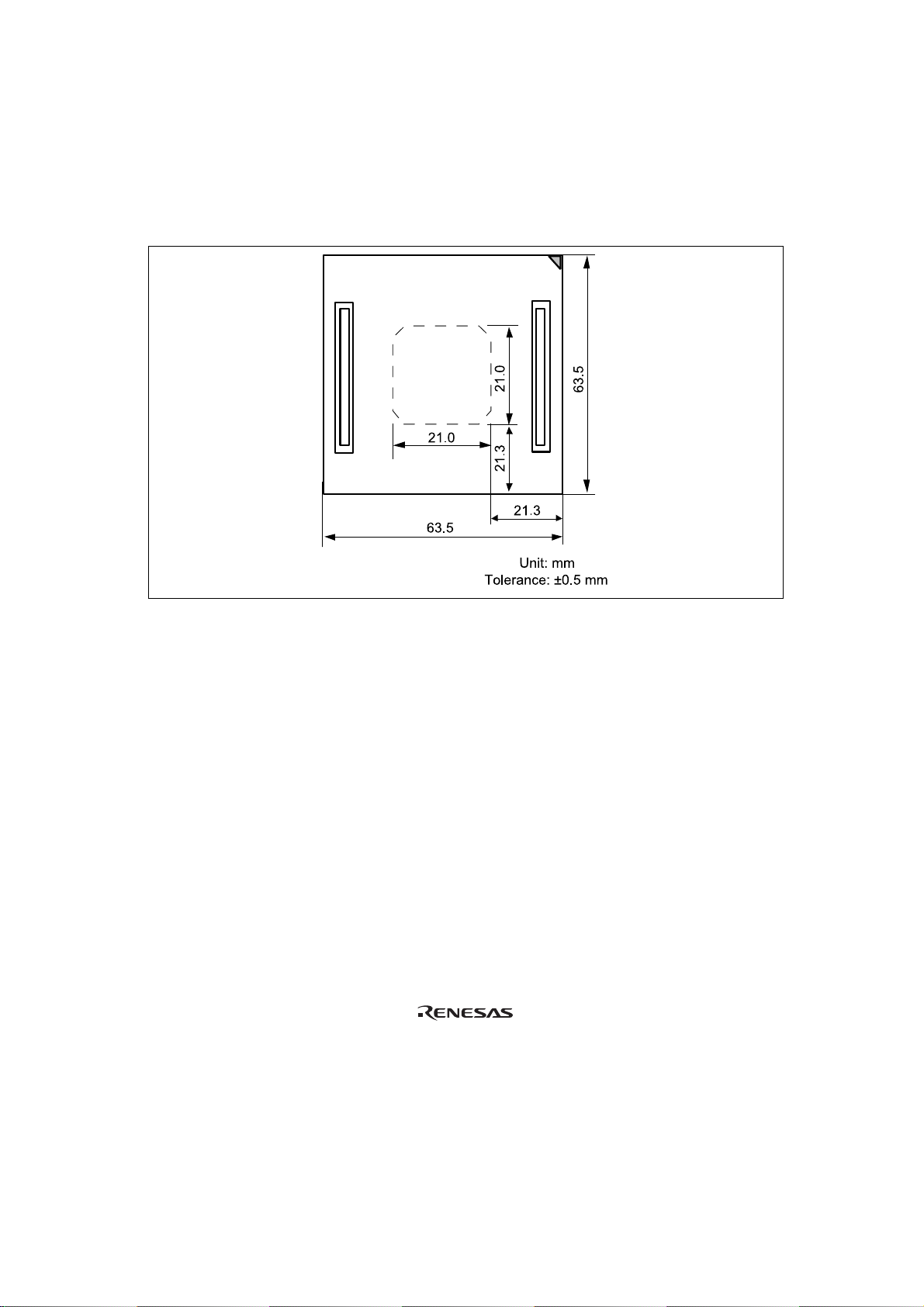

2.4 Dimensions for User System Interface Cable Head..........................................................13

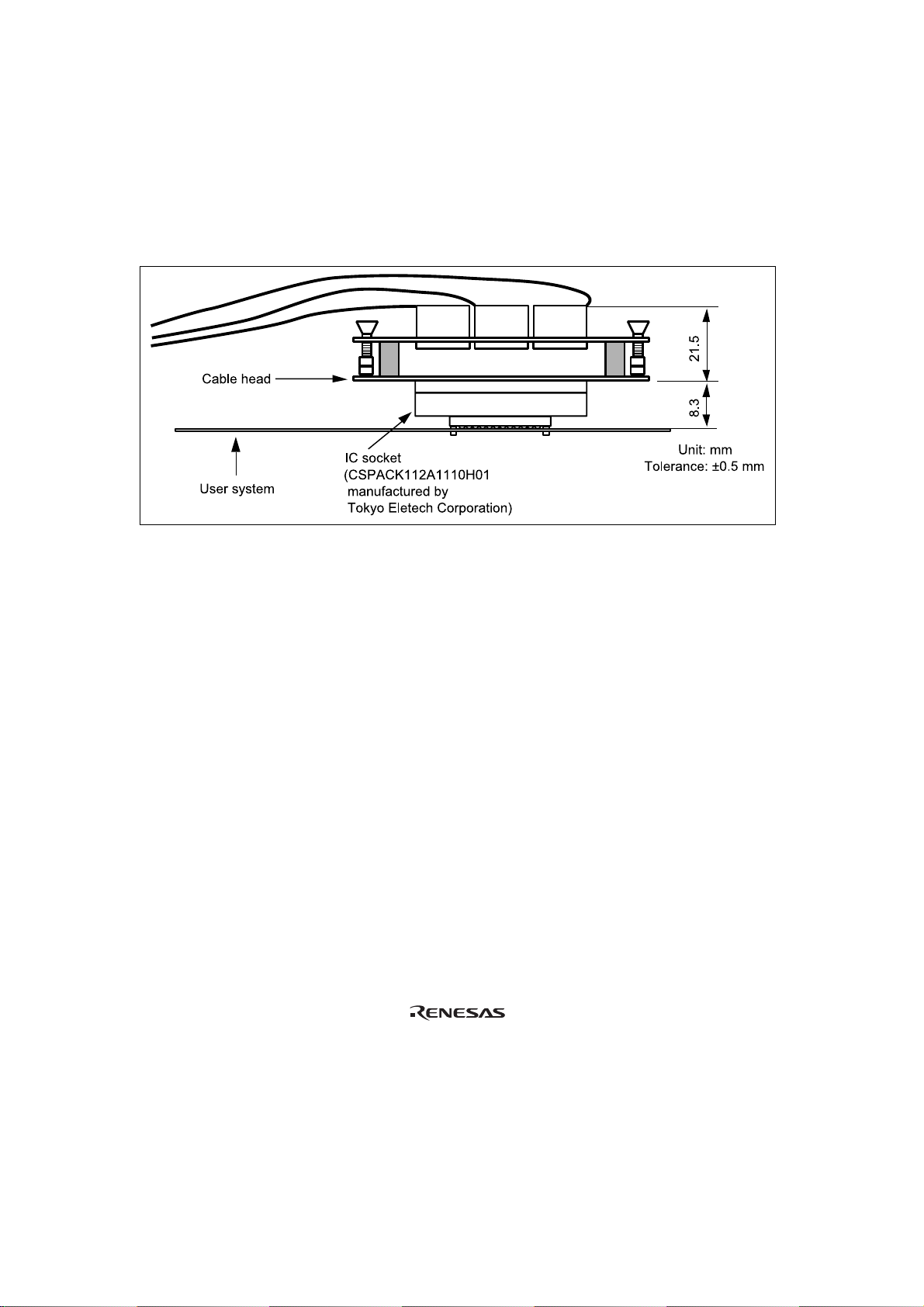

2.5 Resulting Dimensions after Connecting User System Interface Cable .............................14
Section 3 Installing the MCU to the User System.............................................15
Section 4 Verifying Operation...........................................................................17
Section 5 Notice ................................................................................................18
ii

Section 1 Configuration

CAUTION
Use an CSPACK112A1110H01 socket (socket (manufactured by Tokyo Eletech Corporation) for the TBP-112 package IC socket on the user system.

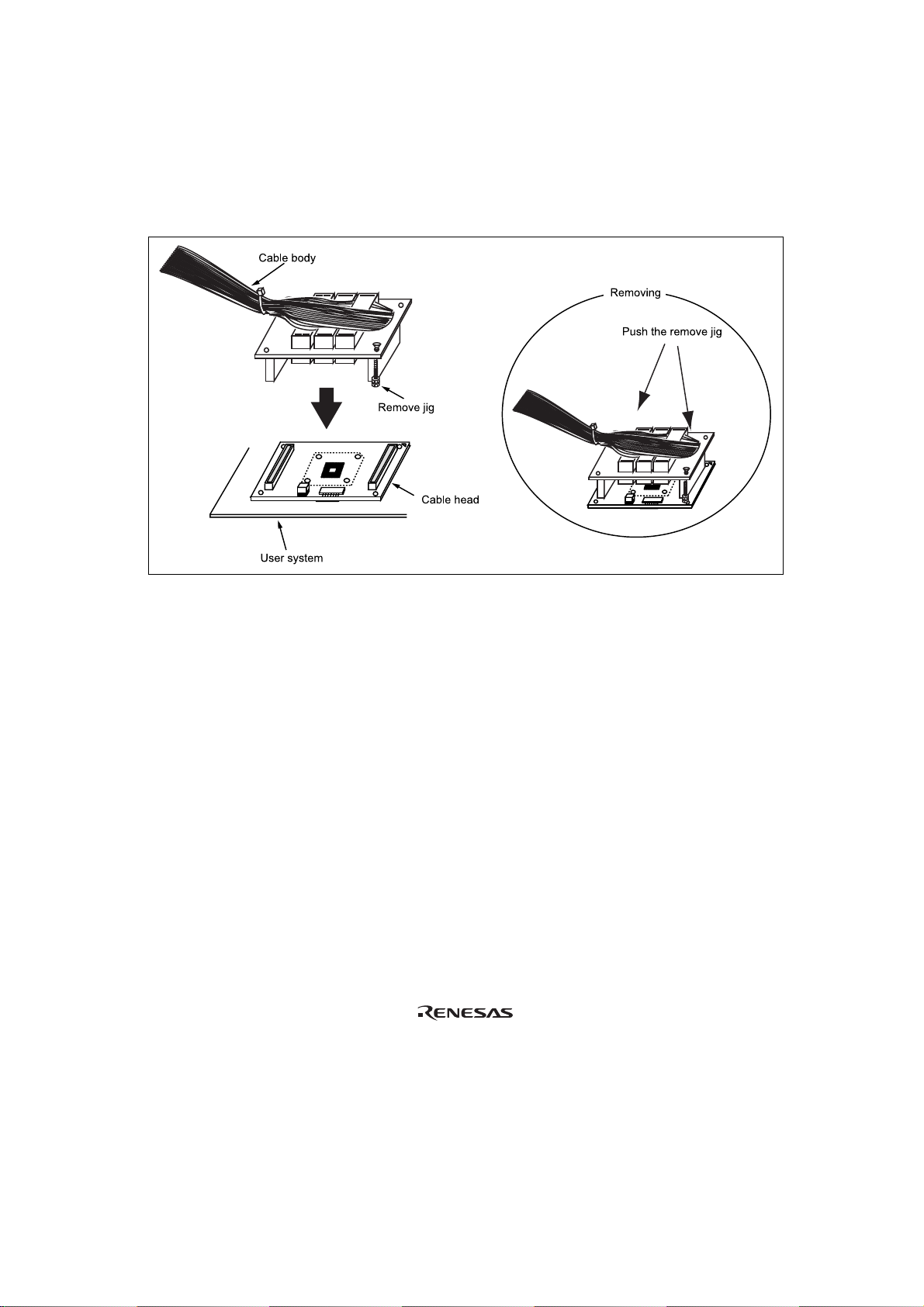

Figure 1 shows the configuration of the HS2214ECB61H user system interface cable for the TBP-112 package.
To emulator station
Cable body
Screws (M1.6 x 8 mm) (for fastening cable head)
Cable head
Spacer
Cover
Figure 1 HS2214ECB61H User System Interface Cable
IC socket
User system
2
1
Table 1 lists the HS2214ECB61H components. Please make sure you have all of these com ponents when unpacking.
Table 1 HS2214ECB61H Components
No. Component Quantity Remarks
1 Cable body 1 Includes flat cable 2 Cable head 1 3 IC socket 1 For the TBP-112 package 4 Spacer 1 For installing an TBP-112 packaged MCU 5 Cover 1 For installing an TBP-112 packaged MCU 6 Screws (M1.6 x 8 mm) 4 For fastening cable head and for installing an
7 Driver 1 Dedicated screwdriver to fasten the screws. 8 Documentation 1 User’s manual for HS2214ECB61H (this manual)
TBP-112 packaged MCU

Section 2 Connection Procedures

2.1 Connecting User System Interface Cable to Emulator Station

WARNING
Observe the precautions listed below. Failure to do so will result in a FIRE HAZARD and will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.
1. Always switch OFF the user system and the emulator product before the USER SYSTEM INTERFACE CABLE is connected to or removed from any part. Before connecting, make sure that pin 1 on both sides are correctly aligned.
2. The user system interface cable dedicated to the emulator must be used.
To connect the cable body to the emulator station, follow the instructions below.
1. Make sure the user system and emulator station are turned off.
CAUTION
When connecting or removing the user system interface cable, apply force only in the direction suitable for connection or removal, while making sure not to bend or twist the cable or connectors. Otherwise, the connectors will be damaged.
2. After making sure the direction of the cable body connector is correct, firmly insert the cable body connector into the emulator station socket (figure 2).
3
