Rev 1.00 Jan.04.21
Renesas RA Family
RA2 Series
www.renesas.com
All information conta ined in these materi als, includin g products and pr oduct specificat ions, represent s
RA2E1 Group
Microcontroller Grou p
v1
User’s Manual
User’s Manual
Evaluation Kit f or RA2E1
EK-RA2E1
information on the product at the time of publicat ion and is subject t o change by Renesas El ectronics
Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
through various means, in cluding the Renesas Electronics Corp. website (http://www.renesas.com).
Corporate Headquarters
Contact information
www.renesas.com
Trademarks
of their respective owners.
Notice
1. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor produ cts
and application examples. You are fully responsible for the incorporation or any other use of the circuits, software, and informati on in the des i gn of your
product or system. Renesas Electronics disclaims any and all liability for any losses and damages incurred by you or third parties arising from the use
of these circuits, software, or information.
2. Renesas Electronics hereby expressly disclaims any warranties against and liability for infringement or any other claims involving pat ent s, copyrights,
or other intellectual property rights of third parties, by or arising from the use of Renesas Electronics products or technical information described in this
document, including but not limited to, the product data, drawings, charts, programs, algorithms, and application examples.
3. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics
or others.
4. You shall not alter, modify, copy, or reverse engineer any Renesas Electronics product, whether in whole or in part. Renesas Electronics disclaims any
and all liability for any losses or damages incurred by you or third parties arising from such alteration, modification, copying or reverse engineering.
5. Renesas Electronics products are classified according to the following two quality grades: “Standard” and “High Quality”. The intended applications for
each Renesas Electronics product depends on the product’s quality grade, as indicated below.
"Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home
"High Quality": T rans por tation equipment (automobiles, trains, ships, etc.); traffic control (traffic lights); large-scale communication equipment; key
Unless expressly designated as a high reliability product or a product for harsh environments in a Renesas Electronics data sheet or other Renesas
Electronics document, Renesas Electronics products are not intended or authorized for use in products or systems that may pose a direct threat to
human life or bodily injury (artificial life support devices or systems; surgical implantations; etc.), or may cause serious property damage (space
system; undersea repeaters; nuclear power control systems; aircraft control systems; key plant systems; military equipment; etc.). Renesas Electronics
disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product
that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
6. When using Renesas Electronics products, refer to the latest product information (data sheets, user’s manuals, application notes, “General Notes for
Handling and Using Semiconductor Devices” in the reliability handbook, etc.), and ensure that usage conditions are within the ranges specified by
Renesas Electronics with respect to maximum ratings, operating power supply voltage range, heat dissipation characteristics, installation, etc.
Renesas Electronics disclaims any and all liability for any malfunctions, failure or accident arising out of the use of Renesas Electronics products
outside of such specified ranges.
7. Although Renesas Electronics endeavors to improve the quality and reliability of Renesas Electronics products, semiconductor products have specific
characteristics, such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Unless designated as a high reliability
product or a product for harsh environments in a Renesas Electronics data sheet or other Renesas Electronics document, Renesas Electronics
products are not subject to radiation resistance design. You are responsible for implementing safety measures to guard against the possibility of bodily
injury, injury or damage caused by fire, and/or danger to the public in the event of a failure or malfunction of Renesas Electronics products, such as
safety design for hardware and software, including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for
aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult and impractical, you
are responsible for evaluating the safety of the final products or systems manufactured by you.
8. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas
Electronics product. You are responsible for carefully and sufficiently investigating applicable laws and regulations that regulate the inclusion or use of
controlled substances, including without limitation, the EU RoHS Directive, and using Renesas Electronics products in compliance with all these
applicable laws and regulations. Renesas Electronics disclaims any and all liability for damages or losses occurring as a result of your noncompliance
with applicable laws and regulations.
9. Renesas Electronics products and technologies shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is
prohibited under any applicable domestic or foreign laws or regulations. You shall comply with any applicable export control laws and regulations
promulgated and administered by the governments of any countries asserting jurisdiction over the parties or transactions.
10. It is the responsibility of the buyer or distributor of Renesas Electronics products, or any other party who distributes, disposes of, or otherwise sells or
transfers the product to a third party, to notify such third party in advance of the contents and conditions set forth in this document.
11. This document shall not be reprinted, reproduced or duplicated in any form, in whole or in part, without prior written consent of Renesas Electronics.
12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas
Electronics products.
(Note1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its directly or indirect ly controlled
(Note2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.
subsidiaries.
electronic appliances; machine tools; personal electronic equipment; industrial robots; etc.
financial terminal systems; safety control equipment; etc.
(Rev.4.0-1 November 2017)
TOYOSU FORESIA, 3-2-24 Toyosu,
Koto-ku, Tokyo 135-0061, Japan
Renesas and the Renesas logo are trademarks of Renesas Electronics
Corporation. All trademarks and registered trademarks are the property
For further information on a product, technology, the most up-to-date
version of a document, or your ne are s t sales office, please visit:
www.renesas.com/contact/
.
© 2021 Renesas Electronics Corporation. All rights reserved.
General Precautions in the Handling of Microprocessing Unit and Microcontrolle r
Unit Products
The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the
products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
1. Precaution against Electrostatic Discharge (ESD)
A strong electrical field, when exposed to a CMOS device, can cause destruction of the gate oxide and ultimately degrade the device operation. Steps
must be taken to stop the generation of static electricity as much as possible, and quickly dissipate it when it occurs. Environmental control must be
adequate. When it is dry, a humidifier should be used. This is recommended to avoid using insulators that can easily build up static electricity.
Semiconductor devices must be stored and transported in an anti-static container, static shielding bag or conductive material. All test and
measurement tools including work benches and floors must be grounded. The operator must also be grounded using a wrist strap. Semiconductor
devices must not be touched with bare hands. Similar precautions must be taken for printed circuit boards with mounted semiconductor devices.
2. Processing at power-on
The state of the product is undefined at the time when power is supplied. The states of internal circuits in the LSI are indeterminate and the states of
register settings and pins are undefined at the time when power is supplied. In a finished product where the reset signal is applied to the external reset
pin, the states of pins are not guaranteed from the time when power is supplied until the reset process is completed. In a similar way, the states of
pins in a product that is reset by an on-chip power-on reset function are not guaranteed from the time when power is supplied until the power reaches
the level at which resetting is specified.
3. Input of signal during power-off state
Do not input signals or an I/O pull-up power supply while the device is powered off. The current injection that results from input of such a signal or I/O
pull-up power supply may cause malfunction and the abnormal current that passes in the device at this time may cause degradation of internal
elements. Follow the guideline for input signal during power-off state as described in your product documentation.
4. Handling of unused pins
Handle unused pins in accordance with the directions given under handling of unused pins in the manual. The input pins of CMOS products are
generally in the high-impedance state. In operation with an unused pin in the open-circuit state, extra electromagnetic noise is induced in the vicinity of
the LSI, an associated shoot -through current flows internally, and malfunctions occur due to the false recognition of the pin state as an input signal
become possible.
5. Clock signals
After applying a reset, only release the reset line after the operating clock signal becomes stable. When switching the clock signal during program
execution, wait until the target clock signal is stabilized. When the clock signal is generated with an external resonator or from an ext ern al osci ll at or
during a reset, ensure that the reset line is only released after full stabilization of the clock signal. Additionally, when switching to a clock signal
produced with an external resonator or by an external oscillator while program execution is in progress, wait until the target clock signal is stable.
6. Voltage application waveform at input pin
Waveform distortion due to input noise or a reflected wave may cause malfunction. If the input of the CMOS device stays in the area between V
(Max.) and V
input level is fixed, and also in the transition period when the input level passes through the area between V
7. Prohibition of access to reserved addresses
Access to reserved addresses is prohibited. The reserved addresses are provided for possible future expansion of functions. Do not access these
addresses as the correct ope ration of the LSI is not guaranteed.
8. Differences between products
Before changing from one product to another, for example to a product with a different part number, confirm that the change will not lead to problems.
The characteristics of a Microprocessing unit or microcontroller unit products in the same group but having a different part number might differ in terms
of internal memory capacity, layout pattern, and other factors, which can affect the ranges of electrical characteristics, such as characteristic values,
operating margins, immunity to noise, and amount of radiated noise. When changing to a product with a different part number, implement a system
evaluation test for the given product.
(Min.) due to noise, for example, the device may malfunction. Take care to prevent chattering noise from entering the device when the
IH
(Max.) and VIH (Min.).
IL
IL
Renesas EK-RA2E1 Disclaimer
By using this EK-RA2E1, the User accepts the following terms, which are in addition to, and control in the event of disagreement, with Renesas’ General
Terms and Conditions available at https://www.renesas.com/en-us/legal/disclaimer.html
The EK-RA2E1 is not guaranteed to be error free, and the entire risk as to the results and performance of the EK-RA2E1 is assumed by the User. The
EK-RA2E1 is provided by Renesas on an “as is” basis without warranty of any kind whether expres s or impl ie d, in cluding but not limited to the implied
warranties of good workmanship, fitness for a particular purpose, title, merchantability, and non-infringement of intellectual property rights. Renesas
expressly disclaims any implied warranty.
Renesas does not consid er the EK -RA2E1 to be a finished product and therefore the EK-RA2E1 may not comply with some requirements applicable to
finished products, including, but not limited to recycling, restricted substances and electromagnetic compatibility regulations. Refer to Certifications section,
for information about certifications and compliance information for the EK-RA2E1. It is the kit User’s responsibility to make sure the kit meets any local
requirements applicable to their region.
Renesas or its affiliates shall in no event be liable for any loss of profit, loss of data, loss of contract, loss of business, damage to reputation or goodwill, any
economic loss, any reprogramming or recall costs (whether the foregoing losses are direct or indirect) nor shall Renesas or its affiliates be liable for any
other direct or indirect special, incidental or consequential damages arising out of or in relation to the use of this EK-RA2E1, even if Renesas or its affiliates
have been advised of the possibility of such damages.
Renesas has used reasonable care in preparing the information included in this document, but Renesas does not warrant that such information is error free
nor does Renesas guarantee an exact match for every application or parameter to part numbers designated by other vendors listed herein. The information
provided in this document is intended solely to enable the use of Renesas products. No express or implied license to any intellectual property right is
granted by this document or in connection with the sale of Renesas products. Renesas reserves the right to make changes to specifications and product
descriptions at any time without notice. Renesas assumes no liability for any damages incurred by you resulting from errors in or omissions from the
information included herein. Renesas cannot verify, and assumes no liability for, the accuracy of information available on another company’s website.
Precautions
This Evaluation Kit is only intended for use in a laboratory environment under ambient temperature and humidity conditions. A safe separation distance
should be used between this and any sensitive equipment. Its use outside the laboratory, classroom, study area, or similar such area invalidates conformity
with the protection requirements of the Electromagnetic Compatibility Directive and could lead to prosecution.
The product generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications. Ther e is no gu ar ant ee
that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be
determined by turning the equipment off or on, you are encouraged to try to correct the interference by one or more of the following measures:
• Ensure attached cables do not lie across the equipment.
• Reorient the receivi ng ant enna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that which the receiver is connected.
• Power down the equipment when not in use.
• Consult the dealer or an experienced radio/TV technician for help.
Note: It is recommended that wherever possible shielded interface cables are used.
The product is potentially susceptible to certain EMC phenomena. To mitigate against them it is recommended that the following measur es be un de rtaken:
• The user is advised that mobile phones should not be used within 10 m of the product when in use.
• The user is advised to take ESD precautions when handling the equipment.
The Evaluation Kit does not represent an ideal refe ren c e desi gn f or an end pr odu ct and do es not fulfi l th e regulatory standards for an end pr oduct.
.
User’s Manual
Renesas RA Family
EK-RA2E1 v1
Contents
1. Kit Overview ............................................................................................................................ 4
1.1 Assumptions and Advisory Notes ............................................................................................................ 6
2. Kit Contents ............................................................................................................................. 7
3. Kit Ordering Information ........................................................................................................... 7
4. Hardware Architecture and Default Configuration .................................................................... 8
4.1 Kit Architecture ........................................................................................................................................ 8
4.2 System Block Diagram ............................................................................................................................ 9
4.3 Jumper Settings ..................................................................................................................................... 10
4.3.1 Copper Jumpers .................................................................................................................................. 10
4.3.2 Traditional Pin Header Jumpers .......................................................................................................... 10
4.3.3 Default Jumper Configuration .............................................................................................................. 10
5. System Control and Ecosystem Access Area ........................................................................ 12
5.1 Power .................................................................................................................................................... 13
5.1.1 Power Supply Options ......................................................................................................................... 13
5.1.2 Power Supply Considerations ............................................................................................................. 13
5.1.3 Power-up Behavior .............................................................................................................................. 13
5.2 Debug and Trace ................................................................................................................................... 14
5.2.1 Debug On-Board ................................................................................................................................. 14
5.2.2 Debug In .............................................................................................................................................. 15
5.2.3 Debug Out ........................................................................................................................................... 17
5.3 Ecosystem ............................................................................................................................................. 17
5.3.1 Seeed Grove® Connectors .................................................................................................................. 17
5.3.2 SparkFun® Qwiic® Connector .............................................................................................................. 18
5.3.3 Digilent Pmod™ Connectors ............................................................................................................... 19
5.3.4 Arduino™ Connector ........................................................................................................................... 21
5.3.5 MikroElektronika™ mikroBUS Connector ........................................................................................... 22
5.4 Miscellaneous ........................................................................................................................................ 23
5.4.1 User and Power LEDs ......................................................................................................................... 23
5.4.2 User and Reset Switches .................................................................................................................... 24
5.4.3 MCU Boot Mode .................................................................................................................................. 24
6. MCU Native Pin Access Area ................................................................................................ 25
6.1 Breakout Pin Headers ........................................................................................................................... 25
6.2 MCU Current Measurement .................................................................................................................. 25
R20UT4825EG0100 Rev 1.00 Page 1 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
7. Certifications .......................................................................................................................... 27
7.1 EMC/EMI Standards .............................................................................................................................. 27
7.2 Material Selection, Waste, Recycling and Disposal Standards ............................................................ 27
7.3 Safety Standards ................................................................................................................................... 27
8. Design and Manufacturing Information .................................................................................. 28
9. Website and Support ............................................................................................................. 28
Revision History ............................................................................................................................ 29
Figures
Figure 1. EK-RA2E1 Bo ar d Top Side .............................................................................................................. 5
Figure 2. EK-RA2E1 Board Bottom Side ......................................................................................................... 6
Figure 3. EK-RA2E1 Kit Contents .................................................................................................................... 7
Figure 4. EK-RA2E1 Bo ar d Functi ona l Area D ef init ions ................................................................................. 8
Figure 5. EK-RA2E1 Board Block Diagram ..................................................................................................... 9
Figure 6. Copper Jumpers ............................................................................................................................. 10
Figure 7. System Control and Ecosystem Access Area ................................................................................ 12
Figure 8. Power Supply Options .................................................................................................................... 13
Figure 9. EK-RA2E1 Debug Interface ........................................................................................................... 15
Figure 10. Seeed Grove and Qwiic Connectors ............................................................................................ 18
Figure 11. Pmod 1 ......................................................................................................................................... 19
Figure 12. Pmod 1 Trace Cut Jumpers ......................................................................................................... 20
Figure 13. Pmod 2 ......................................................................................................................................... 20
Figure 14. Arduino Uno Connectors .............................................................................................................. 22
Figure 15. mikroBUS Connection .................................................................................................................. 23
Figure 16. User LEDs .................................................................................................................................... 23
Figure 17. Power LED ................................................................................................................................... 23

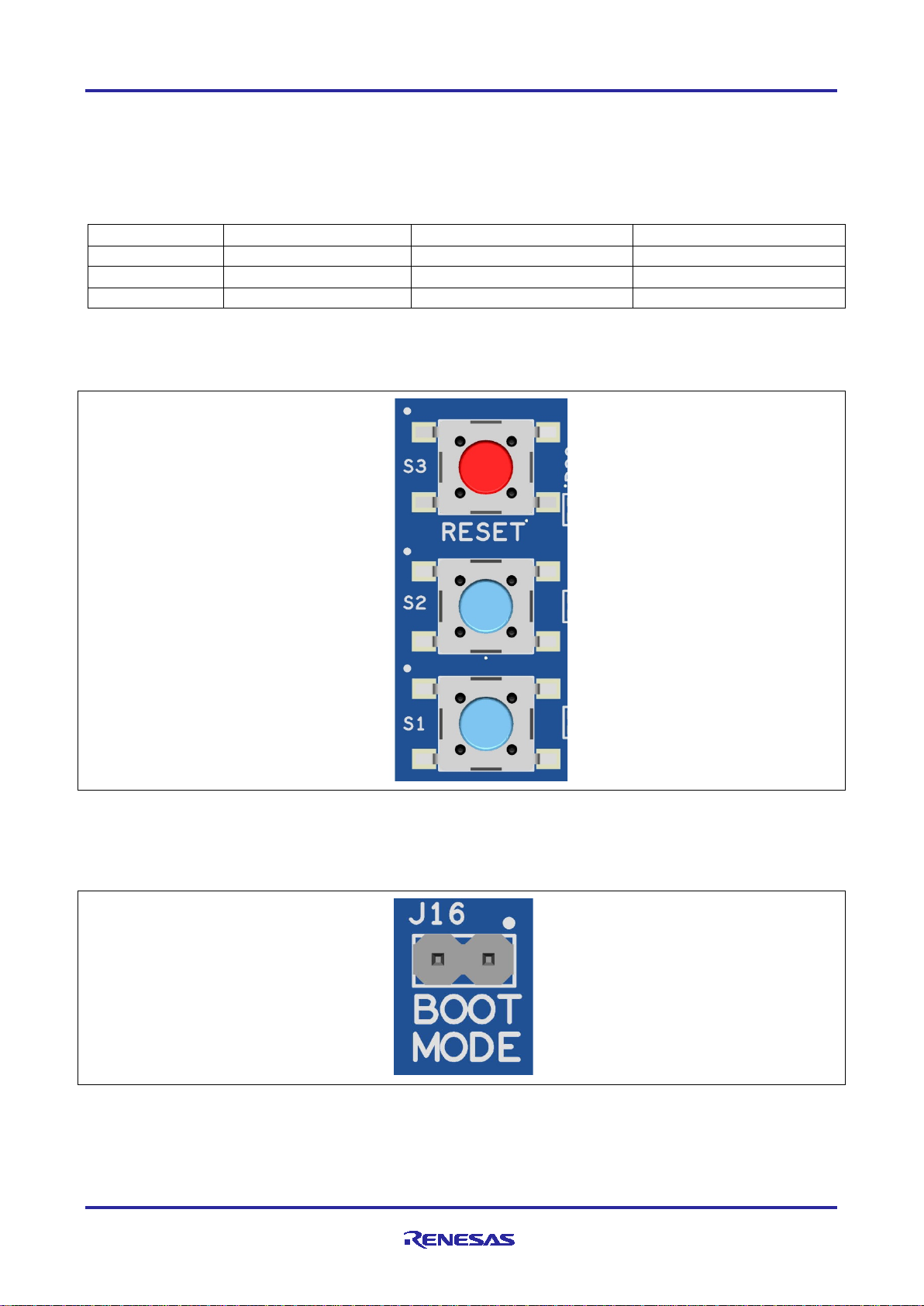

Figure 18. Reset and User Switches ............................................................................................................. 24
Figure 19. Boot Mode .................................................................................................................................... 24
Figure 20. Native Pin Access Area ................................................................................................................ 25
Figure 21. RA +3.3 V Current Measurement Circuit...................................................................................... 25
Figure 22. RA MCU Current Measurement ................................................................................................... 26
Tables
Table 1. Default Jumper Settings ................................................................................................................ 10
Table 2. Debug Modes ................................................................................................................................ 14
Table 3. Jumper Connection Summary for Different Debug Modes ........................................................... 14
Table 4. Debug USB Connector .................................................................................................................. 14
Table 5. Debug On-Board Jumper Configuration ........................................................................................ 15
R20UT4825EG0100 Rev 1.00 Page 2 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Table 6. Debug In Mode Jumper Configuration .......................................................................................... 15
Table 7. JTAG/SWD/TRACE Connector ..................................................................................................... 16
Table 8. JTAG/SWD Connector .................................................................................................................. 16
Table 9. Debug Out Jumper Configuration .................................................................................................. 17
Table 10. Grove 1 Connector ..................................................................................................................... 17
Table 11. Grove 2 Connector ..................................................................................................................... 17
Table 12. Qwiic Connector ......................................................................................................................... 18
Table 13. Pmod 1 Connector ..................................................................................................................... 19
Table 14. Pmod 2 Connector ..................................................................................................................... 20
Table 15. Arduino Uno Connections .......................................................................................................... 21
Table 16. mikroBUS Connections .............................................................................................................. 22
Table 17. EK-RA2E1 Board LED Functions .............................................................................................. 23
Table 18. EK-RA2E1 Board Switches ........................................................................................................ 24
Table 19. EK-RA2E1 Board Design Package Contents ............................................................................ 28
R20UT4825EG0100 Rev 1.00 Page 3 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
1. Kit Overview
The EK-RA2E1, Evaluation Kit for RA2E1 MCU Group, enables users to seamlessly evaluate the features of
the RA2E1 MCU group and develop embedded systems applications using Flexible Software Package (FSP)
2
studio IDE. The users can utilize rich on-board features along with their choice of popular ecosystems
and e
add-ons to bring their big ideas to life.
The key features of the EK-RA2E1 board are categorized in three groups (consistent with the architecture of
the kit) as follows:
MCU Native Pin Access
• R7FA2E1A92DFM MCU (referred to as RA MCU)
• 48 MHz, Arm® Cortex®-M23 core
• 128 kB Code Flash, 16 kB SRAM
• 64 pins, LQFP package
• Native pin access through 1 x 40-pin and 2 x 14-pin male headers
• MCU current measurement points for precision current consumption measurement
• Multiple clock sources - RA MCU oscillator and sub-clock oscillator crystals, providing precision
24.000 MHz and 32,768 Hz reference clock. Additional low-precision clocks are available internal to the
RA MCU
System Control and Ecosystem Access
• Two 5 V input sources
USB (Debug)
External power supply (using surface mount clamp test points and power input vias)
• Three Debug modes
Debug on-board (SWD)
Debug in (ETM, SWD, an d JTAG)
Debug out (SWD)
• User LEDs and buttons
Three User LEDs (red, blue, green)
Power LED (white) indicating availability of regulated power
Debug LED (yellow) indicating the debug connection
Two User buttons
One Reset button
• Five most popular ecosystems expansions
2 Seeed Grove
SparkFun
2 Digilent Pmod
Arduino
TM
MikroElektronika
• MCU boot configuration jumper
®
system (I2C/Analog) connectors
®
Qwiic® connector
TM
(SPI and UART) connectors
(Uno R3) connector
TM
mikroBUS connector
R20UT4825EG0100 Rev 1.00 Page 4 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Arduino (Analog and
MCU Clock Crystals
Power) Connector
Figure 1. EK-RA2E1 Board Top Side
R20UT4825EG0100 Rev 1.00 Page 5 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Figure 2. EK-RA2E1 Board Bottom Side
1.1 Assum pti ons and Advisory Notes
1. It is assumed that the user has basic understanding of microcontrollers and embedded systems
hardware.
2. It is recommended that the us er refers to the EK-RA2E1 Quick Start Guide to get acquainted with the kit
and the Quick Start example project that EK-RA2E1 board comes pre-programmed with.
3. Flexib le Softw are Pac kage (FSP) and Integrated Developme nt Enviro nment (IDE) such as e
required to develop embedded applications on EK-RA2E1 kit.
4. Instructions to download and install software, import example projects, build them and program the
EK-RA2E1 board are provided in the quick start guide.
2
studio are
R20UT4825EG0100 Rev 1.00 Page 6 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
2. Kit Contents
The following components are included in the kit:
1. EK-RA2E1 v1 board
2. Micro USB device cable (type-A male to micro-B male)
Figure 3. EK-RA2E1 Kit Contents
3. Kit Ordering Information
• EK-RA2E1 v1 kit orderable part number: RTK7EKA2E1S00001BE
Note: The underlined character in the orderable part number represents the kit version.
• EK-RA2E1 board dimensions: 80 mm (width) x 120 mm (length)
R20UT4825EG0100 Rev 1.00 Page 7 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Kit area
Area features
Area present on all
similar kits
Functionality is:
MCU Native Pin
RA MCU, breakout pin headers
current measurement
Yes
MCU dependent
Special Feature
RA2E1)
MCU special features: None
Optional
MCU dependent
System Control
Power, Debug MCU, User LED
configuration
Yes
Same or similar across
4. Hardware Architecture and Default Configuration
4.1 Kit Ar chitecture
The EK-RA2E1 board is designed with two of three sections or areas to help shorten the learning curve of
the users and maximize the design and knowledge reuse among similar kits. The contents of these three
areas are conceptually standardized among similar kits.
Access Area
Access Area (not
present on EK-
and Ecosystem
Access Area
for all MCU I/O and power,
and buttons, reset, ecosystem
connectors, USB Full Speed
Host and Device, Boot
similar kits
R20UT4825EG0100 Rev 1.00 Page 8 of 29
Jan.04.21
Figure 4. EK-RA2E1 Board Functional Area Definitions
Renesas RA Family EK-RA2E1 v1 – User's Manual
LEDs
Vo lt ag e/
Current
Prob es
Us er
Butt ons
J-Lin k OB +
Debug + ET M
10 pin and
20 pin
Us er
Programmable
Status Power
Pmod x2
Grove x2 Qwiic
Mik roBu s
Arduino
Uno
Debu g
I/F
GPIO
Power
Delivery
SPI/
UA RT/
I2C
Analog/
IRQ/IO
Reset
Switch
Power
Meas.
Jumper
EK-RA2E1 MCU Board
System Control &
Ecosystem Access
Native Pin Access
I2C
4.2 System Block Diagram
Figure 5. EK-RA2E1 Board Block Diagram
R20UT4825EG0100 Rev 1.00 Page 9 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Location
Circuit Group
Default Open/Closed
Function
J6
J-Link OB
Closed
Configures J-Link OB connection to MCU mode
J8
J-Link OB
Jumper on pins 1-2
Configures the MCU for normal operation
J9
J-Link OB
Open
Configures Reset# for on-board debugger mode
J29
J-Link OB
Jumper on pins 1-2
Jumper on pins 7-8
Connects the J-Link OB debugger to the RA
4.3 Jumper Settings
Two types of jumpers are provided on the EK-RA2E1 board.
1. Copper jumpers (trace-cut type and solder bridge type)
2. Traditional pin header jumpers
The following sections describe each type and their default configuration.
4.3.1 Copper Jumpers
Copper jumpers are of two types, designated trace-cut and solder-bridge.
A trace-cut jumper is provided with a narrow copper trace connecting its pads. The silk screen overlay
printing around a trace-cut jumper is a solid box. To isolate the pads, cut the trace between pads adjacent to
each pad, then remove the connecting copper foil either mechanically or with the assistance of heat. Once
the etched copper trace is removed, the trace-cut jumper is turned into a solder-bridge jumper for any later
changes.
A solder-bridge jumper is provided with two isolated pads that may be joined together by one of three
methods:
• Solder may be applied to both pads to develop a bulge on each and the bulges joined by touching a
soldering iron across the two pads.
• A small wire may be placed across the two pads and soldered in place.
• A SMT resistor, size 0805, 0603, or 0402, may be placed across the two pads and soldered in place. A
zero-ohm resistor shorts the pads together.
For any copper jumper, the connection is considered closed if there is an electrical connection between the
pads (default for trace-cut jumpers.) The connection is considered open if there is no electrical connection
between the pads (default for the solder-bridge jumpers.)
Figure 6. Copper Jumpers
4.3.2 Traditional Pin Header Jumpers
These jumpers are traditional small pitch jumpers that require an external shunt to open/close them. The
traditional pin jumpers on the EK-RA2E1 board are 2 mm pitch headers and require compatible 2 mm shunt
jumpers.
4.3.3 Default Jumper Configuration
The following table describes the default settings for each jumper on the EK-RA2E1 board. This includes
copper jumpers (Ex designation) and traditional pin jumpers (Jx designation.)
The Circuit Group for each jumper is the designation found in the board schematic (available in the Design
Package). Functional details for many of the listed jumpers may be found in sections associated with each
functional area of the kits.
Table 1. Default Jumper Settings
Jumper on pins 3-4
Jumper on pins 5-6
MCU
R20UT4825EG0100 Rev 1.00 Page 10 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Location
Circuit Group
Default Open/Closed
Function
J16
MCU Boot Mode
Open
Configures the MCU for normal boot mode
E1
MCU Clock
Closed
Connects P214/XCOUT to pin hea ders
E3
MCU Power
Closed
Connects AVCC0 to +3.3 V
E4
MCU Power
Closed
Connects AVSS0 to GND
E5
MCU Power
Closed
Connects P011/VREFL0 to GND
E6
MCU Power
Closed
Connects P010/VREFH0 to +3.3 V
E7
MCU Clock
Open
Connects P212/EXTAL to 24 MHz crystal
E8
MCU Clock
Closed
Connects P215/XCIN to pin headers
E9
MCU Clock
Open
Connects P215/XCIN to 32 kHz crystal
E10
MCU Clock
Open
Connects P214/XCOUT to 32 kHz crystal
E11
MCU Clock
Open
Connects P213/XTAL to 24 MHz crystal
E12
MCU Clock
Closed
Connects P213/XTAL pin to pin headers
E13
MCU Clock
Closed
Connects P212/EXTAL pin to pin headers
E14
Pmod1
Closed
Connects P100 (MISOA/RXD0) to Pmod 1
E15
Pmod1
Closed
Connects P102 (RSPCKA/SCK0) to Pmod 1
E16
Pmod1
Closed
Connects +3.3 V to Pmod 1
E17
Pmod1
Open
Connects +5.0V to Pmod 1
E18
Pmod1
Open
Connects P301 (SCL2) to Pmod 1
E19
Pmod1
Open
Connects P302 (SDA2) to Pmod 1
E26
User LED
Closed
Connects P914 to User LED2
E27
User LED
Closed
Connects P915 to User LED1
E28
User LED
Closed
Connects P913 to User LED3
E29
Debug MCU
Power
Closed
Connects the Debug MCU power to +3.3 V
E30
JTAG
Closed
Connects the JTAG GND Detect pin on J20 and
E31
User Switch
Closed
Connects P004 to User Switch S1
E32
User Switch
Closed
Connects P015 to User Switch S2
J13 to GND
R20UT4825EG0100 Rev 1.00 Page 11 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
5. System Control and Ecosystem Access Area
The following figure shows the System Control and Ecosystem Access area on the EK-RA2E1 board.
Subsequent sections detail the features and functionality provided in the area.
Figure 7. System Control and Ecosystem Access Area
R20UT4825EG0100 Rev 1.00 Page 12 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
5 V to 3.3 V
Volta ge
Regula tor
Option 1:
Debug USB
(J10)
3.3 V Voltage
Measurement:
TP8 and TP10
MCU Current
Measurement
(R3) TP 1 and TP3
Ma in Syst em
3.3 V Pow e r
RA
MCU
Main
Power
Ma in Syst em
5 V Pow e r
Option 2a:
TP5 and TP6
Option 2b:
TP7 and TP9
5.1 Power
The EK-RA2E1 kit is designed for +5 V operation. An on-board Low Dropout Regulator (LDO) is used to
convert the 5 V supply to a 3.3 V supply. The 3.3 V supply is used to power the RA MCU and other
peripheral features.
5.1.1 Power Supply Options
This section describes the different ways in which EK-RA2E1 kit can be powered.
Figure 8. Power Supply Options
5.1.1.1 Option 1: Debug USB
5 V may be supplied from an external USB host to the USB Debug connector (J10) labelled DEBUG on the
board. Power from this source is connected to the Main System 5 V Power. Reverse current protection is
provided between this connector and the Main System 5 V Pow er .
5.1.1.2 Option 2: 5 V Test Points
5 V may be supplied from an external power supply to test points on the board. TP7 (5 V) and TP9 (GND)
are loop-style test points, and TP5 (5 V) and TP6 (GND) are large via style test points. The two types of test
points are electrically equivalent, and both are provided for user convenience. Power from this source is
connected to the Main Syst em 5 V Power. Reverse current protection is provided between the 5 V test points
and the Main System 5 V Power.
5.1.2 Power Supply Considerations
The on-board LDO regulator which supplies +3.3 V has a built-in current limit of 2.0 A. Make sure the total
current required by the RA MCU, any active on-board features, and any connected peripheral devices does
not exceed this limit.
Note: The total current available from a typical USB host is 500 mA maximum. Depending on the
configuration of the kit, multiple power sources may be required.
5.1.3 Power-up Behavior
When powered, the white LED near the center of the board (the “dash” in the EK-RA2E1 name) will light up.
For more details on initial power up behavior, see the EK-RA2E1 Quick Start Guide.
R20UT4825EG0100 Rev 1.00 Page 13 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Debug Modes
Debug MCU
IDE on PC)
Target MCU
Debugging
Connector Used
Debug onboard
S124 (on-board)
RA2E1 (on-board)
SWD
Micro USB (J10)
Debug in
External
RA2E1 (on-board)
SWD, ETM, JTAG
20-pin connector (J20)
or 10-pin connector (J13)
Debug out
S124 (on-board)
Any external RA
SWD
Micro USB (J10) plus
or 10-pin connector (J13)
Debug Modes
J6
J8
J9
J29
Debug on-board
Closed
Jumper on pins 1-2
Open
Jumpers on pins 1-2, 3-4, 5-6, 7-8
Debug in
Closed
Jumper on pins 1-2
Closed
Jumpers on pins 1-2, 3-4, 5-6, 7-8
Debug out
Open
Jumper on pins 2-3
Open
All pins open
Debug USB Connector
EK-RA2E1
Pin
Description
Signal/Bus
J10-1
+5VDC
+5V_USB_DBG
J10-2
Data-
USB_DM (U7-12)
J10-3
Data+
USB_DP (U7-13)
J10-4
USB ID, jack internal switch, cable inserted
N.C.
J10-5
Ground
GND
5.2 Debug and Trace
The EK-RA2E1 board supports the following three debug modes.
Table 2. Debug Modes
(one that
connects to the
debugging tools
Notes:
• See Table 4 for the Debug USB connector pin definition.
• See Table 7 for the 20-pin JTAG connector pin definition.
• See Table 8 for the 10-pin JTAG connector pin definition.
The following table summarizes the jumper setting for each of the debug modes.
Table 3. Jumper Connection Summary for Different Debug Modes
(one that is being
debugged)
MCU
Interface/Protocol
either 20-pin connector
(J20)
5.2.1 Debug On-Board
The on-board debug functionality is provided using Renesas S124 Debug MCU and SEGGER J-Link®
firmware. Debug USB Micro-B connector (J10) connects the S124 Debug MCU to an external USB Full
Speed Host, allowing re-programming and debugging of the target RA MCU firmware. This connection is the
default debug mode for the EK-RA2E1 board.
The S124 Debug MCU connects to the target RA MCU using the SWD interface.
Table 4. Debug USB Connector
A yellow indicator, LED5, shows the visual status of the debug interface. When the EK-RA2E1 board is
powered on, and LED5 is blinking, it indicates that the S124 Debug MCU is not connected to a programming
host. When LED5 is on solid, it indicates that the S124 Debug MCU is connected to a programming
interface.
R20UT4825EG0100 Rev 1.00 Page 14 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Location
Default Open/Closed
Function
J6
Closed
Target RA MCU MD connected to debug
J8
Jumper on pins 1-2
Target RA MCU RESET# connected to debug RESET#
J9
Open
S124 Debug MCU in normal operation mode
J29
Jumpers on pins 1-2, 3-4, 5-6, 7-8
Target RA MCU debug signals connected to the Debug
Location
Default Open/Closed
Function
J6
Closed
Target RA MCU MD connected to debug
J8
Jumper on pins 1-2
Target RA MCU RESET# connected to debug RESET#
J9
Closed
S124 Debug MCU is held in RESET
J29
Jumpers on pins 1-2, 3-4, 5-6, 7-8
Target RA MCU debug signals connected to the Debug Interface
To configure the EK-RA2E1 board to use the Debug On-Board mode, configure the jumpers using the
following table.
Table 5. Debug On-Board Jumper Configuration
Interface
Figure 9. EK-RA2E1 Debug Interface
5.2.2 Debug In
One 20-pin Cortex® Debug Connector at J20 supports JTAG, SWD and ETM (TRACE) debug. One 10-pin
®
Cortex
external debug of the target RA MCU.
To configure the EK-RA2E1 board to use the Debug In mode, configure the jumpers using the following
table.
Table 6. Debug In Mode Jumper Configuration
R20UT4825EG0100 Rev 1.00 Page 15 of 29
Jan.04.21
Debug Connector at J13 supports JTAG and SWD. Either of these connectors may be used for
Renesas RA Family EK-RA2E1 v1 – User's Manual
JTAG Connector
EK-RA2E1
Pin
JTAG Pin Name
SWD Pin Name
ETM Pin Name
Signal/Bus
J20-1
Vtref
Vtref
Vtref
+3V3
J20-2
TMS
SWDIO
N/A
P108/SWDIO
J20-3
GND
GND
GND
GND
J20-4
TCK
SWCLK
N/A
P300/SWCLK
J20-5
GND
GND
GND
GND
J20-6
TDO
SWO
N/A
N/A
J20-7
Key
Key
Key
N.C.
J20-8
TDI
NC/EXTb
N/A
N/A
J20-9
GNDDetect
GNDDetect
GNDDetect
GND (cut E30 to open)
J20-10
nSRST
nSRST
nSRST
RESET#
J20-11
N/A
N/A
N/A
GND
J20-12
N/A
N/A
TCLK
N.C.
J20-13
N/A
N/A
N/A
GND
J20-14
N/A
N/A
TDATA0
N.C.
J20-15
N/A
N/A
GND
GND
J20-16
N/A
N/A
TDATA1
N.C.
J20-17
N/A
N/A
GND
GND
J20-18
N/A
N/A
TDATA2
N.C.
J20-19
N/A
N/A
GND
GND
J20-20
N/A
N/A
TDATA3
N.C.
JTAG Connector
EK-RA2E1
Pin
JTAG Pin Name
SWD Pin Name
ETM Pin Name
Signal/Bus
J13-1
Vtref
Vtref
Vtref
+3V3
J13-2
TMS
SWDIO
N/A
P108/SWDIO
J13-3
GND
GND
GND
GND
J13-4
TCK
SWCLK
N/A
P300/SWCLK
J13-5
GND
GND
GND
GND
J13-6
TDO
SWO
N/A
N/A
J13-7
Key
Key
Key
N.C.
J13-8
TDI
NC/EXTb
N/A
N/A
J13-9
GNDDetect
GNDDetect
GNDDetect
GND (cut E30 to open)
J13-10
nSRST
nSRST
nSRST
RESET# (via J8)
Table 7. JTAG/SWD/TRACE Connector
Table 8. JTAG/SWD Connector
®
Note: The Cortex
Debug Connector is fully described in the Arm® CoreSight™ Architecture Specification.
R20UT4825EG0100 Rev 1.00 Page 16 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Location
Default Open/Closed
Function
J6
Open
No connection to RA MCU
J8
Jumper on pins 2-3
On-board RA MCU is held in RESET
J9
Open
S124 Debug MCU in normal operation mode
J29
All jumpers removed
Disconnects the on-board RA MCU debug signals from the
Debug Interface
Grove 1 Connector
EK-RA2E1
Pin
Description
Signal/Bus
J27-1
SCL
P301 (SCL2)
J27-2
SDA
P302 (SDA2)
J27-3
VCC
+3.3 V
J27-4
GND
GND
Grove 2 Connector
EK-RA2E1
Pin
Description
Signal/Bus
J28-1
SCL / A0
P502 (SCL1/AN018)
J28-2
SDA / A1
P501 (SDA1/AN017)
J28-3
VCC
+3.3 V
J28-4
GND
GND
5.2.3 Debug Out
The EK-RA2E1 board can be configured to use the S124 Debug MCU to debug target RA MCU on an
external board.
A yellow indicator, LED5, shows the visual status of the debug interface. When the EK-RA2E1 board is
powered on, and LED5 is blinking, this indicates that the S124 Debug MCU is not connecte d to a
programming host. When LED5 is on solid, this indicates that the S124 Debug MCU is connected to a
programming interface.
To configure the EK-RA2E1 board to use the Debug Out mode, configure the jumpers according to the
following table.
Table 9. Debug Out Jumper Configuration
5.3 Ecosystem
The System Control and Ecosystem area provides users the option to simultaneously connect several 3rd
party add-on modules compatible with four most popular ecosystems using the following connectors:
®
1. Two Seeed Grove
2. SparkFun
3. Two Digilent Pmod™ (SPI and UART) connectors
4. Arduino™ (Uno R3) connector
5. MikroElektronika™ mikroBUS connector
®
Qwiic® connector
5.3.1 Seeed Grove® Connectors
5.3.1.1 Grove 1
system (I2C and Analog) connectors
A Seeed Grove I2C connector is provided at J27. The RA MCU acts as a two-wire serial master, and a
connected module acts as a two-wire serial slave.
Table 10. Grove 1 Connector
5.3.1.2 Grove 2
A Seeed Grove I2C/Analog connector is provided at J28. The RA MCU acts as a two-wire serial master, and
a connected module acts as a two-wire serial slave.
The pull-up resistors, R42 and R43, must be fitted when using I2C and removed when using as analog.
Table 11. Grove 2 Connector
R20UT4825EG0100 Rev 1.00 Page 17 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Qwiic Connector
EK-RA2E1
Pin
Description
Signal/Bus
J30-1
GND
GND
J30-2
VCC
+3.3 V
J30-3
SDA
P302 (SDA2)
J30-4
SCL
P301 (SCL2)
Figure 10. Seeed Grove and Qwiic Connectors
5.3.2 SparkFun® Qwiic® Connector
A Qwiic connector is provided at J30. The Main MCU acts as a two-wire serial master, and a connected
module acts as a two-wire serial slave. (Data lines shared with Grove 1.)
Table 12. Qwiic Connector
R20UT4825EG0100 Rev 1.00 Page 18 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Pmod 1 Connector Default
EK-RA2E1
Pmod 1
Configuration
Pin
Description
Option
Type 6A
Signal/Bus
Short
Open
J26-1
SS/CTS
NC/INT
P103 (SSLA0/CTS0_RTS0)
J26-2
MOSI/TXD
NC/RESET
P101 (MOSIA/TXD0)
J26-3
MISO/RXD
P100 (MISOA/RXD0)
E14
E18
SCL
P301 (SCL2)
E18
E14
J26-4
SCK
P102 (RSPCKA/SCK0)
E15
E19
SDA
P302 (SDA2)
E19
E15
J26-5
GND
GND
J26-6
VCC
+3.3 V
E16
E17
+5.0 V
E17
E16
J26-7
GPIO/INT (slave to master)
P411 (IRQ4)
J26-8
GPIO/RESET (master to slave)
P208
J26-9
GPIO/CS2
P105 (SSLA2_A)
J26-10
GPIO/CS3
P106 (SSLA3_A)
J26-11
GND
GND
J26-12
VCC
+3.3 V
E16
E17
+5.0 V
E17
E16
Pin 1
Pin 7
Pin 6
Pin 12
5.3.3 Digilent Pmod™ Connectors
5.3.3.1 Pmod 1
A 12-pin Pmod Type-2A (expanded SPI) and Type-3A (expanded UART) connector is provided at J26, Pmod
1. The RA MCU acts as the SPI master, and the connected module acts as an SPI slave device. This
interface may additionally be re-configured in firmware as several other Pmod types.
Table 13. Pmod 1 Connector
Figure 11. Pmod 1
The default setting of the Pmod 1 interface supports +3.3 V devices. Ensure that any Pmod devic e insta l led
is compatible with a +3.3 V supply.
Pmod Type 6A Operation
Pmod 1 can be configured to support proposed Pmod Type 6A connector specification supporting I2C
connections. There is also an alternate 5 V power source option. In order to configure Pmod 1 for Type 6A
operation, modify the trace cut jumpers as mentioned in Table 13. The trace cut jumpers are shown in Figure
12.
Note: Exercise caution while modifying power source trace jumpers, E16 and E17. Permanent
damage to the EK-RA2E1 board and/or connected modules may result.
R20UT4825EG0100 Rev 1.00 Page 19 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Pmod 2 Connector
EK-RA2E1
Pin
Description
Signal/Bus
J25-1
SS / CTS
P403 (CTS1 / SS1)
J25-2
MOSI / TXD
P401 (TXD1 / MOSI1)
J25-3
MISO / RXD
P402 (RXD1 / MISO1)
J25-4
SCK
P400 (SCK1)
J25-5
GND
GND
J25-6
VCC
+3.3 V
J25-7
GPIO / INT (slave to master)
P409 (IRQ6)
J25-8
GPIO / RESET (master to slave)
P303
J25-9
GPIO / CS2
P410
J25-10
GPIO / CS3
P304
J25-11
GND
GND
J25-12
VCC
+3.3 V
Pin 1
Pin 7
Pin 6
Pin 12
Figure 12. Pmod 1 Trace Cut Jumpers
5.3.3.2 Pmod 2
A 12-pin Pmod type-2A connector is provided at J25, Pmod 2. The RA MCU acts as the SPI master, and the
connected module acts as an SPI slave device. This interface may additionally be re-configured in firmware
as several other Pmod types.
This Pmod interface supports +3.3 V devices . Pl eas e e nsur e that any Pmod device installed is compatible
with a +3.3 V supply.
Table 14. Pmod 2 Connector
R20UT4825EG0100 Rev 1.00 Page 20 of 29
Jan.04.21
Figure 13. Pmod 2
Renesas RA Family EK-RA2E1 v1 – User's Manual
Arduino Compatible Connector
EK-RA2E1
Pin
Description
Signal/Bus
J18-1
NC
NC
J18-2
IOREF
+3.3 V
J18-3
RESET
P207
J18-4
3.3 V
+3.3 V
J18-5
5 V
+5 V
J18-6
GND
GND
J18-7
GND
GND
J18-8
VIN
NC
J19-1
A0
P000 (AN000)
J19-2
A1
P001 (AN001)
J19-3
A2
J19-4
A3
P003 (AN003)
J19-5
A4
J19-6
A5
P013 (AN008)
J23-1
D0 / RXD
P206 (RXD0)
J23-2
D1 / TXD
P205 (TXD0)
J23-3
D2 / INT0
P110 (IRQ3)
J23-4
D3 / INT1 / PWM
P104 (IRQ1 / GTIOC4B)
J23-5
D4
P107
J23-6
D5 / PWM
P111 (GTIOC6A)
J23-7
D6 / PWM
P500 (GTIOC5A)
J23-8
D7
P113
J24-1
D8
P109
J24-2
D9 / PWM
P112 (GTIOC6B)
J24-3
D10 / SPI_SS / PWM
P103 (SSLA0 / GTIOC5B)
J24-4
D11 / SPI_MOSI / PWM
P101 (MOSIA / GTIOC8A)
J24-5
D12 / SPI_MISO
P100 (MISOA_A / GTIOC8B)
J24-6
D13 / SPI_SCK
P102 (RSPCKA_A)
J24-7
GND
J24-8
AREF
+3.3 V
J24-9
I2C_SDA
J24-10
I2C_SCL
P408 (SCL0)
5.3.4 Arduino™ Connector
Near the center of the System Control and Ecosystem Access area is an Arduino Uno R3 compatible
connector interface.
Table 15. Arduino Uno Connections
P002 (AN002)
P012 (AN007)
R20UT4825EG0100 Rev 1.00 Page 21 of 29
Jan.04.21
GND
P407 (SDA0)
Renesas RA Family EK-RA2E1 v1 – User's Manual
mikroBUS Connector
EK-RA2E1
Pin
Description
Signal/Bus
J21-1
AN (Analog)
P000 (AN000)
J21-2
RST (Reset)
P207
J21-3
CS (SPI Chip Select)
P103 (SSLA0)
J21-4
SCK (SPI Clock)
P102 (RSPCKA)
J21-5
MISO
P100 (MISOA)
J21-6
MOSI
P101 (MOSIA)
J21-7
+3.3 V
+3.3 V
J21-8
GND
GND
J22-1
PWM
P111 (GTIOC6A)
J22-2
INT (Hardware Interrupt)
P110 (IRQ3)
J22-3
RX (UART Receive)
P206 (RXD0)
J22-4
TX (UART Transmit)
P205 (TXD0)
J22-5
SCL (I2C Clock)
P408 (SCL0)
J22-6
SDA (I2C Data)
P407 (SDA0)
J22-7
+5 V
+5 V
J22-8
GND
GND
Figure 14. Arduino Uno Connectors
5.3.5 MikroElektronika™ mikroBUS Connector
In the center of the System Control and Ecosystem Access area is a mikroBUS compatible connector
interface. This interface is compliant with mikroBUS Standard Specifications revision 2.00.
Table 16. mikroBUS Connections
R20UT4825EG0100 Rev 1.00 Page 22 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Designator
Color
Function
MCU Control Port
LED1
Blue
User LED
P915
LED2
Green
User LED
P914
LED3
Red
User LED
P913
LED4
White
Power on indicator
+3.3 V
LED5
Yellow
Debug LED
J-Link OB MCU
Figure 15. mikroBUS Connection
5.4 Miscellaneous
5.4.1 User and Power LEDs
5 LEDs are provided on the EK-RA2E1 board.
Behavior of the LEDs on the EK-RA2E1 board is described in the following table.
Table 17. EK-RA2E1 Board LED Functions
The User LEDs may be isolated from the Main MCU, so the associated ports can be used for other
purposes. To separate LED1 from P915, Trace Cut Jumper E27 must be open. To separate LED2 from
P914, Trace Cut Jumper E26 must be open. To separate LED3 from P913, Trace Cut Jumper E28 must be
open.
R20UT4825EG0100 Rev 1.00 Page 23 of 29
Jan.04.21
Figure 16. User LEDs
Figure 17. Power LED
Renesas RA Family EK-RA2E1 v1 – User's Manual
Designator
Function
MCU Control Port
Button Color
S3
MCU Reset Switch
RESET#
Red
S2
User Switch
P015 (IRQ7)
Blue
S1
User Switch
P004 (IRQ3)
Blue
5.4.2 User and Reset Switches
Three miniature, momentary, mechanical push-button type SMT switches are mounted on the EK-RA2E1
board.
Pressing the Reset switch (S3) generates a reset signal to restart the RA MCU.
Table 18. EK-RA2E1 Board Switches
The User Switches S1 and S2 may be isolated from the Main MCU, so the associated ports can be used for
other purposes. To separate S1 from P004, Trace Cut Jumper E31 must be open. To separate S2 from
P015, Trace Cut Jumper E32 must be open.
Figure 18. Reset and User Switches
5.4.3 MCU Boot Mode
A two-pin header (J16) is provided to select the Boot mode (P201) of the RA MCU. For normal operation, or
Single-Chip mode, leave J16 open. To enter SCI Boot mode place a jumper on J16.
Figure 19. Boot Mode
R20UT4825EG0100 Rev 1.00 Page 24 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
6. MCU Native Pin Access Area
Figure 20. Native Pin Access Area
6.1 Breakout Pin Headers
The EK-RA2E1 board pin headers, J1, J2, and J3, provide access to all RA MCU interface signals, and to
voltages for all RA MCU power ports. Each header pin is labeled with the voltage or port connected to that
pin. Refer to the RA2E1 MCU Group User’s Manual for details of each port function, and the EK-RA2E1
board schematic for pin header port assignments.
The placement of the breakout pin headers allows for a standard 2.54 mm (0.100”) center breadboard to be
placed on all four pin headers simultaneously. This can be used for prototyping and testing of custom
circuitry for use with the RA2E1 MCU.
6.2 MCU Current Measurement
Included in the Native Pin Access area is a current measurement resistor and test points to measure the
MCU core power current.
The EK-RA2E1 board provides a precision 5 mΩ resistor (Vishay, part number W SL P08 055 L00 0FE A18) for
current measurement of the main 3.3 V MCU power. Measure the voltage drop across these resistors and
use Ohm’s Law to calculate the current. For convenience, TP1 and TP3 are provided to measure the main
3.3 V MCU power. See Figure 22 for the location of TP1 and TP3.
Figure 21. RA +3.3 V Current Measurement Circuit
R20UT4825EG0100 Rev 1.00 Page 25 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Figure 22. RA MCU Current Measurement
R20UT4825EG0100 Rev 1.00 Page 26 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
7. Certifications
The EK-RA2E1 v1 kit meets the following certifications/standards. See page 3 of this user’s manual for the
disclaimer and precautions .
7.1 EMC/EMI Standards
• FCC Notice (Class A)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a resident ia l instal lat ion. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
• Innovation, Science and Economic Development Canada ICES-003 Compliance:
CAN ICES-3 (A)/NMB-3(A)
• CE Class A (EMC)
This product is herewith confirmed to comply with the requirements set out in the Council
Directives on the Approximation of the laws of the Member States relating to Electromagnetic
Compatibility Directive 2014/30/EU.
Warning – This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures to correct this
interference.
• Taiwan: Chinese National Standard 13438, C6357 compliance, Class A limits
• Australia/New Zealand AS/NZS CISPR 32:2015, Class A
7.2 Material Selection, Waste, Recycling and Disposal Standards
• EU RoHS
• China SJ/T 113642014, 10-year environmental protection use period.
7.3 Safety Standards
• UL 94V-0
R20UT4825EG0100 Rev 1.00 Page 27 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
File Type
Content
File/Folder Name
File (PDF)
Schematics
ek-ra2e1-v1-schematics
File (PDF)
Mechanical Drawing
ek-ra2e1-v1-mechdwg
File (PDF)
3D Drawing
ek-ra2e1-v1-3d
File (PDF)
BOM
ek-ra2e1-v1-bom
Folder
Manufacturing Files
Manufacturing Files
Folder
Design Files
Design Files-Cad enc e Alle gr o
8. Design and Manufacturing Information
The design and manufacturing information for the EK-RA2E1 v1 kit is available in the “EK-RA2E1v1 Design
Package” available on renesas.com/ra/ek-ra2e1
• Design package file name: ek-RA2E1-v1-designpackage.zip
• Design package contents
Table 19. EK-RA2E1 Board Design Package Contents
.
9. Website and Support
Visit the following URLs to learn about the kit and the RA family of microcontrollers, download tools and
documentation, and get support.
EK-RA2E1 Resources renesas.com/ra/ek-ra2e1
RA Product Information renesas.com/ra
RA Product Support Forum renesas.com/ra/forum
Renesas Support renesas.com/support
R20UT4825EG0100 Rev 1.00 Page 28 of 29
Jan.04.21
Renesas RA Family EK-RA2E1 v1 – User's Manual
Rev.
Date
Description
Page
Summary
1.00
Jan.04.21
—
Initial release
Revision History
R20UT4825EG0100 Rev 1.00 Page 29 of 29
Jan.04.21
Published by: Renesas Electronics Corporation
EK-RA2E1 v1 – Us er’s Ma nua l
Publication Date: Jan.04.21
R20UT4825EG0100
EK-RA2E1 v1 – User’s Manual
