PCA7302E1F-80
PCA7302E1L-80
PROM Programming Adapter for M16C/20 Series MCUs
User's Manual
Rev.1.00
September 1, 2003
REJ10J0336-0100Z
* R4945 and R4945A are trademarks of Advantest Corporation.
• Renesas Technology Corporation and Renesas Solutions Corporation put the maximum effort into making semiconductor products better
and more reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to personal
injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with appropriate
measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention against any
malfunction or mishap.
• These materials are intended as a reference to assist our customers in the selection of the Renesas Technology product best suited to
the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas
Technology Corporation, Renesas Solutions Corporation or a third party.
• Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, or infringement of any
third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application examples
contained in these materials.
• All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information
on products at the time of publication of these materials, and are subject to change by Renesas Technology Corporation and Renesas
Solutions Corporation without notice due to product improvements or other reasons. It is therefore recommended that customers contact
Renesas Technology Corporation, Renesas Solutions Corporation or an authorized Renesas Technology product distributor for the latest
product information before purchasing a product listed herein. The information described here may contain technical inaccuracies or
typographical errors. Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage,
liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information published by Renesas Technology
Corporation and Renesas Solutions Corporation by various means, including the Renesas home page (http://www.renesas.com).
• When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and algorithms,
please be sure to evaluate all information as a total system before making a final decision on the applicability of the information and
products. Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, liability or
other loss resulting from the information contained herein.
• Renesas Technology semiconductors are not designed or manufactured for use in a device or system that is used under circumstances
in which human life is potentially at stake. Please contact Renesas Technology Corporation, Renesas Solutions Corporation or an
authorized Renesas Technology product distributor when considering the use of a product contained herein for any specific purposes,
such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.
• The prior written approval of Renesas Technology Corporation and Renesas Solutions Corporation is necessary to reprint or reproduce
in whole or in part these materials.
• If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from the
Japanese government and cannot be imported into a country other than the approved destination. Any diversion or reexport contrary to
the export control laws and regulations of Japan and/or the country of destination is prohibited.
• Please contact Renesas Technology Corporation or Renesas Solutions Corporation for further details on these materials or the products
contained therein.
Keep safety first in your circuit designs!
Notes regarding these materials
• This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your
program you have finished developing, be sure to make a judgment on your own risk that it can be put to practical use by performing
integration test, evaluation, or some experiment else.
• In no event shall Renesas Solutions Corporation be liable for any consequence arising from the use of this product.
• Renesas Solutions Corporation strives to renovate or provide a workaround for product malfunction at some charge or without charge.
However, this does not necessarily mean that Renesas Solutions Corporation guarantees the renovation or the provision under any
circumstances.
• This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not fall
under the application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when used in
Japan.
Renesas Tools Homepage http://www.renesas.com/en/tools
Precautions to be taken when using this product
( 2 / 16 )
Contents
1. Precautions for Safety.........................................................................................................4
1.1 Safety Symbols and Meanings ..............................................................................4
2. Introduction ........................................................................................................................6
2.1 Things to Check When Unpacking .......................................................................6
3. Specifications .....................................................................................................................7
4. How to Write the Program .................................................................................................8
4.1 Programming Procedure........................................................................................8
4.2 Attaching Adapter to PROM Programmer............................................................9
4.3 Setting Switches ....................................................................................................9
4.4 Inserting MCU into Adapter ...............................................................................10
4.5 Precautions When Opening and Closing IC Socket............................................10
4.6 Precautions When Handling Adapter..................................................................11
4.7 Setting Programming Area..................................................................................11
5. Recommended PROM Programmers ...............................................................................11
6. Memory Map ....................................................................................................................12
7. How to Request for Support .............................................................................................13
To use the product properly
Precautions for Safety
• Either in the instruction manual or on the product, several icons are used to insure proper handling
of this product and also to prevent injuries to you or other persons, or damage to your properties.
• Their graphic images and meanings are given in Chapter 1, Precautions for Safety. Be sure to read
this chapter before using the product.
( 3 / 16 )
1. Precautions for Safety
In both the user's manual and on the product itself, several icons are used to insure proper handling
of this product and also to prevent injuries to you or other persons, or damage to your properties.
This chapter describes the precautions which should be taken in order to use this product safely and
properly. Be sure to read this chapter before using this product.
1.1 Safety Symbols and Meanings
WARNING
CAUTION
IMPORTANT
In addition to the three above, the following are also used as appropriate.
If the requirements shown in the "WARNING"
sentences are ignored, the equipment may
cause serious personal injury or death.
If the requirements shown in the "CAUTION"
sentences are ignored, the equipment may
malfunction.
It means important information on using this
product.
means WARNING or CAUTION.
Example: CAUTION AGAINST AN ELECTRIC SHOCK
means PROHIBITION.
Example: DISASSEMBLY PROHIBITED
means A FORCIBLE ACTION.
Example:
The following pages describe the symbols "WARNING", "CAUTION", and "IMPORTANT".
UNPLUG THE POWER CABLE FROM THE RECEPTACLE.
( 4 / 16 )
WARNING
Warning for Use Environment :
• This equipment is to be used in an environment with a maximum ambient temperature of 35°C. Care
should be taken that this temperature is not exceeded.
•Select the proper programming mode of the PROM programmer.
CAUTION
Cautions to Be Taken for This Product :
• Do not disassemble or modify this product. Personal injury due to electric shock may occur if this
product is disassembled or modified.
• Use caution when handling this product. Be careful not to apply a mechanical shock such as falling, etc.
• Do not directly touch the connector pins of this product.
• Be careful with the static electricity when handling this product and the MCU.
When Not Using This Product for a Long Time :
(1) Attach the connector pins of this product to the conductive sponge.
(2) Put it into a conductive polyvinyl, and keep it in the package case shipped from the factory.
(3) Store it in the place where humidity and temperature are low and direct sunshine does not strike.
IMPORTANT
When Using the Products :
• Attach this product to the IC socket on the PROM programmer properly.
• Insert the MCU to the IC socket of this product properly.
•When opening and closing the IC socket of this product, be sure to keep it horizontal.
• Be sure to set the programming area as described in this instruction manual.
• Do not use the PROM programmer's device identification code readout function.
( 5 / 16 )
2. Introduction
This product is a PROM programming adapter for 16-bit microcomputers of M16C/20 Series. The
adapter is a tool that can be used to write a program into internal ROM of microcomputers using a
commercially available PROM programmer.
This manual describes the specifications and operation of this product. Figure 2.1 shows the external
view of this product and constituent parts.

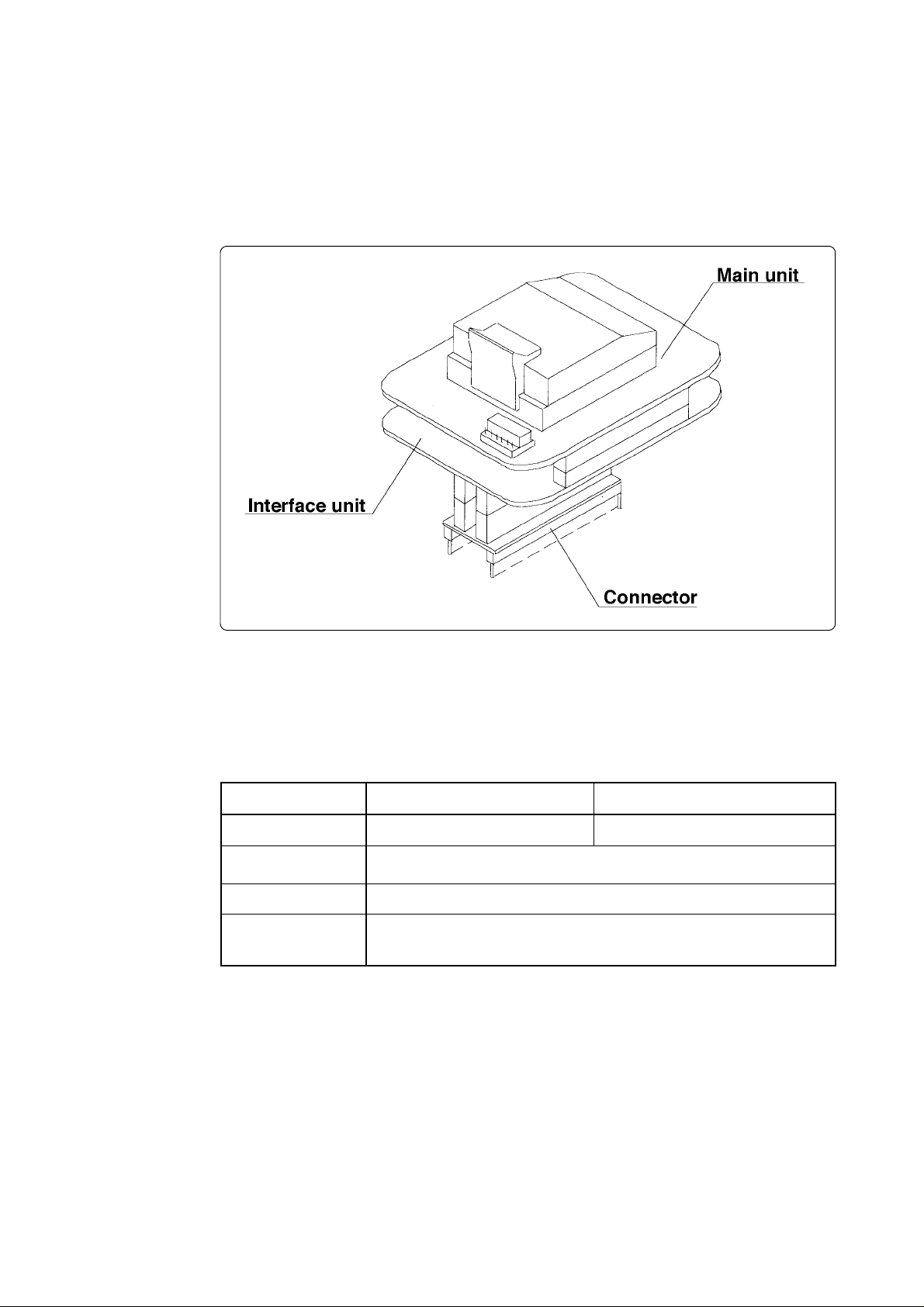

Figure 2.1 External view of the adapter and constituent parts
2.1 Things to Check When Unpacking
This product consists of the following parts. Check to see that it contains all of the components shown
in Table 2.1 below.
Table 2.1 Contents
Product type name
Main unit
Interface unit
Connector
Instruction manual
If any part is missing or there is any doubt about your product package, contact your local distributor.
PCA7302E1F-80 PCA7302E1L-80
PCA7302E1F-80 PCA7302E1L-80
PCA7412C
PCA7402E (32-pin)
PCA7302E1F-80, PCA7302E1L-80
Instruction Manual (This manual)
( 6 / 16 )
3. Specifications
Tables 3.1 and 3.2 list specifications of PCA7302E1F-80 and PCA7302E1L-80 respectively.
Table 3.1 Specifications of PCA7302E1F-80
MCU type
Type of internal ROM of MCU EPROM
IC socket IC51-0804-819-6 (Yamaichi Electronics Co., Ltd.)
80-pin QFP packages (80P6N-A) of M16C/20 Series
80-pin FP packages
Operating clock frequency
Power supply
PCA7302E1F-80
(Main unit)
Board
configuration
PCA7412C
(Interface unit)
PCA7402E
(Connector)
8 MHz
(Supplied by the ceramic oscillator mounted on the adapter)
Supplied from VCC of a PROM programmer
Board to insert a programmable MCU
(IC socket is mounted on this board.)
Interface board
(Connected by two standard-pitch 20-pin connectors and two
standard-pitch 16-pin connectors to the upper and lower boards.)
Board to connect to the PROM programmer
(Standard-pitch 32-pin pin-header is mounted on it.)
Table 3.2 Specifications of PCA7302E1L-80
MCU type
Type of internal ROM of MCU
IC socket
Operating clock frequency
80-pin LCC packages (80D0) of M16C/20 Series
80-pin FS packages
EPROM
IC51-0804-890 (Yamaichi Electronics Co., Ltd.)
8 MHz
(Supplied by the ceramic oscillator mounted on the adapter)
Power supply
Board
configuration
PCA7302E1L-80
(Main unit)
PCA7412C
(Interface unit)
PCA7402E
(Connector)
Supplied from V
Board to insert a programmable MCU
(IC socket is mounted on this board.)
Interface board
(Connected by two standard-pitch 20-pin connectors and two
standard-pitch 16-pin connectors to the upper and lower boards.)
Board to connect to the PROM programmer
(Standard-pitch 32-pin pin-header is mounted on it.)
of a PROM programmer
CC
Note:
As this product is designed to support the same packages of M16C/20 Series, it is ready for most of
the products which will be introduced in the future.
( 7 / 16 )
4. How to Write the Program
This chapter describes procedures you need to follow when writing a program. For details on how
to operate the PROM programmer, refer to the user's manual of the PROM programmer.
4.1 Programming Procedure
Follow procedures (1) to (8) to write a program.
(1) Read the program into the PROM programmer. (Offset at C000016 required)
(2) Attach the adapter to the PROM programmer. (see Section 4.2)
(3) Set the switches (JP1). (see Section 4.3)
(4) Insert the MCU into the adapter. (see Section 4.4)
(5) Set the programming area with the PROM programmer. (see Section 4.7) *
(6) Check to erase the programming area. *
2
1
Using the PROM programmer's erase check function, check whether data can be written into
the MCU's programming area.
(7) Write the program into the programming area of the MCU using the PROM programmer. *
(8) Verify the programming area of the MCU using the PROM programmer to check whether the
program is written into the MCU correctly. *
2
Notes:
*1 Be sure to set the programming area. Otherwise the mode's shift to the programming mode may
not be performed successfully. The erase check function etc. may not also be performed
completely.
*2 Some PROM programmers perform the steps (6) to (8) automatically.
2
( 8 / 16 )
4.2 Attaching Adapter to PROM Programmer
As shown Figure 4.1, attach the pin No. 1 of the PCA7402E connector (standard-pitch 32-pin pinheader mounted) to the pin No. 1 of the IC socket of the PROM programmer.
Be careful when attaching the adapter because incorrect insertion can cause fatal
damage to the MCU.
Figure 4.1 Attaching adapter to PROM programmer
4.3 Setting Switches
The setting of JP1 switch is prepared for MCUs with their ROM area expanded in the future. Use this
setting for the current MCUs. Figure 4.2 shows the factory-setting of JP1 switch.
Figure 4.2 JP1 switch setting
: Position of DIC connector
Note:
(1) Be sure to set the switch properly. Otherwise wrong settings can cause fatal damage to the MCU.
(2) Figure 4.2 applies to both PCA7302E1F-80 and PCA7302E1L-80.
( 9 / 16 )
4.4 Inserting MCU into Adapter
As shown in Figure 4.3, insert the MCU into the IC socket, with the pin No. 1 of the MCU matched
to the pin No. 1 of the IC socket on the adapter.
Be careful when inserting the MCU because incorrect insertion can cause fatal
damage to the MCU.
Figure 4.3 Inserting the MCU
4.5 Precautions When Opening and Closing IC Socket
When opening and closing the IC socket to insert the MCU, hold the adapter horizontally. Otherwise
the inside of the IC socket may become damaged and cause an electrical insulation failure. Figure 4.4
shows opening and closing of the IC socket.
Figure 4.4 Opening and closing the IC socket
( 10 / 16 )
4.6 Precautions When Handling Adapter
Don't touch the connector in the IC socket and the pins on the PROM programmer connector.
Otherwise it can cause an electrical insulation failure because of dirt.
When not using, attach the connector pins of this product to the conductive sponge as it was shipped
from the factory.
4.7 Setting Programming Area
When writing the program into the MCU, be sure to set the programming area. And also, specify its
device of the PROM programmer.
Table 4.1 Programming area
MCU type name
ExampleMCU type Programming area
ROM
size
PROM programmer
Device
Internal ROM area
of MCU
M302XXEC
M30240ECFP
128K byte
M5M27C201 20000
Note:
(1) Be sure to set the programming mode properly. Otherwise wrong settings can cause fatal damage
to the MCU.
(2) The programming method for the M5M27C201 mode is the byte-programming method.
5. Recommended PROM Programmers
PROM programmers listed in Table 5.1 are recommended for the adapter. Using the actual products,
we have verified that these PROM programmers can be used to write programs without problem.
Nonconformity occurring by using any other PROM programmers can not be supported. For the latest
type of PROM programmers, contact the manufacturer to confirm whether it can be used for your
product.
Table 5.1 Recommended PROM Programmers
DeviceManufacturer Type name Programming voltage (VPP)
R4945
Advantest
R4945A
M5M27C201 mode 12.5 V
- 3FFFF
16
E000016 - FFFFF
16
16
Note:
(1) Be sure to set the programming mode properly. Otherwise wrong settings can cause fatal damage
to the MCU.
(2) The programming method for the M5M27C201 mode is the byte-programming method.
( 11 / 16 )
6. Memory Map

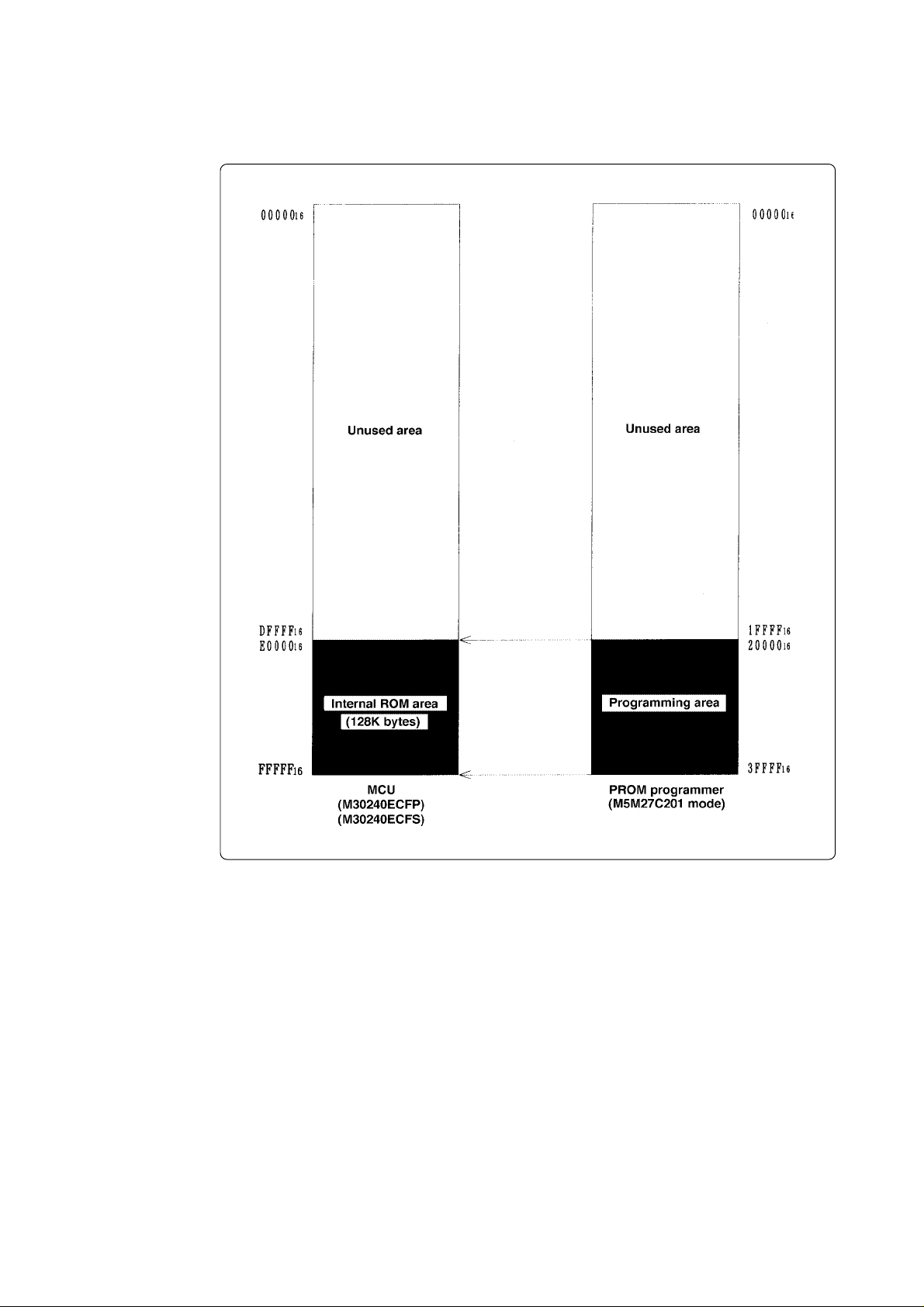

Figure 6.1 shows memory maps of the MCU and the PROM programmer.
Figure 6.1 Memory Map
( 12 / 16 )
7. How to Request for Support
After checking this manual, fill in the following information and email to your local distributor. For
prompt response, please specify the following information:
(1) Contact address
• Company name
• Department
• Responsible person
• Phone number
• Fax number
• E-mail address
(2) Product information
• Name of the programming adapter
• Serial number
• Date of purchase
• Target MCU
• Symptoms (Fails blank check/Cannot write a program/Fails verification etc.)
• Detailed symptoms
• How often does the problem occur? (2 out of 10 etc.)
•When did the problem start to occur? (Since purchase/Used to work correctly)
• Type name of the PROM programmer (Advantest R4945A etc.)
• Specified device when writing to PROM (M27C101 etc.)
• Specified programming area when writing to PROM
• Switch settings of the adapter when writing to PROM
( 13 / 16 )
MEMO
( 14 / 16 )
PCA7302E1F-80/PCA7302E1L-80 User's Manual
Rev.1.00
September 1, 2003
REJ10J0336-0100Z
COPYRIGHT ©2003 RENESAS TECHNOLOGY CORPORATION
AND RENESAS SOLUTIONS CORPORATION ALL RIGHTS RESERVED
Loading...
