Chapter 2. Introduction
This product is a PROM programming adapter for the 38000 Series of Renesas 8-bit MCUs (available for some 740 Series MCUs). The adapter is a tool that can be used to write programs into internal PROM of MCUs using a PROM programming adapter commercially available. This user's manual describes the specifications and how to use the product. Figures 2.1 and 2.2 show external views of the PROM programming adapters and their constituent parts.
Interface unit
Main unit
Connector
Figure 2.1 External view of the programming adapter (DIP type IC socket) and constituent parts
Main unit
Interface unit
Connector
Figure 2.2 External view of the programming adapter (QFP, SOP, LCC type IC socket) and constituent parts
( 7 / 26 )

2.1 Things to Check When Unpacking

This product package consists of the items listed in Table 2.1. Check to see that it contains all of the items when unpacking.
Table 2.1 Contents
Main unit
PCA4738S-64A PCA4738F-64A PCA4738L-64A PCA4738F-80A PCA4738L-80A PCA4738G-80A PCA4738F-100A PCA4738L-100A PCA4738L-160A PCA4738F-176A
PCA4738H-80A PCA4738G-100A PCA4738H-100A
PCA4738S-42A PCA4738F-42A
Interface unit Connector User's manual
PCA4738C
PCA7402B
PCA4738D (28-pin) PCA4738E (32-pin)
This manual
PCA7402D (28-pin) PCA7402E (32-pin)
PCA7402E (32-pin)
If any part is missing or there is any doubt about your product package, contact your local distributor.
( 8 / 26 )
Chapter 3. How to Write the Program
This chapter describes how to write programs with a PROM programmer. For the operation of the PROM programmer, refer to the user's manual of the PROM programmer.

3.1 Programming Procedures

Follow these procedures (1) through (9) to write programs into the MCU.
(1) Read the program into the PROM programmer. (Offset: 800016)*
*1Offset address not required when writing in M5M27C101 mode.
(2) Select the connector corresponding to the MCU. (See Section 3.2)*
2
*
Skip this step for the PCA4738S-42A and PCA4738F-42A.
1
2
(3) Attach the adapter to the PROM programmer. (See Section 3.3)
(4) Set the switches (SW1, SW2 and SW3). (See Section 3.4)
(5) Insert the MCU into the adapter. (See Section 3.5)
(6) Specify the programming area of the MCU using the PROM programmer. (See Section 3.6)
(7) Using the PROM programmer's erase check function, check whether data can be written into
the MCU's programming area.*3*
4
(8) Write the program into the programming area of the MCU using the PROM programmer.*
(9) Verify the programming area of the MCU using the PROM programmer to check whether the
program is written into the MCU correctly.*
4
*3Be sure to set the programming area. Otherwise the mode's shift to the programming mode
may not be performed successfully. The erase check function etc. may not also be performed completely.
*4Some PROM programmers perform these steps (7 through 9) automatically.
4
( 9 / 26 )

3.2 Selecting a Connector

Select the connector depending on the type of the MCU as described in Table 3.1 and Figure 3.1 below.
Table 3.1 Selecting connector
MCU's
programming
mode
Conditions
M5M27C256A mode
M5M27C101 mode
32 KB
or less
Over
32 KB
MCU
M375XXE1/E2/E3/E4 M375XXE5/E6/E7/E8 M38XXXE1/E2/E3/E4 M38XXXE5/E6/E7/E8
M375XXE9/EA/EB/EC M375XXED/EE/EF M38XXXE9/EA/EB/EC M38XXXED/EE/EF
Applicable connector
PCA4738D or PCA7402D
PCA4738E or PCA7402E
Notes:
* No selection is required for the PCA4738S-42A and PCA4738F-42A. (The PCA7402E connec-
tor is already attached.)
*For the MCU whose internal ROM is 32 KB or less, the applicable adapter (PCA4738D/
PCA7402D or PCA4738E/PCA7402E) depends on its device (M5M27C256A mode or M5M27C101 mode). For each matching device of the MCU, refer to Tables 3.6 to 3.9 on pages 16 to 18.
IC socket (made by Yamaichi Elecreonics Co., Ltd.)
Figure 3.1 Selecting a connector
Main unit
Interface unit
32-pin type connector28-pin type connector
( 10 / 26 )

3.3 Attaching the Adapter to a PROM Programmer

(1) For the PCA4738D and PCA7402D

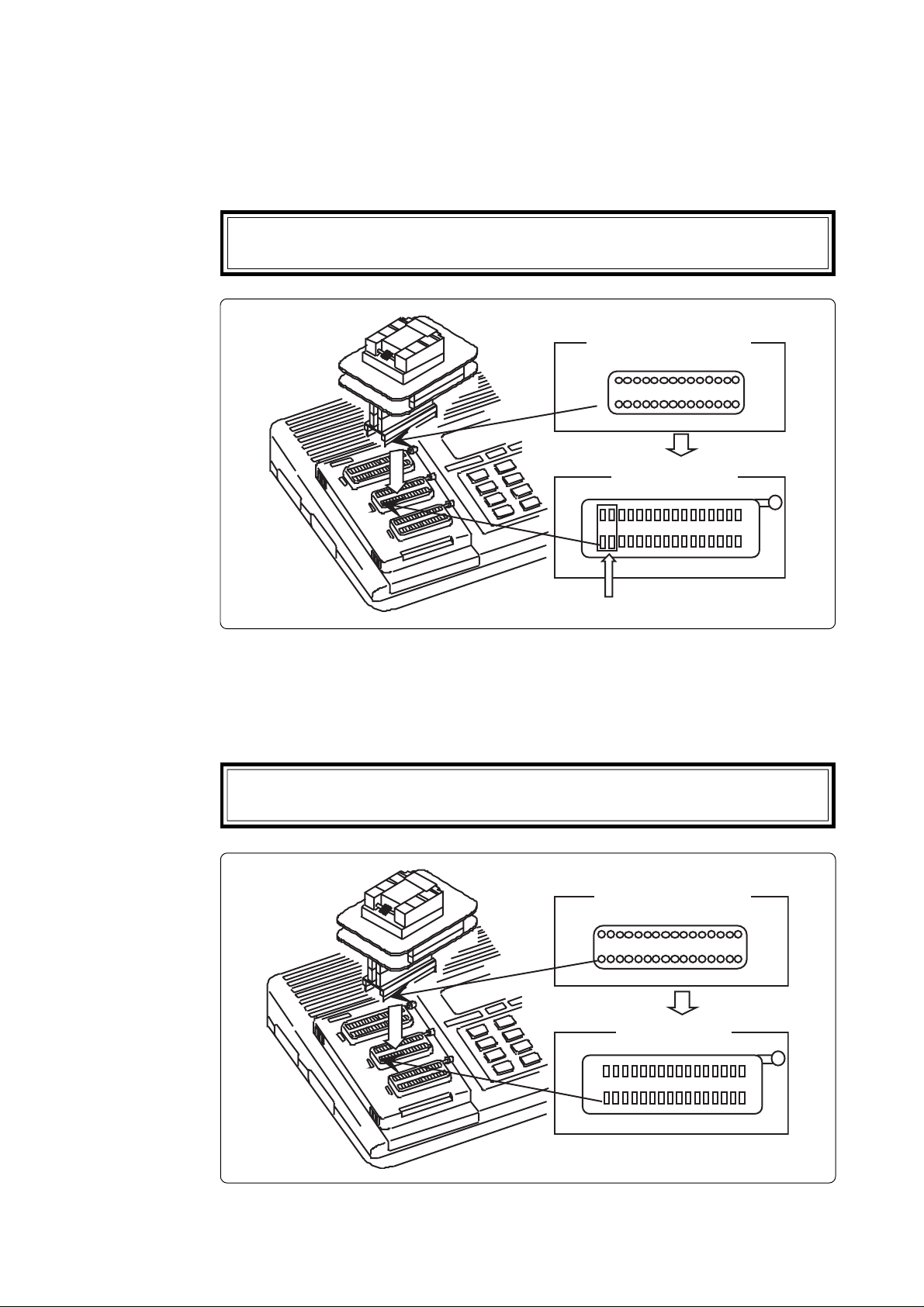

As shown in Figure 3.2, attach the pin No. 1 of the connector of the PROM programmer (standard­pitch 28-pin pin-header mounted) to the No. 1 pin of the IC socket of the PROM programmer.
Be careful when attaching to the PROM programmer because an incorrect insertion can cause fatal damage to the MCU.
(PCA4737D or PCA7402D)
7
2
3
1
6
1
1
This four pins are not assigned.
Connector
28
1
32-pin IC socket of
PROM programmer
28
1
15
14
15
14
Figure 3.2 Attaching the adapter to a PROM programmer (PCA4738D or PCA7402D)

(2) For the PCA4738E and PCA7402E

As shown in Figure 3.3, attach the pin No. 1 of the connector of the PROM programmer (standard­pitch 32-pin pin-header mounted) to the No. 1 pin of the IC socket of the PROM programmer.
Be careful when attaching to the PROM programmer because an incorrect insertion can cause fatal damage to the MCU.
(PCA4738E or PCA7402E) 32
7
2
3
1
6
1
1
Connector
1
32-pin IC socket of
PROM programmer
32
1
17
16
17
16
Figure 3.3 Attaching the adapter to a PROM programmer (PCA4738E or PCA7402E)
( 11 / 26 )

3.4 Switch Settings

(1) Switches SW1 and SW2

• For PCA4738S-42A and PCA4738F-42A Set the switches SW1 and SW2 according to the output format of the MCU ports. The examples
of switch settings are shown in Tables 3.2 and 3.5 and Figure 3.4.
Table 3.2 Switch settings (PCA4738S-42A and PCA4738F-42A)
Switch
SW1
SW2
Output format
P0
0--P03
P04--P07
CMOS
Pch Nch
CMOS
Pch Nch
Switch setting
CMOS
Pch Nch
CMOS
Pch Nch
• For all adapters except the PCA4738S-42A and PCA4738F-42A Set the switches SW1 and SW2 according to the output format of the MCU ports. The examples
of switch settings are shown in Tables 3.3 and 3.5 and Figure 3.4.
Table 3.3 Switch settings (all adapters except PCA4738S-42A and PCA4738F-42A)
Switch
SW1
SW2
Output format
0--P23
P2
P24--P27
CMOS
Pch Nch
CMOS
Pch Nch
Switch setting
CMOS
Pch Nch
CMOS
Pch Nch

(2) Switch SW3

Table 3.4 Switch settings of SW3
MCU type name
M38103E6SS/SP/FS/FP M38114E8SS/SP/FS/FP
M38174E8FS/FP M38177ECFS/FP M38185EEFS/FP
Other MCUs
Switch setting
ON
OFF
Note:
The PC4738S-42A and PCA4738F-42A do not have switch SW3.
( 12 / 26 )
Table 3.5 Examples of switch settings
Group Example SW1 SW2
7500 M37500E8 CMOS CMOS 7510 M37510E6 CMOS CMOS 7513 M37513EF CMOS CMOS 7560 M37560EF CMOS CMOS 3800 M38002E2 CMOS CMOS 3802 M38022E4 CMOS CMOS 3806 M38067E8 CMOS CMOS 3807 M38073E4 CMOS CMOS 3810 M38102E5 Pch CMOS 3811 M38112E4 Pch CMOS 3812 M38123E6 Pch CMOS 3817 M38177EC CMOS CMOS 3818 M38184EA CMOS CMOS 3819 M38197EA Pch CMOS 3820 M38203E4 CMOS CMOS 3822 M38223E4 CMOS CMOS 3825 M38254E6 CMOS CMOS 3826 M38267E8 CMOS CMOS 3850 M38503E4 CMOS CMOS 3851 M38513E4 CMOS CMOS 3874 M38749EF CMOS CMOS 3880 M38802E2 CMOS CMOS 3881 M38813E4 CMOS CMOS 3886 M38867E8 CMOS CMOS 3888 M38881E2 CMOS CMOS 3890 M38903E4 Nch Nch
Pch
CMOS
Nch
Figure 3.4 Example of switch settings
SW1
XCin
Nch
SW3
OFF
Pch
CMOS
ON
SW2
Switch settings when:
SW1 ............CMOS
SW2 ............CMOS
SW3 ............OFF
( 13 / 26 )

3.5 Mounting an MCU

As shown in Figures 3.5 and 3.6, insert the No. 1 pin of an MCU into the No. 1 pin of the IC socket.
Be careful when inserting the MCU because an incorrect insertion can cause fatal damage to the MCU.
Top view
PCA4738X-XXA REV. A
IC1
No. 1 pin of MCU
1
X1
JAPAN
Figure 3.5 Mounting an MCU (adapters with DIP type IC socket)
Top view
PCA4738X-XXA REV. A
J1 J2
1
IC1
X1
IC socket
1
IC socket
SW3
RA2
1818
ON OFF
No. 1 pin of MCU
SW1
RA1
120
SW2
Pch CMOS Nch
Pch CMOS Nch
Xcin
JAPAN
Figure 3.6 Mounting an MCU (adapters with QFP, SOP, LCC type IC socket)
( 14 / 26 )
CAUTION

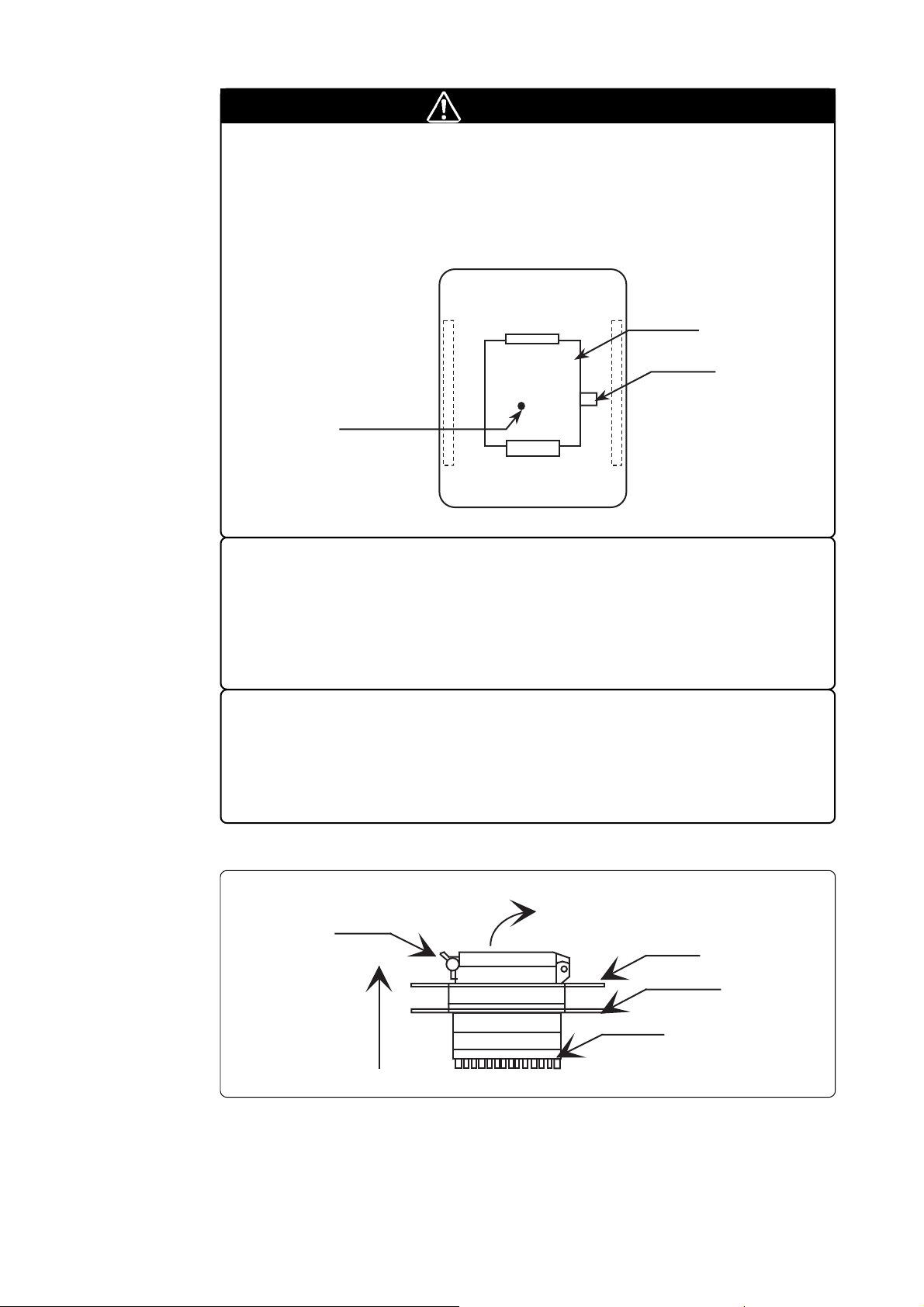

Caution to Be Taken for SOP Version IC Socket:
• SOP version IC sockets (mounted on the PCA4738F-42A) have a sliding bar in the middle of the board. Be sure to keep the bar to the side of the diagonally shaded area imprinted on the board (factory-setting). An improper setting will cause fatal damage to the MCU due to faulty connections.
Top view
PCA4738x-xxA REV.A
J1 J2
No. 1 pin of MCU
IC1
42
1
22
21
IC socket
Sliding bar
X1
Caution to Be Taken for Handling an MCU:
• Do not directly touch the connector in the IC socket and the pins on the PROM programmer connector because dirt may cause an electrical insulation failure. When not using this product, attach the connector pins of this product to the conductive sponge as it was shipped from the factory.
Caution to Be Taken for Opening and Closing the IC Socket:
• When opening and closing the IC socket, hold the adapter horizontally as shown in Figure 3.7. Otherwise the inside of the IC socket may become damaged and cause an electrical insulation failure.
Side view
IC socket
Up
Figure 3.7 Opening and closing the IC socket
Direction to open the IC socket
Main unit
Interface unit
Connector
( 15 / 26 )

3.6 Setting the Programming Area

To write the program into an MCU, be sure to set the programming area. And also, specify its device of the PROM programmer. The lists of programming areas and device are shown in Tables 3.6 to 3.9. Make note of the fact that the MCU whose ROM is 32 KB or less has two devices applicable. For the MCUs not listed in Tables 3.6 to 3.9, refer to each MCU's user's manual.
Table 3.6 List of programming areas and devices -38000 Series (PCA4738D or PCA7402D connector)
MCU type name
MCU
Applicable MCU
ROM size
PROM programmer
Device
Programming area
ROM area
of MCU
M38XXXE2
M38XXXE3
M38XXXE4
M38XXXE5 M38XXXE6
M38XXXE7
M38XXXE8
M38002E2 M38802E2 M38881E2
Presently
not available
M38002E4 M38022E4 M38073E4 M38112E4 M38203E4 M38223E4 M38813E4 M38903E4
M38102E5 M38063E6
M38123E6 M38254E6
Presently
not available
M38004E8 M38027E8 M38067E8 M38184E8 M38207E8 M38257E8 M38267E8
About 8 KB
About 12 KB
About 16 KB
About 20 KB
About 24 KB
About 28 KB
About 32 KB
M5M27C256A
6080h--7FFDh
5080h--7FFDh
4080h--7FFDh
3080h--7FFDh
2080h--7FFDh
1080h--7FFDh
0080h--7FFDh 8080h--FFFDh
E080h--FFFDh
D080h--FFFDh
C080h--FFFDh
B080h--FFFDh
A080h--FFFDh
9080h--FFFDh
Table 3.7 List of programming areas and devices - 75xx Group (PCA4738D or PCA7402D connector)
MCU type name
MCU M375XXE2 M375XXE3 M375XXE4 M375XXE5 M375XXE6 M375XXE7
M375XXE8
Applicable MCU
Presently
not available
M37500E5 M37510E6
Presently
not available
M37500E8
ROM size
About 8 KB About 12 KB About 16 KB About 20 KB About 24 KB
About 28 KB
About 32 KB
( 16 / 26 )
PROM programmer
Device
M5M27C256A
Programming area 6080h--7FFDh 5080h--7FFDh 4080h--7FFDh 3080h--7FFDh 2080h--7FFDh
1080h--7FFDh
0080h--7FFDh
ROM area
of MCU
E080h--FFFDh D080h--FFFDh C080h--FFFDh B080h--FFFDh A080h--FFFDh
9080h--FFFDh
8080h--FFFDh
Table 3.8 List of programming areas and devices - 38000 Series (PCA4738E or PCA7402E connector)
MCU type name
MCU
Applicable MCU
ROM size
PROM programmer
Device
Programming area
ROM area
of MCU
M38XXXE2 M38XXXE3 M38XXXE4
M38XXXE5
M38XXXE6
M38XXXE7
M38XXXE8 M38XXXE9
M38XXXEA
M38XXXEB
Presently
not available
M38503E4 M38513E4
Presently
not available
M38504E6 M38514E6
Presently
not available
M38867E8
Presently
not available
M38184EA M38197EA
Presently
not available
About 8 KB About 12 KB
About 16 KB
About 20 KB
About 24 KB
About 28 KB
About 32 KB
About 36 KB
About 40 KB
About 44 KB
M5M27C101
E080h--FFFDh D080h--FFFDh
C080h--FFFDh
B080h--FFFDh
A080h--FFFDh
9080h--FFFDh
8080h--FFFDh
7080h--FFFDh
6080h--FFFDh
5080h--FFFDh
E080h--FFFDh D080h--FFFDh
C080h--FFFDh
B080h--FFFDh
A080h--FFFDh
9080h--FFFDh
8080h--FFFDh
7080h--FFFDh
6080h--FFFDh
5080h--FFFDh
M38XXXEC
M38XXXED
M38XXXEE M38XXXEF
M38067EC M38127EC M38177EC M38198EC M38199EC M38227EC
Presently
not available
M38185EE M38079EF
M38259EF
M3826AEF
M38749EF
About 48 KB
About 52 KB
About 56 KB
About 60 KB
4080h--FFFDh
3080h--FFFDh
2080h--FFFDh
1080h--FFFDh
4080h--FFFDh
3080h--FFFDh
2080h--FFFDh
1080h--FFFDh
( 17 / 26 )
Table 3.9 List of programming areas and devices - 75xx Group (PCA4738E or PCA7402E connector)
MCU type name
MCU
Applicable MCU
ROM size
PROM programmer
Device
Programming area
ROM area
of MCU
M375XXE2 M375XXE3 M375XXE4 M375XXE5 M375XXE6 M375XXE7 M375XXE8 M375XXE9 M375XXEA M375XXEB M375XXEC M375XXED M375XXEE M375XXEF
Presently
not available
M37527E6
Presently
not available
M37513EF M37560EF
About 8 KB About 12 KB About 16 KB About 20 KB About 24 KB About 28 KB About 32 KB About 36 KB About 40 KB About 44 KB About 48 KB About 52 KB About 56 KB
About 60 KB 1080h--FFFDh 1080h--FFFDh
M5M27C101
E080h--FFFDh D080h--FFFDh C080h--FFFDh B080h--FFFDh A080h--FFFDh
9080h--FFFDh 8080h--FFFDh 7080h--FFFDh 6080h--FFFDh 5080h--FFFDh 4080h--FFFDh 3080h--FFFDh 2080h--FFFDh
E080h--FFFDh D080h--FFFDh C080h--FFFDh B080h--FFFDh A080h--FFFDh 9080h--FFFDh 8080h--FFFDh 7080h--FFFDh 6080h--FFFDh 5080h--FFFDh 4080h--FFFDh 3080h--FFFDh 2080h--FFFDh

3.7 Recommended PROM Programmers

The PROM programmers listed in Table 3.10 are recommended for the adapters. Using the actual products, we have verified that these PROM programmers can be used to write programs without problem. Nonconformity occurring by using any other PROM programmers can not be supported. For the latest types of PROM programmer, please contact the manufacturer to confirm whether it can be used for your product.
Table 3.10 Recommended PROM programmers
Manufacturer Type name
Advantest
Corporation
TR4943
R4945
R4945A
M5L27256 mode (Mitsubishi) M5M27C256A mode (Mitsubishi)
M5M27C101 mode (Mitsubishi) M5M27C256A mode (Mitsubishi)
M5M27C101 mode (Mitsubishi)
Device
Write-byte
Programming voltage
(Vpp)
12.5 V
( 18 / 26 )
Chapter 4. Specifications

4.1 Specifications

Table 4.1 lists common specifications of the programming adapters, and Tables 4.2 and 4.3 list individual specifications of each programming adapter.
Table 4.1 Common specifications
Item
Operating clock frequency
Power supply
Main unit
PCA4738C or PCA7402B
(Interface unit)
Board
configuration
PCA4738D or PCA7402D
(28-pin connector)
PCA7438E or PCA7402E
(32-pin connector)
Table 4.2 Individual specifications (1/2)
Description
4 MHz (Supplied by the ceramic oscillator mounted on the adapter)
Supplied from Vcc of the PROM programmer Board to mount a programmable MCU
(IC socket for MCU mounted on it) Interface board (buffer IC mounted)
(Connected by two rows of standard-pitch 18-pin connectors and two rows of standard-pitch 16-pin connectors to the upper and lower boards)
Board to connect to the PROM Programmer (for M5M27C256 mode) (Standard-pitch 28-pin pin-header mounted)
Board to connect to the PROM Programmer (for M5M27C101 mode) (Standard-pitch 32-pin pin-header mounted)
Product name Item Description
PCA4738S-42A
PCA4738F-42A
PCA4738S-64A
PCA4738F-64A
PCA4738L-64A
MCU
IC socket
MCU
IC socket
MCU
IC socket
MCU
IC socket
MCU
38000 Series SDIP package (42P4B, 42S1B)
IC59-4206-G4 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (42P2R-A)
IC51-0422-393 (made by Yamaichi Electronics Co., Ltd.)
38000 Series SDIP package (64P4B, 64S1B)
264-1300-00 (made by Sumitomo 3M Limited)
38000 Series QFP package (64P6N-A)
IC51-824.KS-8095 (made by Yamaichi Electronics Co., Ltd.)
38000 Series LCC package (64D0)
3850, 3851 Group 42-pin SP/SS package
3850, 3851 Group 42-pin FP package
3800, 3802, 3810, 3811, 3812, 3880, 3888, 3890 Group 64-pin SP/SS package
3800, 3802, 3810, 3811, 3812, 3880, 3888, 3890 Group 64-pin FP package
3800, 3802, 3810, 3811, 3812, 3880, 3888, 3890 Group 64-pin FS package
IC socket
IC51-0644-1329 (made by Yamaichi Electronics Co., Ltd.)
( 19 / 26 )
Table 4.3 Individual specifications (2/2)
Product name
Item
Description
PCA4738F-80A
PCA4738L-80A
PCA4738H-80A
PCA4738G-80A
PCA4738F-100A
MCU
IC socket
MCU
IC socket
MCU
IC socket
MCU
IC socket
MCU
IC socket
38000 Series QFP package (80P6N-A)
IC51-0804-819-6 (made by Yamaichi Electronics Co., Ltd.)
38000 Series LCC package (80D0)
IC51-0804-890 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (80P6Q-A)
IC51-0804-808 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (80P6S-A)
IC51-0804-711 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (100P6S-A)
IC51-1004-814-6 (made by Yamaichi Electronics Co., Ltd.)
3806, 3807, 3817, 3820, 3822 Group 80-pin FP package
3806, 3807, 3817, 3820, 3822, 3874 Group 80-pin FS package
3820, 3822, 3886 Group 80-pin HP package
3806, 3820, 3822, 3874 Group 80-pin GP package
3818, 3825, 3826 Group 100-pin FP package, 100-pin FP package of M37560
PCA4738L-100A
PCA4738G-100A
PCA4738H-100A
PCA4738L-160A
PCA4738F-176A
MCU
IC socket
MCU
IC socket
MCU
IC socket
MCU
IC socket
MCU
38000 Series LCC package (100D0)
IC51-1004-1724 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (100P6Q-A)
IC51-1004-809 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (100PFB-A)
IC51-1004-1919-9 (made by Yamaichi Electronics Co., Ltd.)
38000 Series LCC package (160D0)
IC51-1604-1784 (made by Yamaichi Electronics Co., Ltd.)
38000 Series QFP package (176P6Q-A)
3818, 3825, 3826 Group 100-pin FS package, 100-pin FS package of M37560
3825, 3826 Group 100-pin GP package, 100-pin GP package of M37513, 100-pin GP package of M37527, 100-pin GP package of M37560
3825 Group 100-pin HP package, 100-pin HP package of M37513
160-pin FS package of M37500
176-pin GP package of M37500 176-pin FP package of M37510
IC socket
IC51-1764-1505-6 (made by Yamaichi Electronics Co., Ltd.)
Note:
* As these adapters are designed to support same packages of the 38000 Series, they are ready for
most of the products to be introduced in the future.
( 20 / 26 )

4.2 Memory Maps

Memory maps of the MCU and PROM programmers are shown in Figure 4.1 (M5M27C256A mode) and Figure 4.2 (M5M27C101 mode).
00000h
0YY00h 0YY7Fh
0YY80h
0FFFDh 0FFFEh
0FFFFh
Reserved ROM area
Internal ROM area
Reserved ROM area
MCU PROM programmer
00000h
Unused area
0ZZ7Fh 0ZZ80h
Programming area
07FFDh 07FFEh
Unused area
07FFFh
(M5M27C256A mode)
ROM size (Bytes) E1: 4,096 E2: 8,192 E3: 12,288 E4: 16,384 E5: 20,480 E6: 24,576 E7: 28,672 E8: 32,768
Figure 4.1 Memory maps (M5M27C256A mode)
Address YY
F0 E0 D0 C0 B0 A0 90 80
Address ZZ
70 60 50 40 30 20 10
0
( 21 / 26 )
00000h
00000h
0YY00h 0YY7Fh
0YY80h
0FFFDh 0FFFEh
0FFFFh
Reserved ROM area
Internal ROM area
Reserved ROM area
MCU
Unused area
0ZZ7Fh 0ZZ80h
Programming area
0FFFDh 0FFFEh
Unused area
ROM size (Bytes) E1: 4,096 E2: 8,192 E3: 12,288 E4: 16,384 E5: 20,480 E6: 24,576 E7: 28,672 E8: 32,768 E9: 36,864 EA: 40,960 EB: 45,056 EC: 49,152 ED: 53,248 EE: 57,344 EF: 61,440
Address YY
F0 E0 D0 C0 B0 A0 90 80 70 60 50 40 30 20 10
1FFFFh
PROM programmer
(M5M27C101 mode)
Address ZZ
F0 E0 D0 C0 B0 A0 90 80 70 60 50 40 30 20 10
Figure 4.2 Memory maps (M5M27C101 mode)
( 22 / 26 )
Chapter 5. Troubleshooting
Be sure to check the following before seeking technical support.

5.1 Errors That Occur When Writing to PROM

(1) When Newly Purchased

Cause
Is the correct PROM programmer connector selected? Is the adapter attached to the correct position of the PROM
Programming adapter
PROM programmer
Contact failure
programmer? Are the switches on the adapter set correctly? Is the MCU attached to the correct position? Is the area specification set correctly? Is the correct device selected? The IC socket of the PROM programmer may be stained. The
socket needs replacing.

(2) Previously Written Normally

Cause
Is the correct PROM programmer connector selected? Is the adapter attached to the correct position of the PROM
Programming adapter
programmer? Are the switches on the adapter set correctly?
Check point
Check point
See page
10
11
12 14
16, 17, 18
10, 18
-
See page
10
11
12
PROM programmer
Contact failure
Is the MCU attached to the correct position? Is the area specification set correctly? Is the correct device selected? The IC socket of the PROM programmer may be stained. The
socket needs replacing. The connector with which the PROM programmer contacts
may be stained. Clean it with alcohol, etc.
( 23 / 26 )
14
16, 17, 18
10, 18
-
-

5.2 MCU Does Not Function Normally

In the case that the program operates normally on the emulator, but when the MCU that has normally been written is attached the same program does not function normally:
(1) Is the offset address specified correctly when copying data into the PROM programmer? (2) In the emulator, NOPs are often inserted in the area where the program has not been read, therefore
the program happens to appear functioning normally even though it may have gone wild. Check your program again.
(3) The emulator and the actual MCU may differ in characteristics. Consult the user's manual of the
emulation pod to check for differences in characteristics again.

5.3 Other Precautions

(1) About Recommended PROM Programmers

Not all PROM programmers available on the market can be checked to see if they function properly. There are several PROM programmers that we have verified to function properly. These products are listed as recommended PROM programmers in the user's manual. Other PROM programmers may also be used providing that you verified them to function properly.
Note: No matter which type of PROM programmer you use, it is necessary to verify completion of
programming by executing screening, etc. that are stipulated for each microcomputer used.
(2) About Reading Out of the Device Identification Code*
Please do not use the PROM programmer's device identification code readout function. Using this function may break down the MCU. The device identification code is included in EPROM
to indicate the manufacturer code and device code; it is not included in the MCU. *1Depending on PROM programmer manufacturers, this may be referred to by another name (e.g.
ID code).

5.4 How to Request for Support

After checking this manual, fill in the following information and email to your local distributor. For prompt response, please specify the following information: (1) Contact address
• Company name
•Department
• Responsible person
• Phone number
• Fax number
• E-mail address
(2) Product information
• Name of the programming adapter
• Serial number
• Date of purchase
• Target MCU
• Symptoms (Fails blank check/Cannot write a program/Fails verification etc.)
• Detailed symptoms
• How often does the problem occur? (2 out of 10 etc.)
•When did the problem start to occur? (Since purchase/Used to work correctly)
• Type name of the PROM programmer (Advantest R4945A etc.)
• Specified device when writing to PROM (M27C101 etc.)
•Specified programming area when writing to PROM
• Switch settings of the adapter when writing to PROM
1
( 24 / 26 )
PROM Programming Adapter for 38000 Series User's Manual
Rev. 1.00 June 1, 2003 REJ10J0076-0100Z
COPYRIGHT ©2003 RENESAS TECHNOLOGY CORPORATION AND RENESAS SOLUTIONS CORPORATION ALL RIGHTS RESERVED
Loading...
