M3T-100LCC-QSD
Converter Board for Connecting 100D0 to 100P6Q-A, 100P6D-A
User's Manual
• Renesas Technology Corporation and Renesas Solutions Corporation put the maximum effort into making semiconductor products better and more
reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to personal injury, fire or property
damage. Remember to give due consideration to safety when making your circuit designs, with appropriate measures such as (i) placement of substitutive,
auxiliary circuits, (ii) use of nonflammable material or (iii) prevention against any malfunction or mishap.
• These materials are intended as a reference to assist our customers in the selection of the Renesas Technology product best suited to the customer's
application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas Technology Corporation,
Renesas Solutions Corporation or a third party.
• Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, or infringement of any third-party's rights,
originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application examples contained in these materials.
• All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information on products at the
time of publication of these materials, and are subject to change by Renesas Technology Corporation and Renesas Solutions Corporation without notice
due to product improvements or other reasons. It is therefore recommended that customers contact Renesas Technology Corporation, Renesas Solutions
Corporation or an authorized Renesas Technology product distributor for the latest product information before purchasing a product listed herein. The
information described here may contain technical inaccuracies or typographical errors. Renesas Technology Corporation and Renesas Solutions
Corporation assume no responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information
published by Renesas Technology Corporation and Renesas Solutions Corporation by various means, including the Renesas home page (http://
www.renesas.com).
• When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and algorithms, please be sure
to evaluate all information as a total system before making a final decision on the applicability of the information and products. Renesas Technology
Corporation and Renesas Solutions Corporation assume no responsibility for any damage, liability or other loss resulting from the information contained herein.
• Renesas Technology semiconductors are not designed or manufactured for use in a device or system that is used under circumstances in which human
life is potentially at stake. Please contact Renesas Technology Corporation, Renesas Solutions Corporation or an authorized Renesas Technology product
distributor when considering the use of a product contained herein for any specific purposes, such as apparatus or systems for transportation, vehicular,
medical, aerospace, nuclear, or undersea repeater use.
• The prior written approval of Renesas Technology Corporation and Renesas Solutions Corporation is necessary to reprint or reproduce in whole or in part
these materials.
• If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from the Japanese
government and cannot be imported into a country other than the approved destination. Any diversion or reexport contrary to the export control laws and
regulations of Japan and/or the country of destination is prohibited.
• Please contact Renesas Technology Corporation or Renesas Solutions Corporation for further details on these materials or the products contained therein.
Keep safety first in your circuit designs!
Notes regarding these materials
• This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your program you have
finished developing, be sure to make a judgment on your own risk that it can be put to practical use by performing integration test, evaluation, or some
experiment else.
• In no event shall Renesas Solutions Corporation be liable for any consequence arising from the use of this product.
• Renesas Solutions Corporation strives to renovate or provide a workaround for product malfunction at some charge or without charge. However, this does
not necessarily mean that Renesas Solutions Corporation guarantees the renovation or the provision under any circumstances.
• This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not fall under the
application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when used in Japan.
Renesas Tools Homepage http://www.renesas.com/en/tools
Precautions to be taken when using this product
If the requirements shown in the "CAUTION" sentences are ignored,
CAUTION
the equipment may cause personal injury or damage to the products.
Rev. 1.00
July 1, 2003
REJ10J0192-0100Z
( 1 / 4 )
1. Outline
The M3T-100LCC-QSD is a converter board for connecting
100-pin 0.65-mm-pitch LCC (100D0) to 100-pin 0.5-mmpitch LQFP (100P6Q-A or 100P6D-A).
2. Package Components (See Figure 1)
(1) M3T-100LCC-QSD ...................................................x1
(2) TQSOCKET100SDG (Tokyo Eletech Corporation) ............. x1
(3) TQPACK100SD (Tokyo Eletech Corporation) ...................... x1
(4) M3T-100LCC-QSD User's Manual (This manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of IC socket
100P6Q-A or 100P6D-A
(100-pin 0.5-mm-pitch LQFP)
20 times guaranteed
4. Usage (See Figure 2)
The M3T-100LCC-QSD can be used for debugging and
onboard evaluation in common.
(1) For debugging
Mount the TQPACK100SD on the foot pattern of the
target system. And mount the TQSOCKET100SDG and
M3T-100LCC-QSD on it. Then attach the cable of the
emulator to the upper IC socket of the M3T-100LCCQSD.
(1) M3T-100LCC-QSD main unit
(2) TQSOCKET100SDG (3) TQPACK100SD

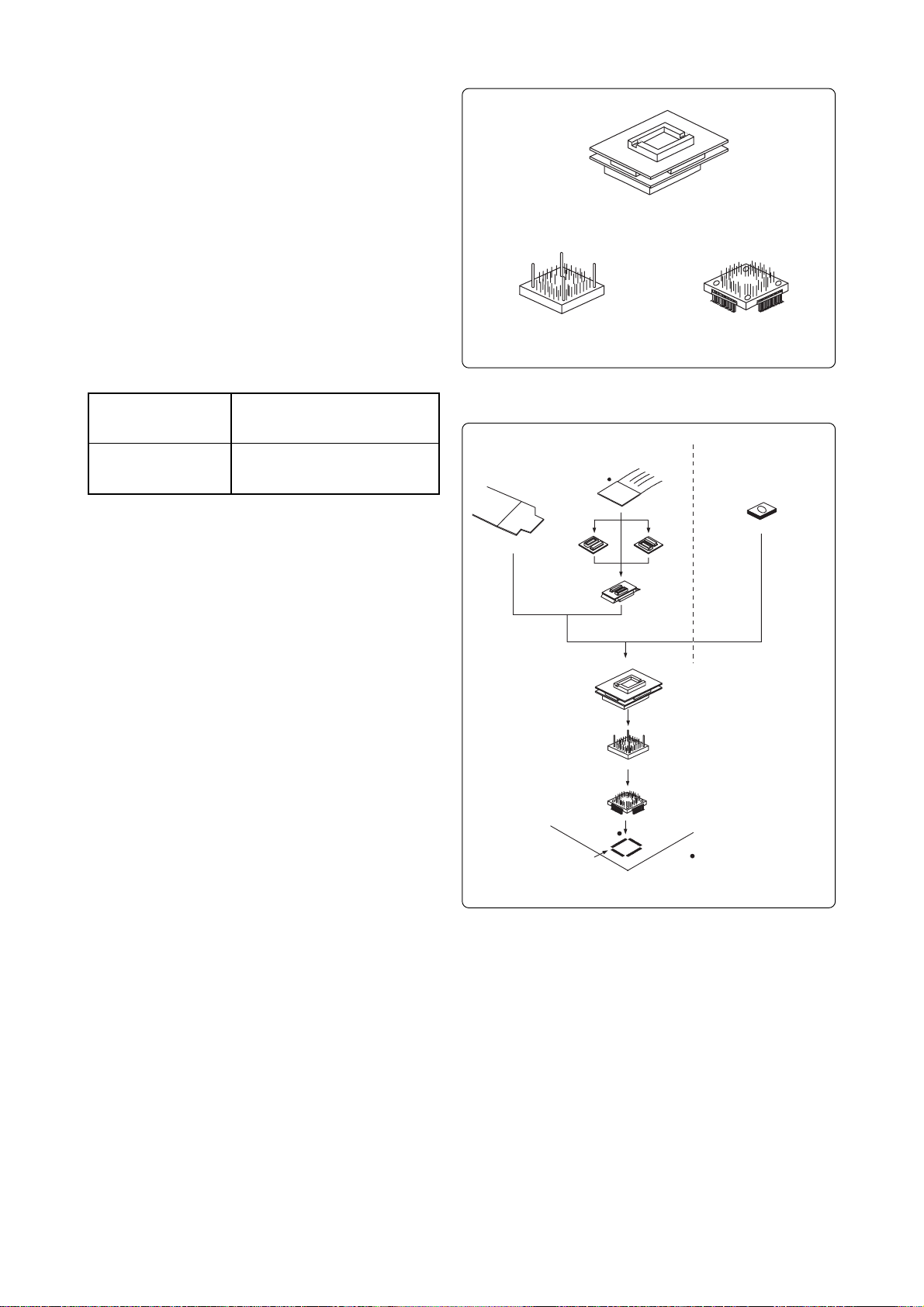

Figure 1 Package component of the M3T-100LCC-QSD
(1) Debugging
FLX100 cable
Cable for 100LCC
M3T-FLX100-T M3T-FLX100-R
M3T-FLX100LCC
(2) Onboard evaluation
MCU (100D0)
M3T-100LCC-QSD
(2) For onboard evaluation
Mount an MCU with EPROM (100D0) on the upper IC
socket of the M3T-100LCC-QSD.
Before using the M3T-100LCC-QSD, be sure to read "7.
Precautions" on page 4.
TQSOCKET100SDG
TQPACK100SD
100-pin 0.5-mm-pitch
(100P6Q-A or 100P6D-A)
foot pattern
: No. 1 pin position
Be sure to align the pins.
Figure 2 Usage of the M3T-100LCC-QSD
( 2 / 4 )
5. Connection Procedure (See Figure 3)
The procedure for connecting the M3T-100LCC-QSD is
shown below.
(1) Mount the TQPACK100SD on the target system.
(2) Attach the TQSOCKET100SDG to the TQPACK100SD.
(3) Attach the M3T-100LCC-QSD to the TQSOCKET100SDG.
M3T-100LCC-QSD
(3)
TQSOCKET100SDG
(2)
TQPACK100SD
(1)
100-pin 0.5-mm-pitch
(100P6Q-A or 100P6D-A)
foot pattern
Figure 3 Connecting procedure
6. External Dimensions and a Sample Foot Pattern
: No. 1 pin position
Be sure to align the pins.
Figure 4 External dimensions of the M3T-100LCC-QSD and its sample foot pattern
( 3 / 4 )
Unit: mm
7. Precautions
IMPORTANT
Cautions to Be Taken for This Product:
•We cannot accept any request for repair.
• To purchase the TQPACK100SD and TQSOCKET100SDG for replacement, contact the following.
Tokyo Eletech Corporation
http://www.tetc.co.jp/e_tet.htm
• For inquiries about this product or the contents of this manual, contact your local distributor.
Renesas Tools Homepage
http://www.renesas.com/en/tools
8. Pin Correspondence
Table 2 Pin correspondence
100-pin
LCC socket
199262451497674
2 100 27 25 52 50 77 75
312826 53 51 78 76
422927 54 52 79 77
533028 55 53 80 78
643129 56 54 81 79
753230 57 55 82 80
863331 58 56 83 81
973432 59 57 84 82
10 8 35 33 60588583
11 9 36 34 61598684
12 10 37 35 62 60 87 85
13 11 38 36 63 61 88 86
14 12 39 37 64 62 89 87
15 13 40 38 65 63 90 88
16 14 41 39 66 64 91 89
17 15 42 40 67 65 92 90
18 16 43 41 68 66 93 91
19 17 44 42 69 67 94 92
20 18 45 43 70 68 95 93
21 19 46 44 71 69 96 94
22 20 47 45 72 70 97 95
23 21 48 46 73 71 98 96
24 22 49 47 74 72 99 97
25 23 50 48 75 73 100 98
TQPACK
100-pin
LCC socket
TQPACK
100-pin
LCC socket
TQPACK
100-pin
LCC socket
TQPACK
( 4 / 4 )
