M38D29T2-RLFS
Emulator MCU Board for 38D2 Group
User’s Manual
CAUTION
Renesas Tools Homepage http://www.renesas.com/tools
Rev.1.00
Jan. 10, 2008
REJ10J1789-0100
If the requirements shown in the "CAUTION" sentences are ignored,
the equipment may cause personal injury or damage to the products.
(1/4)
1. Outline
The M38D29T2-RLFS is an emulator MCU board for the 38D2 Group.
2. Package Components
(1) M38D29T2-RLFS 1 pc.
(2) M38D29T2-RLFS User's Manual (This manual) 1 pc.
(3) M38D29T2-RLFS User's Manual (Japanese) 1 pc.
The M3T-F160-64NSA is included with the M38D29T2-RLFS-FP.
The M3T-F160-64NSD is included with the M38D29T2-RLFS-HP.
For details on the M3T-F160-64NSA and M3T-F160-64NSD, refer to each user’s manual.
3. Specifications
Table 1 Specifications
Emulator
Operation mode Single-chip mode
Max. operating
frequency
Operating power
voltage
M38000T2-CPE
PC4701 + M38000TL2-FPD
Vcc = 4.5 to 5.5V: 12.5MHz (frequency /2 mode)
Vcc = 4.0 to 5.5V: 8.0MHz (frequency/2 mode)
Vcc = 2.0 to 5.5V: 4.0MHz (frequency/2 mode)
Vcc = 1.8 to 5.5V: 2.0MHz (frequency/2 mode)
Vcc = 4.5 to 5.5V: 16.0MHz (frequency /4 mode)
Vcc = 3.1 to 5.5V: 12.5MHz (frequency /4 mode)
Vcc = 2.0 to 5.5V: 8.0MHz (frequency/4 mode)
Vcc = 1.8 to 5.5V: 4.0MHz (frequency/4 mode)
Vcc = 4.5 to 5.5V: 16.0MHz (frequency /8 mode)
Vcc = 2.0 to 5.5V: 12.5MHz (frequency /8 mode)
Vcc = 1.8 to 5.5V: 8.0MHz (frequency/8 mode)
Vcc = 1.8 to 5.5V: Low-speed mode
1.8 to 5.5 V
4. Connecting the User System
M38D29T2-RLFS
64-pin 0.8mm pitch
M3T-F 160- 64NSA
(included)
Figure 1 M38D29T2-RLFS-FP Figure 2 M38D29T2-RLFS-HP
M38D29T2-RLFS
64-pin 0.5mm pitch
M3T - F 160- 64NSD
(included)
(2/4)
5. Connection Procedure
(1) For M38D29T2-RLFS-FP
1 Mount the NQPACK064SA160 to the foot pattern of the user system.
2 Attach the included M3T-F160-64NSA to the M38D29T2-RLFS.
3 Mount the YQPACK064SA on the NQPACK064SA160.
4 Attach the tip of the probe of the emulator to the M38D29T2-RLFS, and connect the M38D29T2-RLFS and YQPACK064SA.
(2) For M38D29T2-RLFS-HP
1 Mount the NQPACK064SD-ND to the foot pattern of the user system.
2 Attach the included M3T-F160-64NSD to the M38D29T2-RLFS.
3 Mount the YQPACK064SD on the NQPACK064SD-ND.
4 Attach the tip of the probe of the emulator to the M38D29T2-RLFS, and connect the M38D29T2-RLFS and YQPACK064SD.
Emulator
(4)
(4)
(3)
(1)
●: No. 1 pin
Be sure to align the pins .
M38D29T2 - RLFS
(2)
M3T-F160-64NSD
YQ- GUIDE (x4)
YQPACK064 SA
NQPACK 064SA160
PLQP0064GA- A (64P6 U-A)
64-pin 0.8mm pitch
foot pattern
Emulator
(4)
(4)
(3)
●: No. 1 pin
Be sure to align the pins.
(1)
M38D29T2 - RLFS
(2)
M3T- F 160-64NSA
YQ- GUIDE (x4)
YQPACK064SD
NQPACK064SD - ND
PLQP0064 KB - A (64P6Q-A)
64-pin 0.5mm pitch
foot pattern

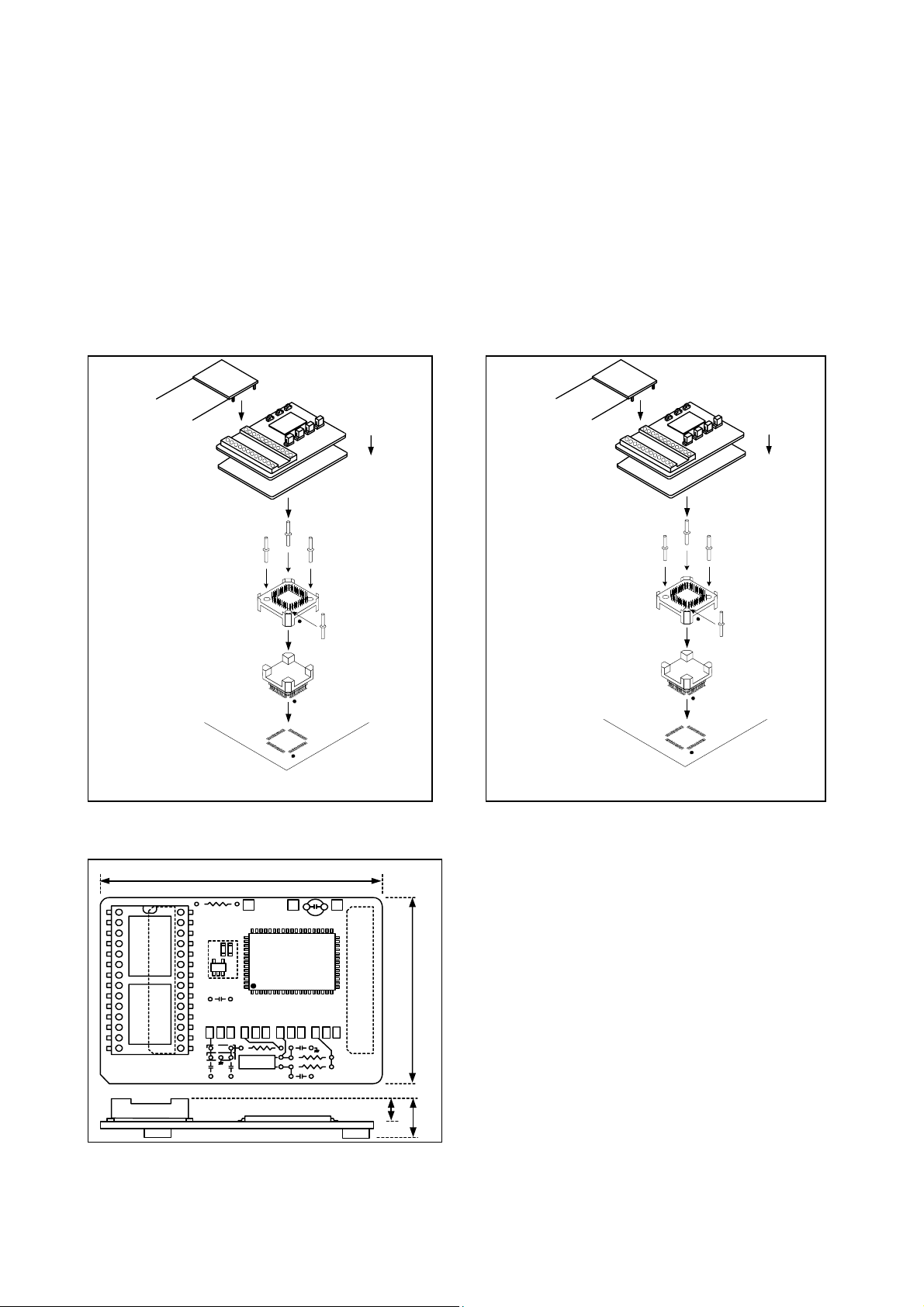

Figure 3 Connection procedure of M38D29T2-RLFS-FP Figure 4 Connection procedure of M38D29T2-RLFS-HP
6. External Dimensions
64. 0
R1
R5R6
C6
Figure 5 External dimensions
GNDRESET
VCC
+
C5
CN2
5.4
45.0
9.2
(3/4)
7. Oscillator Circuit
This product has two oscillator circuit patterns for the main clock XIN and sub-clock XCIN. Figures 6 and 7 show the oscillator
circuit diagram and oscillator circuit pattern, respectively. Select one of them according to the oscillator circuitry of the user system.
(1) When using the internal oscillator circuit of the MCU:
The oscillator circuit on the user system may not oscillate because a converter board is used between the emulator MCU and the
user system. In this case, set the jumper switch to INT and mount an oscillator circuit on the M38D29T2-RLFS’s oscillator
circuit pattern. When using the oscillator circuit on the user system, be sure to set the jumper switch to EXT.
(2) When using an oscillator module IC etc. (self-oscillation):
It is not necessary to mount an oscillator circuit on the M38D29T2-RLFS’s oscillator circuit pattern.
TP3
VCC
TP1
RESET
CN1,CN2
CN2- 5b (VCC)
TP 2
GND
+
C5
IC1
VCC
R1
XCIN XCOUT XIN XOUT
EXT
INT
EXT
INT
R3

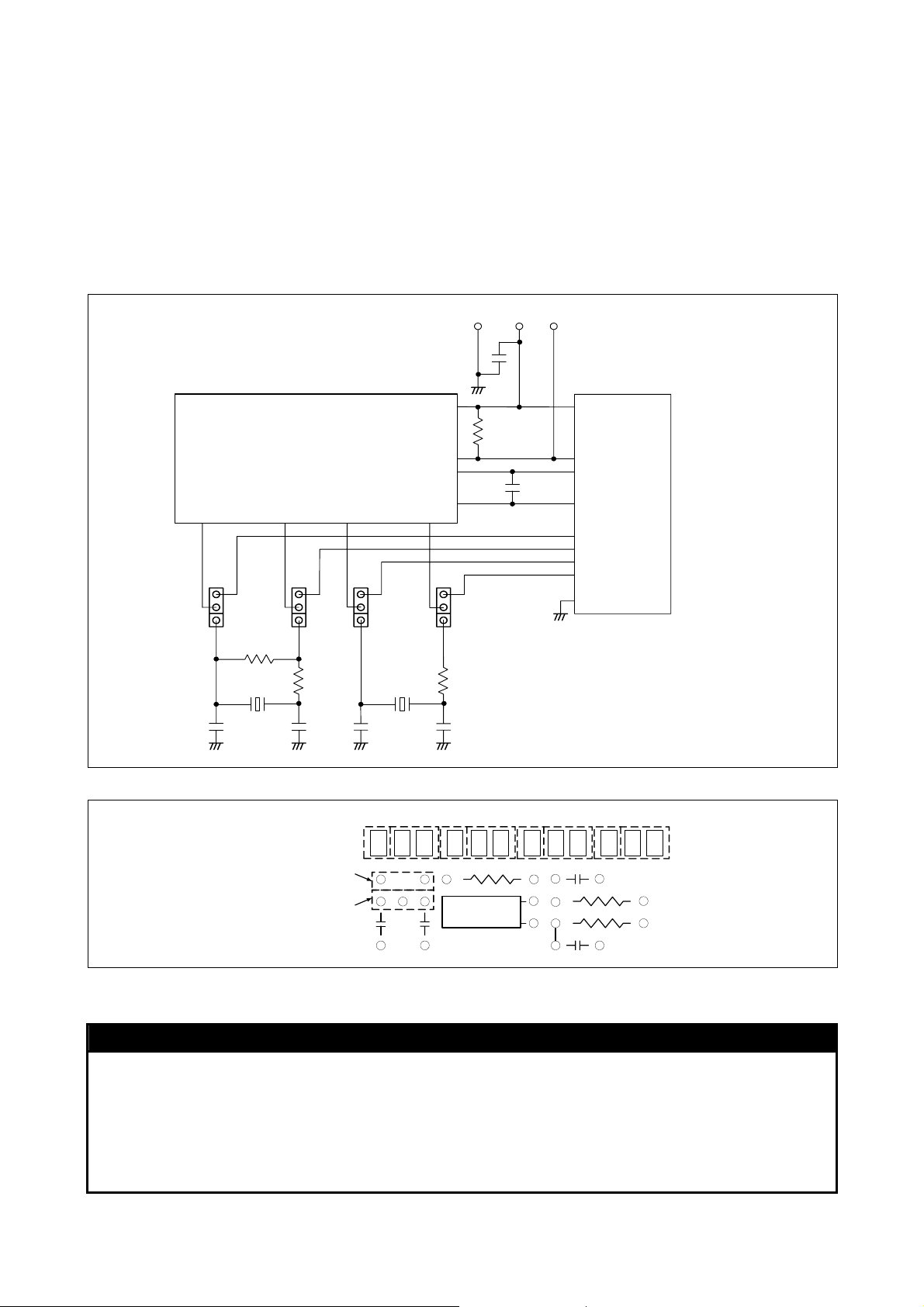

Figure 6 Oscillator circuit diagram
For 2-terminal oscillator
For 3-terminal oscillator
Figure 7 Oscillator circuit pattern
8. Precautions
RESET*
Vref
C6
AVss
JP1 JP2JP3 JP4
EXT
INT
R4
EXT
INT
R2
X1X2
C1 C2C3 C4
CN2- 2b (RESET*)
CN1-12a( Vref)
CN1-12b( AVss)
CN2- 3b ( P61/ Xcin)
CN2- 3a ( P62 / Xcout)
CN2- 4b ( Xin)
CN2- 5a ( Xout )
CN2- 4a ( Vss)
JP2 XOUTJP1 XIN JP3 XCIN JP4 XCOUT
INT EXT INT EXT INT EXT INT EXT
X1
C1 C2
R2
X2
C3
R3
R4
C4
Notes on This Product:
z We cannot accept any request for repair.
z When using the oscillator circuit on the M38D29T2-RLFS, check the output waveform of pins Xout and Xcout by
an oscilloscope.
z When mounting an oscillator circuit on the M38D29T2-RLFS, make sure that 2 mm or more of a DIP pin does not
appear on the rear face (solder side). It may be short-circuited with the DIP pin of the converter board.
z For inquiries about the product or the contents of this manual, contact your local distributor.
Renesas Tools Homepage http://www.renesas.com/tools
