Renesas M38C29T-ADF User Manual

M38C29T-ADF

Temporary Target Board for M38C29RLFS

User’s Manual

 Renesas Technology Corporation and Renesas Solutions Corporation put the maximum effort into making semiconductor products

better and more reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to
personal injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with
appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention
against any malfunction or mishap.

 These materials are intended as a reference to assist our customers in the selection of the Renesas Technology product best suited

to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to
Renesas Technology Corporation, Renesas Solutions Corporation or a third party.

 Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, or infringement of

any third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application
examples contained in these materials.

 All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information

on products at the time of publication of these materials, and are subject to change by Renesas Technology Corporation and
Renesas Solutions Corporation without notice due to product improvements or other reasons. It is therefore recommended that
customers contact Renesas Technology Corporation, Renesas Solutions Corporation or an authorized Renesas Technology product
distributor for the latest product information before purchasing a product listed herein. The information described here may contain
technical inaccuracies or typographical errors. Renesas Technology Corporation and Renesas Solutions Corporation assume no
responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information
published by Renesas Technology Corporation and Renesas Solutions Corporation by various means, including the Renesas home
page (http://www.renesas.com).

 When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and

algorithms, please be sure to evaluate all information as a total system before making a final decision on the applicability of the
information and products. Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any
damage, liability or other loss resulting from the information contained herein.

 Renesas Technology semiconductors are not designed or manufactured for use in a device or system that is used under

circumstances in which human life is potentially at stake. Please contact Renesas Technology Corporation, Renesas Solutions
Corporation or an authorized Renesas Technology product distributor when considering the use of a product contained herein for any
specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.

 The prior written approval of Renesas Technology Corporation and Renesas Solutions Corporation is necessary to reprint or

reproduce in whole or in part these materials.

 If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from

the Japanese government and cannot be imported into a country other than the approved destination. Any diversion or reexport
contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.

 Please contact Renesas Technology Corporation or Renesas Solutions Corporation for further details on these materials or the

products contained therein.

 This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your

program you have finished developing, be sure to make a judgment on your own risk that it can be p ut to practical use by performing
integration test, evaluation, or some experiment else.

 In no event shall Renesas Solutions Corporation be liable for any consequence arising from the use of this product.
 Renesas Solutions Corporation strives to renovate or provide a workaround for product malfunction at some charge or without charge.

However, this does not necessarily mean that Renesas Solutions Corporation guarantees the renovation or the provision under any
circumstances.

 This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not

fall under the application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when
used in Japan.

CAUTION

Renesas Tools Homepage http://www.renesas.com/en/tools

Keep safety first in your circuit designs!

Notes regarding these materials

Precautions to be taken when using this product

If the requirements shown in the "CAUTION" sentences are ignored,
the equipment may cause personal injury or damage to the products.

Rev.1.00
Apr. 19, 2006
REJ10J1356-0100

(1/8)

1. Things to Check When Unpacking

The M38C29T-ADF package consists of the following products. Wh en unpacking your package, check to see that all of these
components are included.
If you find any item missing or faulty, or any suggestion, contact your local distributor.

1.1 Package components

Table

Item
M38C29T-ADF temporary target board

M38C29T-ADF User’s Manual (this manual)

2. Outline

The M38C29T-ADF is a temporary target board used to develop software with a compact emulator M38000T2-CPE or PC4701
emulator system. It supplies to the M38C29RLFS MCU the minimum required signals needed to operate the emulator MCU,
including power supply voltage, clock signals and reset signals. Use it when the user system is not ready.

3. Specifications

Table 3.1 lists the specifications of the M38C29T-ADF.

1 Specifications

Table 3.

Applicable MCU M38C29RLFS
Clock 4.0MHz oscillator mounted (oscillator circuit board OSC-2 used)

32.768kHz (can be disconnected by SW1)
Vcc Supplied separately*
Vss Supplied separately
RESET - Reset circuit mounted (power-on reset and reset switch)

- Connects the reset output of an emulation pod

Width 90mm External dimensions
Depth 115mm

Others Universal part prepared

* Power cannot be supplied from the emulator (e.g. M38000T2-CPE). A separate power supply is needed.

(2/8)

4. Setting Up

This chapter describes how to set up the M38C29T-ADF.

(1) Mount the emulator MCU on the M38C29T-ADF.

After checking the position of the No. 1 pin of the emulator MCU, mount the emulator MCU referencing Figure 4.1.

(2) Insert the connector on the tip of the emulator probe to the socket on the emulator MCU.

For the M38000T2-CPE, the converter board PCA4933 is required between the emulator probe and emulator MCU.

No. 1 pin

M38C29T -ADF

J1

1

IC1

100

1

81

80

Universal part

30

31

51

50

32K

OS C

Vc c

Vss

J3

SW4

XOUT

VREF

SW5

Vc c

NC

RESET

TP4

MADE I N JAPAN

IC3

1

CAUTION

OSC-2

SW1

C6

PORT/ XCIN

Vc c

Figure 4.1 Position of No. 1 pin of the M38C29T-ADF's emulator MCU

TP1

RT
PO

XCI N

SW2

VREF

Vs s

TP2

SW3

c
Vc

CNVs s

J1-21

RESET

TP3

100

5

95

10

90

15

85

20

80

25

7650

Unive r s a l p a r t

30

35

40

45

J2

26

75

70

65

60

55

51

Cautions to Be Taken for This Product:

 Always shut OFF power before connecting this product. The power ON state could destroy internal circuit.

(3/8)

(3) Connect the RESET cable (white) and the GND cable (black) of the emulation pod to the RESET (TP3) pin and Vss (TP2) pin of

the M38C29T-ADF respectively. And connect the Vcc cable (red) to the Vcc (TP1) pin.
(4) Set the MCU type select switch of the M38000T2-CPE to the RLSS side.
(5) Connect a power supply (not included) to the Vcc (TP1) pin of the M38C29T-ADF. And connect the GND output of the power

supply to the Vss (TP2) pin. Use the power supply whose rising time is 10ms or less.

Table 4.1 lists the correspondence of the connector cables and signals, and Figure 4.2 shows the connection pattern.

Table 4.1 Connector cables of the M38000T2-CPE and applicable signals

Cable color Signal
WHITE RESET
BLACK Vss
RED Vcc (SENSE)

Emulator

RLSS/RLFS

WH IT E

BLAC K

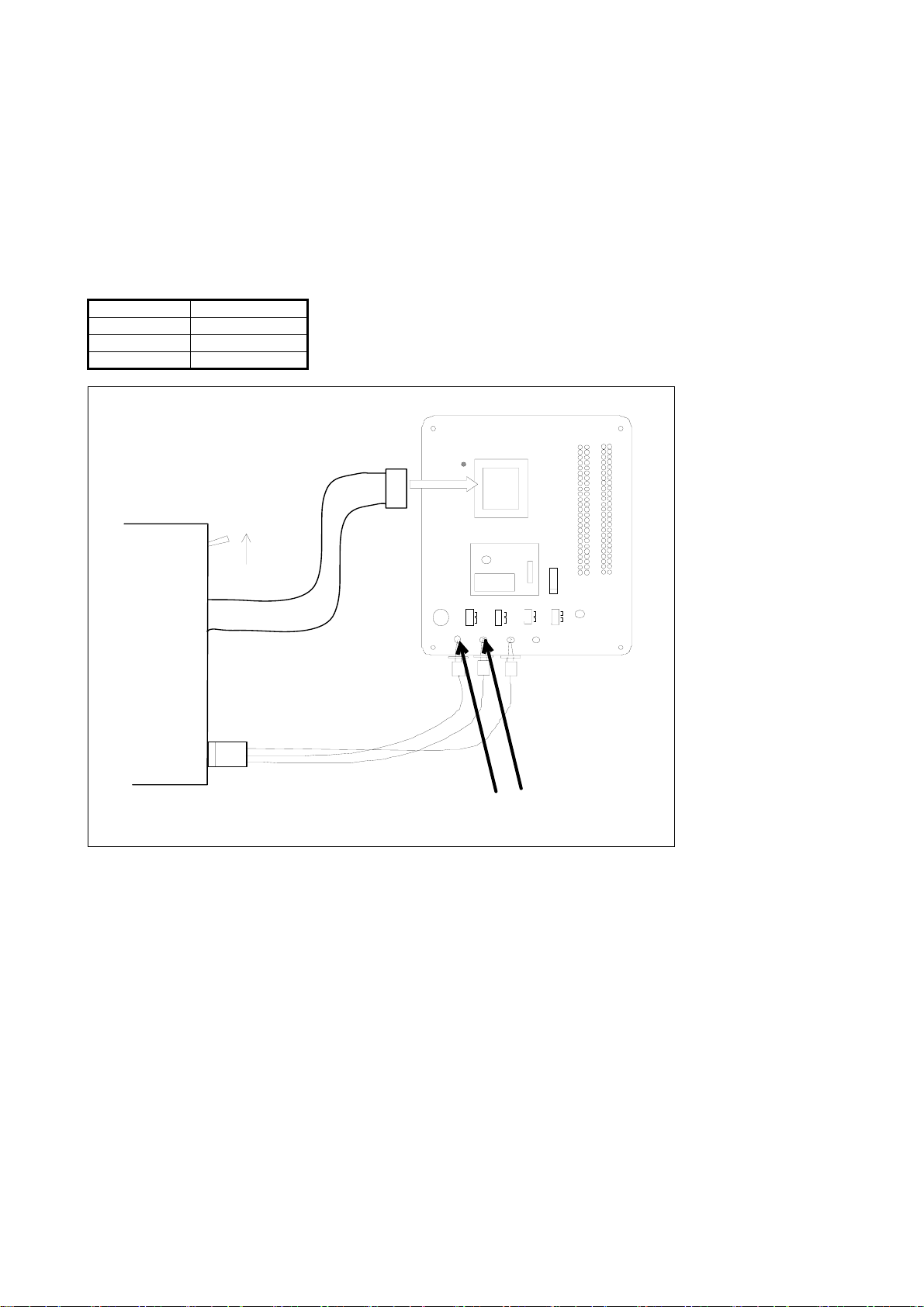

Figure 4.2 Connection pattern of the M38C29T-ADF

IC1

SW2

REV. B

81

80

51

50

C1

SW3

Vc c

CNVss

J1- 21

J1 J2

J3

C5

IC3
1

SW5SW1

SW4

c
Vc

CNVss

Vs s

Vc c NC

RESET

M38C29T- ADF

100

1

30

31

OSC-2

PORT

C6

TP1 TP2 TP3 TP4

PORT/XCINXCI N

VREF

RED

+5V 0V

(4/8)

(6) Setting SW
Set the SW1 to SW4 according to your application. Table 4.2 describes the functions of the SW1 to SW4.

Table 4.2 Functions of the SW1, SW2, SW3 and SW4 of the M38C29T-ADF

No. Name Function Factory-setting
SW1 PORT/XCIN Allows you to choose whether to supply the sub-clock signals (32.768kHz) to the

MCU's XCIN pin (pin 43).
To use P61/XCIN as an output port, choose the PORT side.
To use the sub-clock signals, choose the XCIN side.

SW2 VREF Allows you to choose whether to apply Vcc or some other source to the MCU's VREF

pin (pin 21). In the case of the latter, choose the J1-21 side, and apply a voltage within
a prescribed range to the J1-21.

SW3 CNVss Allows you to choose which to connect, Vcc or Vss, to the MCU's CNVss pin (pin

39).

SW4 XOUT Allows you to choose whether to pull up the MCU's XOUT pin (pin 46).

To use the oscillator circuit of OSC-2 on the temporary target board, or to input the
external clock, set SW4 to Vcc to pull up XOUT pin.
To use the oscillator circuit with a resonator between XIN and XOUT, set SW4 to NC.

PORT

Vcc

Vss

Vcc

(5/8)

5. Oscillator Circuit

5.1 Oscillator Circuit Board

The M38C29T-ADF has a built-in oscillator circuit board on which a 4.0MHz oscillator is mounted.

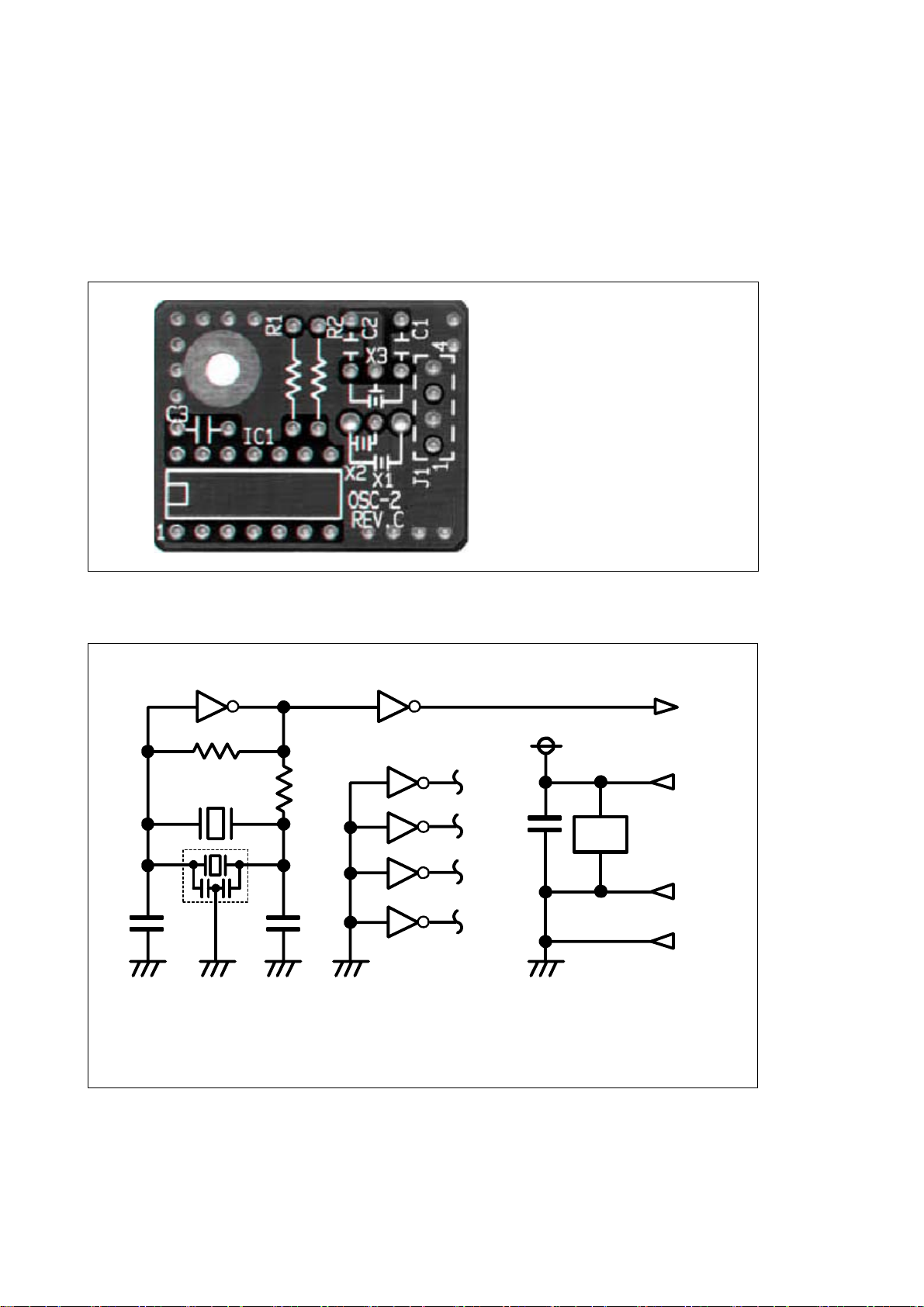

Figure 5.1 shows an external view of the OSC-2 oscillator circuit board (bare board) and where connector pins are located. Figure 5.2
shows the circuitry of the OSC-2 oscillator circuit board (bare board). Use the number of oscillator circuits recommended by the
oscillator manufacturer.

J1-4: GND
J1-3: Oscillation output
J1-2: GND
J1-1: VCC

Figure 5.1 External view of the oscillator board (OSC-2) and connector pin assignment

IC1

IC1

1011 89

R1

21

**

X1 ,X2

R2

43

C3

65

C2

X3

C1

*

1213

IC 1

CLK

J1-3

Vcc

J1-1

14

IC 1

7

J1-2

GND

J1-4

GND

X1:5.08-m m-pitch 2-pin oscillator

*.

X2:2.54-m m-pitch 2-pin oscillator
X3:2.54-m m-pitch 3-pin oscillator

Figure 5.2 Circuit of the oscillator board (OSC-2)

5.2 32.768kHz Oscillator Circuit

The 32.768kHz oscillator circuit is prepared on the M38C29T-ADF. When using the 32.768kHz oscillator circuit as a sub-clock, set
SW1 to the XCIN side.

IC1 :Inverter (Un buffer)

(6/8)

6. Reset Circuit

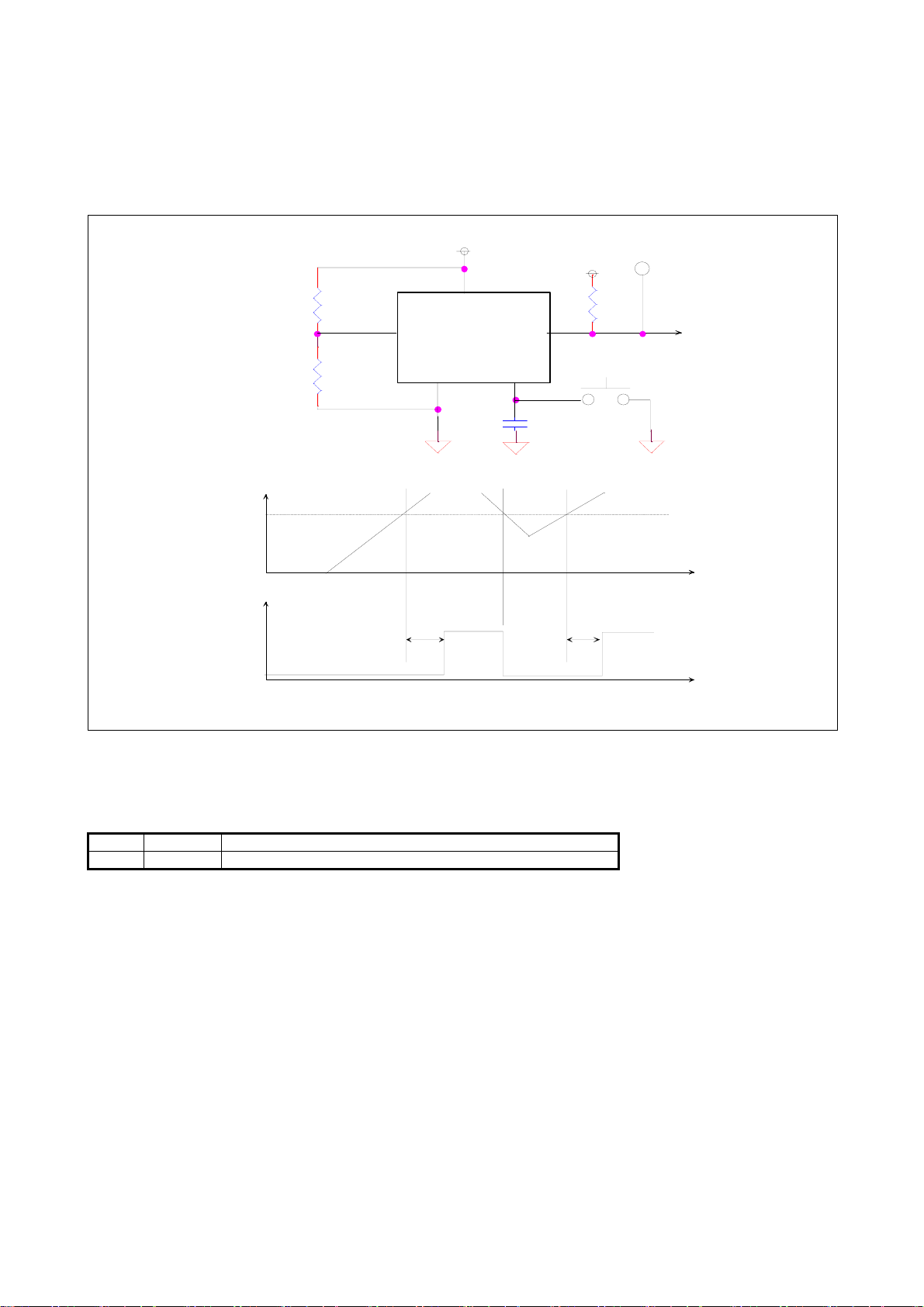

Figure 6.1 shows the reset circuit and its waveform. In this product, reset is cleared in about 100ms from the instant Vcc passes about

2.1V after having started from 0 V. When Vcc drops down to about 2.1V, reset turns effective.

Detected p o wer voltage

Approx. 1.25 x ( R3 + R4 )/ R4

1.25V

Input volage
(IC3-2-pin

H

Output state

(IC3-5-pin

L

）

）

(V)

R3

6.8 K

R4

10K

Vc c

IC3

1

Vc c

2

IN OUT

M51957BL

Vss

3

0.33u F

td td

CD

4

C5

5

ＣＤ

td = 0.34 x CD(pF)usec

Figure 6.1 Reset circuit and its waveform

By using SW5, the MCU can be reset manually.

Table 6.1 Function of SW5 (reset switch)

No. Name Function
SW5 RESET This is the reset switch. Press down this switch to reset the MCU.

R5

10K

SW4

TP3

RESET

MCU RESET

ｔ

ｔ

(7/8)

7. Pin Layout

Figure 7.1 shows the pin layout of the M38C29T-ADF.

J1-1
J1-2
J1-3
J1-4
J1-5

J1-6
J1-7

J1-8
J1-9
J1-10

J1-11

J1-12
J1-13
J1-14

J1-15
J1-16
J1-17
J1-18
J1-19
J1-20

J1-21

J1-22
J1-23
J1-24
J1-25

J2-26
J2-27
J2-28
J2-29
J2-30
J2-31
J2-32
J2-33
J2-34
J2-35
J2-36
J2-37
J2-38
J2-39

J2-40

J2-41

J2-42

J2-43

J2-44

J2-45

J1-21

Vs s

32.768kHz

OSC- 2

4MHz

SW2 VREF

SW3 CNVss

XCI N

Figure 7.1 Pin layout of the M38C29T-ADF

TP3 RESET

RESET I C

TP2 Vs s

4
3
2
1

Vc c

TP4

VRE F

PORT

NC

Vc c

10K

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

22
23
24
25

26
27
28
29
30
31
32

33
34

35
36

37
38

39

40

41

42

43SW1 PORT /XCI N

44

45

IC1

NC
NC
NC
NC
NC
NC

NC
P03
P02
P01
P00
P57
P56
P55
P54
P53
P52
P51
P50

AVs s
VRE F

P47
P46
NC
NC

NC
NC

NC
NC
NC
NC
NC
P45
P44
P43
P42
P41
P40

CNVs s

NC

RESET

P6 2 /XCOUT

P61 / XCIN

Vs s

XI N

NC

NC
P04
P05
P06
P07

P10

P11

P12

P13

P14

P15

P16

P17

P20

P21

P22

P23

NC
NC
NC
NC
NC
NC
NC

NC

NC

P24

P25

P26

P27
VL3

COM1
COM2

COM2
COM3

P30

P31

P32

P33

P34

P35

P36

NC

NC

NC

NC

NC

NC

NC

NC

P37

P60
Vcc

XOUT

100
99
98

97
96

95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76

75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52

51
50

49
48

Vc c

47

SW4 XOUTNC

46

NC

Vc c

TP1

J1-100
J1-99
J1-98

J1-97
J1-96
J1-95
J1-94
J1-93
J1-92
J1-91
J1-90
J1-89
J1-88
J1-87
J1-86
J1-85

J1-84
J1-83
J1-82
J1-81
J1-80

J1-79
J1-78

J1-77
J1-76

J2-75
J2-74
J2-73

J2-72
J2-71
J2-70

J2-69
J2-68
J2-67
J2-66
J2-65

J2-64
J2-63
J2-62
J2-61
J2-60
J2-59
J2-58
J2-57
J2-56
J2-55
J2-54
J2-53
J2-52
J2-51
J2-50
J2-49
J2-48

J2-47

1K

J2-46

(8/8)
