User’s Manual
M3028BT-EPB
User’s Manual
Emulation Probe for M16C/Tiny Series
Rev.2.00 2006.09
Keep safety first in your circuit designs!
1. Renesas Technology Corp. puts the maximum effort into making semiconductor products
better and more reliable, but there is always the possibility that trouble may occur with them.
Trouble with semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the
Renesas Technology Corp. product best suited to the customer's application; they do not
convey any license under any intellectual property rights, or any other rights, belonging to
Renesas Technology Corp. or a third party.
2. Renesas Technology Corp. assumes no responsibility for any damage, or infringement of any
third-party's rights, originating in the use of any product data, diagrams, charts, programs,
algorithms, or circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information on products at the time of publication of these
materials, and are subject to change by Renesas Technology Corp. without notice due to
product improvements or other reasons. It is therefore recommended that customers contact
Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor
for the latest product information before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss
rising from these inaccuracies or errors.
Please also pay attention to information published by Renesas Technology Corp. by various
means, including the Renesas Technology Corp. Semiconductor home page (http://
www.renesas.com).
4. When using any or all of the information contained in these materials, including product data,
diagrams, charts, programs, and algorithms, please be sure to evaluate all information as a
total system before making a final decision on the applicability of the information and
products. Renesas Technology Corp. assumes no responsibility for any damage, liability or
other loss resulting from the information contained herein.
5. Renesas Technology Corp. semiconductors are not designed or manufactured for use in a
device or system that is used under circumstances in which human life is potentially at stake.
Please contact Renesas Technology Corp. or an authorized Renesas Technology Corp.
product distributor when considering the use of a product contained herein for any specific
purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace,
nuclear, or undersea repeater use.
6. The prior written approval of Renesas Technology Corp. is necessary to reprint or reproduce
in whole or in part these materials.
7. If these products or technologies are subject to the Japanese export control restrictions, they
must be exported under a license from the Japanese government and cannot be imported
into a country other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/ or
the country of destination is prohibited.
8. Please contact Renesas Technology Corp. for further details on these materials or the
products contained therein.
M3028BT-EPB User’s Manual Preface
Preface
The M3028BT-EPB is an emulation probe for M16C/Tiny Series MCUs. The M3028BT-EPB is used by connecting to the
PC7501 emulator main unit.
This user's manual mainly describes specifications of the M3028BT-EPB emulation probe and how to setup it. For details on
the following products, which are used with the M3028BT-EPB, refer to each product's user's manual.
All the components of this product are shown in "1.1 Package Components" (page 13). If there is any question or doubt about
this product, contact your local distributor.
The related manuals for using this product are listed below. You can download the latest manuals from the Renesas Tools
homepage (http://www.renesas.com/en/tools).
Related manuals
Item Manual
Emulator main unit PC7501 User’s Manual
Integrated development environment High-performance Embedded Workshop User’s Manual
M16C R8C PC7501 Emulator Debugger User’s Manual Emulator debugger
M3T-PD30F User’s Manual
C compiler C compiler package for the R8C/Tiny, M16C/60, 30, Tiny, 20, and 10 Series
C compiler User's Manual
Assembler C compiler package for the R8C/Tiny, M16C/60, 30, Tiny, 20, and 10 Series
Assembler User's Manual
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 3 of 86
M3028BT-EPB User’s Manual Important
Important
Before using this product, be sure to read this user’s manual carefully.
Keep this user’s manual, and refer to this when you have questions about this product.
Emulator:
The emulator in this document refers to the following products that are manufactured by Renesas Technology Corp.:
(1) PC7501 main unit
(2) Emulation probe
(3) Package converter board for connecting the user system
The emulator herein does not include the customer’s user system and host machine.
Purpose of use of the emulator:
This emulator is a device to support the development of a system that uses the M16C/Tiny Series of Renesas 16-bit single-chip
MCUs. It provides support for system development in both software and hardware.
Be sure to use this emulator correctly according to said purpose of use. Please avoid using this emulator for other than its
intended purpose of use.
For those who use this emulator:
This emulator can only be used by those who have carefully read the user’s manual and know how to use it.
Use of this emulator requires the basic knowledge of electric circuits, logical circuits, and MCUs.
When using the emulator:
(1) This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your program you have
finished developing, be sure to make a judgment on your own risk that it can be put to practical use by performing integration test, evaluation, or some
experiment else.
(2) In no event shall Renesas Solutions Corp. be liable for any consequence arising from the use of this product.
(3) Renesas Solutions Corp. strives to renovate or provide a workaround for product malfunction at some charge or without charge. However, this does not
necessarily mean that Renesas Solutions Corp. guarantees the renovation or the provision under any circumstances.
(4) This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not fall under the
application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when used in Japan.
(5) Renesas Solutions Corp. cannot predict all possible situations or possible cases of misuse where a potential danger exists. Therefore, the warnings
written in this user’s manual and the warning labels attached to this emulator do not necessarily cover all of such possible situations or cases. Please be sure
to use this emulator correctly and safely on your own responsibility.
(6) This product is not qualified under UL or other safety standards and IEC or other industry standards. This fact must be taken into account when taking
this product from Japan to some other country.
(7)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 4 of 86
M3028BT-EPB User’s Manual Important
Usage restrictions:
This emulator has been developed as a means of supporting system development by users. Therefore, do not use it as a device
used for equipment-embedded applications. Also, do not use it for developing the systems or equipment used for the following
purposes either:
(1) Transportation and vehicular
(2) Medical (equipment where human life is concerned)
(3) Aerospace
(4) Nuclear power control
(5) Undersea repeater
If you are considering the use of this emulator for one of the above purposes, please be sure to consult your local distributor.
About product changes:
We are constantly making efforts to improve the design and performance of this emulator. Therefore, the specification or
design of this emulator or its user’s manual may be changed without prior notice.
About the rights:
(1) We assume no responsibility for any damage or infringement on patent rights or any other rights arising from the use of
any information, products or circuits presented in this user’s manual.
(2) The information or data in this user’s manual does not implicitly or otherwise grant a license for patent rights or any other
rights belonging to us or third parties.
(3) This user’s manual and this emulator are copyrighted, with all rights reserved by us. This user’s manual may not be copied,
duplicated or reproduced, in whole or part, without prior written consent of us.
About diagrams:
The diagrams in this user’s manual may not all represent exactly the actual object.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 5 of 86
M3028BT-EPB User’s Manual Precautions for Safety
Precautions for Safety
Definitions of Signal Words
In both the user’s manual and on the product itself, several icons are used to insure proper handling of this product and also to
prevent injuries to you or other persons, or damage to your properties.
This chapter describes the precautions which should be taken in order to use this product safely and properly. Be sure to read
this chapter before using this product.
This symbol represents a warning about safety. It is used to arouse caution about a potential
DANGER
WARNING
CAUTION
CAUTION
IMPORTANT
In addition to the five above, the following are also used as appropriate.
means WARNING or CAUTION.
Example:
danger that will possibly inflict an injury on persons. To avoid a possible injury or death,
please be sure to observe the safety message that follows this symbol.
DANGER indicates an imminently dangerous situation that will cause death or heavy wound
unless it is avoided. However, there are no instances of such danger for the product presented
in this user's manual.
WARNING indicates a potentially dangerous situation that will cause death or heavy wound
unless it is avoided.
CAUTION indicates a potentially dangerous situation that will cause a slight injury or a
medium-degree injury unless it is avoided.
CAUTION with no safety warning symbols attached indicates a potentially dangerous
situation that will cause property damage unless it is avoided.
This is used in operation procedures or explanatory descriptions to convey exceptional
conditions or cautions to the user.
CAUTION AGAINST AN ELECTRIC SHOCK
means PROHIBITION.
Example:
DISASSEMBLY PROHIBITED
means A FORCIBLE ACTION.
Example:
UNPLUG THE POWER CABLE FROM THE RECEPTACLE.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 6 of 86
M3028BT-EPB User’s Manual Precautions for Safety
WARNING
Warnings for AC Power Supply:
z If the attached AC power cable does not fit the receptacle, do not alter the AC power cable and do not plug it
forcibly. Failure to comply may cause electric shock and/or fire.
z Use an AC power cable which complies with the safety standard of the country.
z Do not touch the plug of the AC power cable when your hands are wet. This may cause electric shock.
z This product is connected signal ground with frame ground. If your developing product is transformless (not
having isolation transformer of AC power), this may cause electric shock. Also, this may give an unrepairable
damage to this product and your developing one.
While developing, connect AC power of the product to commercial power through isolation transformer in
order to avoid these dangers.
z If other equipment is connected to the same branch circuit, care should be taken not to overload the circuit.
z When installing this equipment, insure that a reliable ground connection is maintained.
z If you smell a strange odor, hear an unusual sound, or see smoke coming from this product, then disconnect
power immediately by unplugging the AC power cable from the outlet.
Do not use this as it is because of the danger of electric shock and/or fire. In this case, contact your local
distributor.
z Before setting up this emulator and connecting it to other devices, turn off power or remove a power cable to
prevent injury or product damage.
Warnings to Be Taken for This Product:
z Do not disassemble or modify this product. Personal injury due to electric shock may occur if this product is
disassembled and modified. Disassembling and modifying the product will void your warranty.
z Make sure nothing falls into the cooling fan on the top panel, especially liquids, metal objects, or anything
combustible.
Warning for Installation:
z Do not set this product in water or areas of high humidity. Make sure that the product does not get wet. Spilling
water or some other liquid into the product may cause unrepairable damage.
Warning for Use Environment:
z This equipment is to be used in an environment with a maximum ambient temperature of 35°C. Care should be
taken that this temperature is not exceeded.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 7 of 86
M3028BT-EPB User’s Manual Precautions for Safety
CAUTION
Cautions to Be Taken for Turning On the Power:
z Turn ON the power of the emulator and user system as simultaneously as possible. Turn OFF the power of the
emulator and user system as simultaneously as possible.
z Do not leave either the emulator or user system powered on, because of leakage current the internal circuits may
be damaged.
z When turning ON the power again after shutting OFF the power, wait about 10 seconds.
Cautions to Be Taken for Handling This Product:
z Use caution when handling the main unit. Be careful not to apply a mechanical shock.
z Do not touch the connector pins of the emulator main unit and the target MCU connector pins. Static electricity
may damage the internal circuits.
z Do not pull this product by the communications interface cable or the cable for connecting to the emulator main
unit and emulation probe. The cable may cause a break.
z Do not flex the flexible cable for connecting to the emulator main unit and emulation probe excessively. The
cable may cause a break.
z Do not use inch-size screws for this equipment. The screws used in this equipment are all ISO (meter-size) type
screws. When replacing screws, use same type screws as equipped before.
Caution to Be Taken for System Malfunctions:
z If the emulator malfunctions because of interference like external noise, do the following to remedy the trouble.
(1) Press the RESET switch on the PC7501’s front panel.
(2) If normal operation is not restored after step (1), shut OFF power to the emulator once and then reactivate it.
Caution to Be Taken for External Trigger Input Voltage:
z Keep an external trigger input voltage of the emulator main unit less than a VCC voltage. Overvoltage may
cause damage to the internal circuits.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 8 of 86
M3028BT-EPB User’s Manual Contents
Contents
Page
Preface..........................................................................................................................................................................3
Important.......................................................................................................................................................................4
Precautions for Safety ..................................................................................................................................................6
Contents........................................................................................................................................................................9
User Registration ........................................................................................................................................................11
Terminology ................................................................................................................................................................12
1. Outline.....................................................................................................................................................................13
1.1 Package Components ...................................................................................................................................13
1.2 Other Tool Products Required for Development ...........................................................................................14
1.3 System Configuration ....................................................................................................................................15
1.3.1 System Configuration..........................................................................................................................15
1.3.2 Names and Functions of the PC7501 Upper Panel LEDs ..................................................................16
1.4 Specifications ................................................................................................................................................18
1.5 Operating Environment..................................................................................................................................19
2. Setup.......................................................................................................................................................................20
2.1 Flowchart of Starting Up the Emulator ..........................................................................................................20
2.2 Installing the Emulator Debugger ..................................................................................................................21
2.3 Connecting the Host Machine .......................................................................................................................22
2.4 Connecting the PC7501 ................................................................................................................................23
2.5 Connecting the Power Supply for the Emulator ............................................................................................24
2.6 Turning ON the Power...................................................................................................................................25
2.6.1 Checking the Connections of the Emulator System............................................................................25
2.6.2 Turning ON/OFF the Power ................................................................................................................25
2.6.3 LED Display When the PC7501 Starts Up Normally...........................................................................26
2.7 Downloading Firmware..................................................................................................................................27
2.7.1 When It is Necessary to Download Firmware .....................................................................................27
2.7.2 Downloading Firmware in Maintenance Mode....................................................................................27
2.8 Self-check......................................................................................................................................................28
2.8.1 Self-check Procedure..........................................................................................................................28
2.8.2 If an Error is Detected in the Self-check..............................................................................................29
2.9 Connecting the User System.........................................................................................................................30
2.9.1 Connecting to a 42-pin 0.8mm pitch Foot Pattern ..............................................................................31
2.9.2 Connecting to a 48-pin 0.5mm pitch Foot Pattern ..............................................................................32
2.9.3 Connecting to a 64-pin 0.5mm pitch Foot Pattern ..............................................................................33
2.9.4 Connecting to an 80-pin 0.5mm pitch Foot Pattern ............................................................................34
2.9.5 Connecting to a 85-pin 0.65mm pitch Foot Pattern ............................................................................35
2.10 A/D Conversion Bypass Capacitors ............................................................................................................36
2.11 Selecting Clock Supply................................................................................................................................37
2.11.1 Selecting Clock Supply .....................................................................................................................37
2.11.2 Using an Internal Oscillator Circuit Board .........................................................................................37
2.11.3 Using the Oscillator Circuit on the User System ...............................................................................41
2.11.4 Using the Internal Oscillator Circuit...................................................................................................41
3. Usage (Emulator Debugger)...................................................................................................................................42
3.1 Starting Up the Emulator Debugger ..............................................................................................................42

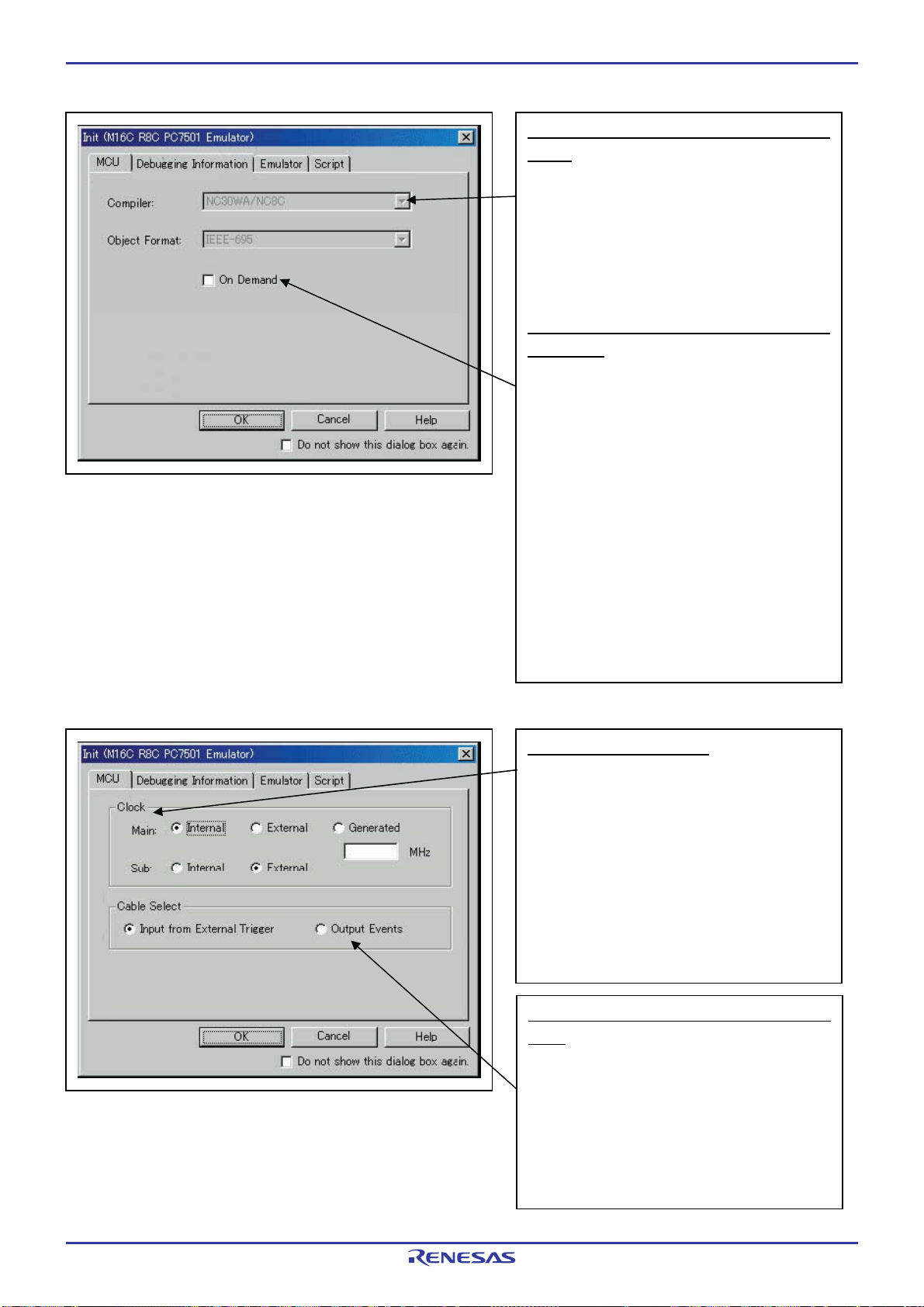

3.1.1 INIT Dialog Box ...................................................................................................................................42
3.1.2 MCU Setting Dialog Box .....................................................................................................................47
3.1.3 Checking Connections of the Emulator System..................................................................................50
3.2 Program Window ...........................................................................................................................................51

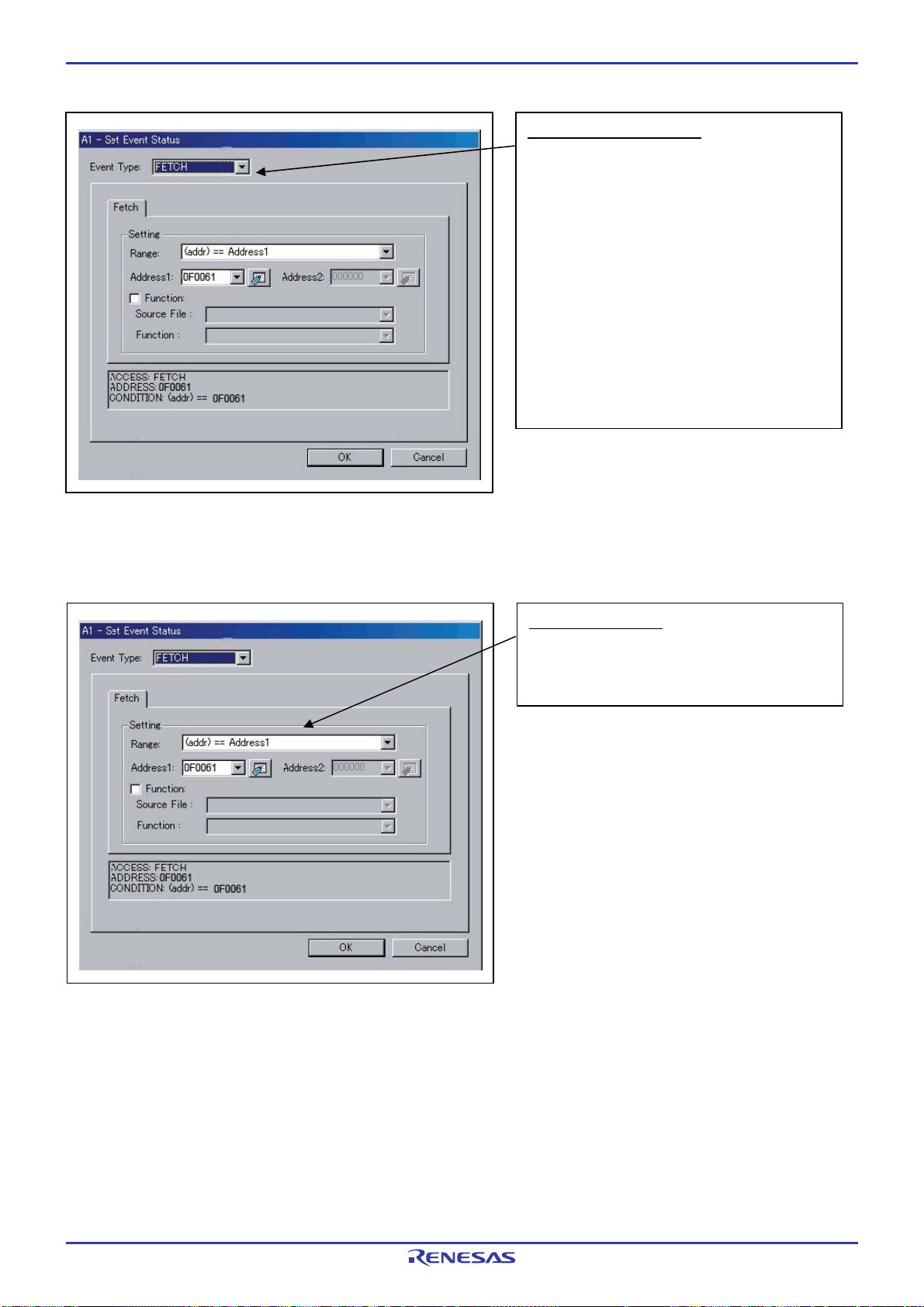

3.3 Hardware Breakpoint Setting Window...........................................................................................................55

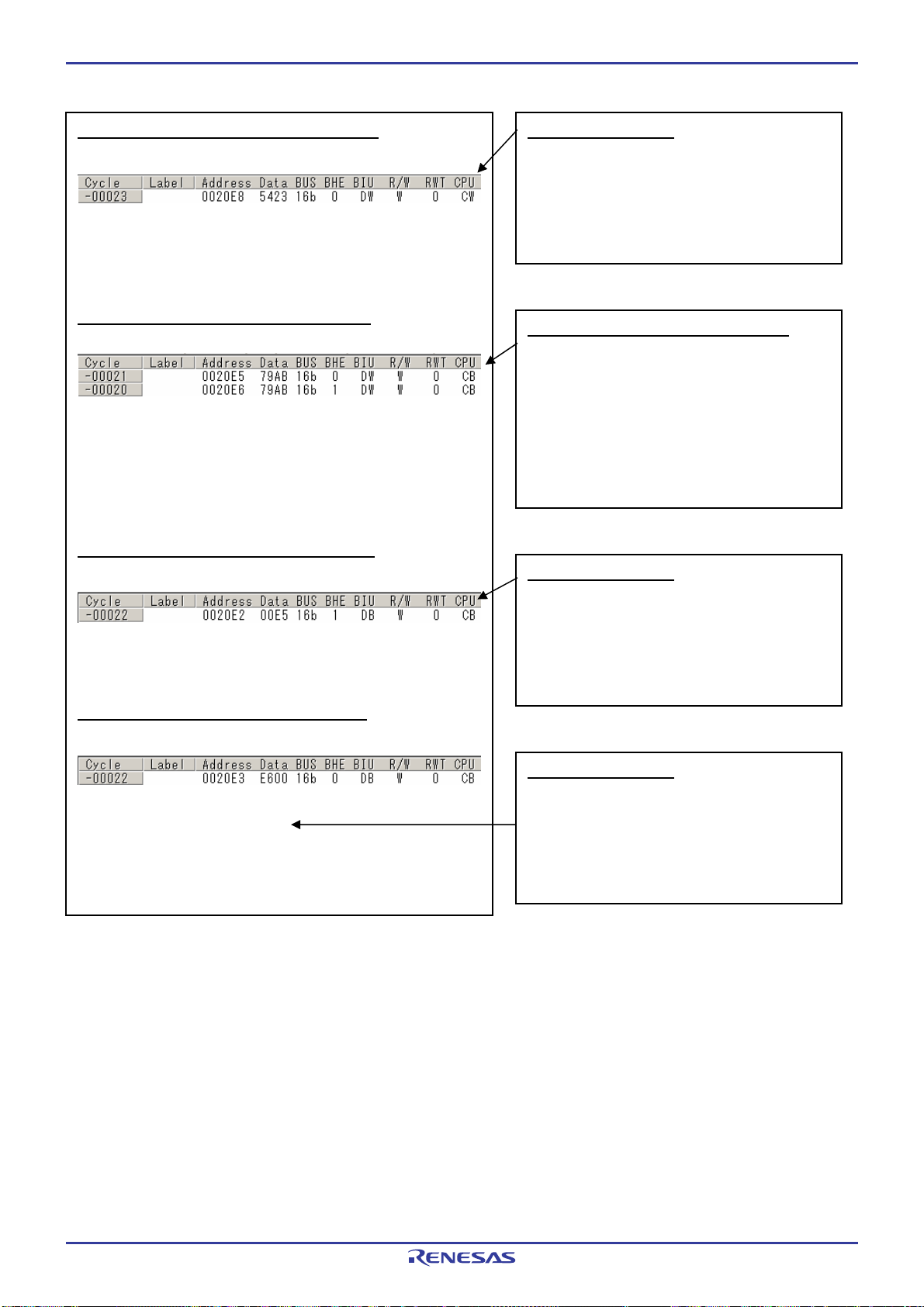

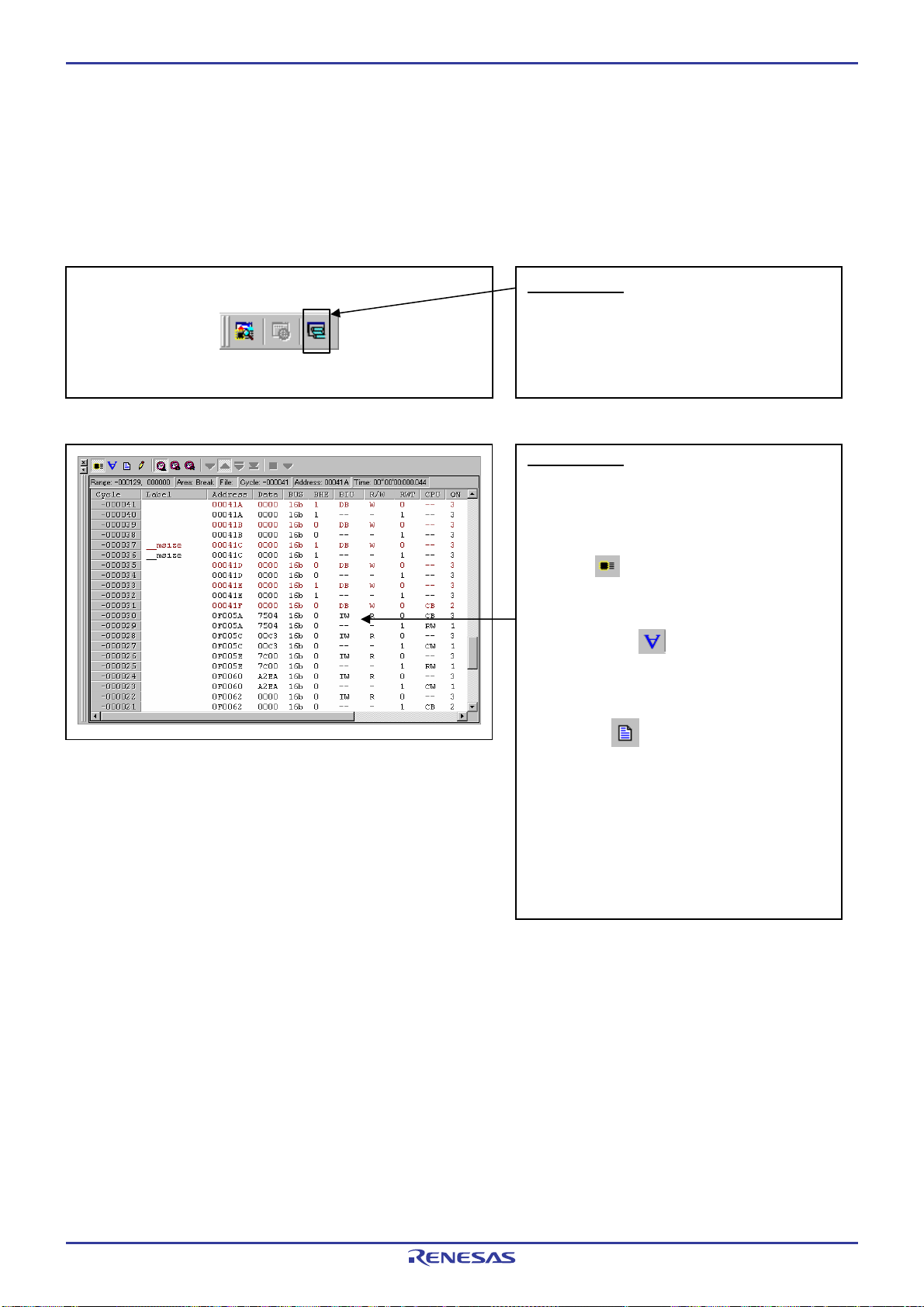

3.4 Trace Window................................................................................................................................................60
3.5 RAM Monitor Window....................................................................................................................................64
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 9 of 86
M3028BT-EPB User’s Manual Contents
Page
4. Hardware Specifications .........................................................................................................................................65
4.1 Target MCU Specifications............................................................................................................................65
4.2 Differences between the Actual MCU and Emulator.....................................................................................66
4.3 Connection Diagrams ....................................................................................................................................68
4.4 External Dimensions......................................................................................................................................69
4.4.1 External Dimensions of the Emulation Probe .....................................................................................69
4.4.2 External Dimensions of the Converter Board M30263T-42SSB.........................................................70
4.4.3 External Dimensions of the Converter Board M30260T-48FPD.........................................................70
4.4.4 External Dimensions of the Converter Board M30291T-64FPD.........................................................71
4.4.5 External Dimensions of the Converter Board M30290T-80FPD.........................................................71
4.4.6 External Dimensions of the Converter Board M30280T-85LGF .........................................................72
4.5 Notes on Using This Product.........................................................................................................................73
5. Troubleshooting ......................................................................................................................................................78
5.1 Flowchart to Remedy the Troubles ...............................................................................................................78
5.2 When the Emulator Debugger Does Not Start Up Properly ..........................................................................79
5.3 How to Request for Support ..........................................................................................................................82
6. Maintenance and Guarantee ..................................................................................................................................83
6.1 User Registration...........................................................................................................................................83
6.2 Maintenance ..................................................................................................................................................83
6.3 Guarantee......................................................................................................................................................83
6.4 Repair Provisions ..........................................................................................................................................83
6.5 How to Make Request for Repair ..................................................................................................................84
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 10 of 86
M3028BT-EPB User’s Manual User Registration
User Registration
When you have purchased the emulator presented in this user's manual, please be sure to register it. As the H/W Tool
Customer Registration Sheet is included with this manual, fill it in and FAX it to your local distributor or email the same
contents to the following address. If you register it by email, you can use a text format for user registration created when
installing the software in the following folder. Your registered information is used for only after-sale services, and not for any
other purposes. Without user registration, you will not be able to receive maintenance services such as a notification of field
changes or trouble information. So be sure to carry out the user registration.
For more information about user registration, please email to the following address.
Text format for user registration C:\Program Files\Renesas\Hew\Support
For user registration regist_tool@renesas.com
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 11 of 86
M3028BT-EPB User’s Manual Terminology
Terminology
Some specific words used in this user's manual are defined as follows:
Emulator system
This means an emulator system built around the PC7501 emulator. The PC7501 emulator system is configured with an
emulator main unit, emulation probe, host machine and integrated development environment High-performance Embedded
Workshop.
Emulator main unit (Hereafter PC7501)
This means an emulator main unit for M16C Family MCUs.
Emulation probe
This means the emulation probe (this product) for the M16C/Tiny Series MCUs.
Emulator debugger
This means a software tool which starts up in the integrated development environment High-performance Embedded
Workshop to control the PC7501 and this product.
Renesas Integrated development environment High-performance Embedded Workshop
This tool provides powerful support for the development of embedded applications for Renesas microcomputers. It has an
emulator debugger function allowing for the PC7501 and emulation probe to be controlled from the host machine via an
interface. Furthermore, it permits a range of operations from editing a project to building and debugging it to be performed
within the same application. What’s more, it supports version management.
Firmware
Program that analyzes contents of communication with the emulator debugger and controls the emulator hardware. This
program is installed in the flash memory in the emulator main unit. This program is downloadable from the emulator debugger
to upgrade the firmware or to support other MCUs.
Host machine
This means a personal computer used to control the emulator main unit and emulation probe.
Software break (S/W break)
A software break is a function to break the program before the system executes an instruction at the specified address. The
instruction at the preset address will not be executed.
Hardware break (H/W break)
A hardware break is a function to break the program when the system detects a write/read of data to/from memory or a
leading/trailing edge of the signal entered from the external trace cable. The former break function is called address break; and
the latter break function is called trigger break. While the instruction at the address where the software break is set is not
executed, a hardware break is performed after the specified instruction is executed.
Target MCU
This means the MCU you are going to debug.
User system
This means a user's application system using the microcomputer to be debugged.
User program
This means the program you are going to debug.
Evaluation MCU
This means the MCU mounted on the emulation probe which is operated in the specific mode for tools.
#
In this user's manual, this symbol is used to show active Low. (e.g. RESET#: Reset signal)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 12 of 86
M3028BT-EPB User’s Manual 1. Outline
1. Outline
This chapter describes the package components, the system configuration and the preparation for using this product for the first
time.
1.1 Package Components
The M3028BT-EPB package consists of the following items. When unpacking it, check to see if your M3028BT-EPB contains
all of these items.
Table 1.1 Package components
Item Quantity
M3028BT-EPB emulation probe 1
OSC-3 (20MHz) oscillator circuit board 1
OSC-2 oscillator circuit bare board 1
H/W Tool Customer Registration Sheet (English) 1
H/W Tool Customer Registration Sheet (Japanese) 1
Repair Request Sheet (English) 1
Repair Request Sheet (Japanese) 1
M3028BT-EPB User’s Manual (this manual) 1
M3028BT-EPB User’s Manual (Japanese) 1
M3028BT-EPB Supplementary Document (English) 1
M3028BT-EPB Supplementary Document (Japanese) 1
* Please keep the M3028BT-EPB's packing box and cushion material in your place for reuse at a later time when sending your
product for repair or other purposes. Always use these packing box and cushion material when transporting this product.
* If there is any question or doubt about the packaged product, contact your local distributor.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 13 of 86
M3028BT-EPB User’s Manual 1. Outline
1.2 Other Tool Products Required for Development
To bring forward programs development on the M16C/Tiny Series MCUs, the products listed below are necessary in addition
to those contained package above. Get them separately.
Table 1.2 Other tool products required for development
Product Product name Notes
Emulator main unit PC7501 -
M16C R8C PC7501 Emulator Debugger V1.01 Release 00 or later Emulator debugger
M3T-PD30F V2.20 Release1 or later
42-pin 0.8mm pitch SSOP
(PRSP0042GA-B,
previous code: 42P2R-E)
48-pin 0.5mm pitch LQFP
(PLQP0048KB-A,
previous code: 48P6Q-A)
64-pin 0.5mm pitch LQFP
(PLQP0064KB-A,
previous code: 64P6Q-A)
80-pin 0.5mm pitch LQFP
(PLQP0080KB-A,
Package converter board
previous code: 80P6Q-A)
85-pin 0.65mm pitch TFLGA
(PTLG0085JB-A,
previous code: 85F0G)
* To purchase these products, contact your local distributor.
M30263T-42SSB
(included with the M3028BT-EPB-1)
M30260T-48FPD
(included with the M3028BT-EPB-2)
M30291T-64FPD
(included with the M3028BT-EPB-3)
M30290T-80FPD
(included with the M3028BT-EPB-4)
M30280T-85LGF
(included with the M3028BT-EPB-5)
Required according to the foot
pattern of the user system.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 14 of 86
M3028BT-EPB User’s Manual 1. Outline
1.3 System Configuration
1.3.1 System Configuration
Figure 1.1 shows a configuration of the M3028BT-EPB system.
(4) Host machine
Host machine interface
(LPT parallel, USB or LAN)
(3) Emulator main unit
PC7501
(2) Package converter board
(1) Emulation probe
M3028BT-EPB
(5) User system
M30290T-80FPD etc.
Figure 1.1 System configuration
(1) Emulation probe M3028BT-EPB (this product)
This emulation probe consists of the interface board PCA7501EPBA for the M16C/Tiny Series and MCU board
M3028BT-EPBM for the M16C/Tiny Series MCUs. The M3028BT-EPBM with an evaluation MCU is separately
available for replacement.
(2) Package converter board M30290T-80FPD etc
This is a converter board for connecting to the MCU foot pattern on the user system. For details, refer to "2.9 Connecting
the User System" (page 30).
(3) Emulator main unit PC7501
The emulator main unit for the M16C family to be used with this product.
(4) Host machine
This is a personal computer for controlling the emulator.
(5) User system
This is your application system. This emulator cannot supply the power to the user system. Therefore design your system
so that the user system is powered separately.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 15 of 86
M3028BT-EPB User’s Manual 1. Outline
1.3.2 Names and Functions of the PC7501 Upper Panel LEDs
Figure 1.2 shows the names of the LEDs on the upper panel of the emulator.
Figure 1.2 Names of the LEDs on the upper panel of the PC7501
(1) System Status LEDs
The system status LEDs indicate the emulator PC7501's power supply, firmware operating status, etc. Table 1.3 lists the
definition of each system status LED.
Table 1.3 Definitions of the system status LEDs
Name Status Meaning
ON Emulator system power supply is turned ON. POWER
OFF Emulator system power supply is turned OFF.
SAFE
ON Emulator system is operating normally.
Flashing
1. The self-check is being executed.
2. Downloaded firmware is being written into memory.
3. If the ERROR LED is flashing on at the same time or alternately, it indicates that the
self-check error occurred.
PC7501 system is not operating normally (system status error).
PC7501 system is not operating normally (system status error).
1. Firmware is being downloaded.
ERROR
OFF
ON
Flashing
2. If the SAFE LED is flashing at the same time or alternately, it indicates that the selfcheck error occurred.
OFF
PC7501 system is operating normally.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 16 of 86
M3028BT-EPB User’s Manual 1. Outline
(2) Target Status LEDs
The target status LEDs indicate the target MCU's operating status and target board's power supply. Table 1.4 lists the definition
of each target status LED.
Table 1.4 Definitions of the target status LEDs
Name Status Meaning
ON Power is supplied to the user system. POWER
OFF Power is not supplied to the user system.
ON Target MCU clock is oscillating. CLOCK
OFF Target MCU clock is not oscillating.
ON Target MCU is being reset, or reset signal of the user system is held low. RESET
OFF Target MCU is not being reset.
ON User program is being executed. RUN
OFF User program has been halted.
ON Address 00000h or 00001h has been read out. WARNING
OFF Address 00000h or 00001h has not been read out.
CAUTION
Note on the Target Status POWER LED:
z If your MCU has two or more VCC pins, the LED does not light unless power is supplied to all the pins.
Note on the Target Status CLOCK LED:
z If the LED is not turned on, check the following.
(1) After powering on the PC7501 (before starting up the emulator debugger):
Make sure that the oscillator circuit board is properly installed in the PC7501 and it is oscillating normally.
(2) After the emulator debugger is started up (after the Init dialog box settings are completed):
Make sure that the oscillator selected in the Init dialog box is oscillating normally.
Note on Accessing Addresses 00000h and 00001h:
z With the M16C/Tiny Series MCUs, when a maskable interrupt is generated, the interrupt data (interrupt number
and interrupt request level) stored in addresses 00000h and 00001h are read out. Also, the interrupt request bit is
cleared when address 00000h or 00001h is read out. Consequently, when the address 00000h or 00001h readout
instruction is executed or when address 00000h or 00001h is read out in the cause of a program runaway, a
malfunction occurs in that the interrupt is not executed despite the interrupt request, because the request bit of
the highest priority interrupt factor enabled is cleared.
For this malfunction, when the reading out to address 00000h or 00001h is generated excluding the interrupt,
the WARNING LED (yellow) on the PC7501 front panel lights up to alarm. When this LED lights, there is a
possibility of read access, therefore check the user program.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 17 of 86
M3028BT-EPB User’s Manual 1. Outline
1.4 Specifications
Tables 1.5 lists the specifications of the M3028BT-EPB.
Table 1.5 M3028BT-EPB specifications (1/2)
Emulator PC7501
Applicable MCU M16C/Tiny Series MCUs
Evaluation MCU M30290FCWP
ROM: 128KB + 4KB, RAM: 12KB
Usable MCU mode Single-chip mode
Max. ROM/RAM capacity (1) Internal flash ROM: 128KB + 4KB
0F000h--0FFFFh, E0000h--FFFFFh, for the maximum operating frequency,
refer to *1.
(2) Internal RAM: 12KB
00400h--033FFh, for the maximum operating frequency, refer to *1.
Maximum operating frequency Power voltage at 4.2 to 5.5V: 24MHz (PLL oscillation at 24MHz products)
Power voltage at 3.0 to 5.5V: 20MHz
Power voltage at 2.7 to 5.5V: 10MHz
Clock oscillator XIN-X
Internal oscillator circuit board
Switchable to external oscillator input or internal generator circuit
X
CIN-XCOUT
Internal oscillator circuit
Switchable to external oscillator input
Operating frequency 2.7 to 5.5 V
Power supply to emulator Supplied from DC power supply of the emulator main unit
Connection to user system For 42-pin 0.8mm pitch SSOP (PRSP0042GA-B, previous code: 42P2R-E):
M30263T-42SSB (included with the M3028BT-EPB-1) (see 2.9 "Connecting the User
System" on page 30)
For 48-pin 0.5mm pitch LQFP (PLQP0048KB-A, previous code: 48P6Q-A):
M30260T-48FPD (included with the M3028BT-EPB-2)
For 64-pin 0.5mm pitch LQFP (PLQP0064KB-A, previous code: 64P6Q-A):
M30291T-64FPD (included with the M3028BT-EPB-3)
For 80-pin 0.5mm pitch LQFP (PLQP0080KB-A, previous code: 80P6Q-A):
M30290T-80FPD (included with the M3028BT-EPB-4)
For 85-pin 0.65mm pitch TFLGA (PTLG0085JB-A, previous code: 85F0G):
M30280T-85LGF (included with the M3028BT-EPB-5)
*1 If “Disable Internal Flash ROM” of the MCU tab in the MCU Setting dialog box is checked, 0 wait access to the MCU
internal flash ROM and MCU internal RAM in the MCU is enabled at 10MHz or less.
:
OUT
(32.768kHz):
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 18 of 86
M3028BT-EPB User’s Manual 1. Outline
1.5 Operating Environment
Be sure to use this emulator with the operating environmental of the emulator and host machine listed in Tables 1.6 and 1.7.
Table 1.6 Operating environmental conditions
Item Description
Operating temperature 5 to 35°C (no dew)
Storage temperature -10 to 60°C (no dew)
Table 1.7 Operating environment of the host machine
Item Description
Host machine IBM PC/AT compatibles
OS Windows 98SE *
Windows Me
Windows XP
Windows 2000
CPU Pentium III 600MHz or more recommended
Memory 128MB or more recommended
Pointing device such as mouse Mouse or any other pointing device usable with the above OS
that can be connected to the main body of the host machine.
* Windows is either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 19 of 86
M3028BT-EPB User’s Manual 2. Setup
2. Setup
This chapter describes the preparation for using this product, the procedure for starting up the emulator and how to change
settings.
2.1 Flowchart of Starting Up the Emulator
The procedure for starting up the emulator is shown in Figure 2.1. For details, refer to each section hereafter. And, when the
emulator does not start up normally, refer to “5. Troubleshooting” (page 78).
Debug a program with various functions of
Figure 2.1 Flowchart of starting up the emulator
Check the package components. Refer to “1.1 Package Components (page 13).
▼
User registration Refer to “User Registration” (page 11).
▼
Install the M16C R8C PC7501
Emulator Debugger.
▼
Connect the host machine.
▼
Connect the M3028BT-EPB to the emulator.
▼
Connect the power supply for the emulator. Connect a power supply for the emulator.
▼
Connect the user system. Connect the user system as occasion demands.
▼
Turning on the power supply.
▼
Check the LED display of the emulator.
▼
Start up the emulator debugger from the
High-performance Embedded Workshop.
▼
Set the operating environment
of the emulator debugger.
▼
the emulator debugger.
Install the M16C R8C PC7501 Emulator Debugger for this product.
Connect the PC7501 to the host machine with the LPT parallel
interface cable, USB interface cable or LAN interface cable.
Set the interface selection switch on the rear panel of the PC7501 to
the using interface.
Connect the M3028BT-EPB and the M3T-FLX160-EPB of the
PC7501.
Turn ON the power to the emulator and the user system as
simultaneously as possible.
Check that the system status LED, and POWER CLOCK, RESET
and WARNING of target status LED are lighting. When the user
system is not connected, the POWER LED does not light up.
Start up the High-performance Embedded Workshop, and start up
the emulator debugger.
Set the INIT dialog box and MCU Setting dialog box of the
emulator debugger.
For how to use the emulator debugger, refer to the emulator
debugger’s online manual.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 20 of 86
M3028BT-EPB User’s Manual 2. Setup
2.2 Installing the Emulator Debugger
If the OS used in your host machine is Windows XP or 2000, this installation must be executed by a user with administrator
rights. Be aware that users without administrator rights cannot complete the installation.
Install the emulator debugger (M16C R8C PC7501 Emulator Debugger) following the procedure described below.
(1) Downloading the emulator debugger
Download the latest M16C R8C PC7501 emulator debugger from the URL below.
http://download.renesas.com/eng/mpumcu/upgrades/in_circuit_emulators/pc7501/index.html
(2) Launching the installer
Start the “setup.exe” program.
(3) Entering the user information
In the “user information” dialog box, enter the user information (contractor, section, contact address, and host machine).
The supplied information will be turned into a format by which technical support will be provided by e-mail.
(4) Completing the installation
A dialog box will be displayed indicating that setup has been completed. It means that the installation you made is
completed.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 21 of 86
M3028BT-EPB User’s Manual 2. Setup
2.3 Connecting the Host Machine
When connecting the emulator PC7501 to a host machine, you can choose your desired interface from LPT parallel interface,
USB interface and LAN interface. Use the interface selection switch on the emulator PC7501's rear panel to specify your
desired interface. Figure 2.2 shows the outline to connect each interface cable.
Figure 2.2 Outline for interface cable connections
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 22 of 86
M3028BT-EPB User’s Manual 2. Setup
2.4 Connecting the PC7501
Figure 2.3 shows how to connect the PC7501 and the emulation probe.
M3T-FLX160-EPB
Emulation probe
Figure 2.3 Connecting the PC7501 and emulation probe
CAUTION
Notes on Connecting the PC7501:
z When connecting the emulation probe, be sure to hold the both sides of the emulation probe horizontally and
insert it directly.
z Always shut OFF power before connecting the emulation probe. Otherwise, internal circuits may be damaged.
IMPORTANT
Note on Connectors of the Converter board:
z The connectors of the emulation probe are guaranteed for only 50 insertion/removal iterations.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 23 of 86
M3028BT-EPB User’s Manual 2. Setup
2.5 Connecting the Power Supply for the Emulator
The power is supplied from AC adapter to the emulator PC7501. Here following explains how to connect the AC adapter.
(1) Turn OFF the power to the PC7501.
(2) Connect the DC cable of AC adapter to the PC7501.
(3) Connect the AC power cable to the AC adapter.
(4) Connect the AC power cable to the receptacle.
CAUTION
Notes on AC Adapter:
z Use only the AC adapter included in PC7501 package.
z The included AC adapter is for PC7501. Do not use it for other product.
z Before installing this equipment or connecting it to other equipment, disconnect the AC power cable from its
outlet to prevent injury or accident.
z The DC plug on the included AC adapter has the below polarity.
z The included AC adapter has no power supply switch. The AC adapter is always active while connecting the
AC power cable. Check if the power is supplied by the LED of AC adapter.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 24 of 86
M3028BT-EPB User’s Manual 2. Setup
2.6 Turning ON the Power
2.6.1 Checking the Connections of the Emulator System
Before turning the power ON, check the connection of the interface cable with host machine, PC7501, emulation probe, and
user system.
2.6.2 Turning ON/OFF the Power
z Turn ON the power of the emulator and user system as simultaneously as possible.
z Turn OFF the power of the emulator and user system as simultaneously as possible.
z Do not leave either the emulator or user system powered on, because of leakage current the internal circuits may be
damaged.
z When turning ON the power again after shutting OFF the power, wait for about 10 seconds.
IMPORTANT
Notes on Power Supply:
z Pin VCC is connected in order to monitor user system voltage. For this reason, the emulator cannot supply
power to the user system. Therefore, provide the user system with a separate power supply.
z The voltage of the user system should be as follows.
2.7 V ≤ VCC ≤ 5.5 V
z Do not change the voltage of the user system after turning on the power.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 25 of 86
M3028BT-EPB User’s Manual 2. Setup
2.6.3 LED Display When the PC7501 Starts Up Normally
Figure 2.4 shows upper panel LED lighting status when the emulator started up properly. Check it when starting up the
emulator system.
- If this LED does not light, check the voltage of the user system.
- Check that power is supplied to all the power pins.
- When the user system is not connected, this LED does not light.
- When this LED lights, check the reset
pin of the user system.
POWER
SAFE
ERROR
SYSTEM
STATUS
LED display when the PC7501
starts up normally
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
POWER
SAFE
ERROR
SYSTEM
STATUS
LED display when powering
on the PC7501 normally
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
: ON
: OFF
: Flashing
Figure 2.4 LED display of the PC7501 when the power turned on
IMPORTANT
Note on the Target Status POWER LED:
z If your MCU has two or more VCC pins, the LED does not light unless power is supplied to all the pins.
Note on the Target Status CLOCK LED:
z If the LED is not turned on, check the following.
(1) After powering on the PC7501 (before starting up the emulator debugger):
Make sure that the oscillator circuit board is properly installed in the PC7501 and it is oscillating normally.
(2) After the emulator debugger is started up (after the Init dialog box settings are completed):
Make sure that the oscillator selected in the Init dialog box is oscillating normally.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 26 of 86
M3028BT-EPB User’s Manual 2. Setup
2.7 Downloading Firmware
2.7.1 When It is Necessary to Download Firmware
It is necessary to download the firmware in the cases listed below. Normally, the following are automatically detected when
the emulator debugger is started up, and the firmware is downloaded.
(1) When you use this product for the first time
(2) When the firmware has been upgraded
(3) When the emulator debugger has been upgraded
(4) When you use this product with a PC7501 which was used with other emulation probe before
If downloading firmware is not completed in the cases below, redownload the firmware.
- When the power is unexpectedly shut down during a download from the emulator debugger
- When a communications interface cable is unexpectedly pulled out
2.7.2 Downloading Firmware in Maintenance Mode
Download the firmware in maintenance mode as explained here following. The user system must not be connected when
downloading the firmware.
(1) Set the interface select switch on the rear panel of the PC7501 to the LPT side and connect the LPT parallel interface cable
to the PC7501 and the host machine.
(2) Within 2 seconds of activating power to the emulator, press the RESET switch on the PC7501 front panel to switch to
maintenance mode.
Switched to maintenance mode, the SAFE SYSTEM STATUS LED begins to flash.
(3) Start up the emulator debugger. When the Init dialog box setup is complete, the dialog which urges to download the
firmware will appear. Download the firmware following messages. Required time for downloading the firmware is about
60 seconds.
POWER
SAFE
ERROR
SYSTEM
STATUS
POWER
SAFE
ERROR
SYSTEM
STATUS
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
POWER
SAFE
ERROR
SYSTEM
STATUS
Maintenance mo de
POWER
SAFE
ERROR
SYSTEM
STATUS
Download complete
Figure 2.5 Downloading firmware in maintenance mode
started
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
: ON
: OFF
: Flashing
POWER
SAFE
ERROR
SYSTEM
STATUS
Downloading firmware
POWER
CLOCK
RESET
RUN
WARNING
TARGET
STATUS
IMPORTANT
Note on Downloading Firmware:
z Do not shut OFF power while the firmware is being downloaded. Doing so, the emulator will not start up
properly. If power is shut OFF by mistake, redownload the firmware in maintenance mode.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 27 of 86
M3028BT-EPB User’s Manual 2. Setup
2.8 Self-check
2.8.1 Self-check Procedure
The self-check is a function to check the memory etc. mounted in the emulator. To run the self-check of the emulator, do so as
explained here below. While the self-check is in progress, the LEDs will change as shown in Figure 2.6. In case of ERRORs 1
to 4, because the target status LEDs will change depending on errors, check the system status LEDs.
(1) If the user system is connected, disconnect it.
(2) Within 2 seconds of activating power to the emulator, press the system reset switch on the emulator front panel to switch
the emulator to maintenance mode.
(3) Check the "SAFE" LED starts flashing and then press the system reset switch again.
(4) The self-check will start. If the normal result is displayed in about 30 seconds, the self-check terminated normally.
POWER
SAFE
ERROR
SYSTEM
STATUS
Maintenance mode
POWER
CLOCK
RESET
RUN
WAR N I N G
TARGET
started
SAFE and ERROR flash
SAFE flashes and
ERROR lights
STATUS
ERROR 1
ERROR 2
normally
POWER
CLOCK
RESET
RUN
WARNI NG
TARGE T
STATUS
POWER
CLOCK
RESET
RUN
WARNI NG
TARGE T
STATUS
POWER
CLOCK
RESET
RUN
WARNI NG
TARGE T
STATUS
POWER
SAFE
ERROR
SYSTEM
STATUS
Self-check terminated
POWER
SAFE
ERROR
SYSTEM
STATUS
Emulation probe and firmware
do not match
POWER
SAFE
ERROR
SYSTEM
STATUS
PC7501 system status error
: ON
: OFF
: Flashing
・When the firmware does not support the emulation probe
・When the emulation probe is not connected properly
・When the PC7501 system is not working properly
ERROR 3
SAFE and ERROR
light alternately
SAFE goes out and
ERROR 4
ERROR lights
Figure 2.6 Self-check procedure
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
error
POWER
CLOCK
RESET
RUN
WARNI NG
TARGE T
STATUS
POWER
CLOCK
RESET
RUN
WARNI NG
TARGE T
STATUS
POWER
SAFE
ERROR
SYSTEM
STATUS
Emulation probe initialization
POWER
SAFE
ERROR
SYSTEM
STATUS
Emulation probe status error
・When a clock is not supplied to the emulation probe
・When the emulation probe is not working properly
Page 28 of 86
M3028BT-EPB User’s Manual 2. Setup
2.8.2 If an Error is Detected in the Self-check
If the self-check does not result normally (ERROR 1 to ERROR 4 in Figure 2.6), check the following.
(1) Recheck the connection of the emulation probe and PC7501.
(2) Redownload the proper firmware.
IMPORTANT
Notes on the Self-check:
z Disconnect the user system before execute the self-check.
z If the self-check does not result normally (excluding user system errors), the emulation probe may be damaged.
Then contact your local distributor.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 29 of 86
M3028BT-EPB User’s Manual 2. Setup
2.9 Connecting the User System
There are eight ways available to connect the emulation probe to user systems as shown in Figure 2.7.
Emulation probe
M3028BT-EPB
42-pin
0.8mm pitch
SSOP
Socket fram e (x2) *1
M3T-SSOP42B-450 *1
M30263T-42SSB
Socket *1
48-pin
0.5mm pitch
LQFP
YQPACK048SD
NQPACK048SD
64-pin
M30260T-48FPD
YQ-GUIDE
(x4) *2
*2
*2
●: No. 1 pin
*1: These products are included with the M30263T-42SSB package.
*2: These products are included with the M30260T-48FPD package.
*3: These products are included with the M30291T-64FPD package.
*4: These products are included with the M30290T-80FPD package.
*5: These products are included with the M30280T-85LGF package.
0.5mm pitch
LQFP
NQPACK064SD-ND
M30291T-64FPD
YQ-GUIDE
(x4) *3
YQPACK064SD
*3
*3
80-pin
0.5mm pitch
NQPACK080SD-ND
M30290T-80FPD
LQFP
YQ-GUIDE
(x4) *4
YQPACK080SD
85-pin
0.65mm pitch
TFLGA
*4
*4
CSSOCKET085B1007RE01
M30280T-85LGF
*5
Figure 2.7 Connection of the M3028BT-EPB and user system
CAUTION
Note on Connecting the User System:
z Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the emulator
and user system.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET and CSPLUG/W are
trademarks of Tokyo Eletech Corporation.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 30 of 86
M3028BT-EPB User’s Manual 2. Setup
2.9.1 Connecting to a 42-pin 0.8mm pitch Foot Pattern
Here following is a procedure of connecting to a 42-pin 0.8mm pitch foot pattern on the user system using the M30263T-
42SSB (included with the M3028BT-EPB-1). For details on the M30263T-42SSB, refer to its user's manual.
(1) Mount the socket main unit included with the M30263T-42SSB to the user system.
(2) Attach the M3T-SSOP42B-450 included with the M30263T-42SSB and the socket frame to the socket main unit.
(3) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(4) Attach the M30263T-42SSB to the M3T-SSOP42B-450.
M3T- FLX 160-EPB
M3028BT-EPB
M30263 T-42 SSB
M30290 T-PTCB
(2 ) On- board evaluation
Socket frame *
Socket frame *
M3T-SSOP42B- 450 *
Socket main unit *
●: No . 1 pin
*: These products are included with the M30263T- 42 SSB package .
Figure 2.8 Connecting to a 42-pin 0.8mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
targets system.
MCU with on- chip
flash memory etc .
42- pin 0.8mm pitch
( PRSP 0042 GA -B ) foot pattern
IMPORTANT
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30263T-42SSB and M3T-SSOP42B-450 are guaranteed for only 50 insertion/removal
iterations.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 31 of 86
M3028BT-EPB User’s Manual 2. Setup
2.9.2 Connecting to a 48-pin 0.5mm pitch Foot Pattern
Here following is a procedure of connecting to a 48-pin 0.5mm pitch foot pattern on the user system using the M30260T-
48FPD (included with the M3028BT-EPB-2). For details on the M30260T-48FPD, refer to its user's manual.
(1) Mount the NQPACK048SD included with the M30260T-48FPD to the user system.
(2) Attach the YQPACK048SD included with the M30260T-48FPD to the NQPACK048SD and secure it with the YQ-
GUIDE's.
(3) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(4) Attach the M30260T-48FPD to the YQPACK048SD.
M3T-FLX160-EPB
M3028BT-EPB
M30260T-48FPD
M30290T-PTCB *
(3)
YQ-GUIDE(×4) *
YQPACK048SD *
NQPACK048SD *
●: No. 1 pin
*: These products are included with the M30260T-48FPD package.
Figure 2.9 Connecting to a 48-pin 0.5mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
targets system.
(4)
(2)
(1)
48-pin 0.5mm pitch
(PLQP0048KB-A) foot pattern
HQPACK048SD
(not included)
MCU with on-chip
flash memory etc.
IMPORTANT
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30260T-48FPD and YQPACK048SD are guaranteed for only 100 insertion/removal
iterations.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 32 of 86
M3028BT-EPB User’s Manual 2. Setup
2.9.3 Connecting to a 64-pin 0.5mm pitch Foot Pattern
Here following is a procedure of connecting to a 64-pin 0.5mm pitch foot pattern on the user system using the M30291T-
64FPD (included with the M3028BT-EPB-3). For details on the M30291T-64FPD, refer to its user's manual.
(1) Mount the NQPACK064SD-ND included with the M30291T-64FPD to the user system.
(2) Attach the YQPACK064SD included with the M30291T-64FPD to the NQPACK064SD-ND and secure it with the YQ-
GUIDE's.
(3) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(4) Attach the M30291T-64FPD to the YQPACK064SD.
M3T-FLX160-EPB
M3028BT-EPB
M30291T-64FPD
M30290T-PTCB *
(3)
YQ-GUIDE (x4) *
YQPACK064SD *
NQPACK064SD-ND *
●: No. 1 pin
*: These products are included with the M30291T-64FPD package.
Figure 2.10 Connecting to a 64-pin 0.5mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
targets system.
(4)
(2)
(1)
64-pin 0.5mm pitch
(PLQP0064KB-A) foot pattern
HQPACK064SD
(not included)
MCU with on-chip
flash memory etc.
IMPORTANT
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30291T-64FPD and YQPACK064SD are guaranteed for only 100 insertion/removal
iterations.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 33 of 86
M3028BT-EPB User’s Manual 2. Setup
2.9.4 Connecting to an 80-pin 0.5mm pitch Foot Pattern
Here following is a procedure of connecting to an 80-pin 0.5mm pitch foot pattern on the user system using the M30290T-
80FPD (included with the M3028BT-EPB-4). For details on the M30290T-80FPD, refer to its user's manual.
(1) Mount the NQPACK080SD-ND included with the M30290T-80FPD to the user system.
(2) Attach the YQPACK080SD included with the M30290T-80FPD to the NQPACK080SD-ND and secure it with the YQ-
GUIDE's.
(3) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(4) Attach the M30290T-80FPD to the YQPACK080SD.
M3T-FLX160-EPB
M30290T-PTCB *
(3)
YQ-GUIDE(×4) *
YQPACK080SD *
NQPACK080SD-ND *
●: No. 1 pin
*: These products are included with the M30290T-80FPD package.
Figure 2.11 Connecting to an 80-pin 0.5mm pitch foot pattern
M3028BT-EPB
(4)
(2)
(1)
M30290T-80FPD
HQPACK080SD
(not included)
MCU with on-chip
flash memory etc.
80-pin 0.5mm pitch
(PLQP0080KB-A) foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
targets system.
IMPORTANT
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30290T-80FPD and YQPACK080SD are guaranteed for only 100 insertion/removal
iterations.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 34 of 86
M3028BT-EPB User’s Manual 2. Setup
2.9.5 Connecting to a 85-pin 0.65mm pitch Foot Pattern
Here following is a procedure of connecting to an 85-pin 0.65mm pitch foot pattern on the user system with the M30280T-
85LGF (included with the M3028BT-EPB-5), and here following is its procedure. For details on the M30280T-85LGF, refer to
its user's manual.
(1) Attach the CSSOCKET085B1007RE01 included with the M30280T-85LGF to the user system.
(2) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(3) Attach the M30280T-85LGF to the CSSOCKET085B1007RE01.
On-board evaluation with actual MCUs
Connecting tools
Top cover (＊)
M3028BT-EPB
LSPACK
(not included)
M30290T-PTCB
(2)
M30280T-85LGF
Spacer (＊)
MCU
(3)
These corners are not round.
●: A1 pin
*: This product is included with the M30280T-85LGF package.
(1)
CSSOCKET085B1007RE01
85-pin 0.65mm pitch
(PTLG0085JB-A) foot pattern
No. A1 pin
(*)
User system
Figure 2.12 Connecting to an 85-pin 0.65mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the emulator
and user system.
IMPORTANT
LSPACK085B1007RE01(＊)
＊: These three products are available in one package.
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30280T-85LGF and CSSOCKET085B1007RE01 are guaranteed for only 100
insertion/removal iterations.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 35 of 86
M3028BT-EPB User’s Manual 2. Setup
2.10 A/D Conversion Bypass Capacitors
There is a foot pattern on the M3028BT-EPBM board for mounting bypass capacitors for the A/D conversion circuit near the
MCU. Mount suitable bypass capacitors as occasion demands. Figure 2.13 shows where they are installed and the
configuration of this product.
Component side of the M3028BT-EPBM
M30290T-EPBM REV.C
AVCC-AVSS bypass capacitor
AV
CC
C1
AVSS
VREF-AVSS bypass capacitor
VREF
C2
AV
SS
Figure 2.13 Foot pattern for A/D conversion bypass capacitors and the configuration of this product
IMPORTANT
Note on the A/D Converter Function:
z Because a package converter board and other devices are used between the evaluation MCU and the user
system, the A/D converter operates differently from that of an actual MCU. Make the final evaluation of the
A/D converter with an actual MCU.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 36 of 86
M3028BT-EPB User’s Manual 2. Setup
2.11 Selecting Clock Supply
2.11.1 Selecting Clock Supply
You can choose a clock supplied to the evaluation MCU by the Emulator tab in the Init dialog box of the emulator debugger.
Table 2.1 shows the clocks and their initial settings.
Table 2.1 Clock supply to the MCU and default settings
Clock Display of emulator debugger Description Default setting
Internal oscillator circuit
(OSC-3 or OSC-2)
Internal generator circuit
(1.0 to 20.0MHz)
Internal oscillator circuit
(32.768 kHz)
Yes
-
-
Main (XIN-X
Sub (X
OUT
CIN-XCOUT
Internal
)
External Oscillator circuit on the user system -
Generated
)
Internal
External Oscillator circuit on the user system Yes
IMPORTANT
Notes on Changing the Clock Supply:
z The clock supply can be set by the Init dialog box when starting up the emulator debugger or inputting CLK
command on the script window.
2.11.2 Using an Internal Oscillator Circuit Board
(1) Kinds of Oscillator Boards
The PC7501 comes with an oscillator circuit board OSC-3 (30MHz). And an oscillator circuit board OSC-3 (20MHz) and an
oscillator circuit bare board OSC-2 are included with this product. If you use an internal oscillator circuit board (20MHz) or
OSC-2 as a main clock, choose "Internal" in the emulator debugger after replacing oscillator circuit boards to change a clock
supplied to an MCU.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 37 of 86
M3028BT-EPB User’s Manual 2. Setup
(2) Replacing an Oscillator Circuit Board
1. Remove the four screws of both sides of this product and lift off the upper cover (see Figure 2.14).
Figure 2.14 Removing the upper cover
REJ10J1459-0200 Rev.2.00 Sep 16, 2006 Page 38 of 86
M3028BT-EPB User’s Manual 2. Setup
2. Unscrew the screw of the oscillator circuit board of the PC7501 and replace it (see Figure 2.15).
The oscillator circuit board of the PC7501 is in the lower right corner of the
board.
Unscrew the screw securing the oscillator circuit board.
Lift off the oscillator circuit board.
Attach another oscillator circuit board to the connector.
Secure the new oscillator circuit board with the screw.
Figure 2.15 Replacing oscillator circuit boards
3. Reinstall the upper cover once removed and secure the four screws of the PC7501.
CAUTION
Note on Removing the Upper Cover:
z Always shut OFF power when removing the upper cover or changing the oscillator circuit board. Otherwise the
internal circuit may be damaged.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 39 of 86
M3028BT-EPB User’s Manual 2. Setup
(3) Using the Oscillator Circuit Bare Board
To use this product at a frequency you like, build a desired oscillator circuit on the included OSC-2 oscillator circuit bare board.
Figure 2.16 shows an external view of the OSC-2 oscillator circuit bare board and the connector pin locations. Figure 2.17
shows the circuitry of the oscillator circuit bare board OSC-2. Use the number of oscillator circuits recommended by the
oscillator manufacturer.
J1-4: GND
J1-3: Oscillation output
J1-2: GND
J1-1: VCC
Figure 2.16 External view of the oscillator board OSC-2 (bare board) and connector pin assignments
IC1
1011 89
IC1
CLK
J1-3
R1
Vcc
J1-1
14
IC1
7
J1-2
GND
J1-4
GND
C2
**
X1 ,X2
X3
21
R2
43
C3
65
*
C1
1213
IC1
X1:5.08mm pitch 2-pin oscillator
*
X2:2.54mm pitch 2-pin oscillator
X3:2.54mm pitch 3-pin oscillator
Figure 2.17 Circuit of the oscillator board OSC-2 (bare board)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
IC1:Inverter (Unbuffer)
Page 40 of 86
M3028BT-EPB User’s Manual 2. Setup
2.11.3 Using the Oscillator Circuit on the User System
To operate this product with an oscillator circuit of the user system, input the oscillator output at 50% duty (within the
operating range of the evaluation MCU) into pin X
as shown in Figure 2.18. Pin X
IN
should be open. Choose "External" in
OUT
the emulator debugger to use this clock.
Figure 2.18 External oscillator circuit
In the oscillator circuit shown in Figure 2.19 where a resonator is connected between pins X
occur because a package converter board is used between the evaluation MCU and the user system. It is same for X
X
.
COUT
and X
IN
, oscillation does not
OUT
CIN
and
Figure 2.19 Circuit in which oscillation does not occur
2.11.4 Using the Internal Oscillator Circuit
The dedicated circuit in the PC7501 can generate any arbitrary frequency specified by the emulator debugger, and it is supplied
as a main clock. It does not depend on either the oscillator circuit board in the PC7501 or the oscillator circuit on the user
system. If you want to debug programs without the user system or change a frequency temporarily, you can check its operation
before preparing an oscillator. If you want to use the internal oscillator circuit of the PC7501 as a main clock, choose
"Generated" in the emulator debugger and specify a frequency you like to use for this clock supplied to an MCU.
Although you can change a frequency between 1.0 and 99.9 MHz by 0.1 MHz for the PC7501, do not specify a value
exceeding the maximum input frequency of the X
of the MCU.
IN
IMPORTANT
Notes on Internal Oscillator Circuit:
z The internal generator circuit is equipped for temporary debugging purposes. Temperature characteristics of
frequencies are not guaranteed.
z Be sure to evaluate your system with an oscillator or oscillator module whose frequency is same as that of the
internal oscillator circuit (internal clock) for final evaluation purposes.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 41 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3. Usage (Emulator Debugger)
This chapter describes how to start up the emulator debugger and how to use the major windows.
3.1 Starting Up the Emulator Debugger
When debugging the completed programs, switch the session. The session can be changed by the drop down list of the tool bar
shown below.
You will have as many sessions created as the number of targets you selected when creating a project, so select the session that
corresponds to the target to be connected from the drop-down list. To connect to the PC7501 and M16C/Tiny emulation probe,
select “SessionM16C_R8C_PC7501_Emulator.”
3.1.1 INIT Dialog Box
After specifying the session, an Init dialog box to connect the target is displayed. The Init dialog box is used to set the items
that need to be set when the emulator debugger starts up. The contents set in this dialog box remain effective the next time you
start the debugger.
When the tab settings of (1) to (4) are completed, click OK button.
(1) MCU tab
1. Specifying the MCU file
Specifying the MCU file
1. Click the “Refer...” button.
2. A file selection dialog box will be displayed, so select the
desired MCU file.
- The MCU file contains the information specific to the
target MCU.
- The MCU file you have selected is displayed in the MCU
section of the MCU tab.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 42 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
2. Specifying the communication interface
Specifying the communication interface
(LPT communication)
- For selecting the LPT communication, click the radio
button “LPT” of the MCU tab.
- For the Type area, specify the LPT interface
communication mode to be used. When you use the
emulator debugger for the first time, select “AUTO”.
- Specify the I/O address of the parallel port at the I/O
address area.
- For BIOS setup, the following addresses are available.
- 378h
- 278h
Specifying the communication interface
(LAN communication)
- For selecting the LAN communication, click the radio
button “LAN” of the MCU tab.
- Specify the IP address of the emulator at the IP address
area.
- Specify the IP address by one byte of decimal number
separating each four bytes with a period.
- Specify the port number at the Port area.
Note:
When you are using the LAN communication for the first
time, connect the emulator through other than LAN
communication interface and set the IP address, or use the
SETIP utility included with your product to set the IP
address.
For details about the SETIP utility, refer to the on-line
manual of your emulator debugger.
Specifying the communication interface
(USB communication)
- For selecting the USB communication, click the radio
button “USB” of the MCU tab
- The emulators connected by USB cable are shown at
Serial No. area.
- Select the serial No. of the emulator you are going to
connect.
Note:
When you are using USB communication for the first time,
you must install the USB driver first.
The USB devices are detected when you turn on the power
for the emulator, and a wizard for installing the
corresponding device driver will automatically be started.
Follow the instructions of the wizard to complete
installation.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 43 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3. Executing the self-check
Executing the self-check
Enable this function when you want the emulator to be self-
checked at startup. Be sure to select the check box only
when you want the emulator to be self-checked at startup.
This function may be enabled in the following cases:
- When you are using the emulator you have just
purchased
- When you successfully download the firmware, but fail
to start up the emulator
- When you want to confirm whether the emulator is
operating normally because, for example, the MCU runs
out of control or something is wrong with the trace
results
This function can be enabled only when you are starting up
the emulator debugger.
4. Using or not using the address match break function
5. Using or not using the CPU rewrite mode
Using or not using the address match break
function
Specify whether or not to use the address match break
function.
- To use the address match break function (default), select
the check box (marked by a check mark when selected).
In this case, the address match interrupt is used by the
emulator, and cannot be used in the user program.
- When not using the address match break function,
deselect the check box (check mark cleared). In this case,
the address match interrupt can be used in the user
program.
This option can be selected or deselected only when you are
starting up the emulator debugger.
Using or not using the CPU rewrite mode
Specify whether or not to debug in CPU rewrite mode. To
debug the user system that uses CPU rewrite mode, select
the check box. This option can be selected or deselected
only when you are starting up the emulator debugger.
Note:
When debugging in CPU rewrite mode is enabled, the
following functions cannot be used while executing the user
program:
- Software breakpoint setting in the internal ROM area
- Execution of COME in the internal ROM area
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 44 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(2) Debugging Information tab
Specifying the compiler used and the object
format
Specify the compiler you are using and the format of the
object file output by the compiler.
- Compiler
Select the compiler you are using.
(By default, the C compiler from Renesas is selected.)
- Object Format
Select the format of the object file that is output by the
compiler you are using.
Specifying the method for storing debug
information
There are two methods for storing debug information: on-
memory method and an on-demand method. Select method
for storing debug information. (By default, the on memory
is selected)
When selecting the on demand method, check the “On
Demand” check box.
- On Memory
Debugging information is stored in the internal memory
of your computer. This method is suitable when the load
module (user program) size is small.
- On Demand
Debugging information is stored in a reusable temporary
file on the hard disk of your computer.
Because the stored debugging information is reused, the
next time you download the same load module it can be
downloaded at high speed. This method is suitable when
the load module (user program) size is large.
(3) Emulator tab
Specifying the target clock
Specify the clock sources supplied to the MCU (main clock
and sub clock). Select the appropriate clock sources
according to the clock used by your target MCU.
- Internal (default)
EmulatorPC7501’s internal clock
- External
User system clock
- Generated
Clock created in PC7501
The option you have specified here remains effective the
next time you start up.
Selecting the event output/trigger input
cable
Select input/output of the event output/trigger input cable of
the PC7501.
- Input from External Trigger (default)
Inputs the external trigger from the cable
- Output Events
Outputs events from the cable
“Input from External Trigger” is set at startup (the previous
setting becomes null).
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 45 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(4) Script tab
Automatically executing a script command
To automatically execute a script command when starting
up the debugger, click the “Refer...” button and specify the
script file to be executed.
Clicking the “Refer...” button brings up a file selection
dialog box. The script file you have selected is displayed in
the Init File: section of the dialog box shown here. If you do
not want to automatically execute a script command, delete
the character string displayed in the Init File: section of the
dialog box.
What you specify here is reflected at only startup. If you
specify back again in the Init dialog box after startup,
whatever you specified has no effect. (Be sure to restart the
emulator debugger.)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 46 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3.1.2 MCU Setting Dialog Box
MCU setting dialog box sets the information of the user system. It will be displayed after closing the Init dialog box.
When the tab settings of (1) to (3) have been finished, click “OK”.
(1) MCU tab
1. MCU setting
Specifying the processor mode
Select the appropriate processor mode that suits your
system. For this product, you can specify only the following
processor mode:
- Single-Chip Mode
Specifying the PM10 area (bit 0 of the
address 00005h)
Select this option when using the MCU in which the data
area access enable bit (PM10) is set to 1.
IMPORTANT
Notes on Selecting a Processor Mode:
z When the user system is connected, the level of pin CNVss of the MCU status should be "L". The MCU status
shows the pin level of the user system.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 47 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
2. Option
Setting the debug options
Specify whether you want to use the internal flash ROM or
the MCU or not.
Check the box when not downloading the program to the
internal flash ROM of the MCU. Initially, this option is
deselected. If this box is checked, the number of write/erase
cycles of the internal flash ROM will be unlimited, and
working efficiency (downloading, software break, etc.) will
be improved because the program is downloaded in the
emulation memory in the PC7501. However, maximum
operating frequency is 10MHz.
3. MCU Status
Referring to the MCU Status
It shows the pin status of the user system.
If the status of any pin is marked “NC”, it means that the pin
status is indeterminate.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 48 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(2) MAP tab
Emulation Memory Allocation as Expansion
Area
With this product, setting of the MAP tab is not required.
(3) Flash Clear tab
Setting to clear the MCU’s internal flash
ROM
Specify whether or not you want the MCU’s internal flash
ROM to be cleared when downloading the user program or
data. (When cleared, the content of the flash ROM is
initialized to 0xFF.) The MCU’s internal flash ROM is
listed in block units.
- Any block which has had its check box selected is not
cleared when downloading. The memory content of this
block remains intact unless overwritten by downloading.
- Any block which has had its check box deselected is
cleared when downloading.
- Click the Select All button, and all blocks will be
selected (marked by a check mark, so that none of the
blocks is cleared when downloading).
- Click the Clear All button, and all blocks will be
deselected (check marks removed, so that all of them are
cleared when downloading).
The option you have specified here remains effective the
next time you start up.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 49 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3.1.3 Checking Connections of the Emulator System
Checking connections of the emulator
system
When the emulator debugger is connected correctly to the
emulator after you have finished setting up the Init dialog
box and the MCU Setting dialog box, you will see a
message “Connected” displayed on the “Debug” tab of the
Output window.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 50 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3.2 Program Window
(1) Downloading the program
1. Downloading from the work space window
Downloading the program
Download the object program you want to debug.
Select Download from “xxx.x30” of “Download module”.
Or you can select “Download module” from the “Debug”
menu for the same effect.
2. Showing the source program
Editor (source) window
The editor (source) window is a window that always shows
the content of the source file corresponding to the current
position of the program counter (hereafter, PC).
The PC position is identified by the yellow background
color. Here, you can execute the program up to the cursor
position, and set or clear software breakpoints.
Because the present emulator uses the MCU’s internal flash
ROM, the initial value for the ROM area data at the time of
purchase is “FFh.”
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 51 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(2) Program execution
1 Resetting the user program
2 Executing the user program (Go)
3 Executing the user program (Go Free)
4 Executing the user program (Reset Go)
CPU reset
Resets the target MCU.
Or you can select “CPU Reset” from “Debug" menu for the
same effect.
Go
Runs the program beginning with the current PC position.
Or you can select “Go” from “Debug" menu for the same
effect.
Go Free
Runs the program beginning with the current PC position.
The software and hardware breaks set in it are ignored.
Reset Go
Runs the program after reset.
Or you can select “Reset Go” from “Debug" menu for the
same effect.
5 Step execution of the user program
6 Stopping the user program
7 Editor (Source) window after you have stopped the user program
Step In
Single-steps the program executing each statement
(including those in functions).
Step Over
Single-steps the program executing each function call as one
step.
Step Out
Exits a function and stops at a statement in the program next
to the one that called the function.
Or you can select “Step Out” or other corresponding
commands from “Debug” menu for the same effect.
STOP
Stops the program.
Or you can select “Stop” from “Debug” menu for the same
effect.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Editor (Source) window
The position at which the user program has stopped is
marked by a yellow arrow.
Page 52 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(3) Setting breakpoints
1. Screen after breakpoint setup
Breakpoint setup screen
There are three types of breakpoints as described below.
- Address match breakpoint (A)
This breakpoint can be set only when you check “Enable
the Address Match Interrupt Break Function.” on the
MCU tab of the Init dialog box.
A breakpoint can be set or cleared by double-clicking in
the address match breakpoint display area in the editor
(source) window. (A blue circle is displayed at the setting
line)
Up to six breakpoints can be set.
The address match break causes the program to stop
before executing the address at which a breakpoint is set.
- Software breakpoint
A software breakpoint can be set or cleared by double-
clicking the software breakpoint display area in the editor
(source) window (A red circle is displayed at the setting
line).
This is rewritten to a break instruction, therefore, because
of rewriting flash ROM, program execution starts with a
delay of several seconds after setting ROM area.
If the breakpoint you set is a software breakpoint, the
program stops before executing the instruction at the set
breakpoint.
- Hardware breakpoint
A hardware breakpoint can be set or cleared by right-
clicking the breakpoint display area.
If the breakpoint you set is a hardware breakpoint, the
program stops after executing the instruction at the set
breakpoint (after several cycles).
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 53 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(4) Executing up to the cursor position (Come command)
1. Specifying the Come command
Setup procedure for executing COME
command
(1) Click the line in the program display area at which you
want the program to execute.
(2) Click the Come button.
2. After the Come command has finished
The cursor stops in the position where the come command
was executed.
The statement specified with the come command is not
executed.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 54 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3.3 Hardware Breakpoint Setting Window
(1) Breakpoint setup dialog box
1. Opening the hardware breakpoint setup dialog box
2. Hardware Break Point Setting Window in initial state
Hardware Break Point
Clicking this button opens the hardware breakpoint setup
dialog box.
H/W Break Points Setting Window in initial
state
Select the “Enable H/W Break” check box, and this break
function will be enabled, allowing you to set hardware
breakpoints.
Setting Break Event
Click the event line at which you want set a break event.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 55 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3. Opening the break event setting dialog box
Specifying the event type
Select the event type that you want to set from the drop-
down list.
- FETCH
Detects an instruction prefetch.
- DATA ACCESS
Detects a memory access.
- BIT SYMBOL
Detects a bit access.
- INTERRUPT
Detects an interrupt occurrence or interrupt termination.
- TRIGGER
Detects a signal from the external trace signal input cable.
(2) When FETCH is selected
1. Window for setting addresses
Setting the address
You can set eight conditions, e.g., a specified address, a
specified address range, etc. When you have finished setting
the address, click OK.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 56 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(3) When DATA ACCESS is selected
1. Window for setting the address
Setting the address
You can set eight conditions, e.g., a specified address, a
specified address range, etc.
2. Window for setting data
Setting data
You can set eight conditions, e.g., a specified data, a
specified data range, etc.
Setting the access condition
You can set three conditions, e.g., read, write, and
read/write. When you have finished setting the data and
access condition, click OK.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 57 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3. Example Data Settings
Event setting for even-address word access
STE.W A0,20E8h(A0=5423h)
High-order and low-order data effective
Event setting for odd-address word access
STE.W A0,20E5h(A0=AB79h)
Odd-address high-order data effective
Even-address low-order data effective
Event setting for even-address byte access
STE.B R0L,[A1A0](R0L=E5h,A1=0000h,A0=20E2h)
Low-order data effective
Event setting for odd-address byte access
STE.B R0L,[A1A0](R0L=E6h,A1=0000h,A0=20E3h)
Setting a break event
A1
Address 1 : 0020E8
Data 1 : 5423
MASK : FFFF
Access : WRITE
Setting a break event (using 2 events)
A1 A2
Address 1 : 0020E5 Address 1 : 0020E6
Data 1 : 7900 Data 1 : 00AB
MASK : FF00 MASK : 00FF
Access : WRITE Access : WRITE
Set the combinatorial events to AND.
Setting a break event
A1
Address 1 : 0020E2
Data 1 : 00E5
MASK : 00FF
Access : WRITE
High-order data effective
Setting a break event
A1
Address 1 : 0020E3
Data 1 : E600
MASK : FF00
Access : WRITE
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 58 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(4) Setting the combinatorial event condition
1. Window for setting the combinatorial event condition
Setting the combinatorial event condition
There are following four conditions that you can choose for
the combinatorial events.
- AND
The program breaks when all of the specified events
occur.
- AND (Same Time)
The program breaks when the specified events occur at
the same time.
- OR
The program breaks when one of the specified events
occurs.
- STATE TRANSITION
The program breaks when the state transition diagram
goes into the break state.
For each event, a pass count (number of passing) is
specifiable (1--255). When “AND (same time)” is specified
for Combination, you can not specify the pass count (fixed
to one).
When you have finished setting the combinatorial event
condition, click the “Set” button.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 59 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3.4 Trace Window
The Trace Window is used to display the results of real-time trace measurement.
(1) Trace window
1. Opening the trace window
2. Trace window
Trace window
Clicking this button opens the trace window.
Or you can select “Trace” from “Trace” of “Display” menu
for the same effect.
Trace window
The trace window is used to show the results of real-time
trace measurements. It has the following three display
modes:
- Bus mode
Bus information per cycle can be inspected. The
contents are displayed in order of execution paths.
- Disassemble mode
The execution paths of the executed instructions can
be inspected. The contents are displayed in order of
execution paths.
- Source mode
The execution paths of the source program can be
inspected.
Operating buttons of the tool bar can reference the
execution paths.
The trace window shows the measurement result when a
real-time trace measurement has finished. The trace window
remains blank until the real-time trace measurement in
progress finishes.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006 Page 60 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3. Trace window (bus display)
Explanation of the trace window (bus
display)
The following explains the displayed contents, from left to
right.
- Cycle
Shows trace cycles. Double-click here to bring up a
dialog box to change the displayed cycle.
- Label
Shows labels corresponding to address bus information.
Double-click here to bring up a dialog box to search for
addresses.
- Address
Shows the status of the address bus.
- Data
Shows the status of the data bus.
- BUS
Shows the width of the external data bus. In the present
emulator, only “16b” for 16 bits wide bus is displayed.
4. Trace window (disassemble display)
5. Trace window (source display)
- BHE
Shows the status (0 or 1) of the BHE (Byte High Enable)
signal. If this signal = 0, the odd-address data is valid.
- BIU
Shows the status between the BIU (Bus Interface Unit)
and memory or I/O.
Symbol Status
– Non-active
DMA Data access by other than the CPU, e.g., by
DMA
INT Starts INTACK sequence
IB Instruction code read by the CPU (in bytes)
DB Data access by the CPU (in bytes)
IW Instruction code read by the CPU (in words)
DW Data access by the CPU (in words)
- R/W
Shows the status of the data bus.
Displayed as “R” for Read, “W” for Write, and “–” for
no access.
- RWT
This is the signal to indicate a valid bus cycle. When
valid, RWT = 0. The Address, Data, and the BIU signals
are effective when this signal is 0.
- CPU
Shows the status between the CPU and BIU (Bus
Interface Unit).
Symbol Status
CB Op-code read (in bytes)
RB Operand read (in bytes)
QC Instruction queue buffer clear
CW Op-code read (in words)
RW Operand read (in words)
- QN
Shows the byte count stored in the instruction queue
buffer. The display range is 0 to 4.
- 76543210
Shows the level of external trace signal input cable
EXTIN0 to EXTIN7.
- h” m’ s: ms. us
Shows the elapsed time after starting the user program.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 61 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
(2) Suspending and resuming trace measurement
1. Suspending trace measurement
Stop
Click this toolbar button to suspend the trace measurement
in progress.
2. Resuming trace measurement
Re-Start
Click this toolbar button to resume the trace measurement in
progress.
(3) Trace point setup dialog box
1. Opening the trace point setup dialog box
Trace Point
Clicking this toolbar button opens the trace point setting
window.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 62 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
2. Trace Point Setting Window in initial state
Trace Point Setting Window in initial state
You can set events in the same way as for the hardware
breakpoints.
Specifying a trace range
You can specify a trace range for the trace event.
- Break
256K cycles of instruction execution before the user
program stopped is recorded.
- Before
256K cycles of instruction execution before a trace point
condition was met is recorded.
- About
128K cycles of instruction execution before and after a
trace point condition was met is recorded.
- After
256K cycles of instruction execution after a trace point
condition was met is recorded.
- Full
256K cycles of instruction execution after a trace began
is recorded.
3. Specifying a trace range
4. Setting the trace write condition
Setting the trace write condition
You can specify a condition for the cycles to be written into
the trace memory.
- Total
All cycles are written into memory.
- Pick up
Only the cycles in which the specified condition was met
are written into memory.
- Exclude
Only the cycles in which the specified condition was not
met are written into memory.
When you have finished setting the trace write condition,
click this button. The Realtime-trace Write Condition dialog
box shown below will appear.
Write mode
Only the cycle in which the specified Start event occurred
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
A range of cycles from when the specified Start event
occurred to when the specified Start event became
nonexistent
A range of cycles from when the specified Start event
occurred to when the specified End event occurred
Page 63 of 86
M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
3.5 RAM Monitor Window
This function allows you to inspect changes of memory contents without impairing the realtime capability of target program
execution. The PC7501 emulator system has 4 Kbytes of RAM monitor area which can be located in any
location or in 16 separate blocks comprised of 256 bytes each.
(1) RAM monitor window
1. Opening the RAM monitor window
contiguous address
2. RAM monitor window
RAM monitor
Clicking this button opens the RAM monitor window.
This window shows changes of memory contents while the
user program is executed. This is accomplished by using the
real-time RAM monitor function, and the memory contents
corresponding to the RAM monitor area are displayed in
dump form. The memory contents displayed here are
updated at given intervals (by default, every 100 ms) during
user program execution.
You can change the manner in which the RAM monitor area
you have set in the above dialog box is displayed.
-
Shows the blocks at the preceding addresses.
- Shows the blocks at the following addresses.
The background colors of the data display and the code
display sections change with the access attribute as
described below.
- Green Addresses accessed for read
- Red Addresses accessed for write
- White Addresses not accessed
The background colors can be changed as necessary.
3. RAM monitor area setting window in initial state
4. RAM monitor area setting dialog box
RAM Monitor Area Setting Window in initial
state
By default, the monitor area is set to 000400h through
0007FFh. To change it, click the “Add…” or “Remove”
button.
It is possible to add, delete and change the RAM monitor
area.
You can change the start address, size (number of blocks) of
the RAM monitor area by selecting the desired RAM
monitor area from the list.
To add a RAM monitor area, click the "Add..." button. The
RAM Monitor Area Setting Window will be displayed.
Specifying the start address
You can set the start address of the RAM area to be
monitored.
Specifying the size
You can set the size to be monitored by specifying the
number of blocks from the start address. One block is 256
bytes in size.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 64 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4. Hardware Specifications
This chapter describes specifications of this product.
4.1 Target MCU Specifications
Table 4.1 lists the specifications of target MCUs which can be debugged with this product.
Table 4.1 Specifications of target MCUs for the M3028BT-EPB
Item Description
Applicable MCU M16C/Tiny Series MCUs
Evaluation MCU M30290FCWP
ROM: 128KB + 4KB, RAM: 12KB
Usable MCU mode Single-chip mode
Max. ROM/RAM capacity (1) Internal flash ROM: 128KB + 4KB
0F000h--0FFFFh, E0000h--FFFFFh, for the maximum operating
frequency, refer to *1.
(2) Internal RAM: 12KB
00400h--033FFh, for the maximum operating frequency, refer to *1.
Maximum operating frequency Power voltage at 4.2 to 5.5V: 24MHz (PLL oscillation at 24MHz products)
Power voltage at 3.0 to 5.5V: 20MHz
Power voltage at 2.7 to 5.5V: 10MHz
*1 If “Disable Internal Flash ROM” of the MCU tab in the MCU Setting dialog box is checked, 0 wait access to the MCU
internal flash ROM and MCU internal RAM in the MCU is enabled at 10MHz or less.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 65 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.2 Differences between the Actual MCU and Emulator
Differences between the actual MCU and emulator are shown below. When debugging the MCU using this product, be careful
about the following precautions.
IMPORTANT
Note on Differences between the Actual MCU and Emulator:
z Operations of the emulator system differ from those of actual MCUs as listed below.
(1) Reset condition
Set the time for starting up (0.2 VCC to 0.8 VCC) 1 μs or less.
(2) Initial values of internal resource data of an MCU at power-on
Initial values are different. Set them in the user program.
(3) Interrupt stack pointer (ISP) after a reset is released
Initial values are different. Set them in the user program.
(4) Capacities of the internal memories (ROM and RAM)
The evaluation MCU of this product has RAM of 12KB (00400h--033FFh) and flash ROM of 4KB
(0F000h--0FFFFh) and 128KB (E0000h--FFFFFh).
The number of write/erase cycles of the internal flash ROM of the MCU is limited. If you use the
emulation memory instead of the internal flash ROM of the evaluation MCU, the number of write/erase
cycles will be unlimited. However, the maximum operating frequency is 10 MHz.
(5) Oscillator circuit
In the oscillator circuit where an oscillator is connected between pins X
occur because a package converter board is used between the evaluation MCU and the user system. For
notes on when using an oscillator circuit on the user system, refer to "2.11.3 Using the Oscillator Circuit on
the User System " (page 41). It is same for pins X
CIN
and X
COUT
.
(6) Xin input when resetting the MCU
With the target MCUs, an oscillator circuit is initialized during reset execution, and an on-chip oscillator is
changed to system clock. Therefore, the emulator system can be operated without a clock to the pin Xin.
With an evaluation MCU, when resetting the MCU, it is necessary to input a clock to the pin Xin before
the emulator control program changes the on-chip oscillator to the system clock.
(7) A/D conversion
The characteristics of the A/D converter differ from those of actual MCU because there are a package
converter board and other devices between the evaluation MCU and the user system.
(8) Operation after releasing the reset
After releasing the reset, for about up to 350 cycles, a program to control the emulator will be executed.
Note that this will have an affect on a user program execution time and tracing result.
Note on RESET# Input:
z A low input to pin RESET# from the user system is accepted only when a user program is being executed (only
while the RUN status LED on the PC7501's upper panel is lit).
Note on NMI# Input:
z A low input to pin NMI# from the user system is accepted only when a user program is being executed (only
while the RUN status LED on the C7501's upper panel is lit).
and X
IN
, oscillation does not
OUT
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 66 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
IMPORTANT
Note on Voltage Detect Circuit:
z As the power voltage cannot be changed after powering on the user system, the voltage detect circuit (voltage
down detect interrupt and hardware reset 2) cannot be used with this product.
Notes on Reset Vector Area:
z Memory in the emulator main unit is always selected as a reset vector area (FFFFCh--FFFFFh) in order to
operate the evaluation MCU in the emulator-dedicated mode. Set the contents of the reset vector area in one of
the following ways.
(1) Download a user program to an area including the reset vector area.
(2) Set the reset vector using a memory window of the emulator debugger etc.
z You can change data in the reset vector area only when the user program is stopped.
z Do not access the reset vector area as data. It may not be accessed properly, and the program may not run
properly in the next bus cycle.
Notes on Stack Area:
z With this product, a maximum 8 bytes of the user stack is consumed as a work area.
Even if the user stack does not have an enough area, do not use areas which cannot be used as a stack (SFR
area, RAM area which stores data, or ROM area) as a work area. Using areas like this is a cause of user
program crashes and destabilized emulator control.
z With this product, the interrupt stack pointer (ISP) is set at 00500h and used as a stack area after a reset is
released.
Notes on Maskable Interrupts:
z Even if a user program is not being executed (including when run-time debugging is being performed), the
evaluation MCU keeps running so as to control the emulation probe. Therefore, timers and other components do
not stop running.
If a maskable interrupt is requested when the user program is not being executed (including when run-time
debugging is being performed), the maskable interrupt request cannot be accepted, because the emulator
disables interrupts. The interrupt request is accepted immediately after the user program execution is started.
z Take note that when the user program is not being executed (including when run-time debugging is being
performed), a peripheral I/O interruption is not accepted.
Note on DMA Transfer:
z With this product, the program is stopped with a loop program to a specific address. Therefore, if a DMA
request is generated while the program is stopped, DMA transfer is executed. However, make note that DMA
transfer while the program is stopped may not be performed correctly. Also note that the below registers have
been changed to generate DMA transfer as explained here even when the program is stopped.
(1) DMA0 transfer counter: TCR0
(2) DMA1 transfer counter: TCR1
Note on Final Evaluation:
z Be sure to evaluate your system with an evaluation MCU. Before starting mask production, evaluate your
system and make final confirmation with a CS (Commercial Sample) version MCU.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 67 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.3 Connection Diagrams
Figures 4.1 shows a connection diagram of the M3028BT-EPB. This connection diagram mainly shows the interface section.
The circuits not connected to the user system such as the emulator's control system are omitted. The signals not shown in
Figure 4.1 connect the evaluation MCU and the user system directly. Table 4.2 shows IC electric characteristics of this product
for reference purposes.
IC11
P00--P07
P10--P17
P20--P27
P30--P37
P60--P67
P70--P77
P90--P93, P95-- P97
P80--P84
P100--P107
P85/NMI#
P86/Xcout
P87/Xcin
510kΩ
74HC4066
*
74HC4066
74HC4066
*
510kΩ
P00-- P07
P10-- P17
P20-- P27
P30-- P37
P60-- P67
P70-- P77
P80-- P84
P90-- P93, P95--P97
P100-- P107
VCC
P85/NMI#
P86/Xcout
VCC
P87/Xcin
User system
Xout
CNVss
RESET#
Xin
Xout
M16C/29
Evaluation MCU
*
*
*
74HC4066
*: Connected to the inside of the emulator.
510kΩ
510kΩ
VCC
VCC
Figure 4.1 Connection diagram (when using M3028BT-EPB)
Table 4.2 Electrical characteristics of the 74HC4066
Symbol Item Condition Unit
Standard values
Min. Standard Max.
RON ON resistor VCC=4.5V - 96 200
ΔRON ON resistor difference VCC=4.5V - 10 -
IOFF Leak current (Off) VCC=12.0V - - ±1
IIZ Leak current (On, output: open) VCC=12.0V - - ±1
Ω
μA
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 68 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.4 External Dimensions
4.4.1 External Dimensions of the Emulation Probe
Figure 4.2 shows external dimensions of the M3028BT-EPB connected with the M30290T-PTCB.
85.0 10.0
60.026.3
Figure 4.2 External dimensions of the emulation probe
Unit: mm
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 69 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.4.2 External Dimensions of the Converter Board M30263T-42SSB
Figure 4.3 shows external dimensions and a sample foot pattern of the converter board M30263T-42SSB (included with the
M3028BT-EPB-1) for a 42-pin 0.8mm pitch SSOP.
35.0
16.00
±0.1
32.06.5
Max9.0
Min14.5
Unit: mm
0.40
+0.1
0
0.80
±0.05
0.28
0.20
0.80
±0.05
±0.05
Figure 4.3 External dimensions and a sample foot pattern of the converter board M30263T-42SSB
4.4.3 External Dimensions of the Converter Board M30260T-48FPD
Figure 4.4 shows external dimensions and a sample foot pattern of the converter board M30260T-48FPD (included with the
M3028BT-EPB-2) for a 48-pin 0.5mm pitch LQFP.
34.0
0.25
0.5
16.5 32.0
7.0
10.0
Figure 4.4 External dimensions and a sample foot pattern of the converter board M30260T-48FPD
7.0
Unit: mm
10.0
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 70 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.4.4 External Dimensions of the Converter Board M30291T-64FPD
Figure 4.5 shows external dimensions and a sample foot pattern of the converter board M30291T-64FPD (included with the
M3028BT-EPB-3) for a 64-pin 0.5mm pitch LQFP.
36.0
0.25
10.0
14.0
0.5
16.5 32.0
10.0
14.0
Unit: mm
Figure 4.5 External dimensions and a sample foot pattern of the converter board M30291T-64FPD
4.4.5 External Dimensions of the Converter Board M30290T-80FPD
Figure 4.6 shows external dimensions and a sample foot pattern of the converter board M30290T-80FPD (included with the
M3028BT-EPB-4) for an 80-pin 0.5mm pitch LQFP.
41.0
0.25
32.016.5
11.1
15.1
0.5
11.1
15.1
Unit: mm
Figure 4.6 External dimensions and a sample foot pattern of the converter board M30290T-80FPD
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 71 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.4.6 External Dimensions of the Converter Board M30280T-85LGF
Figure 4.7 shows external dimensions and a sample foot pattern of the converter board M30280T-85LGF (included with the
M3028BT-EPB-5) for an 80-pin 0.65mm pitch TFLGA.
25.0
5.85
0.65
1.30
4-φ0.8±0.03 (holes for guide pins)
32.0
M30280T-85LGF
REV.A
MADE IN JAPAN
7.0
(pad diameter)
0.27
85-φ0.35
0.27
Diameter of recommended metal mask: φ0.35,
thickness: 0.15
Figure 4.7 External dimensions and a sample foot pattern of the converter board M30280T-85LGF
0.65
5.85
1.30
Unit: mm
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 72 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
4.5 Notes on Using This Product
Notes on using this product are listed below. When debugging the MCU using this product, be careful about the following
precautions.
IMPORTANT
Note on the Version of the Emulator Debugger:
z Be sure to use this product with one of the following emulator debuggers.
(1) M16C R8C PC7501 Emulator debugger V.1.01 Release 00 or later
(2) M3T-PD30F V2.20 Release 1 or later.
Notes on Downloading Firmware:
z Before using this product for the first time, it is necessary to download the dedicated firmware (control software
built into the PC7501). Please note that, to do this, it is necessary to start up the PC7501 in maintenance mode.
For firmware download procedures, see "2.7 Downloading Firmware" (page 27). Once the firmware has been
downloaded, the product can be used by simply turning on the power.
z Do not shut off the power while downloading the firmware. If this happens, the product will not start up
properly. If power is shut off unexpectedly, redownload the firmware.
z Download the firmware with the user system not connected.
Notes on Self-check:
z If the self-check does not result normally (excluding user system errors), the emulation probe may be damaged.
Then contact your local distributor.
z Run the self-check with the user system not connected.
Note on Quitting the Emulator Debugger:
z To restart the emulator debugger after it ends, always shut power to the emulator module off once and then on
again.
Note on Display of MCU Status:
z "MCU status" you can refer to in the MCU tab of the MCU Setting dialog box of the emulator debugger shows
pin levels of the user system. Make sure that proper pin levels are specified according to the mode you use.
When single-chip mode is used:
CNVss: Low
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 73 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
IMPORTANT
Note on Clock Supply to an MCU:
z A clock supplied to the evaluation MCU is selected by the Emulator tab in the Init dialog box of the emulator
debugger.
(1) When "Internal" is selected:
A clock generated by the oscillator circuit board in the PC7501 is supplied. It is continually supplied
regardless of the status of the user system clock and that of the user program execution.
(2) When "External" is selected:
A clock generated by the oscillator in the user system is supplied. It depends on the status of the oscillation
(on/off) of the user system.
(3) When "Generate" is selected:
A clock generated by the dedicated circuit in the PC7501 is supplied. It is continually supplied regardless
of the status of the user system clock and that of the user program execution.
Note on Operating Frequency:
z You can not use this product with a main clock (XIN-XOUT) less than 1MHz. To use it with a main clock less
than 1MHz, contact your local distributor.
Note on Timeout Setting:
z At 8MHz or less, when you download, execute or single-step a program at a low operating frequency, a
communication timeout error may occur.
Execute the command shown below in the Script Window after starting the emulator debugger.
[Command] _settimeout 300, 300
Once this command is executed, it remains effective the next time you start the emulator debugger. Therefore,
you do not need to execute this command again. It is set to 30 seconds for downloading, and 30 seconds for
other than downloading.
If the error still occurs in this setting, contact your local distributor.
Note on Stop and Wait Modes:
z Do not single step an instruction shifting to stop or wait mode. It may cause communication errors.
Note on the Watchdog Function:
z If the reset circuit of the user system has a watchdog timer, disable it when using the emulator.
Note on Protect Register:
z The protect is not canceled when bit 2 of protect register PRCR (PRC2), which enables writing into the port P9
direction register and the SI/Oi control register, is changed with the below procedure.
(1) Step execution of an instruction setting PRC2 to "1"
(2) Setting a break point between an instruction setting PRC2 to "1" and a point where the port P9 direction
register or the SI/Oi control register is set
(3) Setting PRC2 to "1" by the memory window or script window
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 74 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
IMPORTANT
Note on Access Prohibited Area:
z You cannot use internally reserved areas. Write signals to the areas will be ignored, and values read will be
undefined.
Note on Breaks:
z The area displaying break points in the program window of the emulator debugger shows the following breaks.
(1) Address-match break
This is a debugging function which breaks a program, using the address-match interrupt function of the
MCU, immediately before the system executes an instruction at a specified address. The instruction at the
preset address will not be executed.
(2) Software break
This is a debugging function which generates a BRK interruption by changing an instruction at a specified
address to a BRK instruction (00h) to break a program immediately before the system executes an
instruction at a specified address. The instruction at the preset address will not be executed.
(3) Hardware break
This is a debugging function which breaks a program by setting the detection of an execution of an
instruction at a specified address as a break event. The program will break after the instruction at the
specified address is executed (after several cycles).
Notes on Software Breaks:
z Software breaks change the instruction at a specified address to a BRK (00h). Therefore, take note that when
you reference the result of a trace in bus mode, "00h" is displayed.
z The BRK instruction can be used for the emulator only. You cannot use it in a user program.
z You can neither set nor cancel a software breakpoint in the internal ROM area of an MCU during user program
execution, while you can set or cancel it in the internal RAM area of an MCU.
Notes on Address-Match Breaks:
z As the processing speed of setting and canceling address-match breaks is relatively fast, you can save the times
of writing into the internal flash ROM of an MCU. Therefore, address-match breaks precede the other breaks
when setting breakpoints in the internal flash ROM area of an MCU.
z Address-match breaks can be set at up to six points. The other breaks are set as software breaks.
z Address-match breaks can be set or canceled even when the user program is being executed.
Notes Power Supply to the User System:
z Pin VCC is connected in order to monitor user system voltage. For this reason, the emulator cannot supply
power to the user system. Therefore, provide the user system with a separate power supply.
z The voltage of the user system should be as follows.
2.7 V ≤ VCC ≤ 5.5 V
z Do not change the voltage of the user system after turning on the power.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 75 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
IMPORTANT
Notes on Internal Flash ROM of the MCU:
z This product downloads a user program to the flash ROM in an MCU. By checking "Disable the Internal Flash
ROM" in the MCU tab of the MCU setting dialog box of the emulator debugger, you can disable the operation
of the internal flash ROM of the MCU to use the emulation memory. However, the maximum operating
frequency is 10MHz.
z Because the number of write/erase cycles of the internal flash ROM of the MCU is limited, it must be replaced
at the end of its service-life.
z If the following errors occur frequently when downloading a program, To purchase products for replacement,
contact your local distributor.
(1) Flash ROM erase error occurred ERROR (16258)
(2) Flash ROM verify error occurred ERROR (16259)
Note on Debugging in CPU Rewrite Mode:
z When debugging in CPU Rewrite Mode, check "Debug the program using CPU Rewrite Mode" in the MCU tab
of the Init dialog box of the emulator debugger.
Note on Debugging in CPU Rewrite Mode:
z When you debug M16C/Tiny Series MCUs in CPU rewrite mode, do not change the block 0 area (FF000h--
FFFFFh) of the flash ROM. Otherwise, the emulator will be uncontrollable.
z If you check "Debug the program using CPU Rewrite Mode" in the MCU tab of the Init dialog box of the
emulator debugger, you cannot use the following functions.
(1) Setting software breakpoints in an internal ROM area
(2) Executing COME in an internal ROM area
z Do not stop the program in the CPU rewrite mode or erase suspend mode. And do not single step the instruction
shifting to these modes. The emulator is uncontrollable in these modes.
z The data written in the CPU rewrite mode cannot be referenced during the user program is being executed. To
reference data after executing CPU rewrite, stop the program at a point which is not a rewrite control program
area and use a memory window etc.
z As the following interrupt vectors are used by the emulator system, the read data is different from expected
value.
(1) BRK instruction (FFFE4h--FFFE7h)
(2) Address match (FFFE8h--FFFEBh)
(3) Single-step (FFFECh--FFFEFh)
(4) DBC (FFFF4h--FFFF7h)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 76 of 86
M3028BT-EPB User’s Manual 4. Hardware Specifications
IMPORTANT
Notes on Address-Match Interrupts:
z When you use the address-match interrupt function in a user program, uncheck "Enable the Address Match
Interrupt Break Function" in the MCU tab of the Init dialog box of the emulator debugger. Thus, normal
software breaks are used for the internal RAM and ROM areas of an MCU.
z Do not set a software break at an address where an address-match interrupt occurs. Otherwise, a user program
may be run out of control. Set a software or hardware break in the top address in address-match interrupt
processing.
z When you single step an address where an address-match interrupt occurs, the program stops after executing the
first instruction after returning from address-match interrupt processing.
Note on Accessing Addresses 00000h and 00001h:
z With the M16C/Tiny Series MCUs, when a maskable interrupt is generated, the interrupt data (interrupt number
and interrupt request level) stored in addresses 00000h and 00001h are read out. Also, the interrupt request bit is
cleared when address 00000h or 00001h is read out. Consequently, when the address 00000h or 00001h readout
instruction is executed or when address 00000h or 00001h is read out in the cause of a program runaway, a
malfunction occurs in that the interrupt is not executed despite the interrupt request, because the request bit of
the highest priority interrupt factor enabled is cleared.
For this malfunction, when the reading out to address 00000h or 00001h is generated excluding the interrupt,
the WARNING LED (yellow) lights up to alarm. When this LED lights, there is a possibility of read access,
therefore check the user program.
Note on Debugging Operations after Releasing a Reset form the User System:
z Do not execute debugging operations (such as stopping the user program execution by an address-match,
software or hardware break, run-time debugging) after releasing a reset on the user system until an interrupt
stack pointer (ISP) is set in the user program.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 77 of 86
M3028BT-EPB User’s Manual 5. Troubleshooting
5. Troubleshooting
This chapter describes how to troubleshoot when this product does not work properly.
5.1 Flowchart to Remedy the Troubles
Figure 5.1 shows the flowchart to remedy the troubles from when power to the emulator is activated until the emulator
debugger starts up. Check this while the user system is disconnected. For the latest FAQs visit the Renesas Tools Homepage.
http://www.renesas.com/en/tools
Turning on PC7501
Front panel LED
of PC7501
Normal
Init dialog box of
emulator debugger displayed
Normal
MCU Setting dialog box
of emulator debugger displayed
Normal
Not normal
1. Check emulator system connections.
See, "2.5
(page 24).
2. Redownload the firmware.
See "2.7 Dow nloa ding Firm w are" (pag e 27 ).
3. Restart the PC7501 system.
Not normal/Error displayed
1. Check the operating environment etc. of the
emulator debugger.
See the user's manual of the emulator debugger.
2. Reinstall the emulator debugger.
Not normal/Error displayed
See "5.2 (2 ) MCU Setting Dialog Box Does Not Appear at
Debugger Startup" (page 80)
Connecting the Power Supply for the Emulator"
Editor window of
emulator debugger displayed
Normal
Emulator debugger startup completed
Figure 5.1 Flowchart to remedy the troubles
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Error displayed
See "5.2 (3) Errors Occur at Debugger Startup" (page 81)
Page 78 of 86
M3028BT-EPB User’s Manual 5. Troubleshooting
5.2 When the Emulator Debugger Does Not Start Up Properly
(1) When the LEDs of the PC7501 Do Not Display Normally
Table 5.1 Errors LEDs show and their checkpoints
Error Checkpoint
LEDs do not light up. - Check that the power cable is connected.
All LEDs remain lit. - Recheck the connection between the PC7501 and this product.
The POWER LED of "STATUS
OF TARGET" does not light up.
The CLOCK LED of "STATUS
OF TARGET" does not light up.
The RESET LED of "STATUS
OF TARGET" does not go out.
Connection to
the user system
See "2.5 Connecting the Power Supply for the Emulator" (page 24)
and the user's manual of the PC7501.
See "2.4 Connecting the PC7501" (page 23).
Connected Check that power (VCC) is properly supplied to the user system and
that the user system is properly grounded.
Not connected (1) Check that both the main and sub clocks of the emulator
debugger are not set to "EXT".
See the CLK command of the emulator debugger.
(2) Check the oscillation circuit in the emulator is oscillating.
See "2.11 Selecting Clock Supply" (page 37).
Connected (1) When the clock is supplied from an external oscillator, check
that the oscillator circuit in the user system is oscillating
properly.
Connected Check that the reset pin of the user system is pulled up.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 79 of 86
M3028BT-EPB User’s Manual 5. Troubleshooting
(2) MCU Dialog Box Does Not Appear at Debugger Startup
Table 5.2 Checkpoints of errors at debugger startup
Error Checkpoint
Communication error occurred.
Data was not sent to the target.
Check that all emulator debugger settings, interface cable settings
and switches on the rear of the PC7501 match.
See the user's manuals of the PC7501 and emulator debugger.
User system cannot be properly built. (1) Download the proper firmware.
See "2.7 Downloading Firmware" (page 27).
(2) Check that the connection between the PC7501 and this product.
See "2.4 Connecting the PC7501" (page 23).
Emulator is not the same version as the
firmware in the target.
Download the proper firmware.
See "2.7 Downloading Firmware" (page 27).
Target MCU is in the reset state. Check that the reset pin of the user system has changed from Low to
High level.
Target MCU cannot be reset. (1) Check that pin NMI# is held High.
(2) If the reset circuit of the user system has a watchdog timer,
disable the timer.
(3) Check that power is properly supplied to the user system and that
the user system is properly grounded.
Target is in "HOLD" state. (1) The MCU is either in stop mode or wait mode. Either reset the
MCU or cancel the mode with an interrupt.
See MCU specifications.
Target clock is stopped. Check that the oscillator circuit of the user system is oscillating
properly.
Target MCU is not receiving power. Check that power is properly supplied to the user system and that the
user system is properly grounded.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 80 of 86
M3028BT-EPB User’s Manual 5. Troubleshooting
(3) Errors Occur at Debugger Startup
Table 5.3 Checkpoints of errors at debugger startup
Error Checkpoint
Target MCU is uncontrollable. (1) Check that the NQPACK etc. mounted on the user system is
soldered properly.
(2) Check that the connecter is connected properly to the user
system.
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 81 of 86
M3028BT-EPB User’s Manual 5. Troubleshooting
5.3 How to Request for Support
After checking the items in "5 Troubleshooting", to request for support, fill in the text file which is downloaded from the
following URL, then send the information to your local distributor.
http://tool-support.renesas.com/eng/toolnews/registration/support.txt
For prompt response, please specify the following information:
(1) Operating environment
- Operating voltage:
- Operating frequency:
- Clock supply to the MCU: Internal oscillator/External oscillator
(2) Condition
- The emulator debugger starts up/does not start up
- The error is detected/not detected in the self-check
- Frequency of errors: always/frequency ( )
(3) Problem
[V]
[MHz]
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
Page 82 of 86
6. Maintenance and Guarantee
This chapter describes how to maintenance, repair provisions and how to request for repair.
6.1 User Registration
When you purchase our product, be sure register as a user. For user registration, refer to “User registration” (page 11) of this
user's manual.
6.2 Maintenance
(1) If dust or dirt collects on any equipment of your emulation system, wipe it off with a dry soft cloth. Do not use thinner or
other solvents because these chemicals can cause the equipment's surface coating to separate.
(2) When you do not use this product for a long period, for safety purposes, disconnect the power cable from the power supply.
6.3 Guarantee
If your product becomes faulty within one year after its purchase while being used under good conditions by observing
"IMPORTANT" and "Precautions for Safety" described in this user's manual, we will repair or replace your faulty product free
of charge. Note, however, that if your product's fault is raised by any one of the following causes, we will repair it or replace it
with new one with extra-charge:
- Misuse, abuse, or use under extraordinary conditions
- Unauthorized repair, remodeling, maintenance, and so on
- Inadequate user's system or misuse of it
- Fires, earthquakes, and other unexpected disasters
In the above cases, contact your local distributor. If your product is being leased, consult the leasing company or the owner.
6.4 Repair Provisions
(1) Repair with extra-charge
The products elapsed more than one year after purchase can be repaired with extra-charge.
(2) Replacement with extra-charge
If your product's fault falls in any of the following categories, the fault will be corrected by replacing the entire product
instead of repair, or you will be advised to purchase new one, depending on the severity of the fault.
- Faulty or broken mechanical portions
- Flaw, separation, or rust in coated or plated portions
- Flaw or cracks in plastic portions
- Faults or breakage caused by improper use or unauthorized repair or modification
- Heavily damaged electric circuits due to overvoltage, overcurrent or shorting of power supply
- Cracks in the printed circuit board or burnt-down patterns
- Wide range of faults that makes replacement less expensive than repair
- Unlocatable or unidentified faults
(3) Expiration of the repair period
When a period of one year elapses after the model was dropped from production, repairing products of the model may
become impossible.
(4) Transportation fees at sending your product for repair
Please send your product to us for repair at your expense.
6.5 How to Make Request for Repair
Fill in the Repair Request Sheet included with this product, then send it along with this product for repair to your local
distributor. Make sure that information in the Repair Request Sheet is written in as much detail as possible to facilitate repair.
CAUTION
Note on Transporting the Product:
z When sending your product for repair, use the packing box and cushion material supplied with this product
when delivered to you and specify handling caution for it to be handled as precision equipment. If packing of
your product is not complete, it may be damaged during transportation. When you pack your product in a bag,
make sure to use conductive polyvinyl supplied with this product (usually a blue bag). When you use other
bags, they may cause a trouble on your product because of static electricity.
Emulation Probe for M16C/Tiny Series
M3028BT-EPB User's Manual
Publication Date: Sep. 16, 2006 Rev.2.00
Published by:
Edited by:
© 2006. Renesas Technology Corp. and Renesas Solutions Corp., All rights reserved. Printed in Japan.
Sales Strategic Planning Div.
Renesas Technology Corp.
Microcomputer Tool Development Department
Renesas Solutions Corp.
M3028BT-EPB
User’s Manual
1753, Shimonumabe, Nakahara-ku, Kawasaki-shi, Kanagawa 211-8668 Japan
REJ10J1459-0200(T)
