Renesas M16C FAMILY User Manual

Download

REJ10J0143-0401Z

USB Flash Write

User's Manual

RENESAS SINGLE-CHIP MICROCOMPUTER

M16C FAMILY / 740 FAMILY

Rev.4.01 Renesas Solutions Corp. Revision date: Dec 24, 2004 www.renesas.com

1. Renesas Technology Corporation puts the maximum effort into making semiconductor products better and more reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to personal injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention against any malfunction or mishap.

Keep safety first in your circuit designs!

Notes regarding these materials

1. These materials are intended as a reference to assist our customers in the selection of the Renesas Technology Corporation product best suited to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas Technology Corporation or a third party.

2. Renesas Technology Corporation assumes no responsibility for any damage, or infringement of any third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application examples contained in these materials.

3. All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information on products at the time of publication of these materials, and are subject to change by Renesas Technology Corporation without notice due to product improvements or other reasons. It is therefore recommended that customers contact Renesas Technology Corporation or an authorized Renesas Technology Corporation product distributor for the latest product information before purchasing a product listed herein. The information described here may contain technical inaccuracies or typographical errors. Renesas Technology Corporation assumes no responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information published by Renesas Technology Corporation by various means, including the Renesas Technology Corporation Semiconductor home page (http://www.renesas.com).

4. When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and algorithms, please be sure to evaluate all information as a total system before making a final decision on the applicability of the information and products. Renesas Technology Corporation assumes no responsibility for any damage, liability or other loss resulting from the information contained herein.

5. Renesas Technology Corporation semiconductors are not designed or manufactured for use in a device or system that is used under circumstances in which human life is potentially at stake. Please contact Renesas Technology Corporation or an authorized Renesas Technology Corporation product distributor when considering the use of a product contained herein for any specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.

6. The prior written approval of Renesas Technology Corporation is necessary to reprint or reproduce in whole or in part these materials.

7. If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from the Japanese government and cannot be imported into a country other than the approved destination. Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.

8. Please contact Renesas Technology Corporation for further details on these materials or the products contained therein.

Microsoft, MS, and MS-DOS are registered trademarks of Microsoft Corporation of the U.S. Windows is trademark of Microsoft Corporation of the U.S. IBM and PC/AT are registered trademarks of International Business Machines Corporation of the U.S. Pentium is a trademark of Intel Corporation of the U.S. Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

Preface

Thank you for purchasing Renesas USB Flash Writer (M3A-0665). This manual describes how to use the hardware and software products included with USB Flash Writer (M3A-0665). To other tools, look other tools's manulas.

Table of Content

1. Contents of Product.........................................................................................................................................4

1.1 Contents of product........................................................................................................................................4

1.2 Operating Environment ..................................................................................................................................5

1.3 Compatible Products......................................................................................................................................5

1.4 Board Specification.........................................................................................................................................7

1.5 CD-ROM.........................................................................................................................................................8

1.6 System Requirements....................................................................................................................................8

2. Product Specifications......................................................................................................................................9

2.1 FoUSB (Flash-over-USB) ..............................................................................................................................9

2.2 KD30/KD3083................................................................................................................................................9

3. Installing..........................................................................................................................................................11

3.1 Before installing............................................................................................................................................11

3.2 Preparation before installing.........................................................................................................................11

3.3 FoUSB (Flash-over-USB) installing .............................................................................................................12

3.3.1 Method of Installation............................................................................................................................12

3.3.2 Method of Uninstallation.......................................................................................................................17

3.4 Recognition of USB Monitor Board..............................................................................................................18

3.4.1 Recognition of USB Monitor Board 1 (for USBMON Driver) ...............................................................18

3.4.2 Recognition of USB Monitor Board 2 (for FoUSB Driver)....................................................................20

3.4.3 Other Notes...........................................................................................................................................23

3.5 KD30/KD3083 intalling.................................................................................................................................24

3.5.1 Installing.................................................................................................................................................24

3.5.2 Uninstalling the Remote Debugger......................................................................................................26

4. Using the FoUSB...........................................................................................................................................27

4.1 Using the FoUSB (Flash-over-USB)............................................................................................................27

4.1.1 Before Starting the FoUSB...................................................................................................................27

4.1.2 FoUSB starts.........................................................................................................................................30

4.1.3 Details of Main Button 1........................................................................................................................31

4.1.4 Details of the Update Button.................................................................................................................42

4.1.5 Details of the Select MCU Button.........................................................................................................43

4.1.6 Monitor Information...............................................................................................................................47

4.1.7 Detailed File Information.......................................................................................................................47

4.1.8 Details of Main Button 2........................................................................................................................47

Table of Content

4.2.Other Functions............................................................................................................................................48

5. Using the KD..................................................................................................................................................49

5.1 Using the KD.................................................................................................................................................49

5.1.1 Before Starting the KD..........................................................................................................................49

5.1.2 Starting the KD......................................................................................................................................50

5.1.3 Program Download...............................................................................................................................55

5.1.4 Program Execution...............................................................................................................................56

5.1.5 Program Stop........................................................................................................................................56

5.1.6 Program Step Execution.......................................................................................................................56

5.1.7 Software Break Method........................................................................................................................57

5.1.8 Reset Execution....................................................................................................................................57

5.1.9 KD Completion......................................................................................................................................57

5.1.10 If a Communication Error Occurs.......................................................................................................58

5.1.11 Error Except a Communication Error Occurs.....................................................................................58

5.1.12 Operation Method...............................................................................................................................58

5.2 KD Limitations...............................................................................................................................................59

5.2.1 Limitations on Special Page Vector......................................................................................................59

5.2.2 A limitation item ab out the C language.................................................................................................60

5.2.3 Limitations on Memory Extension .........................................................................................................61

5.2.4 Precautions on Internal Reserved Area Expansion Bit........................................................................61

5.2.5 Limitations on Stop and Wait Modes....................................................................................................62

5.2.6 Realtime Capability of the Use r Program.............................................................................................62

5.3 Memory Map Limitations..............................................................................................................................63

5.4 Peripheral Function Related Limita tions......................................................................................................66

5.5 FoUSB Debugger Principle..........................................................................................................................66

5.5.1 Communication Function with FoUSB .................................................................................................67

5.5.2 Command Execution ............................................................................................................................67

5.5.3 The difference from an actual CPU ope ration......................................................................................68

6. Troubleshooting..............................................................................................................................................69

6.1 FoUSB cannot communicate with the Target MCU Why ?..........................................................................69

6.2 The MCU cannot enter standerd serial I/O why?........................................................................................69

6.3 The MCU cannot be programmed using FoUSB Why?.............................................................................69

6.4 FoUSB cannot operate Why?......................................................................................................................69

6.4.1 Compulsive download procedure of firmware......................................................................................71

6.5 Can FoUSB information be transmitted to KD?...........................................................................................74

6.6 A communication error occurs w hen the KD star ts. What is the cau se of this p roblem?...........................74

Table of Content

6.7 A communication error occurred w hen debug ging the p rogram. Wha t is the cause of this pro blem?......74

6.8 A message "Source file cannot be found" was ou tput. What should I do?.................................................75

6.9 Is peripheral I/O operating during a bre ak?.................................................................................................75

6.10 Can coveragefunction be used in KD?......................................................................................................75

6.11 Can check sum function be used?.............................................................................................................75

6.12 ID code written to microcomputer after KD exits? .....................................................................................75

6.13 Debug operation has not worked w ell........................................................................................................76

6.14 Message List ..............................................................................................................................................78

7. Appendix.........................................................................................................................................................79

7.1 USB Monitor Board ......................................................................................................................................79

7.1.1 Board Specifications .............................................................................................................................79

7.1.2 Pin Assignments...................................................................................................................................80

7.1.3 Example Connection.............................................................................................................................80

7.1.4 Power Source Supply Selector.............................................................................................................87

7.1.5 LED Status Indicators...........................................................................................................................87

7.2 Installation of a USB Driver, and recognition of USB Monitor Board (Manual se tup).................................88

7.2.1 For USBMON Driver.............................................................................................................................88

7.2.2 For FoUSB Driver .................................................................................................................................91

7.3 Referencing Electronic Manuals..................................................................................................................95

7.4 Product Information......................................................................................................................................95

iii

1 Contents of Product

1. Contents of Product

This section shows the contents of theUSB Flash Writer’s product package. When unpacking your USB Flash Writer, check to see that all products listed below are included.

1.1 Contents of product

Table 1-1 lists the products included in the USB Flash Writer.

Table 1-1 USB Flash Writer Product List

Product List Quantity Remark

USB Monitor Board 1pc USB Cable (Used for the connection with the Host Computer.) 1pc Flat Cable 1pc Pin Header (HIF3FC-10P-2.54DSA: straight type) 1pc Note 1 CD-ROM 1pc Note 2

Note 1: Starter kit doesn't include pin header (straight type). Note 2: When a FoUSB is included with starter kit, only one CD-ROM is in the FoUSB.

1 Contents of Product

1.2 Operating Environment

The software includes USB Flash Writer run on the Host Computer (PC) under the OS (Operating System) version that are listed respectively in Table 1-2.

Table 1-2 Operating Envir onment

Host Computer (PC) IBM PC/AT series or its compatible OS (Operating System) Microsoft Windows 98SE/ME/2000/XP CPU Pentium II 233MHz or newer recommended Memory 8 Mbyte or more (16 Mbyte recommended)

1.3 Compatible Products

Compatible products with USB Flash Writer are as follows.

Table 1-3 Compatible Products (1)

Group MCU Product Name Corresponding

Software

M16C/10 M30100F3FP, M30102F3FP FoUSB, KD30 M30102F3 M16C/1N M301N2F8TFP FoUSB, KD30 M301N2F8 M16C/24 M30245FCGP FoUSB, KD30 M30245FC M16C/26

M16C/26A

M16C/28

M16C/29

M30262F3GP FoUSB, KD30 M30262F3 M30262F4GP FoUSB, KD30 M30262F4 M30262F6GP FoUSB, KD30 M30262F6 M30262F8GP FoUSB, KD30 M30262F8 M30260F3AGP FoUSB, KD30 M30260F3A M30260F4AGP FoUSB, KD30 M30260F4A M30260F6AGP FoUSB, KD30 M30260F6A M30260F8AGP FoUSB, KD30 M30260F8A M30263F3AFP FoUSB, KD30 M30263F3A M30263F4AFP FoUSB, KD30 M30263F4A M30263F6AFP FoUSB, KD30 M30263F6A M30263F8AFP FoUSB, KD30 M30263F8A M30280F6HP FoUSB, KD30 M30280F6 M30280F8HP FoUSB, KD30 M30280F8 M30280FAHP FoUSB, KD30 M30280FA M30281F6HP FoUSB, KD30 M30281F6 M30281F8HP FoUSB, KD30 M30281F8 M30281FAHP FoUSB, KD30 M30281FA M30290F8HP FoUSB, KD30 M30290F8 M30290FAHP FoUSB, KD30 M30290FA M30290FCHP FoUSB, KD30 M30290FC M30291F8HP FoUSB, KD30 M30291F8 M30291FAHP FoUSB, KD30 M30291FA M30291FCHP FoUSB, KD30 M30291FC

MCU Product Name to select in Software

Table 1-4 Compatible Products (2)

1 Contents of Product

Group MCU Product Name Corresponding

Software

M16C/24 M30245FCGP FoUSB, KD30 M30245FC

M30620FCAFP/GP, M30621FCAGP M30620FCMFP/GP, M30621FCMGP M30624FGAFP/GP, M30625FGAGP M30624FGMFP/GP, M30625FGMGP

M16C/62P

M16C/62N M3062GF8NFP/GP FoUSB, KD30 M3062GF8 M16C/6N

M32C/84 M30843FJFP/GP, M30845FJGP FoUSB, KD3083 M30845FJ M32C/85

M32C/86 M30865FJGP FoUSB, KD3083 M30865FJ M32C/87 M30879FLFP/GP, M3087BFLGP FoUSB, KD3083 M3087BFL R8C/10

R8C/11

R8C/12

R8C/13

7542 M37542F8SP/FP/GP FoUSB M37542F8 38C2 M38C29FFAFP/HP FoUSB M38C29FF

M30622F8PFP/GP FoUSB, KD30 M30622F8P M30623F8PGP FoUSB, KD30 M30623F8P M30620FCPFP/GP FoUSB, KD30 M30620FCP M30621FCPGP FoUSB, KD30 M30621FCP M30624FGPFP/GP FoUSB, KD30 M30624FGP M30625FGPGP FoUSB, KD30 M30625FGP M30626FHPFP/GP FoUSB, KD30 M30626FHP M30627FHPGP FoUSB, KD30 M30627FHP M30626FJPFP/GP FoUSB, KD30 M30626FJP M30627FJPGP FoUSB, KD30 M30627FJP

M306N4FCTFP FoUSB, KD30 M306N4FC M306N4FGTFP FoUSB, KD30 M306N4FG M306N5FCTFP FoUSB, KD30 M306N5FC M306NAFGTFP FoUSB, KD30 M306NAFG M306NBFCTFP FoUSB, KD30 M306NBFC M30800FCFP/GP, M30802FCGP FoUSB, KD3083 M30800FC M16C/80 M30803FGFP/GP, M30805FGGP FoUSB, KD3083 M30803FG M30833FJFP/GP FoUSB, KD3083 M30833FJ M32C/83 M30835FJGP FoUSB, KD3083 M30835FJ

M30853FHFP/GP, M30855FHGP FoUSB, KD3083 M30855FH M30853FWFP/GP, M30855FWGP FoUSB, KD3083 M30855FW M30850FJFP/GP, M30852FJGP FoUSB, KD3083 M30852FJ

R5F21102FP FoUSB, KD30 R5F21102 (R5F21104 *1) R5F21103FP FoUSB, KD30 R5F21103 (R5F21104 *1) R5F21104FP FoUSB, KD30 R5F21104 R5F21112FP FoUSB, KD30 R5F21112 (R5F21114 *1) R5F21113FP FoUSB, KD30 R5F21113 (R5F21114 *1) R5F21114FP FoUSB, KD30 R5F21114 R5F21122FP FoUSB, KD30 R5F21122 (R5F21124 *1) R5F21123FP FoUSB, KD30 R5F21123 (R5F21124 *1) R5F21124FP FoUSB, KD30 R5F21124 R5F21132FP FoUSB, KD30 R5F21132 (R5F21134 *1) R5F21133FP FoUSB, KD30 R5F21133 (R5F21134 *1) R5F21134FP FoUSB, KD30 R5F21134

FoUSB, KD30 M30620FCA M16C/62A(M)

FoUSB, KD30 M30624FGA

MCU Product Name to select in Software

*1: When using the KD30.

1 Contents of Product

1.4 Board Specification

Table 1-5 shows the USB Monitor Board Specification. When saving these products, put them into the conductive bag. Store them into the container box which is used for shipping as possible

Table 1-5 USB Monitor Board Specification

Item Description

Debug formula Monitor program formula Monitor program

USB microcomputer M37641F8HP (8 bit USB flash microcomputer) USB interface (J1) USB2.0 full speed

Operation voltage

Power consumption Max.50mA Board size 70mm x 29mm

(at the time of operation)

(at the time of storage)

ROM size: Approx. 1600 byte * In the case of R8C/Tiny Series, 2K byte RAM size: 128 byte * In the case of M16C/80 Group, 256 byte * In the case of M32C/80 Series, 256 byte * In the case of R8C/Tiny Series, not used Operation frequency: 700KHz or above (Note1) Operation mode: Single chip mode Software break: 2 points to 8 points (Note2)

Synchronous serial Interface Target interface (J3) Starter kit and 10 pin connector for target board connection

4.75V to 5.25V (USB bus-powered supply or target supply enabled)

3.0V to 3.6V (supply from target is necessary) (Note3)

Temperature: 25±5°C (no corrosive gas) Use environment condition Humidity: no condensation Temperature: 25±5°C (no corrosive gas) Use environment condition Humidity: no condensation

Note 1: Maximum operating frequency is dependent on the MCU. Note 2: Software break numbers are dependent on the address match circuit numbers

are built-in MCU.

Note 3: When operating in 3.3V, supply power from the target board. In this case, it is not

possible to change the FoUSB firmware. When the model name of the microcomputer to be used is changed, remove the target board, supply the USB bus-powered and rewrite the firmware.

1 Contents of Product

1.5 CD-ROM

The CD-ROM contains software products necessary for developing programs and electronic manuals as well. Here follow the contents of the CD-ROM.

CD-ROM: Rev.2.10 or later

\root |--- Readme_e.txt : Readme File (English version) |--- Readme_j.txt : Readme FIle (Japanese version) |--- \Document : User’s manual is included (English and Japanease version) |--- \FOUSB : FoUSB Installer is included (English and Japanese common version) | |--- \USB Drivers : USB Driver is included (English and Japanese common version) | |--- \KD | |--- \KD30 : KD30 Installer is included (English and Japanese version) | |--- \KD3083 : KD3083 Installer is included (English and Japanses versio n) | |--- \NC |--- \NC30WA : NC30WA C Compiler is included (English and Japanese version) Note |--- \NC308WA : NC308WA C Compiler is included (English and Japanese version) Note

Note: Entry version

1.6 System Requirements

In addition to the products listed above, you must have the following equipment before you can use the USB Flash Writer.

1) Host Computer (PC)

2) Target Board

2 Product Specifications

2. Product Specifications

2.1 FoUSB (Flash-over-USB)

FoUSB is the software that allows you to operate on M16C, M32C, R8C or 740 microcomputers with built-in flash memory from a Windows version host computer (Windows 98SE or later).

2.2 KD30/KD3083

The KD included with the package is the debug software that runs on a Windows version host computer. This KD is usable for only the R8C/Tiny, M16C/10, M16C/20, M16C/Tiny, M16C/60, M16C/80 or M32C/80 series of Renesas 16-bit and 32-bit single-chip microcomputers with built-in flash memory. The KD provides a powerful debugging environment. In addition, it is operationally compatible with and can therefore be used the same way as PD30 (or PD308F), the emulator control debugger for Renesas 16C/62 microcomputers. The features of the Remote Debugger are outlined below. For details, see Section “5. Using the KD”.

Table 2-1 PD30 and KD30 com parison

No. Item PD30 KD30

1 Software break function 64 points 2 points to 8 points (Note) 2 Hardware break function 6 points not included 3 RAM monitor function included included 4 Real time trace included not include d 5 Time measurement function included not included 6 Script function included included

Note: Software break numbers are dependent on the address match circuit numbers are

built-in MCU.

Table 2-2 PD308F and KD3083 comparison

No. Item PD308F KD3083

1 Software break function 64 points 4 points to 8 points (Note) 2 Hardware break function 6 points not included 3 RAM monitor function included included 4 Real time trace included not include d 5 Time measurement function included not included 6 Script function included included

Note: Software break numbers are dependent on the address match circuit numbers are

built-in MCU.

NOTICE: The software break number of MCUs

2 Product Specifications

Group software break

number

M16C/10 2 points M16C/1N 2 points

M16C/24 2 points M16C/26, 26A 6 points M16C/28 6 points M16C/29 6 points R8C/Tiny Series 2 points M16C/62A(M) 2 points M16C/80 4 points M16C/62P 8 points M32C/83 4 points M16C/62N 2 points M32C/84, 85, 86, 87 8 points

M16C/6N (M3062NAFG, M3062NBFC)

M16C/6N (M306N4FC, M306N4FG, M306N5FC)

Group software break

number

2 points

8 points

3. Installing

3.1 Before installing

Do not connect the USB Cable which belongs to this product to the Host computer (PC) before installing.

3 Installing

3.2 Preparation before installing

Be sure to confirm the following point before performing installation of a tool (GUI) and a driver. (1) The CD-ROM includes files required for the FoUSB (Flash-over-USB) installation. Copy all files

to any folder in your PC before installation.

(2) All tools and USB drivers must be installed with the administrator if installed on Windows

2000/XP. Both PowerUser (for a standard access) and User (for a limited access) can use software after installation.

3.3 FoUSB (Flash-over-USB) installing

3.3.1 Method of Installation

1) To install FoUSB, double-click “FoUSB_V.*.**.exe” on the folder into which you’ve copied FoUSB files from the CD-ROM.

2) Select the language of installer.

3 Installing

3) Click the <Next> button.

Only when you agree, click the <I Agree> button.

5) Choose the component which you want to install and click the <Next> button.

3 Installing

NOTICE: Explanation of install component

(a) Shortcut on Desktop

The shortcut of a FoUSB (Flash-over-USB) execution file is created on a desktop.

(b) Install USB Drivers

FoUSB installer installs a USB Driver in the correct location of Windows system automatically.

We recommend choosing this component in all operating systems. In addition, when this

component is not chosen, please perform installation of a USB Driver, and recognition of USB Monitor Board with reference to [7.2 Installation of a USB Driver, and recognition of USB Monitor Board (Manual setup)].

FoUSB installer updates KD30 to KD30 with a firmware older than the firmware of FoUSB.

(d) Update KD3083 Files

FoUSB installer updates KD3083 to KD3083 with a firmware oloder than the firmware of FoUSB.

6) Choose the install location of FoUSB and click the <Install> button. The default install location of FoUSB is “C:\MTOOL\FOUSB”.

3 Installing

7) The following figure is displayed when the install component “Install USB Drivers” is choosen. Click the <Yes> button.

Next, warning is displayed. Please check that USB Monitor Board is not connected to your host

computer (PC), and click the <OK> button.

8) When an operating system is Windows XP, notes screen is displayed. Click the <OK> button.

Then the software install screen is displayed two times (for USBMON Driver and FoUSB Driver), click the <Continue Anyway> button twice (Note).

3 Installing

Note: Microsoft has advocated authentication of the USB drivers to the USB vendors in the

Microsoft® Windows® XP and Windows®-based operating systems released after Microsoft® Windows® XP. This is aimed at elimination of illegal drivers and improvement of host computer (PC). Renesas USB Drivers are not authenticated by Microsoft, but we provide them based on the sufficient examination.

9) The following figure is displayed when the USB Driver is already installed in the PC. Click the <OK> button.

USBMON Driver

FoUSB Driver

10) The following figure is displayed when installation of USB Driver is completed. Click the <OK> button.

11) When the install component “Update KD30 Files” is chosen, FoUSB installer seaches KD30 with a firmware older than the firmware of FoUSB. The following figure will be displayed if KD30 is detected. If you want to update a firmware, click the <Yes> button. When <No> button is clicked, the

3 Installing

firmware of KD30 is not updated.

Note: When the install component “Update KD3083 Files” is chosen, the update check screen is

displayed like the above.

12) Finally, click the <Finish> button.

3 Installing

13) Now you’ve finished installing the FoUSB (Flash-over-USB).

3.3.2 Method of Uninstallation

To uninstall the FoUSB (Flash-over-USB) you've installed, choose Settings -- Control Panel from the Start menu, and then click “Add/Remove Programs”. Select "Flash-over-USB V.*.** " from the program list and click the <Add/Remove> button. An uninstall window will appear, with the Flash-over-USB V.*.** compiler uninsalled.

3 Installing

3.4 Recognition of USB Monitor Board

From installer version “V.2.04”, the FoUSB installer has an automatic USB Driver install function (Refer to [3.3 FoUSB (Flash-over-USB) installing].). This section explains recognition of USB Monitor Board when confirming this function and installing FoUSB. When this function is not confirmed, please perform installation of a USB Driver, and recognition of USB Monitor Board with reference to [7.2 Installation of a USB Driver, and recognition of USB Monitor Board (Manual setup)].

3.4.1 Recognition of USB Monitor Board 1 (for USBMON Driver)

1) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the following setup, before connecting USB Monitor Board to your host computer (PC). If a setup is completed, attach a cover in a USB Monitor Board (Board).

Power Source Supply Selector (S1: Power Mode): USB side MCU Mode Pin (JP1: MCU Mode): Open

Open

USB side

Figure 3-1 Setup of USB Monitor Board (Board )

2) Connect the USB Monitor Board included with the package to the USB port of PC. The Power indicator (D1: Power) of USB Monitor Board lights, and a Status indicator (D4: Status) blinks.

Figure 3-2 USB Monitor Board con nectivity

3 Installing

3) When an operating system is WIndows 98SE/ME/2000, Windows system detect USB Driver automatically and recognizes USB Monitor Board. Recognition of USB Monitor Board for USBMON Driver is completion.

4) When an operating system is Windows XP, Windows system displays the Found New Hardware Wizard screen. Then, choose “Install the software automatically” and click the <Next> button.

5) Next, the Hardware Installation screen is displayed, click the <Continue Anyway> button (Note).

Note: Microsoft has advocated authentication of the USB drivers to the USB vendors in the

3 Installing

6) Click the <Finish> button. Windows system recognizes USB Monitor Board (for USBMON Driver).

Recognition of USB Monitor Board for USBMON Driver is completion.

3.4.2 Recognition of USB Monitor Board 2 (for FoUSB Driver)

Power Source Supply Selector (S1: Power Mode): USB side MCU Mode Pin (JP1: MCU Mode): Shorted

Shorted

USB side

Figure 3-3 Setup of USB Monitor Board (Board )

3 Installing

2) Connect the USB Monitor Board included with the package to the USB port of PC. The Power indicator (D1: Power) of USB Monitor Board lights.

Figure 3-4 USB Monitor Board con nectivity

3) When an operating system is WIndows 98SE/ME/2000, Windows system detect USB Driver automatically and recognizes USB Monitor Board. Recognition of USB Monitor Board for USBMON Driver is completion. Please skip to 7).

4) When an operating system is Windows XP, Windows system displays the Found New Hardware Wizard screen. Then, choose “Install the software automatically” and click the <Next> button.

3 Installing

5) Next, the Hardware Installation screen is displayed, click the <Continue Anyway> button (Note).

Note: Microsoft has advocated authentication of the USB drivers to the USB vendors in the

6) Click the <Finish> button. Windows system recognizes USB Monitor Board (for FoUSB Driver).

Recognition of USB Monitor Board for FoUSB Driver is completion.

7) Separate USB Monitor Board from host computer (PC).

8) Finally remove the cover of USB Monitor Board and set the MCU Mode Pin (JP1: MCU Mode) as “Open”.

3.4.3 Other Notes

Caution: The “USB Drivers” folder below is stored.

Driver Name Description Related Files

3 Installing

USBMON Driver USBMON driver is a driver for using

FoUSB (Flash-over-USB) and KD (KD30,

usbmon.sys usbmon.inf

KD3083)

FoUSB Driver FoUSB driver is a driver for using USB

MCU (M367641F8) of USB Monitor

fousb.sys fousb.inf

Board in Boot mode. (Note)

(Note)

The Boot mode of USB MCU is used only for the use shown below.

1) Installation of FoUSB Driver

2) When the firmware of USB MCU is erased or damaged

When the firmware of USB MCU is erased or damaged, the phenomenon of [6.4 FoUSB cannot operate Why?] or [6.6 A communication error occurs when the KD starts. What is the cause of this problem?] occurs. In this case, it is necessary to install FoUSB driver (first time only) and download firmware compulsorily on a USB MCU. Please refer to [6.4 FoUSB cannot operate Why?].

3.5 KD30/KD3083 intalling

3.5.1 Installing

1) Installing the Remote Debugger

Double-click installer file on the CD-ROM (\KD\KD30) for KD30. In KD3083, the installer file is included in \KD\KD3083.

2) A flow of installation procedures is shown in the pages that follow.

(a) Click the <Yes> button.

3 Installing

(b) Click the <Next> button.

Only when you agree, click the <Yes> bu tton

(c)

3 Installing

(d) Click the <Next> button.

A default install location is “C:\MTOOL”. If an install location is changed, please click the <Browse> button and determine an install location.

(e) Click the <Yes> button.

(f) Click the <OK> button.

3) Now you've finished installing the KD30.

Note: The installation of KD3083 is the same.

3.5.2 Uninstalling the Remote Debugger

To uninstall, choose Settings -- Control Panel from the Start menu, and then click the “Add/Remove Programs”. Select KD from the program list and click the <Add/Remove> button. An uninstall window will appear, with the integrated development environment uninsalled.

The uninstallation of KD3083 is the same, too.

3 Installing

4. Using the FoUSB

4.1 Using the FoUSB (Flash-over-USB)

4.1.1 Before Starting the FoUSB

1) Check to see that the FoUSB is installed in your host computer (PC).

2) Check to see that PC, USB Cable, USB Monitor Board, Flat Cable and Target Board

4 Using the FoUSB

are firmly connected. (See Figure 4-1)

3. USB Monitor Board

1. USB Cable

4. Flat Cable

2. Target Board

5. Target MCU

Figure 4-1 connect-1

3) Connection Method

It specifies as a premise that MCU is carried on the Target Board. (1) Connection order when using the USB bus-powered.

Connect in order of 2-4-3-1-host computer (PC).

(2) Separation order after using the USB bus-powered.

Connect in order of PC-1-3-4-2.

(3) Connection order when using external power supply.

Set a power source supply selector to the TARGET side. Connect in order of PC-1-3-4-2 and finally supply power from outside.

(4) Separation order after using external power supply.

Drop the power which is supplied from outside. Separate in order of PC-1-3-4-2.

4 Using the FoUSB

4) The power source supply selector on the USB Monitor Board must be set differently

depending on the Target MCU used. (1) When using 5 V

The power for the Target MCU is supplied from the USB Monitor Board. Therefore, there is no need to supply power for the Target MCU from the Target Board. In this case, set the power supply selector on the USB Monitor Board to the USB side as shown in Figure 4-2.

When using 5 V, set the switch to the USB side.

Figure 4-2 Power source supply selector-1

4 Using the FoUSB

(2) When using 3.3 V

The power for the Target MCU is not supplied from the USB Monitor Board and must therefore be supplied from the Target Board. In this case, set the power source supply selector on the USB Monitor Board to the TARGET side as shown in Figure 4-3.

When using 3.3 V, set the switch to the TARGET side.

Figure 4-3 Power source supply selector-2

(3) Other

Depending on the host computer (PC) environment you are using, no 5 V power supply may be fed to the Target MCU even when the select switch on the USB Monitor Board is set to the USB side. In such a case, set the power source supply selector to the TARGET side so that the power for the Target MCU will be supplied from the Target Board.

4.1.2 FoUSB starts

1) From the Start menu, choose Programs -- RENESAS-TOOLS – Flash-over-USB

V.*.** -- FoUSB Programmer to start the FoUSB. When the FoUSB starts, the FoUSB main window shown in Figure 4-4 appears.

4 Using the FoUSB

i) Main button 1

iii) MCU select button

iv) Monitor information

v) Detail button

ii) Update button

vi) Main button 2

Figure 4-4 FoUSB main window

2) Guide to understanding the display of the main screen

No. Item Content

i Main button 1 Use these main buttons to download a program as well as

read, erase or write to the flash memory. ii Update button Click this button to upgrade the FoUSB version. iii MCU select button Use this button to select the Target MCU. iv Monitor information Shows information on the selected MCU. v Detail button Shows detailed information on the downloaded program. vi Main button 2 Use these mai n buttons to se t functions, show help or exit.

4.1.3 Details of Main Button 1

1) “OPEN” button This button reads the downloading (programming) file to the Target MCU.

(1) Click the “OPEN” button, and the screen shown in Figure 4-5 will appear, allowing

you to choose the file to download into the Target MCU. The type of file that can be downloaded is HEX or Motorola. After selecting the file to download, click the <Open> button.

4 Using the FoUSB

Figure 4-5 Open scre en

(2) The ID code is automatically read in. Click the <OK> button.

If file don’t have ID code, a message is not displayed.

Figure 4-6 ID code screen

Note: A file which is out of flash area cannot be open.

4 Using the FoUSB

2) “READ” button This button performs to verify data written in the Target MCU and the file read by “OPEN”. Also, performs to read out data written in the Target MCU.

(1) Clik the “READ” button, Figure 4-7 screen will appear.

Figure 4-7 Flash Memory Read screen-1

(2) For Verify, click the <verify> button and the file downloaded by “OPEN” and data

written in the Target MCU will be verified. If the verified result matches, Figure 4-8 will appear. Click the <OK> button.

Figure 4-8 Verify OK screen

If the data does not match, following figure will be displayed.

4 Using the FoUSB

(3) For “Read Area”, specify the range of data to read in hexadecimal. By default, the

data opens in a custom window. Click the <Read Area> button, and the downloaded data will be displayed, but not saved. If you wish, select the <Show ASCII> check box in the Options section, and ASCII code will be added to the downloaded data. (See Figure 4-9 and Figure 4-10)

Figure 4-9 Flash Memory Read screen-2

Figure 4-10 Flash Memory Contents

4 Using the FoUSB

(4) To change the custom window used for displaying data to an editor, select the

<Display using>. By default, data is displayed in Notepad. To change Notepad to any editor, click the <Change Editor> button. (See Figure 4-11)

Figure 4-11 Flash Memory Read screen-3

(5) To save the read data, select the <Save to Motorola S-Record File> and click the

<Read Area> button. (See Figure 4-12) Then enter a name for the file. (See Figure 4-13)

Figure 4-12 Flash Memory Read screen-4

4 Using the FoUSB

Figure 4-13 Save scre en

3) “ERASE” button This button erases the Flash ROM in the Target MCU.

(1) When you click the “ERASE” button, the screen changes to one of the following

two depending on whether you’ve downloaded data using “OPEN”.

(2) Before downloading

You can choose to erase all blocks (Select All) or erase evry one block. When you select a block to erase, the check box by block is indicated with a check mark and the block is displayed in color. Click the <Erase> button, and the block will be erased. (See Figure 4-14)

Figure 4-14 Erase Flash-1

4 Using the FoUSB

(3) After downloading

The system reads information from the downloaded data to determine which block to erase and marks the corresponding check box with a check mark and displays the block in color. Click the <Erase> button, and the block will be erased. You can erase all blocks collectively or one block at a time. (See Figure 4-15)

Figure 4-15 Erase Flash-2

4) “UNLOCK” button This button sends the ID code to the locked Target MCU, and unlock the Target MCU. In the “Locked” display as shown in the following figure, a flash command (program, erase, read, verify) to the Target MCU cannot be executed.

Flash command can be executed.

Flash command cannot be executed.

4 Using the FoUSB

When you click the “UNLOCK” button, the system checks ID code. The ID code check has automatic setting and manual setting.

(1) Automatic setting

Automatic setting checks in the following condition in ID code of “All FFh” and “All

00h”.

>> When FoUSB is started. >> When a firmware is changed during FoUSB use. This condition shows

FoUSB restart. If the ID code consists “All 00h”, Figure 4-16 will be displayed, and the Target MCU is unlocked. When the ID code of Target MCU is not “All FFh” or “All 00h”, please unlock Target MCU using manual setting.

Figure 4-16 Unlocked screen

Automatic setting can select whether it performs by user. Click the “SETTING” button and user setting screen is displayed. Select enabled or disabled in “Auto Unlocok” check box and click the <Save> button.

Note: When the <Cancel> button is clicked on a user setting screen, a former setting

condition is saved.

4 Using the FoUSB

(2) Manual setting

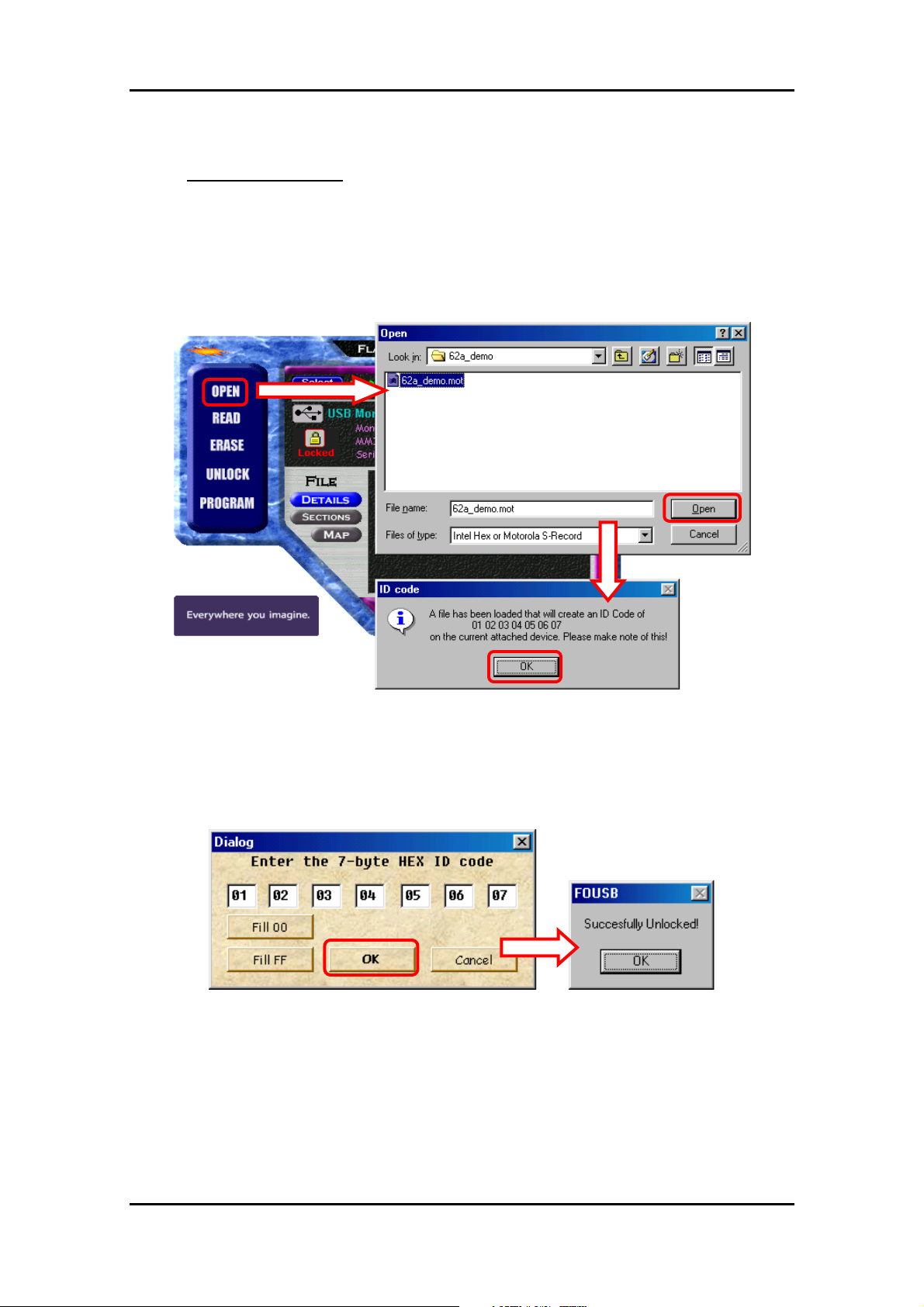

If you click the “UNLOCK” button, Figure 4-17 will be displayed. Enter the ID code and click the <OK> button. When the ID code written in the Target MCU matches with the input ID code and Figure 4-18 will be displayed. When the ID code does not match, Figure 4-19 will be displayed (Target MCU is locked) and enter the correct ID code.

Figure 4-17 ID code dialog

Figure 4-18 ID code match

Figure 4-19 ID code not match

The setting method of the ID code is the following. a. Macro input

The <Fill 00> button or the <Fill FF> button is clicked, and input “All 00h” or “All FFh”.

b. Manual input

Input the ID code by the keyboard input.

c. File input

Input the HEX file or Motorola file which has an ID code.

The example of File input is shown in the next page.

4 Using the FoUSB

Example of File input

In this example, the ID code of “01 02 03 04 05 06 07” is programmed in the Target MCU. First, click the “OPEN” button and open the HEX file or Motorola file which has an ID code. Click the <OK> button on the ID code screen which FoUSB displays. The Motorola file with the ID code of “01 02 03 04 05 06 07” is open in this example.

Next, click the “UNLOCK” button. The screen into which the ID code of the read file was input is displayed. When clicking the “OK” button, the ID code written in the Target MCU and the input ID code match and the Target MCU will be unlocked.

NOTICE: ID code address of MCU

Series ID code address

M16C/10 M16C/20 M16C/Tiny M16C/60

ID1: 0FFFDFh ID2: 0FFFE3h ID3: 0FFFEBh ID4: 0FFFEFh ID5: 0FFFF3h ID6: 0FFFF7h

ID7: 0FFFFBh M16C/80 M32C/80

ID1: 0FFFFDFh

ID2: 0FFFFE3h

ID3: 0FFFFEBh

ID4: 0FFFFEFh

ID5: 0FFFFF3h

ID6: 0FFFFF7h

ID7: 0FFFFFBh R8C/Tiny ID1: 0FFDFh

ID2: 0FFE3h

ID3: 0FFEBh

ID4: 0FFEFh

ID5: 0FFF3h

ID6: 0FFF7h

ID7: 0FFFBh 740 38000

ID1: 0FFD4h

ID2: 0FFD5h

ID3: 0FFD6h

ID4: 0FFD7h

ID5: 0FFD8h

ID6: 0FFD9h

ID7: 0FFDAh

4 Using the FoUSB

The ID code address of MCU and the ID code input forms of FoUSB are the following relations.

4 Using the FoUSB

5) “PROGRAM” button This button performs programming to the Target MCU.

(1) Click the “PROGRAM” button, and the screen shown in Figure 4-20 will appear.

Figure 4-20 Program Flash screen

(2) In the Choose an Options section, select either “Erase -> Program -> Verify” or

“Program Only”. (a) Erase -> Program -> Verify (without lock bit function)

When you select this option, processing is performed in order of Erase, Program and Verify. A progress bar is displayed, indicating the progress of processing in Erase, Program and Verify.

(b) Program Only (without lock bit function)

When you select this option, processing is performed for only programming. A progress bar is displayed, indicating the progress of processing in programming.

Note: The following warning will be displayed if clicking the “Program Only” before

erasing the Target MCU. Clik the <Yes> button, only when Target MCU is blank chip. If the Target MCU is not blank, erase Flash ROM of the Target MCU and perform the program process.

(3) Erasing Options is useful when you select “Erase -> Program -> Verify” for

Choose An Options, allowing you to select the method for erasing flash memory blocks. (a) Erase All Blocks

All flash blocks are erased

(b) Erase Only Needed Block

Only the corresponding flash block is erased.

4.1.4 Details of the Update Button

Use the “Update” button when you want to upgrade the version of FoUSB.

4 Using the FoUSB

4.1.5 Details of the Select MCU Button

1) The following MCUs can be selected in FoUSB.

Group MC U P r o d u c t N a m e

to select in FoUSB

M16C/10 M30102F3 M16C/1N M301N2F8 M16C/24 M30245FC M16C/26 M30262F3

M30262F4 M30262F6 M30262F8

M16C/26A M30260F3A

M30260F4A M30260F6A M30260F8A M30263F3A M30263F4A M30263F6A M30263F8A

M16C/28 M30280F6

M30280F8 M30280FA M30281F6 M30281F8 M30281FA

M16C/29 M30290F8

M30290FA M30290FC M30291F8 M30291FA M30291FC

Group MC U P r o d u c t N a m e

to select in FoUSB

M16C/62A (62M)

M16C/62P M30622F8P

M16C/6N M306N4FC

M16C/80 M30800FC

M32C/83 M30833FJ

M32C/84 M30845FJ M32C/85 M30855FH

M32C/86 M30865FJ M32C/87 M3087BFL

M30620FCA M30624FGA M3062GF8N (Note)

M30623F8P M30620FCP M30621FCP M30624FGP M30625FGP M30626FHP M30627FHP M30626FJP M30627FJP

M306N4FG M306N5FC M306NAFG M306NBFC

M30803FG

M30835FJ

M30855FW M30852FJ

4 Using the FoUSB

Group M C U P r o d u c t N a m e

to select in FoUSB

R8C/10 R5F21102

R5F21103 R5F21104

R8C/11 R5F21112

R5F21113 R5F21114

R8C/12 R5F21122

R5F21123 R5F21124

R8C/13 R5F21132

R5F21133 R5F21134

7542 M37542F8 38C2 M38C29FF

Note: M3062GF8N (M16C/62N Group) is contained in M16C/62A Group list.

4 Using the FoUSB

2) When pressing the "Select MCU" button, the screen shown in Figure 4-21 is displayed. Select the Target MCU in this screen. First, select the category of the Target MCU to be used form the MCU Category Column (M16C/26 Group is selected from M16C/Tiny Series in Figure 4-21). Next, select the Target MCU to be used from the MCU Select Column. If the MCU which is indicated by highlight is duble-click or <OK> button is clicked, the confirmation screen will be displayed.

MCU Category Column

MCU Select Column

Figure 4-21 Chip Selection screen

3) Click the <OK> button, if the confirmation screen is displayed, and download the firmware to USB Monitor Board.

Figure 4-22 Confirmation screen

4) The screen shown in Figure 4-23 is displayed while the system is downloading the firmware to USB Monitor Board.

Figure 4-23 Firmware Download screen

4 Using the FoUSB

5) When the system has finished download the firmware, the screen shown in Figure 4-24 is displayed. Click the <OK> button.

Figure 4-24 Completion screen

NOTICE: The cautions about firmware download in 3.3V operation

In 3.3V operation, firmware download to USB Monitor Board cannot be performed. The following error screen will be displayed if the firmware is downloaded to USB Monitor Board in 3.3V operation.

In such a case, please use FoUSB (KD30/KD3083 are included) afeter downloading the firmware to USB Monitor Board in the procedure shown below. Frimware download is not required unless the MCU to be used is changed after downloa ding the firmware.

a) Set the power source supply selector (S1: Power Mode) on the USB Monitor Board to

the USB side.

(Refer to Figure 4-2)

b) Connect the USB Monitor Board to host computer (PC). In this case, do not connect

the Target Board to the USB Monitor Board.

4 Using the FoUSB

c) Start FoUSB. At this time, although the following error screen is displayed, ignore the

error and click the <OK> button.

Figure 4-25 Error screen

d) Click the “Select MCU” button and download the firmware to the USB Monitor Board.

(Refer to 2) to 5) of this section for details)

e) When the download of the firmware is completed, Figure 4-25 will be displayed again.

Ignore the error and click the <OK> button. Finish FoUSB.

f) Remove the USB Monitor Board from host computer (PC), and set the power source

supply selector (S1: Power Mode) on the USB Monitor Board to the TARGET side.

(Refer to Figure 4-3) g) Connect the PC, USB Monitor Board and Target Board. h) Input 3.3V to the Target Board and USB Monitor Board from the external power.

FoUSB (KD30/KD3083 are included) can be used in 3.3V operation with the above procedure.

4.1.6 Monitor Information

1) Monitor Firmware

The version of the firmware currently written in the USB Monitor Board is indicated

here.

2) MMI Loaded

The name of the firmware currently written in the USB Monitor Board is indicated he re.

3) Serial Boot Code

The boot version written in the MCU is indicated here.

4.1.7 Detailed File Information

1) DETAILS button

Shows details of the downloaded data (program size, ID code, blocks and sections

4 Using the FoUSB

used).

2) SECTIONS button

Shows the address area in which the downloaded data are written.

3) MAP button

Shows the block area in which the downloaded data are written.

4.1.8 Details of Main Button 2

1) SETTINGS button

When you click the “SETTINGS” button, the screen shown in Figure 4-26 appears,

allowing you to customize FoUSB.

Figure 4-26 User Setteing screen

(1) Contents of Options

Debug Mode: Whether debug mode is available (Unusabl e) Show splash screen: Whether FoUSB sound is available Ignore FoUSB Devices: Whether FoUSB devices are included (Unusable) Ignore Monitor Devices: Whether USB monitor is included (Unusable) Auto Unlock: Whether or not to automatically set ID code

4 Using the FoUSB

Multi-Programming Mode:

Whether Multi-Programming Mode is available (Unusable)

Language: Language select

(2) Automated Programming

This function currently cannot be used.

2) HELP button

Opens a help file.

3) EXIT button

Terminates FoUSB.

4.2.Other Functions

FoUSB does not have a “check sum” function. Therefore, when checking written contents, check “READ” > “Verify” > “Verification”. For cletails, refer to [4.1.3 Details of Main Button 1] for other functions, refer to Onlie Help.

5. Using the KD

5.1 Using the KD

5.1.1 Before Starting the KD

1) Corresponding MCU become only R8C/Tiny, M16C/10, M16C/20, M16C/Tiny,

M16C/60 series, M16C/80 and M32C/80 series.

5 Using the KD

2) Check to see that the KD is installed in your host computer (PC).

3) Check to see that PC, USB Cable, USB Monitor Board, Flat Cable and Target Board

are firmly connected. (See Figure 5-1)

USB Cable

Target Board

Figure 5-1 connect-2

USB Monitor Board

Flat Cable

5.1.2 Starting the KD

1) From the Start menu, choose Programs -- RENESAS-TOOLS – KD30 V.*.**

Release* -- KD30 to start the KD. When the KD starts, the screen shown in Figure 5-2

appears. If the screen appears, click the <Refer…> button and choose MCU File.

Note: In the case of M16C/80 and M32C/80, start KD3083.

5 Using the KD

Figure 5-2 Init screen-1

2) Next, the Select MCU File screen on Figure 5-3 will be displayed. For KD30, select

the category folder of MCU to be used from the MCU category folder of the McuFiles

folder and open it. For KD3083, open the MCU File from the McuFiles folder.

Figure 5-3 Select MCU File screen

5 Using the KD

3) The Init screen of the Figure 5-4 opens when it is done after a MCU File is chosen.

Choose “USB” as the communication interface and click the <OK> button.

Figure 5-4 Init screen-2

NOTICE: Precautions on KD3083 Emulation Memory

The address allocated to the Emulation Memory cannot be debugged in the KD3083. Therefore, allocate the Emulation Memory to the address which is not used in debug.

The address in the Emulation Memory can be modified by the bank address (default vale: F0). The high-order 24 to 17 bits of the address will be a bank address.

Figure 5-5 Emem screen (KD3083 only)

The following section describes the address modification of the Emulation Memory as an example of the M3087BFLGP (M32C/87 Group microcomputer).

5 Using the KD

(a) At first an example to which the Emulation Memory overlaps the User Program is

shown. In this example, the User Program is allocated from F00000h and the Emulation Memory is allocated from F00000h (using default value F0 of bank address). Therefore, the Emulation Memory overlaps the User Program and contes of the User program and asseble codes are not matched.

Bank Address

F00000h

F10000h

Emulation Memory

User Area

64KB

The Emulation Memory overlaps the user program.

FFF900h

FFFEFFh

FFFFFFh

Monitor Area

Fixed Vector Table

The user program code (NOP) and asseble code (BRK) are not matched.

5 Using the KD

(b) Then an example to which the Emulation Memory does not overlap the User

Program is shown. In this example, the User Program is allocated from F00000h and the Emulation Memory is allocated from E00000h (set E0 to the bank address). Since the Emulation Memory does not overlap the User Program, contents of the User Program and assemble codes are matched.

Bank Address

E00000h

E10000h

F00000h

Emulation Memory

User Area

64KB

The Emulation Memory does not overlap the user program.

FFF900h

FFFEFFh

FFFFFFh

Monitor Area

Fixed Vector Table

The user program code (NOP) and assemble code (NOP) are matched.

Note: The setting contents on the Emem screen will be continued to the upcoming

KD3083. Therefore, it is not necessary to set evry time the KD3083 starts.

5 Using the KD

4) This KD Main screen appears when the KD was able to communicate normally at

startup.

D. Reset button

C. Stop button

B. Step button

A. Go button

Figure 5-6 KD Main scre en

5.1.3 Program Download

1) Download a program by "File -- Download" in KD Main screen. Please note that "SKPTest.x30" is not included in this product.

5 Using the KD

Figure 5-7 Program Download

2) When completing the download, a program which is downloaded into "Program window" is indicated (See Figure 5-8).

Figure 5-8 Program window

5.1.4 Program Execution

When completing download, click the "Go" button on the KD Main screen to execute a program. After this, the program is executed.

5 Using the KD

Figure 5-9 Program Execution

5.1.5 Program Stop

Click the "Stop" button on the KD Main screen (Figure 5-6, C) to stop the program which is already executed after this, the program is stopped the KD Main screen is as Figure 5-8.

5.1.6 Program Step Execution

When performing step execution, click the "Step" button (Figure 5-6, B) on the KD Main screen.

5.1.7 Software Break Method

When executing the software break, the software break can be set as the place which has "-" in "BRK" in Program Window screen. The KD Main screen is as Figure 5-10.

Software break point

5 Using the KD

5.1.8 Reset Execution

User Program is in the same status as immediately after download. Click the "Reset" button (Figure 5-6, D) on the KD Main screen.

5.1.9 KD Completion

1) Before completing a KD, stop the User Program.

2) Next, select "File -- Exit" menu in the KD Main screen. When the Exit menu is

selected opens, click "OK" button. If "Cancel" is clicked, the KD is not completed.

Figure 5-10 Software Break

5.1.10 If a Communication Error Occurs

If a communication error occurs, the error screen shown in Figure 5-11 appears. In that case, click the “OK” button and check the following two points. When you finished checking, restart the KD.

Check1: Is the power source supply selector on the USB Monitor Board set to USB

side?

Check2: Are the USB Cable and Flat Cable are firmly inserted into position?

5 Using the KD

Figure 5-11 Communication Error screen

5.1.11 Error Except a Communication Error Occurs

If an error except a communication error occurs, refer to the KD online help.

5.1.12 Operation Method

When operating except specifying above, refer to the KD online help.

5.2 KD Limitations

5.2.1 Limitations on Special Page Vector

A Monitor Program uses several Special Page Vectors. Therefore, the Special page Vector which can be used in the User Program is limited as Special Page Vector Number shown in the following table. When updating the version of the Monitor Program (or Firmware), the Special Page Vector which can be used in the User Program may be modified.

Table 5-1 Specail Page Vector Limitations

Group Available Special Page Vector Number M16C/10 #127 to #24

M16C/1N #238 to #24 M16C/24 #234 to #24 M16C/26 #205 to #24 M16C/26A, 28, 29 #199 to #24 M16C/62A (M) M16C/6N (6NA, 6NB) M16C/62P M16C/6N (6N4, 6N5) M16C/62N (M3062GF8N) #237 to #24 M16C/80 #196 to #24 M32C/83 #182 to #24 M32C/84, 85, 86, 87 #164 to #24

#234 to #24 #200 to #24

5 Using the KD

Note: The contents in this Table are applied to the following KD30/KD3083.

- KD30 Ver.4.10 Release 1 (Firmware version: V.8.00)

- KD3083 Ver.3.30 Release 1 (Frimware version: V.8.00)

5.2.2 A limitation item about the C language

When using Renesas C compiler. It is necessary to change a start up file (ncrt0.a30 and sect30.inc).

(1) The change point of “ncrt0.a30”

(a) Initialize standard I/O

The UARTi setting is modified in the I/O initialization treatment. Therefore, to ensure that the I/O initialization treatment is not called up, comment it out.

--> Applicable MCUs All MCUs

(b) Reset treatment (after reset, this program will start)

The interrupt enable flag is cleared and communication is disabled after the LDINTB instruction. Therefore, execute the interrupt enable setting immediately

5 Using the KD

after the LDINTB instruction.

--> Applicable MCUs M16C/10, M16C/1N, M16C/62A(M), M16C/6N(M306NAFG, M306NABFC only) M16C/24, M3062GF8N, M16C/80

The initial setting of the relocatable vector table (variable vector table) will cause the program to overlap with the monitor memory area. Set the address so that it does not overlap with the memory area.

--> Applicable MCUs All MCUs except R8C/Tiny

(2) The change point of “sect30.inc”

(a) UARTi receive interrupt vector address setting

The user must set the UARTi receive interrupt address for communication between the monitor program and the debugger. Set the interrupts as indicated below applicable MCUs.

--> Applicable MCUs UART1 receive interrupt (FF900h): M16C/24, M16C/62A(M), M3062GF8N

M16C/6N(M306NAFG, M306NBFC only) UART0 receive interrupt (FF900h): M16C/10, M16C/1N UART1 receive interrupt (FFF900h): M16C/80

5 Using the KD

5.2.3 Limitations on Memory Extension

When using memory extension, make sure the power source supply selector on the USB Monitor Board is set to the TARGET side so that the power for the Target MCU will be supplied from the Target Board. Memory extension cannot be used when the selector is set to the USB side.

5.2.4 Precautions on Internal Reserved Area Expansion Bit

a. M16C/62A (M), M16C/62P

The Target MCU operates when the PM13 bit (Internal Reserved Area Expansion Bit) is set to “1” (Expands the internal RAM area and internal ROM area to over 15KB and to over 192KB respectively) for 256KB or above version of the M16C/62A (M) and 62P groups. Since the access area of the internal memory is limited (The Monitor Program RAM area is limited) by setting the PM13 bit to “0”, the KD will not be able to be used. Therefore, do not set the PM13 bit to “0” on the User Program.

Applicable MCUs: M30624FGAFP/GP, M30625FGAGP, M30624FGMFP/GP

M30625FGMGP, M30624FGPFP/GP, M30625FGPGP M30626FHPFP/GP, M30627FHPGP, M30626FJPFP/GP M30627FJPGP

b. M16C/6N (6N4)

The Target MCU operates when the PM13 bit (Internal Reserved Area Expansion Bit) is set to “1” (Expands the internal ROM area to over 192KB) for 256KB version of the M16C/6N (6N4) group. Although the PM13 bit is set to “0”, the Monitor Program area is not limited and the KD will be able to be used. However, the area of C0000h to CFFFFh cannot be used.

Applicable MCUs: M306N4FGTFP

c. M16C/6N (6NA)

The Target MCU operates when the PM13 (Internal Reserved Area Expansion BIt) is set to “0” (The internal ROM area is 192KB or less) for 256KB version of the M16C/6N (6NA) group. Therefore, the area of C0000h to CFFFFh cannot be used. When using the area of C0000h to CFFFFh, set the address after D0000h to the reset vector and set the PM13 bit to “1” on the User Program which operates from the address after D0000h.

Applicable MCUs: M306NAFGTFP

5.2.5 Limitations on Stop and Wait Modes

To use stop or wait modes in the User Program, start the KD in free-run mode. If you want to debug, close the RAM, C Watch and ASM Watch Windows before actually debugging. Furthermore, set a breakpoint or take other necessary measures when getting out of stop or wait mode in order to ensure that no window operations will be performed until the program stops at the breakpoint.

5.2.6 Realtime Capability of the User Program

Please be aware that while the Monitor Program is in its “STOP”ed state, the hardware peripherals will continue to run. Therefore, interrupts may not be serviced properly. Also, the watchdog timer will not be serviced and will likely timeout if active.

5 Using the KD

Note: While the Monitor Program is in its “RUN”ning state, there is no overhead on the

User Program,

unless the RAM, C Watch and ASM Watch Windows are open in KD30/KD3083. These windows require periodic communication with the target MCU, which suspends normal User Program operation while servicing the request (approximately 2000 BCLK cycles for each 16 bytes of data displayed in the window are used per window update). When enabling Realtime Capability in the User Program, close these windows.

5 Using the KD

5.3 Memory Map Limitations

Table 5-2 and Table 5-3 list the ROM/RAM areas which the monitor program uses. Figure 5-12 shows the memory map.

Table 5-2 ROM/RAM areas (1)

Group MCU ROM/RAM XXXXXh YYYYYh ZZZZZh

M16C/10 M30102F3 24K/1K 780h 7FFh 0FA000h M16C/1N M301N2F8 64K/3K F80h FFFh 0F0000h M16C/24 M30245FC 128K/10K 2B80h 2BFFh 0E0000h M16C/26

M16C/26A

M16C/28

M16C/29

(62M)

M16C/62P

M16C/62N M3062GF8 64K/8K 2380h 23FFh 0F0000h

M30262F3 24K/1K 780h 7FFh 0FA000h M30262F4 32K/1K 780h 7FFh 0F8000h M30262F6 48K/2K B80h BFFh 0F4000h M30262F8 64K/2K B80h BFFh 0F0000h M30260F3A 24K/1K 780h 7FFh 0FA000h M30260F4A 32K/1K 780h 7FFh 0F8000h M30260F6A 48K/2K B80h BFFh 0F4000h M30260F8A 64K/2K B80h BFFh 0F0000h M30263F3A 24K/1K 780h 7FFh 0FA000h M30263F4A 32K/1K 780h 7FFh 0F8000h M30263F6A 48K/2K B80h BFFh 0F4000h M30263F8A 64K/2K B80h BFFh 0F0000h M30280F6 48K/4K 1380h 13FFh 0F4000h M30280F8 64K/4K 1380h 13FFh 0F0000h M30280FA 96K/8K 2380h 23FFh 0E8000h M30281F6 48K/4K 1380h 13FFh 0F4000h M30281F8 64K/4K 1380h 13FFh 0F0000h M30281FA 96K/8K 2380h 23FFh 0E8000h M30290F8 64K/4K 1380h 13FFh 0F0000h M30290FA 96K/8K 2380h 23FFh 0E8000h M30290FC 128K/12K 3380h 33FFh 0E0000h M30291F8 64K/4K 1380h 13FFh 0F0000h M30291FA 96K/8K 2380h 23FFh 0E8000h M30291FC 128K/12K 3380h 33FFh 0E0000h M30620FCA 128K/10K 2B80h 2BFFh 0E0000h M16C/62A M30624FGA 256K/20K 5380h 53FFh 0C0000h M30622F8P 64K/4K 1380h 13FFh 0F0000h M30623F8P 64K/4K 1380h 13FFh 0F0000h M30620FCP 128K/10K 2B80h 2BFFh 0E0000h M30621FCP 128K/10K 2B80h 2BFFh 0E0000h M30624FGP 256K/20K 5380h 53FFh 0C0000h M30625FGP 256K/20K 5380h 53FFh 0C0000h M30626FHP 384K/31K 7F80h 7FFFh 0A0000h M30627FHP 384K/31K 7F80h 7FFFh 0A0000h M30626FJP 512K/31K 7F80h 7FFFh 080000h M30627FJP 512K/31K 7F80h 7FFFh 080000h

5 Using the KD

Table 5-3 ROM/RAM areas (2)

Group MCU ROM/RAM XXXXXh YYYYYh ZZZZZh

M16C/6N

M32C/84 M30845FJ 512K/24K 6300h 63FFh F80000h M32C/85

M32C/86 M30865FJ 512K/24K 6300h 63FFh F80000h M32C/87 M3087BFL 1M/48K C300h C3FFh F00000h R8C/10

R8C/11

R8C/12

R8C/13

M306N4FC 128K/5K 1780h 17FFh 0E0000h M306N5FC 128K/5K 1780h 17FFh 0E0000h M306N4FG 256K/10K 2B80h 2BFFh 0C0000h M306NBFC 128K/5K 1780h 17FFh 0E0000h M306NAFG 256K/10K 2B80h 2BFFh 0C0000h M30800FC 128K/10K 2B00h 2BFFh FE0000h M16C/80 M30803FG 256K/20K 5300h 53FFh FC0000h M30833FJ 512K/31K 7F00h 7FFFh F80000h M32C/83 M30835FJ 512K/31K 7F00h 7FFFh F80000h

M30855FW 320K/24K 6300h 63FFh FB0000h M30855FH 384K/24K 6300h 63FFh FA0000h M30852FJ 512K/16K 4300h 43FFh F80000h

R5F21102 Note1 8K/512 --- 7FFh 0C800h R5F21103 Note1 12K/768 --- 7FFh 0C800h R5F21104 16K/1K --- 7FFh 0C800h R5F21112 Note2 8K/512 --- 7FFh 0C800h R5F21113 Note2 12K/768 --- 7FFh 0C800h R5F21114 16K/1K --- 7FFh 0C800h R5F21122 Note3 8K/512 --- 7FFh 0C800h R5F21123 Note3 12K/768 --- 7FFh 0C800h R5F21124 16K/1K --- 7FFh 0C800h R5F21132 Note4 8K/512 --- 7FFh 0C800h R5F21133 Note4 12K/768 --- 7FFh 0C800h R5F21134 16K/1K --- 7FFh 0C800h

Note1: When using KD30, select the “R5F21104” MCU File. Note2: When using KD30, select the “R5F21114” MCU File. Note3: When using KD30, select the “R5F21124” MCU File. Note4: When using KD30, select the “R5F21134” MCU File.

5 Using the KD

00000h

00400h

XXXXXh

YYYYYh

ZZZZZh

FF900h

FFEFFh

FFFFFh

SFR

User RAM Area

Monitor RAM

Area

Flash Memory

Monitor Area

User Fixed

Vector Area

000000h

000400h

XXXXXh

YYYYYh

ZZZZZh

FFF900h

FFFEFFh

FFFFFFh

SFR

User RAM Area

Monitor RAM

Area

Flash Memory

Monitor Area

User Fixed

Vector Area

00000h

SFR

00400h

User RAM Area

YYYYYh

0C000h

Monitor Area

ZZZZZh

Flash Memory

0FEFFh

User Fixed

Vector Area

0FFFFh

[M16C Series] [M16C/80, M32C/80 Series] [R8C/Tiny Series]

Figure 5-12 Mmemory map

5.4 Peripheral Function Related Limitations

1) UART pins (TxDi, RxDi) The UARTi transmit and receive interrupts are used for communication between the USB Monitor Board and host computer (PC). Make sure that UARTi is not used in the User Program. Do not connect the UART pins with other pins.

UART1 use prohibition MCUs

R8C/10 Group, R8C/11 Group, R8C/12 Group, R8C/13 Group, M32C/80 Series M16C/80 Group, M16C/Tiny Series, M16C/24(M30245) Group, M16C/62A(M) Group M16C/62P Group, M16C/62N(M3062GF8) Group, M16C/6N Group

UART0 use prohibition MCUs

M16C/10 Group, M16C/1N Group

2) Set up "0FF900h" or ”0FFF900h” in the UARTi receive with User Program because UARTi is being used for the communication with KD30 and KD3083. The interruption of relocatable vector table (variable vecter table) except for UARTi can be used with User Program.

UART1 receive interrupt setting required MCUs (0FF900h address)

M16C/62A(M) Group, M16C/6N(M306NAFG, M306NBFC only) Group M16C/24(M30245) Group

UART0 receive interrupt setting required MCUs (0FF900h address)

M16C/10 Group, M16C/1N Group

UART1 receive interrupt setting required MCUs (0FFF900h address)

M16C/80 Group

Note: Setting the UARTi receive interrupt is not necessary for MCUs other than the

above MCU.

5 Using the KD

5.5 FoUSB Debugger Principle

FoUSB debug formula is a monitor program formula. The monitor program debugs by communicating with FoUSB. A use program is interrupted at the time of command execution, and a monitor program is executed. A monitor program is written in flash memory user ROM area when a debugger (KD30 and KD3083) is started. The monitor program has the following functions.

1) A function which communicates with FoUSB.

2) A function which executes command.

Next, the differences between the realization method of these functions and CPU operation are described.

5 Using the KD

5.5.1 Communication Function with FoUSB

The clock synchronous serial I/O is used for FoUSB and the monitor program communication. When the data is received, the DBC interrupt generates and the monitor program is executed. The DBC interrupt is not influenced of I flag. (The receive interrupt is used for some models because there is no DBC interrupt. In this case, the DBC interrupt is influenced of I flag). The monitor program analyzes the received data and executes each command.

5.5.2 Command Execution

1) User Program exection

A User Program is executed in the following procedure. (1) An address match interrupt is disabled. (2) One instruction of a User Program is executed (using a single step interrupt and

executing only one instruction) and go back to the monitor program. (3) When a software break is set, enable an address match interrupt. (4) The User Program continuance is executed.

When a User Program is stopped by a software break, if a User Program is

executed, an address match interrupt is generated and stops in the same

address again, therefore to move from the address is not possible. Above (1) to

(3) processes are performed to avoid this re-interrupt.

2) Software break An address match interrupt is used for software break. When an address match interrupt is generated, a monitor program is operated. The number of the software breaks which can be used simultaneously is the same as the number of the address match functions which are built in a microcomputer.

3) Step Execution A single step interrupt is used for step execution. When a single step interrupt is generated, a monitor program is operated. Step execution has step, over and return.

4) Dump When using dump, a User Program execution is stopped temporarily, and the data of the area currently opened in the dump window is transferred. A monitor program is used for a register regarding a clock, therefore these registers may be the values which the user doesn't set up.

5) RAM monitor When using RAM monitor, a User Program execution is stopped temporarily.

6) Register reference When using register reference, a User Program execution is stopped temporarily and the data of CPU register and SFR is transferred.

7) User Program stop A User Program stops, a monitor program operates and it waits for next command.

5.5.3 The difference from an actual CPU operation

1) Real time When opening a RAM monitor window, a User Program execution is stopped temporarily, RAM is read out and the communication is performed. Since a User

5 Using the KD

Program is stopped, User Program execution time is prolonged.

2) Reset vector table A reset vector is rewritten at the routine address which is used for a monitor program, therefore when referring this area by dump, the value is differenet from the value which a user sets.

3) Interrupt Interrupts of Address Match interrupt and Single Step interrupt and BRK instruction interrupt and DBC interrupt are used by a monitor program, therefore do not use these interrupts in a User Program.

4) Values after reset When a microcomputer is reset, a monitor program is operated, therefore when a program is stopped at the head of a User Program, the CPU register and the SFR value may differ from the initial value (value after reset) of a microcomputer.

6 Troubleshooting

6. Troubleshooting

6.1 FoUSB cannot communicate with the Target MCU Why?

It is possible that the firmware written in the USB Monitor Board has gone wild. In such a case, temporarily remove the USB Cable and insert it back into position.

6.2 The MCU cannot enter standerd serial I/O why?

1) Check to see that the Busy signal is connected to the writer’s connector accurately.

2) Check to see that the Reset signal is pulled up (5K) on a board.

6.3 The MCU cannot be programmed using FoUSB Why?

Check to see that the MCU type name displayed in FoUSB and that of the Target MCU match.

6.4 FoUSB cannot operate Why?

When FoUSB (Flash-over-USB) is started in the state where your host computer (PC), USB Cable, USB Monitor Board, Flat Cable, and Target Board are connected, the firmware of USB MCU is erased or damaged if the following window (see Figure 6-1) is displayed. Moreover, when firmware is erased or damaged (the status display of USB Monitor Board lights only a Power indicator), FoUSB and KD (KD30, KD3083) ca nnot be used.

6 Troubleshooting

Figure 6-1 FoUSB main window

lights only

Figure 6-2 USB Monitor Board (Board)

In such a case, it is necessary to download firmware compulsorily to USB MCU. Please perform compulsive download of firmware to USB MCU according to the procedure shown in the following page.

6.4.1 Compulsive download procedure of firmware

1) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the

following setup.

Shorted

USB side

2) Connect the USB Monitor Board (Board) with your host computer (PC).

6 Troubleshooting

3) Start FoUSB (Flash-over-USB) and click the “Load MMI” button on a GUI window.

Click here

Information of USB MCU

6 Troubleshooting

4) On the Chip Selection screen, select your MCU and download a firmware to the USB

MCU.

(1) Select your MCU

(2) Click here

5) If download of firmware is completed to USB MCU, since the completion screen of

download will be displayed, click the <OK> button.

6) End FoUSB and separate a USB Monitor Board (Board) from your host computer

(PC).

7) Make Open JP1 (MCU Mode Pin) of the USB Monitor Board (Board).

Open

6 Troubleshooting

8) Connect USB Monitor Board (Board) with your host computer (PC).

9) Since firmware has downloaded normally if a Power indicator (D4: Status) is lighting and the Status indicator is blinking as shown in the following figure, FoUSB and KD (KD30, KD3083) can be used.

blinking

lighting

10) Separete USB Monitor Board (Board) from PC and attach a cover in the USB Monitor Board (Board).

11) Now you've finished compulsive downloading the firmware.

6 Troubleshooting

6.5 Can FoUSB information be transmitted to KD?

A written program using FoUSB cannot be debugged with KD. It is necessary to download a program on KD again when executing debug using KD. Therefore, written program information in flash area is not transmitted to KD30 (KD3083).

6.6 A communication error occurs when the KD starts. What is the cause of this problem?

If a communication error occurs when the KD starts, check the following.

1) Whether the cables are properly connected and whether the power is turned on?

2) Whether the serial port you set in the KD’s Init dialog box is correct?

3) Whether the Status indicator (D4: Status) of USB Monitor board is blink?

4) Has CNVss pin on the target board been pulled down?

5) Is the target MCU ID code “all 00h” or “all FFh”?

In 3), when the Status indicator is not blinking, the firmware of USB MCU is erased or damaged. When firmware is erased or damaged, FoUSB (Flash-over-USB) and KD (KD30, KD3083) cannot be used. In such a case, it is necessary to download firmware compulsorily to USB MCU. Please refer to [6.4 FoUSB cannot operate Why?], in order to download firmware compulsorily to USB MCU.

6.7 A communication error occurred when debugging the program. What is the cause of this problem?

1) If a communication error occurs when debugging your program, initialize the system

following the procedure described below. This should help you restart debugging. (1) Click the <OK> button in the error dialog box to close the KD. (2) Start up the KD again. (3) Download your program.

2) Check whether the data “0FF900h” or “0FFF900h” is set when transmitting/receiving

via UARTi in your program.

6 Troubleshooting

3) If a communication error occurs frequently when debugging your program, check the

following:

When using an interrupt program in which multiple interrupts (interrupt from within another interrupt) are not enabled...

-> If the interrupt program takes more than 260 µs of processing time, set the I flag to 1 at the beginning of the interrupt program.

6.8 A message "Source file cannot be found" was output. What should I do?

If an error "Source file cannot be found" occurs, check the following:

1) Whether the source file and the executable file exist in the same directory (or folder).

2) Whether the source file has been opened by any editor other than the KD.

6.9 Is peripheral I/O operating during a break?

Although no interrupts are accepted during a break, peripheral I/O continues operating. If the User Program is halted by a break after starting a timer, for example, timer interrupts are not accepted although the timer continues counting

6.10 Can coveragefunction be used in KD?

Coverage function cannot be used in KD.

6.11 Can check sum function be used?

FoUSB dose not have “check sum” function. Therefore, when checking written contents, check “READ” > “Verify” > “Verification”. For details, refer to [4.1.3 Details of Main Button 1].

6.12 ID code written to microcomputer after KD exits?

The ID code of the User Program is not written to the microcomputer, but “all FFh” is written to it when using KD. Therefore, the ID code which is written to the microcomputer after KD exits is assumed “all FFh”.

6 Troubleshooting

6.13 Debug operation has not worked well

Isn’t the resource of a Monitor Program used? When using the resource of the Monitor Program in debug, a communication error or an unexpected operation may occur. Therefore, note that the resource of the Monitor Program should not be used.

a. Peripheral (Serial I/O)

The BUSY, SCLK, TxD and RxD pins are used for communications between the Target MCU and KD30/KD3083. Do not connect a user I/O to these pins.

Related section: [5.4 Peripheral Function Related Limitations] 1)

b. SFR (UART association)

Do not modify registers associated with UARTi (including the port register and port direction register allocated to the Serial I/O) on a User Program. When modifying ports other than the serial port, modify it with the read-modify write instruction (BSET, BCLR, etc.).

Related section: [5.2.2 A limitation item about the C language] (1) - (a)

c. RAM

Do not use a Monitor Program RAM on a User Program. The Monitor Program RAM is allocated from the lowest-order address in RAM which the Target MCU has. However, there is no Monitor Program RAM since R8C/Tiny has special debug RAM.

Related section: [5.3 Memory Map Limitations]

d. Flash ROM (Excluding Fixed Vector Table)

Do not overlap a User Program with a Monitor Program ROM. When the User Program overlaps with the Monitor Program, the KD30/KD3083 indicate an error (Error 16256: “The specified area includes the debugging monitor memory area.”).

Related section: [5.2.2 A limitation item about the C language] (1) - (c)

[5.3 Memory Map Limitations]

6 Troubleshooting

e. Interrupt

Interrupts shown below are the resources of the Monitor Program. Do not use these interrupts. Also, some microcomputers do not support the DBC interrupt (Note). In microcomputers which do not support the DBC interrupt (ex.: M16C/62A group), the UARTi receive interrupt is used. Therefore, when using (relocation) the Relocatable Vector Table (Variable Vector Table) in the User Program, it is necessary to set the UARTi receive interrupt routine (FF900h or FFF900h) on the Monitor Program to the vector address of the UARTi receive interrupt.

Interrupt

BRK Instruction Address Match Single Step DBC

R8C/Tiny M16C/10, 20, 60, Tiny M16C/80, M32C/80 FFE4h to FFE7h FFFE4h to FFFE7h FFFFE4h to FFFFE7h

FFE8h to FFEBh FFFE8h to FFFEBh FFFFE8h to FFFFEBh FFECh to FFEFh FFFECh to FFFEFh FFFFECh to FFFFEFh FFF4h to FFF7h FFFF4h to FFFF7h FFFFF4h to FFFFF7h

Vector Address

<Software Interrup> UART0 transmit/receive interrupt: M16C/10 series UART1 transmit/receive interrupt: MCUs other than M16C/10 series

Note: Whether the DBC interrupt is applicable or not and the UART channel are shown

below. Users cannot use the UARTi transmit/receive interrupt even if the DBC interrupt is applicable.

Group DBC UARTi Group DBC UARTi

M16C/10 N/A 0 M16C/80 N/A 1 M16C/1N N/A 0 M32C/83 Applicable 1 M16C/24 N/A 1 M32C/84, 85, 86, 87 Applicable 1 M16C/26, 26A, 28, 29 Applicable 1 R8C/10, 11, 12, 13 Applicable 1 M16C/62A (M), 62N N/A 1 M16C/6N (M306NAFG, M306NBFC) M16C/6N (M306N4FC, M306N4FG, M306N5FC) M16C/62P Applicable 1

N/A 1

Applicable 1

Related section: [5.2.2 A limitation item about the C language] (2)

[5.4 Peripheral Function Related Limitations] 2)

6.14 Message List

The following lists the messages output by FoUSB.

Normal message

Your device has been automatically unlocked with the ID code. The correct firmware already loaded on the USB Monitor Board. Do you want to reprogram anyway Programming in new firmware image Download successful!! Verify passed A file has been loaded that will create an ID code of 00 00 00 00 00 00 00 on the current attached device. Please make note of this!

Error message

The ID code did not match the one on the device

You are about to program Flash blocks that have not been erased yet. Do

you want to continue? Device is locked! You must first unlock the device. The USB Monitor Board is currently begin used as part of the KD30 Debugger System. Please close KD30 first before using the USB monitor board. the firmware currently loaded on your USB monitor board doesn't support the device your have selected. Verify FAILED The Flash memory on the device does not match the current loaded firmware file. No Flash Blocks Selected Please only enter numbers between C0000 and FFFFF only USB Monitor could not erase that Flash Block Error erasing device!!! Erase Unsuccessful!!! No File loaded Vendor Read Request Error: unable to complete GET_DEV_INFO command. Unknown USB device attached!! the target board that is attatched USB monitor board currently does not have its own 5volt supply --Unable to place target MCU into syncronoos, BootMode

6 Troubleshooting

7. Appendix

(

)

(

)

7.1 USB Monitor Board

7.1.1 Board Specifications

Figure 7-1 list Board specifications of USB Monitor Board.

J1:USB connector

(USB Cable)

S1:Power Source Supply

Selector

JP1:MCU Mode Pin

Boot/User

J3:10-Pin connector

Flat Cable

7 Appendix

M37641F8 USB MCU

J2:UART Interface

Figure 7-1 USB Monitor Board (Board specifications)

LED’s:

D2(Red) - Stop D3(Green) - Run D4(Yellow) - Status D1(Red) - Power

7.1.2 Pin Assignments

As an example of M16C/62A group, Pin assignments of the 10-pin connector (for Flat Cable) are shown in Figure 7-2.

7 Appendix

Pin No. 1

1 3 5 7 9 2 4 6 8 10

10-Pin connector

Figure 7-2 An example of 10-Pin connector pin assignment

7.1.3 Example Connection

An example of how to connect the 10-pin connector (for the Flat Cable) to the Target Board is shown in following page.

Pin No. Port Signal

1 Vcc 2 P6_4 BUSY 3 P6_5 SCLK 4 P6_6 RxD 5 P5_0 CE 6 P5_5 EPM 7 GND 8 RESET 9 CNVss

10 P6_7 TxD

7 Appendix

Example Connection for M16C/62A(M), 6N(M306NAFG, M306NBFC only), M3062GF8N, 80, 24

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal 1 2 3 4 5 6 7 8 9

p6_4 p6_5 p6_6 P5_0 P5_5

p6_7

Vcc BUSY SCLK

RxD

EPM

GND RESET CNVss

TxD

Vcc

SCLK

GND

CNVss

BUSY

RxD

EPM

RESET

TxD

109

User Reset Signal

Vss Vss AVss

P64/CTS1/RTS1/CTS0/CLKS1

P66/RxD1

P55/HOLD

P67/TxD1

P65/CLK1

P50/WRL/WR

RESET

CNVss

0.1uF

AVcc

Xout

P85/NMI

Vcc Vcc

Xin

Vcc

30pF

10MHz

30pF

Example Connection for M16C/62P, 6N(M306N4FC, M306N4FG, M306N5FC only)

0.1uF

AVcc

Xout

P85/NMI

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal

p6_4 p6_5 p6_6 P5_0 P5_5

p6_7

Vcc

BUSY

SCLK

RxD

CE EPM GND

RESET CNVss

TxD

1 2 3 4 5 6 7 8 9

Vcc

SCLK

GND

CNVss

BUSY

RxD

EPM

RESET

TxD

109

User Reset Signal

Vss Vss AVss

P64/CTS1/RTS1/CTS0/CLKS1

P66/RxD1

P55/HOLD

P67/TxD1

P65/CLK1

P50/WRL/WR

RESET

CNVss

Vcc

Vcc Vcc

Xin

30pF

10MHz

30pF

7 Appendix

Example Connection for M16C/26, 26A, 28, 29 [1]

Note: It is necessary to connect the CE pin or the EPM (RP) pin and the P1_6 pin. The CE pin is connected in this Target.

USB Monitor Board

FLAT Cable Connection

Connector Type

HIF3FC-10P A-2.54DSA

10-Pin Connector assign

PortPin No Signal 1 2 3 4 5 6 7 8 9

P6_4 P6_5 P6_6 P8_6

P6_7

Vcc

BUSY

SCLK

RxD

GND RESET CNVss

TxD

Vcc

SCLK

GND

CNVss

BUSY

RxD

RESET

TxD

109

User Reset Signa l

Example Connection for M16C/26, 26A, 28, 29 [2]

0.1uF

Vss Vss AVss

P64/CTS1 /RTS1/CTS0/CL KS1

P66/RxD1

P85/NMI

P67/TxD1

P65/CLK1

P86/Xcout

P16/INT4

RESET

CNVss

AVcc

Vcc Vcc

Xout

Xin

Vcc

30pF

10MHz

30pF

Note: It is necessary to connec t the CE pin or the EPM (RP) pin and the P1_6 pin. The EPM (RP) pin and the P 1_6 pin are

connected in this Target.

Vcc

30pF

10MHz

30pF

USB Monitor Board

FLAT Cable Connection

Connector T ype

HIF3FC-10P A-2.54DSA

10-Pin Connector assign

PortPin No Signal 1 2 3 4 5 6 7 8 9

P6_4 P6_5 P6_6 P1_6 P8_5

P6_7

Vcc

BUSY

SCLK

RxD

P1_6

EPM(RP)

GND RESET CNVss

TxD

Vcc

SCLK

P1_6

GND

CNVss

BUSY

RxD

EPM(RP)

RESET

TxD

109

User Reset Signal

Vss Vss AVss

P64/CTS1/RTS1/CTS0/CLKS1

P66/RxD1

P85/NMI

P67/TxD1

P65/CLK1

P86/Xcout

P16/INT4

RESET

CNVss

0.1uF

AVcc

Xout

Vcc Vcc

Xin

Example Connection for M16C/10

7 Appendix

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal

p1_7 p1_6 p1_5

P1_4

Vcc

BUSY

SCLK

RxD

GND

RESET

CNVss

TxD

1 2 3 4 5 6 7 8 9

Vcc

SCLK

GND

CNVss

0.1uF

BUSY

RxD

RESET

TxD

109

User Reset Signal

Vss Vss AVss

P17/CNTR0

P15/RxD

P14/TxD

P16/CLK

RESET

CNVss

0.1uF

AVcc

Vcc Vcc

Xout

Xin

Vcc

30pF

10MHz

30pF

Example Connection for M16C/1N

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal

p1_7 p1_6 p1_5

p3_1 p3_0

P1_4

Vcc

BUSY

SCLK

RxD

EPM

GND

RESET

CNVss

TxD

1 2 3 4 5 6 7 8 9

Vcc

SCLK

GND

CNVss

0.1uF

BUSY

RxD

EPMCE

RESET

TxD

109

User Reset Signal

Vss Vss AVss

P17/CNTR0

P15/RxD

P30/TXout

P14/TxD

P16/CLK

P31/TZout

RESET

CNVss

0.1uF

AVcc

Vcc Vcc

Xout

Xin

Vcc

30pF

10MHz

30pF

Example Connection for M32C/83

7 Appendix

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal 1 2 3 4 5 6 7 8 9

p6_4 p6_5 p6_6 P5_0 P5_5

p6_7

Vcc

BUSY

SCLK

RxD

CE EPM GND

RESET CNVss

TxD

Vcc

SCLK

GND

CNVss

BUSY

RxD

EPM

RESET

TxD

109

User Reset Signal

Vss Vss AVss

P64/CTS1/RTS1/CTS0/CLKS1

P66/RxD1

P55/HOLD

P67/TxD1

P65/CLK1

P50/WRL/WR

RESET

CNVss

0.1uF

Vcc Vcc

AVcc

Xout

P85/NMI

Xin

Vcc

30pF

10MHz

30pF

Example Connection for M32C/84, 85, 86, 87

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal 1 2 3 4 5 6 7 8 9

p6_4 p6_5 p6_6 P5_0 P5_5

p6_7

Vcc

BUSY

SCLK

RxD

CE EPM GND

RESET CNVss

TxD

Vcc

SCLK

GND

CNVss

BUSY

RxD

EPM

RESET

TxD

109

User Reset Signal

0.1uF

Vss Vss AVss

P64/CTS1/RTS1/CTS0/CLKS1

P66/RxD1

P55/HOLD

P67/TxD1

P65/CLK1

P50/WRL/WR

RESET

CNVss

Vcc Vcc

AVcc

Xout

P85/NMI

Xin

Vcc

30pF

10MHz

30pF

Example Connection for R8C/10, 11, 12, 13

7 Appendix

USB Monitor Board

FLAT Ca ble Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector assign

PortPin No Signal 1 2 3 4 5 6 7 8 9

p3_7

p0_0

Vcc MODE CNVss

RxD1

GND

RESET

TxD11

Example Connection for 7542

Vcc

CNVss

GND

MODE

RxD

RESET

TxD

109

User Reset Signal

33k

Vss AVss

MODE

P37/RxD1

P00/TxD11

CNVss

RESET

0.1uF

Avcc/V

Vcc

REF

Xout

Xin

Vcc

30pF

10MHz

30pF

USB Monitor Board

HIF3FC-10PA-2.54DSA

FLAT Cable Connection

Connector Type

Vcc

SCLK

GND

CNVss

BUSY

RxD

EPM

RESET

TxD

109

Vcc

0.1uF

Vss

Vcc

10-Pin Con nector assign

8MHz

5.1k

P04(LED04) /RxD2

P05(LED05) /TxD2

XIN

XOUT

RES ET

1 2 3 4 5 6 7 8 9

PortPin No Signal

Vcc

p0_7

BUSY

p0_6

SCLK

p0_4

RxD

p3_2

CE EPM GND

RESET CNVss

p0_5

TxD

15pF

Vcc

5.1k

User Reset Signal

Note: W hen the f lash mo de control pins are used for use r's application circuit. Re fer to the 7542 group datashee t for operation details.

P32(LED12)

/CMP3

P37(LED17)

/INT0

P06(LED06)

/SCLK2

P07(LED07)

/SRD Y2

CNVss

Vcc

5.1k

Example Connection for 38C2

7 Appendix

USB Monitor Board

FLAT Cable Connection

Connector Type

HIF3FC-10PA-2.54DSA

10-Pin Connector ass ign

PortPin No Signal 1 2 3 4 5 6 7 8 9

Note: When the flash mode control pins are used for user's applicat ion cir cuit. Refe r to the 38C2 grou p (A version) datashe et for oper ation details.

p3_0 p3_1 p3_3

p3_2

Vcc BUSY SCLK

RxD

EPM

GND RESET CNVss

TxD

Vcc

SCLK

GND

CNVss

BUSY

RxD

EPM

RESET

TxD

109

User Reset Signal

15pF

Vcc

0.1uF

Vss

AVss

3/RxD2/(LED3)

2/TxD2/(LED2)

8MHz

Vcc

5.1k

XOU T

RES ET

1/SCLK2/(LED1)

0/SRDY2/(LED0)

CNVss

1/AN1

Vcc

5.1k

Vcc

5.1k

7.1.4 Power Source Supply Selector

Specifications of the Power Source Supply Selector (S1: Power Mode) are shown in Table 7-1.

Table 7-1 Jumper Settings

7 Appendix

Switch No.

Default State Function

USB

(BUSPWRD)

Note: The USB Monitor Board supplies a 5 V power. If a 3.3 V power supply is needed,

choose to supply the power from the

7.1.5 LED Status Indicators

The LED status indicators on the USB Monitor Board are listed in the table below.

LED No. Color Function

STOP Red When steadily on, the Target MCU is idle. RUN Green When steadily on, the Target MCU is running. STATUS Yellow When flashing (normal), the USB Monitor is normal.

Selects the power supply for the Target MCU. USB (BUSPWRD): The power is supplied from the USB Monitor Board.

TARGET (TRGTPWRD): The power is supplied from the

Target Board.

When flashing (fast), the USB Monitor is operating erratically. (Note)

POWER Red When steadily on, the Target MCU is being supplied

with power.

Note: If this LED flashes fast, the USB Monitor Board may have gone wild. In such a case, see

Section [6. Troubleshooting].

7 Appendix

7.2 Installation of a USB Driver, and recognition of USB Monitor Board (Manual setup)

7.2.1 For USBMON Driver

1) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the following setup, before installing USBMON Driver. If a setup is completed, attach a cover in a USB Monitor Board (Board).

Power Source Supply Selector (S1: Power Mode): USB side MCU Mode Pin (JP1: MCU Mode): Open

Open

USB side

2) Connect the USB Monitor Board included with package to the USB port of your host computer (PC). The Power indicator (D1: Power) of USB Monitor Board lights, and a Status indicator (D4: Status) blinks.

3) Windows system recognizes new hardware. The following installation methods are the examples which used Windows 98SE. Although the installation methods difer a little for every operating system, it is installable by the almost same operation.

7 Appendix

4) Recognition of new hardware displays an install wizard. So click the <Next> button.

5) Select the method to search for your new hardware. Normally, choose “Search for the best driver for your device (Recommended)” and click the <Next> button.

6) Select the check box labeled “Specify a location”. Then specify the folder into which you’ve installed FoUSB files (“USB Drivers” folder) and click the <Next> button.

7 Appendix

7) When the Windows system has been prepared to install the driver the wizard shown in Figure 7-3 appears. So click the <Next> button.

Figure 7-3 USBMON Driver-1

8) When the Windows system has finished installing the driver , the wizard shown in Figure 7-4 appears. So click the <Finish> button.

Figure 7-4 USBMON Driver-2

9) Installation of a USBMON Driver, and recognition fo USB Monitor Board have been finished. Separate USB Monitor Board from your host computer (PC).

7.2.2 For FoUSB Driver

1) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the following setup, before installing FoUSB Driver. If a setup is completed, attach a cover in a USB Monitor Board (Board).

Power Source Supply Selector (S1: Power Mode): USB side MCU Mode Pin (JP1: MCU Mode): Shorted

Shorted

USB side

7 Appendix

2) Connect the USB Monitor Board included with the package to the USB port of your host computer (PC). The Power indicator (D1: Power) of USB Monitor Board lights.

3) Windows system recognizes new hardware. The following installation methods are the examples which used Windows 98SE. Although the installation methods differ a little for every operating system, it is installable by the almost same operation.

7 Appendix

4) Recognition of new hardware displayes an install wizard. So click the <Next> button.

5) Select the method to search for your new hardware. Normally, choose “Search for the best driver for your device (Recommended)” and click the <Next> button.

6) Select the check box labeled “Specify a location”. Then specify the folder into which you’ve installed FoUSB files (“USB Drivers” folder) and click the <Next> button.

7 Appendix

7) When the Windows system has been prepared to install the driver, the wizard shown in Figure 7-5 appears. So click the <Next> button.

Figure 7-5 FoUSB Driver-1

8) When the Windows system has finished installing the driver , the wizard shown in Figure 7-6 appears. So click the <Finish> button.

Figure 7-6 FoUSB Driver-2

9) Installation of a FoUSB Driver, and recognition fo USB Monitor Board have been finished. Separate USB Monitor Board from your host computer (PC).

7 Appendix

10) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the following setup. If a setup is completed, attach a cover in a USB Monitor Board (Board).

MCU Mode Pin (JP1: MCU Mode): Open

Open

7.3 Referencing Electronic Manuals

Electronic Manuals of the Product are in the form of files in PDF (portable document format). To reference them, the user needs Adobe Acrobat Reader. The user can download Adobe Acrobat Reader from the home page of Adobe Systems Incorporated. For latest information as to Adobe Acrobat Reader, go to the following URLs.

http://www.adobe.co.jp/ http://www.adobe.com/

7.4 Product Information

The latest information about this product is carried here.

M16C Family

7 Appendix

http://www.renesas.com/en/m16c

740 Family

http://www.renesas.com/en/740

0.6A3

Title

11Thursday, January 31, 2002

MDECE0641M.DSN

Size Document Number Rev

Date: Sheet

USB

8 7

1122334

MNC20-5K5P10

12 8 7 6

HI0805Q310R

TP2

5011

TP1

5010

Vcc GND

Vcc

0.1uF

C15

1.5K

ININEN

OUT

OUTPGFB

TPS77433DGK

872

GND

1 3

0.1 uF

3.3K

356

AYZ0202AG

S1 Power Sel ect

CLOSE = US B BUS P OWERED

Vcc

2.2 uF

470

SML-LX0603IW

POWER

Vcc

10K

1 2

OPE N = T AR GE T P OWERED

0.1uF

Vcc

ININEN

OUT

TPS77433DGK

872

ZXM61P02

3 2

P40_XCAPCNTL

OUTPGFB

1 3

GND

STF202-30

2.2 uF

CNVss

SCLK

Vcc

12 12

Vcc

103308-1

R27

100

R13

4.7K

R22

4.7K

TARGET

R26

100

TXD

RXD

1 2

RESET

VOLTSEL

Vcc

1 2

R25

100

1 2

R12

4.7K

R24

100

1 2

R29

!RST

Vdd

GND

MCP120T-270I/TT

5V/3V Vol t age Swi t ch Detect

Vdd I N > 4V = 5 V MODE

R28

1.5K

UART 1

123

3.3K

RS232C

R21

2400

Vdd I N < 4V = 3 V MODE

Vcc

1 2

USB_D-

USB_D+

M37641F8HP

P1_0

CNVSS_CNTL

3VSEL

EPMCNTL

P_ZOUT

P_ZIN

P2_755P2_656P2_557P2_458P2_359P2_260P2_161P2_0

P3_533P3_335P3_236P3_1

P3_632P3_731P3_4

P3_0

!RTS1/P8_723!CTS1/P8_6

P7_463P7_364P7_265P7_166P7_0

STXD/P8_3

UTXD1/P8_4

URXD1/P8_5

/RESET

SCLK/P8_1

SRXD/P8_2

!SRDY/P8_0

LPF

1 2

C12

0.1uF

C11

Xout

Xin

CNVSS

680 pF

C14

33pF

24 MHz

1 2

C13

33pF

JP1

22-03-2021

JP1 MCU MODE

S HUNT E D = B OOT MODE

OPE N = US E R MODE

Vcc

R16

10K

R17

10K

ZXM61P02

3 2

0.1uF

P6_773P6_674P6_575P6_476P6_377P6_278P6_179P6_080P5_71P5_62P5_53P5_44P5_35P5_2

0.1uF

AVSS

AVCC

VCC

Vcc

XCin/P5_0

XCout/P5_1

EXT_CAP/PWR

R20

10K

R19

10K

0.1uF

Vss1

Vss2

P4_418P4_319P4_220P4_121P4_0

P0_4

P1_739P1_640P1_541P1_442P1_343P1_244P1_1

P0_054P0_153P0_252P0_351P0_549P0_648P0_7

R15

P40_XCAPCNTL

P43_CNTR0

P42_INT1

P44_CNTR1

P41_INT0

JP2

22-03-2081

1234567

470

R23

10K

STATUS

SML-LX0603YW

RUNNI NG

SML-LX0603GW

1N914

1 3

Vcc

R14

10K

C10

2.2uF

IO/DEBUG

PI NS

D D

470

Vcc

SML-LX0603IW

STOPPED

C C

B B

A A

REVISION HISTORY

Rev. Date

2.00

2.10

2.20

2.30

2.40

Jul 12, 2003

Sep 12, 2003

Oct 15, 2003

Nov 05, 2003

Jan 15, 2004

Description

Page Summary

- Whole page is revised according to the firm name chage

9 Changed method of USB Driver’s installation

39 Added limitations on Memory Expansion (M16C/62P)

8 Added method of USB Driver’s (FoUSB Driver) installation

Added countermeasure when a firmware of USB MCU is erased or

damaged 38 Changed example connection of target board (M16C/26, 28) 39 Changed example connection of target board (M16C/26, 28)

Changed example connection of target board (addition of oscillator

circuit)

Added example connection of target board (M16C/1N and M32C/85) 54 Changed peripheral function related limitations

3.00

3.01

4.00

4.01

Jan 31, 2004

Feb 15, 2004

Jul 30, 2004

Dec 24, 2004

- Chapter orders and composition contents are all reviserd

- Cover is renewed

5 Windows NT is deleted from OS which can be used

59 Pin assignment is revised

- Whole page is revised according to the FoUSB version upgrade

6 Compatible Product List is upgrade 10 Software Break Number List is upgrade 24 “Software License Agreement” screen is added to install procedure 43 Selectable MCU List is upgrade

51 - 53

Precautions on KD3083 Emulation Memory is added Section Title is changed

“5.2.1 Limitations on Special Page Jump” -> “5.2.1 Lmitations on Special Page Vector”

Description of Section “5.2.1” is chaged

Renesas M16C FAMILY User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Contents of Product

1.1 Contents of product

1.2 Operating Environment

1.3 Compatible Products

1.4 Board Specification

1.5 CD-ROM

1.6 System Requirements

2. Product Specifications

2.1 FoUSB (Flash-over-USB)

2.2 KD30/KD3083

3. Installing

3.1 Before installing

3.2 Preparation before installing

3.3 FoUSB (Flash-over-USB) installing

3.3.1 Method of Installation

3.3.2 Method of Uninstallation

3.4 Recognition of USB Monitor Board

3.4.1 Recognition of USB Monitor Board 1 (for USBMON Driver)

3.4.2 Recognition of USB Monitor Board 2 (for FoUSB Driver)

3.4.3 Other Notes

3.5 KD30/KD3083 intalling

3.5.1 Installing

3.5.2 Uninstalling the Remote Debugger

4. Using the FoUSB

4.1 Using the FoUSB (Flash-over-USB)

4.1.1 Before Starting the FoUSB

4.1.2 FoUSB starts

4.1.3 Details of Main Button 1

4.1.4 Details of the Update Button

4.1.5 Details of the Select MCU Button

4.1.6 Monitor Information

4.1.7 Detailed File Information

4.1.8 Details of Main Button 2

4.2.Other Functions

5. Using the KD

5.1 Using the KD

5.1.1 Before Starting the KD

5.1.2 Starting the KD

5.1.3 Program Download

5.1.4 Program Execution

5.1.5 Program Stop

5.1.6 Program Step Execution

5.1.7 Software Break Method

5.1.8 Reset Execution

5.1.9 KD Completion

5.1.10 If a Communication Error Occurs

5.1.11 Error Except a Communication Error Occurs

5.1.12 Operation Method

5.2 KD Limitations

5.2.1 Limitations on Special Page Vector

5.2.2 A limitation item about the C language

5.2.3 Limitations on Memory Extension

5.2.4 Precautions on Internal Reserved Area Expansion Bit

5.2.5 Limitations on Stop and Wait Modes

5.2.6 Realtime Capability of the User Program

5.3 Memory Map Limitations

5.4 Peripheral Function Related Limitations

5.5 FoUSB Debugger Principle

5.5.1 Communication Function with FoUSB

5.5.2 Command Execution

5.5.3 The difference from an actual CPU operation

6. Troubleshooting

6.1 FoUSB cannot communicate with the Target MCU Why?

6.2 The MCU cannot enter standerd serial I/O why?

6.3 The MCU cannot be programmed using FoUSB Why?

6.4 FoUSB cannot operate Why?

6.4.1 Compulsive download procedure of firmware

6.5 Can FoUSB information be transmitted to KD?

6.6 A communication error occurs when the KD starts. What is the cause of this problem?

6.8 A message "Source file cannot be found" was output. What should I do?

6.9 Is peripheral I/O operating during a break?

6.10 Can coveragefunction be used in KD?

6.11 Can check sum function be used?

6.12 ID code written to microcomputer after KD exits?

6.13 Debug operation has not worked well

6.14 Message List
