SH7047 Group FP-100M
User System Interface Board
HS7047ECH61H User’s Manual
Renesas Microcomputer Development Environment System
SuperHTM Family/SH7047 Series
Rev.4.00
2004.1.29
Cautions
Keep safety first in your circuit designs!
1. Renesas Technology Corp. puts the maximum effort into making semiconductor products
better and more reliable, but there is always the possibility that trouble may occur with them.
Trouble with semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with
appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of
nonflammable material or (iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the
Renesas Technology Corp. product best suited to the customer's application; they do not
convey any license under any intellectual property rights, or any other rights, belonging to
Renesas Technology Corp. or a third party.
2. Renesas Technology Corp. assumes no responsibility for any damage, or infringement of any
third-party's rights, originating in the use of any product data, diagrams, charts, programs,
algorithms, or circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts,
programs and algorithms represents information on products at the time of publication of these
materials, and are subject to change by Renesas Technology Corp. without notice due to
product improvements or other reasons. It is therefore recommended that customers contact
Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor for
the latest product information before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss
rising from these inaccuracies or errors.
Please also pay attention to information published by Renesas Technology Corp. by various
means, including the Renesas Technology Corp. Semiconductor home page
(http://www.renesas.com).
4. When using any or all of the information contained in these materials, including product data,
diagrams, charts, programs, and algorithms, please be sure to evaluate all information as a total
system before making a final decision on the applicability of the information and products.
Renesas Technology Corp. assumes no responsibility for any damage, liability or other loss
resulting from the information contained herein.
5. Renesas Technology Corp. semiconductors are not designed or manufactured for use in a
device or system that is used under circumstances in which human life is potentially at stake.
Please contact Renesas Technology Corp. or an authorized Renesas Technology Corp. product
distributor when considering the use of a product contained herein for any specific purposes,
such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or
undersea repeater use.
6. The prior written approval of Renesas Technology Corp. is necessary to reprint or reproduce in
whole or in part these materials.
7. If these products or technologies are subject to the Japanese export control restrictions, they
must be exported under a license from the Japanese government and cannot be imported into a
country other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/or
the country of destination is prohibited.
8. Please contact Renesas Technology Corp. for further details on these materials or the products
contained therein.
IMPORTANT INFORMATION
READ FIRST
• READ this user's manual before using this user system interface board.
• KEEP the user's manual handy for future reference.
Do not attempt to use the user system interface boa r d unt il you fully understand its
mechanism.
User System Interface Board:
Throughout this document, the ter m "user sys tem interface board" shall be defined as the
following product produced only by Renesas Technology Corp. excluding all subsidiary products.
• User system interface board (HS7047ECH61H)
The user system or a host computer is not included in this definition.
Purpose of the User System Interface Board:
This user system interface board is for connecting the evaluation chip board and user system.
This user system interface board must only be used for the above purpose.
Improvement Policy:
Renesas Technology Corp. (including its subsidiaries, hereafter collectively referred to as
Renesas) pursues a policy of continuing improvement in design, performance, functions, and
safety of the user system interface board. Renesas reserves the right to change, wholly or
partially, the specifications, design, user's manual, and other documentation at any time without
notice.
Target User of the User System Interface Board:
This user system interface board should only be used by those who have carefully read and
thoroughly understood the information and restrictions contained in the user's manual. Do not
attempt to use the user system interface board until you fully understand its mechanism.
It is highly recommended that first-time users be instructed by users that are well versed in the
operation of the user system interface board.
I
LIMITED WARRANTY
Renesas warrants its user system interface boards to be manufactured
in accordance with published specifications and free from defects in
material and/or workmanship. Renesas will repair or replace any
user system interface boards determined to be defective in material
and/or workmanship. User system interface boards are wearing parts
which Renesas will not repair or replace if damaged and/or worn
through use. The foregoing shall constitute the sole remedy for any
breach of Renesas’ warranty. This warranty extends only to you, the
original Purchaser. It is not transferable to anyone who subsequently
purchases the user system interface board from you. Renesas is not
liable for any claim made by a third party or made by you for a third
party.
DISCLAIMER
RENESAS MAKES NO WARRANTIES, EITHER EXPRESS OR
IMPLIED, ORAL OR WRITTEN, EXCEPT AS PROVIDED
HEREIN, INCLUDING WITHOUT LIMITATION THEREOF,
WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY,
FITNESS FOR ANY PARTICULAR PURPOSE OR USE, OR
AGAINST INFRINGEMENT OF ANY PATENT. IN NO EVENT
SHALL RENESAS BE LIABLE FOR ANY DIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE
USER SYSTEM INTERFACE BOARD, THE USE OF ANY USER
SYSTEM INTERFACE BOARD, OR ITS DOCUMENTATION,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
EXCEPT AS EXPRESSLY STATED OTHERWISE IN THIS
WARRANTY, THIS USER SYSTEM INTERFACE BOARD IS SOLD
"AS IS ", AND YOU MUST ASSUME ALL RISK FOR THE USE
AND RESULTS OBTAINED FROM THE USER SYSTEM
INTERFACE BOARD.
II
State Law:
Some states do not allow the exclusion or limitatio n of implied warranties or liability for
incidental or consequential da mages, so the above limitation or exclusion may not apply to you.
This warranty give s you spe cif ic lega l rights, and you ma y have ot he r ri ghts wh ic h ma y var y fro m
state to state.
The Warranty is Void in the Following Cases:
Renesas shall have no liability or legal responsibility for any problems caused by misuse,
abuse, misapplication, neglect, improp e r handling, installation, repair or modifications of the user
system interface board without Renesas’ prior written consent or any problems caused by the user
system.
All Rights Reserved:
This user's manual and user system interface board are copyrighted and all rights are reserved
by Renesas. No part of this user's manual, all or part, may be reproduced or duplicated in any
form, in hard-copy or machine-readable form, by any means available without Renesas’ prior
written consent.
Other Important Things to Keep in Mind:
1. Circuitry and other examples described herein are meant merely to indicate the characteristics
and performance of Renesas’ semiconductor products. Renesas as sumes no responsibility for
any intellectual property claims or other problems that may result from applications based on
the examples described herein.
2. No license is granted by implication or otherwise under any patents or other rights of any third
party or Renesas.
Figures:
Some figures in this user's manual may show items different from your actual system.
Limited Anticipation of Danger:
Renesas cannot anticipate every possible circumstance that might involve a potential hazard.
The warnings in this user's manual and on the user system interface board are therefore not all
inclusive. Therefore, you must use the user system interface board safely at your own risk.
III
SAFETY PAGE
READ FIRST
• READ this user's manual before using this user system interface board.
• KEEP the user's manual handy for future reference.
Do not attempt to use the user system interface boa r d unt il you fully understand its
mechanism.
DEFINITION OF SIGNAL WORDS
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER
WARNING
CAUTION
CAUTION
NOTE
emphasizes essential information.
DANGER
avoided, will result in death or serious injury.
WARNING
avoided, could result in death or serious injury.
CAUTION
avoided, may result in minor or moderate injury.
CAUTION
potentially hazardous situation which, if not avoided, may result
in property damage.
indicates an imminently hazardous situation which, if not
indicates a potentially hazardous situation which, if not
indicates a potentially hazardous situation which, if not
used without the safety alert symbol indicates a
IV
WARNING
Observe the precautions listed below. Failure to do so
will result in a FIRE HAZARD and will damage the user
system and the emulator product or will result in
PERSONAL INJURY. The USER PROGRAM will be
LOST.
1. Do not repair or remodel the emulator product by
yourself for electric shock prevention and quality
assurance.
2. Always switch OFF the E6000H emulator and user system
before connecting or disconnecting any CABLES or
PARTS.
3. Always before connecting any BOARDS, make sure that
pin 1 on both sides are correctly aligned.
V
Preface
The HS7047ECH61H is a user system interface board that connects a user system for the SH7047
FP-100M package to the SH7046 E6000H emulator (HS7046EPH60H).
i
Contents
Section 1 Configuration.....................................................................................1
Section 2 Connection Procedures......................................................................3
2.1 Connecting User System Interface Board to User System
2.1.1 Installing IC Socket
2.1.2 Installing Cable Head...........................................................................................4
2.1.3 Fastening Cable Head
2.2 Connecting User System Interface Board to EV-Chip Board
2.3 Recommended Dimensions for User System Mount Pad (Footprint)
2.4 Dimensions for EV-Chip Board and User System Interface Board
2.5 Resulting Dimensions after Connecting User System Interface Board
..............................................................................................3
..........................................................................................4
Section 3 Installing the MCU to the User System.............................................11
Section 4 Verifying Operation...........................................................................13
Section 5 Notice.................................................................................................15
................................................3
...........................................6
...............................8
...................................9
.............................10
ii
Section 1 Configuration

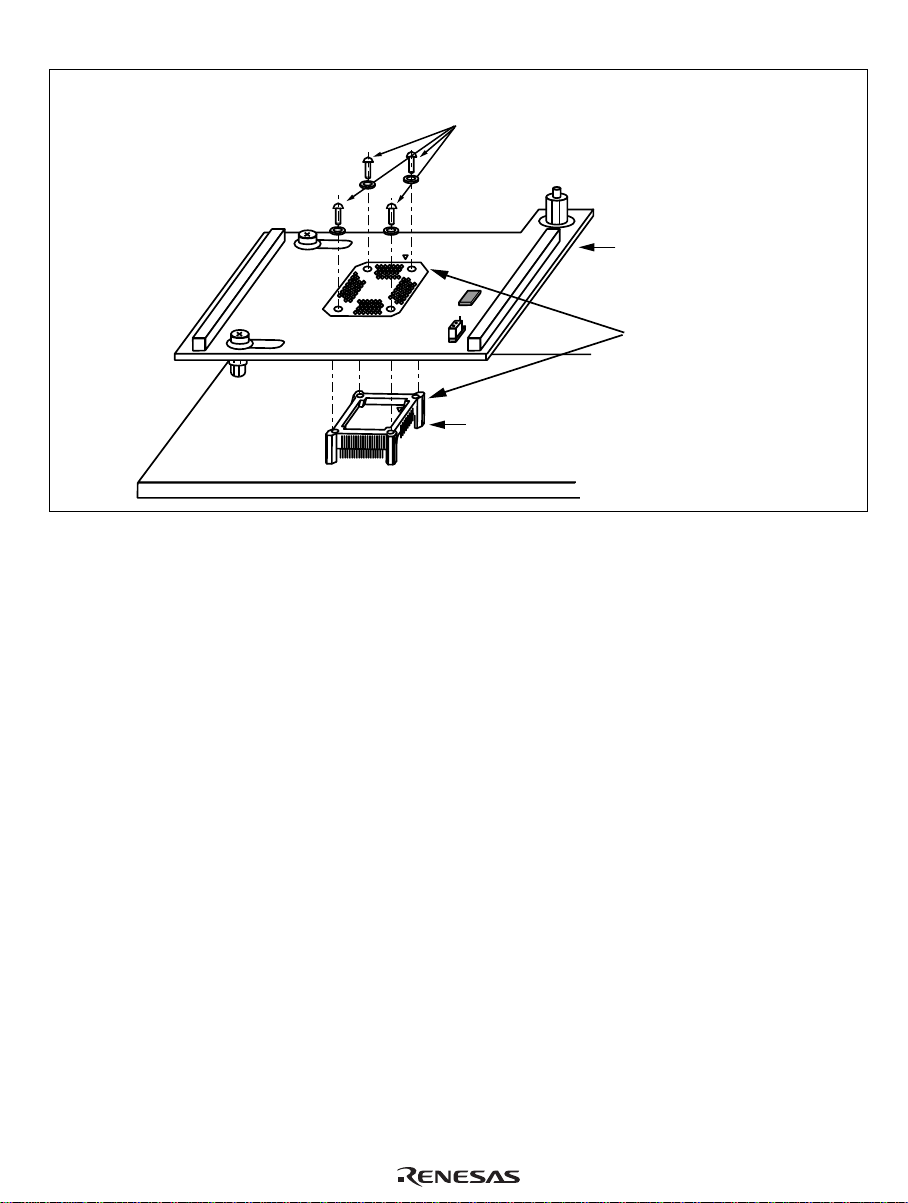

Figure 1 and table 1 show the configuration and components of the user system interface board for
the FP-100M package. Please make sure you have all of these components when unpacking.
EV-chip board
Screws (M2.6 x 6 mm)
with flat washers
Screws (M2.6 x 12 mm)
with flat washers
Board
Socket cover
Figure 1 User System Interface Board for the SH7047 FP-100M Package
Spacer
IC socket
User system
1
CAUTION
Use an IC149-100-054-B51 socket (manufactured by
YAMAICHI ELECTRONICS Co., Ltd.) for the FP-100M package
IC socket on the user system.
Table 1 HS7047ECH61H Components
No. Component Quantity Remarks
1 Board 1
2 IC socket 1 For the FP-100M package (to be mounted on the
3 Socket cover 1 For the FP-100M package (for installing MCU)
4 Screws (M2.6 x 12 mm) 4 For fastening board (with four flat washers)
5 Screws (M2.6 x 6 mm) 4 For installing an FP-100M-packaged MCU (with
6 User’s manual 1 User’s manual for HS7047ECH61H (this manual)
With two spacers (2.6MP x 6 mm)
user system)
four flat washers)
2
Section 2 Connection Procedures
2.1 Connecting User System Interface Board to User System
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE BOARD
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are correctly
aligned. Failure to do so will result in a FIRE HAZARD and
will damage the user system and the emulator product or
will result in PERSONAL INJURY. The USER PROGRAM will
be LOST.
To connect the cable head to the user system, follow the instructions below.
2.1.1 Installing IC Socket
Solder the IC socket for an FP-100M package to the user system.
CAUTION
Be sure to completely solder the leads so that the solder
slops gently over the leads and forms solder fillets. (Use
slightly more solder than the MCU.)
3
2.1.2 Installing Cable Head
CAUTION
Check the location of pin 1 before inserting.
Align pin 1 on the IC socket for an FP-100M package on the user system with pin 1 on the user
system interface board, and insert the user system interface board into the IC socket on the user
system, as shown in figure 2.
2.1.3 Fastening Cable Head
CAUTION
1. Use a Phillip-type screwdriver whose head matches the
screw head.
2. The tightening torque must be 0.294 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when first
tightening. If a screw is tightened too much, the screw
head may break or an IC socket contact error may be
caused by a crack in the IC socket solder.
3. If the emulator does not operate correctly, cracks might
have occurred in the solder. Check conduction with
a tester and re-solder the IC socket if necessary.
Fasten the user system interface board to the IC socket for an FP-100M package on the user system
with the four screws (M2.6
alternating between screws on opposing corners. Take special care, such as manually securing the
IC socket soldered area, to prevent the soldered IC socket from being damaged by overtightening
the screws or twisting the components.
4
x
12 mm) provided. Each screw should be tightened a little at a time,
Screws (M2.6 x 12 mm)
with flat washers
Board
Pin 1
IC socket
(IC149-100-054-B51 manufactured by
User system
YAMAICHI ELECTRONICS Co., Ltd.)
Figure 2 Connecting User System Interface Board to User System
5
2.2 Connecting User System Interface Board to EV-Chip Board
WARNING
Observe the precautions listed below. Failure to do so
will result in a FIRE HAZARD and will damage the user
system and the emulator product or will result in
PERSONAL INJURY. The USER PROGRAM will be
LOST.
1. Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE BOARD
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are
correctly aligned.
2. The user system interface board dedicated to the
emulator must be used.
1. Make sure the user system and emulator are turned off.
2. Align the connectors on the board with those on the EV-chip board according to their numbers
(figure 3).
3. Adjust the height of the spacer attached to the board with the user system.
6
EV-chip board
Connector No.
EV-Chip Board
Connector No.
UCN1 UCN1
UCN2 UCN2
Board
Spacer
User system
Figure 3 Connecting User System Interface Board to EV-Chip Board
Board
Connector No.
7
2.3 Recommended Dimensions for User System Mount Pad (Footprint)
Figure 4 shows the recommended dimensions for the mount pad (footprint) for the user system
with an IC socket for an FP-100M package (IC149-100-054-B51: manufactured by YAMAICHI
ELECTRONICS Co., Ltd.). Note that the dimensions in figure 4 are somewhat different from
those of the actual chip's mount pad.
17.10 min
13.80 max
0.50 × 24 = 12.00 ± 0.05
0.50 ± 0.05
0.30 ± 0.05
0.50 ± 0.05
0.50 × 24 = 12.00 ± 0.05
Unit: mm
Figure 4 Recommended Dimensions for Mount Pad
8

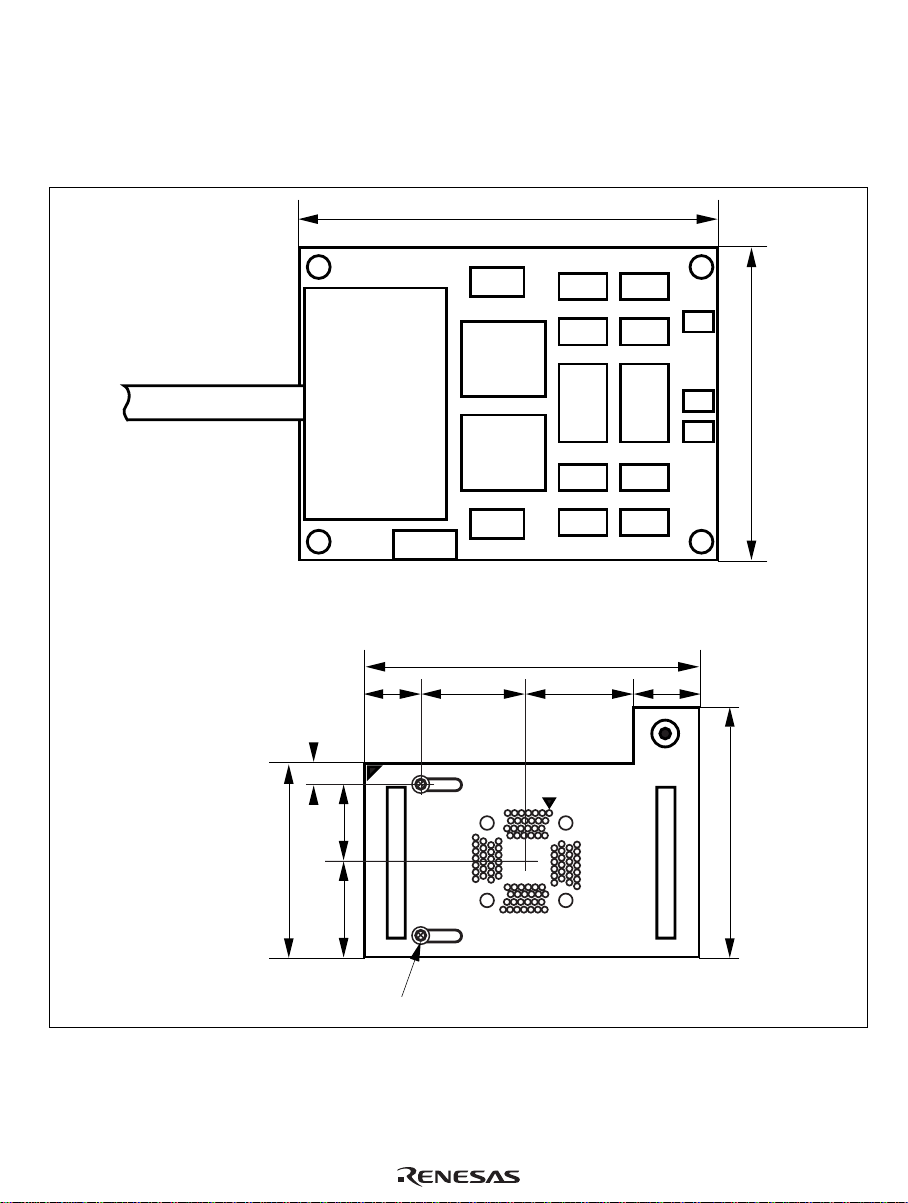

2.4 Dimensions for EV-Chip Board and User System Interface Board
The dimensions for the EV-chip board and the user system interface board are shown in figure 5.
140.0
116.0
EV-chip board
100.0
19.5 31.0 33.5 16.0
5.0
29.5
69.0
34.5
User system interface board
Spacer
92.0
Unit: mm
Tolerance: ±0.5 mm
Figure 5 Dimensions for EV-Chip Board and User System Interface Board
9
2.5 Resulting Dimensions after Connecting User System Interface Board
The resulting dimensions, after connecting the user system interface board to the user system, are
shown in figure 6.
EV-chip board
63.3
38.3
16.3
Spacer (φ6.0)
31.0
User system
31.0
29.5
29.5
IC socket
(IC149-100-054-B51
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
Unit: mm
Tolerance: ±1.0 mm
Figure 6 Resulting Dimensions after Connecting User System Interface Board
10
Section 3 Installing the MCU to the User System
CAUTION
1. Check the location of pin 1 before inserting.
2. Use a Philips-type screwdriver whose head matches the
screw head.
3. The tightening torque must be 0.294 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when
first tightening. If a screw is tightened too much, the
screw head may break or an IC socket contact error may
be caused by a crack in the IC socket solder.
4. If the MCU does not operate correctly, cracks might have
occurred in the solder. Check conduction with a tester
and re-solder the IC socket if necessary.
Check the location of pin 1 before inserting the MCU into the IC socket on the user system, as
shown in figure 7. After inserting the MCU, fasten the socket cover with the provided four screws
x
(M2.6
prevent the IC socket from being damaged by overtightening the screws or twisting the
components.
6 mm). Take special care, such as manually securing the IC socket soldered area, to
11
Screws (M2.6 x 6 mm)
with flat washers
Socket cover
MCU (SH7047)
Pin 1
IC socket
(IC149-100-054-B51
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
12
User system
Figure 7 Installing MCU to User System
Section 4 Verifying Operation
1. Turn on the emulator according to the procedures described in the SH7046 E6000H Emulator
User's Manual (HS7046EPH60HE).
2. Verify the user system interface cable connections by checking the pin states with the extended
monitor and checking the bus states with the FILL command (emulator command). If an error
is detected, recheck the soldered IC socket and the location of pin 1.
3. The emulator connected to this user system interface board supports three kinds of clock
sources as the MCU clock. For details, refer to the SH7046 E6000H Emulator User's Manual
(HS7046EPH60HE).
To use the emulator internal clock
Select the clock in the emulator by the CLOCK command (emulator command).
To use the external clock on the user system
Supply the external clock from the user system to the emulator by inputting the EXTAL
pin (pin 96) on the user system interface board or connecting the crystal oscillator to the
XTAL (pin 97) and EXTAL pins. For details, refer to section 4, Clock Pulse Generator, in
the SH7047 Series Hardware Manual.
Figure 8 shows the clock oscillator on the user system interface board.
1 M
HCU04
EXTAL XTAL
System clock
HCU04 HCU04
270
Figure 8 Clock Oscillator
HCU04
HCU04
HCU04
47
To E6000H
emulator
13
To use the crystal oscillator mounted on the EV-chip board
Install a crystal oscillator into the crystal oscillator terminals on the EV-chip board.
Enlarged
view
Crystal
oscillator
X1 X2
Crystal oscillator terminals
Evaluation chip
board
14
Figure 9 Installing the Clock Oscillator
Section 5 Notice
1. Before connecting any parts or cables, make sure that pin 1 on the both sides are correctly
aligned.
2. Do not apply excessive force to the user system interface board while it is connected to the
user system.
3. The dimensions of the recommended mount pad for the IC socket for this user system
interface board are different from those of the MCU.
4. This user system interface board is specifically designed for the HS7046EPH60H emulator.
Do not use this board with any other emulator.
5. When power is not supplied to the Vcc pin on the user system interface board, the emulator
displays ** VCC DOWN. The emulator will not operate correctly.
6. The P1 short connector is used for testing. Do not remove the inserted jumper pin.
P1
13
Figure 10 P1 Jumper Socket
15
SH7047 Group FP-100M
User System Interface Board
HS7047ECH61H User's Manual
Publication Date: Rev.4.00, January 29, 2004
Published by: Sales Strategic Planning Div.
Renesas Technology Corp.
Edited by: Technical Documentation & Information Department
Renesas Kodaira Semiconductor Co., Ltd.
2004 Renesas Technology Corp. All rights reserved. Printed in Japan.
