User’s Manual
H8/36049 Group FP-80A
User System Interface
Cable
User’s Manual
Renesas Microcomputer
Development Environment
System
HS36049ECH61H
Rev.3.00 2005.10
Keep safety first in your circuit designs!
1. Renesas Technology Corp. puts the maximum effort into making semiconductor products better and
more reliable, but there is always the possibility that trouble may occur with them. Trouble with
semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with appropriate
measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or
(iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the Renesas
Technology Corp. product best suited to the customer's application; they do not convey any license
under any intellectual property rights, or any other rights, belonging to Renesas Technology Corp. or
a third party.
2. Renesas Technology Corp. assumes no responsibility for any damage, or infringement of any thirdparty's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or
circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts, programs and
algorithms represents information on products at the time of publication of these materials, and are
subject to change by Renesas Technology Corp. without notice due to product improvements or
other reasons. It is therefore recommended that customers contact Renesas Technology Corp. or
an authorized Renesas Technology Corp. product distributor for the latest product information
before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss rising
from these inaccuracies or errors.
Please also pay attention to information published by Renesas Technology Corp. by various means,
including the Renesas Technology Corp. Semiconductor home page (http://www.renesas.com).
4. When using any or all of the information contained in these materials, including product data,
diagrams, charts, programs, and algorithms, please be sure to evaluate all information as a total
system before making a final decision on the applicability of the information and products. Renesas
Technology Corp. assumes no responsibility for any damage, liability or other loss resulting from the
information contained herein.
5. Renesas Technology Corp. semiconductors are not designed or manufactured for use in a device or
system that is used under circumstances in which human life is potentially at stake. Please contact
Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor when
considering the use of a product contained herein for any specific purposes, such as apparatus or
systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.
6. The prior written approval of Renesas Technology Corp. is necessary to reprint or reproduce in
whole or in part these materials.
7. If these products or technologies are subject to the Japanese export control restrictions, they must
be exported under a license from the Japanese government and cannot be imported into a country
other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the
country of destination is prohibited.
8. Please contact Renesas Technology Corp. for further details on these materials or the products
contained therein.
IMPORTANT INFORMATION
READ FIRST
• READ this user's manual before using this emulator product.
• KEEP the user's manual handy for future reference.
Do not attempt to use the emulator product until you fully understand its mechanism.
Emulator Product:
Throughout this document, the term "emulator product" shall be defined as the following
products produced only by Renesas Technology Corp. excluding all subsidiary products.
• User system interface cable (HS36049ECH61H)
The user system or a host computer is not included in this definition.
Purpose of the Emulator Product:
This emulator product is a software and hardware development tool for systems employing the
Renesas microcomputer. This emulator product must only be used for the above purpose.
Limited Applications:
This emulator product is not authorized for use in MEDICAL, atomic energy, aeronautical or
space technology applications without consent of the appropriate officer of a Renesas sales
company. Such use includes, but is not limited to, use in life support systems. Buyers of this
emulator product must notify the relevant Renesas sales offices before planning to use the product
in such applications.
Improvement Policy:
Renesas Technology Corp. (including its subsidiaries, hereafter collectively referred to as
Renesas) pursues a policy of continuing improvement in design, performance, and safety of the
emulator product. Renesas reserves the right to change, wholly or partially, the specifications,
design, user's manual, and other documentation at any time without notice.
Target User of the Emulator Product:
This emulator product should only be used by those who have carefully read and thoroughly
understood the information and restrictions contained in the user's manual. Do not attempt to use
the emulator product until you fully understand its mechanism.
It is highly recommended that first-time users be instructed by users that are well versed in the
operation of the emulator product.
I
LIMITED WARRANTY
Renesas warrants its emulator products to be manufactured in
accordance with published specifications and free from defects in
material and/or workmanship. Renesas, at its option, will replace any
emulator products returned intact to the factory, transportation charges
prepaid, which Renesas, upon inspection, shall determine to be defective
in material and/or workmanship. The foregoing shall constitute the sole
remedy for any breach of Renesas’ warranty. See the Renesas warranty
booklet for details on the warranty period. This warranty extends only
to you, the original Purchaser. It is not transferable to anyone who
subsequently purchases the emulator product from you. Renesas is not
liable for any claim made by a third party or made by you for a third
party.
DISCLAIMER
RENESAS MAKES NO WARRANTIES, EITHER EXPRESS OR
IMPLIED, ORAL OR WRITTEN, EXCEPT AS PROVIDED
HEREIN, INCLUDING WITHOUT LIMITATION THEREOF,
WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY,
FITNESS FOR ANY PARTICULAR PURPOSE OR USE, OR
AGAINST INFRINGEMENT OF ANY PATENT. IN NO EVENT
SHALL RENESAS BE LIABLE FOR ANY DIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE
EMULATOR PRODUCT, THE USE OF ANY EMULATOR
PRODUCT, OR ITS DOCUMENTATION, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. EXCEPT AS
EXPRESSLY STATED OTHERWISE IN THIS WARRANTY,
THIS EMULATOR PRODUCT IS SOLD "AS IS ", AND YOU
MUST ASSUME ALL RISK FOR THE USE AND RESULTS
OBTAINED FROM THE EMULATOR PRODUCT.
II
State Law:
Some states do not allow the exclusion or limitation of implied warranties or liability for
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which may vary from
state to state.
The Warranty is Void in the Following Cases:
Renesas shall have no liability or legal responsibility for any problems caused by misuse, abuse,
misapplication, neglect, improper handling, installation, repair or modifications of the emulator
product without Renesas’ prior written consent or any problems caused by the user system.
All Rights Reserved:
This user's manual and emulator product are copyrighted and all rights are reserved by Renesas.
No part of this user's manual, all or part, may be reproduced or duplicated in any form, in hardcopy or machine-readable form, by any means available without Renesas’ prior written consent.
Other Important Things to Keep in Mind:
1. Circuitry and other examples described herein are meant merely to indicate the characteristics
and performance of Renesas’ semiconductor products. Renesas assumes no responsibility for
any intellectual property claims or other problems that may result from applications based on
the examples described herein.
2. No license is granted by implication or otherwise under any patents or other rights of any third
party or Renesas.
Figures:
Some figures in this user's manual may show items different from your actual system.
Limited Anticipation of Danger:
Renesas cannot anticipate every possible circumstance that might involve a potential hazard.
The warnings in this user's manual and on the emulator product are therefore not all inclusive.
Therefore, you must use the emulator product safely at your own risk.
III
SAFETY PAGE
READ FIRST
• READ this user's manual before using this emulator product.
• KEEP the user's manual handy for future reference.
Do not attempt to use the emulator product until you fully understand its mechanism.
DEFINITION OF SIGNAL WORDS
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER
avoided, will result in death or serious injury.
WARNING
avoided, could result in death or serious injury.
CAUTION
avoided, may result in minor or moderate injury.
CAUTION
potentially hazardous situation which, if not avoided, may result
in property damage.
NOTE emphasizes essential information.
DANGER indicates an imminently hazardous situation which, if not
WARNING indicates a potentially hazardous situation which, if not
CAUTION indicates a potentially hazardous situation which, if not
CAUTION used without the safety alert symbol indicates a
IV
WARNING
Observe the precautions listed below. Failure to do so
will result in a FIRE HAZARD and will damage the user
system and the emulator product or will result in
PERSONAL INJURY. The USER PROGRAM will be
LOST.
1. Do not repair or remodel the emulator product by
yourself for electric shock prevention and quality
assurance.
2. Always switch OFF the host computer and user system
before connecting or disconnecting any CABLES or
PARTS.
3. Connect the connectors in the user system and in the
user interface cable by confirming the correct direction.
V
Warnings on Emulator Usage
Be sure to read and understand the warnings below before using this emulator. Note that these are
the main warnings, not the complete list.
WARNING
Always switch OFF the host computer and user system
before connecting or disconnecting any CABLES or PARTS.
Failure to do so will result in a FIRE HAZARD and will
damage the user system and the emulator product or will
result in PERSONAL INJURY. The USER PROGRAM will be
LOST.
CAUTION
Place the host computer and user system so that no
cable is bent or twisted. A bent or twisted cable will impose
stress on the user interface leading to connection or contact
failure.
Make sure that the host computer and the user system
are placed in a secure position so that they do not move
during use nor impose stress on the user interface.
VI
Preface
Thank you for purchasing this user system interface cable (HS36049ECH61H) for the Renesas’
original microcomputer H8/36049 group.
The HS36049ECH61H is a user system interface cable that connects an H8/36049 group E6000
emulator (HS3664EPI61H or HS3664EPI62H; hereinafter referred to as the emulator) to the IC
socket for an FP-80A package for the H8/36049 group MCU on the user system and to the
H8/36049 group expansion I/O board (HS36024EIO61H).
i
Contents
Section 1 Configuration.................................................................................... 1
Section 2 Connection Procedures ......................................................................3
2.1 Connecting User System Interface Cable to Emulator Station
(without Channel 3 of Serial Communication Interface for H8/36049 Group) ................3
2.2 Connecting User System Interface Cable to Expansion I/O Board
(with Channel 3 of Serial Communication Interface for H8/36049 Group) .....................5
2.3 Connecting User System Interface Cable to User System ................................................7
2.3.1 Installing IC Socket..............................................................................................7
2.3.2 Soldering IC Socket .............................................................................................7
2.3.3 Inserting Cable Head............................................................................................8
2.3.4 Fastening Cable Head..........................................................................................8
2.3.5 Fastening Cable Body ..........................................................................................10

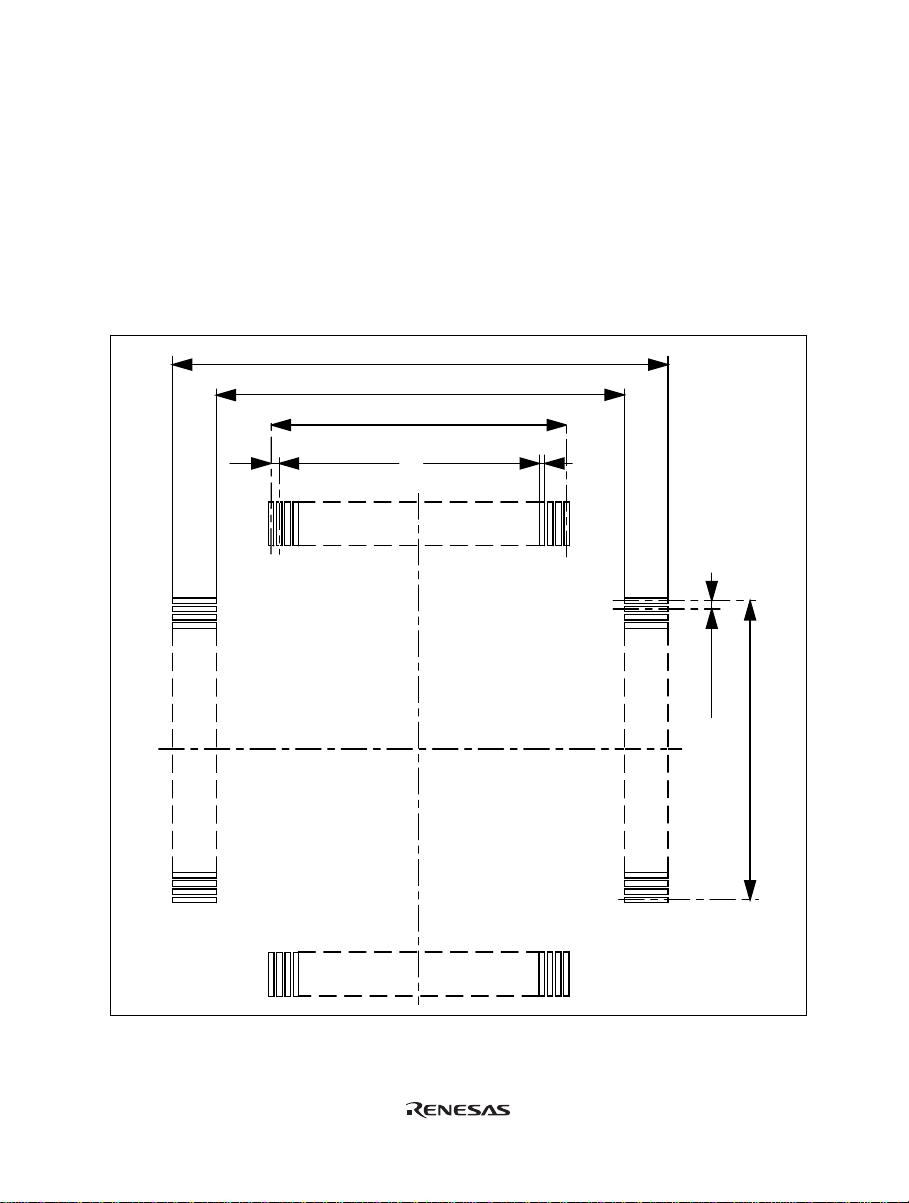

2.4 Recommended Dimensions for User System Mount Pad .................................................11
2.5 Dimensions for User System Interface Cable Head..........................................................12
2.6 Resulting Dimensions after Connecting User System Interface Cable .............................13
Section 3 Installing the MCU to the User System............................................. 14
Section 4 Verifying Operation...........................................................................16
Section 5 Notice.................................................................................................18
ii
Section 1 Configuration
CAUTION
Use an IC149-080-017-B5 socket (manufactured by
YAMAICHI ELECTRONICS Co., Ltd.) for the FP-80A
package IC socket on the user system.
Figure 1 shows the configuration of the HS36049ECH61H user system interface cable for the
FP-80A package.
To emulator station
or expansion I/O board
CTS screws (M3 x 6 mm)
for fastening the emulator station
Cable body
Screws (M2 x 12 mm)
Screws (M2 x 8 mm)
with flat washers
with flat washers
(for fastening cable head)
Socket cover
IC socket
User system
Figure 1 HS36049ECH61H User System Interface Cable
Cable head
1
Table 1 lists the HS36049ECH61H components. Please make sure you have all of these
components when unpacking.
Table 1 HS36049ECH61H Components
No. Component Quantity Remarks
1 Cable body 1 Cable
2 Cable head 1
3 IC socket 1 For the FP-80A package
4 Socket cover 1 For installing an FP-80A-packaged MCU
5 Screws (M2 x 12 mm) 4 For fastening cable head (with four flat washers)
6 Screws (M2 x 8 mm) 4 For installing an FP-80A-packaged MCU (with
7 CTS screws (M3 x 6 mm) 2 For fastening the emulator station
8 Documentation 1 User’s manual for HS36049ECH61H (this
four flat washers)
manual)
2
Section 2 Connection Procedures
2.1 Connecting User System Interface Cable to Emulator Station
(without Channel 3 of Serial Communication Interface for H8/36049
Group)
WARNING
Observe the precautions listed below. Failure to do so
will result in a FIRE HAZARD and will damage the user
system and the emulator product or will result in
PERSONAL INJURY. The USER PROGRAM will be LOST.
1. Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are
correctly aligned.
2. The user system interface cable dedicated to the
emulator must be used.
To connect the cable body to the emulator station, follow the instructions below.
1. Make sure the user system and emulator station are turned off.
CAUTION
When connecting or removing the user system interface
cable, apply force only in the direction suitable for
connection or removal, while making sure not to bend or
twist the cable or connectors. Otherwise, the connectors will
be damaged.
2. After making sure the direction of the cable body connector is correct, firmly insert the cable
body connector into the emulator station socket, and fasten the emulator station with two CTS
screws (M3
x 6 mm). (figure 2)
3
Emulator station
E6000
Cable body connector
CTS screws (M3 x 6 mm)
User system interface cable
Figure 2 Connecting User System Interface Cable to Emulator Station
4
2.2 Connecting User System Interface Cable to Expansion I/O Board
(with Channel 3 of Serial Communication Interface for H8/36049
Group)
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are correctly
aligned. Failure to do so will result in a FIRE HAZARD and
will damage the user system, the emulator product, and the
expansion I/O board or will result in PERSONAL INJURY.
The USER PROGRAM will be LOST.
To connect the cable body to the emulator station, follow the instructions below.
1. Make sure the user system and emulator station are turned off.
CAUTION
When connecting or removing the user system interface
cable, apply force only in the direction suitable for
connection or removal, while making sure not to bend or
twist the cable or connectors. Otherwise, the connectors
will be damaged.
2. After making sure the direction of the cable body connector is correct, firmly insert the cable
body connector into the expansion I/O board socket (written as USER INTERFACE CABLE),
and fasten the expansion I/O board with two CTS screws (M3
x 6 mm). (figure 3)
5
Expansion I/O board
E6000 EMULATO
E6000
USER INTERFACE CABL
Cable body connector
CTS screws (M3 x 6 mm)
User system interface cable
Figure 3 Connecting User System Interface Cable to Expansion I/O Board
6
2.3 Connecting User System Interface Cable to User System
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are correctly
aligned. Failure to do so will result in a FIRE HAZARD and
will damage the user system and the emulator product or
will result in PERSONAL INJURY. The USER PROGRAM will
be LOST.
To connect the cable head to the user system, follow the instructions below.
2.3.1 Installing IC Socket
After checking the location of pin 1 on the IC socket, apply epoxy resin adhesive to the bottom of
the IC socket for an FP-80A package, and fasten it to the user system before soldering.
2.3.2 Soldering IC Socket
After fastening, solder the IC socket for an FP-80A package to the user system. Be sure to
completely solder the leads so that the solder slops gently over the leads and forms solder fillets.
(Use slightly more solder than the MCU.)
7
2.3.3 Inserting Cable Head
CAUTION
Check the location of pin 1 before inserting.
Align pin 1 on the IC socket for an FP-80A package on the user system with pin 1 on the user
system interface cable head, and insert the user system interface cable head into the IC socket on
the user system, as shown in figure 4.
2.3.4 Fastening Cable Head
CAUTION
1. Use a Philips-type screwdriver whose head matches
the screw head.
2. The tightening torque must be 0.0785 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when first
tightening. If a screw is tightened too much, the screw
head may break or an IC socket contact error may be
caused by a crack in the IC socket solder.
3. If the emulator does not operate correctly, cracks might
have occurred in the solder. Check conduction with
a tester and re-solder the IC socket if necessary.
8
Fasten the user system interface cable head to the IC socket for an FP-80A package on the user
system with the four screws (M2
x 12 mm; with four flat washers) provided. Each screw should
be tightened a little at a time, alternating between screws on opposing corners. Take special care,
such as manually securing the IC socket soldered area, to prevent the soldered IC socket from
being damaged by overtightening the screws or twisting the components.
Screws (M2 x 12 mm)
with flat washers
Cable head
Pin 1
User system
IC socket
(IC149-080-017-B5
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
Figure 4 Connecting User System Interface Cable to User System
9
2.3.5 Fastening Cable Body
Connect the cable body to the cable head.
Cable body
Removing
Push two remove jigs.
Remove jig
Cable head
10
User system
Figure 5 Fastening Cable Body
2.4 Recommended Dimensions for User System Mount Pad
Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system
with an IC socket for an FP-80A package (IC149-080-017-B5: manufactured by YAMAICHI
ELECTRONICS Co., Ltd.). Note that the dimensions in figure 6 are somewhat different from
those of the actual chip's mount pad.
20.50 (min.)
14.70 (max.)
0.65 × 19 = 12.35 ± 0.1
+ 0.1
0.35
0.65 ± 0.05
- 0.05
0.65 ± 0.05
Figure 6 Recommended Dimensions for Mount Pad
0.65 × 19 = 12.35 ± 0.1
Unit: mm
11
2.5 Dimensions for User System Interface Cable Head
The dimensions for the user system interface cable head are shown in figure 7.
28.024.1
28.0
19.0
66.0
Unit: mm
Tolerance: ±0.5 mm
76.2
Figure 7 Dimensions for User System Interface Cable Head
12
2.6 Resulting Dimensions after Connecting User System Interface Cable
The resulting dimensions, after connecting the user system interface cable head to the user system,
are shown in figure 8.
Cable head
14.0 29.2
Unit: mm
Tolerance: ±0.5 mm
User system
IC socket
(IC149-080-017-B5
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
Figure 8 Resulting Dimensions after Connecting User System Interface Cable
13
Section 3 Installing the MCU to the User System
CAUTION
1. Check the location of pin 1 before inserting.
2. Use a Philips-type screwdriver whose head matches
the screw head.
3. The tightening torque must be 0.0785 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when first
tightening. If a screw is tightened too much, the screw
head may break or an IC socket contact error may be
caused by a crack in the IC socket solder.
4. If the MCU does not operate correctly, cracks might have
occurred in the solder. Check conduction with a tester
and re-solder the IC socket if necessary.
Check the location of pin 1 before inserting the MCU into the IC socket on the user system, as
shown in figure 9. After inserting the MCU, fasten the socket cover with the provided four screws
(M2
x 8 mm; with four flat washers). Take special care, such as manually securing the IC socket
soldered area, to prevent the IC socket from being damaged by overtightening the screws or
twisting the components.
14
Screws (M2 x 8 mm)
with flat washers
Socket cover
MCU
Pin 1
IC socket
(IC149-080-017-B5
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
User system
Figure 9 Installing MCU to User System
15
Section 4 Verifying Operation
1. Turn on the emulator according to the procedures described in the H8/3664 E6000 Emulator
User’s Manual (HS3664EPI61HE-U2 or HS3664EPI62HE-U2).
2. Verify the user system interface cable connections by accessing ports and checking the bus
states of the pins. If an error is detected, recheck the soldered IC socket and the location of pin
1.
3. The emulator connected to this user system interface cable supports two kinds of clock
sources: an emulator internal clock and an external clock on the user system, for the MCU
clock and subclock. For details, refer to the H8/3664 E6000 Emulator User’s Manual
(HS3664EPI61HE-U2 or HS3664EPI62HE-U2).
⎯ To use the emulator internal clock
Select the clock in the emulator station as the system clock (φ) and the subclock (φw), by
using the CLOCK command (emulator command).
⎯ To use the external clock on the user system as the system clock
Select target clock t with the CLOCK command (emulator command). Supply the external
clock from the user system to the emulator by inputting the external clock from the OSC1
terminal on the cable head or connecting a crystal oscillator to the OSC1 and OSC2
terminals. When a crystal oscillator is inserted into the OSC1 and OSC2 terminals for the
system clock, the clock is generated by the oscillator circuits shown in figure 10. To input
an external clock from the user system, input clock pulses satisfying the specifications
described in the MCU hardware manual into the OSC1 terminal. The system clock (φ)
frequency is the same as the external clock frequency.
⎯ To use the external clock on the user system as the subclock
Select target clock sub t with the CLOCK command (emulator command). Supply the
external clock from the user system to the emulator by inputting the external clock from
the X1 terminal on the cable head or connecting a crystal oscillator to the X1 and X2
terminals. When a crystal oscillator is inserted into the X1 and X2 terminals for the
subclock, the clock is generated by the oscillator circuits shown in figure 10. To input an
external clock from the user system, input clock pulses satisfying the specifications
described in the MCU hardware manual into the X1 terminal. The subclock (φw)
frequency is the same as the external clock frequency.
16
Figure 10 shows the system clock oscillator on the user system interface cable and the subclock
input specifications.
Ω
R1 1 M
HCU04
OSC1 OSC2
HCU04
R2 270
To E6000
emulator
Ω
R5 3.3 M
HCU04
X1 X2
Ω
R12 2.2 kΩ
R6 470 k
R13 10 kΩ
HCU04 HCU04
Ω
To E6000
emulator
HCU04
System clock oscillator
Figure 10 System Clock Oscillator and Subclock Input Specifications
Subclock oscillator
17
Section 5 Notice
1. Make sure that pin 1 on the user system IC socket is correctly aligned with pin 1 on the cable
head before inserting the cable head into the user system IC socket.
2. The dimensions of the recommended mount pad for the user system IC socket are different
from those of the MCU.
3. This user system interface cable is specifically designed for the HS3664EPI61H or
HS3664EPI62H emulator. Do not use this cable with any other emulator station.
4. To prevent breaking of wires in the cable body, do not place heavy or sharp metal objects on
the user system interface cable.
5. While the emulator station is connected to the user system with the user system interface cable,
force must not be applied to the cable head. Place the emulator station, user system interface
cable, and user system as shown in the example in figure 11.
Connecting User System Interface Cable to Emulator Station (without SCI3_3 for H8/36049 Group)
Emulator station
Connecting User System Interface Cable to Expansion I/O Board (with SCI3_3 for H8/36049 Group)
Emulator station
Expansion I/O board
Cable
Cable
Place components so that the cable body and cable head are
parallel to the user system.
Place components so that the expansion I/O board, cable body,
and cable head are parallel to the user system.
Figure 11 User System Interface Cable Location Example
18
User system
User system
Cable head is parallel
to emulator station
Cable head is parallel
to user system
Cable head is parallel
to emulator station
Cable head is parallel
to user system
6. The P1 short connector is used for testing. Do not remove the inserted jumper pin.
3
P1
1
Figure 12 P1 Short Connector
19
H8/36049 Group FP-80A
User System Interface Cable
User's Manual
Publication Date: Rev.1.00, May 23, 2003
Rev.3.00, October 27, 2005
Published by: Sales Strategic Planning Div.
Renesas Technology Corp.
Edited by: Customer Support Department
Global Strategic Communication Div.
Renesas Solutions Corp.
© 2005. Renesas Technology Corp., All rights reserved. Printed in Japan.
