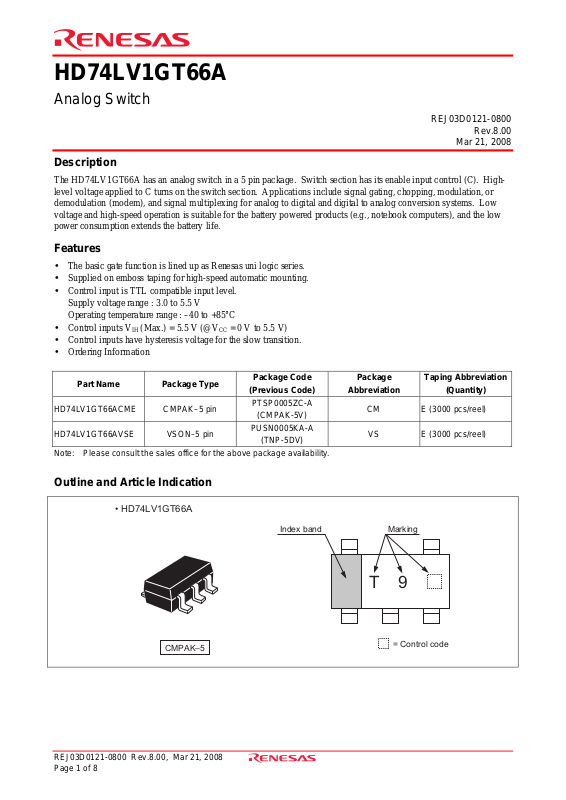

Renesas HD74LV1GT66A User Manual

HD74LV1GT66A

Analog Switch

REJ03D0121-0800

Rev.8.00

Mar 21, 2008

Description

The HD74LV1GT66A has an analog switch in a 5 pin package. Switch section has its enable input control (C). High­level voltage applied to C turns on the switch section. Applications include signal gating, chopping, modulation, or
demodulation (modem), and signal multiplexing for analog to digital and digital to analog conversion systems. Low
voltage and high-speed operation is suitable for th e battery powered products (e.g., notebook computers), and the low
power consumption extends the battery life.

Features

• The basic gate function is lined up as Renesas uni logic series.

• Supplied on emboss taping for high-speed automatic mounting.

• Control input is TTL compatible input level.

Supply voltage range : 3.0 to 5.5 V
Operating temperature range : –40 to +85°C

• Control inputs V

• Control inputs have hysteresis voltage for the slow transition.

• Ordering Information

Part Name Package Type

HD74LV1GT66ACME CMPAK–5 pin

HD74LV1GT66AVSE VSON–5 pin
Note: Please consult the sales office for the above package availability.

(Max.) = 5.5 V (@VCC = 0 V to 5.5 V)

IH

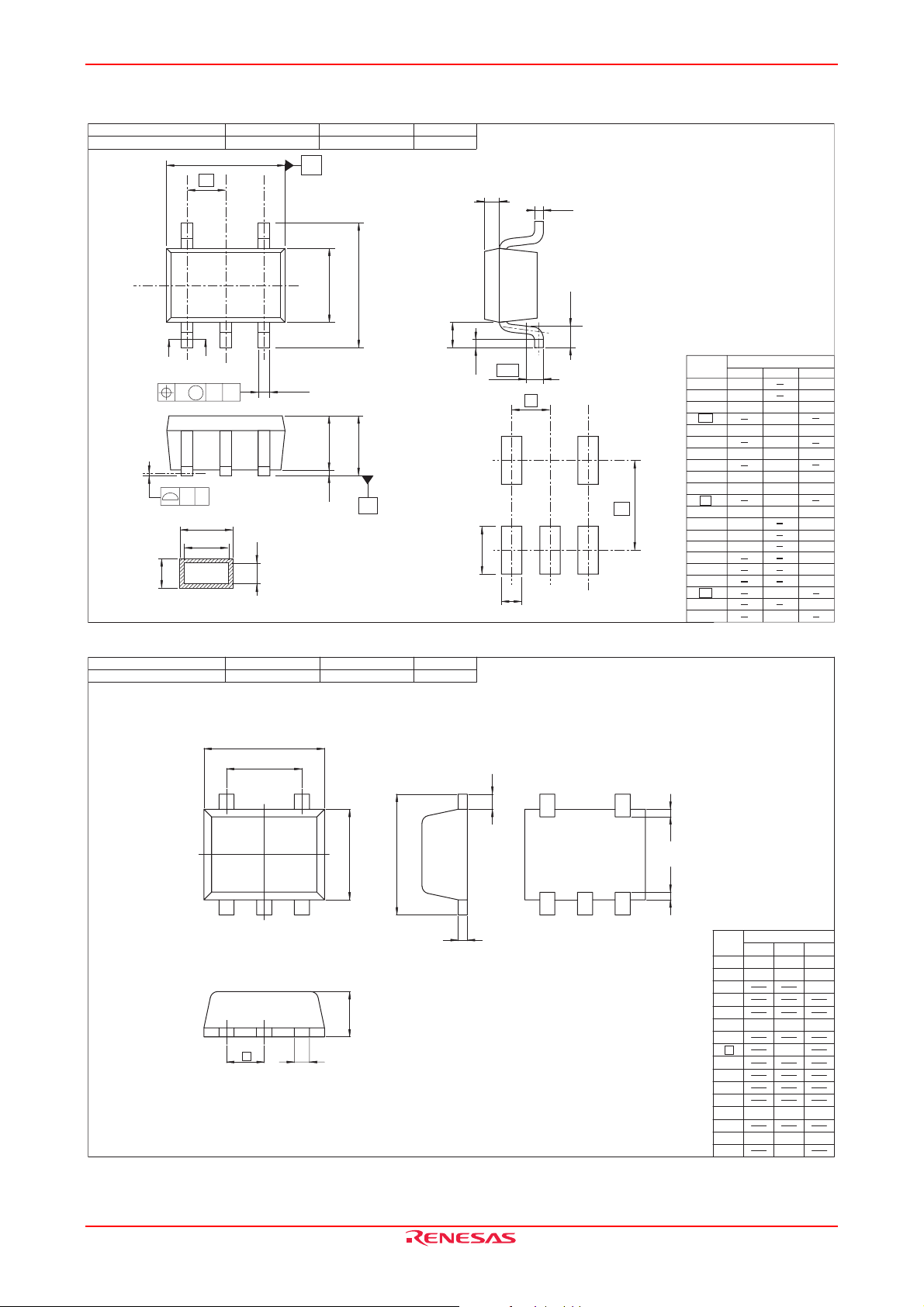

Package Code

(Previous Code)

PTSP0005ZC-A

(CMPAK-5V)

PUSN0005KA-A

(TNP-5DV)

Package

Abbreviation

CM E (3000 pcs/reel)

VS E (3000 pcs/reel)

Taping Abbreviation

(Quantity)

Outline and Article Indication

• HD74LV1GT66A

Index band

CMPAK–5

REJ03D0121-0800 Rev.8.00, Mar 21, 2008
Page 1 of 8

Marking

T 9

= Control code

HD74LV1GT66A

Outline and Article Indication

• HD74LV1GT66A

Marking

T 9

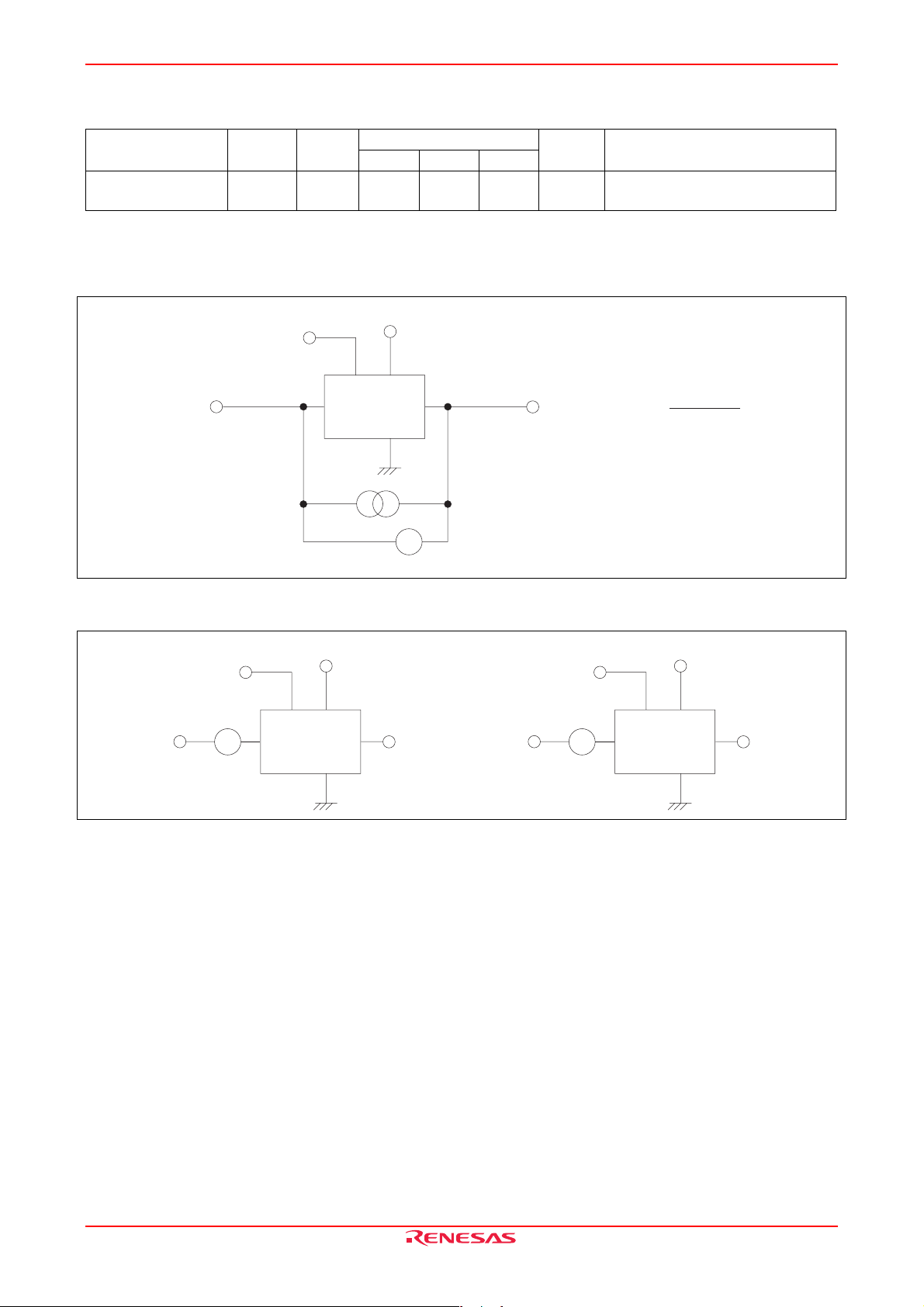

Function Table

H : High level
L : Low level

Pin Arrangement

VSON–5

Control Switch

L OFF

H ON

IN/OUT

OUT/IN

1

2

54V

CC

= Control code

3

GND

(Top view)

REJ03D0121-0800 Rev.8.00, Mar 21, 2008
Page 2 of 8

Control

HD74LV1GT66A

Absolute Maximum Ratings

Item Symbol Ratings Unit Test Conditions

Supply voltage range VCC –0.5 to 7.0 V
Input voltage range *1 V
Output voltage range

*1, 2

V
Input clamp current IIK –20 mA VI < 0
Output clamp current IOK ±50 mA VO < 0 or VO > VCC
Continuous output current IO ±25 mA VO = 0 to VCC
Continuous current through

or GND

V

CC

Maximum power dissipation
at Ta = 25°C (in still air)

*3

Storage temperature Tstg –65 to 150 °C
Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore no two

of which may be realized at the same time.

1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are

observed.

2. This value is limited to 5.5 V maximum.

3. The maximum package power dissipation was calculated us ing a junction temperature of 150°C.

–0.5 to 7.0 V

I

–0.5 to VCC + 0.5 V Output : H or L

O

I

or I

CC

±50 mA

GND

P

200 mW

T

Recommended Operating Conditions

Item Symbol Min Max Unit Conditions

Supply voltage range VCC 3.0 5.5 V
Input voltage range VI 0 5.5 V
Input / output voltage range V

Input transition rise or fall rate ∆t / ∆v
Operating free-air temperature Ta –40 85 °C

Note: Unused or floating control inputs must be held high or low.

0 VCC V

I/O

0 100 VCC = 3.0 to 3.6 V
0 20

ns / V

VCC = 4.5 to 5.5 V

REJ03D0121-0800 Rev.8.00, Mar 21, 2008
Page 3 of 8
