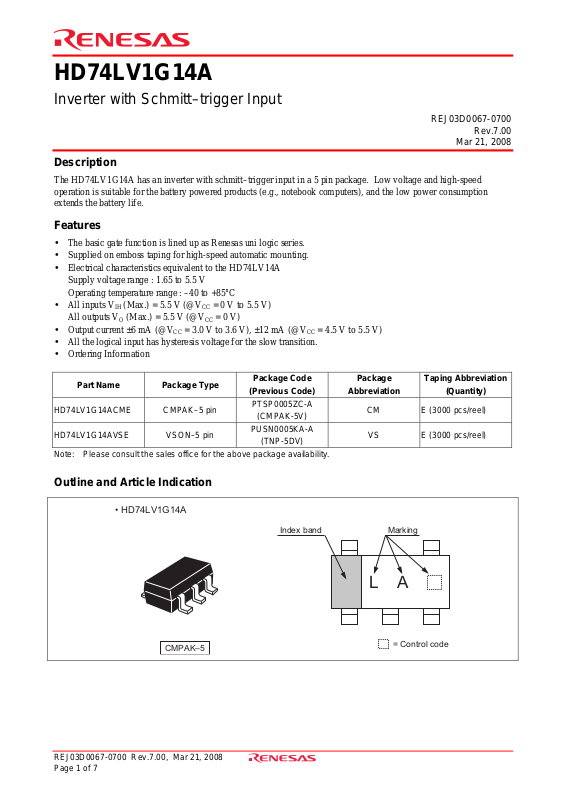

Renesas HD74LV1G14A User Manual

HD74LV1G14A

Inverter with Schmitt–trigger Input

REJ03D0067-0700

Rev.7.00

Mar 21, 2008

Description

The HD74LV1G14A has an inverter with schmitt–trigger input in a 5 pin package. Low voltage and high -speed
operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption
extends the battery life.

Features

• The basic gate function is lined up as Renesas uni logic series.

• Supplied on emboss taping for high-speed automatic mounting.

• Electrical characteristics equivalent to the HD74LV14A

Supply voltage range : 1.65 to 5.5 V
Operating temperature range : –40 to +85°C

• All inputs V

All outputs V

• Output current ±6 mA (@V

• All the logical input has hysteresis voltage for the slow transition.

• Ordering Information

Part Name Package Type

HD74LV1G14ACME CMPAK–5 pin

HD74LV1G14AVSE VSON–5 pin
Note: Please consult the sales office for the above package availability.

(Max.) = 5.5 V (@VCC = 0 V to 5.5 V)

IH

(Max.) = 5.5 V (@VCC = 0 V)

O

= 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)

CC

(Previous Code)

PTSP0005ZC-A

PUSN0005KA-A

Package Code

(CMPAK-5V)

(TNP-5DV)

Package

Abbreviation

CM E (3000 pcs/reel)

VS E (3000 pcs/reel)

Taping Abbreviation

(Quantity)

Outline and Article Indication

• HD74LV1G14A

Index band

CMPAK–5

REJ03D0067-0700 Rev.7.00, Mar 21, 2008
Page 1 of 7

Marking

L A

= Control code

HD74LV1G14A

Y

Outline and Article Indication

• HD74LV1G14A

Marking

L A

Function Table

H : High level
L : Low level

Pin Arrangement

VSON–5

Input A Output Y

H L

L H

NC

IN A

1

2

54V

CC

= Control code

GND

REJ03D0067-0700 Rev.7.00, Mar 21, 2008
Page 2 of 7

3

(Top view)

OUT

HD74LV1G14A

Absolute Maximum Ratings

Item Symbol Ratings Unit Test Conditions

Supply voltage range VCC –0.5 to 7.0 V
Input voltage range *1 V

Output voltage range

*1, 2

V

Input clamp current IIK –20 mA VI < 0
Output clamp current IOK ±50 mA VO < 0 or VO > VCC
Continuous output current IO ±25 mA VO = 0 to VCC
Continuous current through

or GND

V

CC

Maximum power dissipation
at Ta = 25°C (in still air)

*3

Storage temperature Tstg –65 to 150 °C
Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore no two

of which may be realized at the same time.

1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are
observed.

2. This value is limited to 5.5 V maximum.

3. The maximum package power dissipation was calculated us ing a junction temperature of 150°C.

–0.5 to 7.0 V

I

O

I

or I

CC

±50 mA

GND

P

200 mW

T

–0.5 to VCC + 0.5 Output : H or L

–0.5 to 7.0

V

VCC : OFF

Recommended Operating Conditions

Item Symbol Min Max Unit Conditions

Supply voltage range VCC 1.65 5.5 V
Input voltage range VI 0 5.5 V
Output voltage range VO 0 VCC V

— 1 VCC = 1.65 to 1.95 V

IOL

Output current

IOH

Operating free-air temperature Ta –40 85 °C
Note: Unused or floating inputs must be held high or low.

— 2 VCC = 2.3 to 2.7 V
— 6 VCC = 3.0 to 3.6 V
— 12 VCC = 4.5 to 5.5 V
— –1 VCC = 1.65 to 1.95 V

mA

— –2 VCC = 2.3 to 2.7 V
— –6 VCC = 3.0 to 3.6 V
— –12

= 4.5 to 5.5 V

V

CC

REJ03D0067-0700 Rev.7.00, Mar 21, 2008
Page 3 of 7
