REJ10J1869-0200

H8SX/1648 Group E6000H PLQP0144KA-A

Renesas Microcomputer Development Environment System

User System Interface Board

HS1648ECH61H User’s Manual

H8SX Family / H8SX/1600 Series

Rev.2.00 Revision Date: Apr. 18, 2008

HS1648ECH61HE

Notes regarding these materials

1. This document is provided for reference purposes only so that Renesas customers may select the appropriate Renesas products for their use. Renesas neither makes warranties or representations with respect to the accuracy or completeness of the information contained in this document nor grants any license to any intellectual property rights or any other rights of Renesas or any third party with respect to the information in this document.

2. Renesas shall have no liability for damages or infringement of any intellectual property or other rights arising out of the use of any information in this document, including, but not limited to, product data, diagrams, charts, programs, algorithms, and application circuit examples.

3. You should not use the products or the technology described in this document for the purpose of military applications such as the development of weapons of mass destruction or for the purpose of any other military use. When exporting the products or technology described herein, you should follow the applicable export control laws and regulations, and procedures required by such laws and regulations.

4. All information included in this document such as product data, diagrams, charts, programs, algorithms, and application circuit examples, is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas products listed in this document, please confirm the latest product information with a Renesas sales office. Also, please pay regular and careful attention to additional and different information to be disclosed by Renesas such as that disclosed through our website. (http://www.renesas.com )

5. Renesas has used reasonable care in compiling the information included in this document, but Renesas assumes no liability whatsoever for any damages incurred as a result of errors or omissions in the information included in this document.

6. When using or otherwise relying on the information in this document, you should evaluate the information in light of the total system before deciding about the applicability of such information to the intended application. Renesas makes no representations, warranties or guaranties regarding the suitability of its products for any particular application and specifically disclaims any liability arising out of the application and use of the information in this document or Renesas products.

7. With the exception of products specified by Renesas as suitable for automobile applications, Renesas products are not designed, manufactured or tested for applications or otherwise in systems the failure or malfunction of which may cause a direct threat to human life or create a risk of human injury or which require especially high quality and reliability such as safety systems, or equipment or systems for transportation and traffic, healthcare, combustion control, aerospace and aeronautics, nuclear power, or undersea communication transmission. If you are considering the use of our products for such purposes, please contact a Renesas sales office beforehand. Renesas shall have no liability for damages arising out of the uses set forth above.

8. Notwithstanding the preceding paragraph, you should not use Renesas products for the purposes listed below: (1) artificial life support devices or systems (2) surgical implantations (3) healthcare intervention (e.g., excision, administration of medication, etc.) (4) any other purposes that pose a direct threat to human life Renesas shall have no liability for damages arising out of the uses set forth in the above and purchasers who elect to use Renesas products in any of the foregoing applications shall indemnify and hold harmless Renesas Technology Corp., its affiliated companies and their officers, directors, and employees against any and all damages arising out of such applications.

9. You should use the products described herein within the range specified by Renesas, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas shall have no liability for malfunctions or damages arising out of the use of Renesas products beyond such specified ranges.

10. Although Renesas endeavors to improve the quality and reliability of its products, IC products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Please be sure to implement safety measures to guard against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a Renesas product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other applicable measures. Among others, since the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you.

11. In case Renesas products listed in this document are detached from the products to which the Renesas products are attached or affixed, the risk of accident such as swallowing by infants and small children is very high. You should implement safety measures so that Renesas products may not be easily detached from your products. Renesas shall have no liability for damages arising out of such detachment.

12. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written approval from Renesas.

13. Please contact a Renesas sales office if you have any questions regarding the information contained in this document, Renesas semiconductor products, or if you have any other inquiries.

IMPORTANT INFORMATION

READ FIRST

• READ this user's manual before using this user system interface board.

• KEEP the user's manual handy for future reference.

Do not attempt to use the user system interface board until you fully understand its mechanism.

User System Interface Board:

Throughout this document, the term "user system interface board" shall be defined as the following product produced only by Renesas Technology Corp. excluding all subsidiary products.

• User system interface board (HS1648ECH61H)

The user system or a host computer is not included in this definition.

Purpose of the User System Interface Board:

This user system interface board is for connecting the evaluation chip board and user system. This user system interface board must only be used for the above purpose.

Improvement Policy:

Renesas Technology Corp. (including its subsidiaries, hereafter collectively referred to as Renesas) pursues a policy of continuing improvement in design, performance, functions, and safety of the user system interface board. Renesas reserves the right to change, wholly or partially, the specifications, design, user's manual, and other documentation at any time without notice.

Target User of the User System Interface Board:

This user system interface board should only be used by those who have carefully read and thoroughly understood the information and restrictions contained in the user's manual. Do not attempt to use the user system interface board until you fully understand its mechanism.

It is highly recommended that first-time users be instructed by users that are well versed in the operation of the user system interface board.

LIMITED WARRANTY

Renesas warrants its user system interface boards to be manufactured in accordance with published specifications and free from defects in material and/or workmanship. Renesas will repair or replace any user system interface boards determined to be defective in material and/or workmanship. User system interface boards are wearing parts which Renesas will not repair or replace if damaged and/or worn through use. The foregoing shall constitute the sole remedy for any breach of Renesas’ warranty. This warranty extends only to you, the original Purchaser. It is not transferable to anyone who subsequently purchases the user system interface board from you. Renesas is not liable for any claim made by a third party or made by you for a third party.

DISCLAIMER

RENESAS MAKES NO WARRANTIES, EITHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR USE, OR AGAINST INFRINGEMENT OF ANY PATENT. IN NO EVENT SHALL RENESAS BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE USER SYSTEM INTERFACE BOARD, THE USE OF ANY USER SYSTEM INTERFACE BOARD, OR ITS DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCEPT AS EXPRESSLY STATED OTHERWISE IN THIS WARRANTY, THIS USER SYSTEM INTERFACE BOARD IS SOLD "AS IS ", AND YOU MUST ASSUME ALL RISK FOR THE USE AND RESULTS OBTAINED FROM THE USER SYSTEM INTERFACE BOARD.

State Law:

Some states do not allow the exclusion or limitation of implied warranties or liability for incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which may vary from state to state.

The Warranty is Void in the Following Cases:

Renesas shall have no liability or legal responsibility for any problems caused by misuse, abuse, misapplication, neglect, improper handling, installation, repair or modifications of the user system interface board without Renesas’ prior written consent or any problems caused by the user system.

This user's manual and user system interface board are copyrighted and all rights are reserved by Renesas. No part of this user's manual, all or part, may be reproduced or duplicated in any form, in hard-copy or machine-readable form, by any means available without Renesas’ prior written consent.

Other Important Things to Keep in Mind:

1. Circuitry and other examples described herein are meant merely to indicate the characteristics and performance of Renesas’ semiconductor products. Renesas assumes no responsibility for any intellectual property claims or other problems that may result from applications based on the examples described herein.

2. No license is granted by implication or otherwise under any patents or other rights of any third party or Renesas.

Figures:

Some figures in this user's manual may show items different from your actual system.

Limited Anticipation of Danger:

Renesas cannot anticipate every possible circumstance that might involve a potential hazard. The warnings in this user's manual and on the user system interface board are therefore not all inclusive. Therefore, you must use the user system interface board safely at your own risk.

III

SAFETY PAGE

READ FIRST

• READ this user's manual before using this user system interface board.

• KEEP the user's manual handy for future reference.

Do not attempt to use the user system interface board until you fully understand its mechanism.

DEFINITION OF SIGNAL WORDS

This is the safety alert symbol. It is used to alert you to potential personal

injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

avoided, will result in death or serious injury.

WARNING

avoided, could result in death or serious injury.

CAUTION

avoided, may result in minor or moderate injury.

CAUTION

potentially hazardous situation which, if not avoided, may result in property damage.

DANGER indicates an imminently hazardous situation which, if not

WARNING indicates a potentially hazardous situation which, if not

CAUTION indicates a potentially hazardous situation which, if not

CAUTION used without the safety alert symbol indicates a

NOTE emphasizes essential information.

WARNING

Observe the precautions listed below. Failure to do so will result in a FIRE HAZARD and will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.

1. Do not repair or remodel the emulator product by yourself for electric shock prevention and quality assurance.

2. Always switch OFF the E6000H emulator and user system before connecting or disconnecting any CABLES or PARTS.

3. Always before connecting any BOARDS, make sure that pin 1 on both sides are correctly aligned.

Preface

The HS1648ECH61H is a user system interface board that connects a user system for the H8SX/1648 PLQP0144KA-A (former package: FP-144L) package to the H8SX/1650 E6000H emulator (HS1650EPH60H). Emulation of the H8SX/1648 group is only possible when this user system interface board is connected to the HS1650EPH60H.

Content

Section 1 Configuration..................................................................................... 1

Section 2 Connection Procedures...................................................................... 3

2.1 Connecting the User System Interface Board to the User System.................................... 3

2.1.1 Installing the IC Socket........................................................................................ 4

2.1.2 Soldering the IC Socket ....................................................................................... 5

2.1.3 Inserting the IC Socket Connector....................................................................... 5

2.1.4 Fastening the IC Socket Connector...................................................................... 6

2.2 Exchanging the Spacers of the Evaluation-Chip Board.................................................... 8

2.3 Connecting the User System Interface Board to the Evaluation-Chip Board ................... 9

2.4 Recommended Dimensions for the User System Mounting Pad (Footprint).................... 11

2.5 Dimensions of the Evaluation-Chip Board and the User System Interface Board ........... 12

2.6 Dimensions after Connecting the User System Interface Board....................................... 13

2.7 Using the Emulator without Connecting User System .....................................................14

Section 3 Installing the MCU to the User System............................................. 16

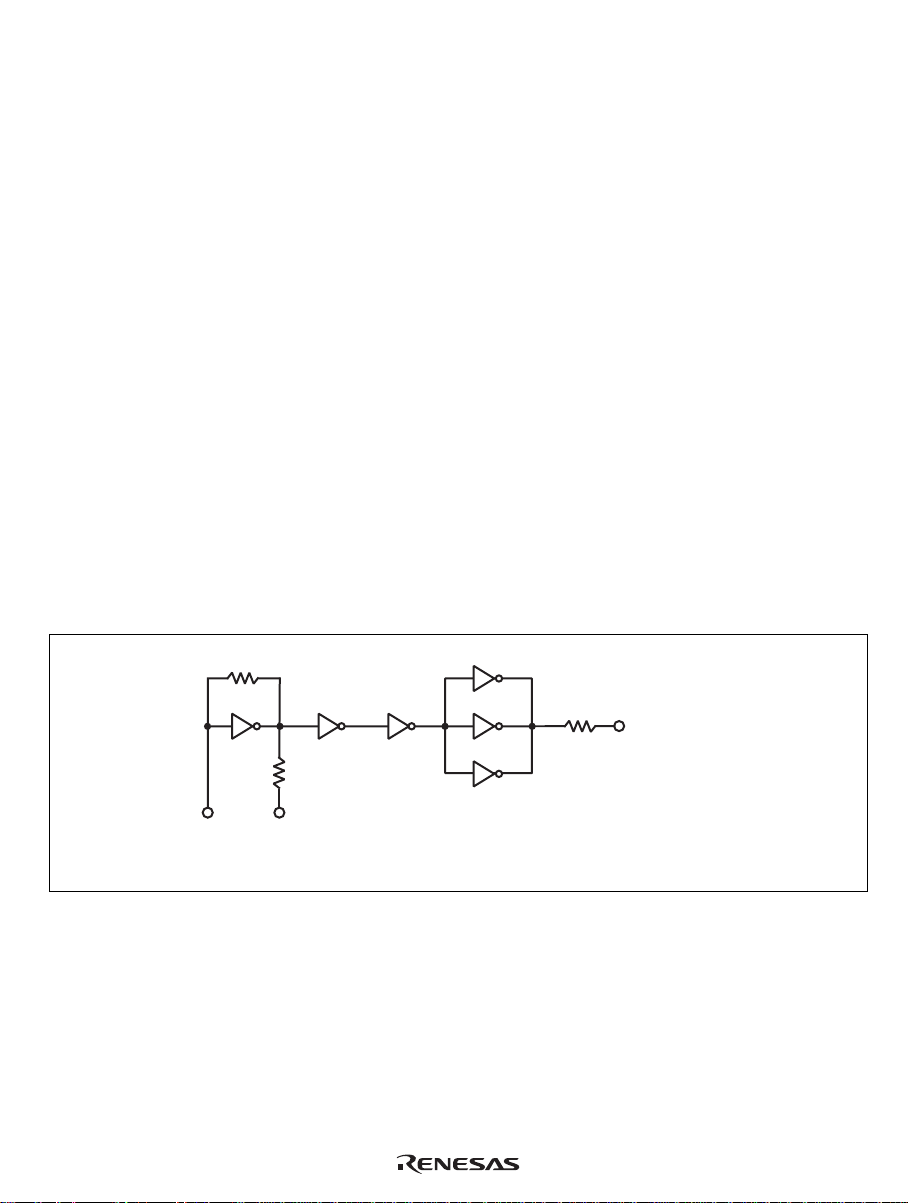

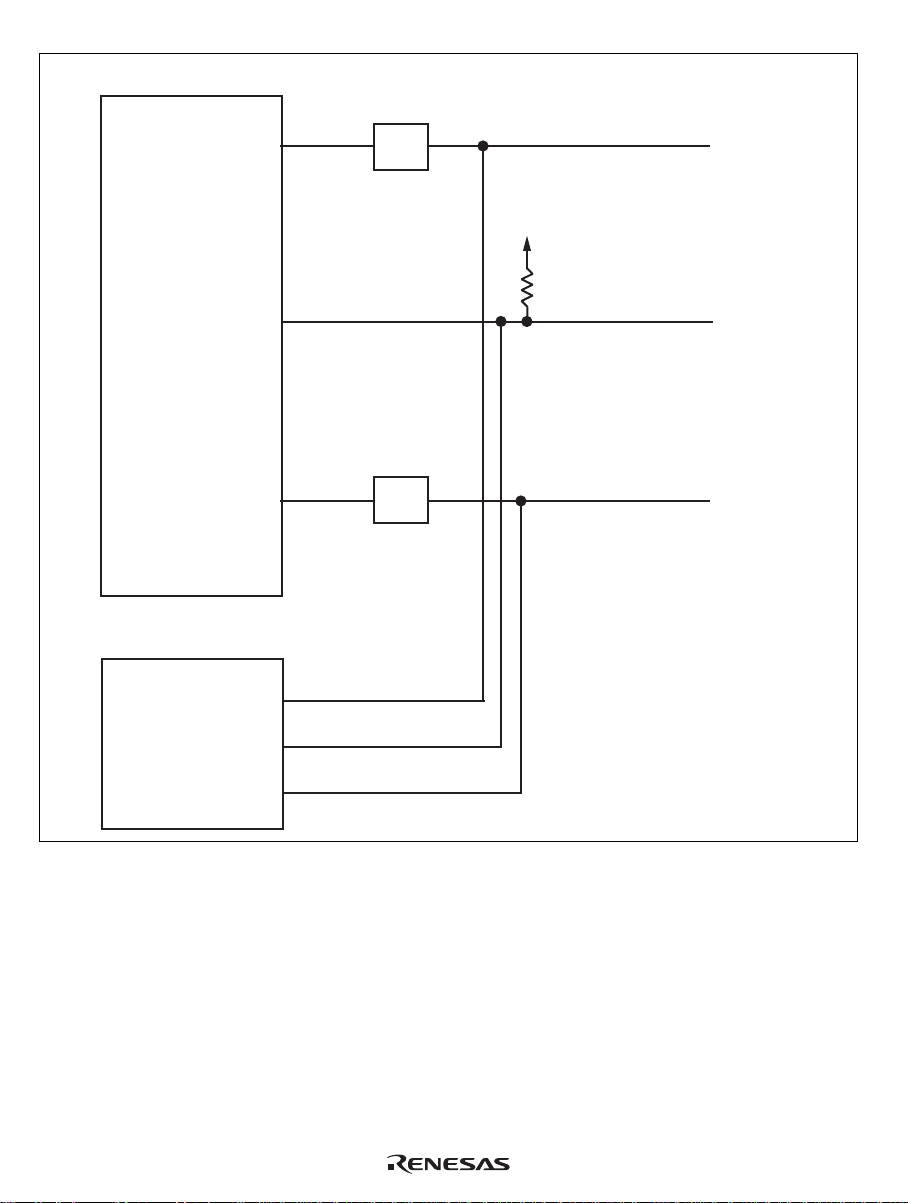

Section 4 User System Interface Circuits ..........................................................18

Section 5 Verifying Operation........................................................................... 22

Section 6 Points for Caution..............................................................................25

Section 7 Restrictions ........................................................................................26

Section 1 Configuration

Figure 1 and table 1 show the configuration and components of the user system interface board for the PLQP0144KA-A package. Please make sure you have all of these components after you have unpacked the box.

Evaluation-chip board

Screws (M2 × 6 mm)

Spacer

Socket cover

Screws (M2 × 10 mm) (for fastening the board)

User system interface board

IC socket

User system

Figure 1 User System Interface Board for the PLQP0144KA-A Package

CAUTION

Use an NQPACK144SD-ND socket (manufactured by Tokyo Eletech Corporation) as the PLQP0144KA-A-packaged IC socket on the user system.

Table 1 HS1648ECH61H Components

No. Component Quantity Remarks

1 User system interface

board

2 IC socket 1 For the PLQP0144KA-A package (to be mounted on

3 Socket cover 1 For installing a PLQP0144KA-A-packaged MCU

4 Screws (M2 x 10 mm) 4 For fastening the board

5 Screws (M2 x 6 mm) 4 For installing a PLQP0144KA-A-packaged MCU

6 Spacers (2.6MP x 25 mm) 2

7 Spacers (2.6MQ x 13 mm) 4

8 Screwdriver 1 For tightening screws

9 Guide pins (φ1 mm) 3 For determining the IC socket location

10 Documentation 1 User’s manual for HS1648ECH61H (this manual)

the user system)

Section 2 Connection Procedures

2.1 Connecting the User System Interface Board to the User System

WARNING

Always switch OFF the user system and the emulator product before the USER SYSTEM INTERFACE BOARD is connected or removed. Before connecting the two, make sure that pin 1 on both sides are correctly aligned. Failure to do so will result in a FIRE HAZARD and will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.

CAUTION

1. Do not connect a 5-V signal to any pin other than the port N pins. Incorrect usage will cause damage to the emulator product, user system interface board, and user system.

2. To connect the emulator to the user system, ensure that the SW1 jumper pin is inserted to [USER-ON]. Failure to do so will damage the emulator product, user system interface board, and user system.

To connect the board to the user system, follow the instructions below.

2.1.1 Installing the IC Socket

After checking the location of pin 1 on the IC socket fasten it to the user system before soldering.

CAUTION

After confirming the location of pin 1 on the IC socket, apply epoxy resin adhesive to the end of the four projections at the bottom of the IC socket, and fasten it to the user system.

Use the guide pins provided with the product to determine where to install the IC socket, as shown in figure 2.

Guide pins

4 projections to apply epoxy resin adhesive to

Pin 1

IC socket

(NQPACK144SD-ND manufactured by Tokyo Eletech Corporation)

Bottom view of IC socket

User system

Figure 2 Correctly Placing the IC Socket

2.1.2 Soldering the IC Socket

After fastening, solder the IC socket for a PLQP0144KA-A package to the user system.

CAUTION

Be sure to completely solder the leads so that the solder gently covers the leads and forms solder fillets. (Use slightly more solder than with the MCU.)

2.1.3 Inserting the IC Socket Connector

CAUTION

Check the location of pin 1 before inserting.

After checking the location of pin 1 on the user system interface board and pin 1 on the IC socket connector, align the guide pins on the IC socket connector with the guide holes on the user system interface board, and insert the IC socket connector into the IC socket (figure 3).

2.1.4 Fastening the IC Socket Connector

CAUTION

1. Use the screwdriver provided for tightening screws.

2. The tightening torque must be 0.054 N•m or less. If the applied torque cannot be accurately measured, stop tightening when the force required to turn the screw becomes significantly greater than that needed when first tightening. If a screw is tightened too much, the screw head may break or an IC socket contact error may be caused by a crack in the IC socket solder.

3. If the emulator does not operate correctly, cracks might have occurred in the solder. Check conduction with a tester and re-solder the IC socket if necessary.

Fasten the user system interface board to the IC socket for a PLQP0144KA-A package on the user system with the four screws (M2 time, alternating between screws on opposing corners. Take special care, such as manually securing the IC socket soldered area, to prevent the soldered IC socket from being damaged by overtightening the screws or twisting the components.

x 10 mm) provided. Each screw should be tightened a little at a

Screws (M2 × 10 mm) (for fastening the board)

User system interface board

Pin 1

IC socket (NQPACK144SD-ND

User system

manufactured by Tokyo Eletech Corporation)

Figure 3 Connecting the User System Interface Board to the User System

2.2 Exchanging the Spacers of the Evaluation-Chip Board

After connecting the user system interface board to the user system, be careful not to apply load to the user system.

Exchange the spacers (2.6MP × 10 mm) of the evaluation-chip board with the spacers (2.6MP × 25 mm) provided with the user system interface board and adjust the height.

Evaluation-chip board

Spacer (2.6MP × 25 mm)

Figure 4 Exchanging the Spacers

2.3 Connecting the User System Interface Board to the Evaluation-Chip

Board

WARNING

1. Always switch OFF the user system and the emulator product before the USER SYSTEM INTERFACE BOARD is connected or removed. Before connecting the two, make sure that the pin 1 positions on both sides are correctly aligned.

2. The user system interface board must be used with the emulator for which it was designed.

1. Make sure the user system and emulator are turned off.

2. Align the connectors on the user system interface board with those on the evaluation-chip board by matching the numbers on the connectors (figure 5).

3. Adjust the height of the spacers of the evaluation-chip board to accommodate the user system.

Evaluation-chip board

Connector No.

Evaluation-Chip Board Connector No.

UCN1 UCN1

UCN2

User system interface board

Board Connector No.

UCN2

Figure 5 Connecting the User System Interface Board to the Evaluation-Chip Board

2.4 Recommended Dimensions for the User System Mounting Pad

(Footprint)

Figure 6 shows the recommended dimensions for the mounting pad (footprint) for the user system with the IC socket for a PLQP0144KA-A package (NQPACK144SD-ND: manufactured by Tokyo Eletech Corporation). Note that the dimensions in figure 6 are somewhat different from those of the mounting pad for the system with the actual MCU.

23.00

11.50

23.00

0.50

2.00

0.50

0.25 (max.)

Dimension and tolerance

Dimension Up to 1.2

1.3 to 2.0

2.1 to 5.0

5.1 to 10.0

10.1 or above

Figure 6 Recommended Dimensions for the Mounting Pad

Tolerance ±0.05 ±0.10 ±0.15 ±0.20 ±0.30

Unit: mm

2.5 Dimensions of the Evaluation-Chip Board and the User System Interface Board

The dimensions of the evaluation-chip board and the user system interface board are shown in figure 7.

140.0

100.0

Evaluation-chip board

118.5

84.5

34.5

78.5

User system interface board

Unit: mm Tolerance:

0.5 mm

Figure 7 Dimensions of the Evaluation-Chip Board and the User System Interface Board

2.6 Dimensions after Connecting the User System Interface Board

The dimensions of the assembly after the user system interface board has been connected to the user system are shown in figure 8.

Evaluation-chip board

54.9

32.9

13.3

Spacer (φ5.8)

56.5

User system

56.5

IC socket (NQPACK144SD-ND manufactured by Tokyo Eletech Corporation)

45.0

Unit: mm Tolerance: ±1.0 mm

Figure 8 Dimensions of the Assembly after Connection of the User System Interface Board

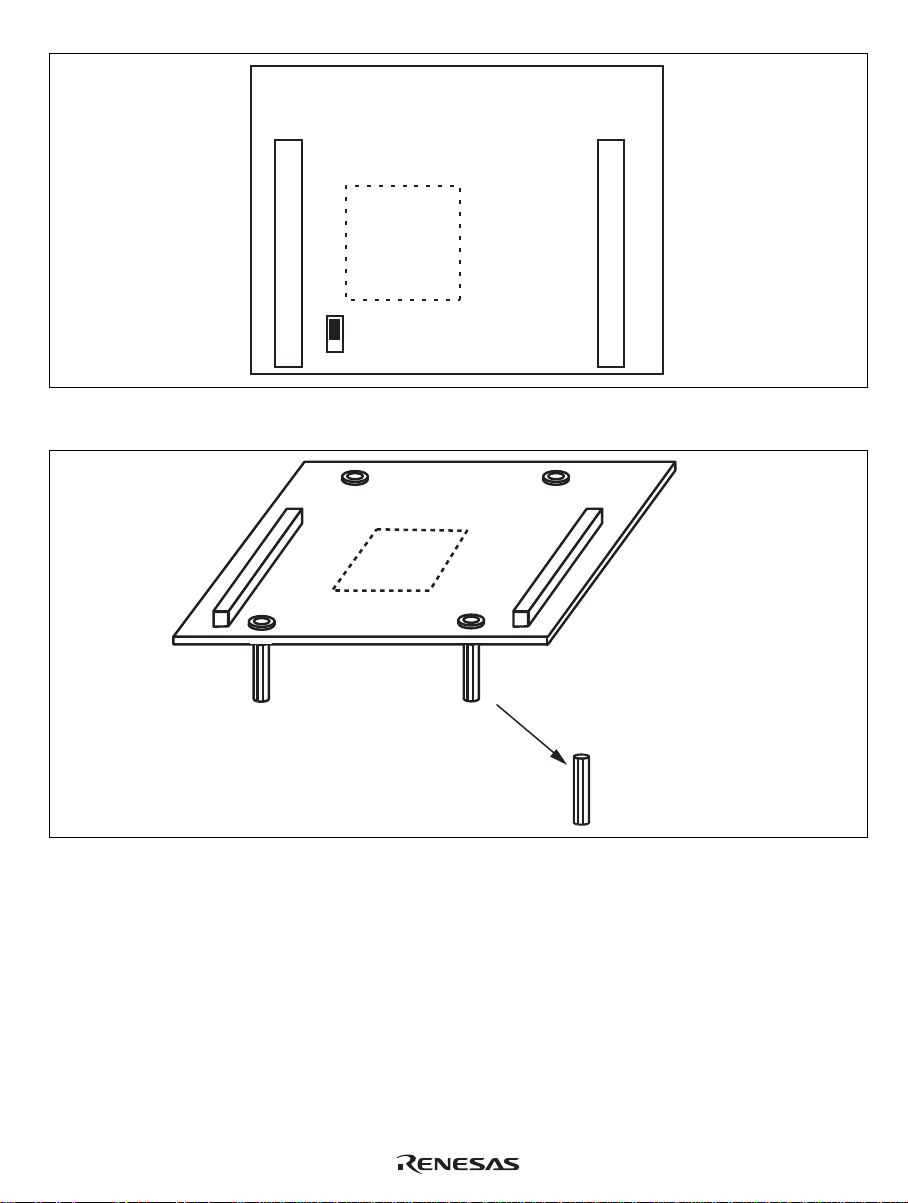

2.7 Using the Emulator without Connecting User System

WARNING

CAUTION

When this emulator is used without connecting to the user system, ensure that the SW1 jumper pin is inserted to [USER-OFF]. Failure to do so will damage the emulator product, user system interface board, and user system.

Attach the provided spacers (2.6MQ x 13 mm) to four positions on the user system interface board not to apply loads to the connector (CN1) on the board (figure 10).

USER

OFF

SW1

USER

Figure 9 SW1 Jumper Socket

Figure 10 Attaching Spacers

Spacer (2.6MQ x 13 mm)

Section 3 Installing the MCU to the User System

CAUTION

1. Check the location of pin 1 before inserting.

2. Use the screwdriver provided for tightening screws.

3. The tightening torque must be 0.054 N•m or less. If the applied torque cannot be accurately measured, stop tightening when the force required to turn the screw becomes significantly greater than that needed when first tightening. If a screw is tightened too much, the screw head may break or an IC socket contact error may be caused by a crack in the IC socket solder.

4. If the MCU does not operate correctly, cracks might have occurred in the solder. Check conduction with a tester and re-solder the IC socket if necessary.

Check the location of pin 1 before inserting the MCU into the IC socket on the user system, as shown in figure 11. After inserting the MCU, fasten the socket cover with the provided four screws (M2 prevent the IC socket from being damaged by overtightening the screws or twisting the components.

x 6 mm). Take special care, such as manually securing the IC socket soldered area, to

Screws (M2 x 6 mm)

Socket cover

MCU

Pin 1

IC socket (NQPACK144SD-ND manufactured by

User system

Tokyo Eletech Corporation)

Figure 11 Installing MCU to User System

Section 4 User System Interface Circuits

The following user system interface circuits are required to use the emulator with the user system interface board.

MCU

SN74CBTLV3257

PD0-PD7 PE0-PE7

SN74CB3Q3306A

PJ2, PJ3 PK2-PK7

User system

PD0-PD7 (PJ0-PJ7) PE0-PE7 (PK0-PK7)

Sub-MCU

PO16-PO23 PO24-PO31

PJ0 PJ1 PJ4 PJ5 PJ6 PJ7 PK0 PK1

TIOCA6 TIOCB6 TIOCA7 TIOCB7 TIOCA8 TIOCB8 TIOCA9 TIOCB9

Vcc

SN74CB3Q3306A

47 kΩ

Figure 12 User System Interface Circuit (1)

MCU

Sub-MCU

P30 P31 P34 P35 P36 P37 P20 P21

TIOCA0 TIOCB0 TIOCA1 TIOCB1 TIOCA2 TIOCB2 TIOCA3 TIOCB3

Vcc

47 kΩ

User system

P30 P31 P34 P35 P36 P37 P20 P21

Figure 13 User System Interface Circuit (2)

MCU

SN74CB3Q3306A

User system

Sub-MCU

PF7

PF5

SCK5

PF7

Vcc

47 kΩ

PF6PF6

SN74CB3Q3306A

PF5

RxD5

TxD5

Figure 14 User System Interface Circuit (3)

MCU

SN74CB3Q3306A

User system

Sub-MCU

P65

Vcc

P64

SN74CB3Q3306A

P63

SCK6

RxD6

TxD6

Figure 15 User System Interface Circuit (4)

P65

47 kΩ

P64

P63

Vcc

MCU

Sub-MCU

ADTRG0

P13

PB6

User system

47 kΩ

P13

Vcc

47 kΩ

PB6

EPM3256ATC

SW2

Figure 16 User System Interface Circuit (5)

Section 5 Verifying Operation

1. Turn on the emulator according to the procedures described in the H8SX/1650 E6000H Emulator User's Manual (HS1650EPH60HE).

2. Verify the user system interface cable connections by checking the pin states with the EXMONITOR_DISPLAY command (emulator command) and checking the bus states with the MEMORY_FILL command (emulator command). If an error is detected, recheck the soldered IC socket and the location of pin 1.

3. The emulator connected to this user system interface board supports three kinds of clock sources as the MCU clock. For details, refer to the H8SX/1650 E6000H Emulator User's Manual (HS1650EPH60HE).

⎯ To use the emulator internal clock

Select the clock in the emulator by the CLOCK command (emulator command).

⎯ To use the external clock on the user system

Supply the external clock from the user system to the emulator by inputting the signal to the EXTAL pin (pin 98) on the user system interface board or connecting a crystal oscillator to the XTAL (pin 97) and EXTAL pins. For details, refer to the H8SX/1648 Group Hardware Manual.

Figure 17 shows the clock oscillator on the user system interface board.

1 MΩ

HCU04

EXTAL XTAL

System clock

HCU04

270 Ω

HCU04

Figure 17 Clock Oscillator

0 Ω

To E6000H emulator

⎯ To use the crystal resonator mounted on the evaluation-chip board

Install the crystal resonator into the crystal resonator terminals on the evaluation-chip board.

Enlarged view

Crystal resonator

X1 X2

Crystal resonator terminals

Evaluation-chip board

Figure 18 Mounting the Crystal Resonator

Section 6 Points for Caution

1. Before connecting any parts or cables, make sure that the pins at the pin 1 position on both sides are correctly aligned.

2. Do not apply excessive force to the user system interface board while it is connected to the user system.

3. The dimensions of the recommended mounting pad for the IC socket for this user system interface board are different from those of the pad for the MCU.

4. This user system interface board is specifically designed for the HS1650EPH60H emulator. Do not use this board with any other emulator.

5. When power is not being supplied to the Vcc pin on the user system interface board, the emulator displays ** VCC DOWN. In this situation, the emulator will not operate correctly.

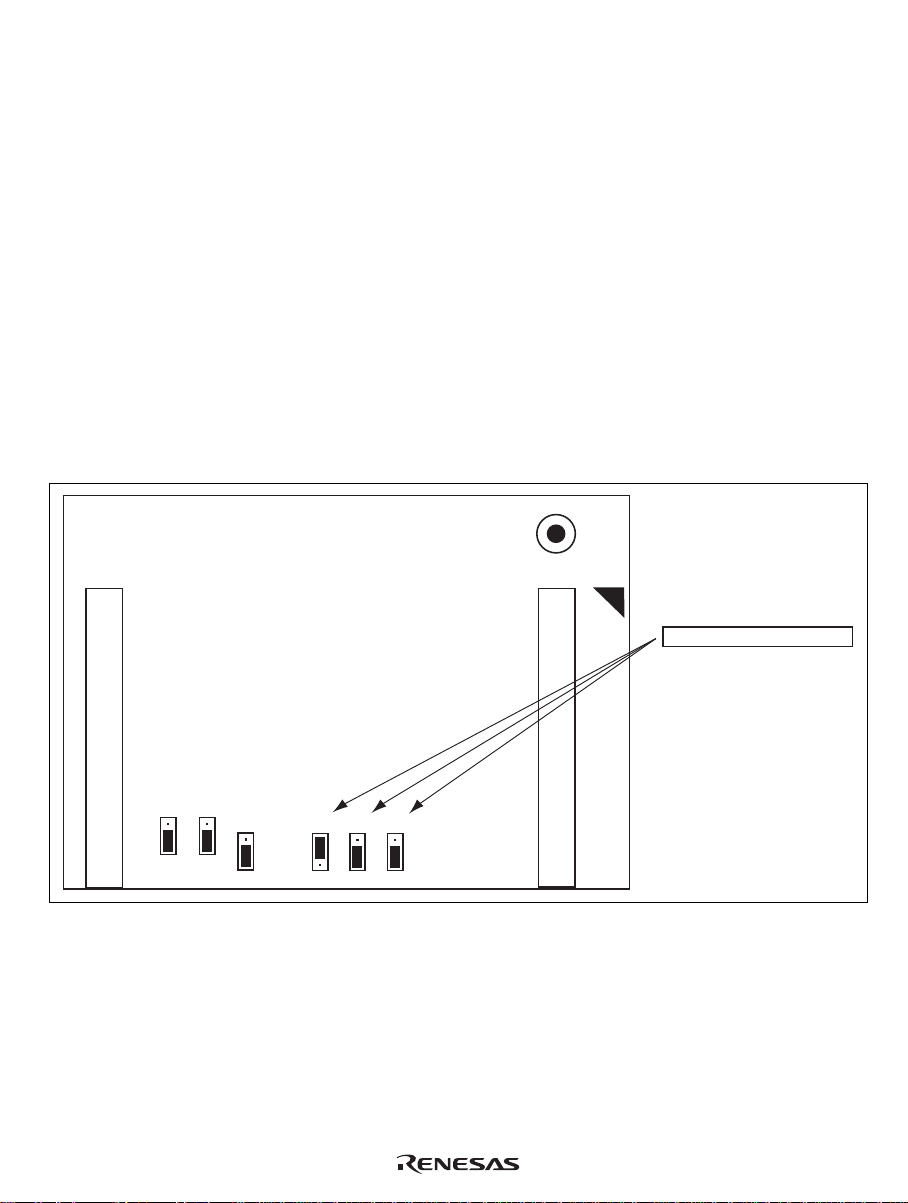

6. The P1, SW4, and SW5 jumper sockets are for use in testing. Do not remove the inserted jumpers.

Do not remove the jumpers.

USER

SW1

USER

OFF

ADTRG0-B

Port J, K

SW2

SW3

ADTRG0

-A Port D, E

SYNC-B

SYNC-A

SW4

SW5

ASYNC-B

ASYNC-A

Figure 19 P1, SW4, and SW5 Jumper Sockets

Section 7 Restrictions

1. Deep-software standby mode

This emulator does not support deep-software standby mode.

Note that the emulator switches to the software standby mode even if the register setting to select the deep-software standby mode is made.

2. Sleep-instruction exception processing

This emulator does not support the processing of sleep-instruction exceptions. Even if the SLPIE bit of the standby control register (SBYCR) is set to 1, the execution of a sleep instruction simply makes the emulator enter the low-power-consumption mode with no exception processing for the sleep instruction.

3. User break controller (UBC)

The user break controller (UBC) is not available for this emulator.

Do not access the registers for the UBC, which are at addresses H’FFA00 to H’FFA34.

4. Serial communications interface (SCI5 and SCI6)

Since the port functions of pins PF5, PF7, P63, and P65 are not available when they are in use for serial output, the states of these port pins cannot be read from the port registers. In this situation, the input pull-up MOS and open-drain output functions are also not available.

5. Input-buffer control registers (PnICR)

In the actual device, setting a given bit of a PnICR to 0 disables the input buffer and fixes the input signal to the high level; setting a given bit to 1 makes the corresponding pin available as an input pin. On the emulator, however, input is enabled regardless of the settings of bits in the ICR register.

When using any of the peripheral modules indicated below, however, ensure that the user program has set the ICR bit for the corresponding pin to 1.

Relevant peripheral modules: SCI5, SCI6, ADC_Unit1, and ADC_Unit2

6. Port function control register D (PFCRD)

In this emulator, the port J and K functions cannot be selected by controlling the PCJKE bit in the register PFCRD. A value read from PFCRD is always 0 and writing to PFCRD has no effect. To select ports J and K, the position of the jumper in SW3 on HS1648ECH61H must be altered (figure 19). In the product as shipped, the jumper is inserted to select ports D and E.

7. Port function control register 6 (PFCR6)

In this emulator, the ADTRG0#-B function cannot be selected by controlling the ADTRG0S bit in the register PFCR6. To select ADTRG0#-B, the position of the jumper in SW2 on HS1648ECH61H must be altered (figure 19). In the product as shipped, the jumper is inserted to select ADTRG0-A.

8. A/D converter

In the emulator, the evaluation chip and the slave chip are used to implement functions of Unit 0 and Units 1 and 2, respectively, of the A/D converter. For this reason, when the A/D control register (ADCR) has been set to start A/D conversion (with synchronization of units) by an external trigger from the ADTRG0 pin, the interrupt timing at the end of the A/D conversion will be different between Unit 0 and Unit 1.

9. P66 and P67

When P63 is selected as the TXD6 output in the actual device, P66 becomes an I/O port output pin; however, it does not become an I/O port output pin in the emulator. Also, when P65 is selected as the SCK6 output, P67 becomes an I/O port output pin, but it does not become an I/O port output pin in the emulator. Ensure that the corresponding DDR bit is set to ″1″ if P66 or P67 is to be used as an I/O port output pin in the emulator.

H8SX/1648 Group E6000H PLQP0144KA-A User System Interface Board HS1648ECH61H User's Manual

Publication Date: Rev.2.00, April 18, 2008 Published by: Sales Strategic Planning Div. Renesas Technology Corp. Edited by: Customer Support Department Global Strategic Communication Div. Renesas Solutions Corp.

Sales Strategic Planning Div. Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan

RENESAS SALES OFFICES

Refer to "http://www.renesas.com/en/network" for the latest and detailed information.

Renesas Technology America, Inc.

450 Holger Way, San Jose, CA 95134-1368, U.S.A Tel: <1> (408) 382-7500, Fax: <1> (408) 382-7501

Renesas Technology Europe Limited

Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K. Tel: <44> (1628) 585-100, Fax: <44> (1628) 585-900

Renesas Technology (Shanghai) Co., Ltd.

Unit 204, 205, AZIACenter, No.1233 Lujiazui Ring Rd, Pudong District, Shanghai, China 200120 Tel: <86> (21) 5877-1818, Fax: <86> (21) 6887-7858/7898

Renesas Technology Hong Kong Ltd.

7th Floor, North Tower, World Finance Centre, Harbour City, Canton Road, Tsimshatsui, Kowloon, Hong Kong Tel: <852> 2265-6688, Fax: <852> 2377-3473

Renesas Technology Taiwan Co., Ltd.

10th Floor, No.99, Fushing North Road, Taipei, Taiwan Tel: <886> (2) 2715-2888, Fax: <886> (2) 3518-3399

Renesas Technology Singapore Pte. Ltd.

1 Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632 Tel: <65> 6213-0200, Fax: <65> 6278-8001

Renesas Technology Korea Co., Ltd.

Kukje Center Bldg. 18th Fl., 191, 2-ka, Hangang-ro, Yongsan-ku, Seoul 140-702, Korea

Tel: <82> (2) 796-3115, Fax: <82> (2) 796-2145

Renesas Technology Malaysia Sdn. Bhd

Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel: <603> 7955-9390, Fax: <603> 7955-9510

http://www.renesas.com

Colophon 6.2

H8SX/1648 Group E6000H

PLQP0144KA-A

User System Interface Board

HS1648ECH61H User’s Manual

Renesas H8SX-1648 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Content
