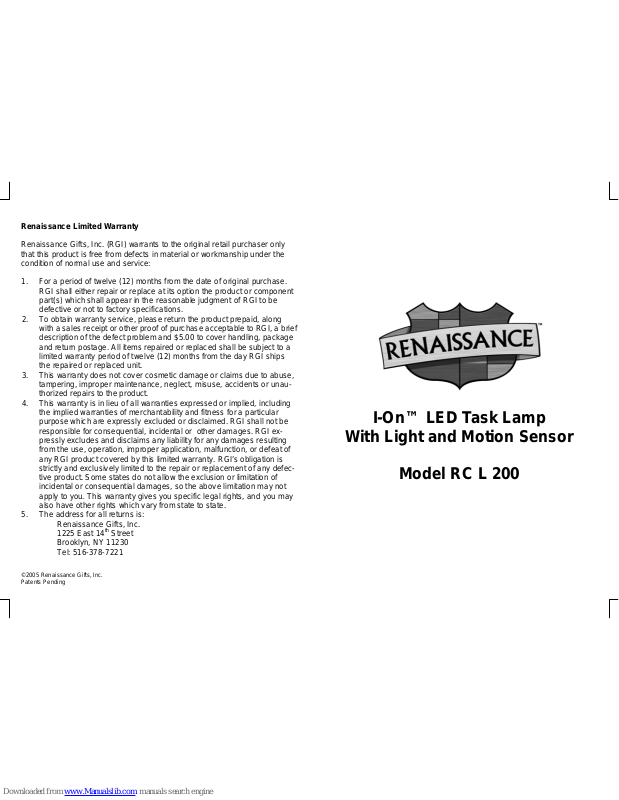

I-On™ LED Task Lamp
With Light and Motion Sensor
Model RC L 200
Renaissance Limited Warranty
Renaissance Gifts, Inc. (RGI) warrants to the original retail purchaser only
that this product is free from defects in material or workmanship under the
condition of normal use and service:
1. For a period of twelve (12) months from the date of original purchase.
RGI shall either repair or replace at its option the product or component
part(s) which shall appear in the reasonable judgment of RGI to be
defective or not to factory specifications.
2. To obtain warranty service, please return the product prepaid, along
with a sales receipt or other proof of purchase acceptable to RGI, a brief
description of the defect problem and $5.00 to cover handling, package
and return postage. All items repaired or replaced shall be subject to a
limited warranty period of twelve (12) months from the day RGI ships
the repaired or replaced unit.
3. This warranty does not cover cosmetic damage or claims due to abuse,
tampering, improper maintenance, neglect, misuse, accidents or unauthorized repairs to the product.
4. This warranty is in lieu of all warranties expressed or implied, including
the implied warranties of merchantability and fitness for a particular
purpose which are expressly excluded or disclaimed. RGI shall not be
responsible for consequential, incidental or other damages. RGI expressly excludes and disclaims any liability for any damages resulting
from the use, operation, improper application, malfunction, or defeat of
any RGI product covered by this limited warranty. RGI’s obligation is
strictly and exclusively limited to the repair or replacement of any defective product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation may not
apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
5. The address for all returns is:
Renaissance Gifts, Inc.
1225 East 14
th
Street
Brooklyn, NY 11230
Tel: 516-378-7221
©2005 Renaissance Gifts, Inc.
Patents Pending
Page 2
Operation/Use:
• “ON” mode – turn switch to “ON” to operate I-On™ as standard light. In “ON”
mode, light will stay on until switch is turned to “OFF” or “AUTO”.
• “AUTO” mode – activates light sensor and motion sensor. To operate in “AUTO”
mode, I-On™ must be located in a dark room. Movement within 8 feet of motion
sensor causes light to turn on automatically in “AUTO” mode. Auto-off timer saves
energy by turning I-On™ light off 90 seconds after motion ceases.
NOTE: I-On™ must be located in a dark area for unit to function in “AUTO” mode.
Light and Motion Sensor Adjustments (fig A):
• Light/Motion sensor housing can be adjusted up to 90 degrees by moving housing
up and down to desired angle.
• Motion sensor detects movement within 8 feet of unit and in a 60 degree horizon-
tal X 20 degree vertical field of view.
Installation:
• Batteries (Fig B) – Locate battery door on bottom of unit, depress plastic clip in
direction of arrow and lift up to remove battery door. Use 4 AA batteries (not
included) and align as indicated in Fig B (for best results, use alkaline or
lithium batteries).
• Suction Cup Installation (Fig C) – I-On™ includes a removable suction cup for
added functionality. To attach suction cup, line up metal pin with access hole in
battery door and insert. Turn suction cup 90 degrees to secure in place (a click
will be heard to indicate proper placement).
**For best results, use alcohol pad to clear both suction cup and surface prior to
use. Suction cup works best when us ed on smooth surfaces such as glass,
stainless steel, mirror, tile.
• AC adapter – Insert end of properly rated AC adapter into AC jack located on
side of I-On
™ base. Use only UL approved 9V 500MA AC adapter.
NOTE: Use of improperly rated AC adapters could lead to malfunction and will
void warranty.
Warnings:
• I-On™ can be exposed to water but is not waterproof. Do not submerge unit in
water or leave exposed to water for prolonged periods.
• If using I-On™ near water, do not power with A/C adapter.
• Unit not recommended for direct exposure to elements.

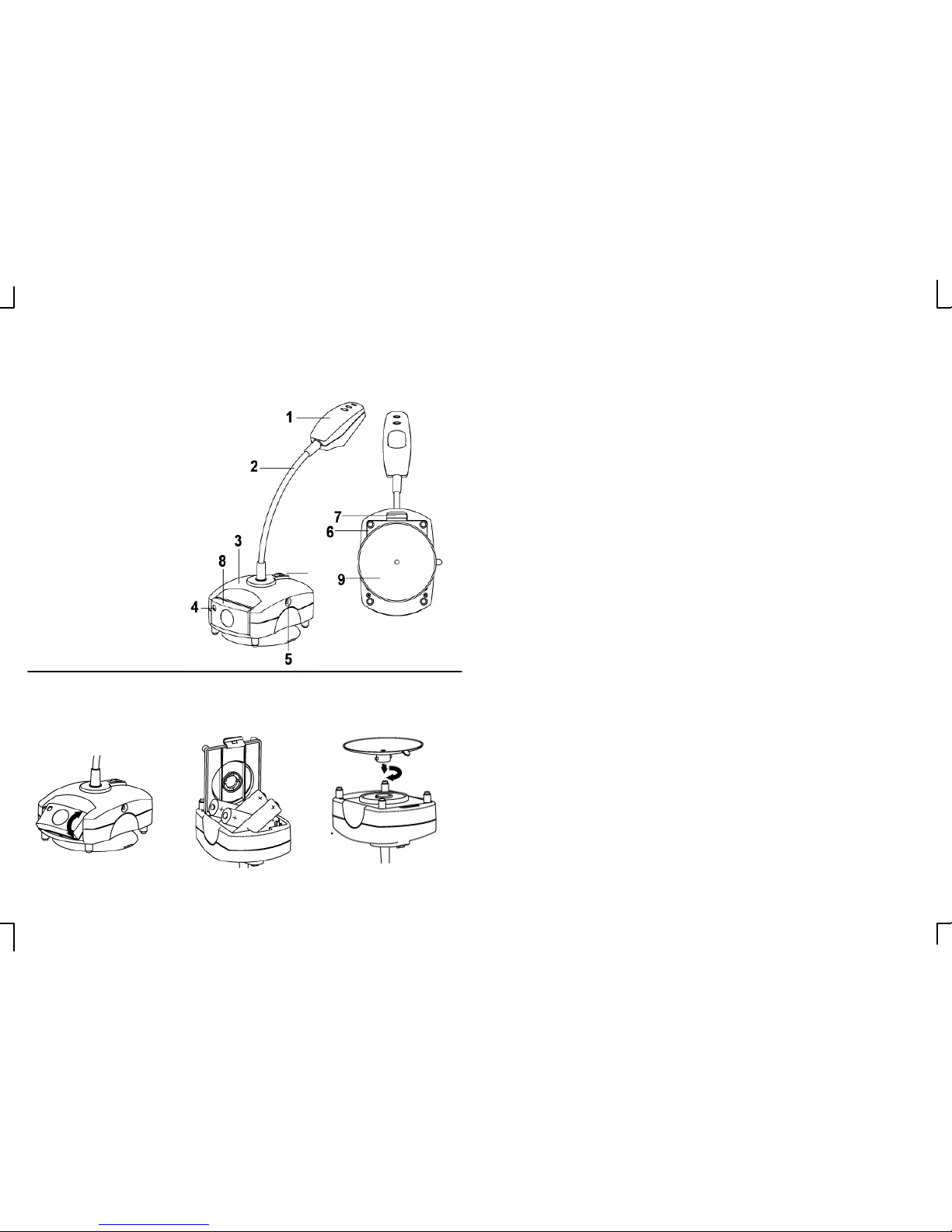

I-On™ Task Lamp
Features/Specifications
1. LED lamp head
2. Flexible neck
3. Lamp base
4. Light sensor
5. AC Jack
6. Battery compartment
7. Battery door clip
8. Motion sensor
9. Suction cup (removable)
10. On/Off/Auto switch
Fig A Fig B Fig C
10
*When adhering suction cup, use alcohol pad to clear both suction cup and
surface prior to use. Best results obtained by using suction cup attachment on
smooth surfaces such as glass, stainless steel, mirror, tile.
