Remote Automation Solutions ROCLINK 800 Configuration Software User Manual (for FloBoss 107) Manuals & Guides

Download

Remote Automation Solutions

Part Number D301249X012

December 2017

ROCLINK™ 800 Configuration Software User Manual (for FloBoss™ 107)

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

ii Revised December-2017

Revision Tracking Sheet

December 2017

This manual may be revised periodically to incorporate new or updated information. The revision date of each page appears at the bottom of the page opposite the page number. A change in revision date to any page also changes the date of the manual that appears on the front cover. Listed below is the revision date of each page (if applicable):

Page

Revision

All Pages

December-2017

All Pages

November-2016

All Pages

January-2016

Initial release

January-2008

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Contents iii

Chapter 1 – Introduction 1-1

1.1 ROCLINK 800 Software Description .............................................................................................. 1-1

1.2 Computer Requirements ................................................................................................................ 1-2

1.3 Contacting Technical Support ........................................................................................................ 1-2

1.4 Software Installation ....................................................................................................................... 1-2

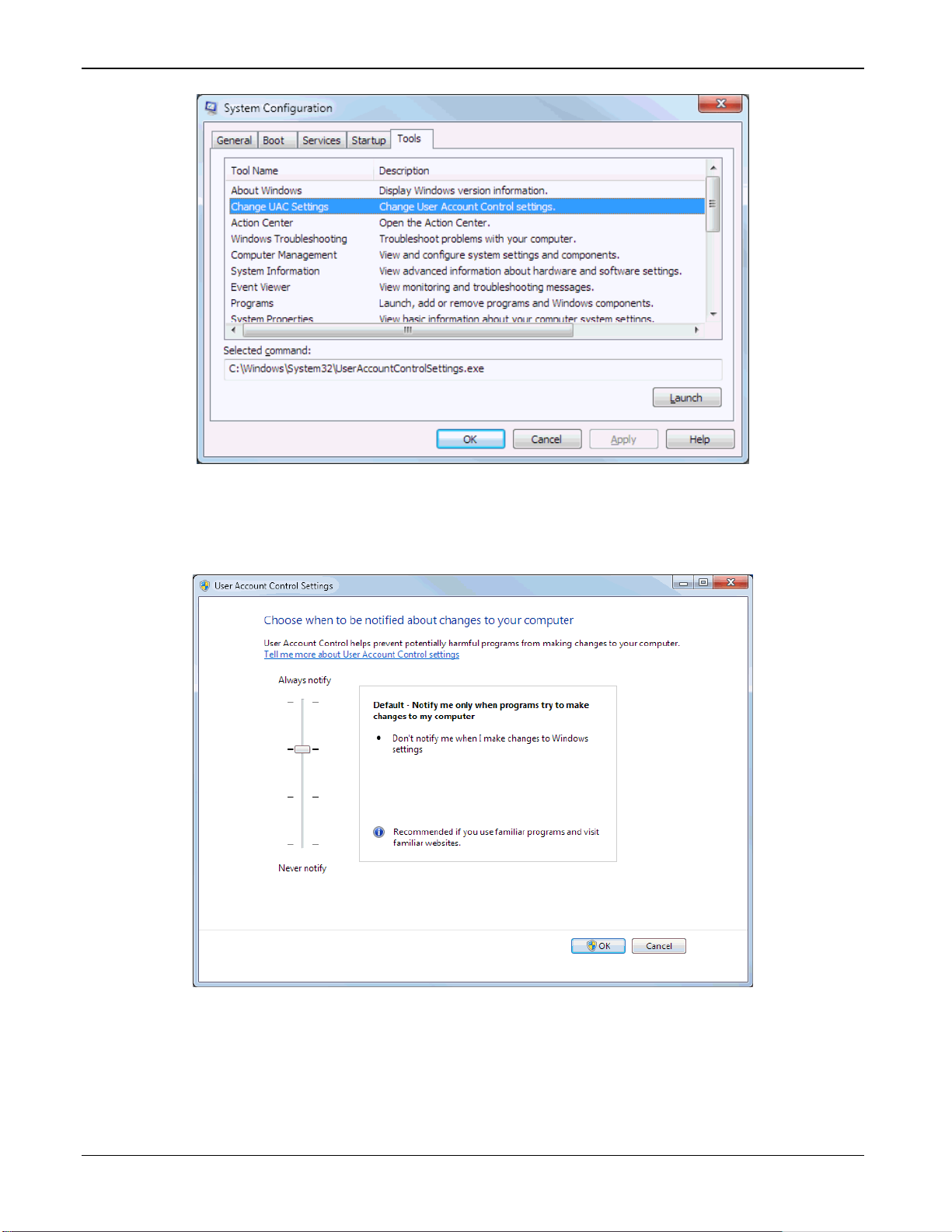

1.4.1 Installing ROCLINK 800 under Windows 10, Windows 8 or Windows 7 ......................... 1-4

1.4.2 Un-installing ROCLINK 800 ........................................................................................... 1-27

1.5 Starting ROCLINK 800 Software .................................................................................................. 1-27

1.5.1 Logging On..................................................................................................................... 1-28

1.6 User Interface Basics ................................................................................................................... 1-29

1.6.1 The FloBoss 107 Dynamic Interface .............................................................................. 1-30

1.6.2 Actual versus Installed Module ...................................................................................... 1-33

1.6.3 Standard Buttons ........................................................................................................... 1-34

1.6.4 Toolbar Buttons .............................................................................................................. 1-34

1.6.5 Configuration Tree Menu ............................................................................................... 1-36

1.6.6 Keystrokes ..................................................................................................................... 1-37

1.6.7 Help System ................................................................................................................... 1-38

1.6.8 Basic Navigation ............................................................................................................ 1-38

1.6.9 Text Boxes ..................................................................................................................... 1-40

Chapter 2 – Device Directory and Device Root 2-1

2.1 Device Directory ............................................................................................................................. 2-1

2.1.1 Communication Parameter Setup Screen ....................................................................... 2-2

2.2 Device Root .................................................................................................................................... 2-4

2.2.1 Backing Up Configurations .............................................................................................. 2-4

2.2.2 Adding a Group ................................................................................................................ 2-5

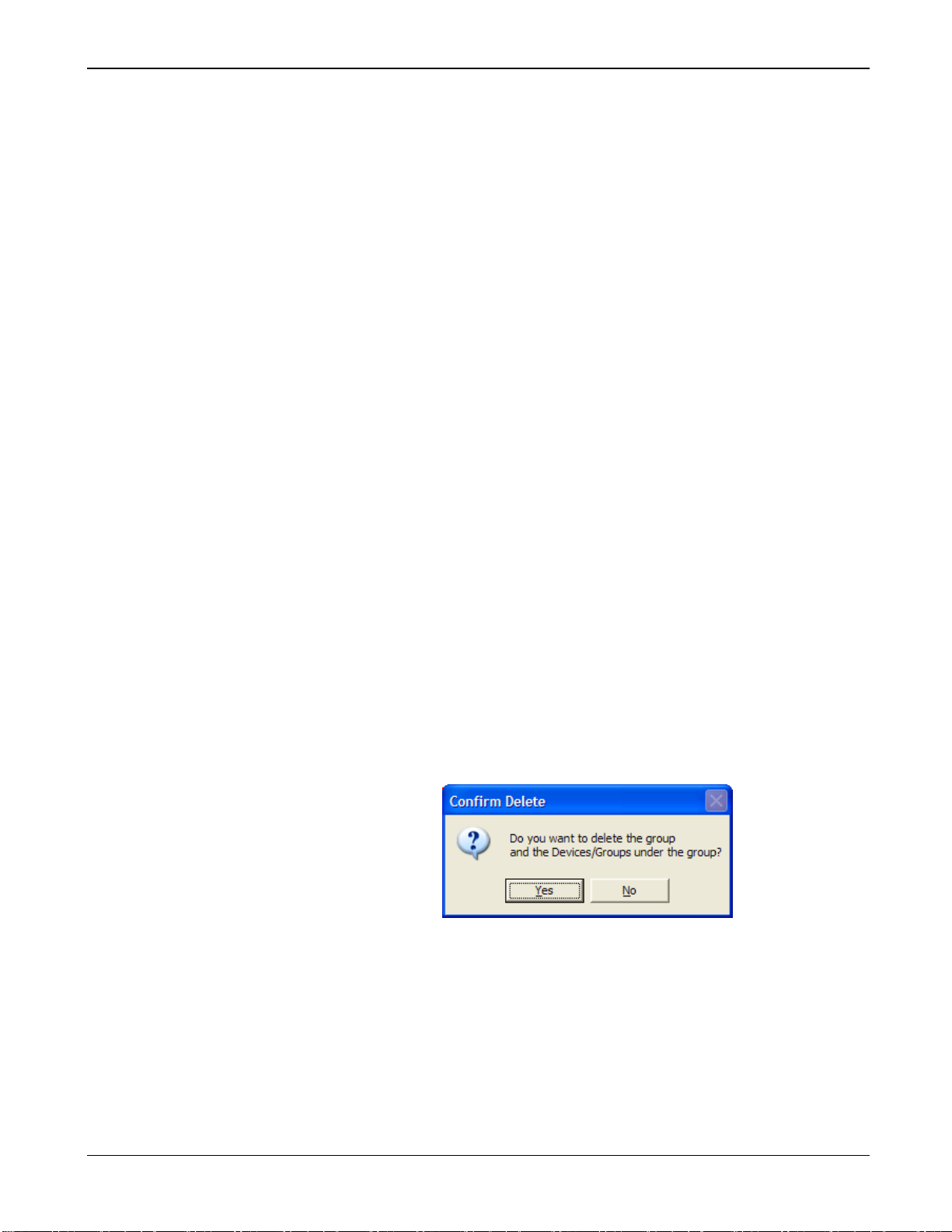

2.2.3 Deleting a Group .............................................................................................................. 2-5

2.2.4 Deleting a Device ............................................................................................................. 2-5

2.2.5 Adding a Device ............................................................................................................... 2-6

2.2.6 Deleting All Devices ......................................................................................................... 2-6

2.2.7 Renaming a Group or Device .......................................................................................... 2-7

Chapter 3 – Communications and Security 3-1

3.1 Communications............................................................................................................................. 3-1

3.2 ROCLINK 800 Communications .................................................................................................... 3-2

3.2.1 ROCLINK 800 Communications Parameters General Tab ............................................. 3-2

3.2.2 ROCLINK 800 Communications Parameters Advanced Tab .......................................... 3-4

3.3 Communication Ports on the FB107 .............................................................................................. 3-6

3.4 Communication Modules ................................................................................................................ 3-7

3.4.1 Dial-up Modem Module .................................................................................................... 3-7

3.4.2 Enhanced Communication Module .................................................................................. 3-9

3.4.3 Network Radio Module ................................................................................................... 3-10

3.5 Configuring FB107 Communications Ports .................................................................................. 3-13

3.5.1 Comm Ports – General Tab ........................................................................................... 3-13

3.5.2 Comm Ports – Modem Tab ............................................................................................ 3-15

3.5.3 Comm Ports – RBX Tab ................................................................................................ 3-16

3.5.4 Enhanced Comm Tab .................................................................................................... 3-18

3.5.5 Network Radio Module – Network Tab .......................................................................... 3-20

3.5.6 Network Radio Module – Advanced Tab ....................................................................... 3-21

3.6 Connecting to an FB107 .............................................................................................................. 3-21

3.6.1 Direct Connect ............................................................................................................... 3-22

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

iv Contents Revised December-2017

3.6.2 Local Port (LOI) ...............................................................................................................3-22

3.6.3 Connect to a FloBoss......................................................................................................3-23

3.6.4 Successful Logon ............................................................................................................3-23

3.6.5 Disconnecting from a FloBoss ........................................................................................3-24

3.7 Troubleshooting Connection Errors ..............................................................................................3-24

3.7.1 Troubleshooting ROCLINK 800 Communications ..........................................................3-24

3.8 Security .........................................................................................................................................3-25

3.8.1 ROCLINK 800 Security ...................................................................................................3-25

3.8.2 Device Security ...............................................................................................................3-29

Chapter 4 – The File Menu 4-1

4.1 New Configuration ........................................................................................................................... 4-2

4.1.1 Configuration Checklist ..................................................................................................... 4-2

4.1.2 Duplicating a Configuration ............................................................................................... 4-2

4.1.3 Creating a New Configuration File .................................................................................... 4-3

4.2 Opening a Configuration File .......................................................................................................... 4-6

4.2.1 Configuration Tree Menu .................................................................................................. 4-7

4.2.2 Modifying an Existing Configuration File........................................................................... 4-9

4.3 Downloading a Configuration .......................................................................................................... 4-9

4.4 Saving a ROC User File ................................................................................................................4-10

4.5 Saving a Configuration ..................................................................................................................4-11

4.5.1 Print Configuration ..........................................................................................................4-11

4.6 Print ...............................................................................................................................................4-12

4.7 Print Setup.....................................................................................................................................4-12

4.8 Recent Files ..................................................................................................................................4-13

4.9 Close .............................................................................................................................................4-13

4.10 Exit ................................................................................................................................................4-13

Chapter 5 – The View Menu 5-1

5.1 Directory .......................................................................................................................................... 5-1

5.2 EFM Report ..................................................................................................................................... 5-2

5.2.1 Creating the EFM File ....................................................................................................... 5-2

5.2.2 Viewing EFM Reports ....................................................................................................... 5-3

5.3 Calibration Reports ......................................................................................................................... 5-6

5.3.1 Creating a Calibration Report ........................................................................................... 5-6

5.3.2 Viewing an Existing Calibration Report............................................................................. 5-7

5.4 History, Alarm, and Event Log Reports ........................................................................................... 5-8

5.4.1 Viewing History Logs from a Device ................................................................................. 5-9

5.4.2 Viewing History Logs from a File ....................................................................................5-11

5.4.3 Plotting History ................................................................................................................5-12

5.4.4 Viewing Alarm Logs ........................................................................................................5-14

5.4.5 Viewing Event Logs ........................................................................................................5-15

5.5 Display Editor ................................................................................................................................5-16

5.6 Display Administrator ....................................................................................................................5-16

5.6.1 Viewing a Custom Display ..............................................................................................5-16

5.6.2 Downloading a Custom Display ......................................................................................5-16

5.6.3 Deleting a Custom Display .............................................................................................5-18

5.7 I/O Monitor.....................................................................................................................................5-18

5.8 Toolbar ..........................................................................................................................................5-19

Chapter 6 – The ROC Menu 6-1

6.1 Direct Connect ................................................................................................................................ 6-1

6.2 Disconnect....................................................................................................................................... 6-2

6.3 Collecting ROC Data ....................................................................................................................... 6-2

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Contents v

6.3.1 Collecting EFM Report Data ............................................................................................ 6-3

6.4 Setting the Clock ............................................................................................................................ 6-5

6.4.1 Daylight Savings Time Tab .............................................................................................. 6-6

6.5 Security .......................................................................................................................................... 6-7

6.6 Comm Ports ................................................................................................................................... 6-7

6.7 Device Memory .............................................................................................................................. 6-8

6.8 Configuring Device Information ...................................................................................................... 6-8

6.8.1 Device Information General Tab ...................................................................................... 6-9

6.8.2 Device Information Points Tab ....................................................................................... 6-10

6.8.3 Device Information Other Information Tab ..................................................................... 6-11

6.8.4 Device Information Revision Info Tab ............................................................................ 6-12

6.9 CPU Information ........................................................................................................................... 6-12

6.9.1 CPU Information General Tab ....................................................................................... 6-12

6.9.2 CPU Information Advanced Tab .................................................................................... 6-14

6.9.3 CPU Information I/O Points Tab .................................................................................... 6-15

6.9.4 CPU Information Meter Points Tab ................................................................................ 6-16

6.9.5 CPU Information Diagnostic Tab ................................................................................... 6-17

6.10 Flags ............................................................................................................................................. 6-18

6.10.1 Flags General Tab ......................................................................................................... 6-19

6.10.2 Returning a Device to Factory Default Settings ............................................................. 6-21

6.10.3 Flags Advanced Tab ...................................................................................................... 6-21

Chapter 7 – The Configure Menu 7-1

7.1 Configuring Input/Output (I/O) ........................................................................................................ 7-2

7.1.1 I/O Interface General Tab ................................................................................................ 7-3

7.1.2 I/O Interface I/O Setup Tab .............................................................................................. 7-4

7.1.3 I/O Interface I/O Points Tab ............................................................................................. 7-5

7.2 Analog Input (AI) Configuration ...................................................................................................... 7-7

7.2.1 AI General Tab ................................................................................................................. 7-8

7.2.2 AI Advanced Tab ............................................................................................................. 7-9

7.2.3 AI AI Calibration Tab ...................................................................................................... 7-11

7.2.4 AI Alarms Tab ................................................................................................................ 7-14

7.3 Analog Output (AO) Configuration ............................................................................................... 7-16

7.3.1 AO General Tab ............................................................................................................. 7-17

7.3.2 AO Advanced Tab .......................................................................................................... 7-19

7.4 Discrete Input (DI) Configuration .................................................................................................. 7-20

7.4.1 DI General Tab .............................................................................................................. 7-21

7.4.2 DI Advanced Tab ........................................................................................................... 7-23

7.4.3 DI Alarms Tab ................................................................................................................ 7-25

7.5 Discrete Output (DO) Configuration ............................................................................................. 7-26

7.5.1 DO General Tab ............................................................................................................. 7-27

7.5.2 DO Advanced Tab ......................................................................................................... 7-30

7.5.3 DO TDO Parameters Tab .............................................................................................. 7-31

7.5.4 DO Alarms Tab .............................................................................................................. 7-33

7.6 Pulse Input (PI) Configuration ...................................................................................................... 7-34

7.6.1 PI General Tab ............................................................................................................... 7-35

7.6.2 PI Advanced Tab ........................................................................................................... 7-38

7.6.3 PI Alarms Tab ................................................................................................................ 7-40

7.7 Soft Points .................................................................................................................................... 7-42

7.8 Extended Soft Points .................................................................................................................... 7-44

7.9 Multi-Variable Sensor (MVS) Configuration ................................................................................. 7-45

7.9.1 MVS Module General Tab ............................................................................................. 7-46

7.9.2 MVS Module I/O Points Tab .......................................................................................... 7-47

7.9.3 MVS: General Tab ......................................................................................................... 7-48

7.9.4 MVS: Advanced Tab ...................................................................................................... 7-51

7.9.5 MVS: Calibration Tab ..................................................................................................... 7-53

7.9.6 MVS: Alarms Tab ........................................................................................................... 7-65

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

vi Contents Revised December-2017

7.10 HART Points .................................................................................................................................7-67

7.10.1 HART: General Tab ........................................................................................................7-68

7.10.2 HART: Advanced Tab .....................................................................................................7-70

7.10.3 HART: Calibration Tab ....................................................................................................7-72

7.10.4 HART: Device Tab ..........................................................................................................7-75

7.11 IEC 62591 Interface ......................................................................................................................7-78

7.12 Control Menu .................................................................................................................................7-78

7.12.1 Function Sequence Table (FST) Registers ....................................................................7-78

7.12.2 Proportional, Integral, and Derivative (PID) Loops .........................................................7-81

7.12.3 Radio Power Control .......................................................................................................7-92

7.12.4 DS800 Developmet Suite Software ................................................................................7-95

7.13 Configuring History Points .............................................................................................................7-95

7.13.1 History Setup Setup Tab .................................................................................................7-96

7.13.2 History Setup Standard History Tab ...............................................................................7-99

7.13.3 History Setup Extended History Tab .............................................................................7-104

7.13.4 Configuring History: An Example ..................................................................................7-104

7.14 Opcode Table ..............................................................................................................................7-106

7.14.1 Opcode Table SettingsTab ...........................................................................................7-106

7.14.2 Opcode Table Current ValuesTab ................................................................................7-107

7.15 Modbus Communications ............................................................................................................7-107

7.15.1 Modbus Configuration ...................................................................................................7-108

7.15.2 Modbus Configuration General Tab ..............................................................................7-109

7.15.3 Modbus Configuration Scale Values Tab .....................................................................7-112

7.15.4 Modbus Registers .........................................................................................................7-114

7.15.5 Modbus History Table ...................................................................................................7-118

7.15.6 Modbus Conversion Codes ..........................................................................................7-121

7.15.7 Modbus Master Table ...................................................................................................7-123

7.15.8 Modbus Events and Alarms ..........................................................................................7-126

7.16 LCD User List ..............................................................................................................................7-130

7.16.1 LCD User List (Standard) .............................................................................................7-131

7.16.2 LCD User List – BLM ....................................................................................................7-132

7.16.3 LCD User List – Chart ...................................................................................................7-134

7.17 User Data ....................................................................................................................................7-135

Chapter 8 – The Meter Menu 8-1

8.1 Configuring the Meter Setup ........................................................................................................... 8-1

8.1.1 Meter Setup General Tab ................................................................................................. 8-4

8.1.2 Meter Setup Inputs Tab .................................................................................................... 8-8

8.1.3 Meter Setup Advanced Tab ............................................................................................8-11

8.1.4 Meter Setup Fluid Properties Tab ...................................................................................8-15

8.1.5 Meter Setup Sampler Tab ...............................................................................................8-18

8.1.6 Meter Setup Calibration Factors Tab ..............................................................................8-19

8.1.7 Meter Setup Alarms Tab .................................................................................................8-20

8.2 Calibration Basics .........................................................................................................................8-22

8.2.1 Verifying an Input ............................................................................................................8-24

8.2.2 Calibrating an Input .........................................................................................................8-28

8.2.3 Zero Shift, Offset, and RTD Bias ....................................................................................8-35

8.3 Meter Values .................................................................................................................................8-37

8.4 Plate Change ................................................................................................................................8-38

Chapter 9 – The Utilities Menu 9-1

9.1 Update Firmware ............................................................................................................................ 9-2

9.1.1 Update Firmware CPU Tab .............................................................................................. 9-4

9.1.2 Additional Update Firmware Tabs .................................................................................... 9-4

9.2 License Key Administrator .............................................................................................................. 9-5

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Contents vii

9.2.1 Distributing Software Licenses......................................................................................... 9-5

9.2.2 Installing a License (Key-based) ...................................................................................... 9-6

9.2.3 Installing a License (String-based) .................................................................................. 9-9

9.2.4 Transferring Licenses .................................................................................................... 9-11

9.2.5 Removing a License ...................................................................................................... 9-13

9.3 Converting EFM Report Files ....................................................................................................... 9-15

9.4 User Program Administrator ......................................................................................................... 9-19

9.4.1 Downloading a User Program ........................................................................................ 9-20

9.5 ROCLINK 800 Security ................................................................................................................ 9-23

9.6 Analog Input Calibration Values ................................................................................................... 9-25

9.7 MVS Input Calibration Values ...................................................................................................... 9-26

9.8 FST Editor .................................................................................................................................... 9-28

9.9 Custom Display Editor .................................................................................................................. 9-28

9.10 Custom EFM Report Editor .......................................................................................................... 9-28

9.10.1 Viewing Custom EFM Reports ....................................................................................... 9-30

9.11 Read File from Device .................................................................................................................. 9-31

9.12 Communications Monitor ............................................................................................................. 9-32

Chapter 10 – The Tools Menu 10-1

10.1 Customize .................................................................................................................................... 10-1

10.2 Options ......................................................................................................................................... 10-1

Chapter 11 – The Window Menu 11-1

11.1 Cascade ....................................................................................................................................... 11-1

11.2 Tile ................................................................................................................................................ 11-2

11.3 Active View ................................................................................................................................... 11-2

Chapter 12 – The Help Menu 12-1

12.1 Help Topics .................................................................................................................................. 12-1

12.2 About ROCLINK 800 .................................................................................................................... 12-2

Appendix A – Glossary A-1

Appendix B – The Display Editor B-1

B.1 Creating a New Custom Display .................................................................................................... B-2

B.2 Adding Custom Display Objects ..................................................................................................... B-5

B.3 Managing Custom Display Objects .............................................................................................. B-19

B.4 Adding an Expression to an Object .............................................................................................. B-22

B.5 Editing a Custom Display from a File ........................................................................................... B-24

Index I-1

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

viii Contents Revised December-2017

[This page is intentionally left blank.]

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-1

Chapter 1 – Introduction

In This Chapter

1.1 ROCLINK 800 Software Description ....................................................... 1-1

1.2 Computer Requirements ......................................................................... 1-2

1.3 Contacting Technical Support ................................................................. 1-2

1.4 Software Installation ................................................................................ 1-2

1.4.1 Installing ROCLINK 800 under Windows 10, Windows 8

or Windows 7 ................................................................................. 1-4

1.4.2 Un-installing ROCLINK 800 ......................................................... 1-27

1.5 Starting ROCLINK 800 Software ........................................................... 1-27

1.5.1 Logging On .................................................................................. 1-28

1.6 User Interface Basics ............................................................................ 1-29

1.6.1 The FloBoss 107 Dynamic Interface ........................................... 1-30

1.6.2 Actual versus Installed Module .................................................... 1-33

1.6.3 Standard Buttons ......................................................................... 1-34

1.6.4 Toolbar Buttons ........................................................................... 1-34

1.6.5 Configuration Tree Menu ............................................................. 1-36

1.6.6 Keystrokes ................................................................................... 1-37

1.6.7 Help System ................................................................................ 1-38

1.6.8 Basic Navigation .......................................................................... 1-38

1.6.9 Text Boxes ................................................................................... 1-40

This chapter describes both the ROCLINK™ 800 Configuration software

(“ROCLINK 800”) you use to configure and monitor the FloBoss™ 107 Flow Manager (“FB107”) and the FB107’s dynamic user interface.

1.1 ROCLINK 800 Software Description

ROCLINK 800 Configuration software enables you to monitor, configure, and calibrate FloBoss 107 Flow Managers. Emerson Process Management provides the software and user documentation on a CDROM.

ROCLINK 800 is designed for ease of use. Drop-down menus simplify accessing the functions provided by the software. Dialog boxes and dropdown list boxes help to direct selections and data entry. You can perform actions with the keyboard or a pointing device, such as a mouse. Refer to Section 1.6, User Interface Basics (located in this chapter) for a description of the user interface.

You access help screens either from the Help menu or in a contextsensitive fashion using the F1 key. This feature makes it easy to access on-line information for any ROCLINK 800 topic.

You can build custom displays for the FB107 that combine both graphic and dynamic data elements, and then use these displays to monitor the FB107’s operation either locally or remotely.

The software also provides multiple levels of security to control access to ROCLINK 800 functions as well as the FB107 database.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-2 Introduction Revised December-2017

1.2 Computer Requirements

ROCLINK 800 runs on most IBM-compatible personal computers (PCs). The PC can be a desktop or a portable computer, but must meet the following minimum requirements:

▪ Pentium-class processor (233 MHz or greater recommended). ▪ DVD-ROM drive. ▪ Windows 7 (32-bit and 64-bit). ▪ Windows 8 (32-bit and 64-bit). ▪ Windows 10 (32-bit and 64-bit). ▪ Windows Server 2012 ▪ 64 MB of RAM (random access memory). ▪ SVGA color monitor, 800 by 600 pixels, small fonts. ▪ 105 MB of available hard disk space depending on operating system

and revision level.

▪ EIA-232 (RS-232) serial connection or USB-to-serial adaptor, a

TCP/IP connection, or a dial-up modem connection.

1.3 Contacting Technical Support

For technical support, please contact your local sales representative. You may also contact Remote Automation Solutions directly.

Emerson Automation Solutions

Remote Automation Solutions Marshalltown, IA 50158 USA Houston, TX 77065 USA Pickering, North Yorkshire UK Y018 7JA

Website: http://www.emersonprocess.com/remote/ Technical Support Website:

http://www2.emersonprocess.com/enUS/brands/remote/systems_and_software/supportnet/support_contacts/ Pages/support_contacts.aspx

Toll Free: (US and Canada) 800.537.9313 Hours: 24x5 during normal business days SupportNet Login:

www3.emersonprocess.com/remote/support/v2/login.html

1.4 Software Installation

To install ROCLINK 800:

1. Start the installation using either of the following methods.

▪ Method 1 – If you have a DVD-ROM that contains the

ROCLINK 800 installation files:

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-3

A. Place the ROCLINK 800 installation CD-ROM into your

drive.

B. If the DVD-ROM runs automatically, click Install a

ROCLINK Product on the Main Menu.

C. Click the Install ROCLINK 800 button in the Installation

Screen.

Note: If the DVD-ROM does not run automatically, click

Windows Start > Run. When the Run dialog box opens, click Browse and navigate to the DVD-ROM drive and select setup.exe. Click Open. If the DVD-ROM is drive D, the location will be D:\Installs\ROCLINK800_W68130\Setup.exe. Click OK in the Run dialog box.

▪ Method 2 – If you have a .zip file that contains the ROCLINK

800 installation files: A. Extract the .zip file to the local hard drive (for example, in the

C:\TEMP\directory).

B. Run setup.exe from the extraction directory (for example, run

C:\TEMP\SETUP.EXE).

The Installation Wizard screen appears.

2. The Installation Wizard determines whether you have previously

installed ROCLINK 800. ▪ If this is an upgrade, a dialog box appears asking whether to

continue with the upgrade. Click Yes to begin the installation. Click Next when prompted.

▪ If this is a new installation, click Next on the ROCLINK 800

Welcome screen. Read the License Agreement and click Yes to accept it. Enter your Name and Company name, and click Next.

3. The program installs the software in the default recommended

directory C:\Program Files\ROCLINK800. Select an alternative destination folder if you want to install the software in a folder other than the default.

4. Click Next. A confirmation screen appears when you are ready to

start copying files.

5. Click Next in the Setup Status screen.

6. Click Finish in the Wizard Complete screen.

7. If you installed the software from a CD-ROM, select View Manual

or Exit on the Main Menu screen. Once you have exited the Main Menu, remove the installation CD-ROM.

Note: You may need to restart your PC to complete the installation.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-4 Introduction Revised December-2017

1.4.1 Installing ROCLINK 800 under Windows 10, Windows 8 or Windows 7

To install or upgrade ROCLINK 800 on the Microsoft Windows 10, Windows 8 or Windows 7 platforms, you must temporarily disable User Account Control before performing the installation and change your PC’s Regional Settings.

Disabling User Account Control ensures that all files copy and are not limited by Windows’ security enhancements. Refer to Disabling User

Account Control (Windows 10), Disabling User Account Control (Windows 8) and Disabling User Account Control (Windows7) (located in

this chapter).

Changing your PC’s Region Settings prevents you from potentially

encountering configuration file errors. Refer to Changing Region Settings (Windows 10), Changing Region Settings (Windows 8) and Changing Region Settings (Windows 7) (located in this chapter).

Disabling User Account Control (Windows 10)

Note: User Account Control must remain disabled in order to run

ROCLINK 800.

To disable User Account Control:

1. Right-click the Start menu and select Search from the pop-up menu.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-5

Figure 1-1. Pop-Up Menu

2. Type UAC into the Search field.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-6 Introduction Revised December-2017

Figure 1-2. Search

3. Click Change User Account Control settings in the results list.

4. Move the User Account Control slider to Never Notify.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-7

Figure 1-3. User Account Control Settings (Windows 10)

5. Click OK to save your changes and close the User Account Control

Settings window.

Note: You must have Administrator rights to make this change.

Click Yes (and enter Administrator password if necessary) if Windows asks if you want to allow the changes.

6. Reboot the computer for your changes to take effect.

7. Start ROCLINK 800. Refer to Starting ROCLINK 800 Software

(located in this chapter).

Disabling User Account Control (Windows 8)

Note: User Account Control must remain disabled in order to run

ROCLINK 800.

1. To disable User Account Control:

2. Select Search and type UAC into the Search field.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-8 Introduction Revised December-2017

Figure 1-4. Search

3. Select Settings and click Change User Account Control settings.

Figure 1-5. Setting – Results for “uac”

4. Move the User Account Control slider to Never Notify.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-9

Figure 1-6. User Account Control Settings

5. Click the OK button to save your changes and close the User Account

Control Settings window.

Note: You must have Administrator rights to make this change. Click

Yes (and enter Administrator password if necessary) if Windows asks if you want to allow the changes.

6. Reboot the computer for your changes to take effect.

7. Start ROCLINK 800. Refer to Starting ROCLINK 800 Software

(located in this chapter).

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-10 Introduction Revised December-2017

Disabling User Account Control (Windows 7)

Note: User Account Control must remain disabled in order to run

ROCLINK 800.

To disable User Account Control:

1. Select Start and type MSCONFIG in the Search field.

2. Click the program file msconfig.exe. The System Configuration

screen displays.

Figure 1-7. System Configuration

3. Click the Tools tab.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-11

Figure 1-8. Change UAC Settings

4. Select Change UAC Settings.

5. Click Launch. The User Account Control Settings window displays.

Figure 1-9. User Account Control Settings

6. Move the User Account Control slider to Never Notify.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-12 Introduction Revised December-2017

7. Click OK to save your changes and close the User Account Control

Settings window.

Note: You must have Administrator rights to make this change. Click

Yes (and enter the Administrator password if necessary) if Windows asks if you want to allow the changes.

8. Reboot the computer to apply the changes.

9. Start ROCLINK 800. Refer to Starting ROCLINK 800 Software

(located in this chapter).

Changing Region Settings (Windows 10)

To avoid potential error when opening configuration files, we recommend that you change your PC’s location to United States.

To change your PC’s location:

1. Right-click the Start menu and select Search from the pop-up menu.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-13

Figure 1-10. Pop-Up Menu

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-14 Introduction Revised December-2017

2. Type region into the search field.

Figure 1-11. Search

3. Click Region in the results list.

4. Select the Location tab.

5. Change or verify that the current location is set to United States.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-15

Figure 1-12. Home Location

6. Click OK button to save changes and close the Region window.

Changing Region Settings (Windows 8)

To avoid potential error when opening configuration files, we recommend that you change your PC’s location to United States.

To change your PC’s location:

1. Select Search and type region into search field.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-16 Introduction Revised December-2017

Figure 1-13. Search

2. Select Settings and click Region in the results list.

Figure 1-14. Search Results

3. Change or verify that the current location is set to United States.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-17

Figure 1-15. Home Location

7. Click the OK button to save changes and close the Region window.

Changing Region Settings (Windows 7)

To avoid potential error when opening configuration files, we recommend

that you change your PC’s location to United States. To change your PC’s location:

1. Select Start > Control Panel. The Control Panel displays:

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-18 Introduction Revised December-2017

Figure 1-16. Control Panel

2. Select Clock, Language, and Region. The Clock, Language, and

Region screen displays:

Figure 1-17. Clock, Language, and Region

3. Click Change location. The Region and Language screen

displays showing the Location tab.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-19

Figure 1-18. Region and Language

4. Change or verify that the current location is set to United States.

5. Click the OK button to save your changes.

Enabling User Account Control (Windows 10)

Note: User Account Control must remain disabled in order to run

ROCLINK800.

To enable User Account Control:

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-20 Introduction Revised December-2017

1. Right-click the Start menu and select Search and from the pop-menu.

Figure 1-19. Pop-Up Menu

2. Type UAC into the search field.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-21

Figure 1-20. Search

3. Click Change User Account Control settings in the results list.

4. Move the User Account Control slider to the default position.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-22 Introduction Revised December-2017

Figure 1-21. User Account Control Settings

5. Click OK to save your changes and close the User Account Control

Settings window.

Note: You must have Administrator rights to make this change. Click

Yes (and enter Administrator password if necessary) if Windows asks if you want to allow the changes.

6. Reboot the computer for your changes to take effect.

7. Start ROCLINK 800. Refer to Starting ROCLINK 800 Software

(located in this chapter).

Enabling User Account Control (Windows 8)

Note: User Account Control must remain disabled in order to run

ROCLINK800.

To disable User Account Control:

1. Select Search and type UAC into the search field.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-23

Figure 1-22. Search

1. Select Settings and click Change User Account Control settings.

Figure 1-23. Setting, Results for “uac”

2. Move the User Account Control slider to the default position.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-24 Introduction Revised December-2017

Figure 1-24. User Account Control Settings

3. Click OK button to save your changes and close the User Account

Control Settings window.

Note: You must have Administrator rights to make this change. Click

Yes (and enter the Administrator password if necessary) if Windows asks if you want to allow the changes.

4. Reboot the computer for your changes to take effect.

5. Start ROCLINK 800. Refer to Starting ROCLINK 800 Software.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-25

Enabling User Account Control (Windows 7)

Note: User Account Control must remain disabled in order to run

ROCLINK 800.

To enable User Account Control:

1. Select Start and type MSCONFIG in the Search field.

2. Click the program msconfig.exe. The System Configuration screen

displays:

Figure 1-25. System Configuration

3. Click the Tools tabs.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-26 Introduction Revised December-2017

Figure 1-26. Change UAC Settings

4. Select Change UAC Settings.

5. Click Launch. The User Account Control Settings screen displays.

Figure 1-27. User Account Control Settings

6. Move the User Account Control slider to the default position.

7. Click OK to save your changes and close the User Account Control

Settings window.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-27

Note: You must have Administrator rights to make this change. Click

Yes (and enter the Administrator password if necessary) if Windows asks if you want to allow the changes.

8. Reboot the computer to apply your changes.

9. Start ROCLINK 800. Refer to Starting ROCLINK 800 Software

(located in this chapter).

1.4.2 Un-installing ROCLINK 800

To remove ROCLINK 800 from your PC:

1. Click the Windows Start button.

2. Select Settings > Control Panel.

3. Double-click the Add/Remove Programs icon.

4. Select ROCLINK 800.

5. Click Add/Remove.

6. Follow the displayed instructions.

1.5 Starting ROCLINK 800 Software

To use ROCLINK 800 to configure a hardware device, you must first properly connect the device to power. Refer to the appropriate hardware

instruction manual. You must also connect the PC to the device’s Local

Operator Interface (LOI), serial, or modem port. To run ROCLINK 800, perform one of the following steps:

▪ Double-click the Desktop Shortcut. ▪ Select Start > Programs > ROCLINK 800 > ROCLINK 800.

The software loads and initializes.

Note: You can only run one version of ROCLINK 800 at a time.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-28 Introduction Revised December-2017

1.5.1 Logging On

To log on to ROCLINK 800 software:

1. Connect the FB107 to the Local Operator Interface (LOI – Local

Port) and launch ROCLINK 800.

Figure 1-28. Logon

2. Type your assigned 3-character identifier in the User ID field and

press Enter or Tab.

Note: The User ID is case sensitive.

Typically, your initials are your user ID. If user IDs have not yet been assigned, try using the default user ID of LOI. You assign user IDs by using the ROC > Security features of ROCLINK 800.

3. Type your assigned 4-digit password and click OK. For added

security, the software displays an asterisk for each number that you type. If passwords have not yet been assigned, use the default password of 1000 (valid only with the default user ID of LOI).

ROCLINK 800 validates the user ID and password you enter against a predefined list.

If the log on is not valid, a dialog box appears. Click OK and re-enter

the user ID and password. You can repeat the procedure as many times as needed until you successfully enter a valid User ID and password. If the log on is valid, ROCLINK 800 displays the Device Directory screen (see Figure 2-1).

To exit the log on screen, click Cancel or press Esc. This closes ROCLINK 800 and returns you to the point where you started ROCLINK

800.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-29

1.6 User Interface Basics

You interact with ROCLINK 800 using various displays on the computer monitor, keyboard, and pointing device.

The major components of ROCLINK 800 user interface are:

▪ Graphical Interface (Splash Screen) ▪ Menu bar and menus. ▪ Toolbar. ▪ Function screens. ▪ Dialog boxes. ▪ Help system, including the Status bar and message boxes. ▪ Device Directory or Configuration Tree menu.

ROCLINK 800 employs a dynamic graphical user interface (GUI) with a standard Windows menu structure. After you log on to ROCLINK 800, available functions display in a menu bar with drop-down menus. A Status Line at the bottom left of the display contains pertinent information about the highlighted item, such as a menu option or a parameter.

Buttons display dialog boxes for further configuration details or perform a desired action, such as the Update button. To activate the button:

▪ Click the button with a left click of the mouse. ▪ When a button is active, press Enter or a function key.

Dialog boxes are areas that “pop up” inside the current screen allowing

you to make further selections or enter values. Dialog boxes can also provide messages or more detailed information.

The menu structure lists choices from which you can select the desired function. Once you select a function, the screen or dialog box for that function displays. This screen or dialog box provides the requested information and lets you enter the applicable configuration data.

Table 1-1. Menu Listing for ROCLINK 800

Menu Options

File

New, Open, Download, Close, Save Configuration, Print Configuration, Print, Print Setup, [List of recent files], Exit

Edit

Undo, Cut, Copy, Paste.

Note: This option is not available in the current release.

View

Directory, EFM Report, Calibration Report, History, Alarms, Events, Display, I/O Monitor, Toolbar

ROC

Direct Connect, Disconnect, Collect Data, Clock, Security, Comm Ports, Memory, Information, Flags

Configure

I/O, Control, History Points, Opcode Table, MODBUS, LCD User List, User Data

Meter

Setup, Calibration, Values, Plate Change

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-30 Introduction Revised December-2017

Menu Options

Utilities

Update Firmware, License Key Administrator, Convert EFM File, User Program Administrator, ROCLINK 800 Security, AI Calibration Values, MVS Calibration Values, FST Editor, Custom Display Editor, Custom EFM Report Editor, Read File From Device, Communications Monitor

Tools

Options

Window

Cascade, Tile, Device Directory, [List of open windows]

Help

Help Topics, About ROCLINK 800

1.6.1 The FloBoss 107 Dynamic Interface

You can navigate the FB107 options either by using the ROCLINK menu structure or by clicking on the FB107 graphical dynamic interface and selecting a tab or button. The dynamic interface display shows the current settings of the point including alarms and integrity.

The system displays a white line around objects that are links when you hover your cursor over them. A link descriptor displays indicating what the link is for. The system displays a yellow line around currently selected components. The configuration for the selected hardware displays at the bottom of the screen.

Note: For more information on using the dynamic interface, refer to

SupportNet course RAS-0044 FB107 Dynamic Interface.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-31

Figure 1-29. FloBoss 107 Dynamic Interface

Figure 1-30. Integrity Alarm

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-32 Introduction Revised December-2017

Alarms

The FB107 supports two kinds of alarms: integrity (which indicate hardware problems) and alarms (which indicate software or field device problems).

Alarm notifications display on both the graphical representation of the FB107 and on the tabbed screen below the graphical FB107. ROCLINK 800 color-codes the notifications to help you quickly identify and resolve the alarms. Integrity notifications display as an I in a red box and alarm notifications display as an A in a yellow box (see Figure ). Moving the mouse over these alarm icons displays a definition. ROCLINK 800 also displays definitions in the Integrity field.

Integrity

Integrity notifications indicate hardware problems related to the CPU module, I/O modules (Auxiliary 6-Point IO), the CPU module’s optional I/O assembly (On-Board 6-Point IO), MVS modules, communication modules, and smart application modules.

Other integrity notifications can include: Red “I” – Integrity. The point is out of the user-defined or default range.

For example, when an AI is open, the actual AD count is 0 but the default range is 643 to 3220 or loss of communications occurred.

▪ Communication Failure: The FB107 sets a diagnostic error

indicating Communication Failure if the Actual Module field is empty and the Installed Module field displays a value or if communications is lost between the FloBoss and the module. Refer to Actual versus Installed Module (located in this chapter).

▪ Module Mismatch: Displays if you install a different module type

than the one currently displayed in the Installed Module field, which draws from information residing in the CPU configuration.

▪ Out of Range: Indicates that the point is not within the user-defined

configured parameters.

▪ Integrity Failure: Displays when the FB107 cannot read or

communicate with the associated hardware. The hardware reports a malfunction.

Alarm

Alarm notifications indicate problems related to field or other userdefined values.

The FB107 dynamic interface displays an A in a yellow box to indicate an alarm condition (see Figure ). The alarm condition indicates the type of point and location associated with the installed hardware point.

ROCLINK 800 displays alarms when you enable the

▪ Yellow “A” – Alarm. The point is in alarm condition. The Active

Alarms fields indicate any alarms that are active for this point. When

Alarming is set to Enabled, the active alarms appear. If Alarming is set to Enabled, an alarm is generated when Scanning is Disabled. Even if Alarming is Disabled, the Integrity Failure (hardware malfunction) alarm indicator can still appear.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-33

1.6.2 Actual versus Installed Module

As a diagnostic tool, the General tab in the window underneath the FB107 dynamic interface includes two fields, Installed Module and Actual Module. The Actual Module field indicates what module is physically installed in the backplane. The system updates this field whenever you restart the FB107. The Installed Module field indicates the module identified in the configuration file currently residing in firmware.

If the contents of the Actual Module and Installed Module fields are not identical, the system displays integrity alarms. You then correct the

integrity errors. The FloBoss 107 remembers the “Installed Module” type

until you “Uninstall” it.

The FB107 uses a plug and play system to install newly inserted modules to the backplane. For example, in a new FB107 with no installed

modules, the Actual Module field displays “Empty” for all slots. The

Installed Module field also displays “Empty” for all slots.

When you insert an I/O module in slot 2 and power up the FB107, the FB107 displays Aux IO in the Actual Module field. The FB107 also displays Aux IO in the Installed Module field (since there was not a module previously installed in slot 2) and creates the I/O points associated with the I/O module.

If you remove the I/O module from slot 2 and power up the FB107, the Actual Module field now displays Empty, but the Installed Module field still displays Aux IO. The FB107 “remembers” what was previously installed. Additionally, the FB107 sets an integrity error (specifically, “Communication Failure”) on slot 2 because the slot is now physically empty and the Installed Module field indicates Aux IO. You can still define and manage the I/O points associated with the Installed Module (Aux I/O), but because of the unresolved integrity error any I/O points are marked in point fail.

A Module Mismatch error occurs if you install a different type of module than currently displays in the Installed Module field.

To completely remove a module from the FB107 click Uninstall. This resets the value in the Installed Module field to Empty and deletes any I/O points associated with the previously installed module.

Note: The FB107 completely re-scans for actual and installed modules if

you select ROC > Flags, click Flash Memory Clear on the Flags screen, and click Cold Start & Clear All.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-34 Introduction Revised December-2017

1.6.3 Standard Buttons

Several buttons appear on most ROCLINK 800 screens.

Button

Description

Minimizes and hides windows.

Maximizes the size of the windows to fit in the screen area.

Restores window to original size.

Closes a window.

Expands options listed in the Device Directory or Configuration Tree Menu.

Hides options listed in the Device Directory of Configuration Tree Menu.

Prints the active display. Updates contents of the active window from the device.

Applies changes on the active window to the device and closes the active window. A Confirm Save dialog box displays if there are unsaved changes.

Cancels without saving changes and close the active window.

Applies changes on the active window to the device. Clicking Apply does not close the active window.

Starts automatic device polling.

Stops automatic device polling.

1.6.4 Toolbar Buttons

The following buttons appear in the ROCLINK 800 toolbar. ROCLINK 800 grays out a button if it is not applicable to the current screen.

Button

Description

Creates a new configuration file. You specify available configuration parameters using menu selections. Configure the file as if you were connected to the device. Functions requiring a live connection are unavailable in this mode.

Opens an existing configuration file. You create configuration files using the New Device or Save Configuration functions.

Saves the current configuration of the connected device to a disk file.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-35

Button

Description

Deletes currently selected text and place it in the Clipboard. Note: Currently not available.

Copies currently selected text and places it in the Clipboard. Note: Currently not available.

Pastes text currently in the Clipboard at the cursor’s current location.

Note: Currently not available.

Prints the configuration file. Note: Currently not available.

Connects to a device locally using the (LOI) Local Operator Interface port.

Disconnects from a device.

Displays the first of two .DSP files loaded on the device. Note: Not available on the FB107.

Displays the second of two .DSP files loaded on the device. Note: Not available on the FB107.

Displays the Analog Input (AI) screen.

Displays the Discrete Input (DI) screen.

Displays the Pulse Input (PI) screen.

Displays the Analog Output (AO) screen.

Displays the Discrete Output (DO) screen.

Displays the Comm Port screen.

Displays the Flags screen.

Displays the Clock screen.

Displays the Meter Setup screen.

Displays the Plate Change screen.

Displays the PID Loop screen.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-36 Introduction Revised December-2017

Button

Description

Opens the Function Sequence Table (FST) Editor.

Displays an About ROCLINK 800 screen providing program information, version, creation date, and copyright for ROCLINK

800.

Launches the ROCLINK 800 on-line help system.

1.6.5 Configuration Tree Menu

When you open a configuration file or go on-line with an FB107, the Configuration Tree appears on the left-hand side of the screen. The tree hierarchically displays the parts of a configuration (such as I/O, Meter Runs, and History) that you can change.

Figure 1-31. Configuration Tree

Option

Description

Modules

Lists all installed modules.

I/O

Lists all available inputs and outputs by type.

Control

Displays the FST and PID options enabled on the ROC > Information screen.

Meter

Lists all available meters.

System

Displays ROC > Information system folders, Comm Port, Device Flags, and the Opcode Table.

History

Displays all available History Points.

User Programs

Displays all installed user programs.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-37

User Display

Accesses custom displays stored in the FB107. The FB107 can store a maximum of 40 displays (including both custom user displays and user program displays).

From the Configuration Tree, you may change the configuration or monitor current operations. Once you are in the Configuration Tree menu, you can use the + and – symbols to display or hide various options.

Double-click the desired function in the Configuration Tree to display the associated screen. Double-clicking an icon is the same as selecting the menu bar or Toolbar button option.

If this is the first time that you have connected to the FloBoss, refer to Section 6.4, Setting the Clock (located in Chapter 6).

1.6.6 Keystrokes

If you are using the keyboard, you may use the Alt key plus one or more letters to access menus. Windows underlines the appropriate letter in the menus. For example, to access the Open File dialog box, press Alt + F and press O. You may also use the Left Arrow () and Right Arrow ( keys to highlight a menu bar item (the help Status Line at the bottom of the screen provides a description of the menu) and press the letter.

With a menu displayed, you can highlight the desired item by using the Down Arrow () and Up Arrow () keys or the mouse. Once you have highlighted an item, press Enter to activate the function.

To leave a menu or submenu, press Esc. You can then select another menu. You can also access another menu using  and .

The text scrolling keys are Page Up and Page Down. To use the keyboard in configuration screens and dialog boxes, press Tab

to move in a predetermined sequence from one parameter field or button to the next. The selected field or button becomes highlighted. Fields unavailable for changes are automatically skipped.

When you Tab to the last field or button in the screen or dialog box, pressing Tab again jumps back to the first field or button. To go back to a previous field or button, press Shift + Tab.

In an option field, the currently selected option is highlighted. To select one of the other options, use  or  to highlight the desired option and then press Enter.

In a field that requires a text or numerical entry, type in the required characters or numbers from the keyboard. Use Backspace or Delete to erase unwanted characters. Use  and  to move the cursor one character at a time and Home and End to place the cursor at the beginning and end of the field, respectively.

Other keys or key combinations include:

▪ F1 – Launches ROCLINK 800 on-line help.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-38 Introduction Revised December-2017

▪ Esc – Cancels the current activity, closes the screen, and returns you

to the last-used place in the menu structure, screen, or other place from which the dialog box originated. If a menu is active, Esc closes the last-opened menu, taking you up one level in the menu structure. If the menu bar is active, Esc de-selects all menu options. Press Alt or click with the mouse to reactivate the menu bar.

▪ Ctrl + N – Creates a new configuration file. ▪ Ctrl + O – Opens a configuration file. ▪ Ctrl + S – Saves the current configuration file.

1.6.7 Help System

The Help menu provides detailed on-screen information about getting started with ROCLINK 800 and performing keyboard operations, a list of the Help topics, and the ROCLINK 800 version.

To display context sensitive help on a menu item, a parameter, or a button, press F1 while the item, parameter, or button is highlighted. A help window appears on the screen.

To view detailed help, select Help > Help Topics from the menu bar.

Option

Description

Contents

Presents a list of Help Topics that display based on taskoriented situations. Each screen, tab, and field has a help topic associated with it. For example: the Modbus Scale Values tab is located under Modbus > Modbus

Configuration > Scale Values tab.

Index

Locates specific Help Topics. The Index lists each field by the tab or screen in which the field appears.

Activates a search function on a specific word.

Back

Returns to the last topic that you viewed.

Sends the currently displayed topic to the PC’s default printer.

1.6.8 Basic Navigation

When you start ROCLINK 800, the Device Directory displays. After you connect to an FB107, the Configuration Tree displays (see Figure ).

Use the + and – symbols to display or hide various options. Double-click a point to display the associated parameter configuration screen. You can also use the menu options and buttons to display the associated parameter configuration screen.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Introduction 1-39

The Status Line at the bottom of the Device Directory and Configuration Tree provides critical information. The left side displays brief information about the device being connected. The right side displays the device status (on-line or off-line) and system time.

TLP Selections

In many locations in ROCLINK 800, you can click Browse (a button with three dots) to view the Select TLP dialog. The Select TLP dialog allows you to assign specific inputs and outputs to parameters. ROCLINK 800 uses Point Type (T), Logical Number (L), and Parameter (P) to define point locations.

Figure 1-32. Select TLP

To use the Select TLP dialog box:

1. Select the Point Type from the list. This opens a list of logical

numbers and parameters that belong to that Point Type.

2. Select the Logical Number. In the configuration screens, the Logical

Number is generally referred to as Point Number or Number.

3. Select the specific Parameter. These are usually called by the same

term as the Tag on the configuration screen. Click OK. The field at the bottom of the Select TLP dialog displays the numeric

point location of the TLP point or a text abbreviation, depending on the setting in the Tools > Options window.

AutoScan Update

Interval Option

Select Tools > Options to set the time interval, in seconds, at which the AutoScan feature on various screens in ROCLINK 800 polls the FB107. Clicking AutoScan causes ROCLINK 800 to poll the device automatically, until you click StopScan.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

1-40 Introduction Revised December-2017

1.6.9 Text Boxes

Text boxes appear in various places throughout ROCLINK 800. You can enter alphanumeric character (A through Z and 0-9) into text boxes. For example, you can enter name (tag) for a device or a short description for an I/O point.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Device Directory and Device Root 2-1

Chapter 2 – Device Directory and Device Root

In This Chapter

2.1 Device Directory ...................................................................................... 2-1

2.1.1 Communication Parameter Setup Screen .................................. 2-2

2.2 Device Root ............................................................................................. 2-4

2.2.1 Backing Up Configurations ......................................................... 2-4

2.2.2 Adding a Group .......................................................................... 2-5

2.2.3 Deleting a Group ........................................................................ 2-5

2.2.4 Deleting a Device ....................................................................... 2-5

2.2.5 Adding a Device ......................................................................... 2-6

2.2.6 Deleting All Devices ................................................................... 2-6

2.2.7 Renaming a Group or Device ..................................................... 2-7

This chapter describes the Device Directory screen and the Device Root, the graphical representation of all devices, which appears on that screen.

2.1 Device Directory

The Device Directory is the first screen that displays after you successfully log onto ROCLINK 800 but before you connect to a device.

Figure 2-1. Device Directory and Device Root

Note: Once you connect to a device, ROCLINK 800 replaces the Device

Directory screen with a device-specific configuration tree screen (see Figure 2-2).

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

2-2 Device Directory and Device Root Revised December-2017

Figure 2-2. Configuration Tree

You use the Device Directory screen (Figure 2-1) to create and maintain communications setup configurations for a PC running ROCLINK 800. You can uniquely configure the communication ports on the PC to send data to a specified FB107. You may add, delete, or modify these communications setups and establish a tree of groups and devices.

Use the + and – symbols to display or hide various options.

Note: You can only configure a PC’s communications ports from the

Device Directory screen. To redisplay the Device Directory screen at any time, select Window > Device Directory or View > Directory.

2.1.1 Communication Parameter Setup Screen

The ROCLINK 800 Communication Parameter Setup screen allows you to change your PC communications port, time-out settings, and other variables ROCLINK 800 uses when establishing a connection to a device.

In order for ROCLINK 800 to communicate with a device, ROCLINK 800 must know to which device it is communicating. Each device within a group is given a unique device address.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Device Directory and Device Root 2-3

To set the PC communication parameters:

1. Right-click the label in the Device Directory that corresponds to the

PC port you want to use.

Figure 2-3. Device Pop-up Menu

2. Select Properties. The ROCLINK 800 Communication Parameters

screen displays.

Figure 2-4. Communication Parameters

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

2-4 Device Directory and Device Root Revised December-2017

3. Configure the ROCLINK 800 communications parameters (refer to

Chapter 3, Communications and Security for a complete discussion of this screen).

4. Click Apply. You are ready to connect to the FB107.

2.2 Device Root

The device root graphically represents the devices and their organizational structure on the Device Directory screen. When you open ROCLINK 800, the device root displays the default device labels. Using the Communication Parameters screen, you can modify the communications setup configurations for these devices or add new devices with new configurations. Each icon on the device root represents a different type of communications connection.

Figure 2-5. Device Root

The default device labels, which correspond to available communication ports, include:

▪ COM1 Device. ▪ COM2 Device. ▪ Modem Device. ▪ Ethernet Device. ▪ New Group1.

You may add, delete, or modify the communication configurations for each of these devices. You can also define device groups.

2.2.1 Backing Up Configurations

After you configure your device settings, we strongly recommend that you create a back-up file of those settings. ROCLINK 800 stores these values in the file ROC_USER.mdb. Use Windows Explorer to find the ROC_USER.mdb file, then copy the file and store it in a safe place. This

Device Root

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Device Directory and Device Root 2-5

backup file enables you to restore your settings in case they ever become corrupted.

You can configure devices on-line communications using the Local Operator Interface (LOI) Port (also known as the “local port”) or a communication port, such as a modem.

For differentiation, each FB107 has a tag and a unique device address which you define on the ROCLINK 800 Communications Parameters screen (see Figure 2-4). The Device Address must be different from any other host system that may access the network.

2.2.2 Adding a Group

You can organize devices into groups. Typically, groups contain devices in the same geographical area or with another common feature. When you double-click a group icon, ROCLINK 800 displays all devices or subgroups associated with that group.

To add a new group to the device root directory:

1. Right-click the Device Root icon. A pop-up menu displays.

2. Select Add a Group. ROCLINK 800 adds the new group icon to the

device root graphic.

To add a subgroup to an existing group:

1. Right-click the group icon. A pop-up menu displays.

2. Select Add a Group. ROCLINK 800 adds the new group icon to the

selected group.

2.2.3 Deleting a Group

To delete a group:

1. Right-click a group icon. A pop-up menu displays.

2. Select Delete Group. A Confirm Delete dialog box displays.

Figure 2-6. Delete Group

3. Click Yes to delete the group and all subordinate groups and devices

in that group.

2.2.4 Deleting a Device

To delete a device:

1. Right-click a device icon. A pop-up menu displays.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

2-6 Device Directory and Device Root Revised December-2017

2. Select Delete Device. A Confirm Delete dialog box displays.

Figure 2-7. Delete Device

3. Click Yes to delete the device.

2.2.5 Adding a Device

To add a new device to the device root:

1. Right-click the device root icon. A pop-up menu displays.

2. Select Add a Device. ROCLINK 800 adds a device icon to the device

root.

3. Configure the new device’s communication parameters (see Chapter

3, Communications and Security).

To add a device to an existing group:

1. Right-click the group icon. A pop-up menu displays.

2. Select Add a Device. ROCLINK 800 adds a device icon in the

selected group.

3. Configure the new device’s communication parameters (see Chapter

3, Communications and Security).

2.2.6 Deleting All Devices

To delete all device communication parameter configurations in the device root directory:

Note: This deletes all devices you currently have configured.

1. Right-click the device root icon. A pop-up menu displays.

2. Select Delete All Devices. A Confirm Delete dialog box displays.

Figure 2-8. Delete All Devices

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Device Directory and Device Root 2-7

3. Click Yes. ROCLINK 800 deletes all devices in the device root.

2.2.7 Renaming a Group or Device

You can easily replace the ROCLINK 800-provided default group or device names with names you choose. To rename a group or device in the Device directory:

1. Right-click the device or group icon. A pop-up menu displays.

2. Select Rename. Enter a name.

Note: Although your label can be up to 72 characters in length, keep

the label short for easy recognition.

3. Press Enter when finished. ROCLINK 800 adds the new label to the

device or group.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

2-8 Device Directory and Device Root Revised December-2017

[This page is intentionally left blank.]

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-1

Chapter 3 – Communications and Security

In This Chapter

3.1 Communications ...................................................................................... 3-1

3.2 ROCLINK 800 Communications .............................................................. 3-2

3.2.1 ROCLINK 800 Communications Parameters

General Tab................................................................................ 3-2

3.2.2 ROCLINK 800 Communications Parameters

Advanced Tab ............................................................................ 3-4

3.3 Communication Ports on the FB107 ....................................................... 3-6

3.4 Communication Modules ......................................................................... 3-7

3.4.1 Dial-up Modem Module .............................................................. 3-7

3.4.2 Enhanced Communication Module ............................................ 3-9

3.4.3 Network Radio Module ............................................................. 3-10

3.5 Configuring FB107 Communications Ports ........................................... 3-13

3.5.1 Comm Ports – General Tab ..................................................... 3-13

3.5.2 Comm Ports – Modem Tab ...................................................... 3-15

3.5.3 Comm Ports – RBX Tab ........................................................... 3-16

3.5.4 Enhanced Comm Tab .............................................................. 3-18

3.5.5 Network Radio Module – Network Tab .................................... 3-20

3.5.6 Network Radio Module – Advanced Tab .................................. 3-21

3.6 Connecting to an FB107 ........................................................................ 3-21

3.6.1 Direct Connect .......................................................................... 3-22

3.6.2 Local Port (LOI) ........................................................................ 3-22

3.6.3 Connect to a FloBoss ............................................................... 3-23

3.6.4 Successful Logon ..................................................................... 3-23

3.6.5 Disconnecting from a FloBoss.................................................. 3-24

3.7 Troubleshooting Connection Errors....................................................... 3-24

3.7.1 Troubleshooting ROCLINK 800 Communications.................... 3-24

3.8 Security .................................................................................................. 3-25

3.8.1 ROCLINK 800 Security ............................................................ 3-25

3.8.2 Device Security ........................................................................ 3-29

This chapter describes how to configure the communication ports on a PC and on an FB107. It also describes how to use the Connect and Direct Connect features in ROCLINK 800 and how to define security to control access to the FB107 and ROCLINK 800.

3.1 Communications

Before you attempt to connect to an FB107, you must configure communication parameters in two places:

▪ ROCLINK 800 Communications

Configure device communications on the Device Directory screen (see Chapter 2, Device Directory and Device Root). This sets the PC’s comm ports to communication with a specific device.

▪ Communication Ports on the FB107

Select ROC > Comm Ports to access the Comm Port screen and

configure the FB107’s communication ports for incoming or outgoing

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-2 Communications and Security Revised December-2017

communications. Refer to Section 3.3, Communication Ports on the FB107.

3.2 ROCLINK 800 Communications

The Device Directory communication configurations allow ROCLINK 800 to communicate to an individual FB107.

3.2.1 ROCLINK 800 Communications Parameters General Tab

The Device Directory screen is the first screen that displays after you successfully log onto ROCLINK 800 but before you connect to a device.

To display the ROCLINK 800 Communication Parameters screen, rightclick on a device icon in the device root and select Properties. The ROCLINK 800 Communication Parameters screen displays, showing the General tab.

Use the General tab to configure basic communications for the PC running ROCLINK 800.

Figure 3-1. ROCLINK 800 Communications, General tab

Field

Description

Tag

Sets a unique name for the FB107. Enter up to 50 alphanumeric characters to identify the FB107.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-3

Field

Description

Connect

Click to communicate with the PC using the

parameters configured for this PC’s communications

port.

Device Address

Sets the address of the specific FB107 with which you desire to communicate. If you are connected to a multi-drop series of devices, enter the device address and device group of a specific device.

Note: The default device address is 240.

Device Group

Associates the FB107 with a specific group. The default device group is 240.

Note: If you connect a PC running ROCLINK 800

directly to the device’s LOI (Local Port),

ROCLINK 800 makes a request to Device Group of 240 and Device Address of 240. The Local Port of a device always responds to a request for Address 240 and Group 240, no matter what Device Address and Device Group is configured in the device if the LOI Security is valid.

Host Address

Identifies the PC’s host address, which by default is Address 3. If more than one computer running ROCLINK 800 communicates with a group of devices (either by radio or by other multi-drop communications), you must define unique host address for each device to avoid multiple responses. The host address must also be different from any other host system that may access the communications link.

Use the following host group and host address conventions: 0 and 240 are reserved.

Host Group

Identifies the PC’s host group, which by default is 1. When using ROC Protocol, the group address must match the address defined at the destination device in order for communications to properly transmit.

Use the following host group and host address convention: 0 and 240 are reserved.

Use

Sets the type of connection. Valid values are Comm Port, Modem, or TCP/IP.

Note: If you select TCP/IP, ROCLINK 800 applies

only the Time Out parameter you define on

the Advanced tab. No other parameters defined on that tab apply.

PC Comm Port

Sets the comm port on the PC ROCLINK 800 uses for this setup. The FB107 can communicate through

any of the PC’s configured comm ports. The default

comm port is 1.

Note: This field is available only if you select the

Comm Port option. Before you select this

parameter, check to see which communications ports are assigned in the PC.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-4 Communications and Security Revised December-2017

Field

Description

PC Baud Rate

Sets the baud rate ROCLINK 800 uses to communicate with the device through a serial port (COM port). For successful communications, the baud rate you set here must match the baud rate on the PC. The default value is 19200.

Note: This field is available only if you select the

Comm Port option.

Modem

Indicates the modem ROCLINK 800 uses. Click  to list all available modems. Only the modems defined

in the Windows’ Control Panel display here. Ensure

that the modem you select is properly set up.

Note: This field is available only if you selected the

Modem option.

Phone Number

Sets the telephone number for the modem ROCLINK 800 uses. If you select Modem in the Use field, enter the phone number of the device ROCLINK 800 dials.

Note: This field is available only if you selected the

Modem option.

Override Default TAPI Init String

Indicates that ROCLINK 800 should use an override initialization string configuration. When you select this optoin, you must provide an override initialization string.

Note: This field is available only if you selected the

Modem option.

IP Address

Indicates the IP address for the TCP/IP connection.

Note: This field is available only if you selected the

TCP/IP option.

Port Number

Indicates the port for the TCP/IP connection.

Note: This field is available only if you selected the

TCP/IP option.

3.2.2 ROCLINK 800 Communications Parameters Advanced Tab

Use the Advanced tab on the ROCLINK 800 Communication Parameters screen to configure advanced communications features.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-5

Figure 3-2. ROCLINK 800 Communications, Advanced tab

Field

Description

Number of Retries

Sets the number of times (after the initial attempt)

ROCLINK 800 tries to request data from the specified device before reporting a timeout error. Valid values are between 0 and 25. The default is 3. Use the Time Out parameter to adjust the amount of time between retries.

Note: This parameter does not apply to the dial-up

modem, which only tries to establish a connection once.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-6 Communications and Security Revised December-2017

Field

Description

Tx Delay

Sets, in seconds, the amount of time ROCLINK 800 waits before transmitting data. This delay enables the

request-to-send (RTS) line for the amount of delay specified before transmitting data. The default is

0.05. Typically, this value allows a radio to fully stabilize

before the system applies data for transmission. ▪ For EIA-232 (RS-232) and dial-up modem

communications, set this value (and the value in the Key Off Delay field) to 0 (zero) or the default of 0.05 seconds.

▪ For EIA-485 (RS-485) and radio communications,

set this value to 0.1.

Note: These variables may change, based on your

situation. These are general values which you need to assess for each circumstance.

Time Out

Sets, in seconds, the actual amount of time that

ROCLINK 800 waits to receive a valid message after it sends a request to a device. The default is 3. Modem users typically accept the default value.

Do not set this field to 0 (zero). This prevents ROCLINK 800 from timing out, and quickly exhausts the Retries.

Note: If you select TCP/IP as the communications

method on the General tab, ROCLINK 800 applies only the Time Out parameter. No other parameters defined on that tab apply.

Key Off Delay

Sets, in seconds, the amount of time ROCLINK 800 waits after transmitting a message before turning off the ready to send (RTS) signal. The default is 0. You

can change this value to optimize communications. The default value should be sufficient for dial-up

modems and EIA-232 (RS-232) connections. For radios, a value of 0.01 may be appropriate.

Host CRC Check

Indicates whether ROCLINK 800 uses cyclical redundancy checking. The default value is Enabled.

3.3 Communication Ports on the FB107

In addition to configuring the communications ports on the PC, you also configure the device-specific communication parameters.

While in a configuration and on-line with an FB107, select ROC > Comm Ports to display the Comm Port screen. Each communications port has a unique set of parameters on the screen.

Use the Comm Ports screen to set up the communications ports that are available for incoming and outgoing communications with the FloBoss.

Note: Use the Device Directory to define PC communication ports.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-7

The communication ports located on the FB107 provide a data link to ROCLINK 800, other devices, and host systems. The type of module enables the following communications:

▪ EIA-232 (RS-232) serial communications. ▪ EIA-485 (RS-485) multi-point serial communications.

Table 3-1. Communication Ports for the FloBoss 107

Comm Port

Port Location

Type

Protocols

LOI

CPU

Local Port / RS-232C

ROC or Modbus slave

COM1

CPU

EIA-485 (RS-485)

ROC or Modbus host/slave

COM2

CPU

EIA-232 (RS-232)  Default

ROC or Modbus host/slave

COM3

Module Slot 1

EIA-232 (RS-232) or EIA-485 (RS-485)

ROC or Modbus host/slave

COM2

Module Slot 2

EIA-232 (RS-232) or EIA-485 (RS-485) Note: When installed in Slot 2, the module

replaces COM2 on the CPU.

ROC or Modbus host/slave

DISPLAY

EIA-232 (RS-232) [Limited Function]

ROC or Modbus slave

3.4 Communication Modules

You can navigate FB107 options using the ROCLINK menu structure or by clicking on components of the FB107 graphic (such as modules, tabs, or buttons). The graphical interface display shows the current settings of the point including alarms and integrity.

You can install a communication module in slot 1 or 2 on the main FB107. When a communication module is installed in slot 2, the communication port (COM2) on the CPU is redirected to the type of module installed in slot 2.

To display the communication port for the FB107, click the communications module on the graphical interface.

3.4.1 Dial-up Modem Module

The Dial-up Modem Module provides communication over a Public Switched Telephone Network (PSTN) at up to 2400 bits per second (bps). The module plugs into the main board of the FB107, which provides power and control signals to activate COM2 or COM3. Refer to FloBoss™ 107 Flow Manager Instruction Manual (part D301232X012)

for more details.

Each communication module uses a separate channel from the other modules and has a common ground (single-ended). The field interface protects the electronics in the module. Each module reduces the effect of noise on communication errors through filtering.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-8 Communications and Security Revised December-2017

The FB107 supports communication protocols, including ROC protocol and Modbus protocol. An FB107 can act as a Modbus slave device (ASCII or RTU) on COM2 or COM3.

To access the Dial-up Modem:

1. Select Directory Tree > Modules > SLOT X - Dial-up Modem

(where X is the slot number where the module is installed).

2. Double-click Dial-up Modem.

3. The Module Information displays at the bottom of the user interface.

Figure 3-3. Modem Module

Note: The description for each field is located in Section 3.4.3 –

Network Radio Module.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-9

3.4.2 Enhanced Communication Module

The Enhanced Communication Module (ECM) provides communications over a four session Ethernet port and a Universal Serial Bus (USB) 2.0 port. Refer to FloBoss™ 107 Flow Manager Instruction Manual (part

D301232X012) for more details.

You can install one ECM module in slot 1 or 2 of the same FB107. The module plugs into the main board of the FB107, which provides power and control signals to activate COM2 or COM3. When a communication module is installed in slot 2, the communication port (COM2) on the CPU is redirected to the type of module installed in slot 2.

The FB107 supports communication ROC Plus protocols, Modbus master/slave (ASCII or RTU), and Modbus TCP.

Note: If you configure the FB107 to poll devices using the

communication ports on the ECM, be aware that downloading large files using the communications ports on the ECM may prevent the FB107 from performing the configured polls during the file download period. Polling continues as expected after the file is downloaded and no data loss occurs. To avoid this issue, do not download user programs or display files using the communications ports on the ECM while performing mission critical functions.

To access the Enhanced Communication Module:

1. Select Directory Tree > Modules > SLOT X - Enhanced Comm

Module (where X is the slot number where the module is installed).

2. Double-click Enhanced Comm Module.

3. The Module Information displays at the bottom of the user interface.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-10 Communications and Security Revised December-2017

Figure 3-4. Enhanced Communication Module (ECM)

Note: The description for each field is located in Section 3.4.3 –

Network Radio Module.

3.4.3 Network Radio Module

The NRM provides a wireless solution of transferring data from one RTU to another RTU within the Distributed RTU Network (DRN). The data can be any type of information that the RTU has in its database, such as I/O, soft points, or other information. Refer to Distributed RTU™

Network Instruction Manual (part D301727X012) for more details

Note: In an FB107, you can install the NRM in either slot 1 or 2 (the

slots immediately to the right of the CPU) of the base unit. You cannot install the NRM in any slot on an FB107 expansion unit. The FB107 supports only one NRM.

To access the Network Radio Module, click on the NRM module on the graphic image of the FB107 (see Figure 3-5) or:

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-11

1. Select Directory Tree > Modules > SLOT X - Network Radio

Module (where X is the slot number where the module is installed).

2. Double-click Module Information. The NRM module information

displays at the bottom of the user interface.

Figure 3-5. Network Radio Module (NRM)

Field

Description

Installed Module

This read-only field shows the module currently defined in the active FB107 configuration. ROCLINK 800 does not require that a module be physically installed to display. Refer to Section 1.6.2, Actual versus Installed Module.

Description

This read-only field shows a description of the hardware currently installed in the FB107.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-12 Communications and Security Revised December-2017

Field

Description

Part Number

For ECM and NRM:

This read-only field shows the part number of the firmware currently installed in the FB107.

For Modem:

This read-only field shows the part number of the hardware currently installed in the FB107.

Serial Number

For ECM and NRM:

This read-only field shows the serial number of the hardware currently installed in the FB107.

For Modem:

This field is blank.

Actual Module

This read-only field shows the module physically installed in the backplane. ROCLINK 800 updates this field whenever you restart the FB107. Refer to Section 1.6.2, Actual versus Installed Module.

Revision

For ECM and NRM:

This read-only field shows the firmware revision for the hardware currently installed in the FB107.

For Modem:

This field is blank.

Build Date

For ECM and NRM:

This read-only field shows the date the firmware was built for the hardware currently installed in the FloBoss 107.

For Modem: This field is blank.

Boot Revision

For ECM and NRM: This read-only field shows the version for the main

startup (“boot”) firmware currently installed in the

module.

For Modem:

This field is blank.

Boot Build Date

For ECM and NRM: This read-only field shows the build date for the

main startup (“boot”) firmware currently installed in

the module.

For Modem:

This field is blank.

Integrity

This read-only field shows a message regarding the status of the hardware currently installed in the FB107.

The user interface displays alarms that indicate the state of the hardware (CPU, I/O modules, CPU I/O assembly, MVS modules, and communication modules). Mousing over an alarm displays a short explanation of the alarm. Refer to Section 1.6.1, FloBoss 107 User Interface.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-13

Field

Description

Uninstall

Click to remove the hardware definition currently installed in the active FB107 configuration. The Installed Module field displays the type of module the FB107 is using for point configuration. It does not require that the module is physically installed in the

FB107 to display. The FloBoss 107 “remembers” the

type of installed module until you use this button to uninstall it. Refer to Section 1.6.2, Actual versus Installed Module.

Comm Port Configuration

For Modem:

Click to display the Comm Port screen. Refer to Section 3.5.1, Comm Ports – General Tab.

For ECM: Click to display the Comm Port screen. Refer to

Section 3.5.4, Enhanced Comm Tab.

Configure

For NRM:

Click to access the RTU screen. Refer to

Distributed RTU™ Network Instruction Manual (part D301727X012), Section 3.2 - Commissioning for details.

3.5 Configuring FB107 Communications Ports

The FB107 communication (“comm”) ports link the device to computers,

such as the one running ROCLINK 800 or a host computer. You use the Comm Port screen to configure comm ports. After you select

a communications module on the FB107 graphic, click … in the lower right portion of the screen. ROCLINK 800 displays the Comm Port screen for that module or comm port.

Note: You also access the Comm Port screen by selecting ROC >

Comm Ports from the ROCLINK 800 menu bar and then

selecting the appropriate comm port from the drop-down menu or by selecting the (Comm) icon from the configuration tree.

After you completely configure all comm ports, save that configuration to Flash memoryusing the Save Configuration button on the Flags screen (ROC > Flags)

3.5.1 Comm Ports – General Tab

Select a comm module from the FB107 graphic, and then click … in the lower right corner of the screen. ROCLINK 800 displays the Comm Port screen for the selected module, which shows the General tab.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-14 Communications and Security Revised December-2017

Figure 3-6. Comm Port, General tab

Field

Description

Comm Ports

Indicates the specific comm port to be configured. Click  to display all valid selections.

Tag

Sets a 10-character name (“tag”) to help identify the comm port.

Baud Rate

Sets, in bits per second, the transmit and receive data baud rate for the comm port.

Parity

Indicates whether the communications controller performs parity checks and, if selected, the parity value (odd or even).

Data Bits

Sets the number of data bits contained in an

asynchronous byte, or character. The default is 8.

Stop Bits

Sets the number of stop bits contained in an

asynchronous byte, or character. The default is 1.

Port Owner

Sets the communications protocol this port uses. Valid values are ROC/Modbus Slave Protocol (which configures the port to automatically switch between Modbus and ROC Protocol messages), Modbus Master (which configures the port to allow the FB107 to poll Modbus devices), DS800 (which configures the port to download and debug Development Suite 800 projects only), User Program Controlled (which configures the Port to use the communications protocol residing in the loaded user program), Modbus Slave Only (which configures the port to allow the FB107 to act only as a Modbus slave device).

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-15

Field

Description

Key On Delay

Sets, in seconds, the amount of time ROCLINK 800 waits after turning on the ready to send (RTS) signal before beginning transmission. The default is 0. You can change this value to optimize communications.

The default value should be sufficient for dial-up modems and EIA-232 (RS-232) connections. For older radios, you may need to set this value to 0.2 seconds. For newer radios, 0.02 seconds should be sufficient.

Key Off Delay

Sets, in seconds, the amount of time ROCLINK 800 waits after transmitting a message before turning off the ready to send (RTS) signal. The default is 0. You

can change this value to optimize communications. The default value should be sufficient for dial-up

modems and EIA-232 (RS-232) connections. For radios, a value of 0.01 may be appropriate.

Note: These variables may change, based on your

situation. These are general values which you need to assess for each circumstance.

Valid Receive Ctr

Sets the number of valid messages received by the FloBoss on this communication port. This counter can be preset to a value or cleared.

Idle Time

Sets, in milliseconds, the amount of time the FloBoss waits between communication events.

3.5.2 Comm Ports – Modem Tab

Use the Modem tab on the Comm Ports screen to configure the device’s modem communication ports.

Figure 3-7. Comm Ports, Modem tab

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-16 Communications and Security Revised December-2017

Field

Description

Modem Type

Sets the modem type. Valid values are None (using

a serial link to the host), External (using an external modem), and Internal (available on comm ports 2 and 3 when Modem module is installed). The default is None.

Connect Time

Sets, in seconds, the amount of time that ROCLINK

800 waits after initiating a call to receive a connect message from a device (typically the modem) before it terminates the call. The default is 60 seconds.

The Connect Time varies from system to system and can take up to 60 seconds to make and complete a dial up connection. If a successful connection is made, the Disconnect Time begins.

Disconnect Time

Sets, in seconds, the amount of time that ROCLINK

800 waits for further activity on the line before it hangs up. ROCLINK 800 resets this timer after each valid receive signal.

Inactivity Time

Sets, in seconds, how long ROCLINK 800 waits without receiving a signal before resetting the modem. The inactivity timer looks at the valid receive counter to determine if the signal has been received.

Config Command

Sets the string of characters required to initialize the modem. For external modems, refer to the manufacturer’s literature. For an internal modem, use the default value or the modem card may not operate

correctly. Refer to your modem’s documentation for

default Config Command characters.

Connect Command

Sets the Hayes-style Connect Command required to contact the host. Typically, this is the command ATDT followed by the telephone number (for example, ATDT5155551212). This parameter is required only for dial-out operations, such as for SRBX Alarming.

Modem Status

This read-only field shows the modem’s current status result code. Valid values are:

Successfully executed command line

CONNECT

Connection established

RING

Ring signal detected

NO CARRIER

Carrier not detected/lost

ERROR

Error in command line

NO DIAL TONE

No dial tone detected

BUSY

Busy signal detected

NO ANSWER

Line not picked up on the called end

3.5.3 Comm Ports – RBX Tab

Use the RBX tab to configure the Spontaneous-Report-by-Exception alarming features.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-17

The RBX or SRBX (Spontaneous Report-by-Exception) alarming feature is available for serial communication ports. This feature allows the device to call in to a host computer when a configured alarm occurs. If you wish to configure dial-up RBX, then a modem must be present and appropriately configured.

When you use RBX alarming, ensure that you enable and configure alarms for each point you wish to monitor. Configure the alarm parameters so that an alarm occurs only when desired. This prevents

“nuisance” alarms. You configure RBX alarm parameters on the Alarms

tab on the I/O, MVS, and Meter Setup configuration screens.

Figure 3-8. Comm Ports, RBX tab

Field

Description

RBX Mode

Sets the RBX Mode for Spontaneous-Report-byException alarming on this comm port. The default is

Disabled.

Address

Sets the address of the host to which the RBX feature communicates.

Group

Sets the group of the host to which the RBX feature

communicates.

Delay

Sets, in seconds, the time the device waits between attempts to transmit an RBX message. Each RBX Attempts parameter has an associated delay parameter. The default for Delay #1 is 20 seconds, the default for Delay #2 is 30 seconds, and the default for Delay #3 is 45 seconds.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-18 Communications and Security Revised December-2017

Field

Description

RBX Attempts

Sets the number of times the device attempts to resend a message if it does not obtain a valid

response on the first try. “Attempt” refers to the initial

message plus any retries. ROCLINK 800 provides three parameters. The

default for all parameters is Fixed Number. The default value for RBX Attempt #1 is 1, for RBX Attempt #2 is 2, and for RBX Attempt #3 is 3.

Select Fixed Number to set how many times ROCLINK 800 retries sending a message after the first unsuccessful attempt. If you enter 0, no retries occur. Select Continuous (255) to start continuous retries that stop only when the host acknowledges the SRBX alarm.

Extra Key On Delay

Indicates whether ROCLINK 800 adds additional delay time to the amount of time it waits after turning

on the ready to send (RTS) signal before sending an RBX message.

Valid values are Disabled (the default) or Enabled. If you select Enabled, you must also indicate the number of seconds for the extra delay.

Note: This parameter may be required for radio

communications.

RBX Alarm Index

This read-only field shows the alarm currently being

reported through RBX.

RBX Status

This read-only field shows the status of RBX

messaging. Valid values are Active (an RBX alarm is being processed) or Inactive.

3.5.4 Enhanced Comm Tab

Use this screen to setup communications parameters for the Enhanced Communication Module.

To access this screen:

1. Click located beside Comm Port Configuration. The screen below

displays:

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-19

Figure 3-9. Enhanced Comm Tab

Field

Description

MAC Address

This read-only field shows the MAC Address for the FloBoss 107. The Media Access Control Address

(MAC) Address is also referred to as the Ethernet address and is set at the factory

IP Address

Sets the desired IP Address for the FB107. The Internet Protocol (IP) Address will identify the device

on a TCP/IP network. The factory-set default address is 10.0.0.2.

Subnet Mask

Sets a value for the subnet mask portion of the IP address. The subnet mask indicates the subnet to which an IP address belongs. The factory-set default is 255.255.255.0.

Gateway Address

Sets the gateway address for the FB107. This value identifies the network node that serves as an entrance to the network on which the device resides. The factory-set default is 10.0.0.1.

Caution: Do not leave the Gateway Address field

blank. A blank Gateway Address field can lead to communication disruptions.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-20 Communications and Security Revised December-2017

Field

Description

IP Port Number

Sets the IP Port Number for the Modbus or ROC

Plus Protocol communications. The IP Port Number determines which port that the ROC monitors for Modbus or ROC Plus Protocol connections when communicating over a TCP/IP connection. The ROC Plus Protocol default is 4000. The Modbus default is

502. Port Numbers 1113 and 1131 are reserved. If you change the Port Number, the change takes

effect immediately. If the default value of this parameter is changed, then all Modbus or ROC Plus Protocol over TCP/IP connections will be closed, and you will have to re-establish a connection.

Inactivity Time

Sets the time, in seconds, ROCLINK 800 waits for a valid Modbus or ROC Plus protocol message before closing the connection. The default value is 3600. This timer is in addition to the security timeout. Set this field to zero (0) to disable the timer.

Active Connections

This read-only field shows the total number of active TCP/IP connections. The Ethernet port supports up to four ROC protocol or Modbus Slave connections, plus one Modbus Master connection.

Address to Use

Indicates the protocol address to use. Valid values are Device Address, Slave Address, or Either

Device or Slave Address (default).

Slave Address

Indicates, a specific address if you have chosen Slave Address in the Address to Use frame. The default is 0.

Reset All Connections

Click to close all active Modbus or ROC Plus

Protocol over TCP/IP connections. This button returns to an un-pressed state when connections are successfully closed.

Valid Receive Ctr

Sets the number of valid messages received by the device on this communication port. You can preset or clear this counter.

3.5.5 Network Radio Module – Network Tab

Use this tab to configure the device as a Network Access Point (NAP) or a Node and to define operational parameters for your network.

To access this screen, click the Network tab.

Figure 3-10. Network Radio Module, Network Tab

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-21

Note: The description for each field description, refer to Distributed

RTU™ Network Instruction Manual (part D301727X012), Section

3.1.1 – Module Information: FB107, Network Tab for details.

3.5.6 Network Radio Module – Advanced Tab

Use this screen to view additional read-only information about the network.

To access this screen, select the Advanced tab.

Figure 3-11. Network Radio Module, Advanced Tab

Note: The description for each field description, refer to Distributed

RTU™ Network Instruction Manual (part D301727X012), Section

3.1.1 – Module Information: FB107, Advanced Tab for details.

3.6 Connecting to an FB107

Once you have configured ROCLINK 800 communication parameters, you can connect to the FB107 using any one of the following methods:

▪ Direct Connect

Click the Direct Connect icon on the ROCLINK 800 tool bar to connect to the FB107.

▪ Device Directory

Double-click the device icon on the Device Directory to connect using the parameters currently set for that port.

▪ ROC > Connect

Select a comm port icon on the Device Directory and select menu options from the ROCLINK 800 menu bar.

Note: Once you are connected (on-line), ROCLINK 800 displays the

Configuration Tree screen.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-22 Communications and Security Revised December-2017

3.6.1 Direct Connect

Click the Direct Connect icon to establish a connection with a FloBoss. ROCLINK 800 attempts to establish communications through all PC comm ports PC at various baud rates. If unsuccessful, the program then attempts to establish communications through the remaining comm ports on the PC, successively, until it receives a valid reply.

By default, ROCLINK 800 tags the LOI Port as the local port (comm 1), as shown on the Comm Port screen (ROC > Comm Ports).

For the Direct Connect option to work, security conditions must be met, and the PC must be connected to the Local Operator (LOI) port of the device with communication settings of:

▪ 8 Data Bits. ▪ 1 Stop Bit. ▪ No Parity.

When you click Direct Connect, ROCLINK tries to initiate communications with the device by performing a search of the PC communication ports at various baud rates. ROCLINK then “locks on” to the first comm port and baud rate that are successful in communicating with a device.

To use Direct Connect:

2. Physically connect cable to the FloBoss.

3. Launch and log into ROCLINK 800.

4. Do one of the following:

▪ Click on the Direct Connect icon in the Device Directory. ▪ Click the Direct Connect button on the toolbar. ▪ Select ROC > Direct Connect.

5. If this is the first time that you have connected to the FloBoss, refer to

Section 6.4, Setting the Clock.

3.6.2 Local Port (LOI)

The PC running ROCLINK 800 physically connects to the device through a cable. For a local connection, this cable is typically a prefabricated local operator interface (LOI) cable (available from Remote Automation Solutions). One end of the cable (a 9-pin, D-shell, female connector) plugs into a serial communications port on the PC running ROCLINK

800. The other end of the cable plugs into the FloBoss operator interface connector called the Local Port.

Note: If your PC does not have a serial port, you may use a USB-to-

serial connector for the LOI connection.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-23

3.6.3 Connect to a FloBoss

To connect the computer to a remotely located FloBoss, a serial, dial-up modem, radio, satellite, or other communications line should be installed. This connection may be made through the LOI (Local Port) or other Communications Port on the FloBoss.

Use the Connect command to connect to a serial or dial-up modem. To use Connect:

6. Physically connect the FloBoss.

7. Launch and log in to ROCLINK 800.

8. Perform one of the following:

▪ Select a device from the Device Directory and press Enter. ▪ Double-click a device in the Device Directory. ▪ Select a device from the Device Directory and click Connect on

the toolbar.

▪ Select ROC > Connect to connect to the device currently selected

in the Device Directory.

3.6.4 Successful Logon

A successful logon produces an on-line connection and displays both a tree representing the configuration in the FB107 and the FB107 graphic. Refer to Configuration Tree Menu.

Figure 3-12. Successful Login

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-24 Communications and Security Revised December-2017

3.6.5 Disconnecting from a FloBoss

To disconnect an on-line connection, close the screen by clicking the lower of the two Close buttons ( ) located in the upper-right corner of

the device screen, select the Disconnect button ( ) located on the Toolbar, or select File > Close. This automatically closes the connection.

3.7 Troubleshooting Connection Errors

Several events can cause a connection problem: ▪ If the parameters used by ROCLINK 800 when establishing a

communications link to your PC are incorrect, a Direct Connect connection cannot be made.

▪ If ROCLINK 800 stands idle for too long and exceeds the timeout

value for a device, a communications failure can also occur. In this case, simply log back into ROCLINK 800 and use the Direct Connect or Connect features.

▪ If you do not have security access to the FloBoss, you cannot make a

connection. You must configure a valid User ID and Password (using the ROC > Security option) for each user who can connect to a FloBoss.

3.7.1 Troubleshooting ROCLINK 800 Communications

Occasionally, you may need to alter your PC communications options when you are having problems communicating with your FloBoss.

1. Select the desired device in the Device Directory. Right-mouse click

and select Properties.

2. Make sure you have specified the correct Device Address and Device

Group of the FloBoss with which you are trying to communicate. If you are communicating through the LOI port of the device, the Device Address is 240 and Group Address is 240, which is the universal address.

3. Click the Advanced tab. Try increasing the Time Out and/or Tx

Delay.

4. Click Apply. Return to the General tab, and click Connect.

5. If you are still having trouble communicating, try increasing the

Number of Retries field in the Advanced tab screen. Click Apply. Return to the General tab, and click Connect.

6. If you are still having trouble communicating, try increasing or

decreasing the Key Off Delay field in the Advanced tab screen. Click Apply. Return to the General tab, and click Connect.

7. Check the security settings of ROCLINK 800.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-25

3.8 Security

You control security in two ways: ▪ ROCLINK 800 Security – Enables who can access (log on)

ROCLINK 800 and the Access Level assigned to a user.

▪ Device Security – Enables who has access to the FB107 comm ports.

Note: Security Access Levels enable you to control which users have

access to specific ROCLINK 800 functions.

3.8.1 ROCLINK 800 Security

Use the ROCLINK 800 Security screen to set access to ROCLINK 800.

Note: Refer to Section 3.8.2, Device Security for instructions on securing

the FB107.

To access this screen, select Utilities > ROCLINK 800 Security. The ROCLINK 800 Security screen displays. Its table format enables you to define, by operator ID, password, and security level, who can log on to ROCLINK 800 and the screens which those IDs can access. You may define up to 32 different users.

Figure 3-13. ROCLINK 800 Security

Note: The default Operator ID is LOI. The default Password is 1000.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-26 Communications and Security Revised December-2017

1. Enter three alphanumeric characters for the Operator ID, which is

typically the initials of the person who operates the device. Each Operator ID must be unique and is case-sensitive.

2. Enter four numeric characters (between 0000 and 9999) to define the

operator password. More than one user can have the same password.

3. Enter the desired access level for the user. 0 is the lowest (least

inclusive) access level and allows access to the fewest number of screens. 5 is the highest (most inclusive) access level and alows access to all screens. Each access level permits access to screens at that level and any inherited from lower access levels. For example, an operator ID with Access Level 3 can access screens with levels 0, 1, 2, and 3. Refer to Security Access Levels.

Security Access

Levels

Table 3-2 lists the system screens and their system-assigned security access levels. The Menu Options focus on the activity while you use the Access Levels to increase or decrease responsibility levels within the Menu Options.

Notes:

▪ If you enable security on any port, at least one operator ID must have

the highest level of security (level 5).

▪ ROCLINK 800 rejects login requests if access levels are greater than

device security.

Table 3-2. Security Access Levels

Menu Option

Access

Level

Configure

Transaction History

View Display

New 5 24

ROC

Security

Utilities

License Key Admin 107

Utilities

License Key Administrator 800

Utilities

Custom Display Editor

Utilities

Custom EFM Report Editor

ROC Display

Administrator

Utilities

Update Firmware

Utilities

Upgrade Hardware

Utilities

User Program Administrator

File

New 3 4

File

Download

File

Save Configuration

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-27

Menu Option

Access

Level

View Display

From File

View Display

From Device

ROC

Clock

ROC

Comm Ports

ROC

Information

ROC

Flags

Configure IO

AI Points

Configure IO

AO Points

Configure IO

DI Points

Configure IO

DO Points

Configure IO

PI Points

Configure IO

TC Points

Configure IO

RTD Points

Configure IO

System AI Points

Configure IO

Soft Points

Configure IO

Extended Soft Point

Configure IO

MVS Sensor

Configure IO

HART Points

Configure IO

Setup

Configure IO

Advanced Pulse Module

Configure IO

ACIO Module

Configure IO

Virtual Discrete Output

Configure Control

FST Registers

Configure Control

PID Loop

Configure Control

Radio Power Control

Configure Control

Sampler/Odorizer

Configure Control

DS800

Configure

History Segments

Configure

HistoryPoints

Configure

Opcode Table

Configure

Modbus

Configure

Rtu Network

Configure

LCD User List

Configure User Data

UD1

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-28 Communications and Security Revised December-2017

Menu Option

Access

Level

Utilities

Convert EFM File

Utilities

AI Calibration Values

Utilities

MVS Calibration Values

Utilities

FST Editor

Utilities

Keypad Display Editor

Utilities

Read File From Device

Utilities

Options

Tools

Data Logger

View

EFM Report

View

Calibration Report

ROC

Collect Data

Meter

Setup

Meter Setup 800

Station

Meter Setup 800

Orifice meter

Meter Setup 800

Linear meter

Meter

Calibration

Meter Calibration 800

Orifice meter

Meter Calibration 800

Linear Meter

Meter

Values

Meter Values 800

Orifice meter

Meter Values 800

Linear Meter

Meter

Plate Change

Meter

History

File

open 1 6

File

Print Configuration

View History

From Device

View History

From File

View Alarms

From Device

View Alarms

From File

View Events

From Device

View Events

From File

View

I/O Monitor

ROC

Memory

View Display

Display 1

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-29

Menu Option

Access

Level

View Display

Display 2

Utilities

Communications Monitor

3.8.2 Device Security

Use the Device Security screen to control who has access to the Comm Ports on a specific device. When you enable this feature, you must log onto ROCLINK 800 to use the communications port. You can enable this feature on each communications port separately.

To access the Device Security screen, select ROC > Security. The Device Security screen displays.

Figure 3-14. Device Security

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-30 Communications and Security Revised December-2017

Field

Description

User Table

Click an operator ID in the table. The Device Security dialog box displays.

Figure 3-15. Device Security

Use this dialog box to edit the security on an existing operator ID. To add an operator ID, click on an empty cell in the table. The Device Security dialog box displays. Complete the dialog box as described below. To delete an operator ID, click a cell in that line. When the Device Security dialog box appears, click Remove. Answer Yes to the confirmation dialog box that displays. ROCLINK 800 removes the operator ID from the table.

Operator ID

Sets the three alphanumeric characters for the operator ID, which is typically the initials of the person who operates the device through that communications port. The operator ID is case-sensitive. Each operator ID must be unique.

Password

Sets the four numeric characters between 0000 and 9999 for the password. More than one operator ID can have the same password.

Confirm

Password

Validates the password you entered in the previous field.

Access Level

Sets the access permitted to this operator ID. Click  to display all options. 0 is the lowest access level and allows access to the fewest number of screens. 5 is the highest access level and permits access to all screens. Each access level permits access to screens at that level and any inherited from lower access levels. For example, the IDs with access level 3 can access screens with levels 0, 1, 2, and 3. Refer to Security Access Levels.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 Communications and Security 3-31

Field

Description

Security Timeout

Sets, in seconds, the amount of time the communication port waits for a valid message before logging you off of the device. Valid values must be between 60 and 65535. The default is 600.

Notes: ▪ You must enable security on

each communication port (Security On..) before the Security Timeout is enabled for that port.

LCD Display ON

Select Enabled to turn the LCD Display Always ON and leave it active, or select Disabled to allow the LCD Display to time out and turn itself off. If Enabled, the LCD remains on until the next user logs on who has the LCD Disabled.

User List 1 to User List 4

Sets the user's access to LCD User Lists 1, 2, 3, and 4 when logging on to the FloBoss 107 through the LCD Touchpad. Valid values are Disabled, View Only, and View+Edit.

Standard Lists

Sets the user's access to the standard options when logging on to the FloBoss 107 through the LCD Touchpad. Valid values are Disabled, View Only, and View+Edit.

Security On…

Enables security for each comm port. Valid values are:

Disabled

Accepts all login requests. This is the default.

User ID Enabled:

Accepts login requests if the user (operator) ID and password are valid. On successful login, full access is allowed (access level 5).

User Access Level Enabled

Accepts login requests if the user (operator) ID and password are valid. Upon successful login, the user is restricted by access level. Refer to Security Access Levels.

When you are finished, click Apply and then click OK to exit the screen.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

3-32 Communications and Security Revised December-2017

[This page is intentionally left blank.]

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 File Menu 4-1

Chapter 4 – The File Menu

In This Chapter

4.1 New Configuration ................................................................................... 4-2

4.1.1 Configuration Checklist .............................................................. 4-2

4.1.2 Duplicating a Configuration ........................................................ 4-2

4.1.3 Creating a New Configuration File ............................................. 4-3

4.2 Opening a Configuration File ................................................................... 4-6

4.2.1 Configuration Tree Menu ............................................................ 4-7

4.2.2 Modifying an Existing Configuration File .................................... 4-9

4.3 Downloading a Configuration .................................................................. 4-9

4.4 Saving a ROC User File ........................................................................ 4-10

4.5 Saving a Configuration .......................................................................... 4-11

4.5.1 Print Configuration .................................................................... 4-11

4.6 Print ....................................................................................................... 4-12

4.7 Print Setup ............................................................................................. 4-12

4.8 Recent Files ........................................................................................... 4-13

4.9 Close ..................................................................................................... 4-13

4.10 Exit ......................................................................................................... 4-13

Use the File menu options to print, open, close, and save configuration files.

Figure 4-1. File Menu

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

4-2 File Menu Revised December-2017

4.1 New Configuration

You configure a FloBoss either by modifying an existing configuration file or by starting a new configuration file.

The full configuration procedure involves using the menu functions or Configuration Tree Menu to access the configuration screens. Some of the configuration screens may not be required for your application or may not be available for your type of FloBoss.

The following checklists present the order of configuration in a typical application. Omit configuration screens for modules and accessories that do not appear in your hardware configuration and for control elements (PID, FST, and such) that do not apply to your application.

4.1.1 Configuration Checklist

For a FloBoss 107:

▪ ROC menu > ROCLINK 800 Security (logon) ▪ Device Directory > Comm Port > Properties (PC communication

configurations)

▪ ROC menu > Security (User List and Comm Port Security) ▪ ROC menu > Clock ▪ ROC menu > Information (system variables) ▪ ROC menu > Comm Ports (FloBoss communication configurations) ▪ Configure menu > I/O menu > AI, AO, DI, DO, MVS, DVS, PIM,

and PI

▪ Meter menu > Setup ▪ Configure menu > Control menu > PID Loop ▪ Configure menu > Control menu > FST Registers ▪ Configure menu > History Points ▪ Utilities menu > FST Editor ▪ View menu > Display > New or from File (for custom PC displays) ▪ ROC menu > Flags (for saving and system variables to Flash

memory)

4.1.2 Duplicating a Configuration

You can duplicate the configuration for another FloBoss by using these menu functions in the following order:

1. File > Save Configuration to save a device’s configuration to a

specified file.

2. ROC > Direct Connect (Local Port) or Connect (modem) to connect

physically to the second unit, and then communicate.

3. File > Download loads the configuration into the unit.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 File Menu 4-3

After you have loaded configuration data into the second FloBoss (Step

3) and changed it as needed, you can save the configuration to its own disk file by using Step 1.

4.1.3 Creating a New Configuration File

The New Configuration File screen allows you to create a configuration file off-line with the basic information about the meters and modules that will be installed on the FloBoss for which the new configuration was created.

1. Select File > New. The New Configuration File screen displays.

Figure 4-2. New File Configuration

2. Select FB107 from the File Type frame. The lower portion of the

New File Configuration screen changes to reflect the FB107.

Note: As you define the modules and place them in slots on the FB107,

additional fields appear on the New Configuration File. Figure 43 shows a sample completed configuration

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

4-4 File Menu Revised December-2017

Figure 4-3. New File Configuration (completed)

3. Review and complete the following fields:

Field

Description

File Type

Associates the file type with a specific device. Select FB107 to build an off-line configuration file for the FB107.

Control Configuration

Indicates the number of PID loops, FSTs, and Meter Runs (AGAs) for the configuration.

Note: Activate only the necessary number of

devices for your device.

History Sizing

Selects the maximum number of history points in Standard and Extended History (History Sizing).

Caution: Select this value carefully: you cannot later

add History Points without first clearing current history present in the unit.

▪ Standard History archives up to 100 points of

minimum/maximum (min/max), minute, hourly, and daily values. The min/max values are from today and yesterday; the minute values are from the last 60 minutes; hourly values are from the last 35 days; and daily values are from the last 35 or 60 days.

▪ Extended History can be configured to archive

up to 25 points of user-selectable values, from 1 second to 60 minute periods. Extended History archiving provides a monitoring resolution for the FloBoss that is similar to a chart recorder or data logger.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 File Menu 4-5

Field

Description

Modules

Indicates the type and number of modules you can install in the FB107.: Click  to display valid choices.

▪ On-Board No I/O – CPU does not have an I/O

assembly installed. Available only for slot 0.

▪ On-Board 6-Pt I/O – CPU has an I/O assembly

installed. Available only for slot 0.

▪ None – No module is installed in the slot. ▪ RS-232 – Slot has an RS-232 communications

module installed. Available only for slot 1 or 2.

▪ RS-485 – Slot has an RS-485 communications

module installed. Available only for slot 1 or 2.

▪ MVS – Slot has an MVS module installed. ▪ Aux 6-Pt I/O – Slot has an I/O module installed.

Note: FB107 modules are slot-specific. As you

define the type and location of modules, ROCLINK 800 displays only those modules available for installation in any slot. .

I/O Configuration

Sets the configuration of I/O points for either a 6 point CPU I/O assembly (On-Board 6 Point IO) or I/O module (Auxiliary 6 Point IO).

Note: This option displays only if you select the I/O

module.

250 Ohm Resistor Installed

Sets, for analog inputs, whether the module supports 4–20 mA or 0–5 V dc.

Valid values are Yes (250 ohm resistor is installed and input uses 4–20 mA current) or No (250 ohn resistor is not installed and input uses 0–5 V dc current). The default is Yes.

Integral Sensor

Displays the type of Integral Sensor installed in the new configuration. Valid values are None, a Dual-

Variable Sensor (DVS), or Pulse Input Module (PIM).

4. Once you have completed the configuration, click Start. The Save As

dialog box displays.

5. Enter a file name for the configuration file. Configuration files for

ROCLINK 800 use the extension .800.

6. Click Save. ROCLINK 800 saves the new configuration file, and

displays the following dialog.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

4-6 File Menu Revised December-2017

7. Click No to save the new configuration file and return to the New

Configuration File screen.

4.2 Opening a Configuration File

Use the Open option to open a configuration file stored on a PC’s hard

drive. Once you open the configuration file, it automatically becomes the active configuration file and you may edit the file offline. You can also load the configuration file into the device using the Download function.

To open a configuration file:

1. Start ROCLINK 800.

2. Select File > Open. The Open dialog box displays.

3. Select a configuration file name and click Open.The configuration

file displays.

Notes:

▪ ROCLINK 800 files have the .800 extension. ▪ If you receive an error when opening a configuration file, ensure

that your PC’s Regional Settings are configured correctly. Refer to Installing ROCKLINK 800 under Microsoft 10, 8 or Windows 7 (located in Chapter 1).

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 File Menu 4-7

Figure 4-4. Open File Configuration

4.2.1 Configuration Tree Menu

When you open a configuration file, the Configuration Tree appears on the left-hand side of the screen. The tree hierarchically displays the parts of a configuration (such as I/O, Meter Runs, and History) that you can change.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

4-8 File Menu Revised December-2017

Figure 4-5. Configuration Tree Menu

Option

Description

I/O

Lists all available inputs and outputs by type.

Control

Displays the FST, Radio Control, Sampler/Odorizer, DS800, and PID options enabled on the ROC >

Information screen.

Meter

Lists all available gas meters and all stations.

System

Displays Comm Port, Device Flags, and Opcode Table information.

History

Displays all available History Segments and History Points.

User Program

Displays all user programs.

User Display

Accesses custom displays stored in the configuration file. The file can store a maximum of 246 displays (both custom user displays and user program displays).

Double-click the desired function in the Configuration Tree to display the associated screen. Double-clicking an icon is the same as selecting the option in the menu bar or clicking a Toolbar button.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 File Menu 4-9

4.2.2 Modifying an Existing Configuration File

You can make modifications to an existing configuration file offline. This allows you to share configuration files between multiple devices and customize each configuration file to account for device differences.

To modify an existing configuration file:

1. Start ROCLINK 800.

2. Select File > Open. The Open dialog box displays.

3. Select a configuration file name and click Open. The configuration

file displays.

Note: ROCLINK 800 files have the .800 extension.

Figure 4-6. Modifying Configuration File

4.3 Downloading a Configuration

Use the Download option to download a saved configuration to a FloBoss device. You create configuration files using File > New Configuration. To download a saved configuration file:

1. Connect to the FloBoss.

2. Select File > Download. The Select File to Download dialog box

displays.

3. Select the configuration file name. ROCLINK 800 files have the

extension .800.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

4-10 File Menu Revised December-2017

4. Click Open. The Download Configuration screen displays.

Figure 4-7. Download Configuration

5. Select only the Configuration Points you desire to download.

ROCLINK 800 grays out any items not configured in your configuration.

Note: Once you select a point, ROCLINK 800 activates the

Download button.

6. Click Download. ROCLINK 800 begins to download the

configuration points you have chosen, and displays the status, point type, and point number information as the download progresses.

7. Click OK when the download completes.

8. Select ROC > Flags and click the Save Configuration for Flash

Memory button.

4.4 Saving a ROC User File

In addition to keeping backup copies of the configuration file, it is also good practice to keep a backup copy of the ROC_USER.mdb file. This file contains the communications, security, and password settings for the FloBoss.

To create a backup copy of the file:

1. Open Windows Explorer and navigate to the folder where ROCLINK

800 software is located. Typically, this folder is C:\Program Files\ROCLINK800.

2. Create a copy of the ROC_USER.mdb file.

3. Paste the copy into another folder on the PC or a disk.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

Revised December-2017 File Menu 4-11

4.5 Saving a Configuration

The Save option saves the current configuration of a connected device to a disk file. This feature is useful when creating a backup, when configuring similar FloBoss units for the first time, or when making configuration changes off-line. Once a backup configuration file is created, it can be loaded into a device using File > Download.

1. Select File > Save Configuration. The Save As dialog box appears.

2. Type the desired File name of the backup file.

3. Click Save.

ROCLINK 800 configuration files have the extension .800.

4.5.1 Print Configuration

Use the Print Configuration option to specify the point types that you desire to print.

1. Select File > Print Configuration. The Print Configuration Setup

screen displays.

Figure 4-8. Print Configuration

2. Select the specific Point Types to print.

Note: Click Select All or Deselect All to select multiple point types,

point numbers, or parameters. Use your mouse to select/deselect individual point types, point numbers, or parameters.

3. Select the Point Numbers to print.

4. Select the Parameters to print.

ROCLINK 800 Configuration Software User Manual (for FloBoss 107)

4-12 File Menu Revised December-2017

Note: Click the Certified Print button to automatically print all

point types, point numbers, and parameters in the device. This option does not allow you to deselect any point types, point numbers, or parameters.

5. Click OK. ROCKLINK 800 reads the configuration from the device

and displays the Print Preview screen.

Figure 4-9. Print Preview-Certified Print

6. Use screen option buttons (located on the toolbar) to either directly

print the preview or export it (with a file name you specify) to your PC’s hard drive in one of the following formats:

▪ PDF to create a .pdf (Portable Document File). ▪ Excel to create an .xls spreadsheet file. ▪ RTF to create an .rtf (Rich Text Format) file. ▪ TXT to create a .txt text file. ▪ HTML to create an .htm Internet browser file.

4.6 Print

Click Print or select Print from the File menu to print ROCLINK 800generated historical, event, and alarm log reports.

4.7 Print Setup

Use Print Setup to change the default printer for ROCLINK 800 information.

To change printers:

Remote Automation Solutions ROCLINK 800 Configuration Software User Manual (for FloBoss 107) Manuals & Guides

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Chapter 1 – Introduction

1.1 ROCLINK 800 Software Description

1.2 Computer Requirements

1.3 Contacting Technical Support

1.4 Software Installation
