Reference Guide

D5092 11-Dec-2007

Settings Edito

Bristol OpenEnterprise Reference Guide

Settings Editor

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 2

Settings Edito

Contents

1 Settings Editor ......................................................................................................................... 7

1.1 Command line options ........................................................................................................ 7

1.2 Warning............................................................................................................................... 8

1.2.1 Do not show this message again ................................................................................. 8

1.3 Main Interface ..................................................................................................................... 9

1.3.1 File ................................................................................................................................ 9

1.3.1.1 Import ................................................................................................................... 10

1.3.1.2 Export ................................................................................................................... 10

1.3.1.2.1 All Keys........................................................................................................... 10

1.3.1.2.2 Selected Keys................................................................................................. 11

1.3.1.2.3 Selected Values.............................................................................................. 11

1.3.1.3 Log File Viewer .................................................................................................... 12

1.3.1.4 Restore Points...................................................................................................... 12

1.3.1.5 Properties ............................................................................................................. 12

1.3.2 Edit.............................................................................................................................. 12

1.3.2.1 New ...................................................................................................................... 12

1.3.2.2 Modify................................................................................................................... 12

1.3.2.3 Rename................................................................................................................ 13

1.3.2.4 Delete ................................................................................................................... 13

1.3.2.4.1 Delete Key Verification ................................................................................... 13

1.3.2.4.2 Delete Value Verification ................................................................................ 13

1.3.2.5 Undo..................................................................................................................... 14

1.3.3 Application Keys .........................................................................................................14

1.3.3.1 Keys Context Menu .............................................................................................. 15

1.3.3.1.1 New................................................................................................................. 15

1.3.3.1.2 Rename .......................................................................................................... 15

1.3.3.1.3 Delete ............................................................................................................. 15

1.3.3.1.4 Copy ............................................................................................................... 15

1.3.3.1.5 Paste............................................................................................................... 16

1.3.3.1.6 Export ............................................................................................................. 16

1.3.4 Key Values.................................................................................................................. 16

1.3.4.1 Value Name ......................................................................................................... 17

1.3.4.2 Value Data ........................................................................................................... 17

1.3.4.3 Values Context Menu........................................................................................... 18

1.3.4.3.1 New................................................................................................................. 18

1.3.4.3.2 Modify ............................................................................................................. 18

1.3.4.3.3 Delete ............................................................................................................. 18

1.3.4.3.4 Rename .......................................................................................................... 19

1.3.4.3.5 Copy ............................................................................................................... 19

1.3.4.3.6 Paste............................................................................................................... 19

1.3.4.3.7 Export ............................................................................................................. 20

1.4 New Key ............................................................................................................................ 20

1.4.1 Key Name ................................................................................................................... 20

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 3

New Value ......................................................................................................................... 21

1.5

1.5.1 Value Name ................................................................................................................ 21

1.5.2 Value Data .................................................................................................................. 21

1.6 Rename Key ..................................................................................................................... 22

1.6.1 Key Name ................................................................................................................... 22

1.7 Rename Value .................................................................................................................. 22

1.7.1 Value Name ................................................................................................................ 23

1.7.2 Value Data .................................................................................................................. 23

1.8 Modify Value ..................................................................................................................... 23

1.8.1 Value Name ................................................................................................................ 24

1.8.2 Value Data .................................................................................................................. 24

1.9 Log File Viewer .................................................................................................................25

1.9.1 Menu........................................................................................................................... 25

1.9.1.1 File........................................................................................................................ 25

1.9.1.1.1 Previous and Next File.................................................................................... 25

1.9.1.1.1.1 File Menu.................................................................................................. 25

1.9.1.1.1.2 Toolbar .....................................................................................................26

1.9.1.2 Edit .......................................................................................................................26

1.9.1.2.1 Select All......................................................................................................... 26

1.9.1.2.2 Copy ............................................................................................................... 26

1.9.1.3 View ..................................................................................................................... 26

1.9.1.3.1 Refresh View .................................................................................................. 26

1.9.1.3.1.1 Toolbar button .......................................................................................... 26

1.9.1.3.2 Order by Most Recent First ............................................................................ 26

1.9.1.3.2.1 Toolbar button .......................................................................................... 27

1.9.1.3.3 Order by Most Recent Last............................................................................. 27

1.9.1.3.3.1 Toolbar button .......................................................................................... 27

1.9.1.3.4 Show All Events.............................................................................................. 27

1.9.1.3.4.1 Toolbar button .......................................................................................... 27

1.9.1.4 Tools .................................................................................................................... 27

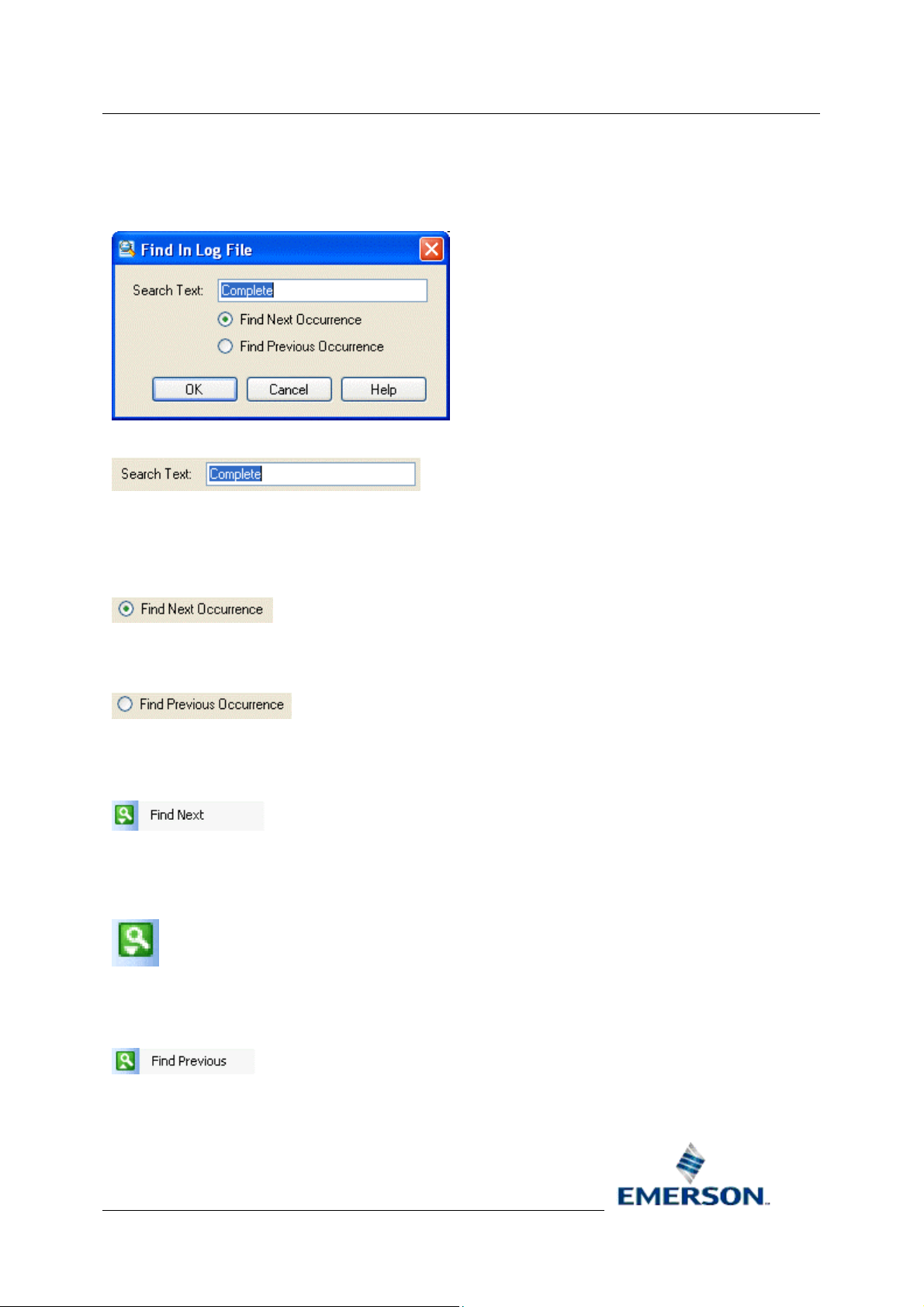

1.9.1.4.1 Find................................................................................................................. 28

1.9.1.4.1.1 Search Text .............................................................................................. 28

1.9.1.4.1.2 Find Next Occurrence .............................................................................. 28

1.9.1.4.1.3 Find Previous Occurrence........................................................................ 28

1.9.1.4.2 Find Next ........................................................................................................ 28

1.9.1.4.2.1 Toolbar button .......................................................................................... 28

1.9.1.4.3 Find Previous.................................................................................................. 28

1.9.1.4.3.1 Toolbar button .......................................................................................... 29

1.9.2 Toolbar........................................................................................................................ 29

1.9.2.1 Log File ................................................................................................................ 29

1.9.2.2 Previous and Next File ......................................................................................... 29

1.9.2.2.1 File Menu ........................................................................................................ 29

1.9.2.2.2 Toolbar............................................................................................................ 29

1.9.2.3 Refresh View........................................................................................................ 29

1.9.2.3.1 Toolbar button................................................................................................. 30

1.9.2.4 Order by Most Recent First .................................................................................. 30

Settings Edito

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 4

Settings Edito

1.9.2.4.1

1.9.2.5 Order by Most Recent Last .................................................................................. 30

1.9.2.5.1 Toolbar button................................................................................................. 30

1.9.2.6 Show All Events ................................................................................................... 30

1.9.2.6.1 Toolbar button................................................................................................. 30

1.9.2.7 Find Text .............................................................................................................. 31

1.9.2.8 Find Next .............................................................................................................. 31

1.9.2.8.1 Toolbar button................................................................................................. 31

1.9.2.9 Find Previous ....................................................................................................... 31

1.9.2.9.1 Toolbar button................................................................................................. 31

1.9.2.10 Help Button ......................................................................................................... 31

1.9.3 Actions List ................................................................................................................. 31

1.10 Restore Point Properties................................................................................................ 32

1.10.1 Restore Point List .................................................................................................... 32

1.10.2 Create a restore point before restoring ................................................................... 33

1.10.3 Create...................................................................................................................... 33

1.10.4 Restore.................................................................................................................... 33

1.10.5 Delete ...................................................................................................................... 33

1.10.6 Restore Point Properties ......................................................................................... 33

1.10.6.1 Creation Date...................................................................................................... 33

1.10.6.2 Description .......................................................................................................... 34

1.10.6.3 Restore Point Deletable...................................................................................... 34

1.11 Settings Editor Properties .............................................................................................. 34

1.11.1 Settings File............................................................................................................. 35

1.11.2 Current Log File ...................................................................................................... 35

1.11.3 New Log File each Day ........................................................................................... 35

1.11.4 Keep for Days.......................................................................................................... 35

1.11.5 Single Log File......................................................................................................... 35

1.11.6 Maximum Size......................................................................................................... 35

1.11.7 Keep Restore Points for days ................................................................................. 35

1.11.8 Automatic Restore Point Interval............................................................................. 35

Toolbar button................................................................................................. 30

2 Key Settings ........................................................................................................................... 36

2.1 OpenEnterprise Key.......................................................................................................... 36

2.2 DataServices Key.............................................................................................................. 37

2.3 Directories Key.................................................................................................................. 37

2.4 ProductInformation Key..................................................................................................... 38

2.5 Sessions Key ....................................................................................................................38

2.5.1 Configured Sessions Keys ......................................................................................... 39

2.5.1.1 Fault Tolerance Key ............................................................................................. 40

2.5.1.1.1 Arbitrator Key.................................................................................................. 41

2.5.1.1.2 DataLink Key .................................................................................................. 42

2.5.1.1.3 DiskSpace Key ............................................................................................... 42

2.5.1.1.4 TBar Key......................................................................................................... 42

2.5.1.2 Persistence Key ................................................................................................... 42

2.5.1.3 Software Watchdog Key ...................................................................................... 43

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 5

Settings Edito

2.5.1.4

2.6 Tasks Key ......................................................................................................................... 46

2.6.1 Connection Overrides ................................................................................................. 46

2.6.2 Alarm Client Server Key ............................................................................................. 46

2.6.2.1 Connection Overrides Key ................................................................................... 47

2.6.3 Alarm Printer Key ....................................................................................................... 49

2.6.4 Alarm Printer Server Key............................................................................................ 49

2.6.5 Bristol HDA Server Key .............................................................................................. 50

2.6.6 Bristol OPC Server Key .............................................................................................. 51

2.6.7 BSI Commstats Import Key ........................................................................................ 54

2.6.8 COMServer Key ......................................................................................................... 55

2.6.9 Database Explorer Key............................................................................................... 55

2.6.9.1 Settings Key ......................................................................................................... 55

2.6.9.2 SYSTEM Key ....................................................................................................... 55

2.6.9.3 Users Key............................................................................................................. 58

2.6.10 Database Upgrade Key ........................................................................................... 59

2.6.11 DBB Key.................................................................................................................. 59

2.6.12 Event Viewer Key .................................................................................................... 60

2.6.12.1 Edit Permissions Key .......................................................................................... 60

2.6.13 Help Key.................................................................................................................. 61

2.6.14 Login Client Key ......................................................................................................61

2.6.15 Mail Server Key....................................................................................................... 61

2.6.16 Monitor Key ............................................................................................................. 61

2.6.17 Notes Client Server Key.......................................................................................... 62

2.6.18 OEArchive File Manager Key.................................................................................. 63

2.6.19 OEBFill Key ............................................................................................................. 63

2.6.20 OEExcel Plugin Key ................................................................................................ 64

2.6.21 OEScheduler Key.................................................................................................... 65

2.6.22 OESecurity Manager Key........................................................................................ 65

2.6.23 OEServer Security Manager Key ............................................................................ 65

2.6.24 OEToolbox Key ....................................................................................................... 66

2.6.24.1 Databases Key.................................................................................................... 68

2.6.24.2 Editors Key.......................................................................................................... 69

2.6.24.3 Alarm Conditions Key ......................................................................................... 69

2.6.24.4 Alarm Priorities Key ............................................................................................ 69

2.6.24.5 Archive File Access Key ..................................................................................... 70

2.6.24.6 Calculations Key ................................................................................................. 70

2.6.24.7 Config Generic Table Key................................................................................... 71

2.6.24.8 Diaries Key.......................................................................................................... 71

2.6.24.9 Historical Config Key .......................................................................................... 72

2.6.24.10 Messaging Key .................................................................................................72

2.6.24.11 Monitor Key....................................................................................................... 73

2.6.24.12 NW3000 Advanced Key.................................................................................... 73

2.6.24.13 NW3000 Archives Key ...................................................................................... 74

2.6.24.14 NW3000 Config Key ......................................................................................... 75

Session Tasks Key............................................................................................... 43

2.5.1.4.1 Session Task Key ........................................................................................... 43

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 6

Settings Edito

2.6.24.15

2.6.24.16 NW3000 Template Builder Key ........................................................................ 76

2.6.24.17 Object Unlock Key ............................................................................................ 76

2.6.24.18 OPC Client RDI Key ......................................................................................... 77

2.6.24.19 Patterns Key ..................................................................................................... 77

2.6.24.20 Reporting Key ................................................................................................... 77

2.6.24.21 Security Configuration Key ............................................................................... 79

2.6.24.22 Security Group Privileges Key .......................................................................... 80

2.6.24.23 Suppression Groups Key .................................................................................. 80

2.6.24.24 OEHistorical Config Key ................................................................................... 80

2.6.25 Paging Config Key .................................................................................................. 80

2.6.26 Paging Server Key .................................................................................................. 81

2.6.27 RDI3000 Key ........................................................................................................... 85

2.6.28 Report Scheduler Key ............................................................................................. 89

2.6.29 Session Manager Key ............................................................................................. 89

2.6.30 Settings Key ............................................................................................................ 90

2.6.30.1 Restore Points Key ............................................................................................. 91

2.6.31 Settings Editor Key.................................................................................................. 91

2.6.32 TimeServer Key....................................................................................................... 92

2.6.33 TPB Key ..................................................................................................................92

2.6.34 Window Manager Key ............................................................................................. 93

2.6.34.1 Child Applications Key ........................................................................................ 93

2.6.34.1.1 Alarm Banner Control Key............................................................................ 94

2.6.34.1.2 Alarm Client Control Key .............................................................................. 94

2.6.34.1.3 Alarm Printer Control Key ............................................................................. 94

2.6.34.1.4 Notes Control Key......................................................................................... 95

2.6.34.1.5 Report Selector Control Key ......................................................................... 95

2.6.34.1.6 Signal View Control Key ............................................................................... 96

2.6.34.1.7 SQL Viewer Control Key............................................................................... 97

2.6.34.1.8 Trend Client Control Key .............................................................................. 97

2.6.34.1.9 Web Client Control Key ................................................................................ 97

2.6.34.2 Commands Key .................................................................................................. 98

2.6.34.2.1 OECmdDBUpdate Key ................................................................................. 98

2.6.34.2.2 OECmdLaunchApp Key ............................................................................... 98

2.6.34.2.3 OECmdLoadFile Key .................................................................................... 98

2.6.34.2.4 OECmdLoadParamFile Key ......................................................................... 99

2.6.34.2.5 OECmdLoadTagListFile ............................................................................... 99

2.6.34.3 OE Control Displays Key .................................................................................... 99

NW3000 Signal Builder Key ............................................................................. 75

3 Index ..................................................................................................................................... 100

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 7

Settings Edito

1 Settings Editor

Settings Editor is a tool for viewing, editing and managing the OpenEnterprise Settings file. The settings are displayed in a two pane key and values window. The OpenEnterprise settings file is a text based INI file. This is found in the designated Application Data directory.

Typically, in a WindowsXP installation, this would be 'C:\Documents and Settings\All Users\Application Data\Bristol\OpenEnterprise\Application Data'. In Vista, this directory would be 'C:\ProgramData\Bristol\OpenEnteprise\Application Data.

Although Settings Editor enables you to inspect and modify OpenEnterprise settings, normally you do not need to do so, and making incorrect changes can break your system. An advanced user who is prepared and able to edit, save and restore the settings file can safely use Settings Editor for such tasks as creating allowed non-default keys and values (such as the Connection Overrides key

We strongly recommend that you use each OpenEnterprise component to modify its own settings e.g. use the Session Manager to create or modify new sessions and tasks, rather than attempt to edit the settings directly in the Settings Editor.

1.1 Command line options

The Settings Editor can be launched with the following command line options.

Option

/r /i /sv

/ck /dk /dv

Set the path to an alternative Settings File. This can be used for examining configuration files other than the current default OpenEnterprise configuration file.

Show command line help. The Settings Editor Help file will open with this topic displayed.

Import settings from the registry. Import Settings from a file. Specify the file after the /i option. Set a value in the Settings File. Specify the key path using /k, the value name

using /v and the value data using /d. Create a key in the Settings file. Path is specified using /k. Delete a key from the Settings File. Path is specified using /k. Delete a value from the Settings File. Specify the key path using /k and the

value name using /v.

Explanation

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 8

Settings Edito

/no /nd /k /v /d /s

/p /da /x

/wf /sf /rs <file>

Do not allow use of the /sv option to overwrite an existing value. Suppress writing of the default value when creating a new key. Specify a key path for /dv, /dk, /ck, /sv, /x options. Specify a value name for /sv, /dv options. Specify value data for the /sv option. Create a Restore Point. The description of the Restore Point is specified after

the /s option. Indicate that a Restore Point created with /s is to be permanent. Delete the Settings File. Export a key from the Settings File. Specify the key path using /k. Specify the

file path after the /x option. Create standard folders applicable to a workstation installation. Create standard folders applicable to a server installation. Run a script file (a text file containing command line options which will be

executed in order).

1.2 Warning

When the Settings Editor is started, by default it will display this warning. This is because it is an advanced administration tool only. An inexperienced user could render the OpenEnterprise application unusable.

It is strongly recommended that users should alter settings through the OpenEnterprise component's own interface. There is a checkbox to prevent the dialog from being shown again.

1.2.1 Do not show this message again

Check this box if you do not want it to appear again when the Settings Editor is started.

To enable the warning dialog again, set the data of the DoNotShowWarning value on the Settings Editor key to 0 (zero).

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 9

Settings Edito

1.3 Main Interface

The main interface of the Settings Editor displays OpenEnterprise application keys in the left pane as folders. Any values that apply to the selected key are shown in the right pane.

1.3.1 File

The File menu allows the user to import and export keys or key values, see the log file viewer, configure restore points and view Settings Editor properties.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 10

1.3.1.1 Import

The 'Choose file for Import' dialog enables the user to select a previously saved .INI file for import into the Settings Editor.

Settings Edito

1.3.1.2 Export

The Export menu enables the user to export All Keys or selected Keys or values to a .INI file. This is a way of saving the current OpenEnterprise setup. Exported files can be imported later using the Import menu.

1.3.1.2.1 All Keys

If the 'All Keys' option is selected, the 'Choose Export File' dialog will open. The default output folder is displayed.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 11

Settings Edito

The default file name of 'OpenEnterprise.ini' will be placed in the 'File name' field. If this file name is left unchanged, the original file will be overwritten .

The file name can be changed, but bear in mind that when the Settings Editor is opened, by default it uses the 'OpenEnterprise.ini' file, which it finds in the output directory to display OpenEnterprise settings. Also all individual OpenEnterprise components will access this file to determine and write its settings. The Settings Editor can be made to use another configuration file when it starts by using the /f command line argument when starting the Settings Editor.

1.3.1.2.2 Selected Keys

The Settings Editor will export the selected key and all its sub-keys to a configuration file (with a .ini extension). All key values will also be exported to the file.

The 'Choose Export File' dialog will open with the default output folder displayed. A suggested filename will be placed in the 'File name' field, based on the name of the currently selected key. This name can be changed if required.

1.3.1.2.3 Selected Values

The Settings Editor will export the currently selected value or values to a configuration file (with a .ini extension).

The 'Choose Export File' dialog will open with the default output folder displayed. A suggested filename will be placed in the 'File name' field, based on the name of the key to which the currently selected value or values belong. This name can be changed if required.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 12

1.3.1.3 Log File Viewer

This option opens the Log File Viewer dialog.

1.3.1.4 Restore Points

This option opens the Restore Points dialog.

1.3.1.5 Properties

This option opens the Properties dialog.

Settings Edito

1.3.2 Edit

The Edit menu enables users to create, modify or delete keys and values.

1.3.2.1 New

A sub menu opens, which enables the user to add a new key or value.

1.3.2.2 Modify

This option opens the Modify Value dialog.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 13

When accessed from the Edit Menu, it is only enabled if the user has currently selected a value in the right pane of the main interface.

1.3.2.3 Rename

A sub menu opens, which enables the user to rename a key or value.

1.3.2.4 Delete

A sub menu opens, which enables the user to delete a key or value. The currently selected key or value will be deleted.

Settings Edito

1.3.2.4.1 Delete Key Verification

Before the deletion of a key, the following dialog will be displayed. Select Yes to continue with the deletion, or No to abort the deletion.

1.3.2.4.2 Delete Value Verification

Before the deletion of a value, the following dialog will be displayed. Select Yes to continue with the deletion, or No to abort the deletion.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 14

1.3.2.5 Undo

Undoes the last action taken, whether it was to add, modify or delete an object. When an action is taken, a description of the action will be written to the menu option to aid the user in identifying the action that was taken.

If the action is undone, a description of the previous action is written to the Undo menu option.

Settings Edito

All edits that occurred during the current session can be undone one at a time. When the first action that occurred during the session is undone, the Undo menu is disabled until a new action is undertaken.

1.3.3 Application Keys

The left pane displays the application keys as nodes of a tree.

For a full explanation of the settings that can be applied on each key, see the 'Key Settings

There is a context menu the user to create a new key or modify the selected key, or delete the key.

that appears when any of the keys in the left pane are selected. This enables

' page.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 15

1.3.3.1 Keys Context Menu

When the user selects a key and right clicks, this context menu becomes available. It enables the user to perform operations on the keys in that pane.

1.3.3.1.1 New

Settings Edito

This option opens the New Key dialog.

1.3.3.1.2 Rename

This option opens the Rename Key dialog.

1.3.3.1.3 Delete

Deletes the currently selected value. Before the deletion, the user is asked to verify the deletion with this dialog.

Selecting Yes will continue the deletion, No will abort the deletion.

1.3.3.1.4 Copy

Copies the currently selected value to the Windows clipboard.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 16

1.3.3.1.5 Paste

Pastes a copied value into the right pane. A value that is copied into the same key will be renamed to 'Copy of <value name>'.

1.3.3.1.6 Export

This option on the Key context menu enables the user to save the selected key to the Application Data directory.

Settings Edito

1.3.4 Key Values

When a key is selected from the left pane, the values that are configured for that key are displayed in this pane.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 17

All values have a value name and value data component. Possible value names for each key are set by OpenEnterprise. A new value created must have a name that matches the values available for the currently selected key.

The value data can be changed by OpenEnterprise components or by the Settings Editor.

To create, modify or delete a value, select a value on this pane and right click. The context menu provides options to do these things.

Settings Edito

or a full explanation of the settings that can be applied on each key, see the 'Key Settings

1.3.4.1 Value Name

Each key has a number of associated 'values' that are used to configure the OpenEnterprise component represented by the key. Each value has a name and data component.

Most of the keys have values that are created by OpenEnterprise at installation, and default data is used. Other keys may have values that are not created at installation time, but must be inserted into the key by a user.

When creating a new value or renaming an existing one, the dialog displays an editable field into which the user must type the name of the value.

When creating new values, it should be remembered that value names are set strings that are recognized by OpenEnterprise as being associated with a customizable setting. Value names must therefore coincide with the setting values that are recognized internally. Review the 'Key Settings' page for the selected key before adding a new value.

However, when modifying an existing value, the Name field is not editable, because modification of a value only applies to its data component.

' page.

1.3.4.2 Value Data

Value data is a string that provides OpenEnterprise with information about how the component represented by the key is to be configured. The value data string can also represent a number. OpenEnterprise decides the data type that is meant.

Certain default data will be used on installation, but value data can be changed using the Settings Editor.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 18

When creating a new value, the dialog displays an editable data field into which the user must type the data. The user must be aware of feasible data for the value selected. Before entering data for a value, the user should review the possible values and expected data for the selected key in the Key Settings section of this document help file.

When renaming an existing value, the data field is not editable.

1.3.4.3 Values Context Menu

When the user selects a value and right clicks, this context menu becomes available. It enables the user to perform operations on the values in that pane.

Settings Edito

1.3.4.3.1 New

This option opens the New Value dialog.

1.3.4.3.2 Modify

This option opens the Modify Value dialog.

When accessed from the Edit Menu, it is only enabled if the user has currently selected a value in the right pane of the main interface.

1.3.4.3.3 Delete

Deletes the currently selected value. Before the deletion, the user is asked to verify the deletion with this dialog.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 19

Selecting Yes will continue the deletion, No will abort the deletion.

1.3.4.3.4 Rename

This option opens the Rename Value dialog.

1.3.4.3.5 Copy

Copies the currently selected value to the Windows clipboard.

Settings Edito

1.3.4.3.6 Paste

Pastes a copied value into the right pane. A value that is copied into the same key will be renamed to 'Copy of <value name>'.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 20

1.3.4.3.7 Export

Settings Edito

1.4 New Key

Enables the user to create a new key.

1.4.1 Key Name

Type the key name into this field. See the 'Key Settings' section of this document for information on keys that can be created by the user.

Most keys are created by OpenEnterprise at installation time. The number of keys that can be created by a user after installation are limited. For instance, a typical key that can be created by an administrative user would be the 'ConnectionOverrides' key. This can become a sub-key of any OpenEnterprise Task key.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 21

Settings Edito

1.5 New Value

Enables the user to create a new value on the currently selected key.

1.5.1 Value Name

Each key has a number of associated 'values' that are used to configure the OpenEnterprise component represented by the key. Each value has a name and data component.

When creating a new value or renaming an existing one, the dialog displays an editable field into which the user must type the name of the value.

However, when modifying an existing value, the Name field is not editable, because modification of a value only applies to its data component.

1.5.2 Value Data

Certain default data will be used on installation, but value data can be changed using the Settings Editor.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 22

When renaming an existing value, the data field is not editable.

Settings Edito

1.6 Rename Key

Enables the user to rename the selected key.

1.6.1 Key Name

Type the key name into this field. See the 'Key Settings' section of this document for information on keys that can be created by the user.

1.7 Rename Value

Enables the user to rename the currently selected value in the right pane.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 23

Settings Edito

1.7.1 Value Name

Each key has a number of associated 'values' that are used to configure the OpenEnterprise component represented by the key. Each value has a name and data component.

When creating a new value or renaming an existing one, the dialog displays an editable field into which the user must type the name of the value.

However, when modifying an existing value, the Name field is not editable, because modification of a value only applies to its data component.

1.7.2 Value Data

Certain default data will be used on installation, but value data can be changed using the Settings Editor.

When renaming an existing value, the data field is not editable.

1.8 Modify Value

Enables the user to modify the data for the currently selected value in the right pane.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 24

Settings Edito

1.8.1 Value Name

Each key has a number of associated 'values' that are used to configure the OpenEnterprise component represented by the key. Each value has a name and data component.

When creating a new value or renaming an existing one, the dialog displays an editable field into which the user must type the name of the value.

However, when modifying an existing value, the Name field is not editable, because modification of a value only applies to its data component.

1.8.2 Value Data

Certain default data will be used on installation, but value data can be changed using the Settings Editor.

When renaming an existing value, the data field is not editable.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 25

Settings Edito

1.9 Log File Viewer

The Log File Viewer displays all edits that have been made to the 'OpenEnterprise.ini' file. The edits may have been made by the Settings Editor itself, or another OpenEnterprise component, like the Alarm Client Server or the Bristol OPC Server.

1.9.1 Menu

These are the options available on the Log File Viewer's menu bar.

1.9.1.1 File

These are the options available on the Log File Viewer's file menu.

1.9.1.1.1 Previous and Next File

These options are only enabled if the Settings Editor has been configured to have a new log file created each day. If the default setting is left as it is, the Settings Editor uses a single log file, and these options are disabled.

1.9.1.1.1.1 File Menu

If they are enabled, these options allow the user to skip backward and forward between the log files that have been created for each day.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 26

1.9.1.1.1.2 Toolbar

The same options are displayed like this on the Log Viewer toolbar.

1.9.1.2 Edit

These are the options available on the Log File Viewer's edit menu.

1.9.1.2.1 Select All

Settings Edito

Selects all events listed in the Log File Viewer.

1.9.1.2.2 Copy

Copies the currently selected Log File events to the Windows clipboard.

1.9.1.3 View

These are the options available on the Log File Viewer's view menu.

1.9.1.3.1 Refresh View

Refreshes the actions list when selected from the menu or the toolbar

1.9.1.3.1.1 Toolbar button

1.9.1.3.2 Order by Most Recent First

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 27

Orders the events in the Log File View actions list so that the most recent events are at the top of the list.

1.9.1.3.2.1 Toolbar button

The example button above has an orange border around it, indicating that this option has been selected.

1.9.1.3.3 Order by Most Recent Last

Orders the events in the Log File View actions list so that the most recent events are at the bottom of the list.

1.9.1.3.3.1 Toolbar button

Settings Edito

The example button above has no orange border around it, indicating that this option is not selected.

1.9.1.3.4 Show All Events

Toggles the showing of all events on and off. When unselected, the events list will only show 'Request' and 'Failed' completion entries.

1.9.1.3.4.1 Toolbar button

The example above has an orange border around the button, indicating that it has been selected. In this state, all events will be shown, including 'Action' and 'Success' completion entries.

1.9.1.4 Tools

These are the options available on the Log File Viewer's tools menu.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 28

1.9.1.4.1 Find

Enables the user to search the Log Viewer's action list. Click the hotspots on the image below for more help.

1.9.1.4.1.1 Search Text

Type the search string in this field, make sure that the right occurrence button is selected, then press the [OK] button to begin the search. The search finds the next or previous instance of the exact text typed into the 'Search Text' field.

Settings Edito

1.9.1.4.1.2 Find Next Occurrence

Finds the next occurrence of the text that has been typed into the 'Search Text' field.

1.9.1.4.1.3 Find Previous Occurrence

Finds the previous occurrence of the text that has been typed into the 'Search Text' field.

1.9.1.4.2 Find Next

Finds the next instance of the search string provided by the user on the 'Find In Logfile' dialog or in the 'Find' text field on the toolbar.

1.9.1.4.2.1 Toolbar button

The button on the toolbar provides exactly the same functionality as the 'Find Next' menu.

1.9.1.4.3 Find Previous

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 29

Finds the previous instance of the search string provided by the user on the 'Find In Logfile' dialog or in the 'Find' text field on the toolbar.

1.9.1.4.3.1 Toolbar button

The button on the toolbar provides exactly the same functionality as the 'Find Previous' menu.

Settings Edito

1.9.2 Toolbar

These are the options available on the Log File Viewer's toolbar.

1.9.2.1 Log File

If the Log Viewer is set up to use a single file, this field displays 'Current', indicating that the current log file is being used.

If the Log Viewer is set up to use a daily file, this field displays date of the active file that is being viewed, as shown below. Click the small arrow to the right of the field to see a list of all available log files.

1.9.2.2 Previous and Next File

1.9.2.2.1 File Menu

If they are enabled, these options allow the user to skip backward and forward between the log files that have been created for each day.

1.9.2.2.2 Toolbar

The same options are displayed like this on the Log Viewer toolbar.

1.9.2.3 Refresh View

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 30

Refreshes the actions list when selected from the menu or the toolbar

1.9.2.3.1 Toolbar button

1.9.2.4 Order by Most Recent First

Orders the events in the Log File View actions list so that the most recent events are at the top of the list.

1.9.2.4.1 Toolbar button

Settings Edito

The example button above has an orange border around it, indicating that this option has been selected.

1.9.2.5 Order by Most Recent Last

Orders the events in the Log File View actions list so that the most recent events are at the bottom of the list.

1.9.2.5.1 Toolbar button

The example button above has no orange border around it, indicating that this option is not selected.

1.9.2.6 Show All Events

Toggles the showing of all events on and off. When unselected, the events list will only show 'Request' and 'Failed' completion entries.

1.9.2.6.1 Toolbar button

The example above has an orange border around the button, indicating that it has been selected. In this state, all events will be shown, including 'Action' and 'Success' completion entries.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 31

1.9.2.7 Find Text

Type the search text in here. Then click the Next of Previous buttons to the right of this field to search the actions list for the text entered here.

1.9.2.8 Find Next

Finds the next instance of the search string provided by the user on the 'Find In Logfile' dialog or in the 'Find' text field on the toolbar.

1.9.2.8.1 Toolbar button

The button on the toolbar provides exactly the same functionality as the 'Find Next' menu.

Settings Edito

1.9.2.9 Find Previous

Finds the previous instance of the search string provided by the user on the 'Find In Logfile' dialog or in the 'Find' text field on the toolbar.

1.9.2.9.1 Toolbar button

The button on the toolbar provides exactly the same functionality as the 'Find Previous' menu.

1.9.2.10 Help Button

Opens the Settings Editor help file when selected.

1.9.3 Actions List

The actions list displays the edits that have taken place on the main OpenEnterprise configuration file. As well as the Settings Editor, most OpenEnterprise components access this file when their settings are changed.

The list can be filtered to show all events or only a sub-set of events.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 32

Settings Edito

1.10 Restore Point Properties

Restore points are a snapshot of the Settings file as it is at the time the restore point is created. They allow the user to return OpenEnterprise settings to a previous state. Restore points can be created automatically, or manually at any time.

1.10.1 Restore Point List

The restore point list displays all of the restore points that are available. Click on the 'Created' column to reverse the sort order by date. By default, the most recent dates are at the top of the list.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 33

Settings Edito

1.10.2 Create a restore point before restoring

If this box is checked, when a restore point is activated by clicking the [Restore] button, the Settings Editor will create a restore point from the current settings before restoring the previous settings.

The box is checked by default, since it is the safe option.

1.10.3 Create

Manually creates a new restore point using the current settings. It is possible to create a manual restore point using the command line. See 'Command line options' topic.

1.10.4 Restore

Restores the settings from a selected restore point.

Current settings will be overwritten, so it is probably a good idea to check the 'Create a restore point before restoring' box before clicking this button.

1.10.5 Delete

Deletes the selected restore point. Note that restore points can only be deleted if their 'Restore Point may be deleted' option is checked on the Restore Point Properties

dialog.

1.10.6 Restore Point Properties

Displays the creation date and description of the selected restore point. There is also an option to enable or disable deletion for the restore point. Click the hotspots for more help.

1.10.6.1 Creation Date

The date the restore point was created.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 34

1.10.6.2 Description

Describes the restore point. When automatic restore points are created, the text in this field reads 'Automatically created'.

When manually creating a restore point, the user should type helpful text in this field to explain the reason for creating the restore point.

1.10.6.3 Restore Point Deletable

When checked, the restore point can be deleted. When unchecked, the restore point cannot be deleted.

It is a good idea to create certain restore points that cannot be deleted. By default, all automatically created restore points can be deleted.

Settings Edito

1.11 Settings Editor Properties

Displays the Settings and current log files used by the Settings Editor. Also allows modification of log file and restore point settings.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 35

Settings Edito

1.11.1 Settings File

The full path and filename of the settings file currently being used by the Settings Editor.

1.11.2 Current Log File

The full path and filename of the current Settings Log File.

1.11.3 New Log File each Day

Select this option to have a new Log File created each day. The default behaviour is to have a single log file.

1.11.4 Keep for Days

When the 'New Log file each day' button is selected this option becomes enabled. Enter the number of days to keep each log file that is created.

1.11.5 Single Log File

This is the default setting. The Settings Editor will use a single Log File.

1.11.6 Maximum Size

Enter the maximum size that the Log File should ever get to. When the file reaches this size, the Settings Editor deletes 10% of the oldest entries in the file and continues filling it from that point.

1.11.7 Keep Restore Points for days

The number of days to keep restore points for before deletion. Note that automatically created restore points must have their 'Restore point may be deleted' property set on the 'Restore Point Properties' dialog in order to be available for automatic deletion. This property may be set/unset for a restore point by doing the following:-

1. Select 'File>Restore Points' from the main Settings Editor interface

2. Select the restore point from the list on the 'Restore Points

3. Select the [Properties] button at the bottom of the 'Restore Points' dialog

4. Check/uncheck the 'Restore point can be deleted' box on the 'Restore Point Properties

' dialog

1.11.8 Automatic Restore Point Interval

The interval for creating automatic restore points. The smallest unit is one day.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 36

2 Key Settings

Each key contains values and data that define OpenEnterprise settings.

2.1 OpenEnterprise Key

Settings Edito

This key stores basic OpenEnterprise settings. The data is determined at installation time. Warning: making changes in the Settings Editor could cause OpenEnterprise to fail.

Value Name

Database The OpenEnterprise data service name to which all

database clients will connect.

TimeZone The time zone of the OpenEnterprise project. This is

determined when the database is built. If using the Database Project Builder, there is a Time Zone page in the wizard, where the time zone can be selected.

Type Signifies the type of OpenEnterprise installation. The

options, which are decided at installation are:-

• OpenEnterprise Server - installs the OpenEnterprise database, Session Manager and ancillary server components. Enables the host PC to run a full OpenEnterprise Session, including the database and any server tasks required.

• OpenEnterprise Server and Workstation - installs the above, plus the OpenEnterprise HMI. Enables the host PC to run a full OpenEnterprise Session, and to display the data in the OpenEnterprise HMI.

• OpenEnterprise Workstation - installs the OpenEnterprise HMI only. Enables the host PC to connect to any remote OpenEnterprise data service and view the data through the HMI.

• Standalone ODBC - installs and sets u

Value Data Default Data

'rtrdb1' for local database.

GMT

None

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 37

components for clients to connect to a remote OpenEnterprise data service via ODBC.

• OpenEnterprise Messaging - installs the OpenEnterprise Messaging Server and configuration tool. Enables the host computer to connect to a remote OpenEnterprise data service and act as an OpenEnterprise messaging server.

• OpenEnterprise Report Suite - installs the OpenEnterprise Reporting Suite. Enables the host computer to connect to a remote OpenEnterprise data service and act as a report server.

• OpenEnterprise Report Add-in - installs the OpenEnterprise Report add-in, enabling OpenEnterprise report templates to be created on the host computer.

Settings Edito

2.2 DataServices Key

This key contains the Administrative users name and password values. Under the key will be a key that names any data services that may be connected to. Each key will have its own name and password values. These keys or their values should not be changed using the Settings Editor.

Value Name

Password An encrypted password for the main administrative user

configured for the data service.

User Name The name of the main administrative user configured for

the data service.

Value Data Default Data

'rtrdb1' for local database.

GMT

2.3 Directories Key

Defines the main OpenEnterprise directories on the host. The first part of the path is defined by a variable which has a different value depending on whether the PC is operating in Windows XP or Vista.

Value Name

ApplicationConfiguration The common

Value Data Default Data

<ApplicationData> is a variable that precedes the application data folder, where settings for OpenEnterprise components will be stored.

rest of the path. The typical value of this variable in

XP would be 'C:\Documents and Settings\All

Users\Application Data'

Typical Vista value of <ApplicationData> =

C:\ProgramData

The full directory will be

<ApplicationData>\Bristol\OpenEnterprise\Application

Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 38

Settings Edito

Custom Files that define

custom changes to the database configuration and content reside in this directory. By default the Database Project Builder places its custom files in this folder.

Install The main

OpenEnterprise installation folder

OEStore Any files created by

users at runtime that store their runtime data (ie view files etc) will be placed in sub directories under this directory.

Output These are files created

by applications during runtime to log their activity (eg Scheduler.txt, ArchiveFileManager.txt) These files will be considered user specific and will be saved to the current user's documents folder.

<PublicDocuments> is a variable that represents the

path. The typical value of this variable in XP would

be 'C:\Documents and Settings\All Users\Documents'

Typical Vista value = C:\Users\Public\Documents

A sub-directory within this directory will be used -

\Bristol\OpenEnterprise\Custom

Both XP and Vista use the same directory -

'C:\Program Files\Bristol\OpenEnterprise'

During installation, a check will be made for an O

drive configured with a 'Displays' sub directory. If

found, then O will be offered as the location of

OEStore.

If it is not, then the following location will be used for

OEStore -

<ApplicationData>\Bristol\OpenEnterprise\OEStore.

On XP the <UserDocuments> variable represents the

current user's documents folder.

On XP this is 'C:\Documents and Settings\<user>\My

Documents'.

On Vista it is 'C:\Users\<user>\Documents'.

A sub directory within this directory will be used:

<UserDocuments>\Bristol\OpenEnterprise\Output

Files.

2.4 ProductInformation Key

Provides information on the OpenEnterprise product installed.

Value Name

PRODUCTNAME The name of the OpenEnterprise product installed. OpenEnterprise

Value Data Default Data

2.5 Sessions Key

This is the parent key for all OpenEnterprise sessions. The actual sessions are represented in this document by a single 'Configured Sessions Keys' topic. In actual fact, there can be multiple configured sessions, as shown in the example below.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 39

OpenEnterprise sessions are created by the user from within the Session Manager. See the Session

Manager document for more information on how to create a session.

Settings Edito

2.5.1 Configured Sessions Keys

OpenEnterprise sessions are created by the user from within the Session Manager. See the Session

Manager document for more information on how to create a session.

The value names available for use on each configured session key will be the same, but the data may be different.

Value Name

AffinityMask Set to a mask value that indicates

the processors that this session is allowed to run on. 0 = CPU1, 1 = CPU2 etc. Only applicable to multiprocessor PCs. See the Session

Settings topic of the Session

Manager document for more information.

DatabaseDataService The name of the database which is

used by the configured session (e.g. rtrdb1). See the Session Type topic of the Session Manager document for more information.

Dirty Ignore this value. It is there for

future use.

Value Data Default Data

rtrdb1

Type A string which describes the type

of session (e.g. Fault Tolerant). See the Session Type Session Manager document for more information.

topic of the

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Depends on installation.

Reference Guide

D5092 11-Dec-2007 - Page 40

Settings Edito

WorkingDirectory The directory path where the

database data files are found. See the Session Type Session Manager document for more information.

2.5.1.1 Fault Tolerance Key

The values on this key define the two Servers of a Fault Tolerant OpenEnterprise database. See the

Server Identification Page

Value Name

MachineLabel This value gives a label to the local Server to

in the Session Manager document for further help on these settings.

distinguish it from the other Server in the Redundant pair. The label is usually either A or B. One server must be A and the other must be B.

topic of the

Value Data Default Data

On XP:

C:\ Program Files\ Bristol\ OpenEnterprise\ Data

On Vista:

<PublicDocuments>\ Bristol\ OpenEnterprise\ Data

See the Directories Key topic for a definition of the <PublicDocuments> variable.

When configuring a session the default is A. One server must be A, and the other must be B.

ThisHostName The name of the local machine. This can be an alias

(eg ServerA or ServerB) that has been defined in the Hosts file on each server.

OtherHostName This is the name of the other Server. This also can be

an alias that has been defined in the Hosts file on each server.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Default = HOSTA, if this is Machine Label A. The actual name/alias of the local server should be substituted here.

Default = HOSTB if this is Machine Label A. The actual name/alias of the other server should be substituted here.

Reference Guide

D5092 11-Dec-2007 - Page 41

2.5.1.1.1 Arbitrator Key

These settings appear on the Arbitrator Page of the Session Manager's New Session wizard. For help on these settings see the Arbitrator Page

of the Session Manager documentation.

Settings Edito

Value Name

DataService Defines the order in

Retries The number of retries,

Value Data Default Data

which the local server looks for a connection to the arbitrator data service when starting an OpenEnterprise session.

which when multiplied by the RetriesMultiplier value indicate the number of times the Session Manager will retry when attempting to connect to an arbitrator database. Thus if Retries = 1 and RetriesMultiplier = 3, then the Session Manager will retry a total of 3 times to connect to the arbitrator database.

HOSTA:Arbitrator1,HOSTB:Arbitrator1. This value is merely to show the format of the arbitrator data service string. Substitute HOSTA and HOSTB with the actual host names of the local and remote server.

RetriesMultiplier The multiplier for the

Retries value (see above).

Timeout The length of time when

multiplied by the TimeoutMultiplier value taken between retries when the Session Manager is attempting to connect to an arbitrator database.

TimeoutMultiplier The multiplier for the

Timeout value (see above).

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 42

2.5.1.1.2 DataLink Key

The DatalinkOPCServer is used as part of the OpenEnterprise Server Redundancy when using a TBar to determine the Master/Standby status of the servers. It provides a dedicated communications link between a pair of OpenEnterprise servers. This communications link is used by the redundant OpenEnterprise Session Managers to send heartbeats to each other. These heartbeats are used to pass current states and associated heartbeat time stamps.

Settings Edito

Value Name

OPCServer Specifies the OPC (OLE for Process

Control) server to use.

PortName The name (e.g. COM3) of the serial

port being used for the Data Link.

Disable Make this 1 to disable DataLink if it

is not being used. 0 signifies that DataLink is being used.

2.5.1.1.3 DiskSpace Key

This key is used internally by OpenEnterprise, and has no user configurable values.

2.5.1.1.4 TBar Key

This key is used when a Tbar has been employed to determine redundancy states.

Value Name

TagName This gives the name of the OPC Server and the T-Bar

driver (e.g. “BristolBabcock.TBarOPCServer”.TBar.PushButton0)

Value Data Default Data

BristolBabcock.DataLinkOPCServer

None

Value Data Default Data

Disable Set to 1 if a T-Bar is not being used. This will disable the

T-Bar interface. A value of 0 signifies that the T-Bar is enabled.

2.5.1.2 Persistence Key

Defines whether persistence is enabled.

Value Name

Enabled A value of 1 = Persistence is enabled, a value of 0 =

Persistence is disabled.

Blocking This value is reserved for future use 0

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 43

2.5.1.3 Software Watchdog Key

See the Software Watchdog values found on this key.

topic of the Session Manager document for more information on the

Settings Edito

Value Name

Enabled If 0 the software watchdog does not run. If 1, it is

enabled

Period The frequency, in seconds, that the Software watchdog

will check the tasks that are configured to run

Retries Reserved for future use. 0

RetryPeriod Reserved for future use. 0

2.5.1.4 Session Tasks Key

The Tasks that will be run as part of a named OpenEnterprise Session. The actual name of this key is 'Tasks', as shown in the image below. Like the 'Sessions' key, there are no actual values to be defined on the named Session Task key itself.

The keys under the Sessions 'Tasks' key are configured from the Session Manager. The keys under the other 'Tasks' key are configured from the actual OpenEnterprise components themselves.

Value Data Default Data

2.5.1.4.1 Session Task Key

Session task keys are created under the key of each named session. In the example below, the Turbidity session will have six tasks running within it - AFM (Archive File Manager), Calculation Server, Database, RDI3000, Report Scheduler and Scheduler.

Some of the tasks are mandatory. For example each session has to have one database task, and one RDI task (this is the RDI3000, if the RTUs are NW3000 or Control Wave).

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 44

The names of the keys provide a visual indication of what tasks they are, but the definition of the task is contained in the values on the key. These values and their meaning are given below.

Settings Edito

Value Name

Application The Data must be the executable name and

path of an OpenEnterprise server component. This value is Mandatory.

CommandLine Command line arguments. Consult the

Task’s document for possible command line parameters. This value is Mandatory.

WorkingDirectory Full pathname for the working directory for

the task. Long or short pathnames. This value is Mandatory.

CriticalProcess If this is set to 1 the task is considered

critical. If a critical task fails then it will be restarted by Session Manager. This value is Optional.

Retries Number of times to retry starting the task (if it

is critical) given repeated task restart failures. Defaults to infinite retries. This value is Optional.

ResourceFile Poly.cfg resource filename. This value is

only necessary for database tasks.

Value Data Default

Data

Set at installation

-1

Poly.cfg

EventNumber If this task is a critical task and it should fail,

the eventnumber is the number that will be

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

N/A

Reference Guide

D5092 11-Dec-2007 - Page 45

Settings Edito

used to log the event. Eventnumbers have associated priorities configured in the database. By default the number 101 is used which has an associated priority of 254. This value is Optional.

RetryPeriod This value is reserved for future use and

should be ignored.

ShutdownApplication Application used to terminate the task (eg

ShutDownDB.exe). Empty string means the task will be killed. The keywords _CLOSE, _KILL and _NULL can also be used. _CLOSE will attempt to close a task cleanly using WM_CLOSE. _KILL will kill the task. _NULL will do nothing (assumes the task will shut itself down when it loses its database connection).

ShutdownCommandLine Additional command line options to pass to

the application specified by the ShutdownApplication key.

ShutdownTimeout -56

ShutdownTimeoutKill 0

MasterShutdownCommandLine Additional command line options to pass to

the application specified by the MasterShutdownApplication key. This value is Optional.

_CLOSE

Set at installation

Visible 1 if the task is to be started visible on the

desktop, otherwise set to 0. This value is Optional.

ActiveOnStandby Set to 1 if you wish this task to be active

when the session is standby. Tasks are ordinarily started when the session is master. This value is Optional.

AffinityMask Set to a mask value that indicates the

processors that this process is allowed to run on. 0 = CPU1, 1 = CPU2 etc. Only applicable to multi-processor PCs. This value is Optional.

Disabled Enable or disable the task. A value of 1

results in the task being disabled and will not be started by the Session Manager. Default value: 0, enabled. This value is Optional.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 46

Settings Edito

2.6 Tasks Key

The Tasks key is the parent key under which the keys for each OpenEnterprise component go.

There are no configurable values for the Tasks key itself. Each task key has its own configurable values. The values on these keys can be set by the component's configuration interface.

2.6.1 Connection Overrides

A 'Connection Overrides' key can be added to any Task key. This key has values which can fine tune how the component connects to the database. These settings can be tweaked to minimize network bandwidth problems which may be caused when Views are trying to connect to the database.

2.6.2 Alarm Client Server Key

The values on this key define the settings of the Alarm Client Server. This is the server component that provides the data that the Alarm View displays.

These settings are best modified from the Alarm Client Server interface.

Value Name

Databases A space separated list of databases that the Alarm

Client Server will attempt to connect to when it is started. This enables the Alarm Server to be started and connected to relevant databases before any Alarm View clients begin requesting alarm or event data.

HideOnMinimize Forces the Alarm Client Server to be hidden when it is

minimized. A value of 1 mains the Alarm Client Server will be hidden when minimized, zero (0) means The Alarm Client Server will not be hidden when minimized.

Value Data Default

Data

default = User defined at installation time.

MessagesDatabase A typical system may be configured for retrieving N/A

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 47

Settings Edito

historical data (events) from a database configured for read-only access. The Create Event facility will not work in this situation, as the database transaction will always fail. To cater for this, an alternate database for Event Inserts can be specified. This means that events can be sourced from a readonly database (for example: rtrdb1), edited (using the Create Event option) then inserted into a second, distinct database (as defined by the Messages Databases registry value)

OptionsDatabase A pre-defined Options database can be configured

here. The Options database is used for retrieving the Options data. This is essentially a list of real-time and historical attributes, available conditions, priorities and color schemes that a default Alarm Client will use. It may be different to the Messages database.

ShowTrayIcon When set to 1, the Alarm Client Server icon will be

displayed in the System Tray when it is running. Double clicking on this icon in the System Tray will open the Alarm Server's User Interface. If set to zero (0) the Alarm Server icon will no longer appear in the System Tray when it is running.

ShowWindow When set to 1, the Alarm Client Server's User

Interface will be displayed on startup.

Minimize When set to 1, the Alarm Client Server's User

Interface will be displayed minimized on the Windows Start bar at startup.

2.6.2.1 Connection Overrides Key

When OpenEnterprise is installed as a Server application there are default Connection Overrides applied to the Session Manager component.

Initially set at installation time.

However, the Connection Overrides key, with its values may be added as a sub-key to any OpenEnterprise Task listed under the Task key of an OpenEnterprise installation.

Also, the Connection Overrides key can affect all Workstation HMI components if it is attached to the COMServer task key. If necessary, the COMServer task key can be added by a user as a sub-key under the Tasks key,

The settings defined here can be redefined for any OpenEnterprise Client (e.g. Alarm Viewer, Notes Client, Database Explorer) by adding the Connection Overrides key to the component key in the Tasks list and changing the values.

Value Name

Auto Reconnect

A non-zero value means that the Client will automatically attempt to reconnect to the database following a connection failure.

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 48

Settings Edito

Connection Timeout

Reconnection Retries

Reconnection Interval

Reconnection Retries

Heartbeat Interval

Heartbeat Timeout

A timeout specified in seconds applied to all TCP/IP socket requests (open, read and write). Increase this value when client disconnects occur when connecting to a database over a very slow or high latency network.Normally used in conjunction with the following poly.cfg resources: ConnectionOpenTimeout, ConnectionReadTimeout and ConnectionWriteTimeout.

The maximum number of times a database reconnection is attempted for each individual dataservice following a loss of connection.

Millisecond interval between successive reconnection attempts.

The maximum number of times a database reconnection is attempted for each individual dataservice following a loss of connection.

Interval, in milliseconds, between each heartbeat message being sent to the database.

Timeout in milliseconds, for each heartbeat sent to the database. If no reply is received from the database within this time

N/A

Maintain Queries

Deadband Seconds

Deadband MicroSeconds

FT Connection Type

FT Options When set to 1, fault tolerant options are enabled. Set to

Keep copies of all active query data to enable calculation of data changes after a fail over.

The Deadband Seconds and Microseconds specify a minimum interval between active query deltas.

See “Deadband Seconds”.The default value is 0 (zero). 0

This value, if present defines the connection type for the client. “ACTIVE” means the Client should connect to the Master, “RO” means the Client should Connected as Read-Only, “RW”, which is the default means the Client is connected in Read-Write mode and “STANDBY” means the Client should connect to a Standby . Note: specifying this value only at the COMServer override level will ensure all connections on this workstation are of the same type; that is, defining the value “RO” will result in a read-only workstation, which may be desirable in certain scenarios.

null or 0 to disable fault-tolerant options.

N/A

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 49

Settings Edito

2.6.3 Alarm Printer Key

The Alarm Printer Task key has one value which MUST be set by the User for it to operate.

Value Name

Print Filter If set to 1 the Alarm Printer Client will ignore any settings

which have been made on its Filter Property page. The Filter page will become disabled. It will only print out alarms of signals which are associated with the active printer defined in the Alarm Printer Client. Signals can be associated with the active printer by setting the 'printer' attribute of the signal to the exact name of the active printer defined in the Alarm Printer Client.

Value Data Default Data

2.6.4 Alarm Printer Server Key

The Alarm Printer Server has settings that are configured through its property pages. These settings are stored on this key as values.

Value Name

Databases A space-separated string, which lists the data services

that the Alarm Printer Server will attempt to connect to at startup.

ShowTrayIcon When set to 1, the Alarm Printer Server icon will be

displayed in the System Tray when it is running. Double clicking on this icon in the System Tray will open the Alarm Printer Server's User Interface. If set to zero (0) the Alarm Server icon will no longer appear in the System Tray when it is running.

Value Data Default Data

N/A

ShowWindow When set to 1, the Alarm Printer Server's User Interface

will be displayed on startup.

HideOnMinimize The Alarm Printer Server will be hidden when it is

minimized. A value of 1 mains the Alarm Client Server will be hidden when minimized, zero (0) means The Alarm Client Server will not be hidden when minimized.

Minimize When set to 1, the Alarm Printer Server's User Interface

will be displayed minimized on the Windows Start bar at startup.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 50

Settings Edito

2.6.5 Bristol HDA Server Key

The Bristol Historical Data Access (HDA) Server has settings that are configured through its property pages. These settings are stored on this key as values.

Value Name

AutoTerminate By default, the OPC and HDA Servers remain open

when a calling Client closes. This behaviour can be changed by changing this value to 1.

Databases A space-separated string, which lists the data services

that the Bristol HDA Server will attempt to connect to at startup.

ShowTrayIcon When set to 1, the Bristol HDA Server icon will be

displayed in the System Tray when it is running. Double clicking on this icon in the System Tray will open the Bristol HDA Server's User Interface. If set to zero (0) the Alarm Server icon will no longer appear in the System Tray when it is running.

ShowWindow When set to 1, the Bristol HDA Server's User Interface

will be displayed on startup.

HideOnMinimize The Bristol HDA Server will be hidden when it is

minimized. A value of 1 mains the Alarm Client Server will be hidden when minimized, zero (0) means The Alarm Client Server will not be hidden when minimized.

Value Data Default

Data

N/A

Minimize When set to 1, the Bristol HDA Server's User Interface

will be displayed minimized on the Windows Start bar at startup.

StaticsRefreshTime The time interval (in milliseconds) after which the HDA

statistics will be refreshed.

DisableBrowse Used to prevent the HDA Server building browse

information on startup. On stressed systems, this reduces load time and resource usage. The value is set to 1 to disable browsing.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

1000 (1 second)

Reference Guide

D5092 11-Dec-2007 - Page 51

Settings Edito

2.6.6 Bristol OPC Server Key

The Bristol OPC Server has settings that are configured through its property pages. These settings are stored on this key as values.

Value Name

AutoTerminate By default, the OPC and OPC

Servers remain open when a calling Client closes. This behaviour can be changed by changing this value to 1.

Databases A space-separated string, which

lists the data services that the Bristol OPC Server will attempt to connect to at startup.

ShowTrayIcon When set to 1, the Bristol OPC

Server icon will be displayed in the System Tray when it is running. Double clicking on this icon in the System Tray will open the Bristol OPC Server's User Interface. If set to zero (0) the Alarm Server icon will no longer appear in the System Tray when it is running.

ShowWindow When set to 1, the Bristol OPC

Server's User Interface will be displayed on startup.

Value Data Default

Data

N/A

HideOnMinimize The Bristol OPC Server will be

hidden when it is minimized. A value of 1 mains the Alarm Client Server will be hidden when minimized, zero (0) means The Alarm Client Server will not be hidden when minimized.

Minimize When set to 1, the Bristol OPC

Server's User Interface will be displayed minimized on the Windows Start bar at startup.

SynchronousReadTimeout Indicates the timeout, in

milliseconds, after which synchronous reads will be aborted

SynchronousWriteTimeout Indicates the timeout, in

milliseconds, after which synchronous writes will be aborted

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

1000

Reference Guide

D5092 11-Dec-2007 - Page 52

Settings Edito

BUILDINITIALBROWSEONREQUEST If this is set to a non-zero value,

then the first time that any OPC Client requests browse information, queries will be started, and an initial browse hierarchy will be created.

SHOWALTERNATIVETABLENAME If this is set to a non-zero value,

then tags describing an attribute of a Network3000 signal table or view will be displayed in the browse hierarchy listed by device name rather than by table name. Setting this value will also cause the node name to be stripped from the beginning of the NW3000 signal name, if the AbbreviateTagLabels registry key is also set to a nonzero value.

DISABLEPROPERTIES If this is set to a non-zero value

then it will not be possible to invoke the OPC Servers Properties dialog.

GETADDITIONALNW3000ATTRIBUTES If this is set to a non-zero value,

then any OPC Item defining a Network 3000 Signal, (using the Views and not the table), will have it's OPC Quality influenced by the value of the questionable attribute of that signal. In addition any NW3000 Analog Signal will have its operator limits obtained, which will also used to influence the OPC Quality.

1 on Workstation, 0 on Server

QuestionableToOPCQuality This value must be created and

defined by the user, since it cannot be defined from the Bristol OPC Server's property pages. Enables signals from tables and views other than NW3000RealAnalog, NW3000Digital or NW3000String to have their questionable value linked to the OPCQuality value. If an object residing in a table or view that has this functionality enabled has a questionable attribute value of non-zero , then the OPC Quality will be marked as OPC_QUALITY_UNCERTAIN for an

OPC tags defined on that

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

N/A

Reference Guide

D5092 11-Dec-2007 - Page 53

Settings Edito

object. If tables/views are defined within the 'QuestionableToOPCQualityTables' key value that DON'T contain an attribute called questionable, then all tags defined on those tables/views will fail. This is because the OPC Server, (not being schema aware) will automatically add the 'questionable' attribute to the object query containing the OPC tags of interest, causing that query to fail. Objects within the NW3000RealAnalog, NW3000Digital or NW3000String views should access this functionality by using the GetAdditionalNW3000Attributes registry key value

ConvertTime Determines whether the OPC

Server converts all timestamps to local time prior to sending them to the OPC Client. True = 1. False =

DeleteTagList Causes the OPC Server to delete

tags from the browse structures when the OPC Client removes those tags. True = 1. False = 0.

AbbreviateTagLabels If this is set to a non-zero value,

when displaying the constituent parts of tags within the browse hierarchy, at the primary key and attribute levels, a shortened form of those labels will be displayed.

TransactionLogLength Defines the size of the cyclic buffer

used to store an audit of transaction attempts made by the OPC Server.

TimeFormat If set to 0, then date and time data

will ALWAYS be returned to the OPC Client as a string in the format DD-MMM-YYYY HH:MM:SS.mmm e.g. 29-JAN-2003 10:05:01.285 If set to 1, then the date and time data is returned in VT

DATE form,

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 54

and the precise formatting, and how that data is presented to the user is the responsibility of the OPC Client. For instance an OPC Client may display such data in the format DD/MM/YYYY HH:MM:SS e.g. 29/01/2003 10:05:01 Other OPC Clients may provide a different format, or allow the user a range of formats in which to present such data.

Settings Edito

2.6.7 BSI Commstats Import Key

The BSI Commstats Import component has settings that are configured through its property pages. These settings are stored on this key as values.

Value Name

GlobalPollFrequency The polling period, in milliseconds after which the

BSI Commstats Import component will poll OpenBSI for global communication statistics. Limits for the Global Polling period are:Minimum value = 5 seconds Maximum value = 86400 seconds

MonitorBackupLines When set to 1, monitoring of Backup lines is

enabled.

MonitorBSAPLines When set to 1, monitoring of BSAP lines is enabled. 1

MonitorEBSAPLines When set to 1, monitoring of EBSAP lines is

enabled.

MonitorIPLines When set to 1, monitoring of IP lines is enabled. 1

PollFrequency The polling period, in milliseconds after which the

BSI Commstats Import component will poll OpenBSI for communication statistics relating specifically to each of the configured lines. This value is set by default to 10 seconds. Limits for the Line Stats Polling period are:Minimum value = 5 seconds Maximum value = 86400 seconds

Value Data Default

10000 (10 seconds)

Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 55

Settings Edito

2.6.8 COMServer Key

The COMServer task key can be added by a user as a sub-key under the Tasks key.

There are no values associated with the COMServer key itself. It can be useful when a Connection Overrides key is attached to it as a sub-key. In this scenario, the settings on the Connection Overrides key will affect all Workstation HMI components.

In particular the FTConnectionType value on the Connection Overrides key can effectively create a read-only Workstation.

2.6.9 Database Explorer Key

The Database Explorer key has three sub-keys - Settings, SYSTEM and Users. The most basic Database Explorer settings are stored on this key as the following values.

Value Name

Databases A space separated list of the

databases that the Database Explorer will attempt to connect to on startup.

Default DBX Files

2.6.9.1 Settings Key

The Settings sub-key of the Database Explorer stores the following values.

The default .dbx file directory. This is the directory where the default .dbx sample files are stored. There is a DBX file for each table of the database that returns all objects and attributes for that table. When the user double clicks on a table from the Database Explorer Database or Tables pane, these DBX files are accessed and a query is initiated automatically.

Value Data Default Data

None

XP - C:\Program Files\Bristol\OpenEnterprise\Examples\DBX Vista - <OEStore>\Examples\DBX

Value Name

Last User The name of the last logged in user of the Database

Explorer.

2.6.9.2 SYSTEM Key

The SYSTEM sub-key of the Database Explorer stores the following values.

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

None

Reference Guide

D5092 11-Dec-2007 - Page 56

Settings Edito

Value Name

AttributeSearchValue Can be used to provide a default value for

the 'Search for Attribute' dialog during runtime. The name of an attribute is typed into the Data field of this value. When the Database Explorer is next opened and the user selects the 'Search for Attribute' menu option, this attribute name will be already written into the name field on the 'Search for Attribute' dialog.

ContentBool Set by the 'Bool' check box on the Database

Explorer's Content Window. This value is set to 1 to view boolean attributes. If set to zero (0), boolean attributes will not be shown in the Attributes pane of the Database Explorer.

ContentFK Set by the 'Foreign Key' check box on the

Database Explorer's Content Window. This value is set to 1 to view foreign key attributes. If set to zero (0), foreign key attributes will not be shown in the Attributes pane of the Database Explorer.

Value Data Default Data

Null

ContentHidden Set by the 'Hidden' check box on the

Database Explorer's Content Window. This value is set to 1 to view hidden attributes. If set to zero (0), hidden attributes will not be shown in the Attributes pane of the Database Explorer.

ContentInteger Set by the 'Integer' check box on the

Database Explorer's Content Window. This value is set to 1 to view integer attributes. If set to zero (0), integer attributes will not be shown in the Attributes pane of the Database Explorer.

ContentNK Set by the 'Not Key' check box on the

Database Explorer's Content Window. This value is set to 1 to view none key attributes. If set to zero (0), none key attributes will not be shown in the Attributes pane of the Database Explorer.

ContentNotHidden Set by the 'Not Hidden' check box on the

Database Explorer's Content Window. This value is set to 1 to view not hidden attributes. If set to zero (0), not hidden attributes will not be shown in the Attributes

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 57

Settings Edito

pane of the Database Explorer.

ContentNotNullable Set by the 'Not Nullable' check box on the

Database Explorer's Content Window. This value is set to 1 to view not nullable attributes. If set to zero (0), not nullable attributes will not be shown in the Attributes pane of the Database Explorer.

ContentNotPersistent Set by the 'Not Persistent' check box on the

Database Explorer's Content Window. This value is set to 1 to view none persistent attributes. If set to zero (0), none persistent attributes will not be shown in the Attributes pane of the Database Explorer.

ContentNullable Set by the 'Nullable' check box on the

Database Explorer's Content Window. This value is set to 1 to view nullable attributes. If set to zero (0), nullable attributes will not be shown in the Attributes pane of the Database Explorer.

ContentPersistent Set by the 'Persistent' check box on the

Database Explorer's Content Window. This value is set to 1 to view persistent attributes. If set to zero (0), persistent attributes will not be shown in the Attributes pane of the Database Explorer.

ContentPK Set by the 'Primary Key' check box on the

Database Explorer's Content Window. This value is set to 1 to view primary key attributes. If set to zero (0), primary key attributes will not be shown in the Attributes pane of the Database Explorer.

ContentReal Set by the 'Real' check box on the Database

Explorer's Content Window. This value is set to 1 to view real attributes. If set to zero (0, real attributes will not be shown in the Attributes pane of the Database Explorer.

ContentString Set by the 'String' check box on the

Database Explorer's Content Window. This value is set to 1 to view string attributes. If set to zero (0), string attributes will not be shown in the Attributes pane of the Database Explorer.

ContentTime Set by the 'Time/Date' check box on the

Database Explorer's Content Window. This value is set to 1 to view time/date attributes.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 58

If set to zero (0), time/date attributes will not be shown in the Attributes pane of the Database Explorer.

CurrentModeCOA ? ?

CurrentModeCOD ? ?

CurrentModeCOO ? ?

CurrentModeCOT ? ?

Settings Edito

LastViewerFolder The last folder used to store user configured

DBX files.

Left-Hand Pane Col 0 Positioning co-ordinates None

Main Window Positioning co-ordinates None

PKAttributeSearchValue Can be used to provide a default value for

the 'Search for Primary Key Attribute' dialog during runtime. The name of an attribute is typed into the Data field of this value. When the Database Explorer is next opened and the user selects the 'Search for Primary Key Attribute' menu option, this attribute name will be already written into the name field on the 'Search for Primary Key Attribute' dialog.

Read Only ? ?

TableSearchValue Can be used to provide a default value for

the 'Search for Table' dialog during runtime. The name of a table is typed into the Data field of this value. When the Database Explorer is next opened and the user selects the 'Search for Table' menu option, this table name will be already written into the name field on the 'Search for Table' dialog.

None

Null

Upper-Right-Hand Pane Row 0

2.6.9.3 Users Key

The Users sub-key of the Database Explorer stores the following values.

Value Name

<UserName> The value name is the name of each user who has logged

in and used the Database Ex

Positioning co-ordinates None

Value Data Default Data

lorer. The data field

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

The name = the name of

Reference Guide

D5092 11-Dec-2007 - Page 59

contains the string 'Enabled' the users who

Settings Edito

have logged on and used the Database Explorer. The data = 'Enabled'.

2.6.10 Database Upgrade Key

Currently there are no values associated with the Database Upgrade key.

2.6.11 DBB Key

The BSI Commstats Import component has settings that are configured through its user interface. These settings are stored on this key as values. Each value has a name and data component.

Value Name

IncludeSystemSignals A 1 here signifies that the DBB should include

nw3000 System Signals in the build as well.

CWAccolNames When set to any value other than 0 (zero),

ControlWave signal names will be converted to ACCOL signal name format (i.e. <BASE>.<EXTENSION>.<ATTRIBUTE>).

CWResolveMSDs When set to any value other than 0 (zero), the

DataBase Builder resolves the Control Wave device signal addresses, also known as MSD (Master Signal Directory) numbers.

HideINITDescriptors

SQLAppendAttributes This is a user addable value, which should contain a

When set to any value other than 0 (zero), the Force Init of Descriptors, Areas check box becomes hidden the next time the NW3000 Database Builder is opened.

comma separated list identifying the attributes which have been added to the SignalExtension table. E.g, if the SignalExtension table has two new attributes added called 'NewAttribute1' and 'NewAttribute2', then SqlAppendAttributes should contain the value "NewAttribute1,NewAttribute2".

Value Data Default

Data

Null

N/A

SQLAppendValues A user addable value, the data of which should

contain a comma separated list identifying the default values which should be used by the Database Builder to apply to each of the new attributes listed in the SqlAppendAttributes value. String and date/time attribute values should be enclosed b

single quotes, numerical values should

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

N/A

Reference Guide

D5092 11-Dec-2007 - Page 60

have no quotes. E.g. If this value contained the string "'new1',4.5", then for each signal added by the Database Builder, two new attributes named 'NewAttribute1' and 'NewAttribute2' would be added with the respective values of 'new1' and 4.5.

Settings Edito

2.6.12 Event Viewer Key

Currently there are no values associated with the Event Viewer key itself, although it has a sub-key (Edit Permissions), which has associated values which affect functionality.

2.6.12.1 Edit Permissions Key

This key and its values are configured on installation. They define the fields into which a new value may be entered by Users with different security profiles when inserting an Event into the Event Viewer. The actual fields available for users with High, Low or Medium security credentials can be changed directly using Windows Regedit.

Value

Name

High The Data for this value defines the EventHistory table

attributes that a user having the 'High' security token for the Alarm View can change when inserting a message into the Event Viewer.

Value Data Default Data

description, name, questionabletime, loggedtime, priority, condition, acknowledged, cleared, value, alarmlimit, acknowledgedtime, status, suppressed, silenced, accessarea, plantarea, calloutarea, units, display, calloutdisplay, clienttype, operator, alarmtext, devicename, base, extension, attribute, eventtype, helptext, operatortext

Low The Data for this value defines the EventHistory table

attributes that a user having the 'Low' security token for the Alarm View can change when inserting a message into the Event Viewer.

Medium The Data for this value defines the EventHistory table

attributes that a user having the 'Medium' security token for the Alarm View can change when inserting a message into the Event Viewer.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

description

description, alarmtext, devicename, base, extension, hel

text,

Reference Guide

D5092 11-Dec-2007 - Page 61

2.6.13 Help Key

The Help key stores the following value.

Settings Edito

operatortext

Value Name

FOLDER The Data for this key defines where the

OpenEnterprise help files are stored on the host computer. This is decided at installation time.

Value Data Default Data

2.6.14 Login Client Key

The Login Client key stores the following value.

Value Name

PATH The Data for this key

Value Data Default Data

default = C:\Program defines where the Login Client executable is located on the host computer. This is decided at installation time.

Files\Bristol\OpenEnterprise\Bin\OELoginClient.exe

The default values are different depending on the version of Windows on the host machine. XP default = C:\Program Files\Common Files\BristolBabcock\Help Vista default = ?

2.6.15 Mail Server Key

The Mail Server key stores the following value.

Value Name

Database The database that the Mail Server should

connect to.

Value Data Default Data

2.6.16 Monitor Key

There are currently no setup values associated with the Monitor key.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

default = rtrdb1

Reference Guide

D5092 11-Dec-2007 - Page 62

2.6.17 Notes Client Server Key

The Notes Client Server key stores the following values.

Settings Edito

Value Name

Databases A space separated list of databases that the

Notes Client Server will attempt to connect to when it is started. This enables the Notes Client Server to be started and connected to relevant databases before any Notes View clients begin requesting alarm or event data.

BatchSize The maximum number of Notes transactions

that will be packaged by the Notes Server into a single batch before being sent to the Notes View client.

ShowWindow When set to 1, the Notes Client Server's

User Interface will be displayed on startup.

Minimize When set to 1, the Notes Client Server's

User Interface will be displayed minimized on the Windows Start bar at startup.

HideOnMinimize Forces the Notes Client Server to be hidden

when it is minimized. A value of 1 mains the Notes Client Server will be hidden when minimized, zero (0) means The Notes Client Server will not be hidden when minimized.

Value Data Default Data

User defined at installation time.

100

ShowTrayIcon When set to 1, the Notes Client Server icon

will be displayed in the System Tray when it is running. Double clicking on this icon in the System Tray will open the Notes Server's User Interface. If set to zero (0) the Notes Server icon will no longer appear in the System Tray when it is running.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 63

2.6.18 OEArchive File Manager Key

The OEArchiveFileManager key stores the following values.

Settings Edito

Value Name

Log File Type The Data of this value indicates the type of

Log File that is being kept. This value is changed from the View>Options menu on the Archive File Manager's user interface. The options are:-

• No Log File = 0

• Single Log File = 1

• Log File Each Day = 2

Log File Days To Keep

The Data indicates the number of days that each new Log File should remain on disc before the Archive File Manager deletes it.

Value Data Default Data

None

2.6.19 OEBFill Key

The OEBFill key stores the following values. These values are set from the OEBFill configuration interface, which is accessed as a DLL add-in from the OpenBSI Harvester component.

Value Name

Dataservice The data service that the OEBFill

component should connect to.

Value Data Default Data

Defined at installation time.

DisableArchiveProcessing The Data indicates whether archive

processing is disabled. A value of Zero (0) indicates that archive processing is enabled, 1 indicates that archive processing is disabled.

DisableAuditProcessing The Data indicates whether audit

processing is disabled. A value of Zero (0) indicates that audit processing is enabled, 1 indicates that audit processing is disabled.

IgnoreNonImportedArchives For an archive to be successfully

imported, its configuration must first be imported using the NW3000 Archive Configuration tool from the Toolbox. If Data for this value is 1, errors encountered due to lack of archive configuration information in the database will be ignored. However other errors, such as a lack of

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 64

Settings Edito

availability of the database will be reported. Care should be taken when using this option, since the user will receive no notification that the archive data has not been imported, and the data will be lost. If the Data has a value of zero (0), the Converter will report an error when any lack of archive configuration is encountered, and will continue trying to insert the values.

NumberInGroup The Data signifies the number of

values to be inserted by OEBFill into the database in one transaction. Possible Data values are:-

• -1 = Insert all column values from a row of data in one transaction

• 1 = Inserts one column value from a row of data per transaction. All columns from each row will be inserted.

• A positive integer greater than one and equal to or less than the number of columns in each row of data = Insert the given number of columns from each row of data per transaction. All columns from each row will be inserted.

TransDelay The Data signifies the delay, in

milliseconds between each transaction.

-1

2.6.20 OEExcel Plugin Key

The OEExcel Plugin key stores the following values.

Value Name

License Package

The name of the License Package to which the OEExcel Plugin belongs.

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reporting

Reference Guide

D5092 11-Dec-2007 - Page 65

2.6.21 OEScheduler Key

The OEScheduler key stores the following values.

Settings Edito

Value Name

Log File Type The Data of this value indicates the type of

Log File that is being kept. This value is changed from the View>Options menu on the Scheduler's user interface. The options are:-

• No Log File = 0

• Single Log File = 1

• Log File Each Day = 2

Log File Days To Keep

The Data indicates the number of days that each new Log File should remain on disc before the Scheduler deletes it.

Value Data Default Data

2.6.22 OESecurity Manager Key

The OESecurity Manager key stores the following values.

Value Name

Admin Password The encrypted password of the main

administrator user.

Value Data Default Data

None

OED,v1.0,DE

Admin User The name of the main administrator user.

The default Admin User name is coded.

Database The security database to connect to. User configured at

OED01562

installation time.

2.6.23 OEServer Security Manager Key

The OEServer Security Manager key stores the following values.

Value Name

DATABASE The database name that clients

will connect to.

DisableOpenBSISecurityIntegration The Data for this value

determines whether OpenBSI Security integration is enabled.

Value Data Default Data

rtrdb1

For OpenEnterprise installations, this value will be set to 1 (Disabled). For ObjectServer installations, it

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 66

2.6.24 OEToolbox Key

The OEToolbox key stores the following values.

Settings Edito

will be set to zero (0).

Value Name

DisableExportAll If the Data is set to a non-zero value

then the Export All functionality will not be available. On standalone OpenEnterprise Workstations this setting will automatically be set to 1 during installation.

DisableModeMenu If the Data is set to a non-zero value

then the Mode menu functionality will not be available and the user will be unable to switch the Toolbox between Tool and Table mode.

DisableSelectDatabase If the Data is set to a non-zero value

then the File>Select Database menu item will not be available. The user will be unable to change the database that the Toolbox is connecting to.

DisableSaveDatabase If the Data is set to a non-zero value

then the File>Save Database menu option will be disabled.

Value Data Default Data

1 for a Workstation installation, 0 (zero) for a Server or Server/Workstation installation.

1 for a Server or Server Workstation installation, 0 (zero) for a Workstation installation.

1 for a Workstation installation, 0 (zero) for a Server or Server/Workstation installation.

Editors The Data is a comma de-limited

string, listing the ProgramIDs of the Editors that will appear in the OEToolbox. This value has been superceded by the ProgamID value on the key for each Toolbox Tool.

PostExport This Data of this value is the name of

a post-build file, (e.g. .cmd, .exe, .bat), that will be triggered as part of the ‘Export All’ operation. It is set from the 'Export Configuration' dialog, which is accessed from the View>Export Config menu option of the Toolbox. Toolbox will

ass the dataservice of

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

The full commaseparated list of the Program IDs of all the Tools available for the OEToolbox.

Reference Guide

D5092 11-Dec-2007 - Page 67

Settings Edito

the OpenEnterprise Server upon which the ‘Export All’ is being performed, as parameters to the postbuild file. This will allow systems to support multiple databases. Whenever a user triggers an ‘Export All’, Toolbox will first invoke the prebuild file, (e.g. pre_export.cmd). Once this has completed, then the applicable Configuration Tools will be requested to perform their Exports, and then finally the post-build file will be invoked, (e.g. post_export.cmd). Toolbox will inform the user of any error that is returned by the pre and post build files.

PostPassDS If the Data is set to 1, Toolbox will

pass the dataservice of the OpenEnterprise Server upon which the ‘Export All’ is being performed, as parameters to the post-build file. This allows systems to support multiple databases

PostRunVisible If the Data is set to 1, this specifies

that the pre/post-export command file will run in hidden mode and, as such, no user interaction will be possible.

PostTimeout The Data contains the timeout value,

in seconds, for the Post-export command file. If the value is set to zero then the process will wait indefinitely. If the value is not defined in the registry , then a default value of 30 seconds will be used and stored.

PreExport This Data of this value is the name of

a pre-build file, (e.g. .cmd, .exe, .bat), that will be triggered as part of the ‘Export All’ operation. It is set from the 'Export Configuration' dialog, which is accessed from the View>Export Config menu option of the Toolbox. Toolbox will pass the dataservice of the OpenEnterprise Server upon which the ‘Export All’ is being performed, as parameters to the postbuild file. This will allow systems to support multiple databases. Whenever a user tri

ers an ‘Export

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 68

Settings Edito

All’, Toolbox will first invoke the prebuild file, (e.g. pre_export.cmd). Once this has completed, then the applicable Configuration Tools will be requested to perform their Exports, and then finally the post-build file will be invoked, (e.g. post_export.cmd). Toolbox will inform the user of any error that is returned by the pre and post build files.

PrePassDS If the Data is set to 1, Toolbox will

pass the dataservice of the OpenEnterprise Server upon which the ‘Export All’ is being performed, as parameters to the pre-build file. This allows systems to support multiple databases

PreRunVisible If the Data is set to 1, this specifies

that the pre/post-export command file will run in hidden mode and, as such, no user interaction will be possible.

PreTimeout The Data contains the timeout value,

SQLHistoricalFolder The default historical folder.

SQLHistoryFolder The default historical folder.

UseServerSecurityManager ObjectServer mode switch.

WindowPosition Internal window positioning value. None

2.6.24.1 Databases Key

The OEToolbox Databases key stores the following values.

Value Name

CurrentDatabase The name of the current default database

that the Toolbox is connecting to when it is opened.

Database0 A second database that has been

confi

ured for the Toolbox to connect to.

Value Data Default Data

rtrdb1

None.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 69

This and extra databases can be configured and selected using the File>Select Database option when it is enabled. Extra databases will be stored in new keys called Database<N>, where <N> is an appended serial number.

2.6.24.2 Editors Key

This is a parent key for all of the individual Editor keys, and has no values of its own.

Warning: All Editor Keys are set at installation time. They should only be modified from the Tool's own interface. ProgramID and Program values should not be changed by the user.

2.6.24.3 Alarm Conditions Key

The Alarm Conditions key stores the following values.

Settings Edito

Value Name

Configs Description in progress BristolBabcock.OEProductAlarmConditions

ProgramID The Program ID of the Alarm

Condition Editor. Editors can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

2.6.24.4 Alarm Priorities Key

The Alarm Priorities key stores the following values.

Value Name

ProgramID The Program ID of the Alarm

Priorities Editor. Editors can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

Value Data Default Data

BristolBabcock.OEConfigAlarmConditions

Value Data Default Data

BristolBabcock.OEConfigAlarmPriorities

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 70

2.6.24.5 Archive File Access Key

The Archive File Access key stores the following values for the Archive File Configuration Tool.

Settings Edito

Value Name

ProgramID The Program ID of the Archive

File Configuration Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

2.6.24.6 Calculations Key

The Calculations key stores the following values.

Value Name

ProgramID The Program ID of the

Calculations Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

Value Data Default Data

BristolBabcock.OEConfigAlarmPriorities

Export This value represents the order

in which the Toolbox should export the Calculation configuration from the current database when the 'Export All' option is chosen from the Toolbox File menu. If the key is not present, or has a null value, then the Tool is not part of the Export All operation of the Toolbox. This number can be changed by selecting the OEToolbox View>Export Config... menu. Should this key be edited by any other means, e.g. by the registry editor, then the number ma

not be assumed to be

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 71

unique. In the event that one number exists for multiple editors, then the ordering will be made on the order in which the tools are read from the registry.

2.6.24.7 Config Generic Table Key

The Config Generic Table key stores the following values.

Settings Edito

Value Name

ProgramID The Program ID of the

OEToolbox when in Table mode. This mode can be excluded from the OEToolbox by placing its ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool. The option to enable the OEToolbox for Table mode can be disabled by setting the OEToolbox DisableModeMenu option to 1.

2.6.24.8 Diaries Key

The Diaries key stores the following values.

Value Name

Value Data Default Data

BristolBabcock.OEConfigGenericTable

ProgramID The Program ID of the Diaries Tool.

Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

BristolBabcock.OEDiaryConfig

Reference Guide

ging

D5092 11-Dec-2007 - Page 72

2.6.24.9 Historical Config Key

The Historical Config Key stores the following values.

Settings Edito

Value Name

ProgramID The Program ID of the Historical

Configuration Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

Export The data for this value represents the

order in which the Toolbox should export the Historical configuration from the current database when the 'Export All' option is chosen from the Toolbox File menu. If the key is not present, or has a null value, then the Tool is not part of the Export All operation of the Toolbox. This number can be changed by selecting the OEToolbox View>Export Config... menu. Should this key be edited by any other means, e.g. by the registry editor, then the number may not be assumed to be unique. In the event that one number exists for multiple editors, then the ordering will be made on the order in which the tools are read from the registry.

Value Data Default Data

BristolBabcock.OEDiaryConfig

2.6.24.10 Messaging Key

The Messaging Key stores the following values.

Value Name

PROGRAM The full path and filename of the

Messaging Configuration Tool

COMMANDLINE The data for this value defines the

parameters that will be used when the Messa

Value Data Default Data

Configuration tool

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

C:\Program Files\ Bristol\ OpenEnterprise\ bin\ OEMessagingConfig.exe

-s%Database% -u%User% p%Password%

Reference Guide

D5092 11-Dec-2007 - Page 73

Settings Edito

is started. It is set by the installation routine.

MULTIPLE The data for this value is an

integer which specifies whether the Tool can have multiple instances. A non-zero value means multiple instances are allowed.

2.6.24.11 Monitor Key

The Monitor Key stores the following values.

Value Name

PROGRAM The full path and filename of the Monitor

Tool

COMMANDLINE The data for this value defines the

parameters that will be used when the Messaging Configuration tool is started. It is set by the installation routine.

MULTIPLE The data for this value is an integer which

specifies whether the Tool can have multiple instances. A non-zero value means multiple instances are allowed.

Value Data Default Data

C:\Program Files\ Bristol\ OpenEnterprise\ bin\ OEMonitor.exe

-s%Database%

2.6.24.12 NW3000 Advanced Key

The NW3000 Advanced Key strores the following values.

Value Name

ProgramID The Program ID of the NW3000

Advanced Config Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

IconVisible The data determines whether the

Icon for the NW3000 Advanced Configuration Tool will be displayed in the Toolbox. 1 = Icon visible, 0 = Icon not directly visible. B

default, it is only available from

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

BristolBabcock.OEConfigNW3000

Reference Guide

D5092 11-Dec-2007 - Page 74

the [Advanced] button of the NW3000 Setup tool.

2.6.24.13 NW3000 Archives Key

The NW3000 Archives Key stores the following values.

Settings Edito

Value Name

Program The full path and filename

of the NW3000 Archives Tool. Used by Toolbox when launching the application. It is set by the installation routine.

COMMANDLINE The data for this value

defines the parameters that will be used when the tool is started by the Toolbox. It is set by the installation routine.

MULTIPLE The data for this value is an

integer which specifies whether the Tool can have multiple instances. A nonzero value means multiple instances are allowed.

Export The data for this value

represents the order in which the Toolbox should export the NW3000 Archives configuration from the current database when the 'Export All' option is chosen from the Toolbox File menu. If the key is not present, or has a null value, then the Tool is not part of the Export All operation of the Toolbox. This number can be changed by selecting the OEToolbox View>Export Config... menu. Should this key be edited by any other means, e.g. by the registry editor, then the number may not be assumed to be uni

Value Data Default Data

ue. In

C:\Program Files\ Bristol\ OpenEnterprise\ bin\ OENW3000ArchiveConfig.exe

-s%Database% -u%User% p%Password% -e%EditorId% f%FolderId%

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 75

the event that one number exists for multiple editors, then the ordering will be made on the order in which the tools are read from the registry.

2.6.24.14 NW3000 Config Key

The NW3000 Config Key stores the following values.

Settings Edito

Value Name

ProgramID The Program ID of the NW3000

Setup Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

2.6.24.15 NW3000 Signal Builder Key

The NW3000SignalBuilder Key stores the following values.

Value Name

PROGRAM The full path and filename of the NW3000

Signal Builder Tool

Value Data Default Data

BristolBabcock.OENW3000setup

Value Data Default Data

C:\Program Files\ Bristol\ OpenEnterprise\ bin\ DBB.exe

COMMANDLINE The data for this value defines the

parameters that will be used when the tool is started. It is set by the installation routine.

MULTIPLE The data for this value is an integer which

specifies whether the Tool can have multiple instances. A non-zero value means multiple instances are allowed.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

-s%Database% -u -v60

Reference Guide

D5092 11-Dec-2007 - Page 76

2.6.24.16 NW3000 Template Builder Key

The NW3000 Template Builder Key stores the following values.

Settings Edito

Value Name

PROGRAM The full path and filename of the NW3000

Template Builder Tool

COMMANDLINE The data for this value defines the

parameters that will be used when the tool is started. It is set by the installation routine.

MULTIPLE The data for this value is an integer which

specifies whether the Tool can have multiple instances. A non-zero value means multiple instances are allowed.

2.6.24.17 Object Unlock Key

The Object Unlick Key stores the following values.

Value Name

Value Data Default Data

C:\Program Files\ Bristol\ OpenEnterprise\ bin\ TPB.exe

-s%Database%

ProgramID The Program ID of the Object

Unlock Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

BristolBabcock.OEConfigObjectUnlock

Reference Guide

D5092 11-Dec-2007 - Page 77

2.6.24.18 OPC Client RDI Key

The OPC Client RDI Key stores the following values.

Settings Edito

Value

Name

ProgramID The Program ID of the OPC Client

Config Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

Export This value represents the order in

which the Toolbox should export the OPC Client configuration from the current database when the 'Export All' option is chosen from the Toolbox File menu. If the key is not present, or has a null value, then the Tool is not part of the Export All operation of the Toolbox. This number can be changed by selecting the OEToolbox View>Export Config... menu. Should this key be edited by any other means, e.g. by the registry editor, then the number may not be assumed to be unique. In the event that one number exists for multiple editors, then the ordering will be made on the order in which the tools are read from the registry.

Value Data Default Data

BristolBabcock.OEOPCClientConfig

2.6.24.19 Patterns Key

The Patterns Key stores the following values.

Value Name

ProgramID The Program ID of the Patterns Tool.

Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

2.6.24.20 Reporting Key

The Reporting Key stores the following values.

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

BristolBabcock.PatternConfig

Reference Guide

D5092 11-Dec-2007 - Page 78

Settings Edito

Value Name

Program The full path and

filename of the Report Configuration Tool. Used by Toolbox when launching the application. It is set by the installation routine.

COMMANDLINE The data for this value

defines the parameters that will be used when the tool is started by the Toolbox. It is set by the installation routine.

MULTIPLE The data for this value is

an integer which specifies whether the Tool can have multiple instances. A non-zero value means multiple instances are allowed.

Value Data Default Data

C:\ Program Files\ Bristol\ OpenEnterprise\ bin\ ReportConfigurationTool.exe

-s%Database% -u%User% p%Password%

Export The data for this value

will be made on

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 79

Settings Edito

the order in which the tools are read from the registry.

Show Welcome Page

2.6.24.21 Security Configuration Key

The Security Configuration Key stores the following values.

Value Name

ProgramID The Program ID of the Security

Configuration Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

The data, if none zero specifies that the Welcome page should be shown when the Report Configuration Tool starts up. If set to zero (0), the Welcome page will not be shown.

Value Data Default Data

BristolBabcock.OEConfigAlarmPriorities

Export This value represents the order

in which the Toolbox should export the Security configuration from the current database when the 'Export All' option is chosen from the Toolbox File menu. If the key is not present, or has a null value, then the Tool is not part of the Export All operation of the Toolbox. This number can be changed by selecting the OEToolbox View>Export Config... menu. Should this key be edited by any other means, e.g. by the registry editor, then the number must be unique. In the event that one number exists for multiple editors, then the ordering will be made on the order in which the tools are read from the registry.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 80

2.6.24.22 Security Group Privileges Key

The Security Group Privileges Key stores the following values.

Settings Edito

Value Name

PROGRAM The full path and

COMMANDLINE The data for this

MULTIPLE The data for this

Value Data Default Data

filename of the NW3000 Signal Builder Tool

value defines the parameters that will be used when the tool is started. It is set by the installation routine.

value is an integer which specifies whether the Tool can have multiple instances. A nonzero value means multiple instances are allowed.

C:\Program Files\ Bristol\ OpenEnterprise\ bin\ SecurityGroupPrivilegesTool.exe

-s%Database% -u%User% -p%Password%

2.6.24.23 Suppression Groups Key

The Suppression Group Key stores the following values.

Value Name

ProgramID The Program ID of the

Suppression Groups Tool. Configuration tools can be excluded from the OEToolbox by placing their ProgramID string in the Exclude list for a User or User Group in the Security Configuration Tool.

2.6.24.24 OEHistorical Config Key

The OEHistorical Config Key contains no values.

Value Data Default Data

BristolBabcock.ConfigSuppressionGroups

2.6.25 Paging Config Key

The Paging Config Key stores the following values.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

ging

D5092 11-Dec-2007 - Page 81

Settings Edito

Value Name

DefaultDatabase The data specifies the database that the

Paging Config Tool should connect to at startup.

Value Data Default Data

2.6.26 Paging Server Key

The Paging Server Key stores the following values.

Value Name

DataService The data

License Package The data

Value Data Default Data

Set at installation time. specifies the data service from which the Paging Server obtains the Paging setup.

Paging Server contains the name of the license package

Set at installation time.

DailyLogFile Data specifies

whether a new log file will be created for each day. Set to 1 to force a new file to be generated for the log each day.

DebugLogActive Activate (1) or

deactivate (0) the debug log.

DebugLogDays Number of

days to keep the debug log.

DisplayLogEnabled Setting the

Data to 0 will prevent messages appearing in the Pa

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 82

Settings Edito

Server application, though messages may still appear in the log

DisplayLogMaxEntries Maximum

number of lines to show within the Paging Server.

IgnoreStartupAlarms Setting the

Data to 1 causes the Messaging Server to not scan the Alarm Summary table when it is launched. This value is set from the Overview tab of the Messaging Server.

IncorrectAckJournal Whether the

application will send an email to a recipient if they incorrectly ACK an alarm. 0 will be FALSE any other value will be TRUE.

LineAddressExclusion Semi-colon

delimited list of lines (modems) not to use with the paging system.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

None

Reference Guide

D5092 11-Dec-2007 - Page 83

Settings Edito

LogFileName Name of the

standard log file used to store messages.

LogFileEnabled Activate (1) or

deactivate (0) the standard log file.

ModemDelayBetweenCalls Specifies the

number of seconds a modem queue should wait after finishing its call and before commencing the next call.

Optimistic Whether the

application will be run in Optimistic mode. 0 will be FALSE any other value will be TRUE.

XP default: C:\Settings and

Documents\<Username>\<Users>

Documents\Bristol\OpenEnterprise\Output Files

Vista default:

<UserDocuments>\Bristol\OpenEnterprise\Output

Files\

None

POP3CheckInterval The numbers

of seconds in between each check of the POP3 Inbox on the POP3 Server.

POP3HostName The Network

Name or IP address of the SMTP Server.

POP3HostPort The Port

Number of the SMTP Server.

POP3Password The Password

to connect to a POP3 Server with.

None

110

None

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 84

Settings Edito

POP3ToAddress The E-mail

address that will appear in the ‘From’ field of Alarm E-mails.

POP3ToName The readable

name that Alarm E-mails will be from

POP3Username The

Username for logging onto the POP3 Server.

SMTPAuthType Choice of four

Auth types:CRAM, MD5, AUTH LOGIN or PLAIN LOGIN

SMTPFromAddress Email address

that will represent the Paging Server.

None

SMTPFromName Readable

name such as 'Project Paging Server’

SMTPHostName IP address of

name of the server that is running the SMTP server.

SMTPHostPort Port on which

the SMTP server is running.

SMTPPassword Password for

authentication.

SMTPUsername Username for

authentication.

None

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 85

Settings Edito

Wildcard String that will

be interpreted in Pattern matching as a wildcard.

None

2.6.27 RDI3000 Key

The RDI3000 Key stores the following values.

Value Name

EnableBSAUTO Set to 1 to use BSAUTO to start

OpenBSI. Used in conjunction with BSAUTOFormatString. When set to 0, the BSIStartSys API call will be used to start OpenBSI.

BSAUTOFormatString The format string used as the

BSAUTO command line.

Value Data Default Data

"BSAUTO -std SYSTEM SYSTEM %s" - without the quotes. Where %s represents the NDF filename specified within the nw3000driver. obsistartndf attribute.

CommStatus The pseudo signal name used

by OpenBSI to identify an OpenBSI generated communication status alarm.

CommStatusOnline The ON text associated with an

OpenBSI communication status alarm.

CommStatusOffline The ON text associated with an

OpenBSI communication status alarm.

DriverSwitchRtu The pseudo signal name used

to identify an OpenBSI local alarm that signifies an RTU is being switched line. Usually used when backup lines are being used.

DriverDialStat The pseudo signal name used

to identify an OpenBSI local alarm that si

nifies an RTU is

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

"COMM.STATUS" without the quotes.

"ONLINE" - without the quotes.

"OFFLINE" - without the quotes.

“DriverSwitchRtu” without the quotes.

“DriverDialStat” without the quotes.

Reference Guide

D5092 11-Dec-2007 - Page 86

Settings Edito

being dialled.

CollectArchives The signal name of a remote

alarm report that indicates Archives require collecting by OpenBSI Harvester. The receipt of this remote alarm report will result in rdi3000 requesting an Archive collection from Harvester. This functionality is only enabled when bit x of nw3000driver.options is set.

EnableCollectAnaAlmStates Enable or disable the collection

of analog alarm states through template data collection. When set to 1, the appropriate columns in the nw3000realanalog table are locked for update by the rdi. When set to 0, the columns are not locked.

OnDemandFile The name of the application to

execute in order to update a database using DSN. This is used to update the Harvester database to perform an on demand collection for an RTU.

"system.CollectArch" without the quotes.

0 (disabled).

No default value. If required then the “UpdateDSN.exe” executable can be used.

OnDemandFormatString The SQL string used to request

an on demand collection within the Harvester database.

OnDemandFolder The working directory to run the

application named by the OnDemandFile registry value.

OnDemandDSN The ODBC DSN name for the

Harvester database. This is used as the –d switch for UpdateDSN.exe.

OnDemandVerbose When set to 1, the UpdateDSN

application will log messages to UpdateDSN.txt. This is used to set the –v switch for UpdateDSN.exe.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

“UPDATE fields SET ondemand = true WHERE node = '%s'”. Where %s is substituted for the RTU name.

See 'OnDemandFile'

None

0 (disabled)

Reference Guide

D5092 11-Dec-2007 - Page 87

Settings Edito

ThrottlingScheme Used to set the BSAP request

message throttling scheme to use. When set to 0, a BSAP request message is sent to OpenBSI if the rdi has not consumed more than half its available wait packets. This scheme potentially uses the highest amount of OpenBSI resources. When set to 1, the maximum number of outstanding requests for a device is strictly adhered to. This value is set by the nw3000driver.reqPerDevice and has a default value of 5 i.e. only 5 outstanding requests can be queued at OpenBSI at any one time – all other pending requests for the device are queued within the rdi. Note that this limit does not apply to write messages which are always sent if OpenBSI resources allow.

0 (disabled)

DeviceStatusOnline When set to 1, the status

attribute within the nw3000device table will reflect the communications state of the RTU. The status attribute will have a value of 0 when the device is healthy and 1 when the rdi cannot communicate with the device. When set to 0, the status attribute will not be updated with the communications status and will typically always have a value of 0. The online attribute in the nw3000device table will always be updated regardless of the DeviceStatusOnline registry value.

EnableQuietAlarms When set to 1, the rdi will

attempt to update the following signal attributes in order to reflect the current alarm state of the signal: inAlarm, acknowledged, cleared, alarmPriority and alarmType.

None

0 (disabled)

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 88

Settings Edito

This relies upon templates having been built that collect the additional alarm states for remote signals. This functionality is typically used when the OpenEnterprise Server cannot receive remote alarm reports.

SuppressOpenBSIStatsReset When set to 1, a statistics reset

will only reset local rdi statistics and not reset OpenBSI statistics. When set to 0, OpenBSI statistics are also reset.

DisableTimestampAdjustment Set to 1 to disable remote alarm

timestamp localtime to UTC adjustment. By default, remote alarm timestamps are in localtime and database timestamps are UTC.

DSTQDelta The number of seconds

following a System DST change where a remote alarm timestamp will be marked as questionable (when converted from localtime to UTC).

EnablePWRUPTpls When set to 1, the receipt of a

remote alarm report for the #PWRUP signal will cause a template collection to commence.

None

EnablePWRUPRbe When set to 1, the receipt of a

remote alarm report for the #PWRUP signal will cause a RBE collection of initial values to commence.

TplExclusion When a non-periodic template

collection request occurs, if the next scheduled collection will occur within TplExclusion seconds, the manual request will be ignored.

EnableSanityAlarmThrottle When set to 1, the OpenBSI

BSIAlmThrottle API call will be called once every sanity period.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

None

Reference Guide

D5092 11-Dec-2007 - Page 89

Settings Edito

PendingRequestTimeout Specifies a number of seconds

for which any OpenBSI pending requests are removed if they have been pending for longer than the specified time. When used, the value must be set greater than the request timeout value used by OpenBSI.

WaitPacketTimeoutMultiplier The RDI3000 periodically

checks its internal wait packet queue, looking for RTU requests for which no response has been received. If any such requests are found, they are timed-out with a completion status of -

1003. The functionality is enabled by default and the internal wait packet timeout will be approximately 3 times the default RTU message timeout defined within OpenBSI. Set to 0 (zero) to disable internal wait packet timeout checking. A value greater than zero results in a wait packet timeout of (WaitPacketTimeoutMultiplier * default RTU message timeout) seconds.

2.6.28 Report Scheduler Key

The Report Scheduler Key stores the following values.

Value Name

License Package The License Package name. Reporting

Value Data Default Data

2.6.29 Session Manager Key

The Session Manager Key stores the following values.

Value Name

License Package The License Package name. OpenEnterprise

EnableTimestamps Determines whether timestamps

appear in the Session Manager's events window. 1 = Timestamps enabled, 0 = Timestamps disabled.

Value Data Default Data

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 90

Settings Edito

ArbitratorHeartbeat Determines whether the Session

Manager sends a heartbeat to the arbitrator.

DisableStopOEWarning Disables the warning message when

the Stop menu option is used on a redundant system.

Password Sets a password for the dialog that

appears when the Stop option is selected from the Session menu whilst a redundant session is running.

0 (for standalone), 1 (for redundant)

Must be set to 1 by user to disable the warning.

N/A

2.6.30 Settings Key

The Settings Key stores the following values. They relate to the restore points functionality of the Settings Editor.

Value Name

LogFileMaxSize The maximum size that the single

Settings Editor Log file should get to before it begins deleting 10% of the oldest entries to make way for the latest entries.

Value Data Default Data

10000 bytes (10K)

LogFileRetentionDays The number of days to keep each

days Log file before deletion. This option is only available when the option to create a new Log file each day is selected.

LoggingMode Toggles Logging mode between Daily

and Single Log file. 1 = Daily mode.

RestorePointIntervalDays Defines an automatic restore point

interval in days.

RetentionDays The number of days to keep each

restore point before deletion.

0 (single)

1 (day)

28 (days)

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 91

2.6.30.1 Restore Points Key

This key is the parent key for each restore point that is created. It has no values associated with it directly.

Each restore point that is created has its own key. The name is a unique number, and is created by the Settings Editor. These are the values associated with individual restore point keys.

Settings Edito

Value Name

Description A description of the restore point. "Automatically

Keep Determines whether to keep the restore point permanently.

1 = keep, 0 = do not keep.

Name The name of the restore point file. Format =

RestorePoint<Year><Month><Day>_<HH><MM><SS>.tmp.

Value Data Default Data

created" if automatically created. Otherwise user provides the description.

N/A

2.6.31 Settings Editor Key

The Settings Editor Key stores the following values.

Value Name

Value Data Default Data

DoNotShowWarning Determines whether the Settings Editor

shows the warning dialog on startup.

SearchText The text that was last used to search the

Log File Viewer within the Settings Editor.

Selection The last key that was selected before the

Settings Editor was closed previously.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

None

Reference Guide

D5092 11-Dec-2007 - Page 92

2.6.32 TimeServer Key

The TimeServer Key stores the following values.

Settings Edito

Value Name

Database The database that the TimeServer

connects to.

Time Zone The time zone set for the OpenEnterprise

project.

UseServerSecurity

Value Data Default Data

rtrdb1

GMT

2.6.33 TPB Key

The TPB Key stores the following values. They affect the Poll List Builder component.

Value Name

EnableCollectAlmPriorities The Poll List Builder can be

configured to collect signal alarm priority data from Bristol RTUs by setting this value to 1. This is turned on by checking the appropriate boxes on the Poll List Builder's interface.

Note:

It is not recommended that remote alarm collection is mixed with alarm data template collection on the same OpenEnterprise Server. Alarm data collection by template is intended for use with OpenEnterprise Servers that cannot receive remote alarm reports.

Value Data Default Data

EnableCollectAlmStates The Poll List Builder can be

configured to collect signal alarm state data from Bristol RTUs by setting this value to 1. This is turned on by checking the appropriate boxes on the Poll List Builder's interface.

Note:

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 93

Settings Edito

2.6.34 Window Manager Key

The Window Manager Key is the parent key for the Child Applications Key and the Commands Key. It stores the following values, which apply to the OEDesktop component.

Value Name

MultiDesktopEnable Set the value to 1 to enable multiple

configurations and instances of OEDesktop to be run on the same Workstation.

Message Delay Set this and the Retry Reply value to

Zero in order to prevent the two OLE dialogs (Server Busy and Server Not Responding) from being displayed.

Retry Reply Set this and the Message Delay

value to Zero in order to prevent the two OLE dialogs (Server Busy and Server Not Responding) from being displayed.

Toggle MaxSize MDI Default data value = "Toggle

MaxSize MDI". If this value is present the OEDesktop toolbar will display an extra couple of buttons. One button toggles the selected child window to/from maximum size (filling the whole OE Desktop window area available and hiding the child window title bar). The other restores the OE Desktop to maximum size if it is not currently at maximum screen size. This is an optional value.

Value Data Default Data

N/A

SuppressFileTokenMessage

2.6.34.1 Child Applications Key

The Child Applications Key has no associated values of its own.

NOTE:

The values on these keys are created and maintained by the OpenEnterprise application. They are not to be changed manually. To do so could cause the OpenEnterprise HMI to fail. They are listed here purely for information.

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 94

2.6.34.1.1 Alarm Banner Control Key

The Alarm Banner Control Key stores the following values.

Settings Edito

Value Name

Description A brief description of the

component.

Document String

ProgID The Program ID of the

2.6.34.1.2 Alarm Client Control Key

The Alarm Client Control Key stores the following values.

Value Name

Description A brief description of the

A string expression that defines the extension and description used by files created from the component.

component.

Value Data Default Data

OE Alarm Banner

OE Alarm Banner Displays (*.abd)|*.abd||

BristolBabcock.OEAlarmBannerCtrl.1

Value Data Default Data

OE Alarm View

Document String

ProgID The Program ID of the component. BristolBabcock.AlarmClientControl.1

Default Directory

2.6.34.1.3 Alarm Printer Control Key

The Alarm Printer Control Key stores the following values.

Value Name

Description A brief

Document String

A string expression that defines the extension and description used by files created from the component.

The default directory where files of this type are stored.

Value Data Default Data

OE Alarm Printer View description of the component.

A string ex

ression

OE Alarm Printer Views (*.apc)|*.apc||

OE Alarm View Displays (*.ac)|*.ac||

<OEStore>\AlarmClient

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 95

that defines the extension and description used by files created from the component.

Settings Edito

ProgID The

Program ID of the component.

2.6.34.1.4 Notes Control Key

The Notes Control Key stores the following values.

Value Name

Description A brief description of the

component.

Document String

ProgID The Program ID of the component. BristolBabcock.OENotesClientCtrl.1

2.6.34.1.5 Report Selector Control Key

The Report Selector Control Key stores the following values.

A string expression that defines the extension and description used by files created from the component.

OEALARMPRINTERCLIENT.OEAlarmPrinterClientCtrl.1

Value Data Default Data

OE Alarm Notes View

OE Notes (*.ncd)|*.ncd||

Value Name

AssemblyLocation The location of the

AssemblyName The name of the

Bitmap The name of the

Value Data Default Data

assembly containing the required control. If empty the location is assumed to be the installation 'bin' directory.

assembly containing the required control.

bitma

, within the

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

<Install>\bin

ReportSelectorThickClient.dll


Reference Guide

D5092 11-Dec-2007 - Page 96

Settings Edito

assembly, used to represent the control type.

Default Directory The default directory

for saving configuration files.

Default File The name of the

default file to open, this file will be opened when a new control is created.

Description A brief description of

the component.

Document String The filter string used

in the open and save dialogs

Icon The name of the icon,

within the assembly, used to represent the control type.

ProgID The Program ID of the

component.

TypeName The type name of the

control within the assembly

<OEStore>\Reports

<OEStore>\Reports\rtrdb1.rpv

OE Report Selector

OE Report Selector Files (*.rpv)|*.rpv||

ReportSelector.ico

BristolBabcock.OENotesClientCtrl.1

ReportSelectorCtl

2.6.34.1.6 Signal View Control Key

The Signal View Control Key stores the following values.

Value Name

Description A brief description of the

component.

Document String

ProgID The Program ID of the

A string expression that defines the extension and description used by files created from the component.

component.

Value Data Default Data

OE Signal View

OE Signal View Files(*.sgv)|*.sgv||

OESIGNALVIEW.OESignalViewCtrl.1

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 97

2.6.34.1.7 SQL Viewer Control Key

The SQL View Control Key stores the following values.

Settings Edito

Value Name

Default Directory

Description A brief description of the

Document String

ProgID The Program ID of the

2.6.34.1.8 Trend Client Control Key

The Trend Client Control Key stores the following values.

Value

Name

The default directory for files saved from this component.

component.

A string expression that defines the extension and description used by files created from the component.

component.

Value Data Default Data

<OEStore>\SQLView

OE SQL View

OE Query Definition Views (*.dbx)|*.dbx||

OESQLVIEWER.OESQLViewerCtrl.1

Value Data Default Data

Default Directory

DefaultFile The default filename to use for this

Description A brief description of the

Document String

ProgID The Program ID of the component. BristolBabcock.OETrendClientCtrl.1

2.6.34.1.9 Web Client Control Key

The Web Client Control Key stores the following values.

Value Name

Default Directory

The default directory for files saved from this component.

component.

A string expression that defines the extension and description used by files created from the component.

Value Data Default Data

The default directory for files saved from this component.

<OEStore>\Trends

<OEStore>\Trends\<filename>.tvd

OE Trend View

OE Trend Views (*.tvd)|*.tvd||

<OEStore>\SQLView

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 98

Settings Edito

Description A brief description of the

component.

Document String

ProgID The Program ID of the

2.6.34.2 Commands Key

The Commands Key stores the following value.

Value Name

DllList A list of action dlls.

2.6.34.2.1 OECmdDBUpdate Key

The OECmdDBUpdate Key stores the following values.

Value Name

A string expression that defines the extension and description used by files created from the component.

component.

Value Data Default Data

OE SQL View

OE Query Definition Views (*.dbx)|*.dbx||

OESQLVIEWER.OESQLViewerCtrl.1

ProgID The Program ID of the component. OECmdDbUpdate.OEActionDLL.1

Target ProgID List

2.6.34.2.2 OECmdLaunchApp Key

The OECmdLaunchApp Key stores the following values.

Value

Name

ProgID The Program ID of the component. OECmdLaunchApp.OEActionDLL.1

Target ProgID List

2.6.34.2.3 OECmdLoadFile Key

The OECmdLoadFile Key stores the following value.

Value Name

ProgID The Program ID of the component. OECmdLoadFile.OEActionDLL.1

A list of the Progam IDs of the OEMenus target.

Value Data Default Data

The Progam ID of the target. OECmdLaunchApp.OEActionDLL.1

Value Data Default Data

OECmdDbUpdate.OEActionDLL.1

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 99

2.6.34.2.4 OECmdLoadParamFile Key

The OECmdLoadParamFile Key stores the following value.

Settings Edito

Value Name

ProgID The Program ID of the

component.

2.6.34.2.5 OECmdLoadTagListFile

The OECmdLoadTagListFile Key stores the following values.

Value

Name

ProgID The Program ID of the component. OECmdLaunchApp.OEActionDLL.1

Source ProgID List

Target ProgID List

2.6.34.3 OE Control Displays Key

The OE Control Displays Key has no current values.

The Program ID of the OEMenus source.

The Progam ID of the OEMenus target.

Value Data Default Data

OECmdLoadParamFile.OEActionDLL.1

Value Data Default Data

Gwx32.Display

OECmdLaunchApp.OEActionDLL.1

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Reference Guide

D5092 11-Dec-2007 - Page 100

Settings Edito

3 Index

Actions List ................................................ 31

Alarm Banner Control Key ...................... 110

Alarm Client Control Key......................... 111

Alarm Client Server Key ............................ 50

Alarm Conditions Key................................ 78

Alarm Printer Control Key ....................... 111

Alarm Printer Key ......................................53

Alarm Printer Server Key .......................... 53

Alarm Priorities Key................................... 79

Arbitrator Key ............................................ 43

Archive File Access Key............................ 79

Bristol HDA Server Key ............................. 54

Bristol OPC Server Key............................. 55

BSI Commstats Import Key....................... 58

Calculations Key ....................................... 80

Child Applications Key ............................ 110

Command line options ................................ 1

Commands Key....................................... 116

COMServer Key ........................................ 59

Config Generic Table Key ......................... 81

Connection Overrides Key ........................ 51

Copy .......................................................... 24

Create

restore point before restoring ................ 33

Create........................................................ 33

Create restore point before restoring ........ 33

Creation Date ............................................ 34

Current Log File ........................................ 35

Database Explorer Key ............................. 60

Database Upgrade Key ............................. 65

Databases Key .......................................... 78

DataLink Key ............................................. 44

DataServices Key...................................... 38

Days

Keep Restore Points ..............................36

Days.....................................................35, 36

Days to Keep Restore Points ....................36

DBB Key ....................................................65

Delete ..........................................................9

Description.................................................34

Diaries Key ................................................81

Directories Key ..........................................39

DiskSpace Key ..........................................45

Edit.........................................................7, 66

Edit Permissions Key.................................66

Editors Key ................................................78

Event Viewer Key ......................................66

Export ........................................................12

Fault Tolerance Key ..................................42

Find Dialog.................................................26

Find Next .............................................27, 30

Find Next Occurrence................................27

Find Previous.......................................27, 31

Find Previous Occurrence .........................27

Find Text....................................................30

Help Button ................................................31

Help Key ....................................................67

Historical Config Key .................................82

Import.....................................................4, 58

Keep Restore Points

days........................................................36

Keep Restore Points..................................36

Keys.............................................................6

Left pane....................................................10

Log File ......................................................28

Log File Viewer ............................................7

Remote Automation Solutions

Website: www.EmersonProcess.com/Remote

Remote Automation Solutions Guide: OpenEnterprise Settings Editor Reference Guide Manuals & Guides

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Command line options

1.2.1 Do not show this message again

1.3.1.3 Log File Viewer
